TRENDnet TEW-AI75O User manual

TEW-AI75O Omni Antenna provides more power and greater range
for your wireless network. As an optional antenna for your IEEE
802.11b/g 2.4GHz or 802.11a 5GHz wireless network equipment,
TEW-AI75O will significantly improve signal strength and quality.
TEW-AI75O will work with any brand of devices with reverse SMA
male connector!
* This dBi gain does not factor cable loss. Performance
estimations are for typical use; range will vary with site conditions.
TEW-AI75O
Dual-Band 802.11a/g 7/5dBi Indoor Omni
Antenna
TEW-AI75O
rev:01.30.2006
• Compatible with 2.4GHz 802.11b/g or 5GHz 802.11a wireless devices.
• Works with any brand of wireless devices with reverse SMA male connector
• Serves as an indoor omni relocation antenna
• Enhances wireless coverage and improve signal transmission and reception
• Adjustable antenna face can tile up to 180° and rotate up to 360° for optimal performance.
• No configuration or installation software required
• 3-Year Warranty
FEATURES
ANTENNA
SOLUTION
Adjustable Antenna Face Tilt 180° and Rotate 360°
Antenna Solution

Temperature
Humidity • 95% at 25°C
• -10°C ~ 55°C (14°F ~ 131°F)
Hardware
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet
products and is subject to change at any time, without notice. For the most recent product information please visit
http://www.trendnet.com.
©
Copyright TRENDnet. All Rights Reserved.
Dual-Band 802.11a/g 7/5dBi Indoor Omni Antenna
TEW-AI75O
RELATED PRODUCTS
PACKAGE CONTENTS

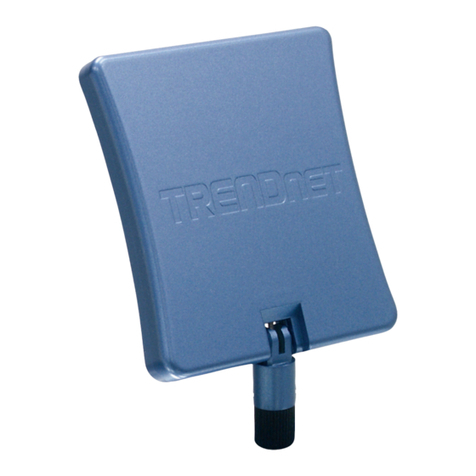

TEW-AI86D
TEW-AI86DB
TEW-AI75OB Dual-Band 802.11a/g 7/5dBi Indoor Omni Antenna
with Mounting Base
Dual-Band 802.11a/g 8/6dBi Indoor Directional Antenna
• TEW-AI75O
Dual-Band 802.11a/g 8/6dBi Indoor Directional Antenna
with Mounting Base
• Multi-Language User's Guide
ORDERING INFORMATION
To Order Please Call:
1-888-326-6061
3135 Kashiwa Street,Torrance, CA 90505 USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.trendnet.com
RADIATION PATTERNS
SPECIFICATIONS
Gain
Connector
VSWR
Polarization
HPBW/ Horizontal
HPBW/ Vertical
Weight
Dimension
• 802.11a: 4.9 ~ 5.875GHz • 802.11b/g: 2.4 ~ 2.5GHz
• 50 Ohms
• 802.11b/g: 7dBi • 802.11b/g: 5dBi
• Reverse SMA Female
• 217 x 28 x 14 mm (8.5 x 1.1 x 0.55 in.)
• 2.0:1
• Linear, Vertical
• 360°
• 802.11a: 25° • 802.11b/g: 35°
• 41g (1.4oz.)
• 2W (cw)
Power Handling
Impedance
Frequency range
