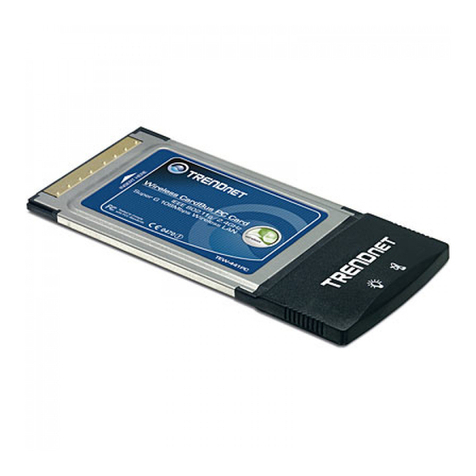

TRENDnet TEW-443PI User manual

TEW-441PC
TEW-443PI
Quick Installation Guide

Table of Contents
Table of Contents
Version 04.25.2006
English .....................................................................................................
Troubleshooting ........................................................................................
1
1
2
6
8
1. Before You Start
2. .....................................................................................
................................................................................
How to Install
3. Using the Wireless Adapter ..............................................................

System Requirements
Application
32-bit CardBus Type II Card slot (TEW-441PC)
32-bit PCI 2.2 slot (TEW-443PI)
CD-ROM Drive
CPU: Intel Pentium 300MHz or above
Memory: 32MB RAM or above
Windows XP/2000/ME/98SE
TEW-441PC/TEW-443PI
Utility & Driver CD-ROM
Quick Installation Guide
Package Contents
1. Before You Start
English
1
Notebook with
108Mbps 802.11g
Wireless PC Card
(TEW-441PC)
108Mbps
Wireless Access Point
(TEW-450APB)
802.11g
Workstation with
108Mbps 802.11g
Wireless PCI Adapter
(TEW-443PI)
108Mbps Wireless
Cable/DSL
Modem
Internet

2. How to Install
English
2
1. Insert the Utility & Driver CD-
ROM into your computer's CD-
ROM Drive and then click Install
Utility.
2. Follow the InstallShield Wizard
instructions. When prompted to
restart computer, select No and
then click Finish.
Important! DO NOT install the PCI adapter or PC Card in the computer until
instructed to do so.
For Windows Users

English
3
Note: Please refer to your computer's user manual regarding hardware
installation. Then proceed to the appropriate section below.
TEW-441PC
TEW-443PI
4. Insert PC Card firmly into an
available PC Card slot of the
notebook PC and then turn ON the
computer and wait until the
Windows desktop appears.
8. Insert PCI Card firmly into an
available PCI Card slot of the
desktop PC, attach the included
antenna, and then turn ON the
computer and wait until the
Windows desktop appears.
3. Shutdown your computer.
6. Shutdown your computer.
5. Go to Step 9.
7. Open your computer's case.

10. The Found New Hardware
Wizard appears. Select No, not
this time and then click Next.
9. Select the appropriate country
domain and then click OK.
English
4
Windows XP
11. Click Install the software
automatically and then click
Next.

12. Click Finish.
Windows 2000 will automatically detect and install the appropriate drivers.
Windows 2000
For detailed information regarding the TEW-441PC/TEW-443PI configuration
and advanced settings, please refer to the User's Guide included on the Utility
& Driver CD-ROM or TRENDnet's website at www.trendnet.com
Your installation is now complete.
English
5

1. Go into the Control Panel and
double-click Network
Connections icon. Right-click
Wireless Network Connection
icon and click Properties.
Note: Windows XP Wireless Zero Configuration utility must first be disabled. If
it is already disabled, then go to Step 4.
English
6
3. Using the Wireless Adapter
2. Click the Wireless Networks tab,
uncheck Use Windows to
configure my wireless network
settings, and then click OK.
3. Double-click the Wireless icon in
your system tray.

English
7
4. Click Site Survey.
5. Click the SSID that matches your
wireless access point and then
click Connect.
6. Set Profile settings of the wireless
network and then click Apply.
Wireless configuration is now complete.
For detailed information regarding the TEW-441PC/TEW-443PI configuration
and advanced settings, please refer to the User's Guide included on the Utility
& Driver CD-ROM or TRENDnet's website at www.trendnet.com

Q1:
A1:
Q2:
A2:
Q3:
A3:
Q4:
A4:
I inserted the TEW-441PC/443PI CD-ROM into my computer's CD-ROM Drive and the
installation menu does not appear automatically. What should I do
If the installation menu does not appear automatically, click Start, click Run, and type
D:\Autorun.exe where "D" in "D:\Autorun.exe" is the letter assigned to your computer's CD-
ROM Drive. And then click OK to start the installation.
I completed all the steps in the quick installation guide, but my card is not
connecting to my access point. What should I do?
You should first verify that the Network Name (SSID) matches your wireless router or
access point's SSID. If they already match, you should check your TCP/IP properties to
ensure that Obtain an IP Address Automatically is selected. Refer to your Windows User's
Manual if you are unable to locate your TCP/IP properties.
Windows is unable to recognize my hardware. What should I do?
Make sure your computer meets the minimum requirements as specified in Section 1 of
this quick installation guide. Also, you must install the wireless configuration utility BEFORE
you physically install your network card. Lastly, you may consider moving the card to a
different PCI/PC Card Slot.
I cannot open the wireless configuration utility. What should I do?
Access your device manager to make sure the adapter is installed properly. If you
see a networking device with a yellow question mark or exclamation point, you will
need to reinstall the device and/or the drivers. To access your device manager, right-
click My Computer, click Properties, click the Hardware tab, and then click Device
Manager.
If you still encounter problems or have any questions regarding the TEW-441PC/TEW-443PI,
please refer to the User's Guide included on the Utility & Driver CD-ROM or contact Trendnet's
Technical Support Department.
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause
undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
Troubleshooting
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
