TRENDnet TFC-110MST User manual

TFC-110MST
10/100Base-TX to 100Base-FX Multi-Mode Fiber Converter with ST-Type Connector
FEATURES
TFC-1600: 16-slot EIA-19" (2 Unit-Height) Chassis
for TFC series Media Converters
TFC-110MSC: 10/100Base-TX to 100Base-FX Multi-
Mode Fiber with SC Connector
TFC-110MM: 10/100Base-TX to 100Base-FX Multi-
Mode Fiber with MT-RJ Connector
TFC-110MST: 10/100Base-TX to 100Base-FX Multi-
Mode 15 km Fiber with ST Connector
TFC-110S15: 10/100Base-TX to 100Base-FX
Single-Mode 15 km Fiber with SC Connector
TFC-110S30: 10/100Base-TX to 100Base-FX
Single-Mode 30 km Fiber with SC Connector
TFC-110S60: 10/100Base-TX to 100Base-FX
Single-Mode 60 km Fiber with SC Connector
TFC-110S100: 10/100Base-TX to 100Base-FX
Single-Mode 100 km Fiber with SC Connector
To Order Please Call:
1-888-326-6061
ORDERING INFORMATION
TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit ____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2004. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: [phone]
Fax: [phone]
Web:
Email: [email protected]
www.TRENDNET.com
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u
100Base-TX / 100Base-FX standards
One 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode
on TX port
Auto MDIX for 10/100Base-TX port
One 100Mbps fiber port with Multi-Mode ST-Type Connector
Half / Full-Duplex mode selector on Fiber port
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Wall-Mountable
Optional 19” system chassis with redundant power supply (TFC-1600),
Holds up to 16 TFC series Media Converters
5-year Warranty
TRENDnet
TRENDware, USA
What's Next in Networking
RELATED PRODUCT
SPECIFICATIONS
Standards:
• IEEE802.3 10Base-T, IEEE 802.3u
100Base-TX and 100Base-FX
Supported Frame Size:
• Standard Ethernet up to 1522-Byte
Network Media:
• 100Base-TX: Cat. 5, EIA/TIA-568
100-ohm UTP/STP, up to 100 meters.
• 100Base-FX: Multi-Mode fiber optic
cable 50/125 or 62.5/125 µm, up to 2
Km.
Wavelength:
• 1300nm
Protocol:
• CSMA/CD
Ports:
• 1 x 10/100Base-TX
• 1 x 100Base-FX
Data Transfer Rate:
• 100Mbps (Half-Duplex), 200Mbps
(Full-Duplex)
Diagnostic LEDs:
• Power, Link/Activity, Full-Duplex,
and Speed
Power Adapter:
• 7.5VDC, 1.5A (7.2 watts max.)
Temperature:
• Operating: 0° ~ 40° C (32° ~ 104° F)
• Storage: -25° ~ 70° C (-13° ~ 158° F)
Humidity:
• Operating: 10% ~ 90%
• Storage: 5% ~ 90%
(non-condensing)

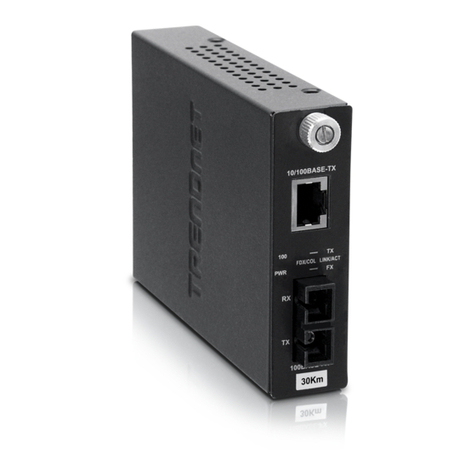

TRENDnet's TFC-110 series Fiber Media Converter transforms
10/100Base-TX UTP/STP media to 100Base-FX media and
vice versa. The 10/100Base-TX port auto-sense 10 or 100Mbps
connection speed, auto-negotiates half-/full-duplex mode, and
auto-selects MDI-X / MDI-II media type. The fiber connection
can be multi-mode SC, MT-RJ, or single-mode SC Connector
and it has a slide-switch for selecting half- or full-duplex mode.
This converter will give your Switch/Hub the ability to interface
with fiber connection over a distance up to 2 km. With the
optional 16-slot EIA-19" rack-mount chassis; the TFC series
converters are the perfect solutions for various fiber media
conversions for your network.
TFC-110MST (06-29-2004)
