I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 1 -
TABLE OF CONTENT
1. Contents of Package .................................................................2
2. Comprehensive Modem Installation Instructions...................2
2.1 System Requirements ...........................................................2
2.2 Hardware Installation .............................................................3
2.3 System Setup ........................................................................4
2.3.1 Setup Instructions for Windows 98SE.......................................4
2.3.2 Uninstall Modem from Windows 98SE......................................7
2.3.3 Setup Instructions for Windows ME ..........................................8
2.3.4 Uninstall Modem from Windows ME .......................................10
2.3.5 Setup Instructions for Windows 2000 ..................................... 11
2.3.6 Uninstall Modem from Windows 2000.....................................13
2.3.7 Setup Instructions for Windows XP.........................................14
2.3.8 Uninstall Modem from Windows XP........................................18
2.4 Testing your modem ............................................................20
2.5 Install Communication Software..........................................20
3. Troubleshooting ......................................................................21
Appendix 1: Modem Specifications ...........................................23
Appendix 2: Government Compliance.......................................24

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 2 -
Section 1 Contents of Package
! One V.92/V.90 PCI bus window modem
! One telephone cable
! One CD-ROM disk comprises Communication software, Modem Driver & User's Manual
! Quick installation guide
Please contact the place of purchase if any of the above listed items are missing.
Section 2 Comprehensive Modem Installation Instructions
Section 2.1 System Requirements
The modem operates on a personal computer equipped with the following:
! Windows 98SE / ME / 2000 / XP Operating System
! Pentium(r) MMX 200MHz or faster CPU
! 8 MB hard disk space
! 64 MB RAM
! One vacant 32-bit PCI slot
! One available IRQ: 3 through 15

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 3 -
Section 2.2 Hardware Installation

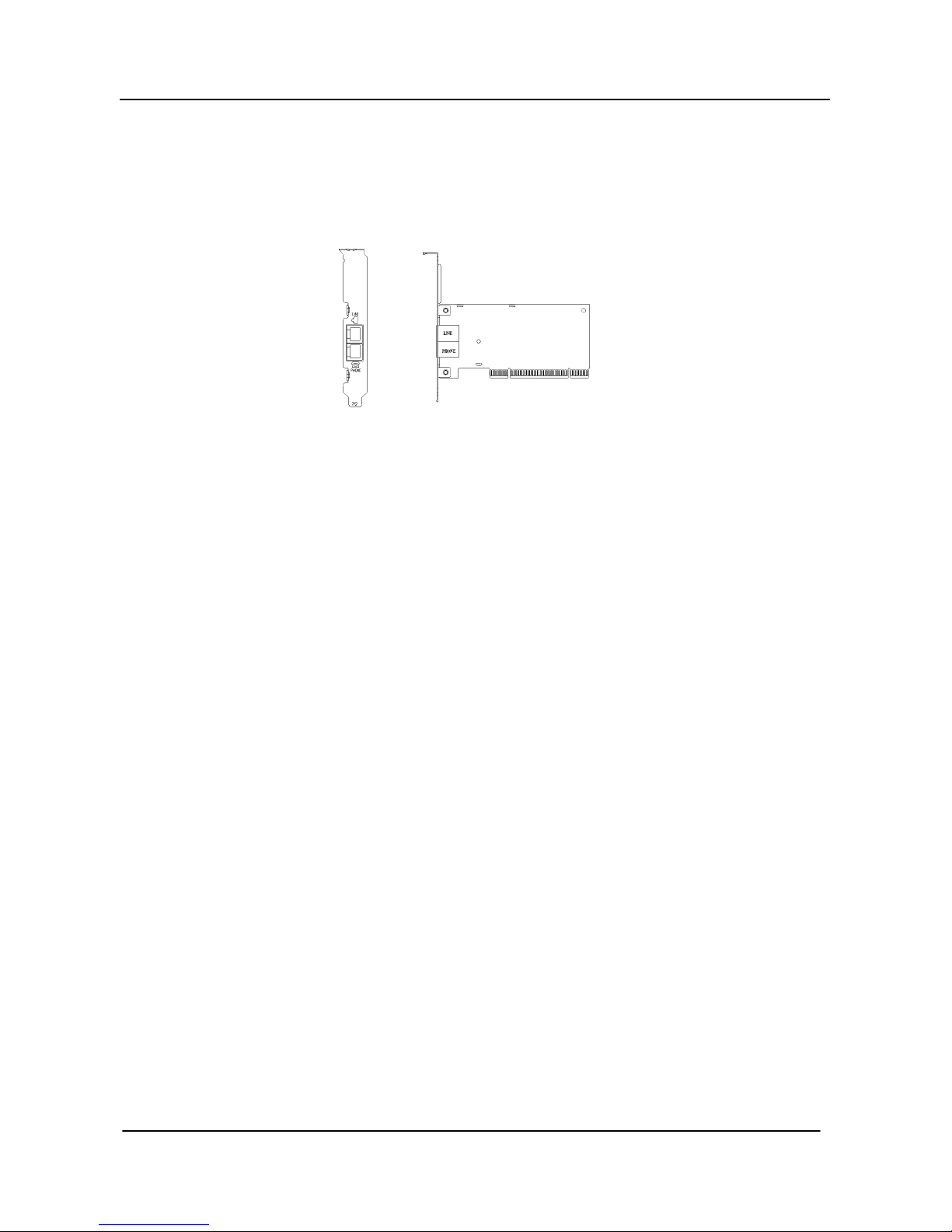

Please refer to Fig. 2 - 1 and proceed to following steps for how to insert your modem into the computer and
connect telephone wire.
Model: I105
Figure 2-1 Internal modem diagram
1. Turn off and unplug your computer from the AC outlet.
2. Unplug any peripheral devices (keyboard, monitor, etc.) from your computer to avoid the
risk of electric shock.
3. Take the cover off your computer, review computer's manual if you need further instructions.
4. Find an empty PCI slot.
5. Unscrew the PCI slot bracket and save the screw, then remove the bracket.
6. Plug the modem into the PCI slot carefully until the modem is properly seated.
7. Fasten the modem bracket firmly with the screw saved in step 5.
8. Reassemble your computer cover and re-plug cables for peripheral.
9. Plug one end of telephone cord into the "LINE" jack at the modem's bracket. Plug another end of the
telephone cord into the telephone wall jack
10. Some models may comprise a phone jack for an optional telephone. If you wish to use a phone through
the same telephone wall jack when the modem is not in use, plug the telephone cord of the phone into
"PHONE" jack at the modem's bracket now. Lift the handset and listen for a dial tone to check for a
properly connection.
11. Plug the power cord into the computer and turn the computer on.
12. Up to now, the hardware installation has been finished. If you have not encountered any problems, you
can go to Section 2.3 System Setup. If you are having problems, see Section 3 Troubleshooting.
NOTE : The telephone wall jack you use must be for an ANALOG phone line (the type found in most homes).
Many offices are equipped with digital phone lines. Please be sure you know which type of line you have. The
modem will be damaged if you use a digital phone line.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 4 -
Section 2.3 System Setup

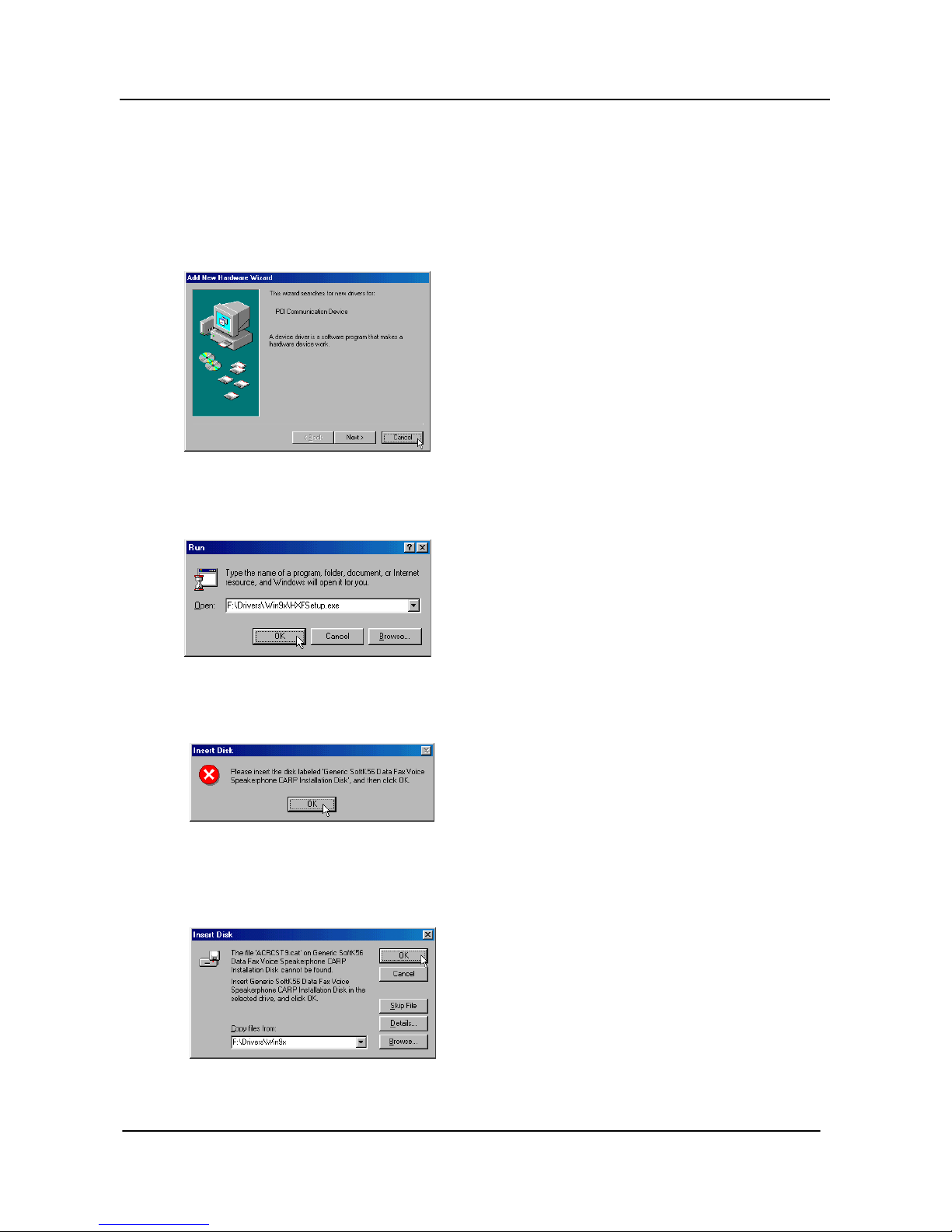

Section 2.3.1 Setup instructions for Windows 98SE
STEP 1. After you complete the modem hardware installation and turn on your PC, Windows system will
automatically detect your new added devices. Windows system will then prompt you with an Add
New Hardware Wizard screen as shown in figure.
Then click on Cancel.
STEP 2. Run <CD-ROM letter>:\Drivers\Win9x\HXFSetup.exe as shown in figure.
Then click on OK.
STEP 3. Keep the Modem Driver CD-ROM disk attached with your modem in the CD-ROM drive device.
Then click on OK.
STEP 4. And then, a prompt screen will ask you to assign where your driver is located. Please select
<CD-ROM letter>:\Drivers\Win9x as shown in figure.
Then click on OK.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 5 -
STEP 5. You must be to select the correct region setting of modem for the best performance and
compatible.
Right click on My Computer icon in windows desktop then click on Properties.
STEP 6. Choose Device Manager tab. To expand Modem item, then select Generic SoftK56 Data Fax
Voice Speakerphone CARP as shown in figure.
Click on Properties

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 6 -
STEP 7. Choose Region Select tab then select a region in which this modem will be used as shown in
figure.
Click on Apply and then click on OK.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 7 -
Section 2.3.2 Uninstall Modem from Windows 98SE
STEP 1. Open Control Panel window then click on Add/Remove Programs icon.
STEP 2. Choose Install/Uninstall tab, then select Generic SoftK56 Data Fax Voice Speakerphone
CARP item as shown in figure.
Click on Add/Remove… .

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 8 -
Section 2.3.3 Setup instructions for Windows ME
STEP 1. After you complete the modem hardware installation and turn on your PC. Windows system will
automatically detect your new added devices. A prompt screen will ask you to select Specify the
location of the driver or Automatic search for a better driver as shown in figure.
Click on Cancel.
STEP 2. Please insert the Modem Driver CD-ROM disk into your CD-ROM drive device, then run
<CD-ROM letter>:\Drivers\WinMe\HXFSetup.exe as shown in figure.
Then click on OK.
STEP 3. You must be to select the correct region setting of modem for the best performance and
compatible.
Open Control Panel window, then click on HSF Modem Region Select icon as shown in figure.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 9 -

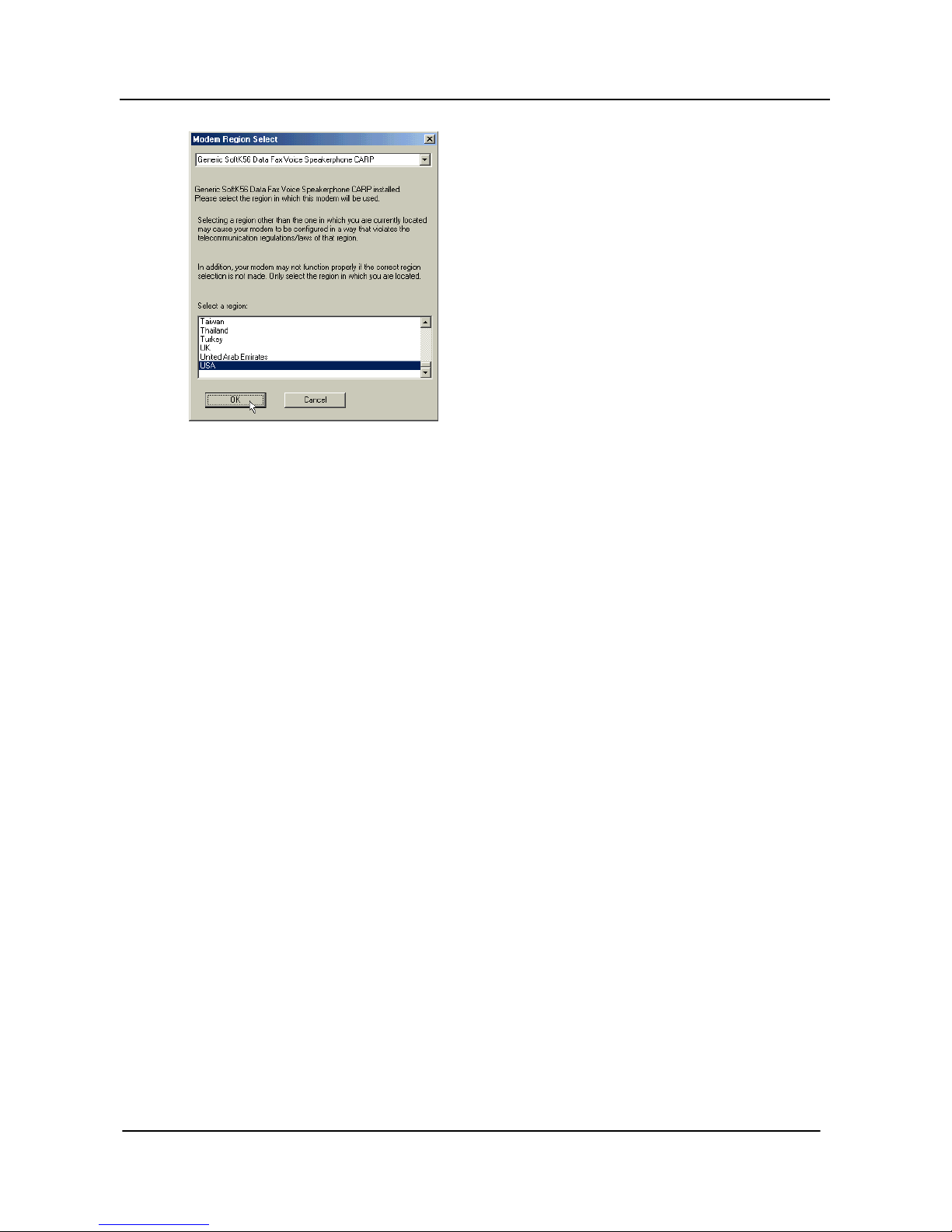

STEP 4. Then, a prompt screen will ask you to select a region in which this modem will be used.
Select the correct region and then click OK.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 10 -

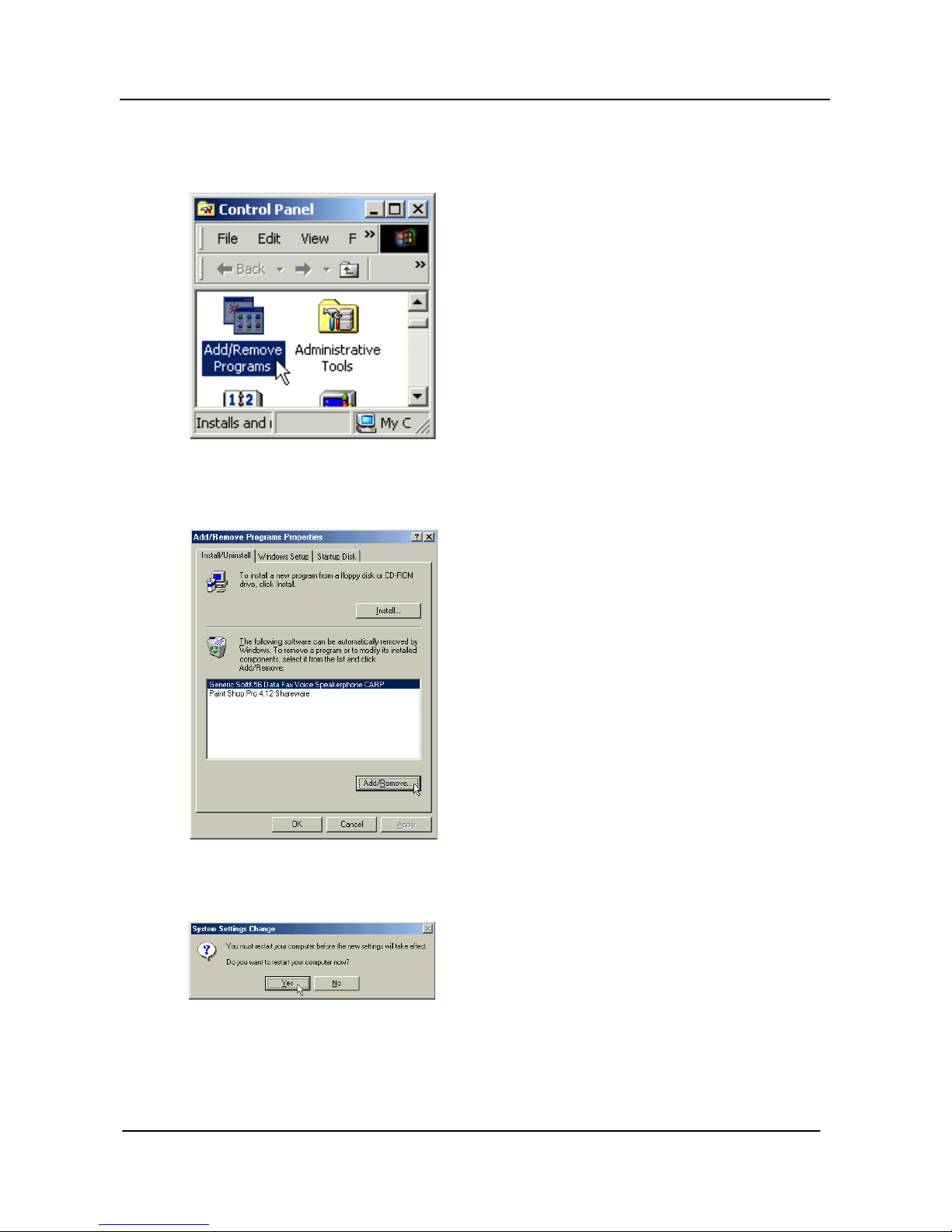

Section 2.3.4 Uninstall Modem from Windows ME
STEP 1. Open Control Panel window, then clock on Add/Remove Programs icon ash shown in figure.
STEP 2. Choose Install/Uninstall tab, then select Generic SoftK56 Data Fax Voice Speakerphone
CARP item as shown in figure.
Click on Add/Remove… .
STEP 3. You must restart your computer before the new settings will take effect.
Click on Yes

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 11 -
Section 2.3.5 Setup instructions for Windows 2000
STEP 1. After you complete the modem hardware installation and turn on your PC. Windows system will
automatically detect your new added devices. Windows system will then prompt you with a Found
New Hardware Wizard screen as shown in figure.
Click on Cancel.
STEP 2. Please insert the Modem Driver CD-ROM disk into your CD-ROM drive device, then run
<CD-ROM letter>:\Drivers\Win2K\HXFSteup.exe as shown in figure.
Then click on OK.
STEP 3. And then, the several prompt screens will be warning you that the digital signature of programs
have not found as shown in figure.
or
Please always click on Yes.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 12 -

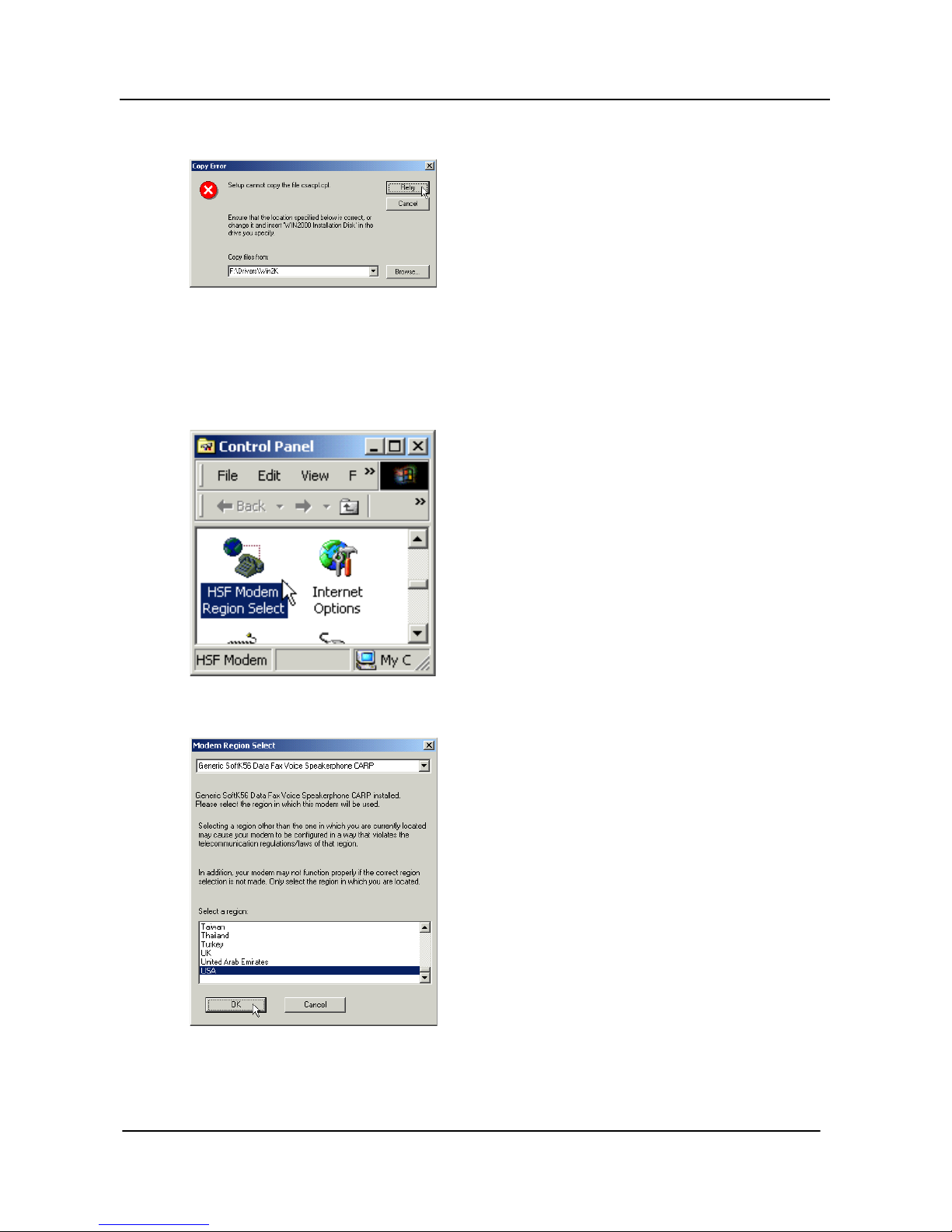

STEP 4. The prompt screen will ask you to assign your driver is located. Please select <CD-ROM
letter>:\Drivers\Win2K as shown in figure.
Then click on Retry.
STEP 5. You must be to select the correct region setting of modem for the best performance and
compatible.
Open Control Panel and click on HSF Modem Region Select icon as shown in figure.
STEP 6. Then, a prompt screen will ask you to select a region in which this modem will be used.
Select the correct region and then click OK.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 13 -
Section 2.3.6 Uninstall Modem from Windows 2000
STEP 1. Open Control Panel windows then click on Add/Remove Programs icon as shown in figure.
STEP 2. Select Generic SoftK56 Data Fax Voice Speakerphone CARP item then click on
Change/Remove.
The uninstall procedures have finish, when the Generic SoftK56 Data Fax Voice Speakerphone
CARP item had disappeared from the listed.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 14 -
Section 2.3.7 Setup instructions for Windows XP
STEP 1. Right click on My Computer icon on Desktop and then select Properties as shown in figure.
STEP 2. The System Properties window will appear and then select Hardware tab as shown in figure.
Then, click on Device Manager.
STEP 3. Expand Modems item and then right click on Generic SoftK56 device as shown in figure.
Then, click on Update Driver.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 15 -
STEP 4. The Hardware Update Wizard will appear and then choose Install from a list or specific
location [Advanced] item as shown in figure.
Then click on Next.
STEP 5. Select Don’t search. I will choose the driver to install item as shown in figure.
Then, click on Next.
STEP 6 Select Generic SoftK56 item in Models listed. as shown in figure.
Then, click on Have Disk.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 16 -

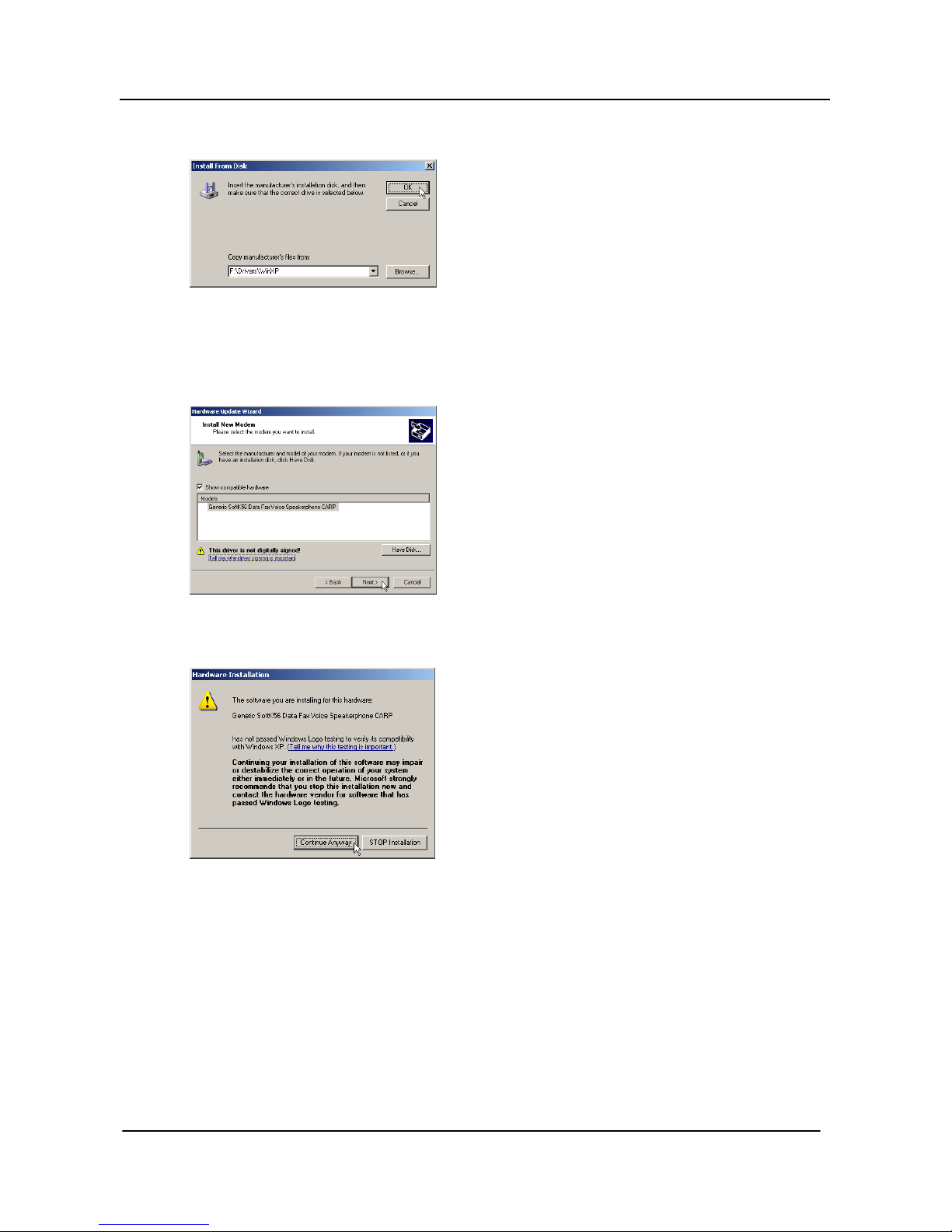

STEP 7. Insert the Modem Driver CD-ROM disk attached with your modem into the CD-ROM drive device,
then specific the driver location as [F:\Drivers\WinXP] (“F” is CD-ROM drive letter).
Then click on OK.
STEP 8. The Wizard will find the updated device Generic SoftK56 Data Fax Speakerphone CARP and
then click on Next.
STEP 9. The prompt screen will appear to ask you to ensure the driver for your modem as shown in figure.
Then, click on Continue Anyway.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 17 -

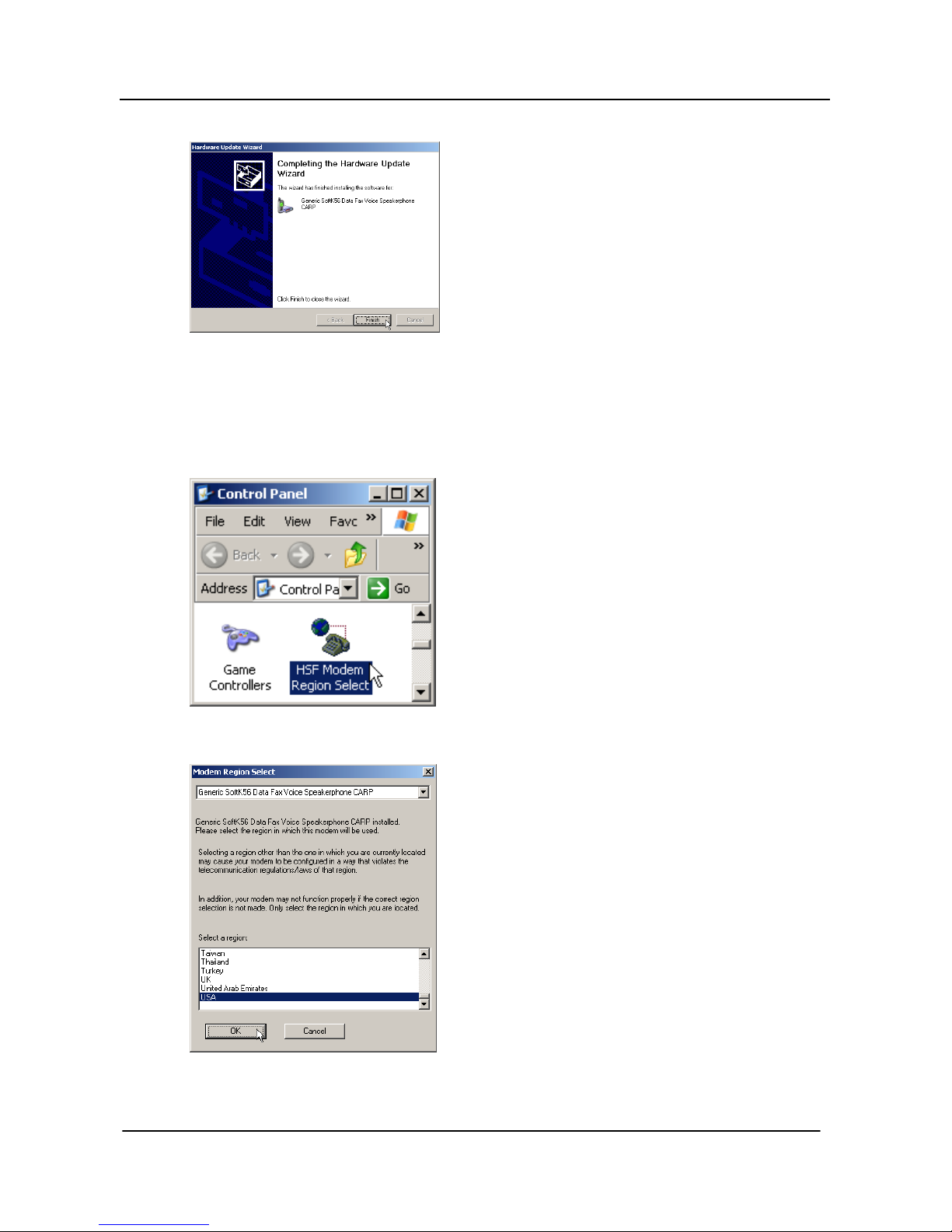

STEP 10. The Hardware Update Wizard will appear again. System has finished the installation.
Click on Finish.
STEP 11. You must be to select the correct region setting of modem for the best performance and
compatible.
Open Control Panel window and then click on HSF Modem Region Select as shown in figure.
STEP 12. Then, a prompt screen will ask you to select a region in which this modem will be used.
Select the correct region then click OK.
STEP 13. You must be to reboot your system now for available use.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 18 -

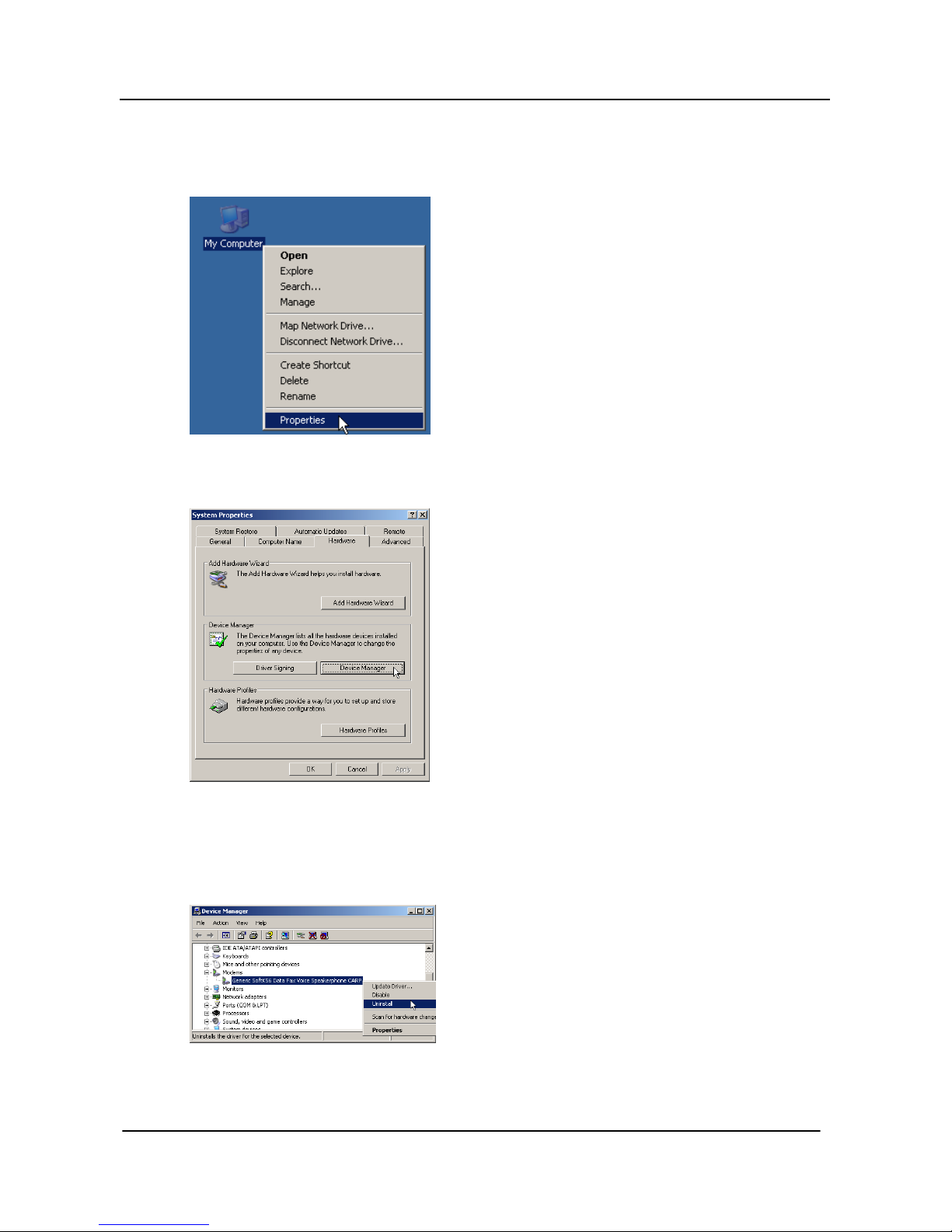

Section 2.3.8 Uninstall Modem from Windows XP
STEP 1. Right click on My Computer icon on Desktop and then select Properties as shown in figure.
STEP 2. The System Properties window will appear and then select Hardware tab as shown in figure.
Then, click on Device Manager.
STEP 3. Expand Modems item and then right click on Generic SoftK56 Data Fax Speakerphone CARP
device as shown in figure.
Then, click on Uninstall.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 19 -
STEP 4. A prompt screen will ask you to ensure to remove the selected modem.
Then, click on OK.

I105 V.92/V.90 PCI MODEM USER’S MANUAL
Rev.1.01.4.05.04
- 20 -
Section 2.4 Testing Your Modem
Before you set up your software, start with a quick test to check that your modem is working. Once you have
determined that your modem is setup properly, go on to Section 2.5 Install Communication Software to
install your communications software. If you are having problems, see Section 3 Troubleshooting.
Click on Start and point to Setting. Then click on Control Panel. When the Control Panel window opens.
Scroll down to the Modem icon and double click on it. Click on the Diagnostics tab and highlight the COM
port for your modem. Then click on More Info, your computer will automatically communicate with your new
modem using AT commands and receiving responses from your modem. A list of response means the
modem is setup properly.
Section 2.5 Install Communication Software
You can install the communication software from the CD-ROM disc attached with your new modem. Please
consult the software manual in the CD-ROM disc for the detail of software installation.
You do not have to use the communication software attached with your new modem. The modem was
designed for and tested using a wide range of communications software packages. Many communication
applications identify the modem automatically and configure themselves for the correct operating settings.
Some of the communication applications will ask you to select the type of modem you are using. Select a
Generic Fax class 1 modem will let you use basic communication and fax functions.
