TRENDnet TEG-S2620is User manual

Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency
bands are country dependent and are firmware programmed at the factory
to match the intended destination. The firmware setting is not accessible by
the end user.
ii

European Union Notice:
Radio products with the CE marking comply with the R&TTE Directive (1999/5/EC),
the EMC Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by
the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms:
zEN 60950 Product Safety
zEN 300 328 Technical requirement for radio equipment
zEN 301 489-1/-17 General EMC requirements for radio equipment
Trademark recognition
All product names used in this manual are the properties of their respective owners and are
acknowledged.
iii

Contents
1. INTRODUCTION 1
Features................................................................................................................ 2
Package Contents................................................................................................. 2
Ethernet Switching Technology ............................................................................3
2. HARDWARE DESCRIPTION 5
Physical Dimension............................................................................................... 5
Front Panel ........................................................................................................... 5
LED Indicators ...................................................................................................... 6
Rear Panel............................................................................................................7
Desktop Installation............................................................................................... 7
Rack-mounted Installation .................................................................................... 8

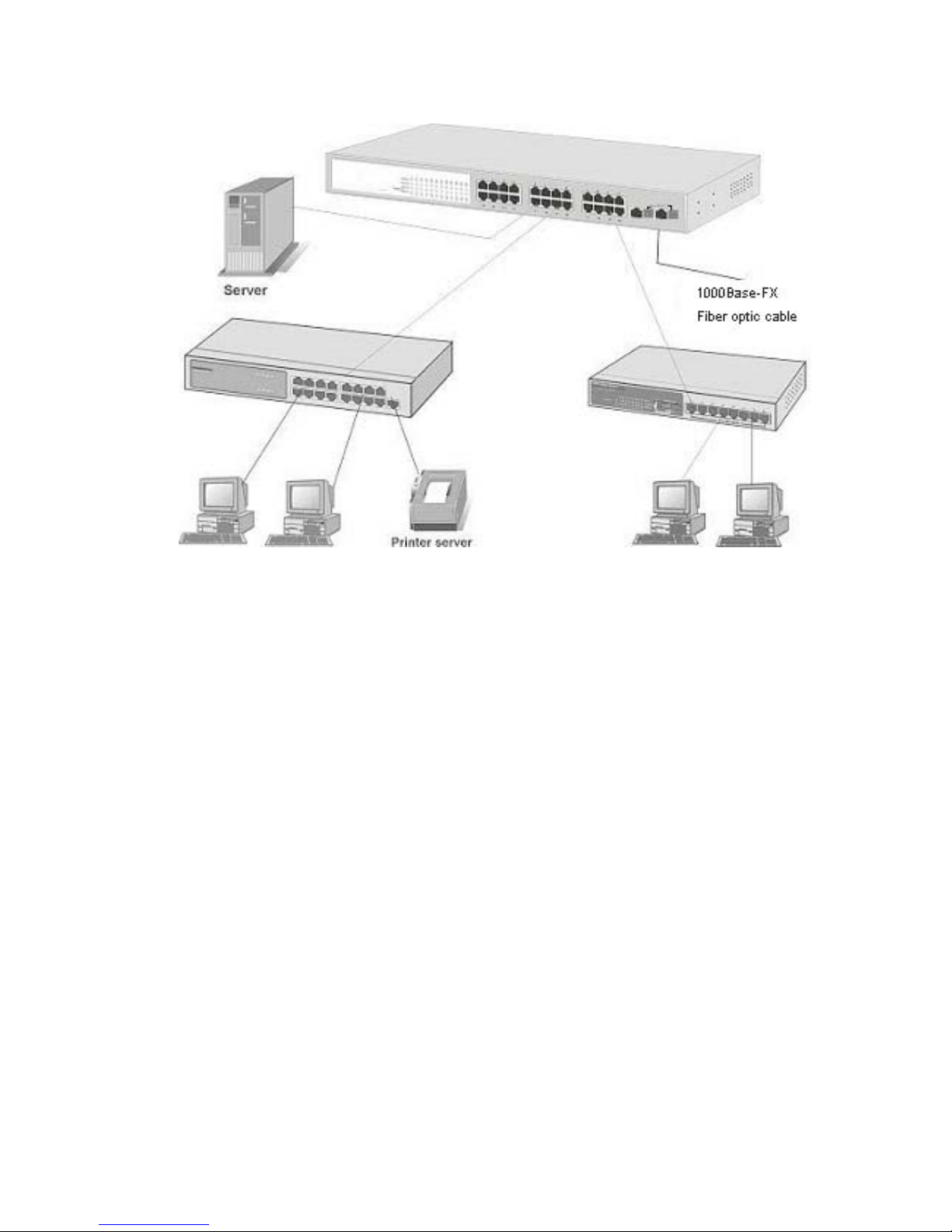

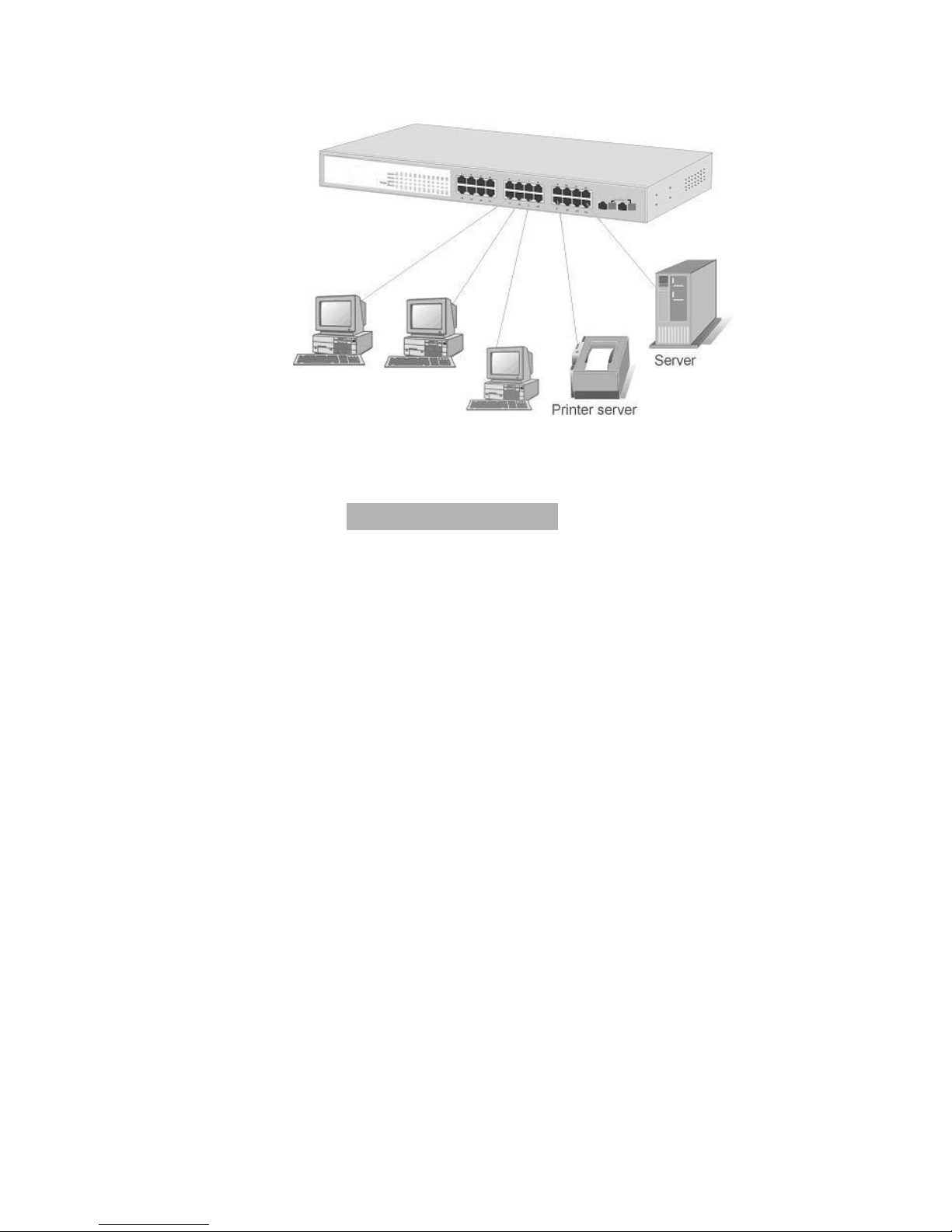

3. NETWORK APPLICATION 11
4. CONSOLE MANAGEMENT 14
Login in the Console Interface ............................................................................ 14
Main Menu .......................................................................................................... 15
Function Description ........................................................................................... 17
Status and Counters 17
Port Status 17
Port Counters 18
System Information 19
Switch Static Configuration 21
Administration Configuration 21
Port Configuration 25
Trunk Configuration 26
Port Mirroring Configuration 27
VLAN Configuration 29
Priority Configuration 35
MAC Address Configuration 36
Misc Configuration 39
Protocol Related Configuration 42
iv

STP 42
SNMP 45
LACP 50
IGMP/GVRP 54
802.1x Configuration 55
System Reset Configuration 59
Factory Default 59
System Reboot 60
TFTP Configuration 60
X-modem Upgrade 64
5. WEB-BASED MANAGEMENT 66
About Web-based Management ......................................................................... 66
Preparing for Web Management......................................................................... 66
Online Help ......................................................................................................... 67
System Login ...................................................................................................... 67
Port status........................................................................................................... 67
View the Port Information 69
Port Statistics...................................................................................................... 69
Administrator....................................................................................................... 70
IP Address 71
Switch Setting 72
Basic Switch Settings 72
Advanced Setting 73
Misc Config 74
Console Port Information 78
Port Controls 78
Trunking 80
Aggregator setting 80
Aggregator Information 81
State Activity 82
Forwarding and Filtering 84
IGMP Snooping 84
v

vi
Static MAC Address 85
MAC filtering 86
VLAN configuration 87
Port-based VLAN 88
802.1Q VLAN 90
Spanning Tree 94
System Configuration 95
Per Port Configuration 95
Port Mirroring 96
SNMP Management 97
Security Manager 99
802.1X 100
System Configuration 100
Per port Configuration 101
Misc Configuration 102
TFTP Update Firmware .................................................................................... 102
Configuration Backup........................................................................................ 103
TFTP Restore Configuration 103
TFTP Backup Configuration 104
Factory Default ................................................................................................. 104
System Reboot ................................................................................................. 105
Panel List .......................................................................................................... 105
IP Stacking........................................................................................................ 106
6. TROUBLESHOOTING 109
7. TECHNICAL SPECIFICATION 111
APPENDIX 113
Console Port Pin Assignments ......................................................................... 113
Cables............................................................................................................... 114
100BASE-TX/10BASE-T Pin Assignments ....................................................... 114
LIMITED WARRANTY 116

1. Introduction
Welcome to the World of Network Switching. In the modern business society,
communication and information sharing are fundamental to our life. And computer
networks have proven to be one of the fastest ways of communication.
TEG-S2620is is a multi-port Switch that can be used to build high-performance
switched workgroup networks. This switch is a store-and-forward device that
offers low latency for high-speed networking. The Switch is targeted at workgroup,
department or backbone computing environment.
Figure 1-1. TEG-S2620is
TEG-S2620is features a “store-and-forward “switching scheme. This allows the
switch to auto-learn and store source address in an 8K-entry MAC address table.
MDI (Medium Dependent Interface) Port is also called an "uplink port". The MDI
port does not cross the transmit and receive lines, which is done by the regular
ports (MDI-X ports) that connect to end stations. In general, MDI means
connecting to another Hub or Switch while MDIX means connecting to a
workstation or PC. Therefore, Auto MDI/MDIX means that you can connect to
another Switch or workstation without changing non-crossover or crossover
cabling.
TEG-S2620is has 24 auto-sensing 10/100Base-TX RJ-45 ports and 2 auto detect
Gigabit ports for higher connection speed.
1

Features
Confirms to IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab
1000BASE-T, 802.3z Gigabit fiber
24 10/100 TX plus 2 Gigabit copper/Mini GBIC slot stackable intelligent
switch
High back-plane bandwidth 8.8Gbps
8K-entry MAC address table
Management via single IP address
IGMP support for Multi Media application
Port mirror supported
Support Port bandwidth control
Supports GVRP function
DHCP client supported
Support Port Based VLAN /802 .1Q VLAN
IEEE802.3x Flow control
¾Flow control for full duplex
¾Backpressure for half duplex
Support IEEE802.3ad Port trunk with LACP
Broadcast storm filter supported
Support IEEE 802.1p class of service
Support Port security
IEEE 802.1d Spanning tree protocol supported
Auto detect Gigabit copper and MINI GBIC
Support IEEE 802.1x user authentication
Package Contents
Unpack the contents of the TEG-S2620is and verify them against the
checklist below.
TEG-S2620is
2

Power Cord
Four Rubber Feet
RS-232 cable
Rack-mounted Kit
User Guide (CD-ROM)

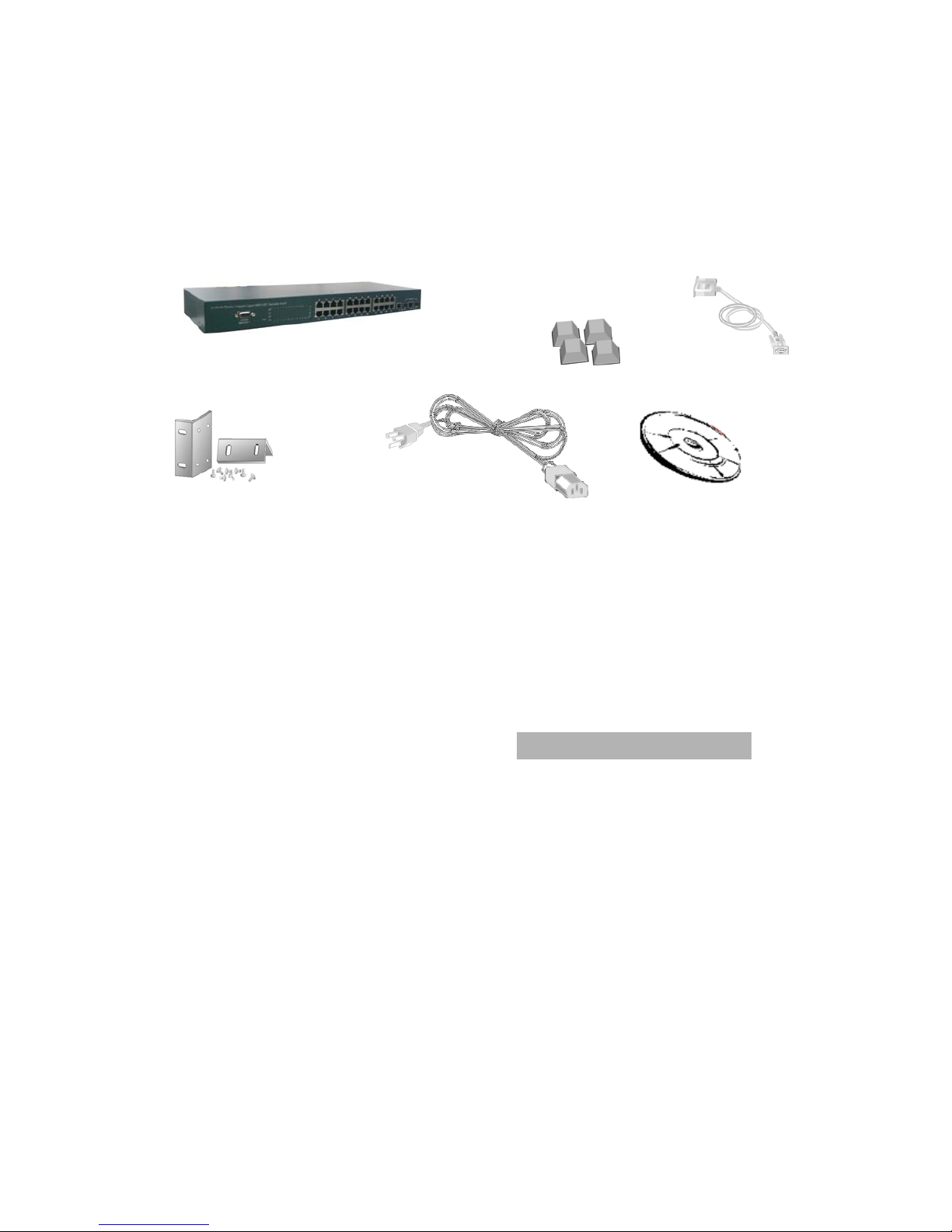

24TX TEG-S2620is Four Rubber Feet RS-232 cable
Rack-mountedKit PowerCord UserGuide(CD-ROM)
Figure 1-2. Package Contents
Compare the contents of your TEG-S2620is package with the standard checklist
above. If any item is missing or damaged, please contact your local dealer for
service.
Ethernet Switching Technology
Ethernet Switching Technology dramatically boosted the total bandwidth of a
network, eliminated congestion problems inherent with CSMA/CD (Carrier Sense
multiple access with Collision Detection) protocol, and greatly reduced
unnecessary transmissions.
This revolutionized networking. First, by allowing two-way, simultaneous
transmissions over the same port (Full-duplex), which essentially doubled the
bandwidth. Second, by reducing the collision domain to a single switch-port,
which eliminated the need for carrier sensing. Third, by using the
store-and-forward technology’s approach of inspecting each packet to intercept
3

corrupt or redundant data, switching eliminated unnecessary transmission that
slow the network. By employing address learning, which replaced the inefficient
receiving port.
Auto-negotiation regulates the speed and duplex of each port, based on the
capability of both devices. Flow-control allows transmission from a 100Mbps node
to a 10Mbps node without loss of data. Auto-negotiation and flow-control may
require disablement for some networking operations involves legacy equipment.
Disabling the auto-negotiation is accomplished by fixing the speed or duplex of a
port.
Ethernet Switching Technology supplied higher performance at costs lower than
other solutions. Wider bandwidth, no congestion, and the reduction in traffic is
why switching is replacing expensive routers and inefficient hubs as the ultimate
networking solution. Switching brought a whole new way of thinking to networking.
4

2. Hardware Description2. Hardware Description
This Section mainly describes the hardware of the TEG-S2620is, and gives a
physical and functional overview of this Module Switch.
This Section mainly describes the hardware of the TEG-S2620is, and gives a
physical and functional overview of this Module Switch.
PhysicalDimension
TEG-S2620is’s physical dimensions is 440mm x 161mm x 44mm (L x W x H).
FrontPanel
The Front Panel of the TEG-S2620is consists of 24x 10/100Base-TX RJ-45 ports
(Auto MDI/MDIX) and 2 auto detect Giga port which could be Copper Gigabit port
or Mini Gigabit Fiber module (optional). The LED Indicators are also located on
the front panel of the Switch.
Figure 2-1. The Front panel of TEG-S2620is
RJ-45 Ports (Auto MDI/MDIX): 24x 10/100 N-way auto-sensing for 10Base-T or
100Base-TX connections.
[In general, MDI means connecting to another Hub or Switch while MDIX means
connecting to a workstation or PC. Therefore, Auto MDI/MDIX means that you
can connect to another Switch or workstation without changing non-crossover or
crossover cabling. ]
5

2 Gigabit ports: 2 auto-detect Gigabit ports—UTP or fiber. Gigabit fiber is the
mini GBIC module that is optional.
[Note] When you are using the Gigabit copper port or Mini GBIC port, only one of
them will work, ex: when Gigabit copper port is connecting, then Mini GBIC is
disabling.
LEDIndicators
The LED Indicators gives real-time information of systematic operation status.
The following table provides descriptions of LED status and their meaning.
Figure 2-2. LED indicators
LED Status Description
Power Green Power On
Off Power is not connected
LNK/ACT
Green The port is connecting with the device.
Blink The port is receiving or transmitting data.
Off No device attached.
FDX Orange The port is operating in Full-duplex mode.
Off In half-duplex mode
6

1000(Gigabit port)
#25, #26 port Green In 1000Mbps connection speed
100(Gigabit port)
#25, #26 port Orange In 100Mbps connection speed
LNK/ACT (Gigabit
port)
#25, #26 port
Green The port is connecting with the device.
Blink The port is receiving or transmitting data.
Off No device attached
FDX/COL (Gigabit
port)
#25, #26 port
Orange The port is operating in Full-duplex mode
Blink Collision of Packets occurs in the port
Off In half-duplex mode
Table 2-1. The Description of LED Indicators
RearPanel
The 3-pronged power plug is located at the rear Panel of the TEG-S2620is as
shown in Figure 2-3. The Switch will work with AC in the range 100-240V AC,
50-60Hz.
100
~
240V AC, 50/60Hz
Figure 2-3. The Rear Panel of TEG-S2620is
Desktop Installation
Set the Switch on a sufficiently large flat space with a power outlet nearby. The
surface where you put your Switch should be clean, smooth, level and sturdy.
Make sure there is enough clearance around the Switch to allow attachment of
7

cables, power cord and allow air circulation.
Attaching Rubber Feet
A. Make sure mounting surface on the bottom of the Switch is grease and dust
free.
B. Remove adhesive backing from your Rubber Feet.
C. Apply the Rubber Feet to each corner on the bottom of the Switch. These
footpads can prevent the Switch from shock/vibration.
Figure 2-4. Attaching Rubber Feet to each corner on the bottom of the Switch
Rack-mounted Installation
The TEG-S2620is come with a rack-mounted kid and can be mounted in an EIA
standard size, 19-inch Rack. The Switch can be placed in a wiring closet with
other equipment.
Perform the following steps to rack mount the switch:
A. Position one bracket to align with the holes on one side of the switch and
secure it with the smaller bracket screws. Then attach the remaining bracket
to the other side of the Switch.
8

Figure 2-4. Attach mounting brackets with screws
B. After attached mounting brackets, position the TEG-S2620is in the rack by
lining up the holes in the brackets with the appropriate holes on the rack.
Secure the Switch to the rack with a screwdriver and the rack-mounting
screws.
Figure 2-5. Mount the Switch in 19” Rack
Note: For proper ventilation, allow about at least 4 inches (10 cm) of clearance on
the front and 3.4 inches (8 cm) on the back of the Switch. This is especially
important for enclosed rack installation.
Power On
Connect the power cord to the power socket on the rear panel of the Switch. The
other side of power cord connects to the power outlet. The internal power supply
9

of the Switch works with voltage range of AC in the 100-240VAC, frequency
50~60Hz. Check the power indicator on the front panel to see if power is properly
supplied.
10

3. Network Application3. Network Application
This section provides you a few samples of network topology in which the Switch
is used. In general, the TEG-S2620is is designed as a segment switch. That is,
with its large address table (8k MAC address) and high performance, it is ideal for
interconnecting networking segments.
This section provides you a few samples of network topology in which the Switch
is used. In general, the TEG-S2620is is designed as a segment switch. That is,
with its large address table (8k MAC address) and high performance, it is ideal for
interconnecting networking segments.
PC, workstations, and servers can communicate each other by directly
connecting with TEG-S2620is. The switch automatically learns nodes address,
which are subsequently used to filter and forward all traffic based on the
destination address.
PC, workstations, and servers can communicate each other by directly
connecting with TEG-S2620is. The switch automatically learns nodes address,
which are subsequently used to filter and forward all traffic based on the
destination address.
By using Uplink port, the Switch can connect with another switch or hub to
interconnect other small-switched workgroups to form a larger switched network.
Meanwhile, you can also use fiber ports to connect switches. The distance
between two switches via fiber cable can be up to 550 m (multi-mode fiber) or 10
kilometer (single-mode fiber).
By using Uplink port, the Switch can connect with another switch or hub to
interconnect other small-switched workgroups to form a larger switched network.
Meanwhile, you can also use fiber ports to connect switches. The distance
between two switches via fiber cable can be up to 550 m (multi-mode fiber) or 10
kilometer (single-mode fiber).
Small Workgroup
The TEG-S2620is can be used as a standalone switch to which personal
computers, server, printer server, are directly connect to form small workgroup.
11

Figure 3-1. Small Workgroup Application
SegmentBridge
For enterprise networks where large data broadcasts are constantly processed,
this switch is an ideal solution for department users to connect to the corporate
backbone.
In the illustration below, two Ethernet switches with PCs, print server, and local
server attached, are both connect to the Switch. All the devices in this network
can communicate with each other through the Switch. Connecting servers to the
Switch allow other users to access the data on server.
12

Figure 3-2 Department Bridge Applications
13

4. Console Management4. Console Management
Login in the Console Interface
When the connection between Switch and PC is ready, turn on the PC and run a
terminal emulation program or Hyper Terminal and configure its communication
parameters to match the following default characteristics of the console port:
Baud Rate: 9600 bps
Data Bits: 8
Parity: none
Stop Bit: 1
Flow control: None
Figure 4-1. The settings of communication parameters
After finished the parameter settings, click “OK“. When the blank screen shows up,
press Enter key to bring out the login prompt. Key in the “admin“(default value) for
the both User name and Password (use Enter key to switch), then press Enter
key and the Main Menu of console management appears. Please see below
figure for login screen.
14
