TRENDnet TEG-S50G User manual

TEG-S50g
TEG-S80g
H/W: V1
Ghid de instalare in limba romana

Table of Contents
Table of Contents
English ..................................................................................
Specificaţii tehnice ...............................................................................
1
1
3
6
6
13
8
11
1. Before You Start ............................................................
2. Hardware Installation ......................................................
3. LEDs .............................................................................. 4
9
14
Version 04.01.2009
1. Înainte de a începe ........................................................
2. Instalarea hardware .......................................................
3. LED-uri ..........................................................................
Româna ...........................................................................................
Troubleshooting .....................................................................................
.............................................Remedierea erorilor de funcţionare

1
1. Before You Start
English
Installation Requirements
 A computer with a network adapter installed
 Cat-5e or Cat-6 Network Cable
 The surface must support at least 1.5 Kg for the Switch
 The power outlet should be within 1.82 meters (6 feet) of the Switch
 Visually inspect the DC power jack to make sure that it is securely
connected to the power adapter
 Make sure that there is proper heat dissipation from and adequate
ventilation around the Switch
 Do not place heavy objects on the Switch
Package Contents
 TEG-S50g/TEG-S80g
 Quick Installation Guide
 AC Power Adapter (7.5V DC, 1A)

2
Application
TEG-S50g
TEG-S80g
60m
Full Power
60m
Delivers less power
to unused ports
1
100m
100m
on on
less power
20m
Regular
Switch
GREENnet
Switch
20m
Delivers less power
when devices are off
Delivers less power
with shorter
cable lengths
2
3
on on
off less power
*Max power savings compared with standard TRENDnet switches.
60m
Full Power
60m
100m
100m
20m
Regular
Switch
GREENnet
Switch
20m
Delivers less power
with shorter
cable lengths
3
Delivers less power
to unused ports
1
on on
less power
Delivers less power
when devices are off
2
on on
off less power
*Max power savings compared with standard TRENDnet switches.
English

3
2. Hardware Installation
English

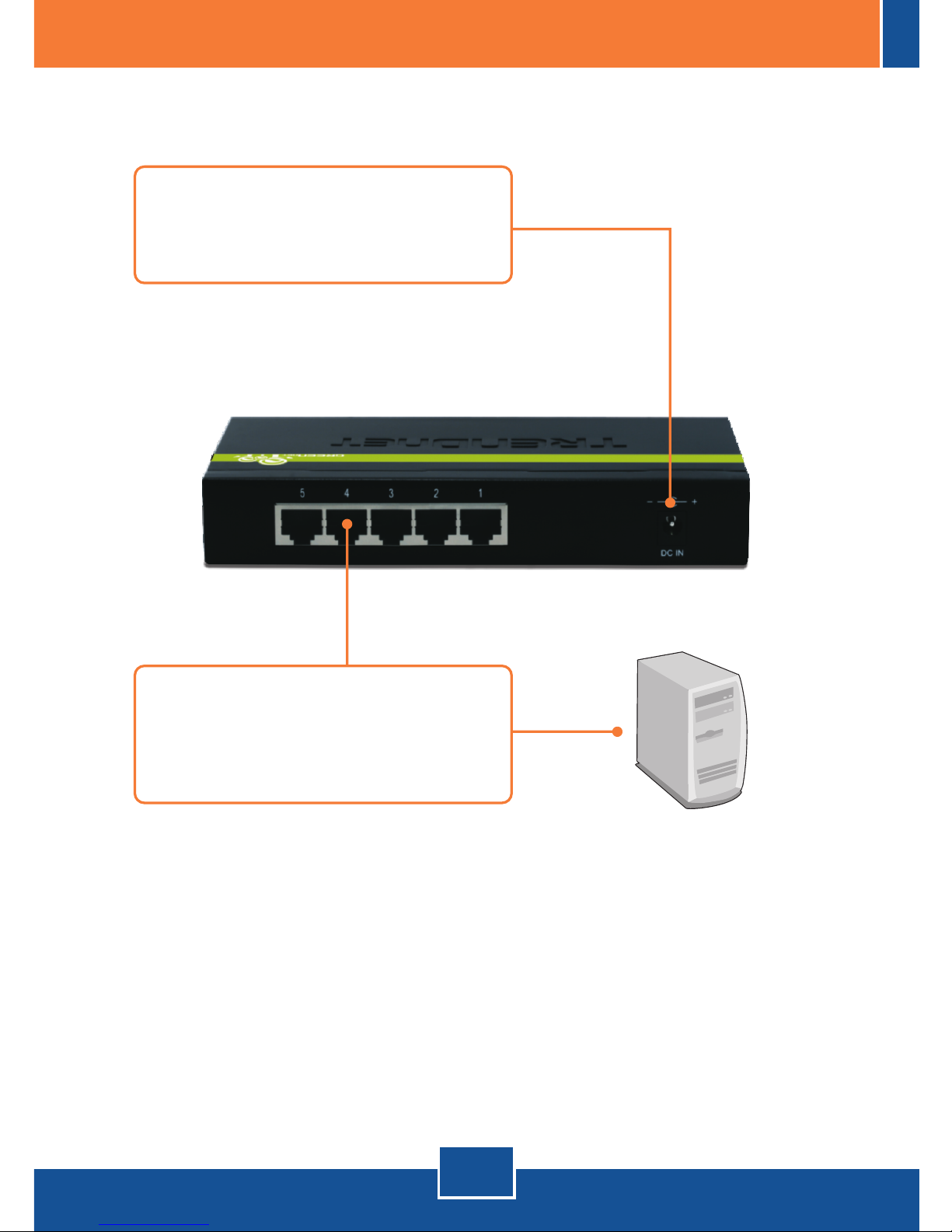

1. Connect the AC Power Adapter to
the TEG-S50g/TEG-S80g and then
to a power outlet.
2. Connect a CAT-5e or CAT-6 RJ-45
network cable from the computer to
an available Ethernet port of the
TEG-S50g/TEG-S80g.

4

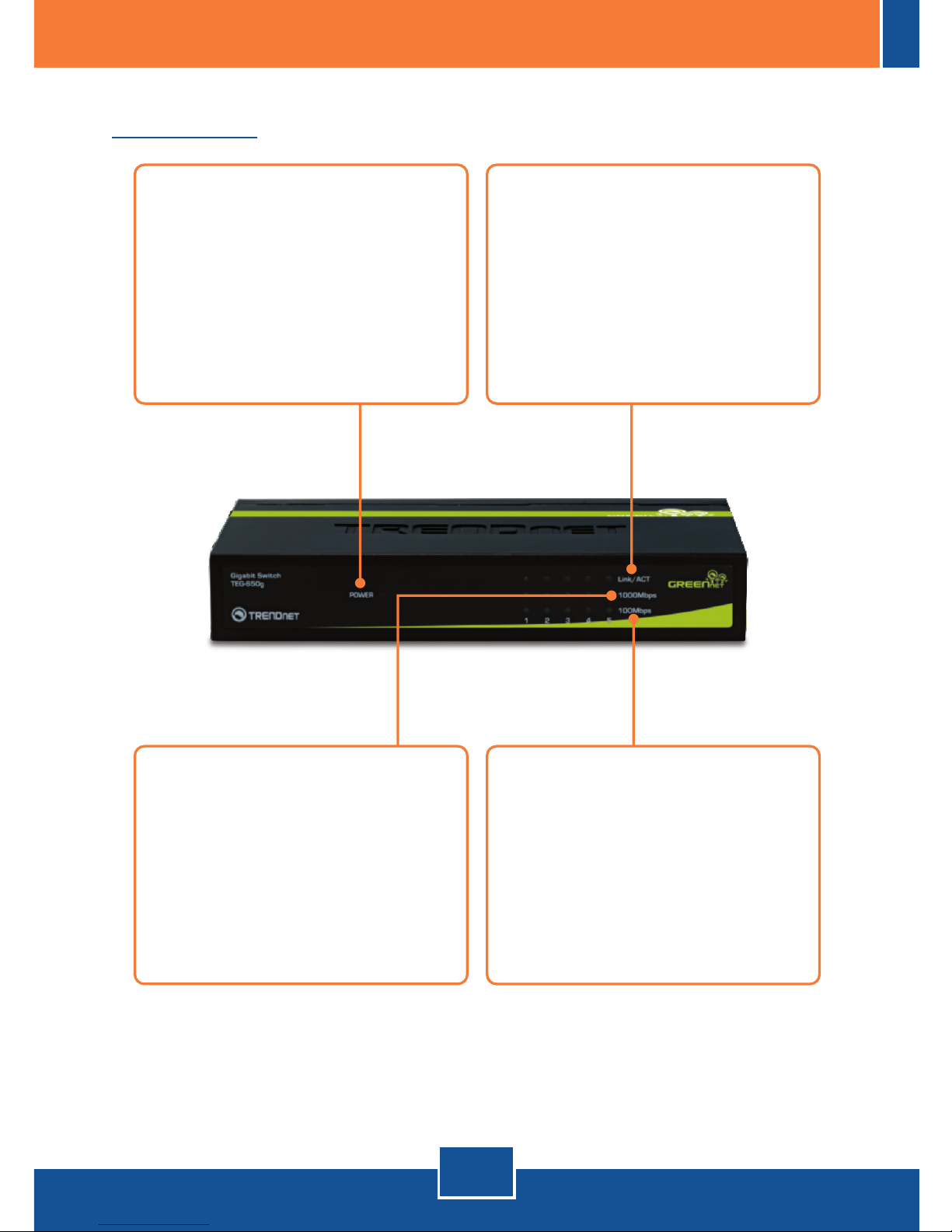

3. LEDs
English

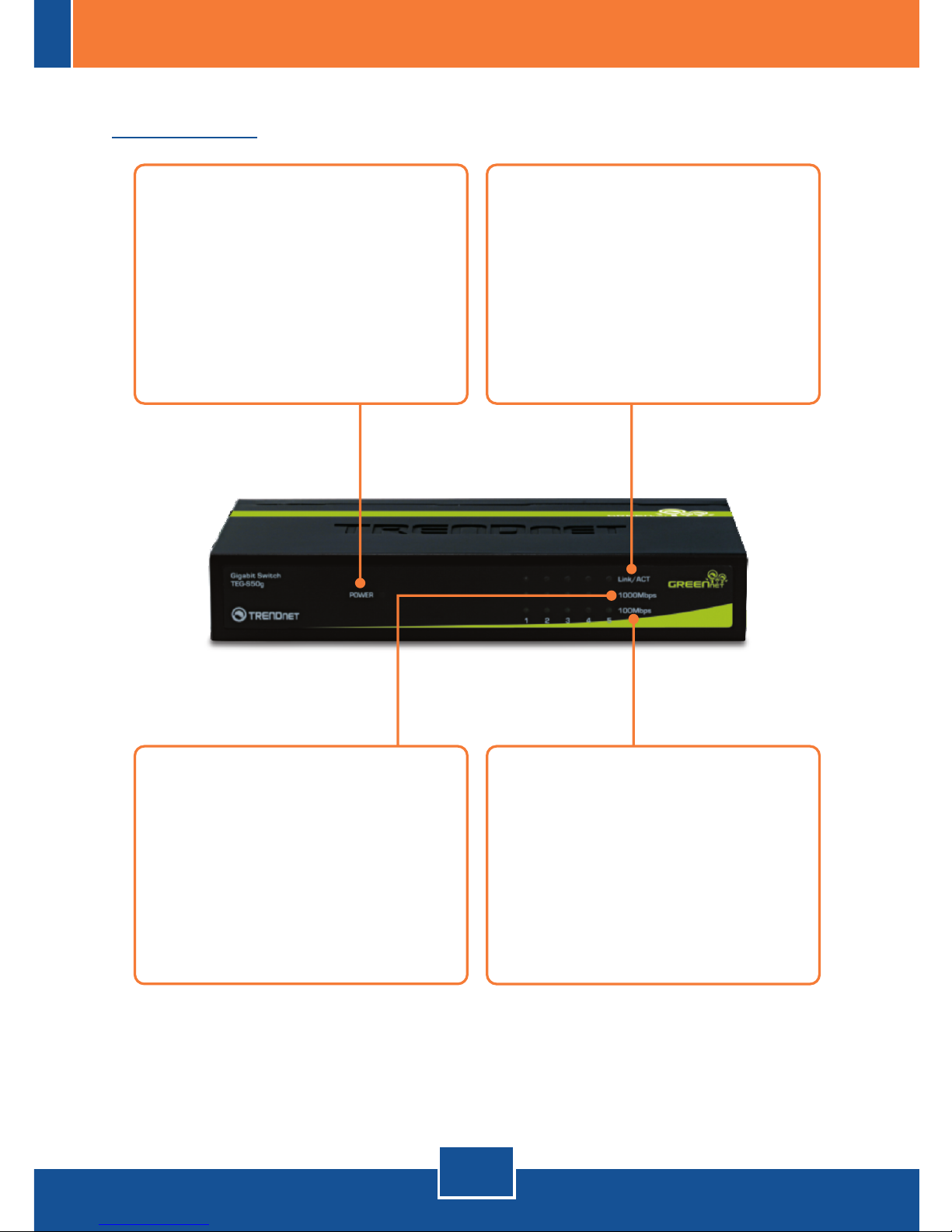

TEG-S50g
Link/ACT
Green(Solid): Link to another
device.
Green(Blinking): Activity is
occurring from the link
Not Illuminated: Nothing is
detected on the port.
1000Mbps
Green: Connection for the port is
1000 (Full)
Not Illuminated: Connection for
the port is 10 or 100 or nothing
is detected on the port.
100Mbps
Green: Connection for the port is
100 (Full)
Not Illuminated: Connection for
the port is 10(Full/Half) or
1000(Full/Half) or nothing is
detected on the port.
Power
Green: Power is on.
Not Illuminated: Power is off.

5
English

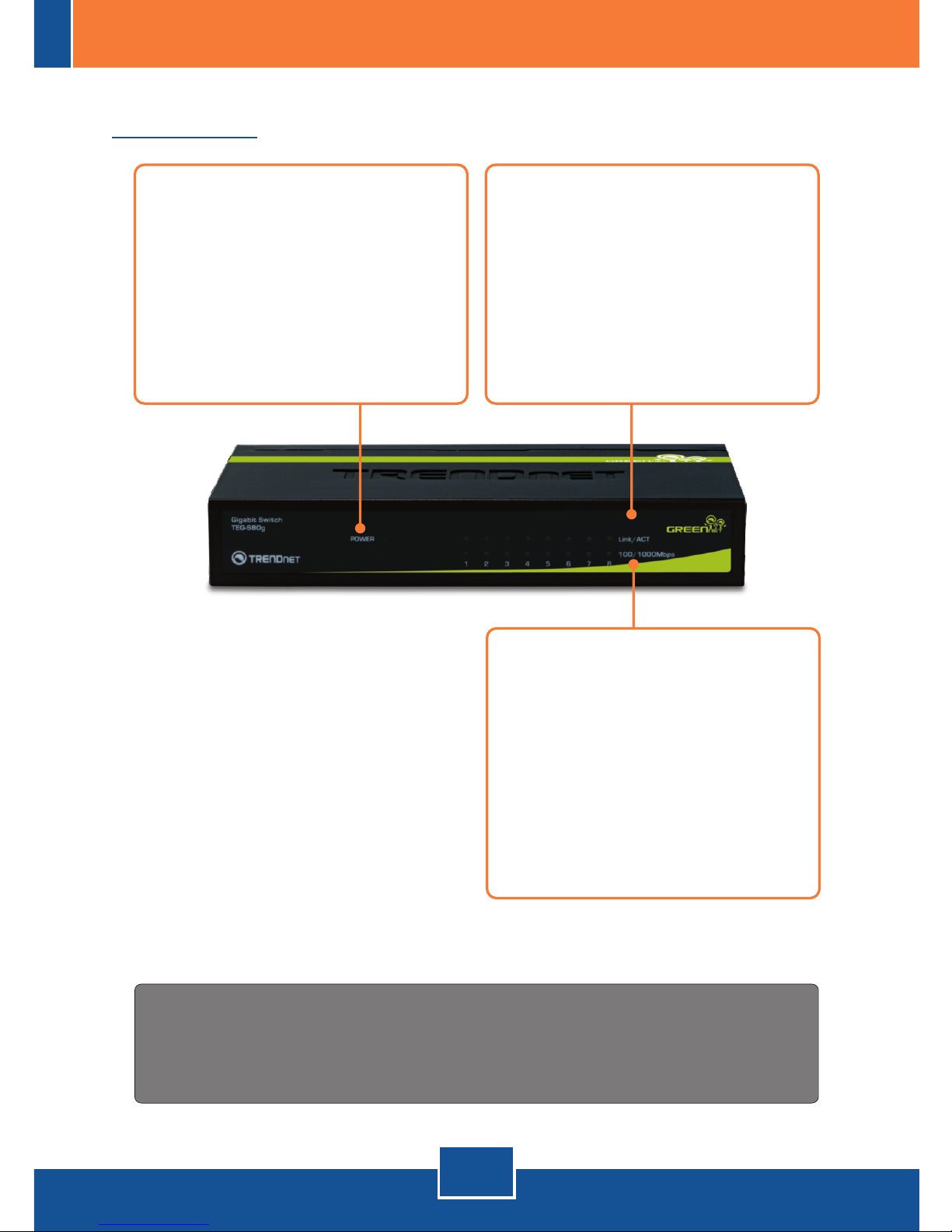

TEG-S80gTEG-S50g
Link/ACT
Green(Solid): Link to another
device.
Green(Blinking): Activity is
occurring from the link
Not Illuminated: Nothing is
detected on the port.
100/1000Mbps
Green: Connection for the port is
1000 (Full)
Amber: Connection for the port
is 100 (Full/Half)
Not Illuminated: Connection for
the port is 10(Full/Half) or
nothing is detected on the port.
Power
Green: Power is on.
Not Illuminated: Power is off.
Your configuration is now complete.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet

6
 Computer cu placă de reţea instalată
 Cablu de reţea Cat-5e sau Cat-6
 Locul de amplasare trebuie să suporte cel puţin 1.5 Kg pentru Switch
 Priza electrică va fi situată la aproximativ 1.82 metrii de Switch
 Verificati mufa jack a adaptorului DC pentru a vă asigura că este corect
conectată la adaptorul AC/DC
 Asiguraţi-vă că există o ventilaţie adecvată în jurul Switch-ului
 Nu aşezaţi obiecte grele deasupra Switch-ului.
 TEG-S50g/TEG-S80g
 Ghid rapid de instalare
 Adaptor AC/DC (7.5V DC, 1A)
1. Înainte de a începe
Cerinte de sistem
Continutul pachetului
Româna

7
Aplicatie
TEG-S50g
TEG-S80g
60m
Full Power
60m
Delivers less power
to unused ports
1
100m
100m
on on
less power
20m
Regular
Switch
GREENnet
Switch
20m
Delivers less power
when devices are off
Delivers less power
with shorter
cable lengths
2
3
on on
off less power
*Max power savings compared with standard TRENDnet switches.
60m
Full Power
60m
100m
100m
20m
Regular
Switch
GREENnet
Switch
20m
Delivers less power
with shorter
cable lengths
3
Delivers less power
to unused ports
1
on on
less power
Delivers less power
when devices are off
2
on on
off less power
*Max power savings compared with standard TRENDnet switches.
Româna

8
1. Conectaţi adaptorul AC/DC la
TEG-S50g/TEG-S80g şi la priza
electrică.
2. Conectaţi un cablu de reţea CAT-
5e sau CAT-6 RJ-45 de la
computer la un port liber Ethernet
de la TEG-S50g/TEG-S80g.
Româna
2. Instalarea Hardware

3. LED-uri
9
TEG-S50g
Link/ACT
Verde(continuu): conexiune
stabilă cu un alt dispozitiv.
Verde(intermitent): port activ.
Stins: nu este detectată nici o
activitate la port.
1000Mbps
Verde: conexiunea stabilită este
de 1000 Mbps (Full/Half)
Stins: conexiunea la port este 10
sau 100 Mbps sau nu este
detectată nici o activitate la port.
100Mbps
Verde: conexiunea la port este
100 Mbps (Full/Half)
Stins: conextiunea la port este
10 Mbps (Full/Half) sau
100(Full/Half) sau nu este
detectată nici o activitate la port.
Power
Verde: pornit.
Stins: oprit.
Româna

10
TEG-S80gTEG-S50g
Link/ACT
Verde(continuu): conexiune
stabilă cu un alt dispozitiv.
Verde(intermitent): port activ.
Stins: nu este detectată nici o
activitate la port.
100/1000Mbps
Verde: conexiunea la port este
1000 Mbps (Full/Half)
Galben: conexiunea la port este
100 Mbps (Full/Half)
Stins: conexiunea la the port
este 10 Mbps (Full/Half) sau nu
este detectată nici o activitate la
port.
Power
Verde: pornit.
Stins: oprit.
Româna
Configurarea este acum completă!
Inregistrati-va produsul
Pentru a va asigura ca veti primi cel mai ridicat nivel de suport,
va rugam sa va inregistrati electronic produsul la
www.trendnet.com/register
Va multumim pentru ca ati ales TRENDnet

11
Specificaţii tehnice
Standarde IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
Cablu reţea
Rată transfer date Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half-duplex), 200Mbps
(full-duplex)
Gigabit Ethernet: 2000Mbps (full-duplex)
Interfaţă TEG-S50g: 5 x 10/100/1000 Auto-MDIX RJ-45 ports
TEG-S80g: 8 x 10/100/1000 Auto-MDIX RJ-45 ports
Date RAM Buffer TEG-S50g: 104KBytes per device
TEG-S80g: 128Kbytes per device
Hardware
Packet Filtering/
Forwarding Rate
10Mbps Ethernet: 14,880pps (packet per second)
100Mbps Fast Ethernet: 148,800pps
1000Mbps Gigabit Ethernet: 1,488,000pps
Protocol/Topologie CSMA/CD / Star
Filtering Table
MAC Address Learning
Switch Fabric
Consum energie
Opţiune Jumbo Frame TEG-S50g: Up to 12Kbytes
TEG-S80g: Up to 9612Bytes
Automatic Update
TEG-S50g: 4K entries per device
TEG-S80g: 4K entries per device
TEG-S50g: 10Gbps Forwarding Capacity
TEG-S80g: 16Gbps Forwarding Capacity
TEG-S50g: 3.67W (max)
TEG-S80g: 5W (max)
Ethernet: Cat. 3,4,5, up to 100m
Fast Ethernet: Cat. 5, up to 100m
Gigabit Ethernet: Cat. 5, 5e,6, up to 100m

12
Indicatoare LEDs TEG-S50g: Power, Link/ACT, 100Mbps, 1000Mbps
TEG-S80g: Power, Link/ACT, 100/1000Mbps
Adaptor reţea electrică 7.5V DC, 1A External Power Adapter
Dimensiuni 171 x 98 x 28 mm (6.7 x 3.86 x 1.1 in.)
TemperaturăOperating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Certificări CE, FCC
Hardware
Umiditate Operating: 10% ~ 90%
Storage: 5% ~ 90%
Greutate TEG-S50g: 430g
TEG-S80g” 450g

Troubleshooting
Q1: After connecting the Switch to a power outlet, the LEDs do not turn on.
Check the connection of the external power adapter to the TEG-S50g/A1:
TEG-S80g and the power outlet. Also check that the power outlet is receiving
power.
Q2: When I connect a computer to one of the ports on the Switch, the Power and
the Link/ACT LED is lit, but I am not getting Gigabit speeds.
A2: First, check the LEDs. If you have the TEG-S50g, if the 1000Mbps LED is off,
the computer's connection speed is 10Mbps or 100Mbps. If you have the
TEG-S80g, if the 100/1000Mbps LED is amber, the computer's connection speed
is 100Mbps. If the 100/1000Mbps LED is off, the computer's connection speed is
10Mbps. Second, check the Ethernet Cable. Make sure you are using CAT-5e or
CAT-6 Ethernet Cables. Some CAT-5 cables are not rated to run in Gigabit. Third,
make sure that you have a Gigabit Ethernet adapter installed on your computer.
Q3: After I connect my PCs to the Switch, I am unable to share files.
First, check the LEDs on the Switch. Make sure the Link/ACT LED is on. A3:
Second, check the network cable. The minimum length of the cable is 1.5 meters
and the maximum length of the cable is 100 meters. Third, disable any software
firewall program. Fourth, verify that you have file sharing enabled. Please contact
your Operating System support for more information.
Q4: After I connect my PCs to the Switch, I can only get onto the Internet from one
computer.
The Switch was not designed to share Internet between multiple computers. A4:
You need to get an Internet router such as the TW100-S4W1CA.
Q5: Where is the uplink port located on the Switch?
Since all the ports on the Switch are Auto-MDIX, any of the ports can be used A5:
as an uplink port.
If you still encounter problems or have any questions regarding the TEG-S50g/
TEG-S80g please contact Trendnet's Technical Support Department.
13

14
Troubleshooting
Î1: După conectarea Switch-ului la o priză electrică, LED-urile indicatoare nu se
aprind.
Verificaţi conexiunea între adaptorul extern DC al TEG-S50g/TEG-S80g şi R1:
priza electrică. Deasemenea verificaţi dacă la priza electrică există tensiune.
Î2: Când conectaţi computerul la unul din porturile Switch-ului, LED-urile Power şi
Link/ACT se aprind, dar nu se înregistrează nici un trafic.
R2: Prima dată, verificaţi LED-urile. La modelul TEG-S50g, dacă LED-ul
1000Mbps este stins, viteza conexiunii la computer e de 10Mbps sau 100Mbps.
La modelul S80g, dacă LED-ul 100/1000Mbps are culoare galbenă, viteza
conexiunii la computer este 100Mbps. Dacă LED-ul 100/1000Mbps este stins,
viteza conexiunii la computer este 10Mbps. Verificaţi apoi cablul de reţea
Ethernet. Asiguraţi-vă că folosiţi modelul CAT-5e sau CAT-6 Ethernet. Unele
modele de cablu CAT-5 nu funcţionează în regimul Gigabit. La urmă, verificaţi
dacă în computerul dvs. este instalată o placă de reţea Gigabit Ethernet.
Î3: Adupă conectarea Switch-ului la PC, transferul de fişiere nu are loc.
In primul rând, verificaţi dacă LED-urile Switch-ului sunt aprinse. Asiguraţi-vă R3:
că LED-ul Link/ACT este aprins. In al doilea rand, verificaţi cablul de reţea.
Lungimiea minimă a cablului trebuie să fie 1.5 metrii şi cea maximă 100 metrii. In
al treilea rand, dezactivaţi orice software firewall. In al patrulea rand, verificaţi dacă
aveţi activat protocolul de transfer fişiere. Vă rugăm contactati suportul tehnic al
producatorului sistemului de operare al PC-ului dvs. pentru mai multe informatii.
Î4: După conectarea PC-ului la Switch, vă puteţi conecta la internet doar de pe un
singur computer.
Switch-ul nu a fost proiectat pentru a permite distribuirea conexiunii la internet R4:
intre multiple calculatoare. Aveţi nevoie să vă procuraţi un Internet router cum ar fi
TW100-S4W1CA.
Î5: Unde este localizat portul uplink al Switch-ului?
Odată ce toate porturile Switch-ului sunt Auto-MDIX, orice port poate fi utilizat R5:
ca şi port uplink.
Dacă mai întâmpinaţi probleme sau aveţi întrebări privind TEG-S50g/TEG-S80g rugăm
contactaţi Serviciul de Asistenţă Tehnică de la Trendnet.
14
Remedierea erorilor de funcţionare

Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service, for the following lengths of time from the date of purchase.
TEG-S50g/TEG-S80g 5-Year Limited Warranty
If a product does not operate as warranted above during the applicable warranty period,
TRENDnet shall, at its option and expense, repair the defective product or deliver to
customer an equivalent product to replace the defective item. All products that are
replaced will become the property of TRENDnet. Replacement products may be new or
reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product through any unauthorized service center. This warranty is voided if
(i) the product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable
warranty period for a Return Material Authorization (RMA) number, accompanied by a
copy of the dated proof of the purchase. Products returned to TRENDnet must be pre-
authorized by TRENDnet with RMA number marked on the outside of the package, and
sent prepaid, insured and packaged appropriately for safe shipment.
15

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE
AS WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT
TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE FOREGOING
WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER
WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF
LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT
ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES
NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S
MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED
ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE
RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER
HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET
ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER
BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND,
OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH
DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF
LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED
HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry a 1-Year
Warranty
16

Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may
cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.
Waste electrical and electronic products must not
be disposed of with household waste. Please
recycle where facilities exist. Check with you Local
Authority or Retailer for recycling advice.
ADVERTENCIA
En todos nuestros equipos se mencionan claramente las caracteristicas del adaptador de alimentacón
necesario para su funcionamiento. El uso de un adaptador distinto al mencionado puede producir
daños fisicos y/o daños al equipo conectado. El adaptador de alimentación debe operar con voltaje y
frecuencia de la energia electrica domiciliaria existente en el pais o zona de instalación.

Copyright ©2009. All Rights Reserved. TRENDnet.
Product Warranty Registration
Please take a moment to register your product online.
Go to TRENDnet’s website at http://www.trendnet.com/register
20675 Manhattan Place
Torrance, CA 90501
USA
