TRENDnet TEG-S80TXD User manual

TEG-S80TXD
Version 10.18.2005
User’s Guide
Copyright ©2005. All Rights Reserved. TRENDnet.

Table of Contents
English ............................................................................................
Românǎ ..........................................................................................
1
8
1
8
2
9
6
13
15
1. Introduction .............................................................................
2. Unpacking and Setup ..............................................................
3. Identifying External Components ............................................
1. Introducere ..............................................................................
2. Despachetare si instalare .......................................................
3. Identificarea componentelor externe .......................................
Technical Specifications ..................................................................

This section describes the features of the 8-Port 10/100/1000Mbps Gigabit
Ethernet Switch.
Features
The 8-Port 10/100/1000Mbps Gigabit Ethernet Switch was designed for easy
installation and high performance in an environment where traffic on the
network and the number of users increase continuously.
1
1. Introduction
English UG
English
8 x 10/100/1000Mbps Auto-negotiation Gigabit Ethernet ports
Auto-MDIX for each port
Supports Full/Half duplex transfer mode for 10 and 100Mbps
Supports Full duplex transfer mode for 1000Mbps
Wire speed reception and transmission
Store-and-Forward switching method
Supports 8K entries absolute MAC address table
Supports 256K Bytes RAM for data buffering
Extensive front-panel diagnostic LEDs
IEEE 802.3x flow control for full-duplex
Back pressure flow control for half-duplex
Optional Rack-mount Kit for 19” standard rack

2English
2. Unpacking and Setup
This chapter provides unpacking and setup information for the Switch.
Unpacking
Open the shipping carton of the Switch and carefully unpack its contents. The
carton should contain the following items:
If any item is found missing or damaged, please contact your local reseller for
replacement.
TEG-S80TXD
User's Guide
Four rubber feet with
adhesive backing
AC power cord
TEG-S80TXD
Version 10.18.2005
User’s Guide
Copyright ©2005. All Rights Reserved. TRENDnet.

3English
Setup

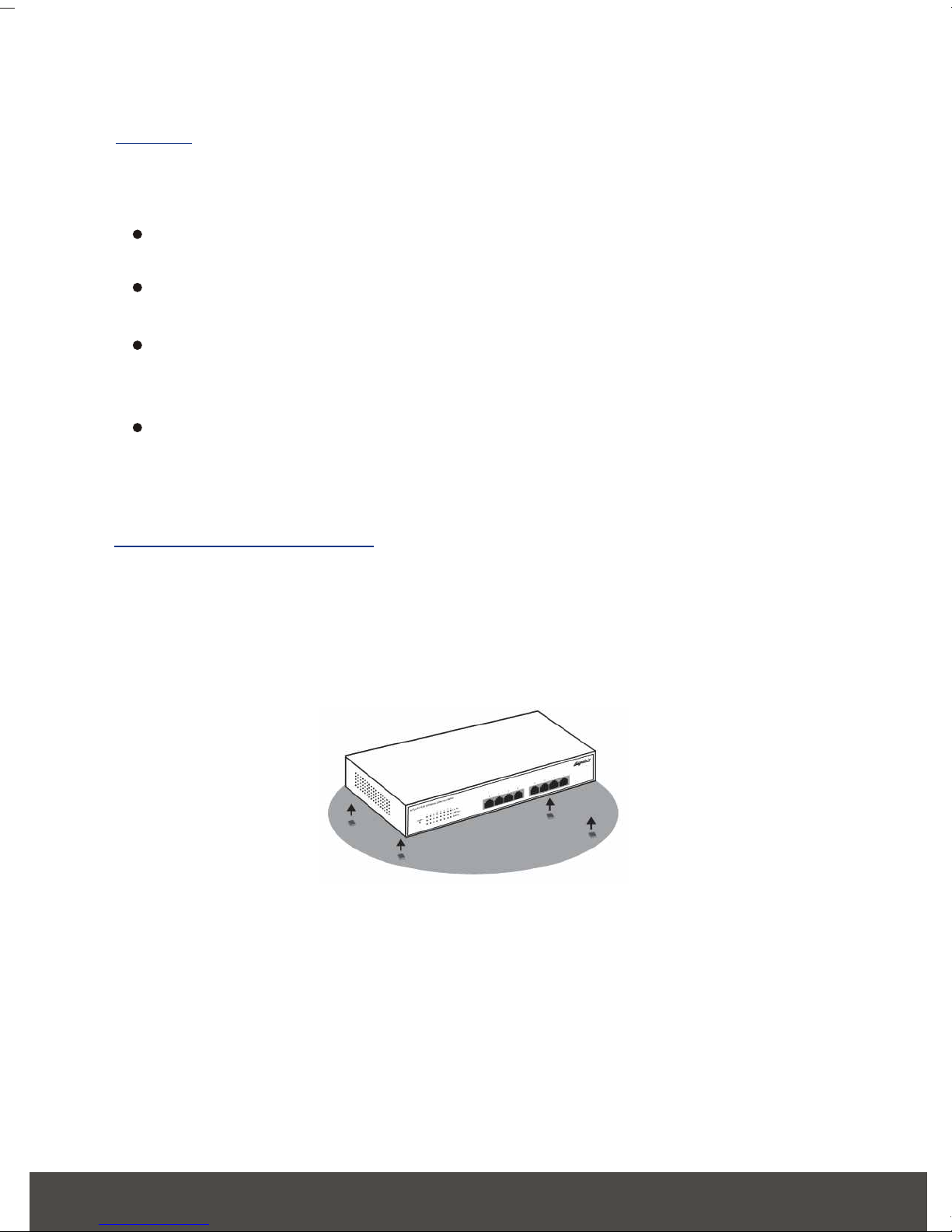

Desktop Installation
The setup of the Switch can be performed using the following steps:
When installing the Switch on a desktop or shelf, the rubber feet included with
the device must be attached first. Attach these cushioning feet on the bottom at
each corner of the device. Allow enough ventilation space between the device
and the objects around it.
The surface must support at least 5 kg.
The power outlet should be within 1.82 meters (6 feet) of the device.
Visually inspect the power cord and see that it is secured fully to the AC
power connector.
Make sure that there is proper heat dissipation from and adequate
ventilation around the Switch. Do not place heavy objects on the Switch.
Gigabit Ethernet Switch installed on a Desktop or Shelf

4

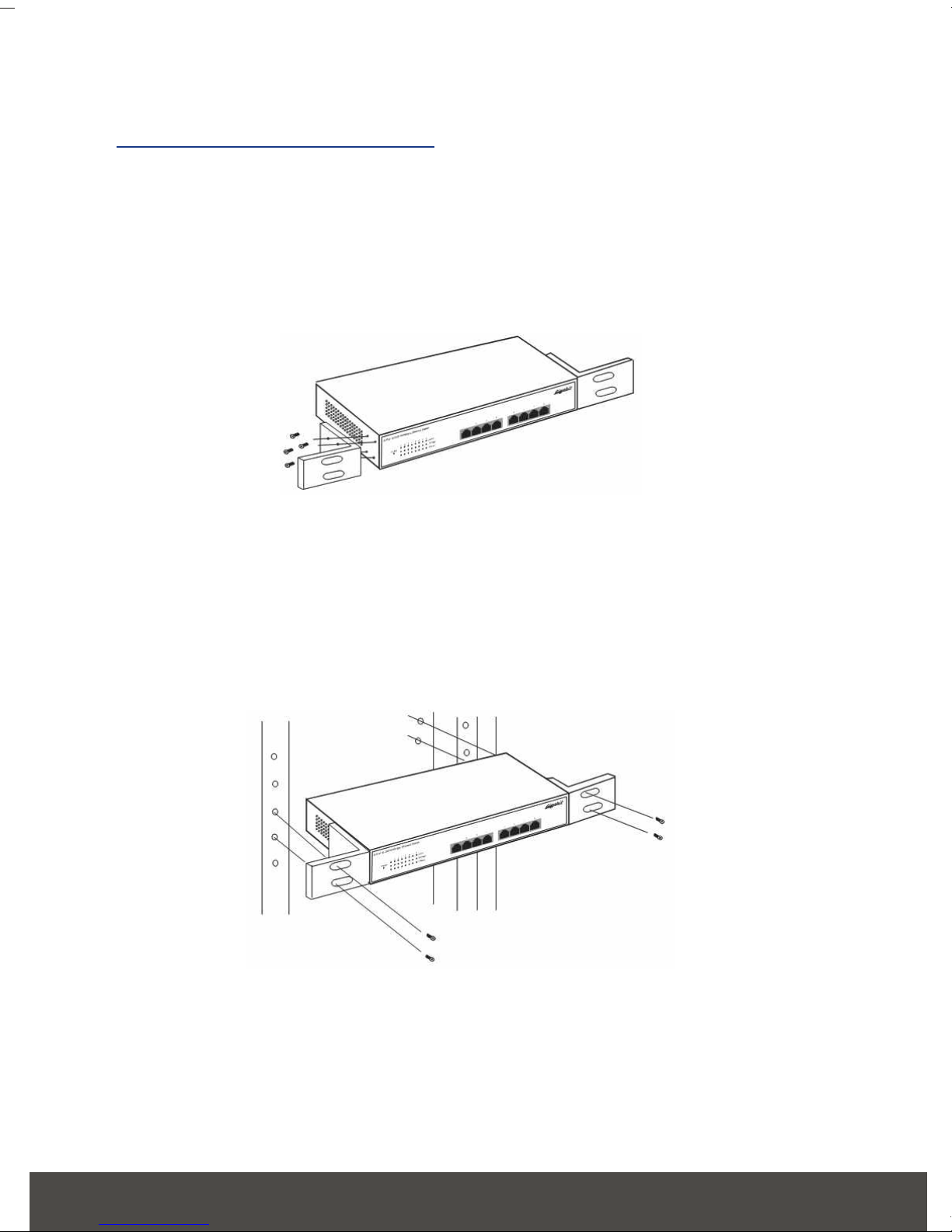

Rack Installation (optional)
The 8-Port 10/100/1000Mbps Gigabit Ethernet Switch can be mounted in an
EIA standard size, 19-inch rack, which can be placed in a wiring closet with
other equipment. To install, attach the mounting brackets on the Switch's front
panel (one on each side) and secure them with the provided screws.
Then, use the screws provided with the equipment rack to mount the Switch in
the rack.
English
Installing the Switch on an equipment rack
Attaching the mounting brackets to the Switch

5English
Connecting Network Cable
AC Power
The 8-Port 10/100/1000Mbps Gigabit Ethernet Switch supports eight
10/100/1000Mbps Gigabit Ethernet ports. These ports support half or full
duplex mode when running in 10Mbps or 100Mbps. They support full duplex
while running in 1000Mbps.
These ports are Auto-MDIX type port. They can auto transform to MDI-II or
MDI-X medium type, so you can just make an connection with a straight or
crossover cable.
The 8-port Gigabit Ethernet Switch can be used with 100~240V AC, 50~60 Hz
power source. The power supply of the Switch will adjust to the local power
specification automatically and may be turned on without having any or all LAN
segment cables connected.

6English
3. Identifying External Components
The front panel of the Switch consists of eight 1000BASE-T ports and LED
indicators.
This chapter describes the front panel, rear panel and LED indicators of the
Switch
Front Panel
Front panel view of the Switch
Rear panel view of the Switch
Eight Gigabit Ethernet ports of 10/100/1000Mbps Auto-Negotiation
interface.
Comprehensive LED indicators display the conditions of the Switch and
status of the network. A description of these LED indicators follows (see
LED Indicators).
AC Power Connector: This is a three-pronged connector that supports
the power cord. Plug in the female connector of the provided power cord
into this connector, and the male into a power outlet. Supported input
voltages range from 100~240V AC at 50~60 Hz.
Rear Panel
The rear panel of the Switch consists of an AC power connector. The following
figure shows the rear panel of the Switch.

7English
The LED indicators of the Switch including Power, Link/Act, 1000Mbps and
100Mbps. The following shows the LED indicators for the Switch along with
explanation of each indicator.
The Switch LED indicators
LED Indicators
This indicator lights green when the Switch is receiving power. It is off for
no power.
This LED indicator lights green when there is a valid connection (or link) to
the port. The LED indicator blinks whenever there is reception or
transmission (i.e. ActivityAct) of data at a port.
This LED indicator lights green when there is a valid 1000Mbps Gigabit
Ethernet connection (or link) to the port.
This LED indicator lights green when there is a valid connection (or link) to
100Mbps Fast Ethernet device at the port.
Power:
Link/ACT:
1000Mbps:
100Mbps:
If the connection (or link) is 10Mbps, both 1000Mbps and 100Mbps LED
indicators are off.

8
1. Introducere
Românǎ
Românǎ
Aceasta sectiune descrie caracteristicile Switchului cu 8 porturi
10/100/1000Mbps Gigabit Ethernet
Trasaturi
Switchul cu 8 porturi 10/100/1000Mbps Gigabit Ethernet a fost realizat in
vederea unei instalari usoare si unei performante ridicate, intr-un mediu unde
traficul in retea si numarul utilizatorilor sunt intr-o continua.
8 porturi x 10/100/1000Mbps Auto-negociere Gigabit Ethernet
Auto-MDIX pentru fiecare port
Suporta mod de transfer Full/Half duplex pentru 10 si 100Mbps
Suporta mod de transfer Full duplex pentru 1000Mbps
Viteza la nivel de “fir” pentru receptare si transmitere
Metoda switching Store-and-Forward
Suporta intrari 8K table adrese absolute MAC
Supporta 256K Bytes RAM pentru buffering la informatie
LEDuri pentru diagnostic pe panpul frontal
Control al fluxului de tip IEEE 802.3x pentru full-duplex
Control al fluxului de presiune pentru half-duplex
Kit Rack optional pentru rack standard 19” .

9
2. Despachetare si instalare
Românǎ
Acest capitol va puna la dispozitie informatii cu privire la despachetarea
Switchului si instalarea sa.
Despachetarea
Desfaceti cutia in care produsul a fost livrat si despachetati cu grija
componentele. Cutia respectiva trebuie sa contina urmatoarele:
Daca unul din itemuri lipseste sau este avariat , va rugam sa contactati
vanzatorul in vederea inlocuirii produsului.
TEG-S80TXD
Acest ghid al utilizatorului
Patru picioare de cauciuc cu
partea din spate adeziva
Un cablu AC de alimentare
TEG-S80TXD
Version 10.18.2005
User’s Guide
Copyright ©2005. All Rights Reserved. TRENDnet.

10 Românǎ
Setup
Instalarea Desktop
Setupul Switchului poate fi dus la bun sfarsit folosind urmatorii pasi:
In momentul instalarii Switchului pe un sau pe un raft, picioarele din caucioc
livrate odata cu Switchul trebuiesc fixate mai inati.Atasati aceste picioare pe
partea de jos , in fiecare colt al Switchului. Permiteti indeajuns de mult spatiu
pentru ventilatie intre aparat si obiectele din jurul sau.
Suprafata trebuie sa suporte cel putin 5 Kg.
Priza trebuie sa se afle la o distanta de cel mult 1.82 metri de aparat.
sigurati-va ca respectivul cablu este bine atasat conectorului de
alimentare.
Asigurati-va ca exista posibilitatea unei dispersii cum se cuvine a caldurii
si o ventilatie adecvata in jurul Switchului. Nu asezati obiecte grele pe .
Switch Gigabit Ethernet instalat pe birou sau raft

11 Românǎ
Instalare Rack (optional)
Switchul 10/100/1000Mbps Gigabit Ethernet cu 8 porturi poate fi montat la
marimea standard EIA a unui rack de 19 inci, ce poate fi asezat intr-un dulap
impreuna cu restul de fire si echipament. Pentru instalare, atasati clamele de
montare pe panoul frontal al Switchului ( cate una pe fiecare parte) si fixati-le
cu suruburile livrate odata cu produsul .
Apoi, folositi suruburile respective pentru a monta Switchul in rack.
Instalarea Switchului in rack
Atasarea clamelor de montare la Switch

12 Românǎ
Conectarea Cablului de Retea
AC Power (Alimentare)
Switchul cu 8 porturi 10/100/1000Mbps Gigabit Ethernet suporta opt porturi
10/100/1000Mbps Gigabit Ethernet. Aceste porturi suporta moduri half
(jumatate) sau full duplex, la rularea la 10Mbps sau 100Mbps. Acestea suporta
full duplex la 1000Mbps.
Porturile sunt de tipul Auto-MDIX. Se pot transforma automat in tip mediu
MIDI-II sau MIDI-x, asadar puteti realize o conexiune cu un cablu fie direct, fie
incrucisat.
Acest Switch poate fi folosit la o sursa de alimentare 100~240V , 50~60 Hz .
Sursa de alimentare a Switchului se va ajusta automat la specificatiile locale
de energie si poate fi pornit in absenta conectarii vreunuia dintre .

13 Românǎ
3. Identificarea componentelor externe
Panoul frontal consta in 8 porturi de tip 1000BASE-T LEDuri cu indicatori.
Acest capitol descrie panoul din spate si cel frontal, precum si LEDurile
impreuna cu indicatorii acestora.
Panoul Frontal
Vedere asupra panoului frontal al Switcului
Panoul din spate al Switchului
Opt porturi Gigabit Ethernet de 10/100/1000Mbps interfata Auto-
Negociere.
Indicatori LED usor de inteles arata conditiile Switchului si statusul retelei.
O descrieie a acestor indicatori LED urmeaza. (vezi indicatori LED).
Conector alimentare: Acesta este conectorul ce suporta cablul de
alimentare. Conectati cablul de alimentare in conector , iar capatul celalalt
conectati-l la o priza. Voltaj permis: 100~240V AC la 50~60 Hz.
Panou Spate
Acest panou consta intr-un conector AC de alimentare. Figura de mai jos
ilustreaza acest lucru.

14 Românǎ
Indicatorii LED ai Switchului : Power, Link/Act, 1000Mbps si 100Mbps.
Urmatoarea imagine ilustreaza Indicatorii LED ai Switchului , impreuna cu
explicatiile pentru fiecare indicator.
Indicatorii LED ai Switchului
Indicatori LED
Acest indicator se aprinde de culoare verde cand Swichului receptioneaza
energie. Sta OFF cand nu este curent.
Acest indicator se aprinde de culoare verde cand exista o conexiune
valida.(sau link) la port. Indicatorul LED clipeste in cazul fiecarei receptii
sau transmisii (ActivityAct) de informatii la port.
Acest indicator LED se aprinde de culoarea verde cand exista o
conexiune (sau link) la port de tip 1000Mbps Gigabit Ethernet
Acest indicator se aprinde de culoarea verde cand exista o conexiune
(sau link) port .
Power:
Link/ACT:
1000Mbps:
100Mbps:
Daca conexiunea (sau linkul) este de 10Mbps, atat indicatorul de 1000Mbps
cat si cel de 100Mbps sunt oprite.

15
Technical Specifications
Standards:
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 820.3 10BASE-T
Protocol: CSMA/CD
Rata Transfer Date:
Ethernet: 10 Mbps (half-duplex), 20 Mbps
(full-duplex)
Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps
(full-duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
Topology: Star
Network Cables:
Ethernet: 2-pair UTP/STP Cat. 3,4,5 Cable
Fast Ethernet: 2-pair UTP/STP Cat. 5 Cable
Gigabit Ethernet: 4-pair UTP/STP Cat. 5 Cable
Number of Ports: Eight(8) 10/100/1000Mbps Auto-Negotiation and
Auto-MDIX ports
General

16
DC inputs:
Transmission Method:
100 ~ 240V AC Universal, 50/60 Hz
Store-and-forward
Power Consumption:
RAM Buffer:
20 watts maximum
256K Bytes per device
Operating Temperature:
Filtering Address Table:
0° ~ 40° C
8K MAC address per device
Storage Temperature:
Packet Filtering/
Forwarding Rate:
-10°C ~ 55°C
10Mbps Ethernet: 14,880 pps
100Mbps Fast Ethernet: 148,800 pps
1000Mbps Gigabit Ethernet: 1,488,000 pps
Humidity:
MAC Address Learning:
5% ~ 95% RH, non-condensing
Self-learning, auto-aging
Dimensions:
Weight:
EMI:
Safety:
280(W) × 180(D) × 44(H) mm
1.62Kg
FCC Class A, CE Mark Class A, VCCI Class A
cUL, TUV/GS
Physical and Environmental
Performance

17
FCC Warning
This equipment has been tested and found to comply with the regulations for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with this
user's guide, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
VCCI Warning
This is a product of VCCI Class A Compliance.
Certifications
This equipment has been tested and found to comply with FCC and CE Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQUIPMENT.

18
Limited Warranty
TRENDware warrants its products against defects in material and
workmanship, under normal use and service, for the following lengths of
time from the date of purchase.
Wired Products - 5 Years Warranty
If a product does not operate as warranted above during the applicable
warranty period, TRENDware shall, at its option and expense, repair the
defective product or part, deliver to customer an equivalent product or
part to replace the defective item, or refund to customer the purchase
price paid for the defective product. All products that are replaced will
become the property of TRENDware. Replacement products may be
new or reconditioned.
TRENDware shall not be responsible for any software, firmware,
information, or memory data of customer contained in, stored on, or
integrated with any products returned to TRENDware pursuant to any
warranty.
There are no user serviceable parts inside the product. Do not remove
or attempt to service the product by any unauthorized service center.
This warranty is voided if (i) the product has been modified or repaired
by any unauthorized service center, (ii) the product was subject to
accident, abuse, or improper use (iii) the product was subject to
conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDware office
within the applicable warranty period for a Return Material Authorization
(RMA) number, accompanied by a copy of the dated proof of the
purchase. Products returned to TRENDware must be pre-authorized by
TRENDware with RMA number marked on the outside of the package,
and sent prepaid, insured and packaged appropriately for safe
shipment.
