TRI tool 306 User manual

Oper ation
Manual
92-0746 Rev. 220713
Model 306 Tube Squaring Machine

ABOUT TRI TOOL TECHNOLOGIES
At Tri Tool, we are committed to your success through
relentless innovation and powerful partnership. We
insist on developing tools and equipment that exceed
your expectations of performance, precision, safety, and
durability. As a full-service engineering rm, we are here to
support you every step of the way.
For more information on engineered solutions, products,
and trainings, visit tritool.com or contact our engineers at
+1(916) 288-6100.

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 1
TABLE OF CONTENTS
Tri Tool Inc Warranty 2
Tool Bit Resharpening Policy 3
About the Manual 4
Safety 5
General Description 7
Specications8
Maintenance 9
Operation 10
Tool Bit 12
Saddle Sets 13
Cutting Speed & Feed 14
Troubleshooting 16
IllustratedPartsBreakdown 18
92-0746 Rev. 220713
Model 306 Tube Squaring Machine

TRI TOOL INC.
92-0746 Rev. 220713
2
TRI TOOL INC. Warranty
LIMITED WARRANTY: All products manufactured by Seller are warranted to be free from
defects in materials and workmanship under normal use. The period of this warranty shall
be three years from the date of shipment for all products, except for welding and Non-
Standard Products which shall be one year from the date of shipment. The Buyer shall bear
all shipping, packing and insurance costs and all other costs to and from a designated repair
service center. All return goods must be authorized in advance and communicated upon
issuance of a Return Material Authorization (RMA) by Seller. The product will be returned to
the Seller accompanied by a RMA number and associated paperwork, freight prepaid and
billed to the Buyer. This warranty is not transferable and will not apply to tool bits or other
consumables, or to any Goods to have been (i) mishandled, misused, abused or damaged
by Buyer or any third party; (ii) altered without the express permission in writing by Seller, (iii)
repaired by a party other than Seller without Seller’s prior written approval; or (iv) improperly
stored, installed, operated, or maintained in a manner inconsistent with Seller’s instructions.
This warranty does not apply to defects attributed to (i) normal wear and tear or (ii) failure to
comply with Seller’s safety warnings.
No warranty for any parts or other supplies provided to seller by buyer, whether or not they
are incorporated into goods. Goods supplied by seller which are designed or manufactured
by a third party are subject strictly to the third party’s warranty for those goods. Seller
makes no warranty and disclaims all statutory or implied warranties for these goods,
including the implied warranties of merchantability, freedom from patent infringement and
tnessforaparticularpurpose.
Neither this warranty nor any other warranty, expressed or implied, including implied
warrantiesofmechanicalability,tnessforaparticularuse,ormerchantability,shallextend
beyond the warranty period. No responsibility is assumed for any incidental or consequential
damages. Some states do not allow limitations on how long an implied warranty lasts and
some states do not allow the exclusion or limitations incidental or consequential damages,
so the above limitation of exclusion does not apply to all Buyers. This warranty gives the
Buyerspeciclegalrights.Otherrightsvaryfromstatetostate.
Warranty Claims and Remedies
Buyer must promptly notify Seller in writing during the applicable warranty period,
of any defective Goods covered by Seller’s warranties under the Limited Warranty
sectionherein,andnolaterthanfteen(15)calendardaysafterdiscoveryofthe
defect. Seller has no obligation to honor any warranty claim made after the expiration
of the warranty period. However, despite the expiration of the warranty period, Seller,
atitsreasonablediscretion,mayacceptwarrantyclaimssubmitteduptofteen(15)
calendar days after the expiration of the warranty period provided that Buyer provides
Seller with credible and persuasive documentary evidence that the defect was
discoveredduringthewarrantyperiod.Nowarrantyclaimssubmittedafterthisfteen
(15) day calendar period will be considered by Seller.

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 3
IfthedefectclaimedbyBuyercannotbereproducedorotherwiseveriedbySeller,the
GoodswillbereturnedtoBuyerunmodiedatBuyer’sexpense.
The warranty period for repaired or replaced Goods shall be (i) ninety (90) days or (ii)
the unexpired portion of the original warranty period. Under no circumstances is Seller
liable for recall, retrieval, removal, dismantling, re-installation, redeployment, or re-
commissioning of any defective Goods or any costs associated therewith.
Tool Bit Resharpening Policy
Buyer’snoticeofadefectiveGoodsmustidentifythespecicGoodsaffected,andthe
nature of the defect. It is required when returning the defective Goods, that it is suitably
packed, fully insured, and transportation and insurance prepaid in accordance with
instructions issued by Seller. Seller, at its sole option, will either repair or replace any
Goods authorized for return to Seller. Such repair, replacement, or credit shall be Buyer’s
sole remedy for defective Goods. Buyer must promptly provide Seller with all information
requestedregardingtheidentieddefect.
Buyer is required to check all tool bits prior to returning and ensure they are packaged
well for shipment. The price structure is available from the Seller’s sales coordinator.
Seller cannot resharpen badly gouged, chipped, or broken tool bits. Seller will return tool
bits that are not suitable for resharpening with the tool bits that were resharpened, unless
Seller is instructed otherwise. Buyer is responsible for all shipping charges to and from
Seller.

TRI TOOL INC.
92-0746 Rev. 220713
4
1. ABOUT THE MANUAL
1.1 Copyright
©Copyright Tri Tool Inc. Proprietary property of Tri Tool Inc. No reproduction, use, or
duplication of the information shown hereon is permitted without the express written
consent of Tri Tool Inc.
1.2 Disclaimer
The instructions and descriptions in this manual were accurate when the manual was
written. However, the information in the manual is subject to change without notice.
Check for updated information before you start any job. The Tri Tool Inc. web site has the
most current information.
Do not operate or work on this equipment unless you have read and understood
the instructions in this Manual. Failure to follow the instructions or follow the safety
instructions could result in serious injury or death. This manual describes conditions and
hazards that are common and anticipated during equipment operation. No manual can
address all conditions which may occur.
1.3 Safety Symbols
The manual may contain one or more safety symbols. These symbols and the
associated text warn you of potentially hazardous conditions. Examples of the
safety symbols and the associated text follow:
DANGER
DANGER: Indicates a hazardous situation that, if not avoided, will result in
serious injury or death.
WARNING
WARNING: Indicates a hazardous situation that, if not avoided, could result in
serious injury or death.
CAUTION
CAUTION: Indicates a hazardous situation that, if not avoided, could result in
minor or moderate injury, or cause property damage.

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 5
2. SAFETY PRECAUTIONS
2.1 In General
Use standard safety equipment such as: hard hats, safety shoes, safety harnesses, protective
clothes, and other safety devices when appropriate.
Operatethistoolonlyinaccordancewithspecicoperatinginstructions.
2.2 Personal Protective Equipment
Use standard safety equipment such as: hard hats, safety shoes, safety harnesses, protective
clothes, and other safety devices when appropriate.
Wear safety glasses.
Do not wear loose clothing or jewelry.
Wear nonskid footwear.
Put long hair in a cap or a net to make sure hair does not get tangled in equipment.
2.3 Personnel
Only personnel who are trained or are being trained may operate the equipment.
Keep the operation manual available where the equipment is used.
The operator must read the operation manual before using the equipment.
The equipment must be operated in accordance with the manual information.
The operator must follow the safety precautions in this manual and good engineering practices
to reduce the risk of injury.
Before using the equipment, the operator must ensure that all safety messages on the
equipment are legible.
2.4 Work Area
Keep the work area clean.
Keep the area well lit.
Keep items such as electrical cords, cables, rags, rigging straps, away from rotating equipment.
WARNING
WARNING: Do not override the dead-man switch on the power unit. Locking down,
obstructing, or in any way defeating the dead-man switch on the power drive unit
may result in serious injury.

TRI TOOL INC.
92-0746 Rev. 220713
6
Donotusepower-cuttingtoolsinthepresenceofammableliquidsandgases.
Do not let visitors or untrained personnel near tools that are in use.
Ensure all observers wear eye protection.
Keep proper footing at all times.
2.5 Area Equipment
Secure the pipe with clamps, vises, chains or straps.
Ensure that both sides of the pipe at the cut site is fully supported so that the pipe will not move
after the cut is completed. Long lengths of pipe may be under load and the separation of the
pipe can release pressure. This pressure can cause both sides of the pipe to move.
2.6 Tool Care
Keep tools in good operating condition. Sharp tool bits perform better and are safer than dull
tool bits.
Do not use damaged tools. Always check your tools for damage especially if a tool has
malfunctioned, been dropped or hit, check it for damage.
Before you start operating the equipment, do no-load tests and feed function checks.
2.7 Tool Use
Use the right tool and tool bit for the job. Contact Tri Tool to help with your application.
Keep the tool bits fully engaged in the tool bit holders. Loose bits are sharp and can cause cuts
or punctures.
Disconnect power supply during setup and maintenance. Use all ‘Stop’ or Shut off’ features
available when changing or adjusting tool bits, maintaining the tool, or when the tool is not in
use.
Remove adjusting keys and wrenches before applying power to the equipment. Check the tool
before turning it on to make sure that all keys and wrenches have been removed.
Do not force tools. Tools and tool bits function better and safer when used at the recommended
speeds.
Do not reach into rotating equipment.
Do not reach into the rotating head stock to remove chips, to make adjustments, or to check the
surfacenish.
Handle chips with care. Chips have very sharp edges and are hot. Do not try to pull chips apart
with bare hands.
Store tools properly. Disconnect tools from the power source, remove the tool bits, and store in
a safe place.

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 7
3. GENERAL DESCRIPTION
The Model 306 Tube Squaring Machine is a lightweight, portable machine designed
forfacingandsquaring1.00”(25.4mm)to6.63”(168.3mm)outsidediametertubing
up to .25” (6.35mm) wall thickness. The Model 306 is available with an integral,
variable speed 110 VAC or 220 VAC electric drive motor. The Model 306 features
quick-change aluminum Saddle Sets (no tools required for installation) and a .001”
(.025mm) graduated feed dial. The precision inside diameter Saddles hold the tubing
round to accurately square and face the tubing with minimum to no burr. The machine
accepts its own torque through the Saddle Clamping System. The Cutting Head
allows installation up to three Tool Bits for squaring, beveling or special preps. A set
of transparent chip guards cover the machine’s top window openings and allow for
safe and clear line-of-sight vision to the workpiece during use and open access to the
Cutting Head to changing Tool Bits.

TRI TOOL INC.
92-0746 Rev. 220713
8
4. SPECIFICATIONS
Weight 70lbs.(31.8kg)withsaddlesetinstalled.
Height 14.49"(368.1mm)
Width 23.26" (590.9mm)
Length 21.57"(548.0mm)
TubeSize 1.0"(25.4mm)to6.63"(168.3mm)
PipeSize 1"sch80to6"sch40
Feed 1.00" (25.4mm)
Power 110 VAC, 50/60 Hz, 9.6 A
220 VAC, 50/60 HZ, 5.7 A

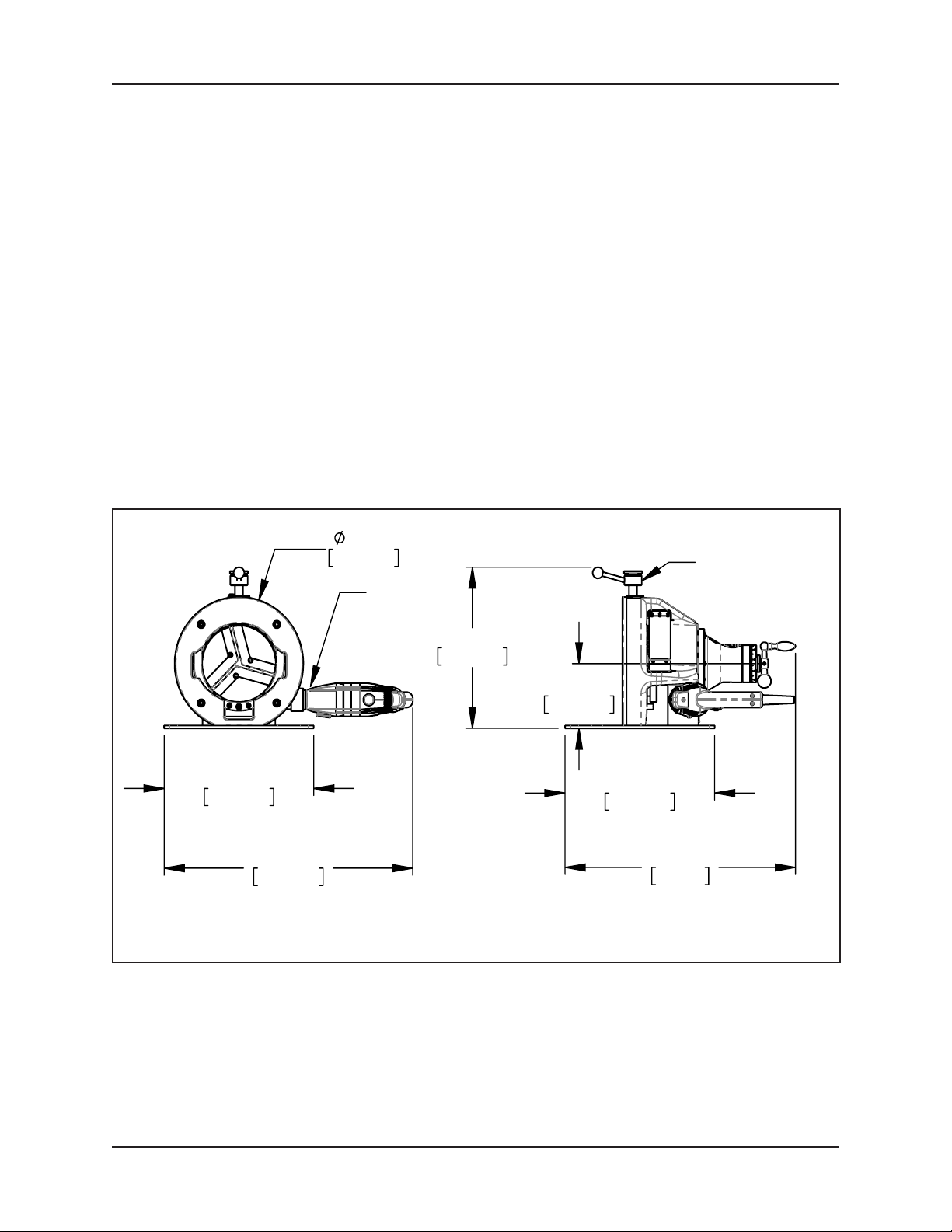

Figure 1: Envelope Drawing
MATERIALS
Mild steel, Chrome steel (Rc 35 max.), Stainless steel, Copper-nickel and Aluminum.
Inconel and some other high temperature alloys may require special procedures as
a function of wall thickness and type of end preparation.
Contact Tri Tool’s Engineering Department for details.
14.00in
355.6mm
23.26in
590.9mm
12.00in
304.8mm
ELECTRIC
MOTOR
5.81in
147.6mm
14.00in
355.6mm
21.57in
548mm
14.49in
368.1mm
SADDLE LOCKING
ASSEMBLY

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 9
5. MAINTENANCE
Allcomponentsshouldbecleanandcoatedwithalightlmofoilpriortouse.
Use a clean, non-detergent oil, preferably SAE 10 (90 SSU or lighter) or oil which
isspeciedforairmotor.
If the Model 306E is operated in the vertical position (cutting head up), it should
be turned upside down and the chips and / or other debris removed after each
cut is completed.
Bearings and gears are to be lubricated using a lithium-based grease.
CAUTION
CAUTION: Tool life may be severely shortened, unless chips and / or debris, that have
been deposited on the cutting head during the machining operation, are removed.
CAUTION
CAUTION: Disassembly of the power unit voids warranty, except when performed by
a Tri Tool Inc. designated repair technician. (Letter of designation is required.)

TRI TOOL INC.
92-0746 Rev. 220713
10
6. OPERATION
SelecttheToolBit(s)requiredtomachinetheendcongurationdesired.
When performing a tube squaring operation the Tool Bit may be placed in any one
of three Cutting Head slots.
When performing any separate machining operation such as facing, beveling or
counter-boring, the Tool Bit(s) may be installed in any one of three Cutting Head
slots.
When performing any multiple machining operation such as facing, beveling or
counterboring, the Tool Bit(s) should be installed with one in each slots.
CAUTION
CAUTION: The use of dull Tool Bits or Tool Bits not manufactured by Tri Tool Inc. may
result in poor performance and may constitute abuse of this machine and therefore
voids the Tri Tool Inc. factory warranty.
Insert the Tool Bit(s) into the slot(s) in the Cutting Head.
Feed Handle
.001"
Feed Indicator
Saddle Handle
Assembly
On/Off Switch
Speed Control

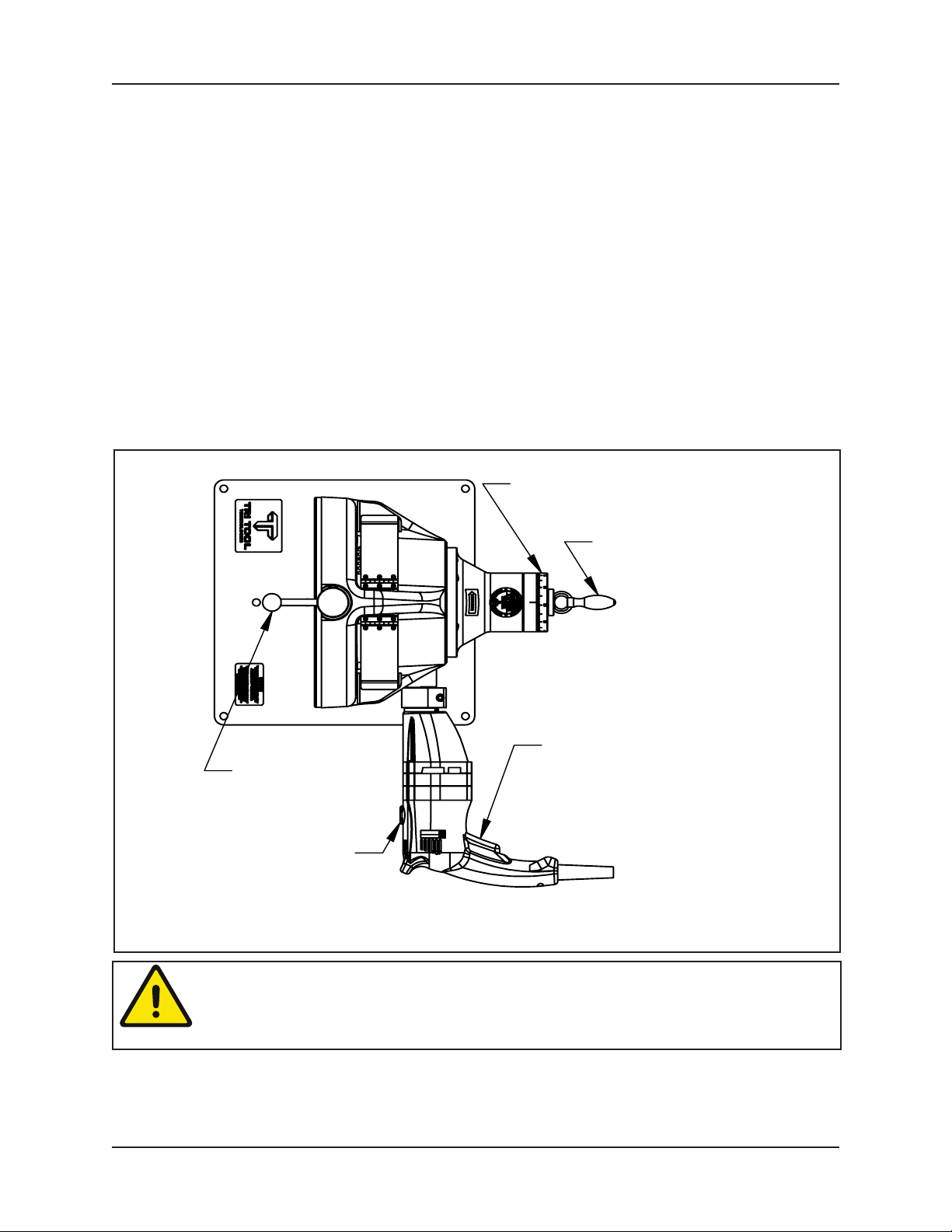

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 11
CAUTION
CAUTION: The cutting edge of the Tool Bit(s) must be located on the radial centerline.
Do not install the Tool Bit(s) backwards.
Tighten the Set Screws to secure the Tool Bit(s) to the Cutting Head.
Adjust the counterbore Tool Bit radially to control counterbore diameter.
Adjust the Bevel Tool Bit radially to control counterbore depth to the bevel
relationship.
Select the desired Saddle size for the pipe or tube to be worked on.
Insert the upper Saddle half into the machine and thread the Saddle Locking Screw
into the Saddle.
Raise the top Saddle using the Saddle Handle Assembly.
Insert the lower Saddle half and snap into place.
Place the pipe or tube into the Saddle.
Verifyaclearanceof1/8”(3mm)betweentheToolBit(s)andthepipeortubeface
as held by the saddle.
Tighten the Saddle using the Saddle Handle Assembly to secure the pipe or tube
oncetheproperclearancehasbeenveried.
CAUTION
CAUTION: Be sure that there is a light lm of grease on the Saddle Handle Assembly
threads at all times to prevent them from galling or freezing during use.
Connect electrical line to 120 VAC, 60 Hz.
Adjust the cutting speed.
Rotate the Feed Knob clockwise to bring the Cutting Head and pipe closer
together.
CAUTION
CAUTION: The actual machining operation will begin when the Tool Bit contacts the
tube or pipe.

TRI TOOL INC.
92-0746 Rev. 220713
12
If the pipe end is not square to the pipe axis, the Tool Bit will contact only a small
segment of the pipe during each revolution.
To avoid Tool Bit damage, the feed rate should be very slow until the Tool Bit is
contacting the pipe continually during at least one revolution.
Continue rotating the Feed Knob clockwise until the end of the pipe is completely
machined.
CAUTION
CAUTION: Be careful not to let the Tool Bit(s) cut into the Saddles or the Saddle.
Discontinue feed and allow the Cutting Head to rotate one to three revolutions to
improvethenishoftheprepsurface.
Rotate the Feed Knob counter-clockwise to separate the Cutting Head and the
pipe.
Stop the tool rotation by releasing the Trigger Switch.
Rotate the Feed Knob counter-clockwise until the Cutting Head clears the tube or
pipebyatleast1/8”(3mm)ormore.
Loosen the Saddle by rotating Saddle Handle Assembly to release the pipe.

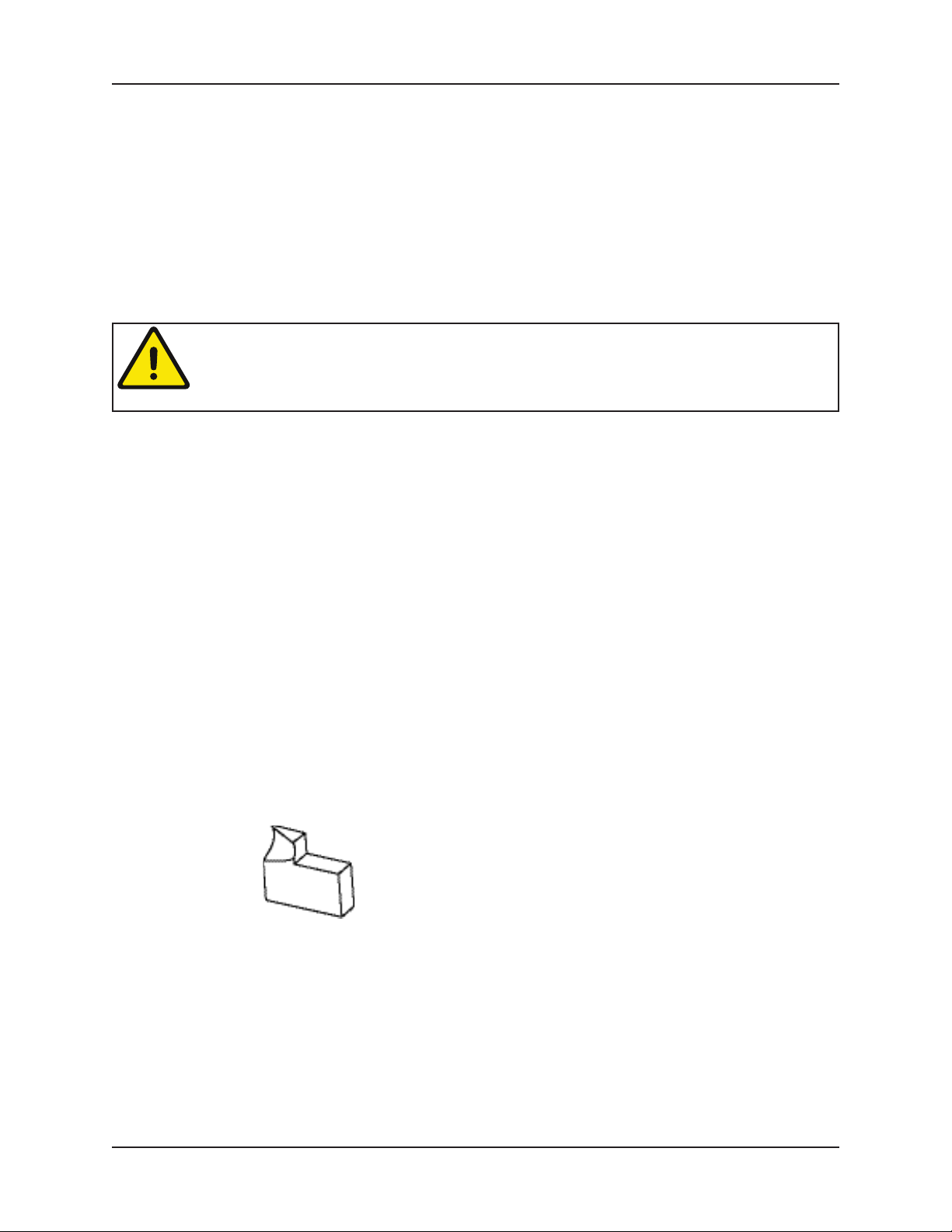

7. TOOL BIT
DURABIT 1®
Squaring Tool Bit

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 13

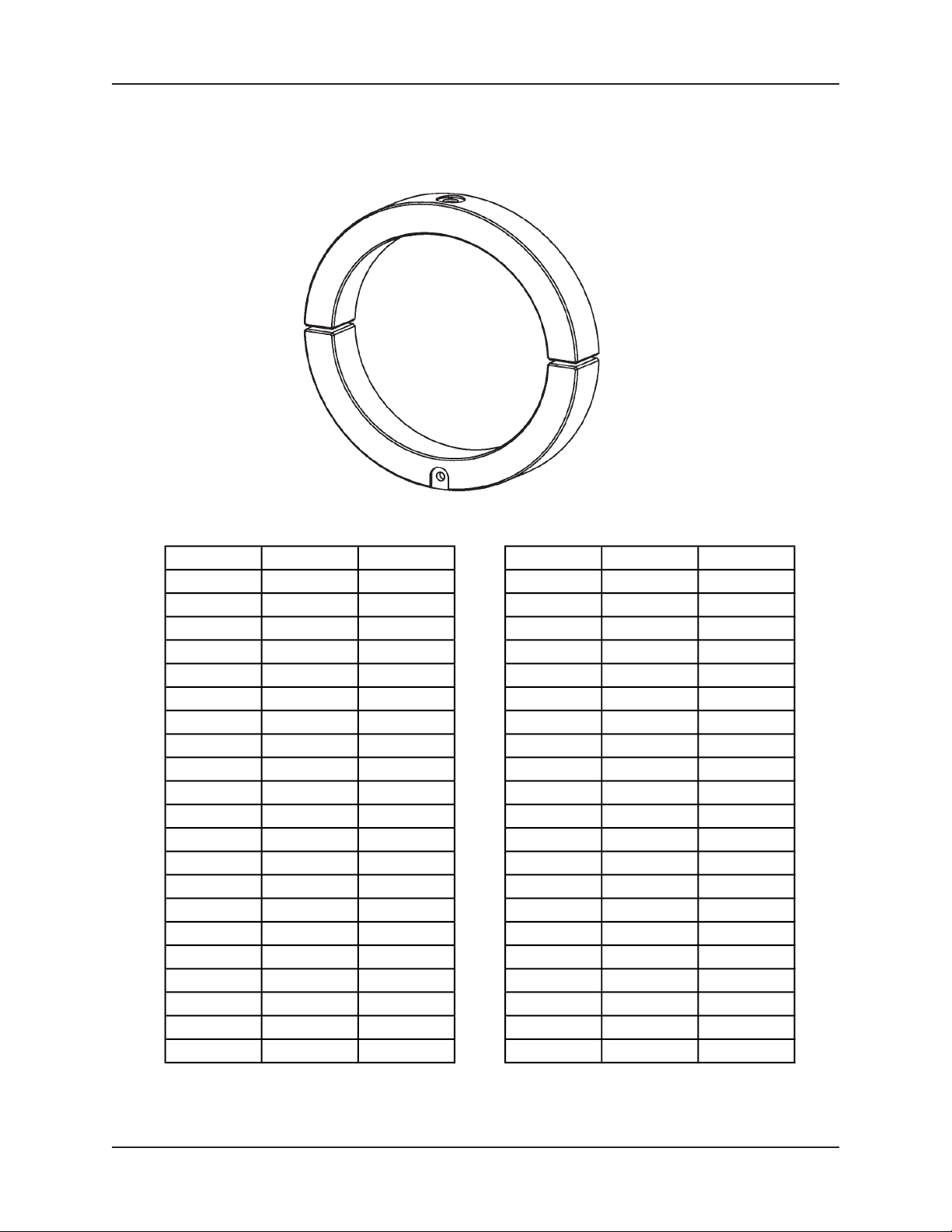

8. SADDLE SETS
Part No. Inch (mm) Part No. Inch (mm)
67-4577 1.000 25.4 67-4158 3.500 88.9
67-4578 1.071 27.2 67-4181 3.508 89.1
67-4666 1.250 31.8 67-4159 3.750 95.3
67-4627 1.260 32.0 67-4160 4.000 101.6
67-4176 1.339 34.0 67-4625 4.095 104.0
67-5028 1.375 34.9 67-4161 4.250 108.0
67-4570 1.500 38.1 67-4162 4.500 114.3
67-4177 1.681 42.7 67-4163 4.750 120.7
67-4634 1.750 44.5 67-4164 5.000 127.0
67-4178 1.913 48.6 67-4165 5.250 133.4
67-4628 1.968 50.0 67-4166 5.500 139.7
67-4150 2.000 50.8 67-4182 5.504 139.8
67-4151 2.250 57.2 67-4167 5.563 141.3
67-4152 2.375 60.3 67-4635 5.720 145.3
67-4179 2.382 60.5 67-4168 5.750 146.1
67-4153 2.500 63.5 67-4169 6.000 152.4
67-4154 2.750 69.9 67-4626 6.063 154.0
67-4155 2.875 73.0 67-4170 6.250 158.8
67-4156 3.000 76.2 67-4171 6.500 165.1
67-4180 3.004 76.3 67-5154 6.512 165.4
67-4157 3.250 82.6 67-4172 6.625 168.3

TRI TOOL INC.
92-0746 Rev. 220713
14

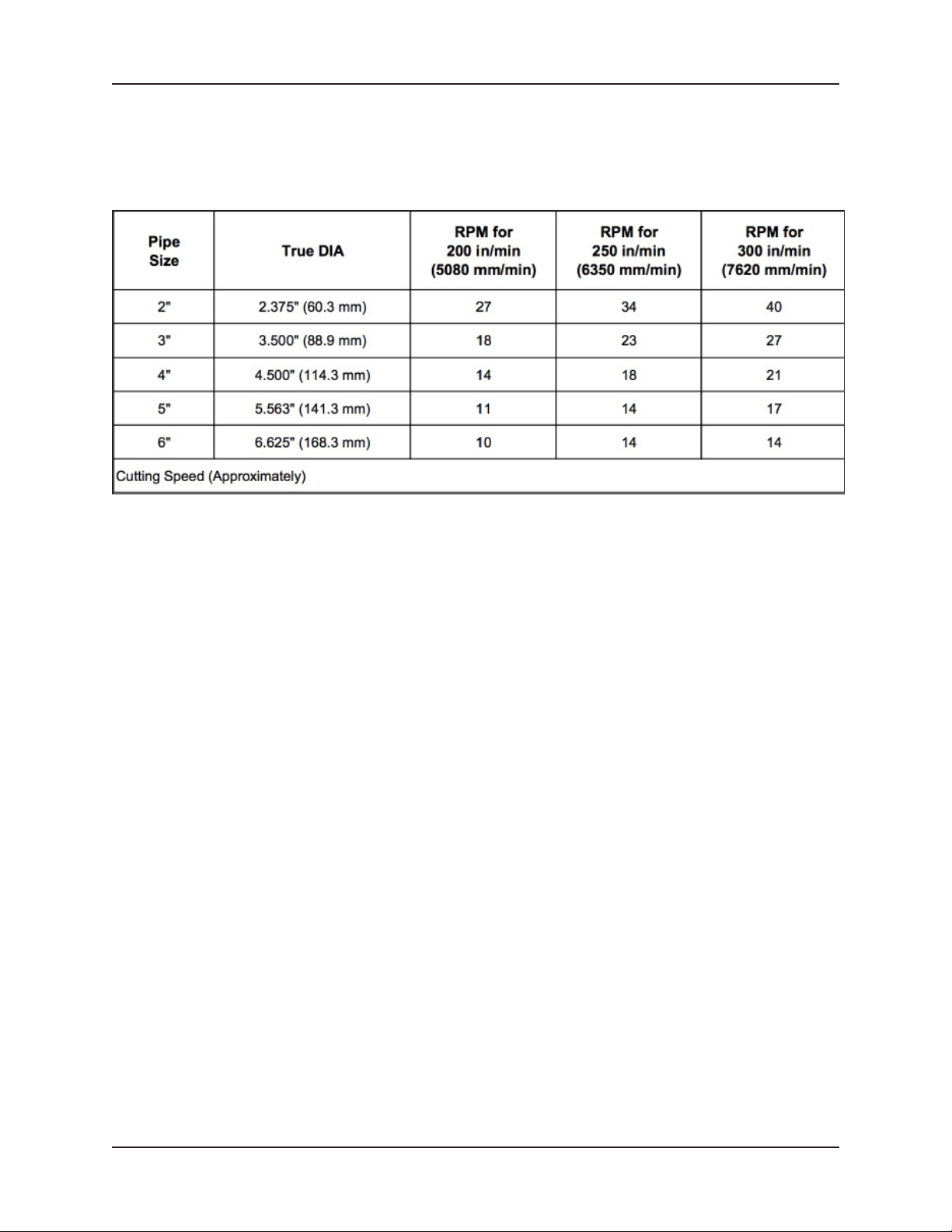

9. CUTTING SPEED AND FEED
Use200surfaceinchesperminute(5080surfacemillimetersperminute)for:
Stainless steels in general when no coolant is allowed, all heavy-wall tube
and some chrome/molybdenum steels.
Use 250 surface inches per minute (6350 surface millimeters per minute) for:
Mild steels and some thin-wall stainless steels when coolants are permitted
and applied.
Use 300 surface inches per minute (7620 surface millimeters per minute) for:
Aluminum and some thin-wall mild steel and tube with coolants.
BASIC FEED RECOMMENDATION
Use very light feed for initial beveling or until a continuous cut is established.
Thisisveryimportantforlongertoolbitlifewhencuttingthroughamecut
or out of square pipe ends.
Useadequatefeed,.003”(.08mm)to.006”(.15mm)perrevolutionthereafter,to
establish a continuous chip cut.
If the feed is too light, only light stringer chips will be removed.
If the feed is too heavy, the drive will start to overload and the chip will start
to have a rough or torn appearance.

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 15
Tool Bit
Hex Wrench
Set Screws
Cutting Edge
Stainless, which work hardens, must be worked with a heavy enough feed to
stayundertheworkhardenedsurface,.003"(.08mm)to.006"(.15mm)feed.
Never allow the Tool Bit to burnish the surface.
A good rule of thumb for calculation purposes is a .0025" (.064mm) thick chip per
revolution. Actual measurements wil show a pseudo thickness of .006" (.15mm)
unless a pin micrometer is used for measure.
One revolution of the feed handle advances the Cutting Head .100" (2.5mm).

TRI TOOL INC.
92-0746 Rev. 220713
16
10. TROUBLESHOOTING
Problem: The Tool Bit Chatters
The tool bit is loose or overextended.
The tool bit is damaged.
The tool holder is too loose in the slides.
The cutting speed is too fast.
The clamping pads are loose on the pipe or tube.
Cuttinguidisrequired.
The main bearing pre-load is loose.
Problem: There's Excessive Tool Bit Wear
The pipe or tube material is too hard or abrasive.
The cutting speed is too fast.
Cuttinguidisrequired.
A dull Tool Bit is causing surface hardening conditions (Stainless pipe or
tubing).
There is scale or other foreign matter on the pipe or tube, which is dulling the
tool bit at the start of the cut.
The tool bit is incorrect for the material being cut.
Problem: The Surface Finish is Rough
The tool bit is dull, chipped, etc.
Metal build-up on the cutting edge of the tool bit is creating a false cutting
edge.
Cuttinguidisrequired.
Problem: The Tool Holder is Not Feeding
The feed pin is broken or out of position.
The feed sprocket shear pin is broken.
The feed screw is stripped.
The feed nut is stripped.
The slide rails are too tight.

Model 306 Tube Squaring Machine
92-0746 Rev. 220713 17
Problem: There's a Loss of Air Power
The air supply pressure is too low.
Theairlterisplugged.
Theairlinesizeisinsufcient.
The air line is too long.
Problem: There's a Loss of Hydraulic Power
The hydraulic supply pressure is too low.
Thehydrauliclterisplugged.
Thehydrauliclinesizeisinsufcient.
The hydraulic line is too long.
Problem: The Tool Bit Will Not Reach the Work
Incorrect tool blocks are installed for the size of the pipe or tube being
worked on.
Incorrect tool bit is installed.
Problem: The Air Motor Will Not Start
The air power supply is shut off.
The air motor is damaged and will not run free.
The air motor needs lubrication.
Add lubrication and do not run the air motor for a few minutes, then try
running the motor.
Tap on the side of the air motor casing lightly with a piece of wood or with a
soft rubber mallet just in case the vanes may be sticking.
Sand or other foreign material may be in the vanes of the air motor.
Problem: The Hydraulic Motor Will Not Start
The hydraulic power supply is shut off.
The hydraulic motor is damaged and will not run free.

TRI TOOL INC.
92-0746 Rev. 220713
18
11. ILLUSTRATED PARTS BREAKDOWN
TUBE SQUARING MACHINE (P/N 02-2507) (1 OF 2)
36
8
32
9
5
38
29
26
215
23
7
37
30 53 14 18 51 47 24
3
41
49
34
54 59
58
20
10
30
14
18
13
A
Table of contents
Other TRI tool Industrial Equipment manuals

TRI tool
TRI tool BEVELMASTER 224B User manual

TRI tool
TRI tool BEVELMASTER 212B User manual

TRI tool
TRI tool 600RBL-G2 Series User manual

TRI tool
TRI tool SUREFIRE 4 User manual

TRI tool
TRI tool BEVELMASTER 216B User manual

TRI tool
TRI tool BEVELMASTER 224B User manual

TRI tool
TRI tool MICROFACER 300 User manual

TRI tool
TRI tool 304 User manual

TRI tool
TRI tool 302 User manual
Popular Industrial Equipment manuals by other brands

Olympus
Olympus IPLEX NX IV9000N instructions

Fernco
Fernco Flexseal HP-GRIP installation instructions

SMC Networks
SMC Networks EX510 Series manual

Western Global
Western Global ECW105 manual

Siemens
Siemens 8UC9400 operating instructions

Husky
Husky 32045 Assembly, Installation, Operation and Maintenance Instructions
