Triad OUTDOOR OD25 User manual

TRIAD QUICK START GUIDE - OUTDOOR OD25 & OD26
www.triadspeakers.com | 1-800-666-6316 | DOC-00285-B
OVERVIEW
Triad outdoor speakers are attractive, weather-resistant speakers
engineered in the U.S. to have a rich and full sound. To help them better
integrate into their surroundings, Triad Outdoor Speakers are available
in custom colors directly from Triad. Thank you for purchasing this
product!
IN THE BOX
Two (2) Speaker Assemblies
including:
A - Enclosure
B - Bracket
C - Assembly knobs
D - Silicone binding post covers
Enclosure size (H x W x D) in.
Enclosure WITH bracket
(H x W x D) in.
Enclosure size (H x W x D) mm
Enclosure WITH bracket
(H x W x D) mm
Product weight /each
Shipping weight / pair
Shipping weight
Master pack (4 ea.)
Tweeter - size (in./mm)
Tweeter material
Woofer - number & size
(in./cm)
Woofer material
Recommended
amplifier power (W)
Nominal Impedance (ohms)
Minimum Impedance (ohms)
Sensitivity (dB @ 2.83v, 1 m)
Frequency Response
2 π+/- 3dB (Hz)
10 9/16 x 7 1/2 x 7 1/2
10 9/16 x 7 1/2 x 8 1/2
270 x 190 x 190
270 x 190 x 216
7.5lb / 3.4kg
17lb / 7.7kg
37lb / 16.8kg
1" / 25mm
Titanium
(1) 5.25" / 14cm
Carbon fiber
25-150
6
4.8
84
75 - 20k
OD26
12 7/16 x 8 7/8x 8 1/4
12 7/16 x 8 7/8x 9 3/8
319 x 224 x 210
319 x 224 x 238
9lb / 4.1kg
21.5lb / 9.8kg
47lb / 21.4kg
1" / 25mm
Titanium
(1) 6.5" / 17cm
Carbon fiber
25-150
6
4.8
86
65 - 20k
OD25
PAINTING AT THE FACTORY
OD25 & OD26 outdoor speakers have already undergone an extensive
multi-step prep and painting process at the factory. Out of the box
they are painted either black or white. OD25 & OD26 speakers can also
be painted a custom color to match any environment. This paint is
applied at the Triad factory for a nominal charge. Custom colored
products are not returnable. Contact Triad Sales for custom painting
details.
PAINTING IN THE FIELD
If the Triad OD25 & OD26 speakers must be painted in the field, special
procedures MUST be followed. For details call the Triad Sales Depart-
ment at 1-800-666-6316.
SPECIFICATIONS
WARRANTY

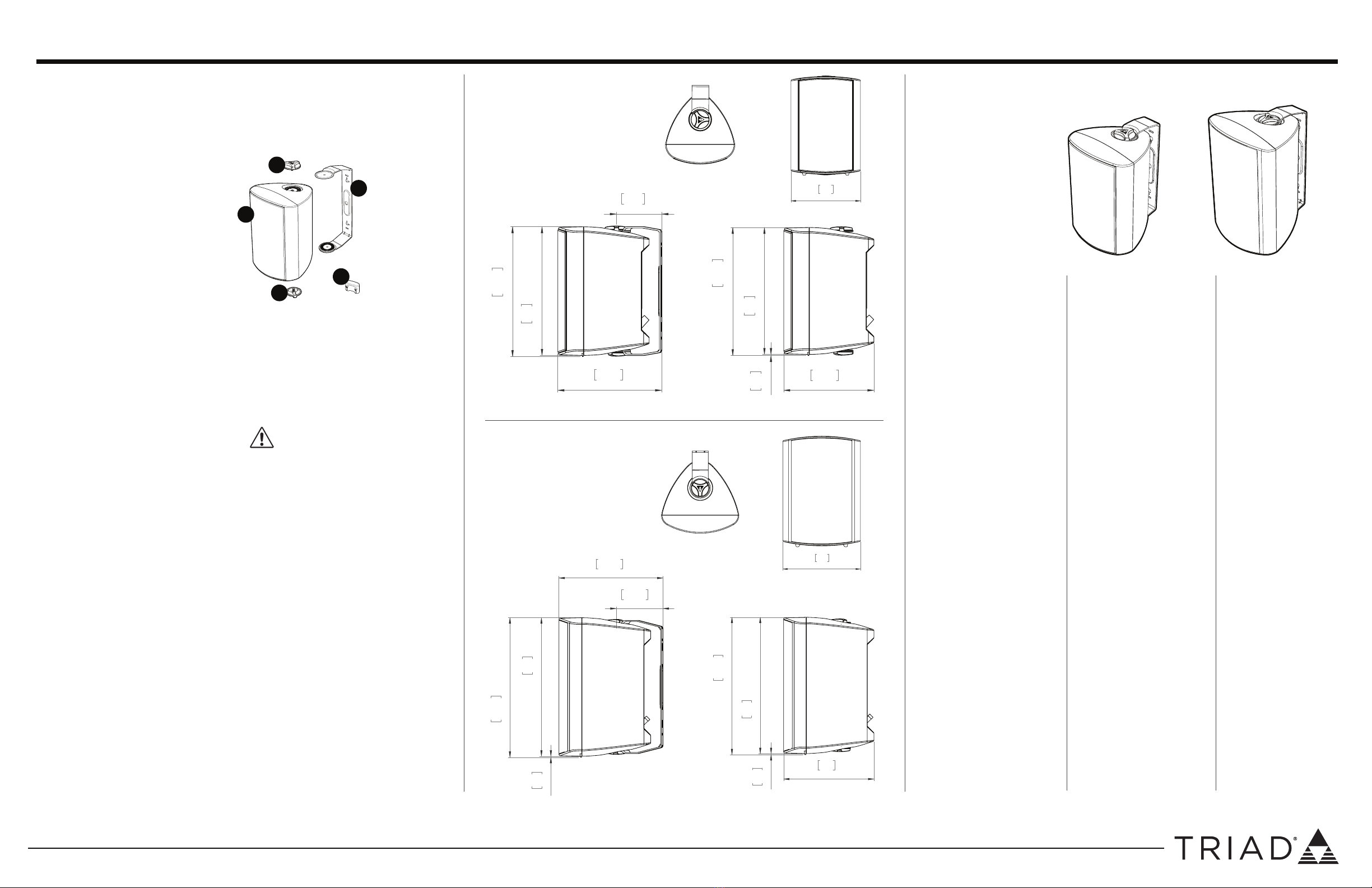

DIMENSIONS - OD26
DIMENSIONS - OD25
x 2
190
7.5
268
10.5
270.4
10.7
190.2
7.5
2.4
0.1
268
10.5
270.4
10.7
216.2
8.5
94.8
3.7
224
8.8
317
12.5
319.5
12.6
2.5
0.10
238.2
9.4
107.2
4.2
210
8.3
317
12.5
2.5
0.1
319.5
12.6
A
B
C
C
D
Triad Speakers warranty information
Limited Hardware Warranty—Triad Speakers warrants its hardware product
to be free from defects in material and workmanship during the warranty
period. If the hardware proves to be defective in material or workmanship
during the warranty period, Triad Speakers will, at its sole option, repair or
replace the product with a like product. The warranty extends only to
products purchased directly from Control4 Corporation or an Authorized
Control4 Dealer. For complete limited warranty information, including
details on purchaser legal rights as well as limited warranty exclusions, visit
www.triadspeakers.com/legal/warranty.
Return Merchandise Authorization (RMA) information
For Sales RMAs contact your Inside Sales Associate. Your ISA information
can be found in the My Account section of the Dealer Portal under
Control4 Contacts.
Technical Support information
Phone: [phone]
Hours: 9:00 a.m. – 5:30 p.m. PST (Monday – Friday)
Email: [e-mail]

TRIAD QUICK START GUIDE - OUTDOOR OD25 & OD26
www.triadspeakers.com | 1-800-666-6316 | 200-30340-B, DOC-00285-B
On a wall, vertically On a wall, horizontally Under an eave
SPEAKER PLACEMENT
Traid Outdoor OD25 & OD26 speakers can be installed in numerous
locations. The bracket can be axed vertically or horizontally.
INSTALLATION
To install the speakers, first install the bracket to desired location.
INSTALLATION, cont. INSTALLATION, cont.
1Pass wire through
hole in bracket.
MAKE SURE
CUTOUTS IN
BRACKET ARE
ORIENTED
CORRECTLY
2Screw bracket to wall, keeping
screws (not included) LOOSE.
3Slide bracket so screw
heads are securely in a slot.
Tighten screws.
GRILL REMOVAL & REPLACEMENT
46
A
B
B
A
B
Assemble speaker into bracket.
Screw knobs LOOSELY through
bracket into enclosure.
5Attach wires to binding posts in back
of speaker. Be sure to keep proper
polarity from the amplifier to the
speakers.
Push binding posts
down to align wire
holes & insert wire.
Release binding
post top when wire
has been inserted.
If grill removal is necessary for any reason, see instructions below:
red
positive
post
polarity indicators
black
negative
post
REMOVE: Use a Triad Grill
Pick or other suitable tool to
grab grill & pull outward.
REPLACE: First slip bottom end
into enclosure, then slide
downward and push top into
place.
Aim speakers to optimal position, then tighten both
knobs.
Slide silicone binding post
cover over binding posts
to protect against
moisture.
Small slits in front of
binding post cover slip
over wires until wires
are seated in the holes.
7
