MODEL NO.
SI 453
OPERATING AND INSTALLATION INSTRUCTIONS

MODEL NO. SI 453
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.0/10.9kW
Height: 900mm
Width: 550mm
Depth: 600mm
Weight: 61kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
TECHNICAL DETAILS
2

Technical Details ................................................................................. 2
Contents ......................................................................................... 3
Preface ........................................................................................... 5
Safety ............................................................................................ 6
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Introduction ...................................................................................... 8
Rating Plate ................................................................................ 8
Installation .................................................................................. 8
Reversible Main Oven Door ................................................................. 9
General Notes on using your Appliance ...................................................... 9
About Condensation and Steam ............................................................. 9
The Cooling Fan for the Controls ............................................................ 9
Grill and Oven Furniture ..................................................................... 9
Getting to Know Your Appliance ................................................................ 10
The Control Panel ......................................................................... 10
The Timer ................................................................................. 11
The Ceramic Hob ................................................................................ 13
Recommended Saucepans ................................................................. 13
Hints and Tips ............................................................................. 13
Deep Fat Frying ................................................................................. 14
Preserving ....................................................................................... 14
The Dual Grill .................................................................................... 15
Uses of the Grill ........................................................................... 15
Selecting the Grill .......................................................................... 15
Things to Note ............................................................................. 15
The Grill Pan and Handle ................................................................... 15
Hints and Tips ............................................................................. 16
Grilling Chart .............................................................................. 16
The Top Oven ................................................................................... 17
Uses of the Top Oven ...................................................................... 17
Selecting the Top Oven .................................................................... 17
Things to Note ............................................................................. 17
To Fit the Top Oven Shelf .................................................................. 17
Hints and Tips ............................................................................. 18
Automatic Cooking ......................................................................... 18
The Main Fan Oven .............................................................................. 19
Uses of the Fan Oven ...................................................................... 19
Selecting the Fan Oven .................................................................... 19
Things to Note ............................................................................. 19
To Fit the Main Oven Shelves .............................................................. 19
Hints and Tips ............................................................................. 20
Automatic Cooking ......................................................................... 20
CONTENTS
3

Oven Cooking Chart ............................................................................. 21
Roasting Chart .................................................................................. 22
Defrost Feature .................................................................................. 23
Uses of Defrost Feature .................................................................... 23
SelectingDefrost .......................................................................... 23
Things to Note ............................................................................. 23
Hints and Tips ............................................................................. 23
Care and Cleaning ............................................................................... 24
Cleaning Materials ......................................................................... 24
Cleaning the Ceramic Hob ................................................................. 24
Cleaning the Outside of the Appliance ...................................................... 25
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves ..................................... 25
Cleaning Inside the Grill/Oven Compartments ............................................... 26
Care of Stayclean Surfaces ................................................................ 26
Hints and Tips ............................................................................. 26
Cleaning Between the Outer and Inner Door Glass .......................................... 26
Replacing the Oven Light Bulb .............................................................. 27
Something not Working? ........................................................................ 28
Service and Spare Parts ......................................................................... 29
Customer Service Centres ....................................................................... 30
Guarantee Conditions ........................................................................... 32
CONTENTS
4

Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience
in developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you
PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention
should be made to cooking times and temperatures which may differ from
your previous appliance.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
PREFACE
5

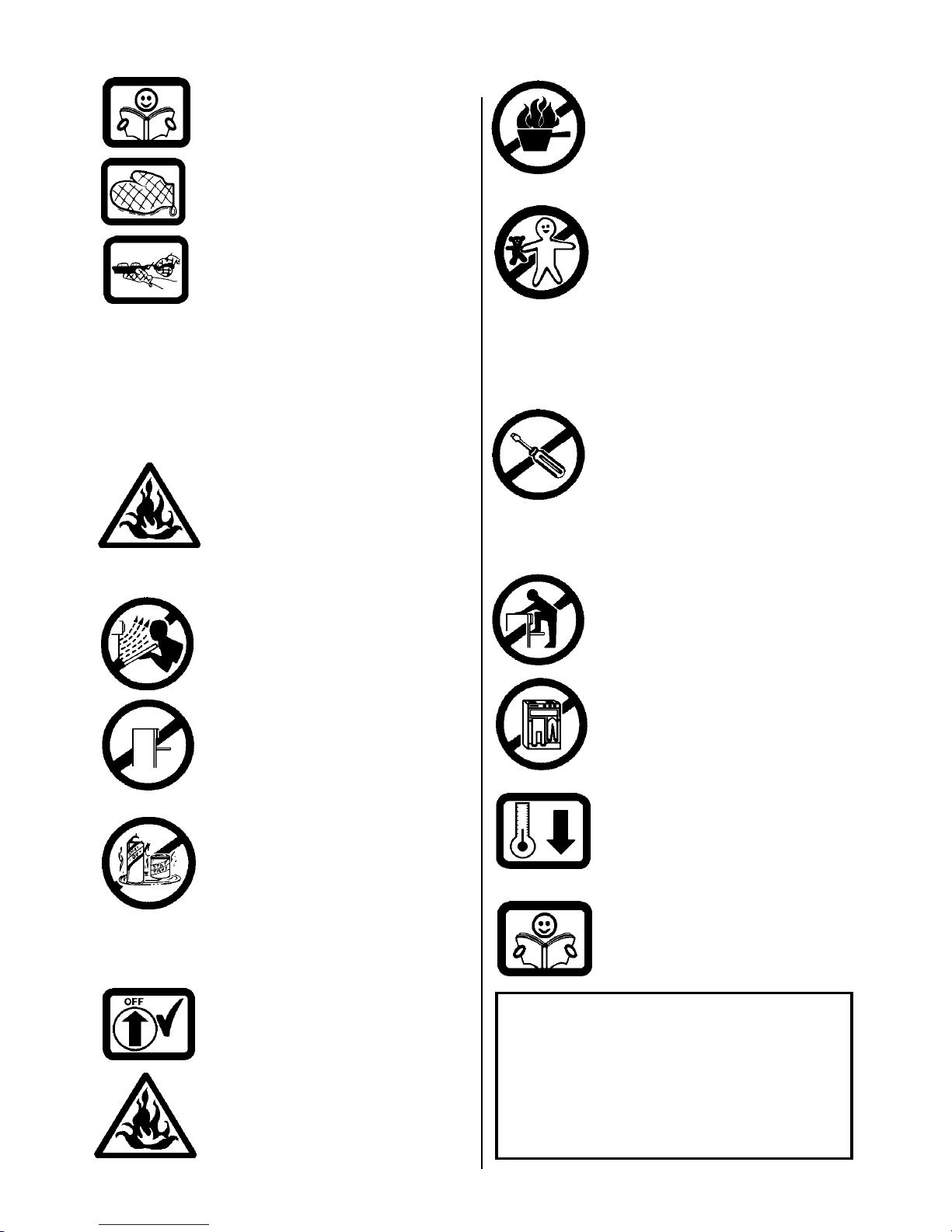

THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND THEM
ALL BEFORE INSTALLING OR USING THE
APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care must
be taken when moving it.
Ensure that all packaging, both inside
and outside the appliance, has been
removed before the appliance is used.
If the appliance is to be placed on a
base, measures must be taken to
prevent the cooker slipping from the
base.
Do not try to lift or move the
appliance by pulling the door handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify the
specifications of the product in any
way.
Do not use the cooker if the ceramic
glass is damaged. If a fault or crack
becomes visible during cooking,
disconnect the cooker immediately
from the electricity supply and contact
your local Service Force Centre.
Do not place silver foil or plastic
containers on ceramic glass.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your local
authority can arrange this.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the product or play with the controls.
During use the cooker becomes Hot.
Care should be taken to avoid
touching heating elements inside the
oven.
Accessible parts especially around
the grill area may become hot when
the appliance is in use. Children
should be kept away until it has
cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
SAFETY
Do not allow young childen to play
with any part of the packaging.
6

Take care to follow the
recommendations given for tending
the food when grilling.
Always use oven gloves to remove
and replace food in the oven.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on page 17 and 19.
Never line any part of the appliance
with aluminium foil. Do not allow
heatproof cooking materials, e.g.
roasting bags, to come into contact
with oven elements.
Always stand back from the appliance
when opening the oven door to allow
any build up of steam or heat to
release.
Never leave the cooker unattended
when the oven doors are open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls may
overheat.
AFTER USE Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by an
authorised Service Engineer and only
genuine approved spare parts should
be used. Details of servicing and
repair arrangements are given on
page 29 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Always allow the cooling fan to cool
the cooker down before switching off
at the wall prior to carrying out any
cleaning or maintenance work.
Only clean this appliance in
accordance with the instructions
given in this book. Extreme care
must be taken when using a ceramic
hob scraper.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Customer Care Department
Telephone [phone]
7

RATING PLATE
This is situated on the lower front frame of the
appliance and can be seen upon opening the top cavity
door. Alternatively the rating plate may also be found
on the back or top of some models (Where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the cooker as
this may invalidate the guarantee.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
Your cooker left the factory fully packaged to protect it
from damage. If it is delivered without packaging and
damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried out
by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the cooker, open the main oven door and
lift the cooker by holding inside the top of the
compartment.
This is a type Y appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the cooker is
required to enable the cooker to be moved into
position
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
Six square millimetres (6.00mm²) is the recommended
cross-section area.
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE
EARTHED
Air gap
8

REVERSIBLE MAIN OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. See page 30 for your nearest
Service Force Centre. PLEASE NOTE that a charge
will be made.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 - 15
minutes at 220°C to burn off any residue from their
surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.
THE COOLING FAN FOR THE
The cooling fan comes on immediately when the grill or
top oven are switched on and after a time when the
main fan oven is in use. The operation of the cooling
fan is temperature dependent in the case of the main
oven and the cooling fan may not switch in at all at low
temperature settings or where the main oven has only
been used for a short time.
The cooling fan may run on after the control knobs
have been switched off until the cooker has cooled.
If an automatic programme has been set the cooling
fan does not come on until the cooktime begins.
Do not switch the cooker off at its power point until the
cooling fan has cooled the cooker down.

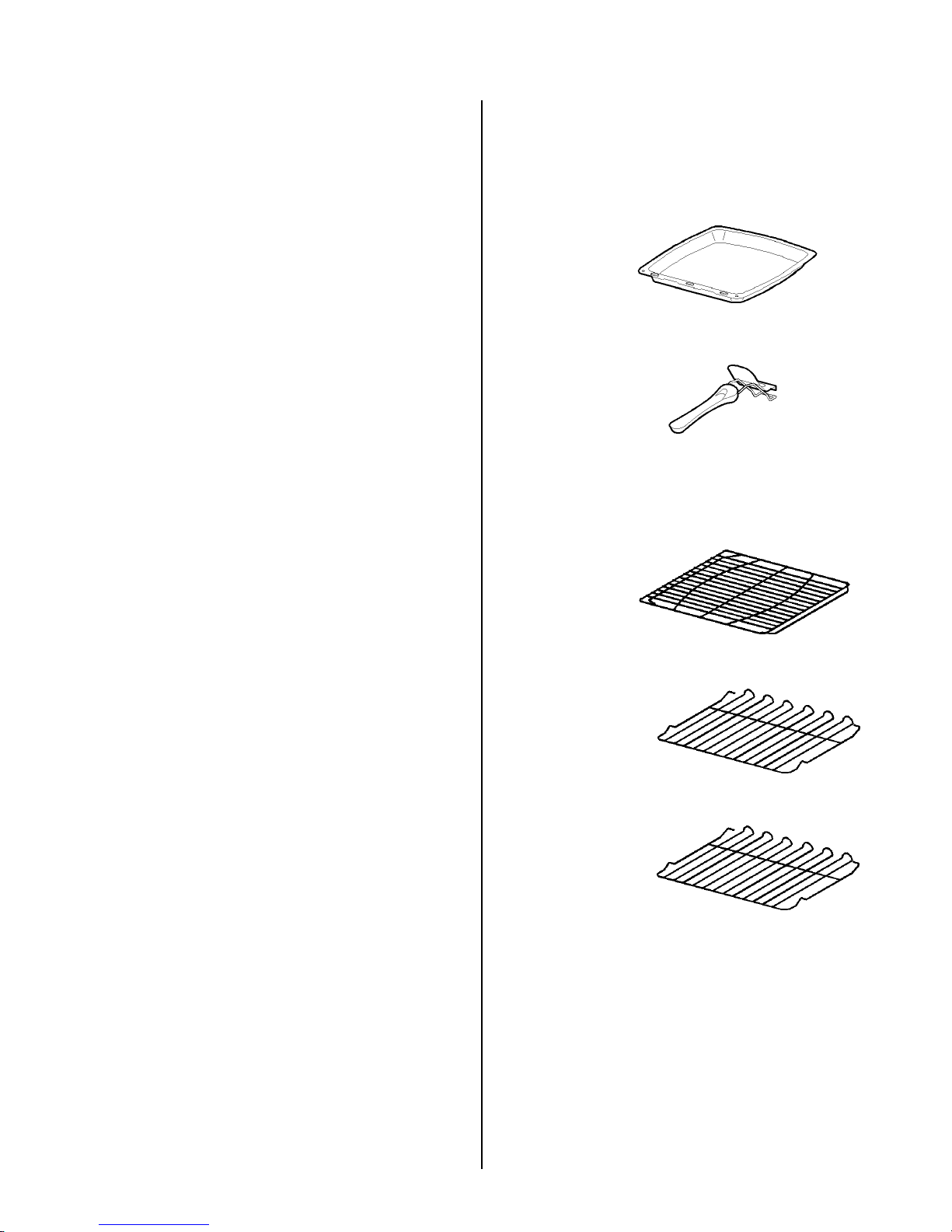

GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker: If you require
replacements of any of the items listed below please
contact your local Service Force Centre, quoting the
relevant part number.
1 grill pan
(311409401)
1 grill pan handle
(311468100)
Note
If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.
1 grill pan grid
(311419801)
1 straight shelf for
grilling and top oven
cooking only
2 straight shelves
for main oven cooking
Scuffing of the Stayclean panel/s by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.
CONTROLS
9

THE CONTROL PANEL
FEATURES
A - The Timer
B - Main Oven Temperature Control
C - Top Oven Temperature Control
D - Selector Control
E - Hotplate Controls
F - Main Oven Indicator Neon
G - Top Oven Indicator Neon
E
A B C D
GETTING TO KNOW YOUR COOKER
F G
10

Please note that this is a 24 hour clock, for example
2.00 pm is shown as 1400.
In the following pages we explain how to set the
controls. Read through them a few times until you
are familiar with the procedure.
If the oven is switched off on the wall, or there is a
loss of power, the clock will stop and you will not be
able to use the ovens. When you first switch the
electricity supply on, the timer display will flash.
TO SET THE TIME OF DAY
Turn the selector knob to 'Manual' then turn to 'Time
Setting'.
Set the correct time by turning and holding the
setting knob clockwise. Adjust the time by turning the
setting knob in either direction.
Turn the selector knob back to 'Manual'.
TO USE THE COUNTDOWN
Turn the selector knob to 'Countdown'. Turn the
setting knob clockwise until the display shows the
time you want. The bell symbol ( ) will be showing
and this will stay lit up during the time. Our diagram
shows the timer set to 5 minutes.
If you change your mind and want to cancel the time
you have set, simply turn the setting knob
anticlockwise. Then turn the selector to 'Manual'.
When you are using the countdown you can make
the clock show the time of day by turning the selector
knob to 'Manual'. The bell symbol will stay on to
remind you that the countdown is set. At the end of
the timed period an alarm will sound and the bell
symbol will go out.
Switch off the alarm by turning the selector knob to
'Time Setting'. Then turn to 'Manual' and the time of
day will show in the display.
Note:
You can use the countdown when an automatic
sequence has been set, as long as you remember
the following point.
1 Turn the selector knob to 'Automatic' as soon as
you have entered the timed period into the
display.
THE TIMER
Cookpot symbol
Selector Setting knob
Bell symbol
11

AUTOMATIC CONTROL
The automatic control can be used to control either
oven but you can only use the control for both ovens
at the same time if the cooking time is the same.
When you use the automatic controls for the first
time it's probably best to choose a time when you are
at home. That way you can check to make sure
you've set everything correctly and you'll feel much
more confident when you are away from home in the
future.
SETTING THE CONTROLS FOR
AUTOMATIC USE
This is very easy. All you have to do is work through
the steps below. The clock will work out the rest for
itself.
1 Is the electricity supply on?
2 Is the clock
showing the
correct time? To adjust turn the selector knob to 'Manual' then turn to 'Time
Setting'. Turn the setting knob in
either direction.
3 How long will
the food take
to cook?
Turn the selector knob to 'Cook
Time'. Then turn the setting
knob until the length of time you
want the food to cook shows in
the display. The maximum
cooking time is 10 hours. 'Auto'
will show in the display.
4 What time do
you want the
food to be
cooked by?
Turn the selector knob to 'End
Time'. Turn the setting knob until
the time the oven is to switch off
shows in the display. The
cookpot ( ) will go out.
The 'End Time' must not be
more than 23 hours 59 minutes
from the time of day. For
example if the time of day is
9.00 am the latest 'End Time' will
be 8.59 am the next day.
5 Set to
automatic. Turn the selector knob to 'Automatic'.
6 Turn on the
oven control. Turn the oven control to the required setting.
The time shown on the right gives an example of
setting the automatic controls when the time is 9.00
am, the food is to be cooked for 2½ hours and the
food is needed at 6.00 pm (1800 hours).
The clock will work out what time the oven will switch
itself on and it will turn the oven off at the end. Once
the automatic sequence is finished there will be an
alarm to remind you that you need to set the oven for
manual operation. To do this turn the selector knob
to 'manual'. Turn off the oven control.
If you change your mind and want to cancel a
programme that you have set simply turn to 'Time
Setting' and then to 'Manual'.
12

l To operate the dual hotplate, turn the control
knob clockwise for the full area or anti-clockwise
for the centre section.
l The inner section is very economical when
cooking with small diameter saucepans.
l For single hotplates, turn the control knob in
either direction to vary the heat setting. The
highest number represents the hottest setting
and the lowest number represents the coolest
setting. Choose a setting appropriate to the
quantity and type of food to be cooked.
l This model has the added feature of Rapid
Power Zone hotplates which react more quickly
than the other ceramic hotplates and are easily
identified by their instant red glow.
RECOMMENDED SAUCEPANS
For speed and economy only good quality
saucepans with flat bases and close fitting lids are
recommended. The saucepan base should be
approximately the same size as the cooking area, a
base diameter of up to 225mm (9in) may be used on
a 180mm (7in) heated area.
Ensure that new saucepans are well scrubbed to
remove edges and take off any deposits left from
manufacture.
Pressure cookers, preserving pans, etc., should
comply with the recommendations given above.
Traditional round-bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
NOTE
Occasionally the heated areas may be seen to
switch ON and OFF when higher heat settings are
being used. This is due to a safety device which
prevents the glass from overheating. Some switching
ON and OFF when cooking at high temperatures,
e.g. deep fat frying is quite normal, causes no
damage to the hob and little delay in cooking times.
Excessive switching may, however, be caused by the
use of an unsuitable saucepan or a saucepan which
is smaller than the heated area. If excessive
switching occurs, discontinue use of the saucepan.
HINTS AND TIPS
l Lift, rather than slide saucepans on and off the
heated areas. This will reduce the risk of
scratches and metal marks from saucepans with
aluminium bases. Metal marks can be easily
cleaned off providing they are not allowed to burn
on.
l Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
l Avoid using thin, badly dented or distorted
saucepans. Those with uneven bases should not
be used.
CAUTION: DO NOT USE THE APPLIANCE IF THE CERAMIC GLASS IS DAMAGED. IF A FAULT OR CRACK
BECOMES VISIBLE DURING COOKING, DISCONNECT THE APPLIANCE IMMEDIATELY FROM THE
ELECTRICITY SUPPLY AND CONTACT YOUR LOCAL SERVICE FORCE CENTRE.
THE CERAMIC HOB
13

l To prolong the life of the hotplates:-
l Never use utensils with a skirt, e.g. a bucket
l Never use an asbestos mat
l Never leave the hotplates ON when not
covered with a saucepan.
l Ensure that hob and saucepans are clean
and dry before the start of cooking to reduce
cleaning.
l Follow the cleaning instructions very closely
to keep the hob looking like new.
If spillage occurs with sugar solutions, e.g. jams
and syrups, it must be wiped from the hob
before it sets and becomes hard, otherwise
damage to the hob will occur.
HOT HOB INDICATOR
The hob is fitted with a hot hob indicator light which
illuminates when the hob is too hot to touch. The light
will go OFF when the hob has cooled.
DEEP FAT FRYING
SPECIAL FRYING NOTE:
For safety purposes when deep fat frying, fill the pan
one-third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch OFF at the
electricity supply and cover the pan with a lid or
damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
1. Preparing the food
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil
For safety purposes fill the pan only one-third full
of oil.
3. Testing the temperature of the oil
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a small
cube of bread into the oil which should brown in
just under a minute if the oil is at the correct
temperature of 190°C/375°F.
4. Cooking the food
Lower the food gently into the oil. Do not add too
much food at once or the temperature of the oil
will be reduced and may result in soggy, greasy
food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.
5. Double frying chips
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
6. Frying temperatures Celsius Fahrenheit
Scale (oC) Scale (oF)
150 300
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
3. Use firm fruit or vegetables and wash well before
using.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is ready.
7. The scum should be removed as soon as
possible after setting, but marmalade should be
allowed to cool before potting to prevent the peel
rising.
14

l Select the grill function for full grill.
l Select the grill function for centre section only.
l Turn the temperature control knob to the right as
far as it will go. This is the hottest setting.
l To use the grill at lower settings, turn the
temperature control knob so that 110°C or 150°C
on the knob lines up with the off dot on the panel.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING.
If the grill door is accidentally closed during grilling, a
safety device incorporated in the appliance will cut
out the grill to indicate to the user there is a fault.
This will occur after approximately 10 minutes.
Some smoke from fat splashes may be evident as
the grill cleans itself.
The top oven cannot be operated when the grill is in
use. If the grill and top oven controls are selected at
the same time, only the top oven will operate.
The inner grill element may appear to glow slightly
brighter than the outer element. This is quite normal.

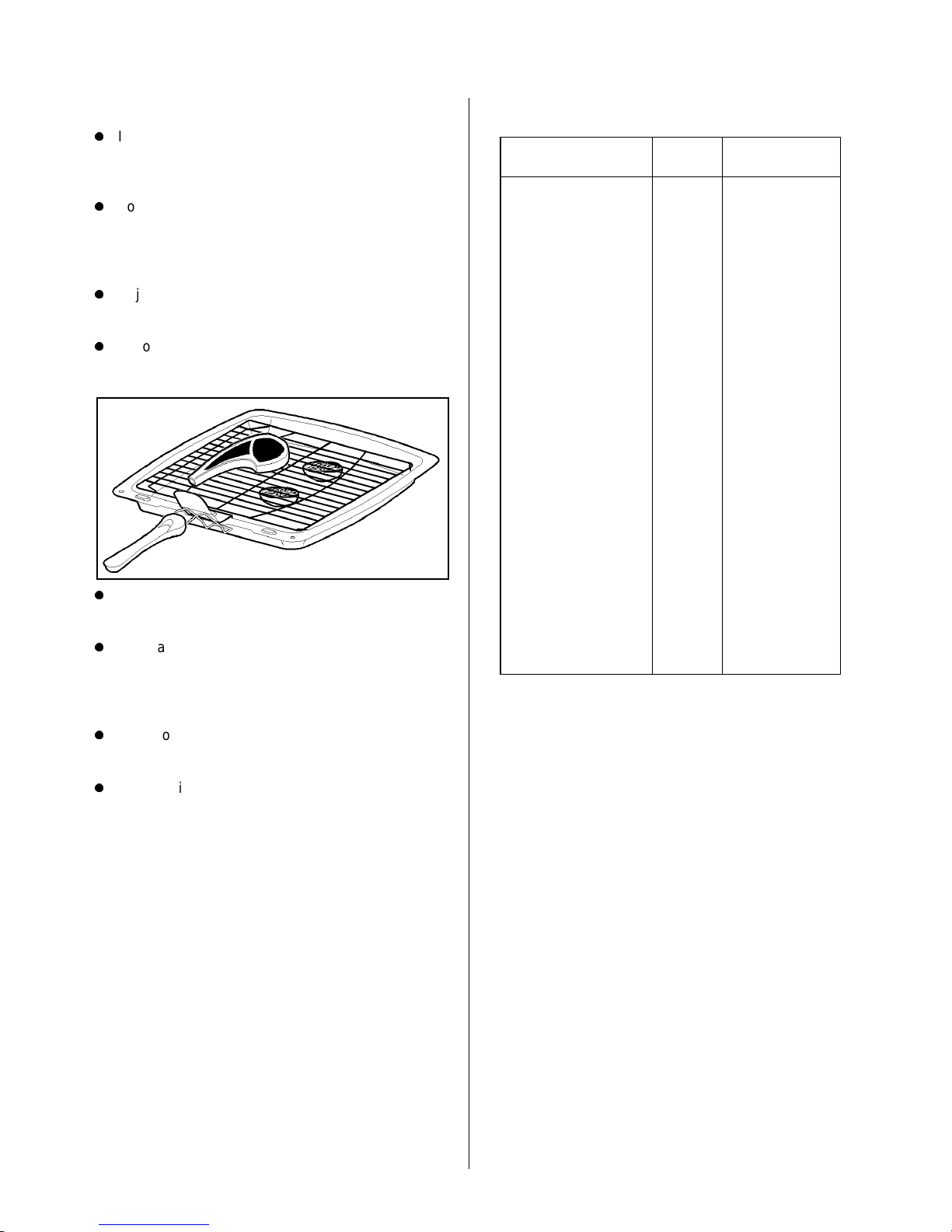

THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the
cut out in the pan so that the metal plate hooks over
the top of the grill pan.
Slide the handle to the left and over the central bump
on the grill pan.
Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.
To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.
Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.
USES OF THE GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE
KEPT AWAY.
The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the
centre section only can be used when cooking smaller quantities of food.
SELECTING THE GRILL
THE DUAL GRILL
15

HINTS AND TIPS
l In order to become acquainted with the
performance of the Dual Grill it is advisable to
check food regularly when grilling.
l Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
l Adjust the height of the grilling grid and grill pan
runner position to allow for different foods.
l Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
l When toasting bread use the straight shelf in
position 1 with the grid in the high position.
l Preheat the grill on a full setting for a few
minutes before sealing steaks or toasting. Adjust
the heat setting and the shelf as necessary
during cooking.
l The food should be turned over during cooking
as required.
l When using the centre section of the dual grill,
ensure food is positioned centrally on the grill pan
grid in the grill pan.
NOTE
If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.
GRILLING CHART
FOOD SHELF GRILL TIME
(mins)
Bacon Rashers
Beefburgers
Chicken Joints
Chops - Lamb
Pork
Fish - Whole
Trout/Mackerel
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Liver - Lamb/Pig
Sausages
Steaks - Rare
Medium
Well Done
Toasted Sandwiches
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2-3 each side
6-10 each side
15-20 each side
7-10 each side
10-15 each side
8-12 each side
4-6 each side
10-15 each side
4-6 each side
5-10 each side
10-15 each side
3-6 each side
6-8 each side
7-10 each side
1¼-1½ each
side
Shelf positions are counted from the bottom
upwards.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
16

l Turn the top oven function selector to
l Turn the top oven temperature control to the
required setting.
l The cooling fan will operate immediately with the
top oven. For more details on cooling fan
operation see page 9.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. If the grill and top oven controls are
selected at the same time, only the top oven will
operate, although the controls for both may
illuminate.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will then turn ON and OFF
showing that the oven temperature is being
maintained.
3. The cooling fan will operate immediately with the
top oven. See page 9 for more details on the
operation of the cooling fan.

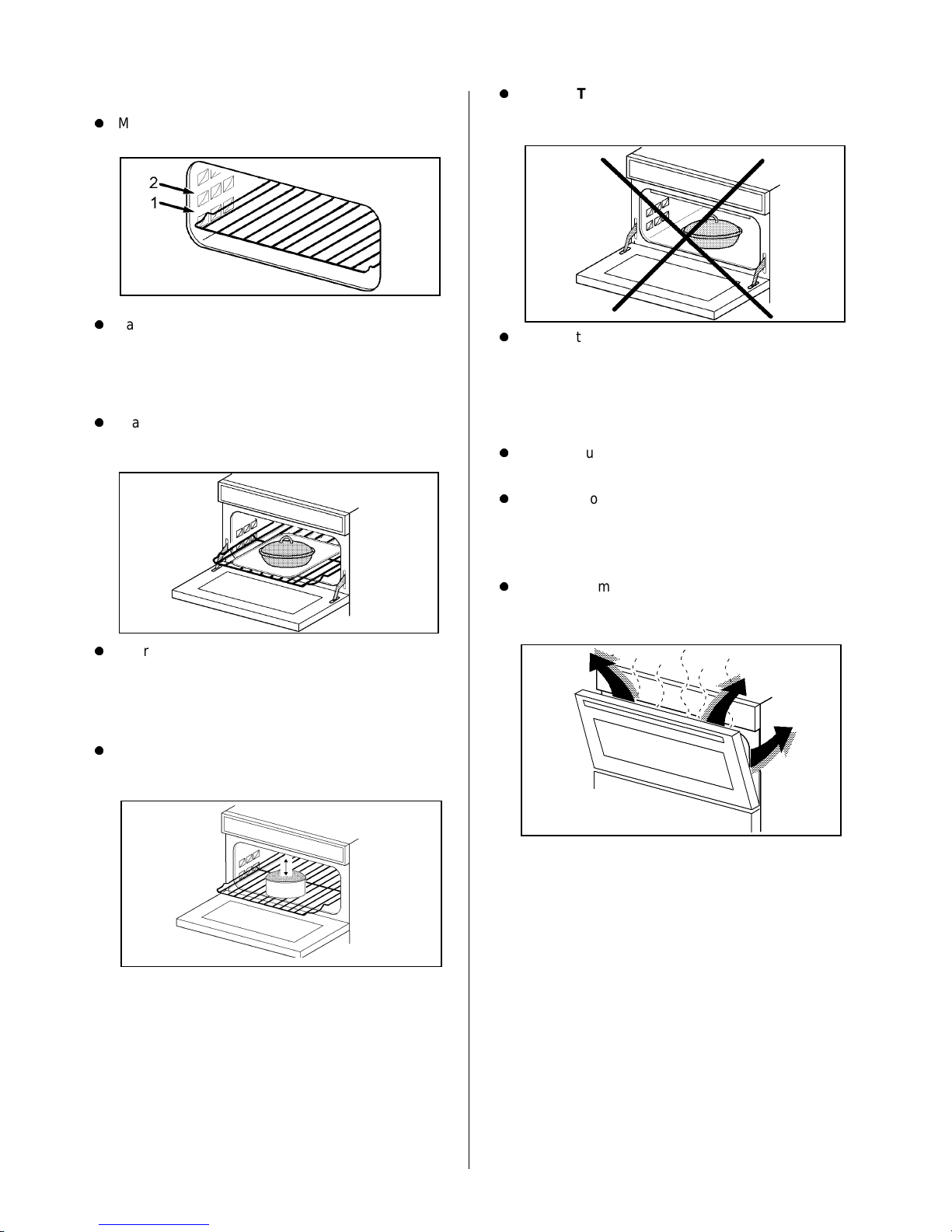

TO FIT THE TOP OVEN SHELF
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is
designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook
fruit cakes, sweet or savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a temperature
setting of 80-100°C on the top oven control dial.
SELECTING THE TOP OVEN
THE TOP OVEN
17

HINTS AND TIPS
l Most cooking should be carried out using an
oven shelf positioned in one of the shelf runners.
l Larger roasts and casseroles should normally be
cooked in the main oven. However, they may be
cooked on a flat shelf from the main oven placed
on the base of the top oven provided there is
sufficient room for air circulation around the food.
l Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
l There should always be at least 2.5cm (1")
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
l When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
l DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
l The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
l DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
l Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on pages 21 and 22.
l For economy leave the door open for the
shortest possible time, particularly when placing
food into a pre-heated oven.
AUTOMATIC COOKING
If you use the automatic timer to cook food in the
top oven be guided by the recommendations
given below.
* It is advisable to leave food in the oven for as
short a time as possible before automatic
cooking.
* When cooking is complete do not leave food to
stand in the oven, but remove and cool it quickly
if the food is not to be consumed immediately.
* Always ensure food in the oven is covered if its
not possible to remove food immediately after
cooking.
18

l Turn the main oven temperature control to the
required setting.
THINGS TO NOTE
1. The main oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
2. The interior oven light will come ON when the
temperature is selected.
3. The cooling fan for the controls may switch in
after a time. See page 9 for more information on
the operation of the cooling fan.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
USES OF THE FAN OVEN
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés, etc., best results are achieved if the
oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the
oven first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 21. As a guide reduce temperatures by about 20°C - 25°C for your own recipes.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
THE MAIN FAN OVEN
19

HINTS AND TIPS
l Arrange the shelves in the required positions
before switching the oven ON. Shelves are
numbered from the bottom upwards.
l When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf.
This will allow the heat to circulate freely for the
best cooking results.
l When batch baking one type of food, e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
l It is recommended that when baking larger
quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
l Do not place dishes or baking trays directly on
the oven floor as it interferes with the oven air
circulation and can lead to base burning; use the
lower shelf position. However non critical dishes
can be placed on the oven base when more
space is required.
l The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
charts on pages 21 and 22.
AUTOMATIC COOKING
If you use the automatic timer to cook food in the
main oven be guided by the recommendations
below.
* It is advisable to leave food in the oven for as
short a time as possible before automatic
cooking.
* When cooking is complete do not leave food to
stand in the oven, but remove and cool it quickly
if the food is not to be consumed immediately.
* Always ensure food in the oven is covered if its
not possible to remove food immediately after
cooking.
20
