OWNER’S MANUAL
TRINITY 18” PET CRATE END TABLE
Model # TSKLBR-3402 / TSKLNA-3402
Important / Important / Importante
DOWNLOAD THE FREE APP | TÉLÉCHARGER L’APPLICATION GRATUITE| DESCARGUE LAAPLICACIÓN GRATUITA
Directives intelligentes
Instrucciones Inteligentes
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D

© 2021 TRINITY - 800.985.5506
1
Your TRINITY 18” Pet Crate End Table should include the following parts. Please inspect box contents to
ensure you have received all components.
If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY
Customer Service: 800.985.5506 or [e-mail]. Parts can also be requested online
via “Contact Us” section at www.trinityii.com.
For assembly you will need a Phillips screwdriver. A drill with Phillips bit is recommended.
PARTS LIST
E
ABC
WOOD TOP (1) LEFT
SIDE FRAME (1)
w/o TRINITY logo
RIGHT
SIDE FRAME (1)
w/ TRINITY logo
D
FRONT FRAME (1)
FG
BACK FRAME (1) TRAY (1) DRAWER (1)
H
DOWEL (4)
IJ
LONG SCREW
(4) + (1) extra
SHORT SCREW
(8) + (1) extra WASHER
(12) + (2) extra
K
Note: To protect product from any scratches or possible damage, please make sure all wood parts are
laid on a clean and soft cloth lined surface during assembly process.

© 2021 TRINITY - 800.985.5506 2
ASSEMBLY INSTRUCTIONS
Orient LEFT SIDE FRAME(B) with arrow label pointing
toward FRONT FRAME (D). Connect LEFT SIDE FRAME
(B) with FRONT FRAME (D) by inserting protruded part
of LEFT SIDE FRAME (B) into groove on FRONT FRAME
(D).
Note: LEFT SIDE FRAME (B) has no TRINITY logo on it.
STEP 1
STEP 2
A
H
B (1)
B
A (1) D (1) H (2)
D
Drawer
Stopper
Foot
Arrow Label
Protruded Part
Groove

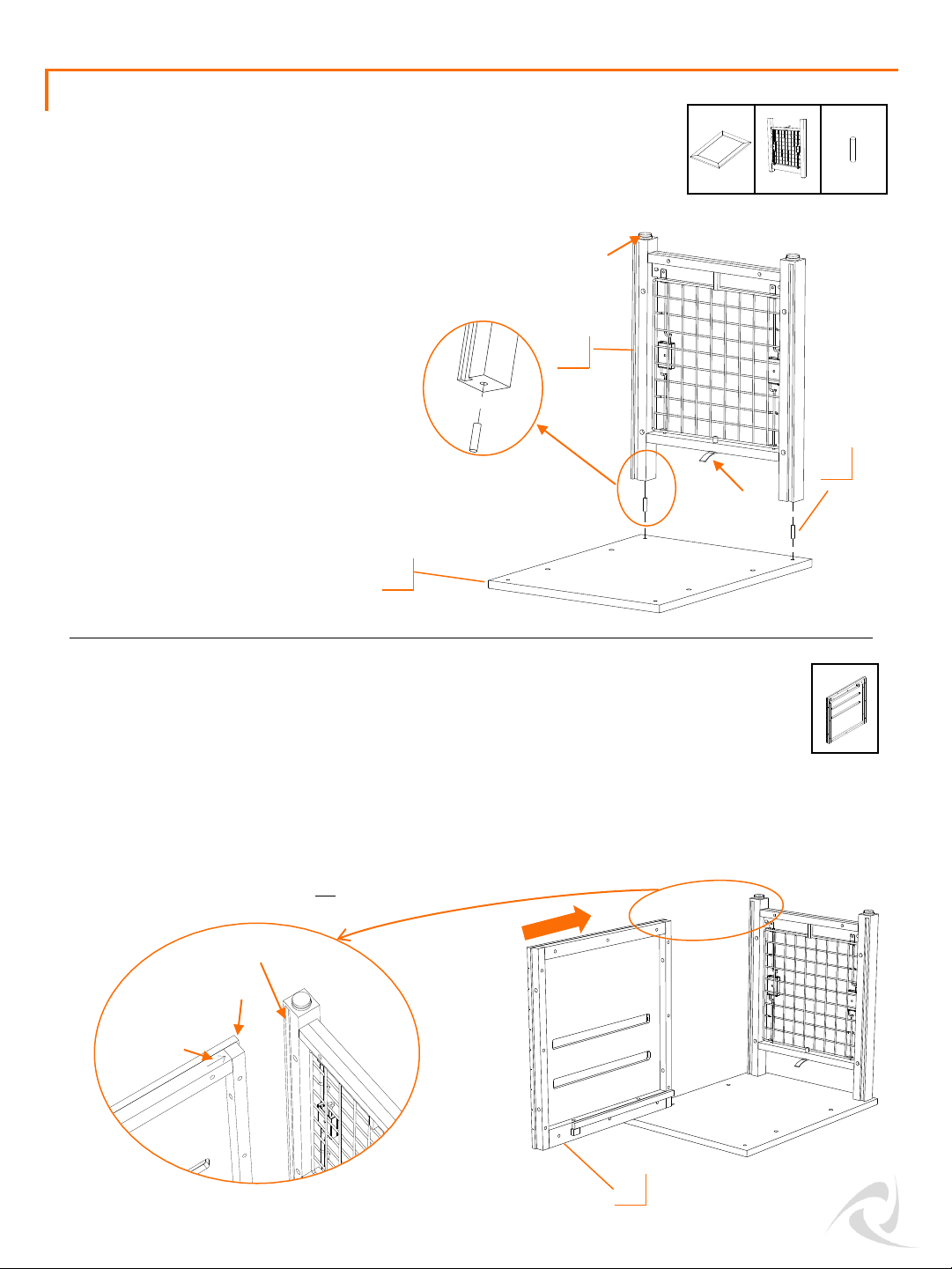

Lay WOOD TOP (A) on a clean surface with
holes facing up.
Orient FRONT FRAME (D) with foot facing up
and drawer stopper facing inward.
Insert DOWELS (H) into holes on FRONT
FRAME (D). Connect FRONT FRAME (D) with
WOOD TOP (A) via DOWELS (H) as shown.

C
© 2021 TRINITY - 800.985.5506
3
ASSEMBLY INSTRUCTIONS
Repeat STEP 2 and STEP 3 for RIGHT SIDE FRAME (C).
Note: RIGHT SIDE FRAME (C) has TRINITY logo on it.

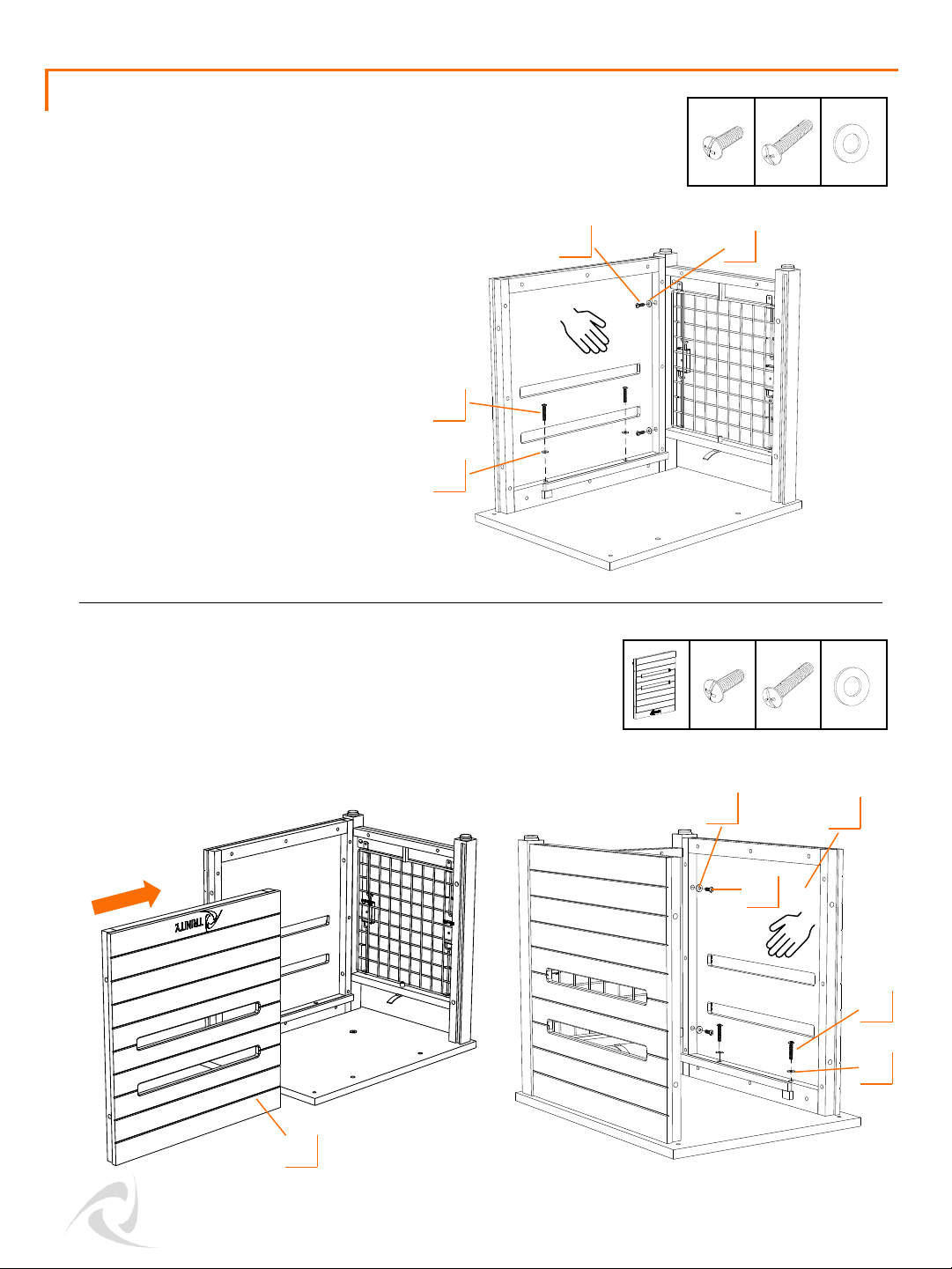

Insert LONG SCREWS (J) through WASHERS
(K) and LEFT SIDE FRAME (B) and hand
tighten onto WOOD TOP (A).
Insert SHORT SCREWS (I) through WASHERS
(K) and LEFT SIDE FRAME (B) and hand
tighten onto FRONT FRAME (D).
STEP 3
STEP 4
I (2) J (2)
C (1)
K (4)
J
I
K
K
I (2) J (2) K (4)
K
J
I
KC

K
I
© 2021 TRINITY - 800.985.5506 4
ASSEMBLY INSTRUCTIONS
STEP 5
STEP 6
Insert SHORT SCREW (I) through WASHERS (K) and LEFT SIDE FRAME (B)
and fully fasten with a Phillips screwdriver onto BACK FRAME (E).
Repeat with RIGHT SIDE FRAME (C).
Tighten all SCREWS from previous steps fully with a Phillips screwdriver.
E
E (1) H (2)
Orient BACK FRAME (E) with foot facing up
and grooves on BACK FRAME (E) facing
inward.
Insert DOWELS (H) into holes on BACK
FRAME (E). Connect BACK FRAME (E) with
WOOD TOP (A) via DOWELS (H) as shown.
Make sure protruded parts of LEFT SIDE
FRAME (B) and RIGHT SIDE FRAME (C) are
inserted into grooves on BACK FRAME (E).
Foot
Protruded
Part
Groove
inside
view
K (4)
I (4)
H

© 2021 TRINITY - 800.985.5506
5
ASSEMBLY INSTRUCTIONS

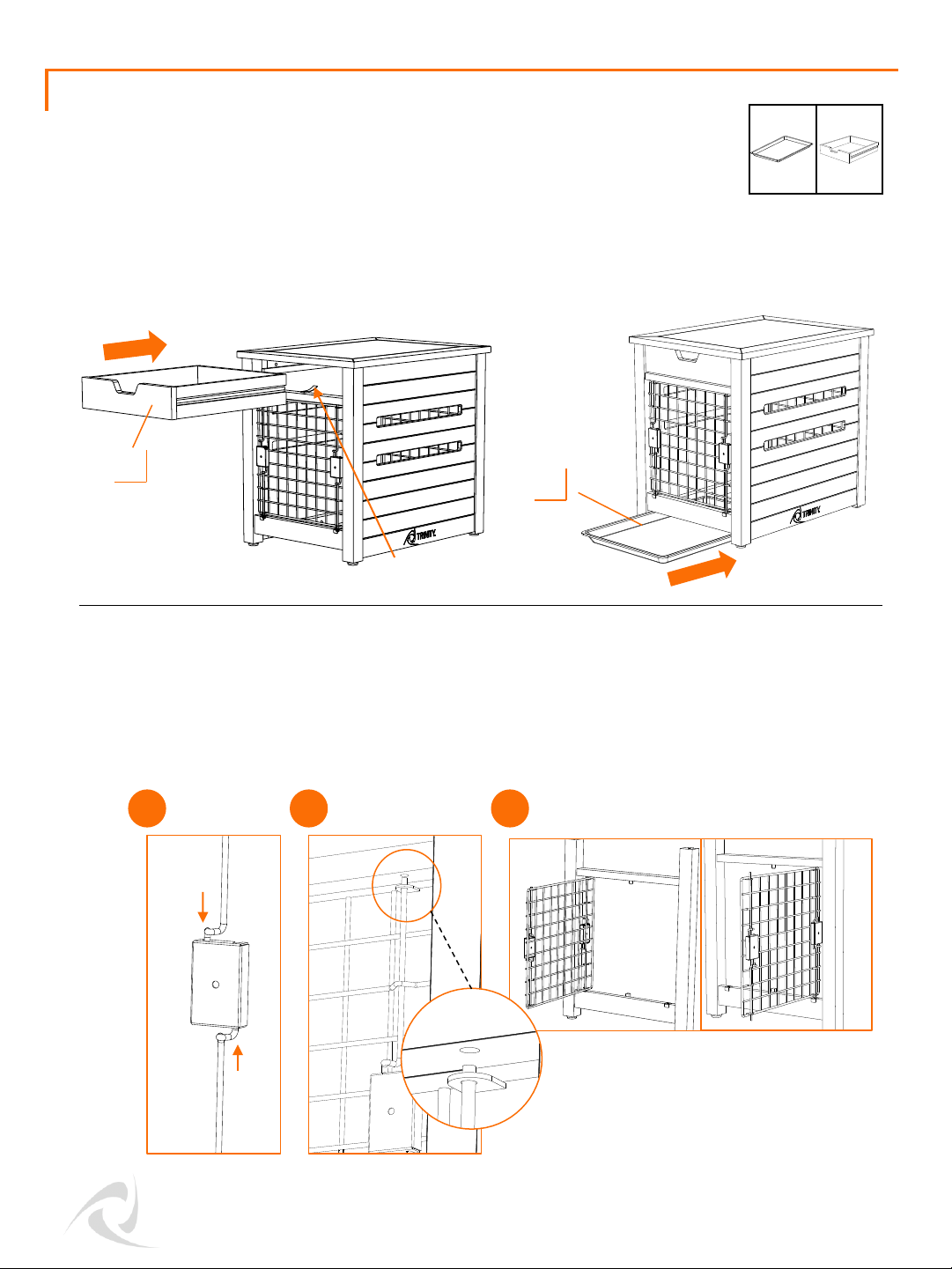

Flip over completed STEP 6 assembly and push DRAWER (G) fully into assembly as
shown. Slide TRAY (F) under pet crate as shown.
To remove drawer, pull plastic drawer stopper down to disengage drawer.
STEP 7
GF
F (1) G (1)
DOOR USAGE INSTRUCTIONS
1. Squeeze wire ends on door latch as shown to open door.
2. Make sure wires disengage from holes on top and bottom before pulling door open.
3. You can open door to left or right as desired.
4. To close door, squeeze latch and make sure wire ends re-engage into holes.
1 2 3
open door rightopen door left
Drawer Stopper

© 2021 TRINITY - 800.985.5506 6
SERVICE PARTS LIST –TSKLBR-3402 (Espresso Brown)
Part Number Description Part Number Description
1) LNA-06-019-1824 Wood Top 8) XBK-21-014-1421 Tray
2) XNA-01-006-0830 Dowel 9) XBK-98-017-3009 Foot Pad
3) ZSV-01-007-0616 Washer 10) XNA-08-023-1414 Metal Door
4) ZSV-01-004-0635 Short Screw 11) XNA-02-065-0001 Drawer Stopper
5) LBR-15-020-1722 Back Frame 12
）
LBR-15-019-1722 Front Frame
6) LBR-14-044-2021 Right Side Frame 13
）
LBR-14-045-2021 Left Side Frame
7) XNA-21-015-1416 Drawer 14
）
ZSV-01-004-0658 Long Screw
TRINITY Customer Service provides the following replacement parts:
4
2
14 1
3
12 5
6
13
7
8
9
10
11

© 2021 TRINITY - 800.985.5506
7
SERVICE PARTS LIST –TSKLNA-3402 (Natural)
TRINITY Customer Service provides the following replacement parts:
Part Number Description Part Number Description
1) LNA-06-019-1824 Wood Top 8) XBK-21-014-1421 Tray
2) XNA-01-006-0830 Dowel 9) XBK-98-017-3009 Foot Pad
3) ZSV-01-007-0616 Washer 10) XNA-08-023-1414 Metal Door
4) ZSV-01-004-0635 Short Screw 11) XNA-02-065-0001 Drawer Stopper
5) LNA-15-020-1722 Back Frame 12
）
LNA-15-019-1722 Front Frame
6) LNA-14-044-2021 Right Side Frame 13
）
LNA-14-045-2021 Left Side Frame
7) XNA-21-015-1416 Drawer 14
）
ZSV-01-004-0658 Long Screw
4
2
14 1
3
12 5
6
13
7
8
9
10
11

© 2021 TRINITY - 800.985.5506 8
WARNINGS
1. Read and understand all instructions. Failure to follow all instructions may result in injury
and/or damage.
2. The warnings, cautions, and instructions discussed in this manual cannot cover all
possible conditions or situations that may occur. The user must always be aware of their
environment and ensure that they use the product in a safe and responsible manner.
3. Do NOT modify the product in any way. Unauthorized modification may impair the
function and/or safety of the product, and may affect the life of the product. Any
modifications will void warranty.
4. Check for damaged parts. Before using this product, carefully check that all parts are in
good condition, and that the product will operate properly and perform its intended
function. Check for damaged parts and any other conditions that may affect the operation
of this product. Replace damaged or worn parts, and never use this product with a damaged
part.
5. Do NOT overload the product. Weight capacity for evenly distributed weight.
6. Do NOT put hot items directly on wood top or shelves to prevent damaging and
discoloring wood surface. Avoid placing any direct heat source on or near the product.
7. Do NOT put anxious pet inside the crate. Crate components may be damaged by pet. Pet
may chew and/or ingest crate parts including wood, metal, plastic and paint. Pet is
recommended to be kept in crate for no more than 8 hours at a time.
8. Avoid sharp objects piercing the tray to keep the tray waterproof.
9. Leaving heavy objects pressed over the tray for extended period may leave permanent
indentations on the tray.
CARE AND MAINTENANCE
•Avoid harsh, abrasive cleaners, and other corrosive chemicals.
•Wood product can be cleaned with damp cloth and wiped dry immediately with dry cloth.
If needed, wood furniture cleaner can be used.
•Keep dry but out of direct sunlight and avoid damp environments.
•Clean up any spills immediately to prevent stains from forming on wood surface.
•This product is designed for small size pet and indoor use only.
Weight capacity on wood top 100 lb
Weight capacity per drawer 10 lb
