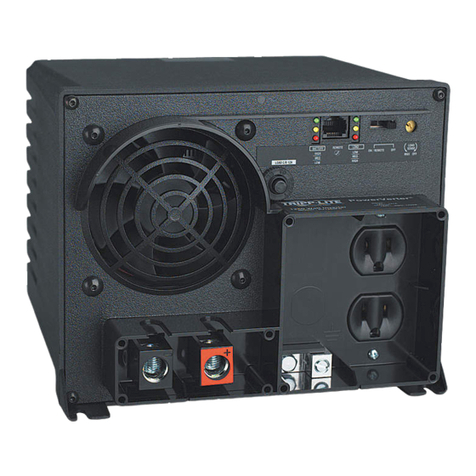

Tripp Lite PowerVerter APS512 Installation and operating instructions

Owner’s Manual
Addendum
IMPORTANT SAFETY INSTRUCTIONS.This addendum and the accompanying
manual contain information concerning the proper installation of Tripp Lite
equipment. SAVE THESE INSTRUCTIONS.
Hardwire AC Connection
Your PowerVerter is identical to the Inverter/Charger described in the accompanying owner’s manual with
the two exceptions (Hardwire Connection and Dip Switch Settings) described here.
Connection for Models with Hardwire Terminals
Remove the screws and cover plate over the hardwire terminal box. Remove the knockout covers closest to
the desired electrical source and to your equipment. Attach ½" diameter conduits (user-supplied) to the
knockouts and thread wires through. Connect the conduits to each other with the ground bond connection
supplied.
Ground
• Connect the incoming and outgoing ground
wires to the GROUND (green) terminal.
AC Input
• Connect the incoming hot wire to the input hot
(brown) terminal.
• Connect the incoming neutral wire to the input
neutral (blue) terminal.
AC Output
• Connect the outgoing hot wire to the output
hot (black) terminal.
• Connect the outgoing neutral wire to the
output neutral (white) terminal.
Tighten and affix strain relief. Replace cover plate and tighten screws.
HOT IN
NEUTRAL IN
GROUND IN
GROUND OUT
HOT OUT
“FOR USE WITH COPPERWIRE ONLY”
NEUTRAL OUT
3
4
5
2
1
PowerVerter®Hardwired Electrical Connections
& Dip Switch Settings
Power Inverters (120V, 60 Hz)
1111 W. 35th Street Chicago, IL 60609 USA
Customer Support: [phone]
www.tripplite.com
Warning! Consult a qualified electrician and follow all applicable electrical
codes and requirements for hardwire connection. Disconnect DC input and
AC utility supply before attempting hardwiring.
1
2
3
4
5
200211057 PV Owner’s Manual Addendum.qxd 11/21/2002 1:57 PM Page 1

200211057
93-2105
Dip Switch Settings
The Dip Switch settings described below replace the Dip Switch settings described in the accompanying
owner’s manual.
Using a small tool, configure your Inverter/Charger by setting the four DIP Switches (located on the front
panel of your unit; see diagram) as follows:
Select Battery Type—REQUIRED
(DIP Switch #1)
CAUTION: The Battery Type DIP Switch setting must match the type of batteries you connect, or your batteries may be degraded or damaged
over an extended period of time.
Battery Type Switch Position
Gel Cell (Sealed) Battery Up
Wet Cell (Vented) Battery Down (factory setting)
Select High AC Input Voltage Point for Switching to Battery—OPTIONAL
(DIP Switch #2)
Voltage Switch Position
145V Up
135V Down (factory setting)
Select Low AC Input Voltage Point for Switching to Battery—OPTIONAL
(DIP Switch #3)
Voltage Switch Position
105V Up
95V Down (factory setting)
Set Battery Charging Amps—OPTIONAL
(DIP Switch #4)
By setting on high charging, your batteries will charge at maximum speed. When setting on low charging,
you lengthen the life of your batteries (especially smaller ones).
Battery Charger Switch Position
High Charge Amp Up
Low Charge Amp Down (factory setting)
High Charge Am
p
Low Charge Amp
INPUT C/B 10A OUTPUT C/B 12A
