Tripp Lite B127A-4X2-BH2PH User manual

1
HDMI over Cat6
Matrix Switch Kits,
4K/60 Hz
2-Output Switch Kit: B127A-4X2-BH2PH
4-Output Switch Kit: B127A-4X4-BH4PH
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
Copyright © 2022 Tripp Lite. All rights reserved.
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR®
surge protector in our monthly drawing!
tripplite.com/warranty
Owner’s Manual
Español 13 • Français 25 • Русский 37 • Deutsch 49

2
Product Features
• Transmit 4K video with audio from 4 HDMI source devices to 2 HDMI
displays (B127A-4X2-BH2PH) or 4 HDMI displays (B127A-4X4-BH4PH),
extend the signals up to 230 ft. from the sources, and switch between
sources
• Supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160)
@ 60 Hz, as specified in HDMI 2.0, with 4:4:4 chroma subsampling
• Compatible with Tripp Lite B127A-Series receivers, such as
B127A-1A0-FH or B127A-1A0-BH (sold separately); Tripp Lite
B127A-1P0-PH receivers are included (2 with B127A-4X2-BH2PH;
4 with B127A-4X4-BH4PH)
• Supports High Dynamic Range (HDR) for richer contrast and expanded
color accuracy
• Complies with HDCP 2.2 standards to display up-to-date 4K video
content
• Multi-resolution support allows receivers to be used on any display that
supports 1080p, 4K/30 Hz or 4K/60 Hz without affecting the video
resolution of the other connected receiver
• Power over Cable (PoC) technology provides power to the connected
receivers via Cat6 cable
• Boost the signal distance between each source and display to a total
of 400 ft. by adding Tripp Lite B127A-010-H signal boosters (maximum
of 2 with B127A-4X2-BH2PH, 4 with B127A-4X4-BH4PH)
• Included mounting hardware allows the switch to be wall- , rack- or
pole-mounted
• Plug-and-play operation with no software required for easy, immediate
installation

3
Package Contents
Optional Accessories
• 2-Port or 4-Port Matrix Switch
• Pigtail Receiver Units (2x B127A-4X2-BH2PH or 4x B127A-4X4-BH4PH)
• External Power Supply
o B127A-4X2-BH2PH - Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 1A
o B127A-4X4-BH4PH - Input: 100-240V, 50/60 Hz, 1.5A; Output: 24V 2A
• IR Cable
• Remote Control
• Surface Mount Kit
• RS-232 Adapter
• Owner’s Manual
• N202-Series Cat6 24 AWG Solid Wire Ethernet Cables
• P569-XXX-CERT or P568-XXX-2A Series HDMI 2.0 Cables
• B127A-010-H Signal Booster
• B127A-1A0-BH Box-Style Receiver
• B127A-1A0-FH Face Plate Receiver

4
Disclaimer
Before installation, please check the following settings of your source(s)
and TV/monitor(s):
1. Set display(s) to 60 Hz. Double-check factory settings, as default can
be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0. Some
displays may have default setting at HDMI 1.4.
3. Verify your monitor has the HDR feature enabled. Some displays may
have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on your
display. Confirm with your display manufacturer which HDMI ports
support UHD Deep Color.
Note: To connect a local display to your installation, its UHD Deep Color setting may
need to be disabled to achieve 4K/60 Hz resolution.

5

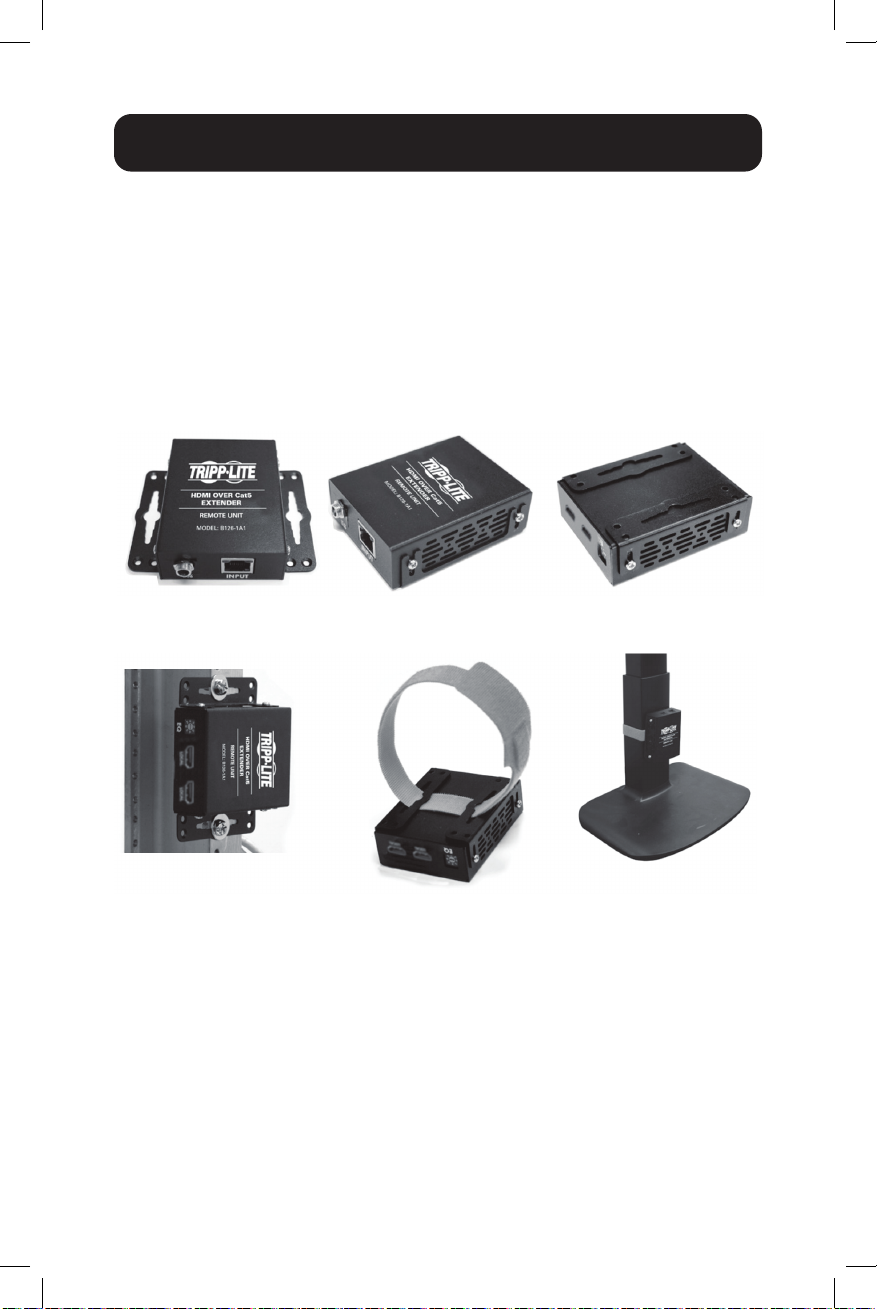

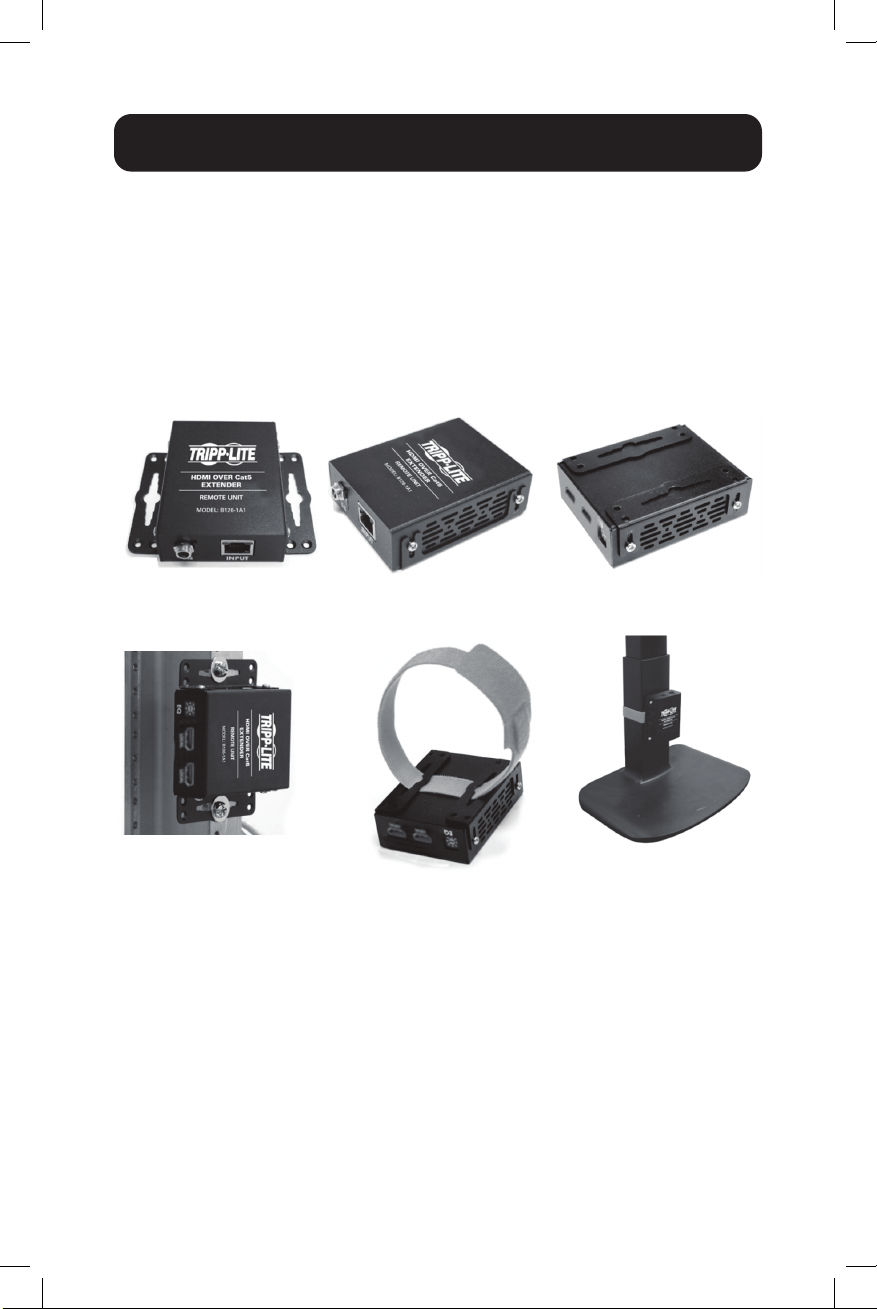

The B127A-4X2-BH2PH and B127A-4X4-BH4PH include mounting
hardware that allows for a variety of mounting methods. The following
images illustrate how the included mounting brackets can be attached for
different installations.
Note: The model shown in the below images is for illustrative purposes only. Your
product may vary by model number, size or port orientation. The mounting options
for all over Cat6 units are the same.
Mounting Instructions
Wall-Mount
19” Rack-Mount Pole-Mount
ai162864491833_page_7.pdf 1 8/10/2021 8:21:58 PM
Wall-Mount
19" Rack-Mount Pole-Mount

6
B127A-4X2-BH2PH Installation
Notes:
• Test to ensure the entire installation works properly before pulling cables through
ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid wire Cat6
cable. Using stranded wire Cat6 cable or cable with a gauge (AWG) size higher
than 24 AWG will result in shorter extension distance. Higher gauge cabling, such
as 26 AWG, has a more limited transmission capability than lower gauge cabling.
All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-4X2-BH2PH kit, which includes a
quad-input/dual-output switch unit and two B127A-1P0-PH pigtail receiver units.
• External power is not required for remote receivers due to Power over Cable
(PoC) technology incorporated in the switch.
Installation
B127A-1P0-PH
B127A-4X2-BH2PH

Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz

HDR PLAYER 4
HDR PLAYER 3
HDR PLAYER 2
HDR PLAYER 1
   
B127A-1P0-PH
IR Control
Pad
IR
SENSOR
RS-232
Scanner/optional
B127A-4X2-BH2PH
Up to 230 ft. (70 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
HDR PLAYER 4
IR
SENSOR IR Control
Pad
HDR PLAYER 3
HDR PLAYER 2
HDR PLAYER 1
RS-232
Scanner/optional

7
1. Make sure all equipment in the installation—such as displays, HDR
players and the switch—is powered off.
2. Connect the HDMI sources to the input ports on the local switch with
user-supplied HDMI cables.
3. Optional: For extended range, connect up to two B127A-010-H signal
boosters between the switch and each receiver with user-supplied Cat6
cables.
4. Connect the RJ45 ports on the local switch to the RJ45 port on the
remote receivers with user-supplied Cat6 cable.
5. Connect the built-in HDMI connector on the receivers to the HDMI input
of the remote displays.
6. Turn on the power to your connected displays.
7. Connect the external power supply to the switch. Plug it into an
available wall outlet or a Tripp Lite surge protector, PDU or UPS system.
The Power (green) LED on the switch will illuminate to indicate the unit
is receiving power from the external power supply. The numbered HDMI
ports’ LEDs (green) will illuminate to indicate the ports are receiving
power.
8. Turn on the power to the HDMI source(s). The Output 1-2 (orange) LEDs
next to the port selection buttons will illuminate to indicate both ports
are receiving power and transmitting video to the connected receivers.
9. Connect the included IR cable to the IR Input port. Select the desired
source for the two outputs using the included remote control or the
push buttons located on the front of the switch.
10. The screen should now display the desired video on the connected
display(s).
Installation

8
Installation

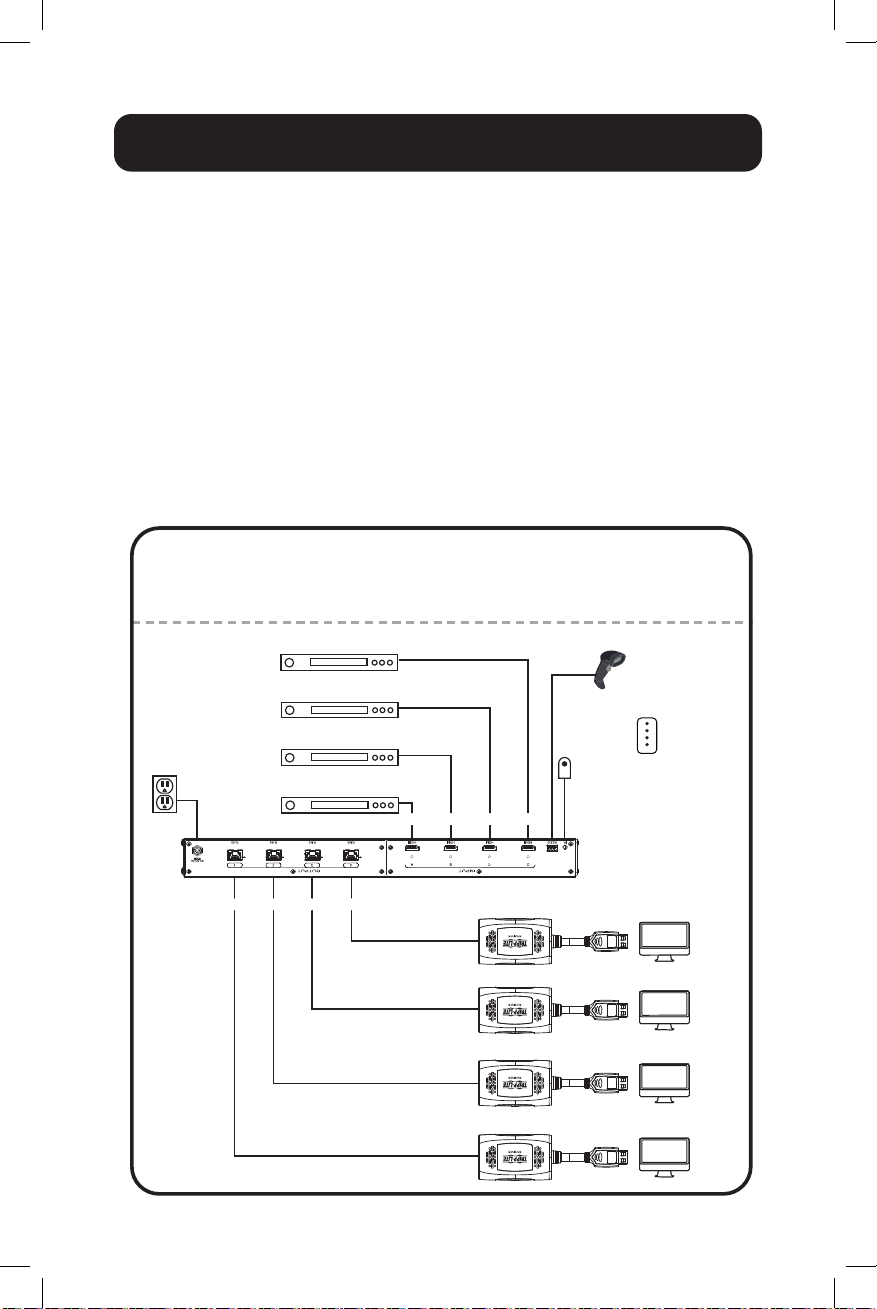

B127A-4X4-BH4PH Installation
Notes:
• Test to ensure the entire installation works properly before pulling cables through
ceilings/walls.
• To achieve maximum distance and performance, use 24 AWG solid wire Cat6
cable. Using stranded wire Cat6 cable or cable with a gauge (AWG) size higher
than 24 AWG will result in shorter extension distance. Higher gauge cabling, such
as 26 AWG, has a more limited transmission capability than lower gauge cabling.
All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid wire cabling.
• The installation diagram shows a B127A-4X4-BH4PH kit, which includes a
quad-input/quad-output switch unit and four B127A-1P0-PH pigtail receiver units.
• External power is not required for remote receivers due to Power over Cable (PoC)
technology incorporated in the switch.
B127A-1P0-PH
B127A-1P0-PH
B127A-1P0-PH
B127A-4X4-BH4PH

Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz
 
HDR PLAYER 4
HDR PLAYER 3
HDR PLAYER 2
HDR PLAYER 1
   
B127A-1P0-PH
IR Control
Pad
IR
SENSOR
RS-232
Scanner/optional
B127A-4X4-BH4PH
Up to 230 ft. (70 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
HDR PLAYER 4
IR
SENSOR IR Control
Pad
HDR PLAYER 3
HDR PLAYER 2
HDR PLAYER 1
RS-232
Scanner/optional

9
Installation
1. Make sure all equipment in the installation—such as displays, HDR
players and the switch—is powered off.
2. Connect the HDMI sources to the input ports on the local switch with
user-supplied HDMI cables.
3. Optional: For extended range, connect up to four B127A-010-H signal
boosters between the switch and each receiver with user-supplied Cat6
cables.
4. Connect the RJ45 ports on the local switch to the RJ45 port on the
remote receivers with user-supplied Cat6 cable.
5. Connect the built-in HDMI connector on the receivers to the HDMI input
of the remote displays.
6. Turn on the power to your connected displays.
7. Connect the external power supply to the switch. Plug it into an
available wall outlet or a Tripp Lite surge protector, PDU or UPS system.
The Power (green) LED on the switch will illuminate to indicate the unit
is receiving power from the external power supply. The numbered HDMI
ports’ LEDs (green) will illuminate
to indicate the ports are receiving power.
8. Turn on the power to the HDMI source(s). The Output 1-4 (orange) LEDs
next to the port selection buttons will illuminate to indicate both ports
are receiving power and transmitting video to the connected receivers.
9. Connect the included IR cable to the IR Input port. Select the desired
source for the four outputs using the included remote control or the
push buttons located on the front of the switch.
10. The screen should now display the desired video on the connected
display(s).

10
RS-232 Serial Control
Before using RS-232 Serial Control, you must first access the Terminal
Emulation Software and update the COM port settings.
1 Go to the Setup drop-down menu and select the Serial Port option.
2 Select the COM port that is being used, and update the remaining
settings as follows: Baud Rate (9600), Data (8 bit), Parity (none), Stop
(1 bit), Flow Control (none).

11
RS-232 Serial Control
3 Next, you will need to configure your software to allow input control. Go
to the Setup drop-down menu and select the Terminal option.
4 Update the following settings: Receive (LF), Local Echo (enable). The
other settings can remain unchanged.
5 Once these settings are updated, the Terminal Emulation Software will
recognize the switch, allowing you to enter commands to control the
unit. The following table lists the available commands:
Command Action
sw[x] [n] Switches the source being displayed on the selected output. [x]
is the output (1, 2, 3, or 4) and [n] is the desired source (A,
B, C, or D). For example, a command of sw1 A would display
source A on output 1.
PWD Turns power to the switch on/off.
STE Displays the current output state, showing which source is being
displayed on each output.

12
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-08-021 • 933FA8_RevA
1-Year Limited Warranty
Seller warrants this product, if used in accordance with all applicable instructions, to be free from original
defects in material and workmanship for a period of one (1) year from the date of initial purchase. If the
product should prove defective in material or workmanship within that period, Seller will repair or replace
the product, at its sole discretion.
THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT,
MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY
EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED
WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION
TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL
INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied
warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may have other rights which vary from jurisdiction to jurisdiction.)
WARNING: The individual user should take care to determine prior to use whether this device is suitable,
adequate or safe for the use intended. Since individual applications are subject to great variation, the
manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any
specific application.
PRODUCT REGISTRATION
Visit tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into
a drawing for a chance to win a FREE Tripp Lite product!*
* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.
WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)
Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations,
when customers buy new electrical and electronic equipment from Tripp Lite, they are entitled to:
• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending
on the country)
• Send the new equipment back for recycling when this ultimately becomes waste
Use of this equipment in life support applications where failure of this equipment can reasonably be
expected to cause the failure of the life support equipment or to significantly affect its safety or
effectiveness is not recommended.
Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Photos and illustrations may differ slightly from actual products.
Warranty and Product Registration

13
Juegos de Switch de
Matriz HDMI sobre
Cat6, 4K @ 60 Hz
Juego de Switch de 2 Salidas: B127A-4X2-BH2PH
Juego de Switch de 4 Salidas: B127A-4X4-BH4PH
1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support
Copyright © 2022 Tripp Lite. Todos los derechos reservados.
Manual del Propietario
English 1 • Français 25 • Русский 37 • Deutsch 49

14
Características del Producto
• Transmita video 4K con audio desde 4 dispositivos fuente HDMI a 2
pantallas HDMI (B127A-4X2-BH2PH) o 4 pantallas HDMI
(B127A-4X4-BH4PH), extienda las señales hasta a 70.1 m [230 pies]
desde las fuentes y alterne entre fuentes
• Soporta resoluciones de video Ultra HD de hasta 4K x 2K (3840 x 2160)
@ 60 Hz, como se especifica en HDMI 2.0, con submuestreo de croma
4:4:4
• Compatible con receptores de la serie B127A de Tripp Lite, como el
B127A-1A0-FH o B127A-1A0-BH (vendidos por separado); están
incluidos receptores B127A-1P0-PH de Tripp Lite
(2 con B127A-4X2-BH2PH; 4 con B127A-4X4-BH4PH)
• Soporta Alto Rango Dinámico [HDR] para contraste más rico y precisión
de color expandida
• Cumple con los estándares HDCP 2.2 para mostrar contenido de video
4K actualizado
• El soporte de resolución múltiple permite que los receptores se utilicen
en cualquier pantalla que admita 1080p, 4K @ 30 Hz o 4K @ 60 Hz sin
afectar la resolución de video del otro receptor conectado
• La tecnología PoC proporciona energía a los receptores conectados
mediante cable Cat6
• Aumente la distancia de señal entre cada fuente y pantalla a un total de
121.92 m [400 pies] agregando reforzadores de señal B127A-010-H
de Tripp Lite (máximo de 2 con B127A-4X2-BH2PH, 4 con
B127A-4X4-BH4PH)
• Los accesorios para instalación incluidos permiten que el interruptor se
instale en la pared, en rack o en poste
• Operación "conectar y usar" sin necesidad de software para una
instalación fácil e inmediata

15
Contenido del Empaque
Accesorios Opcionales
• Switch de Matriz de 2 Puertos o 4 Puertos
• Unidades Receptoras Flexibles (2x B127A-4X2-BH2PH o 4x
B127A-4X4-BH4PH)
• Fuente de Alimentación Externa
o B127A-4X2-BH2PH - Entrada: 100V~240V, 50Hz/60Hz, 1.5A;
Salida: 24V 1A
o B127A-4X4-BH4PH - Entrada: 100-240V, 50Hz/60Hz, 1.5A;
Salida: 24V 2A
• Cable IR
• Control Remoto
• Juego para Instalación en Superficie
• Adaptador RS-232
• Manual del Propietario
• Cables Ethernet Cat6 de Alambre Sólido 24 AWG de la Serie N202
• Cables HDMI 2.0 Serie P569-XXX-CERT o P568-XXX-2A
• B127A-010-H – Reforzador de Señal
• Receptor Estilo Caja B127A-1A0-BH
• Receptor de Placa Frontal B127A-1A0-FH

16
Limitación de Responsabilidad
Antes de la instalación, compruebe los siguientes ajustes de su(s) fuente(s)
y televisor(es) o monitor(es):
1. Configure la(s) pantalla(s) a 60 Hz. Verifique dos veces la configuración
de fábrica, ya que el valor predeterminado puede
estar configurado a una frecuencia (Hz) menor que la anunciada.
2. Asegurarse de que el valor de entrada de su monitor esté configurado
a HDMI 2.0. Algunas pantallas pueden tener una configuración
predeterminada a HDMI 1.4
3. Verifique que su monitor tenga habilitada la función HDR. Algunas
pantallas pueden tener esta función deshabilitada como configuración
de fábrica.
4. Verifique que la Configuración de Color Verdadero Ultra HD [UHD] está
habilitada en su pantalla. Confirme con el fabricante de su pantalla qué
puertos HDMI soportan Color Verdadero UHD.
Nota: Para conectar una pantalla local a su instalación, puede ser necesario
deshabilitar su ajuste de Color Verdadero UHD para lograr la resolución
4K @ 60 Hz.

17
El B127A-4X2-BH2PH y el B127A-4X4-BH4PH incluyen accesorios de
instalación que permiten una gran variedad de métodos de instalación.
Las siguientes imágenes ilustran cómo pueden fijarse los soportes de
instalación incluidos para las diferentes instalaciones.
Nota: El modelo mostrado en las imágenes de abajo es solo para fines ilustrativos.
El producto puede variar según el número de modelo, tamaño u orientación del
puerto. Las opciones de instalación para todas las unidades sobre Cat6 son las
mismas.
Instrucciones de Instalación
Wall-Mount
19” Rack-Mount Pole-Mount
ai162864491833_page_7.pdf 1 8/10/2021 8:21:58 PM
Instalación en la Pared
19" Instalación en Rack Instalación en Poste

18
Instalación del B127A-4X2-BH2PH
Notas:
• Haga pruebas para asegurarse de que toda la instalación trabaje correctamente
antes de jalar los cables a través de techos y paredes.
• Para conseguir la distancia y rendimiento máximos, use un cable Cat6 con
conductores de alambre sólido 24 AWG. El uso de cable Cat6 de alambre
trenzado o cable con un número de calibre (AWG) mayor a 24 AWG, resultará en
una distancia de extensión más corta. Un cableado de número mayor de calibre,
como 26 AWG, tiene capacidad de transmisión más limitada que el cableado de
menor calibre. Todos los cables Cat6 Serie N202 de Tripp Lite están hechos con
cableado de alambre sólido 24 AWG.
• El diagrama de instalación muestra un juego B127A-4X2-BH2PH, que incluye
una unidad de switch de entrada cuádruple / salida doble y dos unidades
receptoras pigtail B127A-1P0-PH.
• No se requiere alimentación externa en los receptores remotos debido a la
tecnología PoC incorporada en el switch.
Instalación
B127A-1P0-PH
B127A-4X2-BH2PH

Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz

HDR PLAYER 4
HDR PLAYER 3
HDR PLAYER 2
HDR PLAYER 1
   
B127A-1P0-PH
IR Control
Pad
IR
SENSOR
RS-232
Scanner/optional
B127A-4X2-BH2PH
Cable Cat6 de hasta 70 m [230 pies] a 4K @ 60 Hz
Cable HDMI 2.0 de hasta 4.5 m [15 pies] a 4K @ 60 Hz
REPRODUCTOR HDR 4
SENSOR
IR Pad de
Control IR
REPRODUCTOR HDR 3
REPRODUCTOR HDR 2
REPRODUCTOR HDR 1
Opcional /
Escáner
RS-232

19
1. Asegúrese de que todos los equipos en la instalación, como pantallas,
reproductores HDR y el switch, estén apagados.
2. Conecte las fuentes HDMI a los puertos de entrada en el switch local
con cables HDMI suministrados por el usuario.
3. Opcional: Para un alcance extendido, conecte hasta dos reforzadores
de señal B127A-010-H entre el switch y cada receptor con cables Cat6
suministrados por el usuario.
4. Conecte los puertos RJ45 del conmutador local al puerto RJ45 de los
receptores remotos con el cable Cat6 suministrado por el usuario.
5. Conecte el conector HDMI incorporado en los receptores a la entrada
HDMI de las pantallas remotas.
6. Encienda sus pantallas conectadas.
7. Conecte la fuente de alimentación externa al switch. Enchúfela en un
tomacorriente de pared disponible o a un supresor de sobretensiones,
PDU o sistema UPS de Tripp Lite. El LED de Encendido (verde) en el
switch se iluminará para indicar que la unidad está recibiendo energía
de la fuente de alimentación externa. Los LEDs numerados de los
puertos HDMI (verde) se iluminarán para indicar que los puertos están
recibiendo energía.
8. Encienda la(s) fuente(s) HDMI. Los LEDs de Salida 1-2 (naranja) junto
a los botones de selección de puerto se iluminarán para indicar que
ambos puertos están recibiendo energía y transmitiendo video a los
receptores conectados.
9. Conecte el cable IR incluido al puerto de entrada IR. Seleccione la
fuente deseada para las dos salidas usando el control remoto incluido o
los botones ubicados en el frente del switch.
10. La pantalla ahora debería mostrar el video deseado en las pantallas
conectadas.
Instalación

20
Instalación
Instalación del B127A-4X4-BH4PH
Notas:
• Haga pruebas para asegurarse de que toda la instalación trabaje correctamente antes de
jalar los cables a través de techos y paredes.
• Para conseguir la distancia y rendimiento máximos, use un cable Cat6 con conductores de
alambre sólido 24 AWG. El uso de cable Cat6 de alambre trenzado o cable con un número
de calibre (AWG) mayor a 24 AWG, resultará en una distancia de extensión más corta. Un
cableado de número mayor de calibre, como 26 AWG, tiene capacidad de transmisión más
limitada que el cableado de menor calibre. Todos los cables Cat6 Serie N202 de Tripp Lite
están hechos con cableado de alambre sólido 24 AWG.
• El diagrama de instalación muestra un juego B127A-4X4-BH4PH, que incluye una unidad de
switch de entrada / salida cuádruple y cuatro unidades receptoras pigtail B127A-1P0-PH.
• No se requiere alimentación externa en los receptores remotos debido a la tecnología PoC
incorporada en el switch.
B127A-1P0-PH
B127A-1P0-PH
B127A-1P0-PH
B127A-4X4-BH4PH

Up to 230 ft. (70 m) Cat6 cable at 4K/60Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60Hz
 
HDR PLAYER 4
HDR PLAYER 3
HDR PLAYER 2
HDR PLAYER 1
   
B127A-1P0-PH
IR Control
Pad
IR
SENSOR
RS-232
Scanner/optional
B127A-4X4-BH4PH
Cable Cat6 de hasta 70 m [230 pies] a 4K @ 60 Hz
Cable HDMI 2.0 de hasta 4.5 m [15 pies] a 4K @ 60 Hz
REPRODUCTOR HDR 4
SENSOR
IR Pad de
Control IR
REPRODUCTOR HDR 3
REPRODUCTOR HDR 2
REPRODUCTOR HDR 1
Opcional /
Escáner
RS-232
