PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

Make sure you understand the following tips before you begin to assemble your hockey table.
1. Start all bolts by hand before tightening.
2. Some drawings or images in this manual may not look exactly like your product. Please
read and understand the text before starting each assembly step.
TWO ADULTS ARE REQUIRED TO ASSEMBLE
THIS 48” OVERTIME AIR HOCKEY TABLE
Assembly Tips
Tools Required:
READ AND FOLLOW ALL ASSEMBLY, OPERATION, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO
ADULTS ARE NEEDED TO PUT THIS HOCKEY TABLE
TOGETHER.
T1 - Allen Wrench (Included)
IMPORTANT! READ EACH STEP
IN THIS MANUAL BEFORE YOU
BEGIN THE ASSEMBLY.
© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
Phillips Screwdriver
Furniture Polish and Cloth
2
All Rights Reserved.
ATTENTION:
WARNING:
1) Do not mix old and new batteries.
2) Do not mix alkaline, standard (carbon zinc), or rechargeable (ni-cad, ni-mh, etc.) batteries.
3) Do not dispose of batteries in fire, batteries may explode or leak.

HARDWARE IDENTIFIER
(To Scale)
©2016 Escalade Sports For Customer Service Call 1-888-996-2729
3
All Rights Reserved.
(Not to Scale)
ACCESSORIES IDENTIFIER
(Not to Scale)
!
WARNING:
CHOKING HAZARD
Small parts.
Not for children under 3 yrs.
H3 - 3.5 mm x 12 mm
Phillips Round
Head Screw
(30 pcs)
H1 - 6 mm x 28 mm
Allen Head Bolt
(12 pcs)
H2 - 6.5 mm x 15 mm
Flat Washer
(12 pcs)
T1 - Allen Wrench
(1 pc)
H4 - 3.5 mm x 16 mm
Phillips Round
Head Screw
(2 pcs)
A3 Felt Pads may already
be attached to A1 Strikers.
A1 - Striker
(2 pcs)
A2 - Puck
(2 pcs)
A3 - Felt Pad
(2 pcs)
NOTE:
A4 - AC/DC
Adapter
(1 pc)

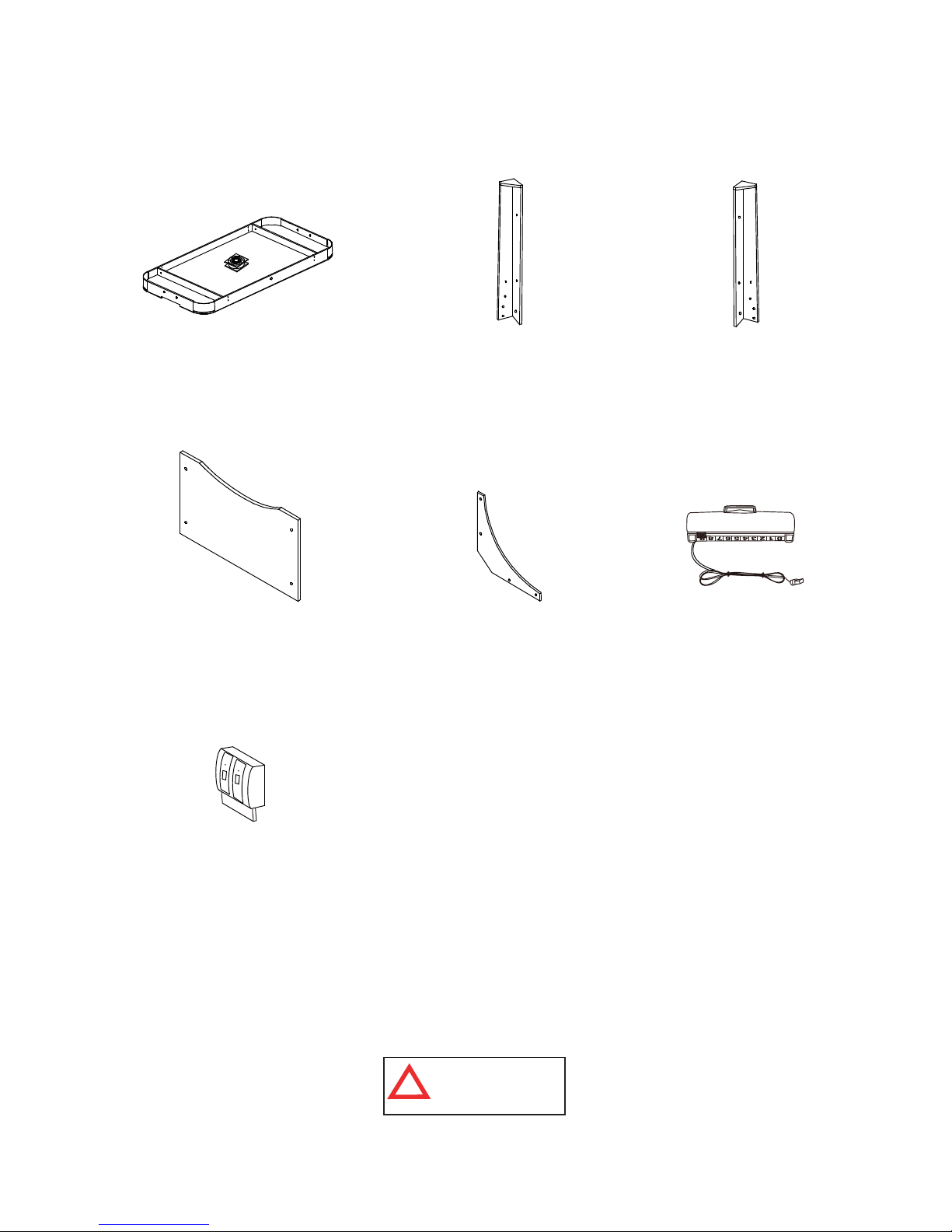

PARTS IDENTIFIER
(Not to Scale)
© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
4
All Rights Reserved.
P1 - Air Hockey Cabinet
(1 pc)
P2 - Right Leg
(2 pcs)
P3 - Left Leg
(2 pcs)
!
WARNING:
CHOKING HAZARD
Small parts.
Not for children under 3 yrs.
P4 - End Leg Panel
(2 pcs)
P5 - Side Leg Panel
(2 pcs)
P6 - Goal Box
with Sensors
(2 pcs)
P7 - Electronic Scorer
(1 pc)
(Packed under table)

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
5
All Rights Reserved.
PARTS REQUIRED:
12 pcs - H1 Allen Head Bolt
12 pcs - H2 Flat Washer
1 pc - P1 Air Hockey Cabinet
2 pcs - P2 Right Leg
2 pcs - P3 Left Leg FIGURE 1
STEP 1:
Leave P1 Air Hockey Table Cabinet
face down in carton to assemble.
Install P2 Right Legs and P3 Left
Legs onto P1 Air Hockey Cabinet
using H1 Allen Head Bolts and
H2 Flat Washers as shown in
FIGURE 1.
Do not tighten H1 Bolts during
this step.
THIS STEP REQUIRES TWO OR MORE ADULTS.
VERY CAREFULLY TURN THE TABLE OVER AND SET IT ON
ITS LEGS. BE CAREFUL, THE TABLE IS HEAVY.
Graphics must be upside
down and face outside.
H1
H2
H1
H2
H1 H2
H2 H1
C1
C2
P3
P3
P2
P2
P1
PARTS REQUIRED:
24 pcs - H3 Phillips Round Head Screw
2 pcs - P4 End Leg Panel
4 pcs - P5 Side Leg Panel
1 pc - T1 Allen Wrench
STEP 2:
Install P4 End Leg Panels and P5 Side
Leg Panels using pilot holes with
H3 Phillips Round Head Screws as
shown in FIGURE 2.
Tighten, But do not strip out H3 Screws.
Tighten all H1 Bolts with T1 Allen
Wrench at this time from STEP 1.
IMPORTANT NOTE:
Graphics must be upside down
and face outside during assembly.
FIGURE 2
Graphics must be upside
down and face outside.
P4
P5
P5
P5
P5
P4 H3
H3
H3
H3

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
6
All Rights Reserved.
PARTS REQUIRED:
6 pcs - H3 Phillips Round Head Screw 2 pcs - P6 Goal Box with Sensors
2 pcs - H4 Phillips Round Head Screw 1 pc - P7 Electronic Scorer

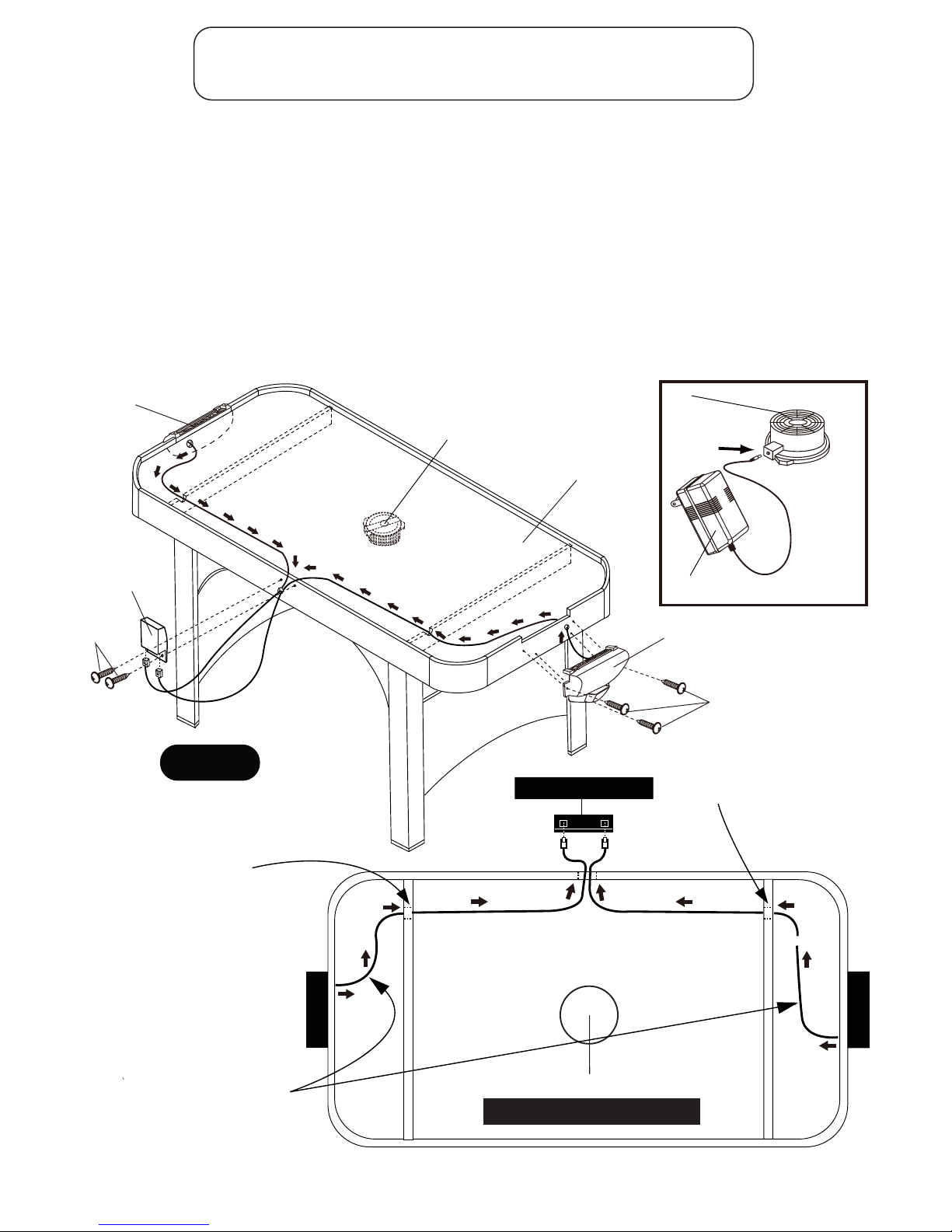

STEP 3:
First, feed the sensor plug from each P6 Goal Box with Sensors through each end apron and underneath table support
frames as shown in FIGURE 3 and UNDERNEATH TABLE DIAGRAM. Guide the sensor wires following the path shown
with the arrows in FIGURE 3 and THE UNDERNEATH TABLE DIAGRAM from the goal box pass through one side apron
and connect to P7 Electronic Scorer as shown in FIGURE 3.
Secure P6 Goal Box with Sensors onto P1 Air Hockey Cabinet using pilot holes with H3 Phillips Round Head Screws as
shown in FIGURE 3. Tighten, But do not strip out H3 Screws.
Secure P7 Electronic Scorer P1 Air Hockey Cabinet using pilot holes with H4 Phillips Round Head Screws as shown in
FIGURE 3. Tighten, But do not strip out H4 Screws.
Remove the battery cover from P7 Electronic Scorer and insert 2 AAA Batteries (not included) into the battery box.
Connect A4 AC/DC Adapter onto C1 DC Motor (underneath table) as shown.
UNDERNEATH TABLE
C1 DC Motor
GOAL BOX
GOAL BOX
IMPORTANT NOTE:
Be sure to route the goal box sensor
wires thru the support beam cutouts
for correct assembly.
IMPORTANT NOTE:
As you attach the P6 Goal Boxes,
make sure to very lightly pull any
excess wire thru the end apron that
may be blocking the electronic scoring
sensor eyes.
P6
H3
P1
P6
FIGURE 3
C1
DC Motor
(underneath table)
H4
P7
ELECTRONIC SCORER
IMPORTANT NOTE:
Be sure to route the goal box sensor
wires thru the support beam cutouts
for correct assembly.
C1
DC Motor
(underneath table)
A4

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
All Rights Reserved.
7
Congratulations! You have now assembled your hockey table. Please note the Care and Use
instructions below to insure many years of trouble free use of your hockey table.
CARE AND USE OF YOUR HOCKEY TABLE
.2
rofdednetnisitcudorpsihT INDOOR use only.
.5 DO NOT sit, climb or lean on the table.
DO NOT drag the table when moving it. This will damage the legs.
DO NOT set drinks on the table.
It is suggested that this table be placed close to wall thus allowing the A/C Adapter
cord to NOT be a trip hazard. Always unplug A/C Adapter from wall when table is
not in use.
.6
.7
8.
For long life and best play from your air hockey table, apply spray furniture polish
to clean cloth and wipe down the playfield with air motor running to make the pucks
slide faster before first play and frequently thereafter.
3.
4. DO NOT operate the motor if the A/C Adapter cord is damaged in any way.
.1
Use only a suitable 120v AC household outlet, and insure the cord is not a trip hazard.
Part#
PRODUCT PARTS LIST 45-6059-2
Qty
Description
H1 45-6059-2WJH1 6 mm x 28 mm Allen Head Bolt 12
H2 45-6059-2WJH2 6.5 mm x 15 mm Flat Washer 12
H3 45-6059-2WJH3 3.4 mm x 12 mm Phillips Round Head Screw 30
H4 45-6059-2WJH4 3.5 mm x 16 mm Phillips Round Head Screw 2
T1 45-6059-2WJT1 Allen Wrench 1
A1 45-6059-2WJA1 Striker 2
A2 45-6059-2WJA2 Puck 2
A3 45-6059-2WJA3 Felt Pad 2
A4 45-6059-2WJA4 AC/DC Adapter 1
P1 45-6059-2WJP1 Air Hockey Cabinet (no motor) 1
P2 45-6059-2WJP2 Right Leg 2
P3 45-6059-2WJP3 Left Leg 2
P4 45-6059-2WJP4 End Leg Panel 2
P5 45-6059-2WJP5 Side Leg Panel 4
P6 45-6059-2WJP6 Goal Box with Sensors 2
P7 45-6059-2WJP7 Electronic Scorer 1
C1 45-6059-2WJC1 DC Motor (Pre-installed) 1
C2 45-6059-2WJC2 Corner Post (Pre-installed) 4
K1 45-6059-2WJK1 Hardware Kit 1
M1 45-6059-2WJM1 Owner’s Manual 1
Key#

© 2016 Escalade Sports For Customer Service Call 1-888-996-2729
8
All Rights Reserved.
This consumer warranty extends to the original consumer purchase of any ESCALADESPORTS
Product (hereinafter referred as the "Product").
WARRANTY DURATION: This Product is warranted to the original consumer purchase of a pe-
riod of 90 days from the original purchase.
WARRANTY COVERAGE: ESCALADE SPORTS warrants to the original Consumer Purchaser
that any Product of its manufacture is free from defects in material and workmanship when used
for the intended purpose under normal use and conditions. THIS WARRANTY IS VOID IF THE
PRODUCT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE,
IMPROPER SERVICE, FAILURE TO FOLLOW INSTRUCTIONS PROVIDED WITH THE PROD-
UCT OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL AND WORKMAN-
SHIP.
WARRANTY PERFORMANCE: During the above 90 day warranty period, ESCALADESPORTS
shall repair or replace with a comparable model, and Product, or component thereof, which may
prove defective under normal use and proper care, and which our examination shall disclose to
our satisfaction to be thus defective, please contact our Warranty Dept.
1-888-996-2729 / Warranty Dept.
Or Write us at:
Escalade® Sports, Inc. - P.O. Box 889, Evansville, IN 47706
Attn: Warranty Dept.
Or E-mail us at:
[email protected]
Other than shipping requirements no charge will be made for such repair or replacement of in-
warranty Products. ESCALADE SPORTS strongly recommends that the Product is insured for
value prior to mailing.
WARRANTY DISCLAIMERS: ANY IMPLIED WARRANTIES ARISING OUT OF
THIS SALE, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIM-
ITED IN DURATION TO THE ABOVE 90 DAY PERIOD. ESCALADE SPORTS
SHALL NOT BE LIABLE FOR LOSS OF USE OF THE PRODUCT OR OTHER
CONSEQUENTIAL OR INCIDENTAL COSTS, EXPENSES OR DAMAGES IN-
CURRED BY THE CONSUMER OF ANY OTHER USE.
Some states do not allow the exclusion or limitation of implied warranties or consequential or
incidental damages, so the above limitations or exclusions may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights and you may also have other
rights which may vary from state to state.
90 DAY LIMITED WARRANTY
