TKHQ 10 A1 GB│IE │ 1 ■
Contents
Introduction.......................................3
Proper use ................................................3
Notes on trademarks ........................................4
Warnings and symbols used ..................................4
Safety ...........................................7
Basic safety instructions ......................................7
Notes on the radio interface ..................................9

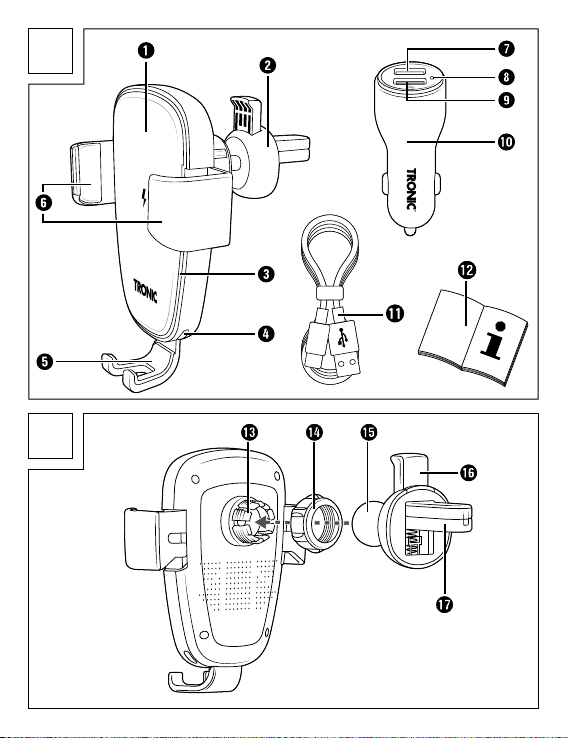

Parts description/operating components............. 10
Using the device ................................. 11
Unpacking .............................................. 11
Check package contents ................................... 11
Fitting the car cradle....................................... 11
Fastening the car cradle to the air vents........................ 12
Connecting the car cradle .................................. 12
Operation and use ............................... 14
Charging your mobile phone wirelessly........................ 14
Charging other USB devices ................................ 15
Status of the car cradle LED ................................. 15
Troubleshooting ................................. 16
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Storage when not in use .......................... 17

TKHQ 10 A1■ 2 │ GB│IE
Disposal........................................ 18
Disposal of the device ..................................... 18
Disposal of the packaging .................................. 18
Appendix....................................... 19
Technical specifications .................................... 19
Simplified EU declaration of conformity........................ 20
Kompernass Handels GmbH warranty ........................ 21
Service ................................................. 24
Importer................................................ 24

TKHQ 10 A1 GB│IE │ 3 ■
Introduction
Congratulations on the purchase of your new device. You have selected
a high-quality product.
The operating instructions are part of this product. They contain
important information about safety, usage and disposal. Before
using the product, please familiarise yourself with all operating
and safety instructions. Use the product only as described and for the
range of applications specified. Retain these instructions for future reference.
Please also pass these operating instructions on to any future owner.
Proper use
The car cradle is an information electronics device and is used for holding
and charging mobile phones (and other 5 V devices with a USB connec-
tion*) in your car only. Thanks to the Qi technology used, compatible
mobile phones can be charged by induction charging. Alternatively, you
can charge mobile phones and other 5V devices with a USB connection
using the car/USB adapter via the charging cable.
The car/USB adapter is only intended for vehicles with a cigarette lighter
whose negative pole is connected to earth.
Any other use is considered to be improper, and can result in damage and
injuries. Claims of any kind for damage resulting from improper use or un-
authorised modifications will not be considered. This product is for private
use only, and is not intended for commercial use.

TKHQ 10 A1■ 4 │ GB│IE
Notes on trademarks
■ USB®is a registered trademark of USB Implementers Forum, Inc.
■ The word “Qi” and the Qi symbol are registered trademarks
of the Wireless Power Consortium.
■ Qualcomm®Quick Charge™is a product made by Qualcomm
Technologies, Inc. and/or its subsidiaries. Qualcomm®is a trademark
of Qualcomm Incorporated, registered in the United States and other
countries. Quick Charge™is a trademark of Qualcomm Incorporated.
All other names and products may be trademarks or registered trademarks
of their respective owner.
Warnings and symbols used
The following warnings are used in these operating instructions, on the pack-
aging, on the appliance and on the mains adapter (where applicable):
DANGER
A warning at this hazard level indicates a hazardous
situation.
Failure to avoid this hazardous situation will result in serious injuries
or death.
► Follow the instructions on this warning label to avoid the risk of death
or serious injury.

TKHQ 10 A1 GB│IE │ 5 ■
WARNING
A warning at this hazard level indicates a potentially
hazardous situation.
Failure to avoid this hazardous situation could result in serious injuries
or death.
► Follow the instructions on this warning label to avoid the risk of death
or serious injury.
CAUTION
A warning at this hazard level indicates a potentially
hazardous situation.
Failure to avoid this hazardous situation could result in injuries.
► Follow the instructions in this warning notice to prevent injuries.
CAUTION
A warning at this hazard level indicates a risk of property
damage.
Failure to avoid this situation could result in property damage.
► Follow the instructions in this warning notice to prevent property
damage.
NOTE
► A note provides additional information that makes handling the device
easier for you.

TKHQ 10 A1■ 6 │ GB│IE
The e-Mark is a certification mark for the labelling of components
requiring approval in motor vehicles and states that the necessary
tests have been carried out and that an ECE component approval
has been issued. The letters “xx” are placeholders and stand for
the country where the licence was issued.
The Smart Fast Charge symbol indicates that the technology
used reduces the charging time for compatible devices.
Compatible connected devices automatically receive a signal
to draw the maximum available charging current.
The Qualcomm®Quick Charge™3.0 symbol indicates that the
technology used enables a reduced charging time for compatible
devices connected to the green USB socket of the car/USB
adapter. Compatible connected devices are automatically
detected and provided with the appropriate output voltage and
output current from the car/USB adapter.
The Qi symbol indicates that the technology used enables
wireless charging. Compatible devices are detected automatical-
ly and provided with the appropriate output voltage and output
current from the car/USB adapter.

TKHQ 10 A1 GB│IE │ 7 ■
Safety
This section contains important safety instructions for handling the device.
This device complies with the statutory safety regulations. Improper use
may result in personal injury and property damage.
Basic safety instructions
■ Check the device for visible damage before use. Do not use a device
that has been damaged or dropped.
■ To avoid possible risks, arrange for damaged cables or connectors to
be exchanged by an authorised specialist, the Customer Service
Department or a similarly qualified professional.
■ This device may be used by children aged 8 years and above and by
persons with limited physical, sensory or mental capacities or lack of
experience and knowledge, provided that they are under supervision
or have been told how to use the device safely and are aware of the
potential risks. Do not allow children to use the device as a toy. Do not
allow children to carry out cleaning and user maintenance tasks unless
they are supervised.
■ DANGER! Do not allow children to play with the packaging
material! Keep all packaging materials away from children.
There is a risk of suffocation!
■ Protect the charging cable from hot surfaces and sharp edges and
ensure that it is not stretched tight or kinked.
■ Never open the device and never carry out any repairs yourself.
■ Do not make any unauthorised modifications or alterations to the device.
■ Do not allow any liquids or moisture to get into the device.

TKHQ 10 A1■ 8 │ GB│IE
■ Do not expose the device to water spray or dripping water, and do not
place liquid-filled objects such as vases or open drink containers on or
near the device.
■ Keep the device away from open flames (e.g. candles) at all times.
■ The device is not designed for use in rooms with high temperatures or
humidity (e.g. bathrooms) or where there is excessive dust.
■ Do not use the device immediately after moving it from a cold room to a
warm room. Always allow the device to acclimatise before turning it on.
■ Do not cover the device during operation.
■ Due to the high power consumption, a USB mains adapter must be used
to operate the charging pad. Do not use the charging pad on a USB
port of a PC or notebook.
■ Never subject the device to extreme heat or humidity. This particularly
applies to storage in a car. If the car is stationary for extended periods
and in hot weather with direct sunlight, high temperatures occur in the
car interior and the glove compartment. Remove any electrical and
electronic devices from the vehicle.
■ WARNING! When setting up the device, make sure that it does
not obstruct steering, braking or the operation of other vehicle operating
systems (e.g. airbags) or restrict your field of vision when driving.
■ DANGER! Do not place the car cradle in or near the deployment
area of the airbag as the cradle would be flung through the vehicle
interior when the airbag deploys, which could result in serious injuries.
■ Ensure that the cradle is not installed in a location where you could
come into contact with it in the event of an accident or collision.
■ If you want to charge your mobile phone by induction in the car cradle,
make sure that the phone case does not contain any metal plate. Metal
components could cause the device to overheat.

TKHQ 10 A1 GB│IE │ 9 ■
■ Refer also to the operating instructions for your mobile phone/equipment.
■ WARNING! If you notice a burning smell or smoke coming from your
car/USB adapter, disconnect it from the cigarette lighter immediately.
Have the device checked by a qualified specialist before using it again.
■ All of the applicable laws in your location must be observed. Your
hands must always be free to operate the vehicle safely when you are
driving. Traffic safety must always take priority whilst driving. Use this
cradle only if no hazard is likely to occur in any driving situation.
Notes on the radio interface
■ WARNING! Keep the device at least 20 cm away from a pace-
maker or implanted defibrillator, as the proper functioning of the pace-
maker or the implanted defibrillator could be affected by radio waves.
■ The transmitted radio waves can cause noise interference in hearing aids.
■ Do not use the product with the radio component switched on in the
vicinity of flammable gases or in a potentially explosive environment
(e.g. paint shop), as the transmitted radio waves can trigger an explo-
sion or fire.
■ Kompernass Handels GmbH is not responsible for interference with
radio and television equipment caused as a result of unauthorised
modification of the product. Furthermore, Kompernass Handels GmbH
accepts no liability for the use or replacement of cables that are not
sold by Kompernass Handels GmbH.
■ The user of this product is solely responsible for rectifying faults caused
by unauthorised modifications to the product as well as the replacement
of such modified products.

TKHQ 10 A1■ 10 │ GB│IE
Parts description/operating components
(See fold-out page for illustrations)
Fig. A:
1Charging surface of the car cradle
2Clamping device for air vents
3LED (white)
4USB type-C socket for the charging cable
5Supports for mobile phone
6Holding clamps for mobile phone
7USB type-A socket (white)
8Operating LED (white)
9USB type-A socket with Quick Charge™3.0 function (green)
0Car/USB adapter
qCharging cable (USB type-A to USB type-C)
wOperating instructions (symbol)
Fig. B:
eBall joint socket
rScrew ring
tBall joint
zSpreader button
uAir vent clamps

TKHQ 10 A1 GB│IE │ 11 ■
Using the device
Unpacking
♦ Remove all parts and the operating instructions from the packaging.
♦ Remove all packaging material.
Check package contents
The following components are included in delivery:
▯ Car holder with clamping device for air vents 2(two parts)
▯ Car/USB adapter 0
▯ Charging cable q
▯ These operating instructions w
NOTE
► Check the package for completeness and signs of visible damage.
► If the delivery is incomplete or damage has occurred as a result of
defective packaging or during transport, contact the service hotline
(see section Service).
Fitting the car cradle
♦ Unscrew the screw ring rfrom the car cradle.
♦ Place the screw ring rover the ball joint tand press the ball joint t
into the ball joint socket e(see fig. B).
♦ Screw the screw ring rclockwise firmly onto the ball joint socket e.

TKHQ 10 A1■ 12 │ GB│IE
Fastening the car cradle to the air vents
♦ Press and hold the spreader button zso that the air vent clamps u
open.
♦ Clamp the car cradle to an air vent and release the spreader button z.
♦ To remove the car cradle from the air vent, press the spreader button z
and carefully pull the cradle out of the air vents.
Connecting the car cradle

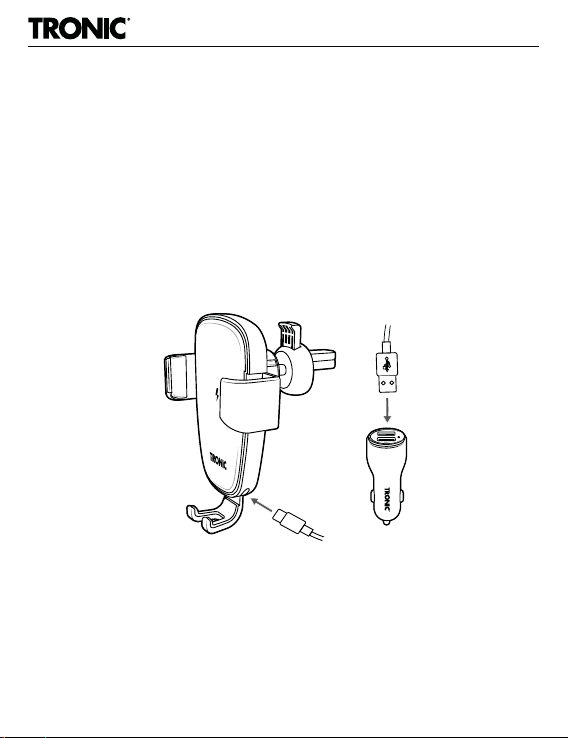

♦ Connect the car cradle to the car/USB adapter 0via the charging
cable q, see fig. 1.
Fig. 1
Fig. 1

TKHQ 10 A1 GB│IE │ 13 ■
♦ Plug the car/USB adapter 0into the 12/24V socket (cigarette lighter)
in your vehicle.
The operating LED 8lights up white to indicate that the car/
USB adapter 0is ready for use.
Depending on the vehicle type, it is possible that the ignition has to be
switched on first.
CAUTION
► The total power consumption of the devices connected to the two
USB sockets 7/9may not be higher than 5.4A. Make sure that the
power consumption of your device is no higher than 3A when you
are using the USB socket 9(green). When you are using the USB
socket 7, make sure that the power consumption of your device is no
higher than 2.4A. Refer to the operating instructions of your device
for more information.
► The maximum power output of the car/USB adapter 0is 5.4A.
The maximum power output of the USB socket (green) 9is 3A.
The maximum power output of the USB socket 7is 2.4A.
NOTE
► The USB socket (green) 9supports the Qualcomm®Quick
ChargeTM3.0 standard. If the connected device is compatible with
this charging standard, it will be detected by the car/USB adapter0
automatically. The car/USB adapter 0supplies the appropriate
output voltage or output current so that your device can be charged
more quickly. Devices without this charging standard can also be
charged using the USB socket (green)9.

TKHQ 10 A1■ 14 │ GB│IE
Operation and use
Charging your mobile phone wirelessly
NOTE
► The car cradle is not suitable for using the mobile phone in a horizontal
direction.
► Some mobile phones need to be taken out of their case for charging.
► At ambient temperatures above 25°C, the charging power is reduced
to protect against overheating. This increases the charging time of
your mobile phone.
► When a non-compatible mobile phone is placed in the car cradle, the
LED 3flashes. Use a suitable adapter for induction charging.
♦ Place the mobile phone on the supports 5of the car cradle. The weight
of the mobile phone causes the holding clamps 6to move inwards
automatically.
♦ Charging starts immediately and is indicated on the display of the
mobile phone. The LED 3lights up permanently, also signalling that
the mobile phone is being charged.
♦ Adjust the tilt of the car cradle so that the viewing angle of your mobile
phone meets your needs. Undo the screw ringr a little to make it
easier to adjust the ball joint t.
♦ Lift the mobile phone to remove it from the car cradle. The holding
clamps 6automatically move outwards.

TKHQ 10 A1 GB│IE │ 15 ■
♦ When charging is complete, disconnect the car/USB adapter 0from
the 12/24V vehicle socket (cigarette lighter).
CAUTION
► In vehicles in which the cigarette lighter also works with the ignition
switched off, the device must be disconnected from the cigarette lighter
after use. Otherwise, the vehicle battery may be discharged over a
long period of time, since the device also uses power when it is idle.
Charging other USB devices
CAUTION
► If you use both USB sockets 7/9to charge 2 devices at the same time,
the total current consumption may not exceed 5.4A (= 5400mA).
Otherwise, the car/USB adapter 0could overload and be damaged.
■ You can also charge other devices that require a 5V charging voltage
via the two USB sockets 7/9on the car/USB adapter 0. To do this,
connect the charging cable of your device to one of the USB sockets on
the car/USB adapter 0.
Status of the car cradle LED
The LED 3lights up as follows depending on the operating status:
LED Operating status
White LED lights up for 3seconds Car cradle has been connected
White LED lights up permanently Mobile phone is being charged
White LED off Stand-by
White LED flashes Mobile phone is not compatible

TKHQ 10 A1■ 16 │ GB│IE
Troubleshooting
A connected device is not charging (the white operating LED 8
on the car/USB adapter 0does not light up)
♦ No connection to the cigarette lighter. Check the connection.
♦ Depending on the vehicle type, it is possible that the ignition has to be
switched on first.
The white operating LED 8goes out after a device has been
connected
♦ The car/USB adapter 0is overloaded and will no longer charge con-
nected devices. The internal overcurrent protection has been triggered.
Disconnect all connected devices from the car/USB adapter 0.
The white operating LED 8lights up immediately and the car/USB
adapter 0is ready for use again.
The mobile phone is not charging (the white LED 3does not
light up)
♦ No connection to the cigarette lighter. Check the connection.
♦ Depending on the vehicle type, it is possible that the ignition has to
be switched on first.
The white LED 3flashes rapidly after a mobile phone has been
placed in the car cradle
♦ The mobile phone is not compatible with Qi induction charging
technology and cannot be charged. Use a suitable adapter to charge
your mobile phone by induction charging.
♦ Some mobile phones need to be taken out of their case for charging.

TKHQ 10 A1 GB│IE │ 17 ■
NOTE
► If you cannot solve the problem with the above-mentioned solutions,
please contact the Service Hotline (see section Service).
Cleaning
CAUTION
► Disconnect the device from the cigarette lighter before cleaning.
► To avoid irreparable damage to the device, ensure that no moisture
can penetrate the device during cleaning.
► Do not use caustic, abrasive or solvent-based cleaning materials.
These can damage the surfaces of the device.
■ Clean the device only with a slightly moistened cloth.
Storage when not in use
CAUTION
► Disconnect the device from the cigarette lighter when it is not being
used.
► The temperatures inside the vehicle can reach extreme values in
summer and winter. To prevent heat damage, do not leave the
device in the vehicle.
■ Store the device somewhere clean, dry, free of dust and out of direct
sunlight.
