Trox Technik VDW-Q User manual

Product overview
Fig. 1: Schematic illustration, VDW shown
A VDW-Q
B VDW-R
①Diffuser face
②Central fixing screw with decorative cap
③Adjustable air control element (only VDW)
④Plenum box
⑤Cross bar
⑥Suspension hole
⑦Spigot
⑧Lip seal
⑨Damper blade for volume flow rate balancing
⑩Pressure tap
⑪Green cord for closing the damper blade
⑫White cord for opening the damper blade
⑬Measuring tube
⑭Text label indicating plenum box variant
⑧ – ⑭: Optional equipment
This manual describes the
following product types:
- AIRNAMIC, VDW, TDV Silent Air, RFD, FD, TDF Silent Air, VD, FDE,
XARTO, ADD, DCS, VDR, ADLQ, DLQ, ADLR, DLQL, DLQ-AK,
Universal plenum box
Installation manual GB/en
Air terminal devices
Ceiling diffusers
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn
Germany
Phone: [phone]
[phone]
E-mail: [email protected]
http://www.troxtechnik.com
A00000054447, 11/2018, © 2016 TROX GmbH
Air terminal devices Ceiling diffusers 1

Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Qualified staff
Skilled qualified electrician
Skilled qualified electricians are individuals who
have sufficient professional or technical training,
knowledge and actual experience to enable them to
work on electrical systems, understand any poten-
tial hazards related to the work under consideration,
and recognise and avoid any risks involved.
Specialist personnel
Specialist personnel are individuals who have suffi-
cient professional or technical training, knowledge
and actual experience to enable them to carry out
their assigned duties, understand any potential haz-
ards related to the work under consideration, and
recognise and avoid any risks involved.
Limitation of liability
The information in this manual has been compiled
with reference to the applicable standards and
guidelines, the state of the art, and our expertise
and experience of many years.
The manufacturer does not accept any liability for
damages resulting from:
Non-compliance with this manual
Incorrect use
Operation or handling by untrained individuals
Unauthorised modifications
The actual scope of delivery may differ from the
information in this manual for special constructions,
additional order options or as a result of recent
technical changes.
Personal protective equipment
Personal protective equipment must be worn for
any work in order to reduce health or safety haz-
ards to the minimum.
The appropriate protective equipment for a job must
be worn for as long as the job takes.
Industrial safety helmet
Industrial safety helmets protect the head from
falling objects, suspended loads, and the effects of
striking the head against stationary objects.
Protective gloves
Protective gloves protect hands from friction, abra-
sions, punctures, deep cuts, and direct contact with
hot surfaces.
Safety shoes
Safety shoes protect the feet against crushing,
falling parts, and slipping on slippery ground.
Correct use
Air terminal devices are used for the ventilation of
rooms in industrial and comfort areas. The air ter-
minal devices are connected to a supply air or
extract air system (by others), which is typically
connected to an air handling unit.
Important notes
Air terminal devices Ceiling diffusers2

Air terminal devices supply cold or warm air to
rooms (within the stated supply air to room air tem-
perature differences).
Installation, operation and maintenance may have
to meet increased hygiene requirements for certain
areas of application.
The installation of air terminal devices in humid
rooms, areas with potentially explosive atmos-
pheres or rooms with dust-laden or aggressive air
has to be assessed for each individual case.
Transport and storage
Delivery check
Upon delivery, carefully remove the packaging and
check the unit for transport damage and complete-
ness. In case of any damage or an incomplete ship-
ment, contact the shipping company and your sup-
plier immediately. Put the product back into its
packaging after the delivery check to protect it from
dust and contamination.
Fixing and installation material
Fixing and installation material is not part of the
supply package (unless stated otherwise), but
has to be provided by others; it has to be suitable
for the installation situation.
Transport on site
CAUTION!
Danger of injury from sharp edges, sharp cor-
ners and thin sheet metal parts!
Sharp edges, sharp corners and thin sheet metal
parts may cause cuts or grazes.
– Be careful when carrying out any work.
– Wear protective gloves, safety shoes and a
hard hat.
Please note:
Be careful when unloading or moving the
product, and pay attention to the symbols and
information on the packaging.
If possible, take the product in its transport
packaging up to the installation location.
Use only lifting and transport gear designed for
the required load.
Always secure the load against tipping and
falling.
Do not move bulky items just by yourself. Get
help to prevent injuries and damage.
Storage
Please note:
Store the product only in its original packaging
Protect the product from the effects of weather
Protect the product from humidity, dust and
contamination
Storage temperature: -10 °C to 50 °C.
Relative humidity: 95% max., no condensation
Packaging
Properly dispose of packaging material.
Transport and storage
Air terminal devices Ceiling diffusers 3

Installation
General information
Personnel:
Specialist personnel
Protective equipment:
Industrial safety helmet
Protective gloves
Safety shoes
Installation notes:
Fix the device only to load-bearing structural
elements.
Load suspension systems only with the weight
of the device. Adjacent components and con-
necting ducts must be supported separately.
Use only approved and adequately sized fixing
material (fixing material is not included in the
supply package).
Refer to the technical leaflets for product
weights and dimensions.
The air terminal devices must remain acces-
sible for cleaning even after installation.
Installation and sealing material which the
manufacturer provides is usually supplied in an
extra bag.
Before you install the device, take suitable precau-
tions to protect air distribution components from
contamination during installation (VDI 6022). If this
is not possible, at least cover the devices or take
other precautions to protect them from contamina-
tion. In this case you have to ensure that the
devices cannot be activated. Ensure that all compo-
nents are clean before you install them. If neces-
sary, clean them thoroughly. If you have to interrupt
the installation procedure, protect all openings from
the ingress of dust or moisture.
Ceiling diffusers
If possible, install the device before fixing the ceiling
tiles; if this is not possible, remove the adjacent
ceiling tiles.
Use only approved and adequately sized suspen-
sion systems (fixing material is not included in the
supply package). Dimensions and weights are
given in the technical leaflets.
Only work in pairs; preferably use a lift.
Fig. 2: Plenum box (square/circular)
1. Fix the suspension parts such as ropes,
cables or metal hangers (Fig. 2/1) to the
ceiling.
2. Use all of the available suspension points on
the plenum box.
Installation
Air terminal devices Ceiling diffusers4

Installation types
Fig. 3: Flush ceiling installation with square plenum
box
Fig. 4: Flush ceiling installation with circular plenum
box
Fig. 5: Freely suspended installation
①Duct
②Suspension holes or lugs
③Diffuser face
④Extended border
The optimum aerodynamic function is only ach-
ieved with flush ceiling installation
Installation without plenum box
Fig. 6: Flush ceiling installation with
standard cross bar G1, screw-fixed to ceiling
Fig. 7: Flush ceiling installation with
duct cross bar E1
①Diffuser face
②Central fixing screw
③Standard cross bar
④Ceiling tile
⑤Fixing tab
⑥Duct cross bar
⑦Duct
Installation
Air terminal devices Ceiling diffusers 5

Ceiling systems
Fig. 8: Ceiling systems
①Installation in T-bar ceilings
②Installation in T-bar ceilings, diffuser face rests
on T-bars
③Installation into grid ceilings
④Installation in continuous ceilings
Installing the diffuser face
In order to protect the surface of the diffuser face,
unpack and install it only after all other construc-
tion steps have been completed.
If there is a lengthy break between installation
and commissioning, cover all openings of the
casing (e.g. with plastic) to protect the interior
and avoid cumbersome cleaning procedures at
the time of commissioning.
Fig. 9: Installing the diffuser face
1. Glue the seal (Fig. 9/5) onto the reverse
edge of the plenum box.
2. Fix the diffuser face (Fig. 9/2) with the cen-
tral fixing screw (Fig. 9/3) to the cross bar
(Fig. 9/1) and cover it with the decorative
cap (Fig. 9/4).
The diffuser face and the fixing elements
may differ from the variant shown.
Installation
Air terminal devices Ceiling diffusers6

Duct connection The plenum box has a spigot for duct connection.
Variants with a double lip seal allow for a sufficiently
tight connection; additional sealing is not required.
Installation
Air terminal devices Ceiling diffusers 7

Electrical connection
Personnel:
Skilled qualified electrician
DANGER!
Danger of electric shock! Do not touch any live components! Electrical equipment carries a dangerous
electrical voltage.
– Only skilled qualified electricians are allowed to work on the electrical system.
–Switch off the power supply before working on any electrical equipment.
Order
code
Type Supply voltage Max.
power
rating
Signalling Wiring diagram Type of
device
E1 NM230A 85 – 265 V AC,
50/60 Hz
6 VA
2.5 W
OPEN/
CLOSE
(3-point)
Fig. 10, Fig. 11,
Fig. 12, Fig. 13
VD, VDL,
VDR, DUK
E2 NM24A 24 V AC ±20%,
50/60 Hz
24 V DC ±20%
4 VA
1.5 W
OPEN/
CLOSE
(3-point)
Fig. 10, Fig. 11,
Fig. 12, Fig. 13
VD, VDL,
VDR, DUK
E3 NM24A-SR 24 V AC ± 20%,
50/60 Hz
24 V DC ± 20%
4 VA
2 W
2 – 10 V DC,
Ra > 100 kΩ
Fig. 14 VD, VDL,
VDR, DUK
Electrical connection
Air terminal devices Ceiling diffusers8

Electric open/close actuators
Fig. 10: Open/close control with NC or NO contact
S1 Direction of rotation
OPEN 1
CLOSED 2
Fig. 11: Open/close control with changeover contact
S1 Direction of rotation
Pos. 2 1
Pos. 3 2
Fig. 12: 3-point control with NC or NO contact
S1 S2 Direction of rotation
OPEN OPEN Actuator has stopped (undefined posi-
tion)
OPEN CLOS
ED
1
CLOS
ED
OPEN 2
CLOS
ED
CLOS
ED
2

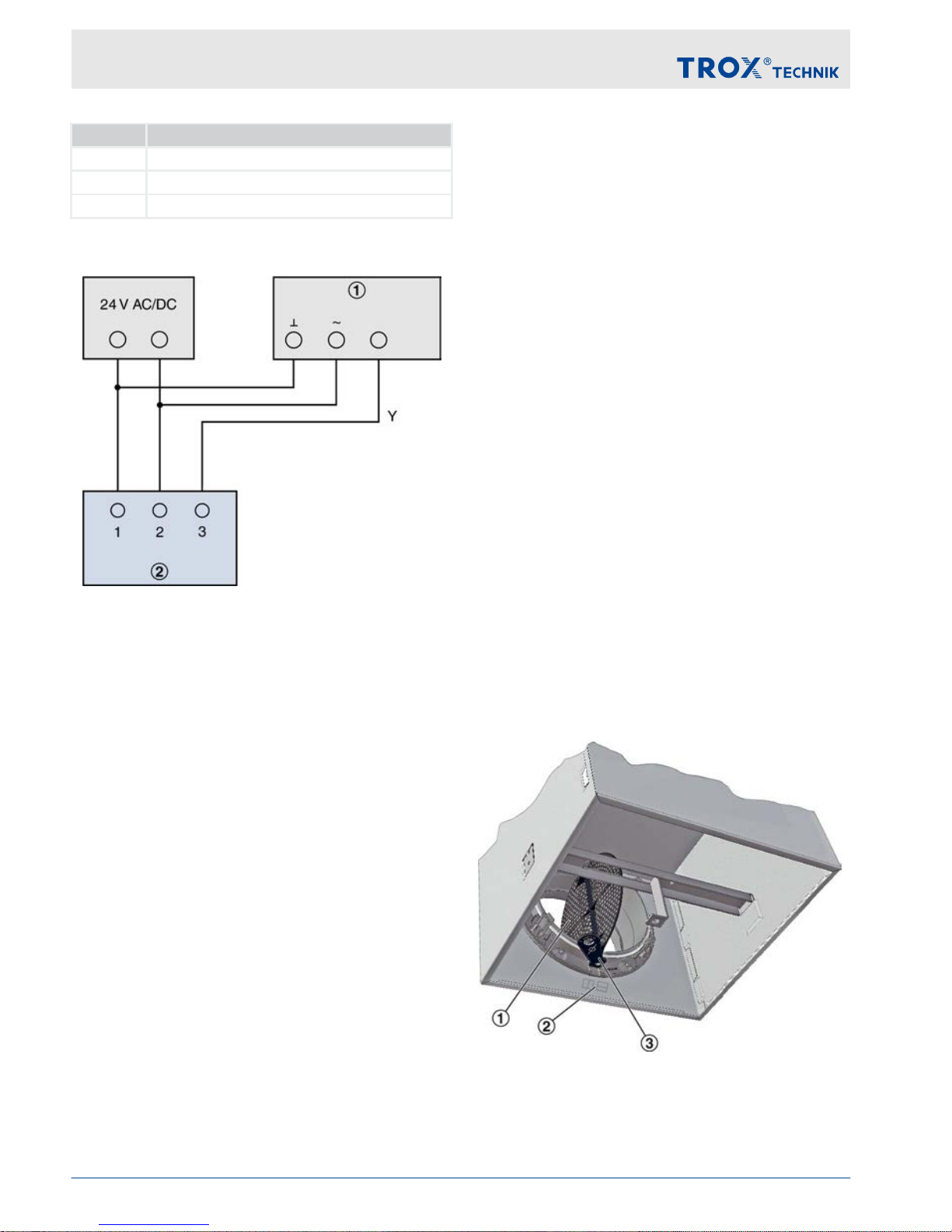

Fig. 13: 3-point control
Electrical connection
Air terminal devices Ceiling diffusers 9

S1 Direction of rotation
Pos. 0 Actuator has stopped (undefined position)
Pos. 2 1
Pos. 3 2
Modulating actuators
Fig. 14: Variable control
①Setpoint adjuster: Y = voltage signal
2-10 V DC
②Modulating actuator
Initial commissioning, maintenance and
cleaning
Initial commissioning
Before you start commissioning:
Check that the air terminal devices are cor-
rectly seated.
Remove protective film, if any.
Ensure that all air terminal devices are clean
and free from residues and foreign matter.
Check that electrical connections (if any) have
been correctly made.
Ensure that the device has been correctly fixed
and connected to the ducting.
For commissioning see also VDI 6022, part 1 – 'Hy-
giene requirements for ventilation and air-condi-
tioning systems and units'.
Volume flow rate balancing
When several diffusers are connected to just one
volume flow controller, it may be necessary to bal-
ance the volume flow rates.
AIRNAMIC, XARTO
The diffuser face can be removed to access the
damper blade; the damper blade can then be set in
15° intervals between 0 and 90°
Fig. 15: Damper blade
①Damper blade
②Sticker explaining the damper blade position
③Setting lever
Initial commissioning, maintenance and cleaning
Air terminal devices Ceiling diffusers10

Ceiling diffusers, variant -M
The diffuser face can be removed to access the
damper blade (Fig. 16/1); the damper blade can
then be set to any position between 0 and 90°
Ceiling diffusers, variant -MN
The diffuser face need not be removed since the
damper blade can be set with two cords (white and
green).
Fig. 16: Damper blade, variant -MN
①Damper blade
②Cord: white cord for opening, green cord for
closing
Once volume flow rate balancing is complete, put
the cords through the diffuser face into the plenum
box.
Ceiling diffusers, variant -MN - volume flow rate
measurement
Ceiling diffusers with universal plenum box, damper
blade and pressure tap (variant -MN) allow for
volume flow rate balancing even with the diffuser
face in place.
Fig. 17: Volume flow rate measurement
①Measuring tube
②Pressure tap
③Damper blade for volume flow rate balancing
④White cord for opening the damper blade
⑤Green cord for closing the damper blade
⑥Digital manometer
⑦Text label indicating plenum box variant
1. Connect the measuring tube to the digital
manometer
2. Read the effective pressure
3. Read the volume flow rate from the charac-
teristic curve or calculate it; each AK-Uni
plenum box comes with a characteristic
curve. The plenum box variant is given on
the text label (Fig. 17/7).
Initial commissioning, maintenance and cleaning
Air terminal devices Ceiling diffusers 11

4. If necessary, adjust the damper blade posi-
tion with the cords.
Volume flow rate calculation

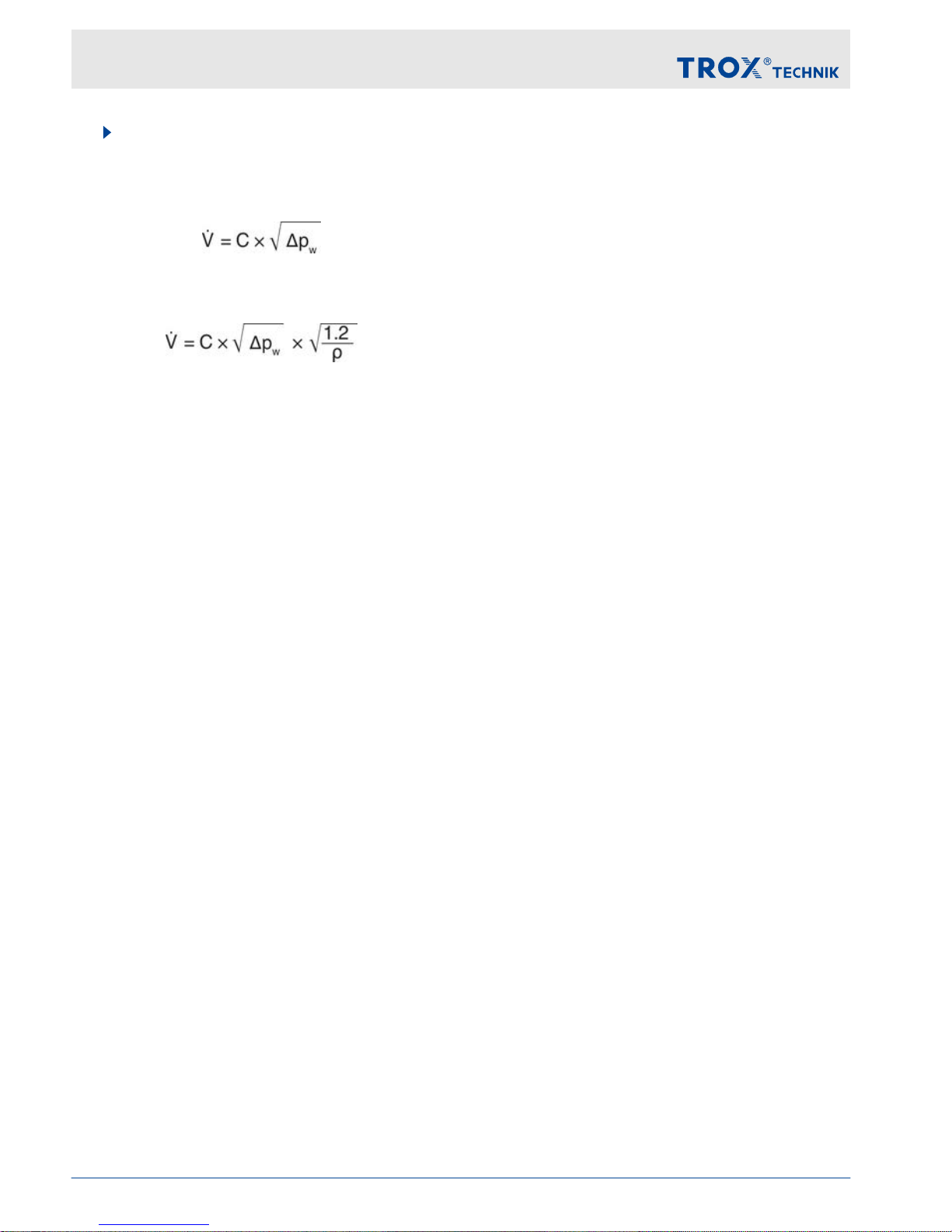

Fig. 18: Volume flow rate calculation for air density
1.2 kg/m³
Fig. 19: Volume flow rate calculation for other air
densities
The K values are given in the technical leaflet for
the plenum box.
Maintenance and cleaning
Please note:
The cleaning intervals given in the VDI 6022
standard apply.
Clean surfaces with a damp cloth.
Use only common household cleaners, do not
use any aggressive cleaning agents.
Do not use cleaning agents that contain
chlorine.
Do not use equipment for removing stubborn
contamination, e.g. scrubbing sponges or
scouring cream, as it may damage the sur-
faces.
Replace contaminated equalising elements
(fleece). For hygiene reasons you should not
use a vacuum cleaner or wash the interior of
the device.
Initial commissioning, maintenance and cleaning
Air terminal devices Ceiling diffusers12
