Kichler Lighting Seaside User manual

3EASIDE4-
+ICHLER,IGHTING
%AST0LEASANT6ALLEY2OAD
0/"OX
#LEVELAND/HIO
#USTOMER3ERVICE

!-TO0-%34
-ONDAY&RIDAY
!+ICHLER/UTDOOR ©CEILINGFAN
$ESIGNEDTOCOORDINATEWITHAPOPULAR+ICHLER,IGHTINGCOLLECTION
)NSTRUCTION-ANUAL
KHA9090112

1
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: Suitable for use with solid-
state speed controls.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced,
consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After making the electrical connections,
spliced conductors should be turned
upward and pushed carefully up into outlet
box. The wires should be spread apart with
the ground wire and white (common) wire
to one side with the black (load) wire to the
other side of the outlet box.
12. Electrical diagrams are reference only.
Light kits that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
/"Ê,1Ê/Ê,-Ê"Ê,]Ê/,Ê-"Ê
",Ê*,-" Ê 1,9]Ê"1 /Ê Ê/"Ê"1//Ê
"8Ê,ʸ*/Ê",Ê Ê
-1**",/¸°
WARNING
/"Ê,1Ê/Ê,-Ê"Ê*,-" Ê 1,9]Ê
"Ê "/Ê Ê/ÊÊ,/-Ê-"Ê
,,,Ê/"Ê-Ê -®Ê1, Ê--9Ê
",Ê/,Ê -//" °Ê"Ê "/Ê -,/Ê
"/-Ê Ê/Ê*/Ê"Ê/Ê-°
1. SAFETY RULES
Special Notice
This appliance is equipped with a "Wattage
Limiting Device" required by the United
States Department of Energy. The device
has been installed at the factory and can not
be removed.
Installing Lamps in excess of 190 total watts
will disable the unit's light fixture. If this
should happen, you will need to reset the
lighting fixture by turning the power off to
the ceiling fan and/or light fixture,
reinstalling lamps totaling less that 190
watts and then turning the power back on.

2
3. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
Philips screw driver
Slot screw driver
11 mm wrench
Step ladder
Wire cutters
2. TOOLS AND MATERIALS REQUIRED
SeasideTM
a. Mounting Bracket (1)
b. Canopy (1)
c. Canopy Décor (1)
d. Ball/Downrod Assembly (1)
& Extra Downrod (1)
e. Coupling Cover (1)
f. Fan Assembly (1)
g. Fan Blades (5)
h. Switch housing assembly (1)
i. Coupling Cover (1)
j. Bulb (1)
k. Package Hardware
1) Mounting Hardware:
a. wood screws (2), flat washers(2),
screws(2),wire nuts(4)
2) Blade Attachment Hardware:
a. screws (16), flat washers(16),
fiber washers(16)
3) Blade bracket hardware:
a. screw (1)
4) Safety Cable Hardware:
a. wood screw (1), spring washer (1),
flat washer (1)
5) Balance Kit (1)
6) Fob (2)
A
C
D
G
B
E
F
H
I
J
K

3

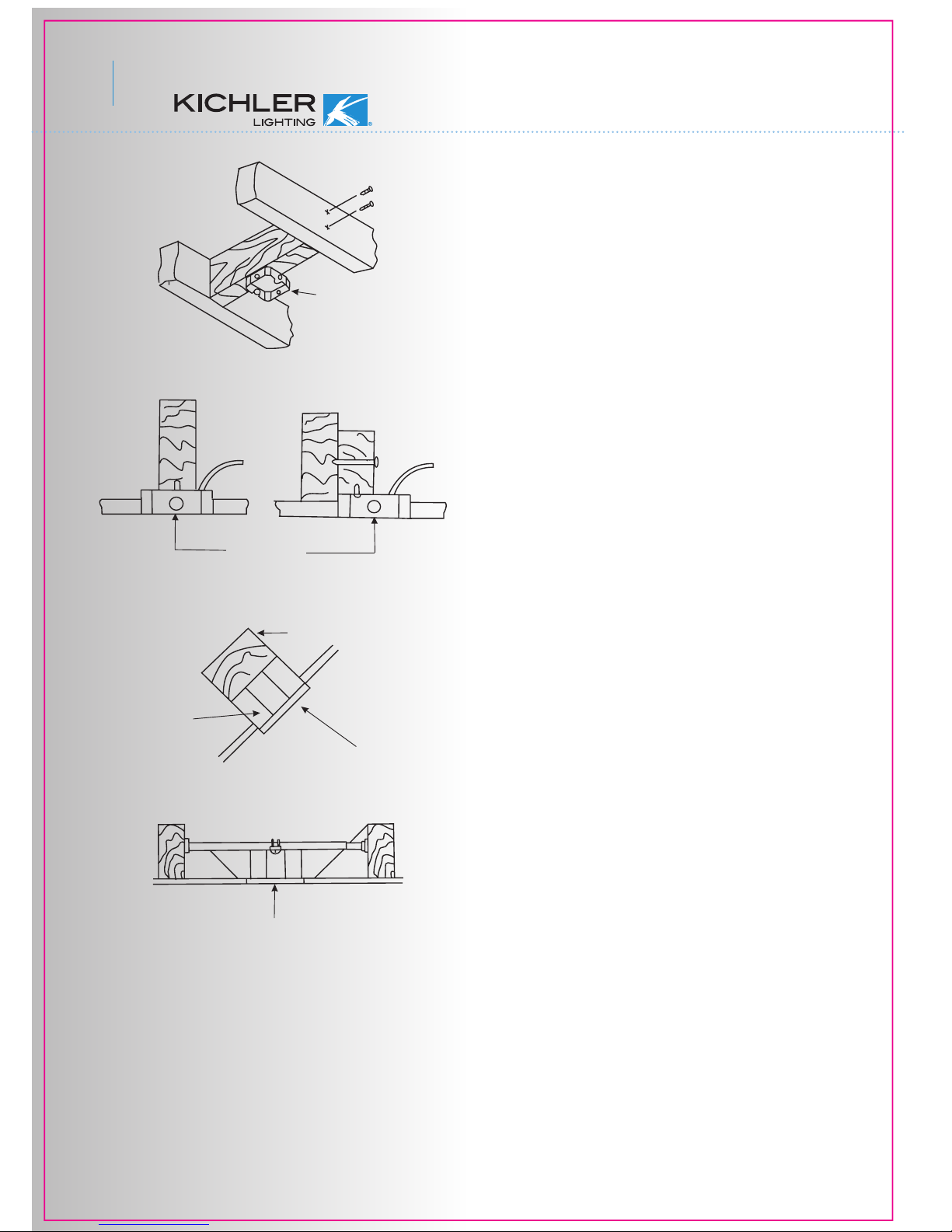

4. MOUNTING OPTIONS
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
NOTE: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Fig. 1
Fig. 3
Fig. 4
Outlet box
Fig. 2
If there isn't an existing UL ( CUL for Canadian
Installation) listed mounting box, then read the
following instructions. Disconnect the power by
removing fuses or turning off circuit breakers.
To hang your fan where there is an existing
fixture but no ceiling joist, you may need a
joist hanging bracket as shown in Fig 4.

Fig. 7
Fig. 5
Fig. 6
Set Screw
Canopy
Download
Motor Coupling
Washer
Set Screw
Fan Assembly
Lcok Pin
Hitch Pin
Cross Pin
Lock Pin
Hanger Ball
Screw
Downrod
Listed electrial
box
Washer
Mounting screw
Mounting bracket
4
SeasideTM

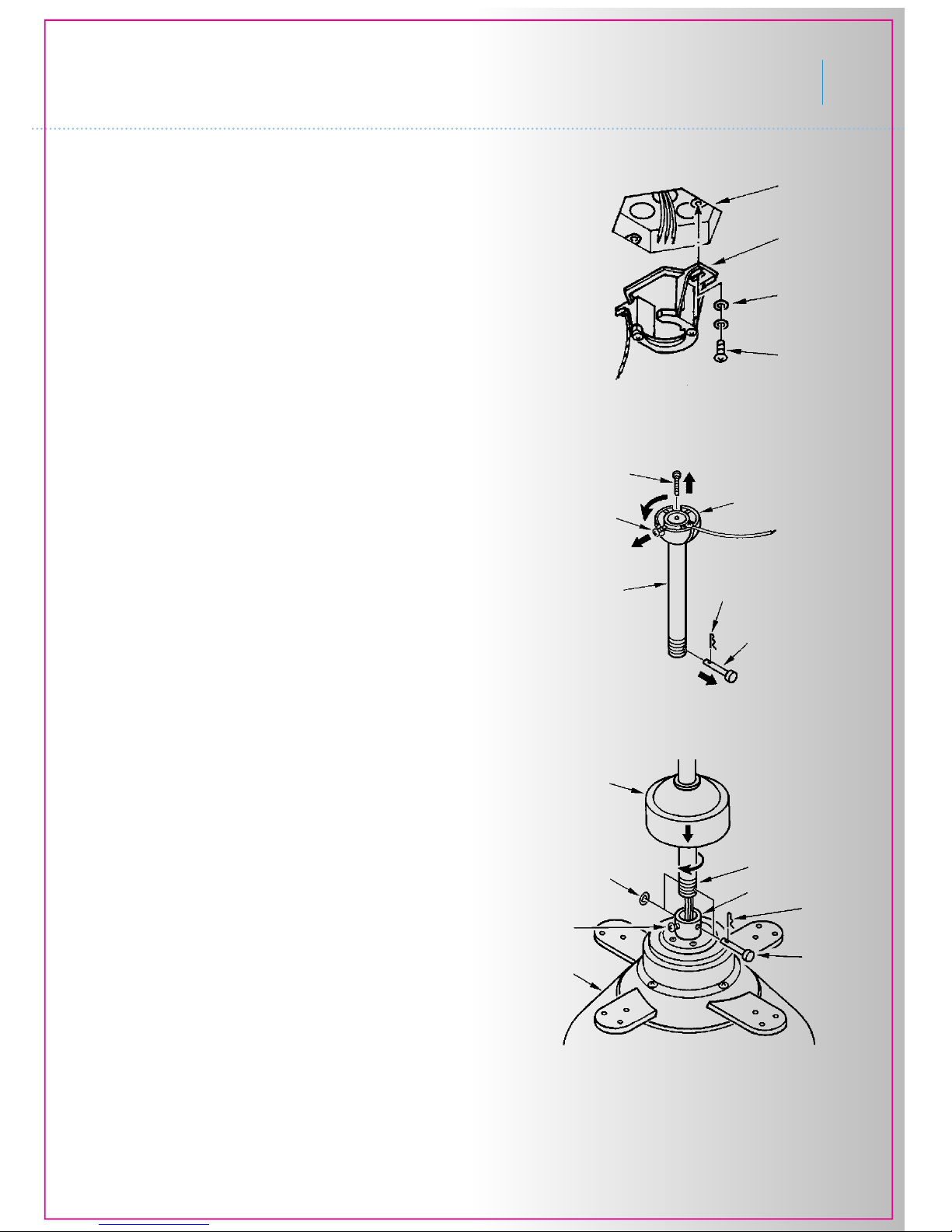

5. HANGING THE FAN
REMEMBER to turn off the power before you
begin.
Step 1. Pass the 120 volt supply wires from the ceiling
outlet box through the center of the ceiling mounting
bracket. (Fig. 5)
Step 4. Loosen the two set screws from the
coupling on top of the motor assembly. (Fig. 7)
Step 5. Carefully feed the electrical lead wires from
the fan up through the downrod. Thread the downrod
into the coupling until the hitch pin holes are aligned.
Next, replace the hitch pin and retaining clip.
Tighten both set screws. (Fig. 7)
To properly install your ceiling fan, follow the steps below.
Step 2. Attach the ceiling mounting bracket to the
outlet box using the screws and washers included
with the outlet box. (Fig. 5)
Step 3. Remove the hanger ball from the downrod
assembly by loosening the set screw, removing the
cross pin and sliding the ball off the rod. Remove
the hitch pin and retaining clip from the downrod
assembly. (Fig. 6)

5
Fig. 9
Registration slot
Check Tab
Ceiling Mounting
Bracket

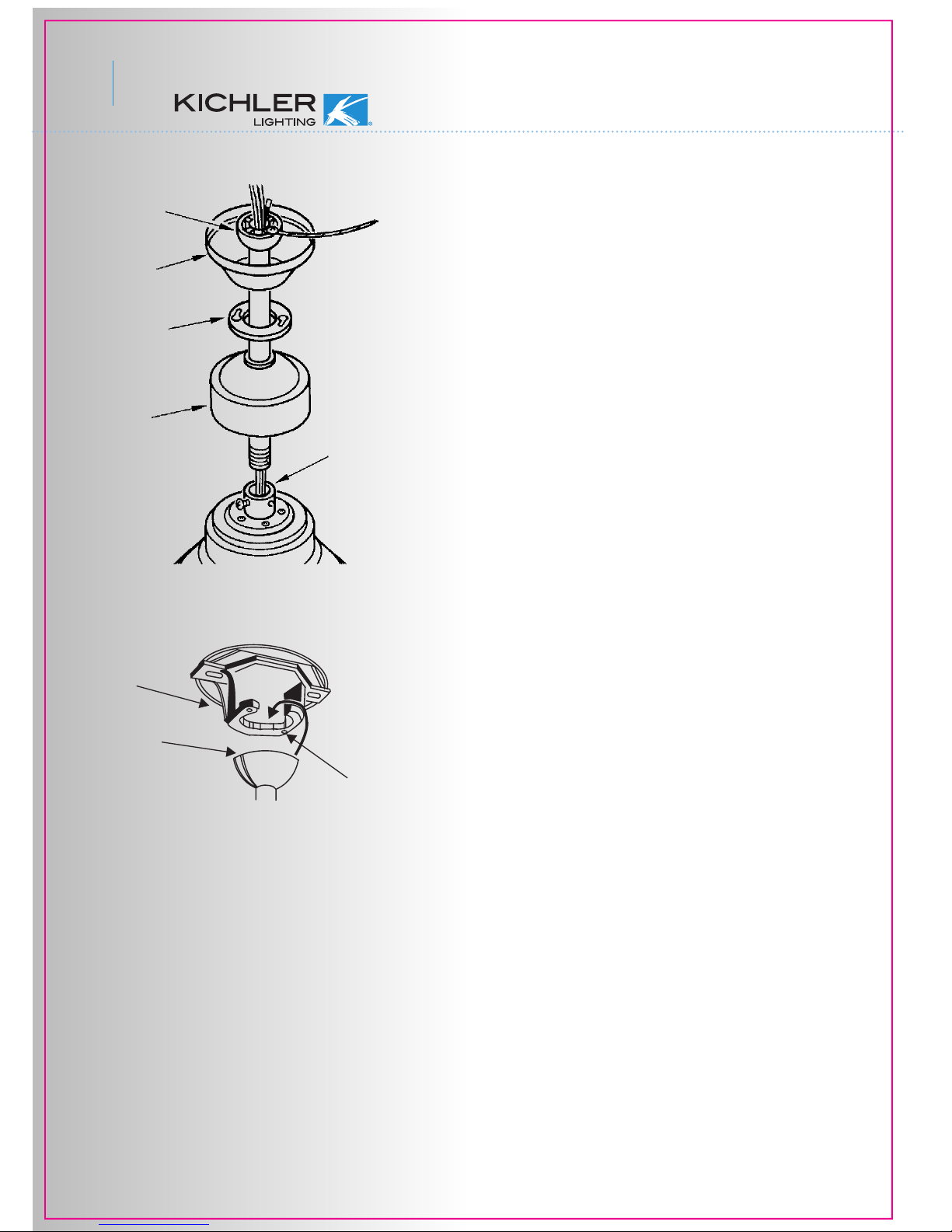

Step 7. Now lift the motor assembly into
position and place the hanger ball into the
hanger bracket. Rotate motor assembly until
the “Check Tab” has dropped into the “Regis-
tration Slot” and seats firmly. (Fig. 9)
NOTE: The entire motor assembly should
not rotate if this is done correctly.
NOTE: Please make sure all set screws are
in place and tight before installation the
following steps.
Step 6. Slip the coupling cover, canopy décor
and canopy onto the downrod. Reinstall the
hanger ball onto the downrod and make sure
the cross pin is in place and the set screw on
hanger ball is tight. (Fig. 8)
Fig. 8
Canopy Decor
Canopy
Coupling
Coupling cover
Hanger ball

6. INSTALLATION OF SAFETY SUPPORT
( For Canadian Installation ONLY )
7. MAKE THE ELECTRIC CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at the
main circuit breaker or fuse box before wiring.
A safety support cable is provided to help
prevent the ceiling fan from falling, please install
it as follows.
Step 1. Attach the provided wood screw and
washers to the ceiling joist next to the mounting
bracket but do not tighten. See Figure 10-1
Step 2. Adjust the length of the safety cable to
reach the screw and washers by pulling the
extra cable through the cable clamp until the
overall length is correct, put the end of the cable
back through the cable clamp, forming a loop at
the end of the cable. Tighten the cable clamp
securely. Now, put the loop in the end of the
safety cable over the wood screw and under the
washers. Tighten the wood screw secuely. (Fig.
10-2)
WARNING: If your house wires are different
colors than referenced in this manual, stop
immediately. A professional electrician is
recommended to determine proper wiring.
ALL electrical connections should be made with
the supplied WIRE NUTS. Make sure each
connection below is tight and secure.
Step 1. Connect the fan supply BLACK wire
and fan light supply BLUE wire to the BLACK
household supply wire as shown in Fig. 11.
Step 2. Connect the fan neutral WHITE wire to
the household neutral WHITE wire as shown in
Fig. 11.
Step 3. If your outlet box has a ground wire
(GREEN or bare copper) connect it to the fan
ground wire (GREEN); otherwise, connect the
ground wire on the hanging bracket to the fan
ground wire (GREEN).
WARNING: Be sure no bare wire or wire
strands are visible after making all connections.
Step 4. After making all of the above connect-
ing, spread them apart so the GREEN and
WHITE wire connections are on one side of the
outlet box and the BLACK and the BLUE wires
connections are on the other side. Now, push
the completed connections upward into the
outlet box.
Fig. 11
Fig. 10-1
Fig. 10-2
Safety Cable Cable Clamp
Wood Screw
Green or bare copper
(ground)
Green or bare copper
(ground)
White (neutral)
White (neutral)
Fan Assembly
Outlex box
Black (hot)
Black (hot)
Blue (for light)
Wood Screw
Outlet Box
Support Brace
Ceiling
Spring Washer
Flat Screw
6
SeasideTM


&IG
&IG
).34!,,).'4(%#%),).'#!./09
3TEP3LIDETHECANOPYUPTOCEILINGANDONTO
THETWOSCREWSONHANGERBRACKET2OTATETHE
CANOPYCLOCKWISEANDTIGHTENTHETWOSCREWS
.EXTWHILEHOLDINGTHECANOPYWITHONEHAND
SLIDETHECANOPYDÏCOROVERTHESCREWSAND
ROTATECLOCKWISEUNTILTIGHT
#ANOPY
#ANOPY#OVER
3ET3CREWS
(ANGERBRACKET
!44!#().'4(%&!.",!$%3
3TEP!TTACHTHEBLADETOTHEBLADEBRACKET
USINGTHESCREWSWASHERSANDFIBERWASHERS
ASSHOWNIN&IGURE3TARTSCREWINTO
BRACKET2EPEATFORTHETWOREMAININGSCREWS
3TEP-AKESURETHEBLADEISSTRAIGHTAND
TIGHTENEACHSCREWUNTILFIBERWASHERIS
SLIGHTLYCOMPRESSEDANDALLTHREESCREWSARE
SECURE&IG
3TEP2EPEATTHEPROCEDUREABOVEFOR
THEREMAININGBLADES
"LADE
3CREW
"LADE"RACKET
3TEP-AKESUREALLOFTHEELECTRICALCONNEC
TIONSARETUCKEDNEATLYINTOCEILINGOUTLETBOX
7!2.).' /NELASTTIMEMAKESURETHE
h#HECK4ABvATTHEBOTTOMOFTHEHANGERBRACKET
ISPROPERLYSEATEDINTHEh2EGISTRATION3LOTvON
THESIDEOFTHEHANGERBALLBEFOREATTACHINGTHE
CANOPYTOTHEBRACKET&AILURETOPROPERLYSEAT
THEh#HECK4ABvCOULDDAMAGETHEELECTRICAL
WIRESWHENTOCEILINGFANBLADEDIRECTIONIS
CHANGEDWHILETHEFANISRUNNING
./4% 9OUMAYNEEDTOADJUSTTHECANOPY
MOUNTINGSCREWSASNECESSARYUNTILTHECANOPY
ANDCANOPYCOVERHAVEASNUGFIT&IG

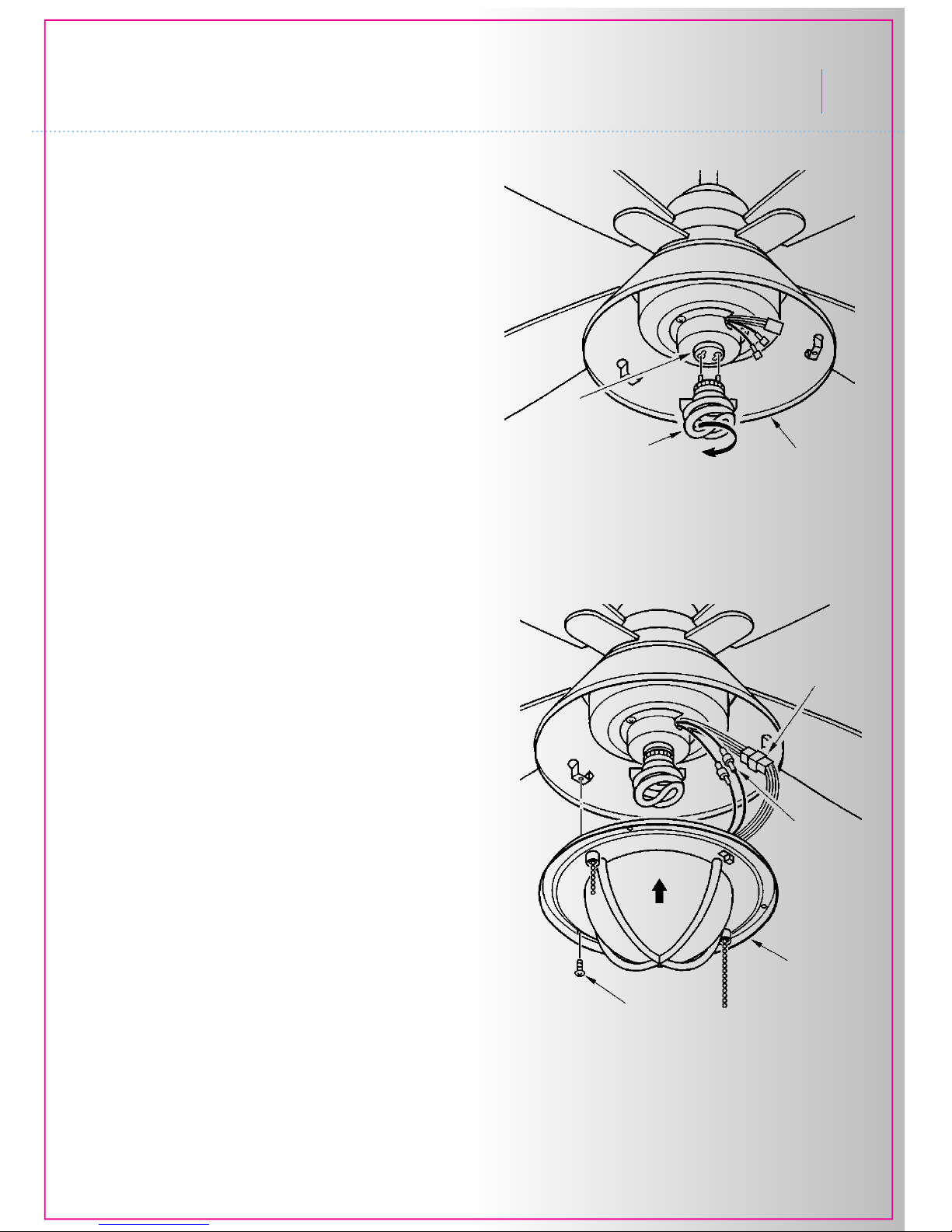

).34!,,).'4(%,)'(4"5,",)'(4+)4
&IG
&IG
./4%"EFORECONTINUINGMAKESURETHE
POWERISDISCONNECTEDBYTURNINGOFFTHE
CIRCUITBREAKEROFREMOVINGTHEFUSEATTHE
CIRCUITBOX
9/52.%7+)#(,%2#%),).'&!.)3./7
2%!$94/53%2%-%-"%24/2%34/2%
!,,0/7%2
3OCKET
"ULB &AN!SSEMBLY
3CREW
,IGHT+IT
0LUG
!-0CONNECTION
3TEP)NSTALLTHESINGLEWATT'5
,AMPBYINSERTINGTHETWOPOSTONTHELAMP
BASEINTOTHESLOTSINTHESOCKETBASEAND
ROTATINGCLOCKWISEUNTILSNUG
3TEP#ONNECTTHEELECTRICALWIREPLUGS
FROMTHELIGHTKITTOTHESAMECOLORPLUGFROM
THECEILINGFANBYPUSHINGTHEMTOGETHER
#ONNECTTHESQUARE!-0CONNECTORFROMTHE
CEILINGFANANDTHELIGHTKITBYMATCHUPTHE
COLORONTHESIDEOFTHECONNECTORANDTHEN
PUSHTHEMTOGETHERUNTILTHESNAPENGAGES
&IG
3TEP4UCKTHECONNECTIONSINTOTHEFAN
NEATLYANDTHREADTHELIGHTKITUPTOALIGNTHE
HOLESONTHELIGHTKITANDCEILINGFAN!NDTHEN
TIGHTENTHELIGHTKITSECURELYUSINGTHREESCREWS
PROVIDED

3EASIDE 4-


&IG
&IG
/0%2!4).').3425#4)/.3
0ULL#HAINSHORT
2EVERSE3WITCH
0ULL#HAINLONG
0ULL#HAIN
&OB
3TEP!TTACHETHEDECORATIVEPULLCHAINFOBSTO
THETWOPULLCHAINSCOMINGOUTOFTHELIGHTKIT
&IG
3TEP4HE,/.'%2PULLCHAINISFORMOTOR
SPEEDCONTROLANDITHASFOURPOSITIONS(IGH
-EDIUM,OWAND/&&0ULLINGTHEFOBONCEFOR
EACHPOSITION
3TEP4HE3(/24%.PULLCHAINISFORLIGHT
CONTROL0ULLTHEFOBONCETOSWITCHTHELIGHT
/.OR/&&
3TEPTHEBLACKSLIDESWITCHLOCATEDNEXTTO
THEGLASSGLOBECONTROLSTHEREVERSEFUNCTION
ONTHECEILINGFAN3LIDINGTHESWITCHONE
DIRECTIONWILLREVERSETHEDIRECTIONOFTHEFAN
BLADES

Fig. 19
Fig. 20

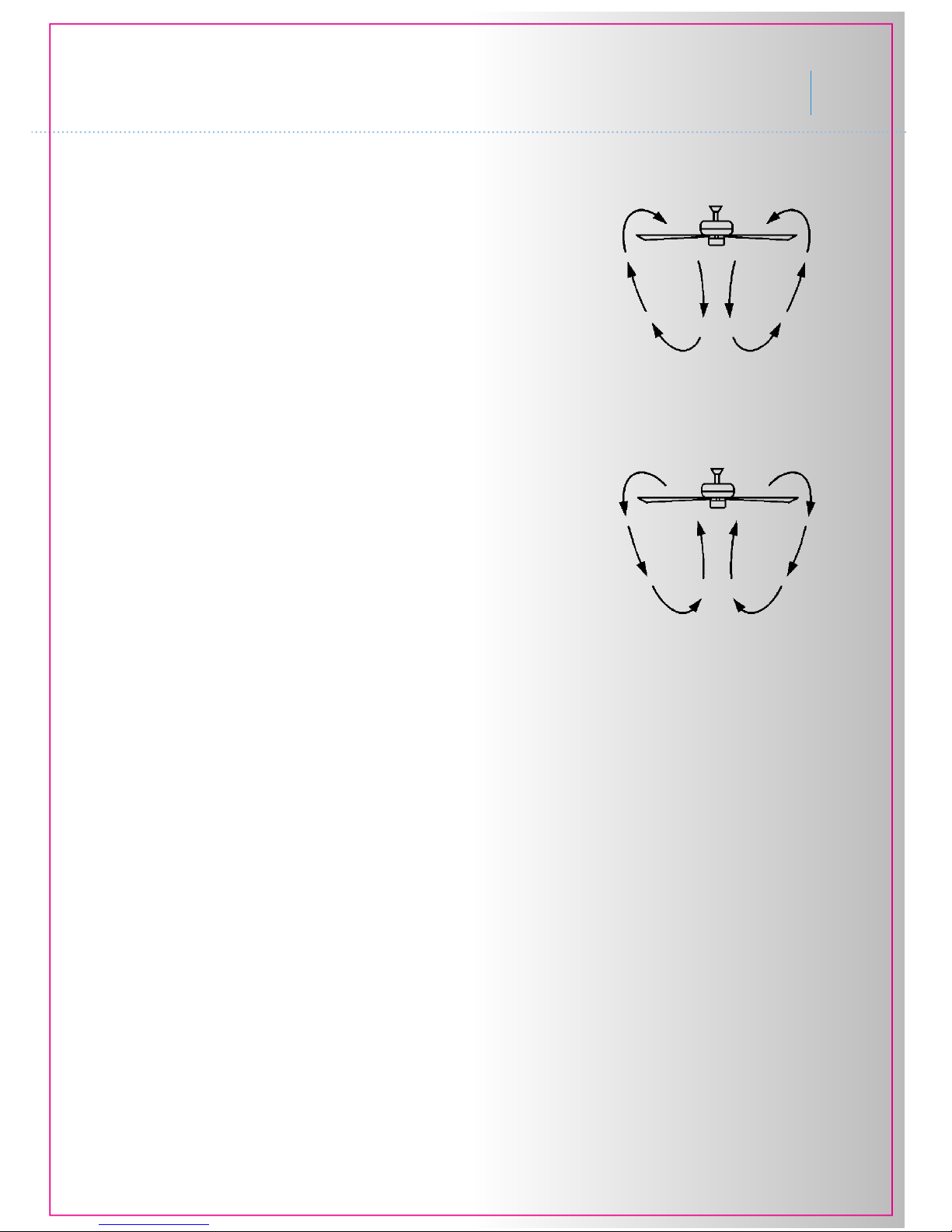

Warm Weather - (Forward) A downward airflow
creates a cooling effect as shown in Fig. 19.
This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool Weather - (Reverse) An upward airflow
moves warm air off the ceiling areas as shown
in Fig. 20. This allows you to set your heating
unit on a cooler setting without affecting your
comfort.
10
SeasideTM

13. TROUBLESHOOTING
14. SPECIFICATIONS
4.18'13.30
kgs 15.50 kgs
RPM CFM N.W. G.W. C.F.
120
120
120
Fan Size
52"
Speed Volts Amps Watts
Low
Medium
High
These are approximate measures. They do not include Amps and Wattage used by the light kit.
Problem
Fan will not start.
Fan sounds noisy.
Fan wobble.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan
disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of the
blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
1. Do not connect the fan with wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
4. Check to make sure the batteries are installed porperly. ( postive +side
facing out)
5 . Check to make sure the batteries are not dead.
0.68
0.43
0.23
82
31
9
175
108
56
6790
3618
1712
9
