Trox Technik AIRNAMIC Series User manual

Product overview
Fig. 1: Schematic illustration of the AIRNAMIC, with plenum box for horizontal duct connection
①Diffuser face
②Central fixing screw with decorative cap
③Plenum box
④Cross bar
⑤Equalising element (Z: for supply air)
⑥Suspension lug
⑦Spigot
⑧Double lip seal
⑨Damper unit for volume flow rate balancing
Installation manual GB/en
Air terminal devices
AIRNAMIC
TROX GmbH
Heinrich-Trox-Platz
47504 Neukirchen-Vluyn, Ger-
many
Germany
Phone: [phone]
[phone]
E-mail: [email protected]
http://www.troxtechnik.com
A00000090684, 03/2022, © 2016 TROX GmbH
Air terminal devices AIRNAMIC 1

Fig. 2: Schematic illustration of AIRNAMIC, nominal sizes 160 and 250, with spigot for connection to a ver-
tical duct
1Diffuser face
2Bayonet fixing
3Spigot
4Screw fixing of the spigot
Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Qualified staff
Specialist personnel
Specialist personnel are individuals who have suffi-
cient professional or technical training, knowledge
and actual experience to enable them to carry out
their assigned duties, understand any potential haz-
ards related to the work under consideration, and
recognise and avoid any risks involved.
Limitation of liability
The information in this manual has been compiled
with reference to the applicable standards and
guidelines, the state of the art, and our expertise
and experience of many years.
The manufacturer does not accept any liability for
damages resulting from:
Non-compliance with this manual
Incorrect use
Operation or handling by untrained individuals
Unauthorised modifications
Important notes
Air terminal devices AIRNAMIC2

The actual scope of delivery may differ from the
information in this manual for special constructions,
additional order options or as a result of recent
technical changes.
Personal protective equipment
Personal protective equipment must be worn for
any work in order to reduce health or safety haz-
ards to the minimum.
The appropriate protective equipment for a job must
be worn for as long as the job takes.
Industrial safety helmet
Industrial safety helmets protect the head from
falling objects, suspended loads, and the effects of
striking the head against stationary objects.
Protective gloves
Protective gloves protect hands from friction, abra-
sions, punctures, deep cuts, and direct contact with
hot surfaces.
Safety shoes
Safety shoes protect the feet against crushing,
falling parts, and slipping on slippery ground.
Correct use
Air terminal devices are used for the ventilation of
rooms in industrial and comfort areas. The air ter-
minal devices are connected to a supply air or
extract air system (by others), which is typically
connected to an air handling unit.
Air terminal devices supply cold or warm air to
rooms (within the stated supply air to room air tem-
perature differences).
Installation, operation and maintenance may have
to meet increased hygiene requirements for certain
areas of application.
The installation of air terminal devices in humid
rooms, areas with potentially explosive atmos-
pheres or rooms with dust-laden or aggressive air
has to be assessed for each individual case.
Transport and storage
Delivery check
Upon delivery, carefully remove the packaging and
check the unit for transport damage and complete-
ness. In case of any damage or an incomplete ship-
ment, contact the shipping company and your sup-
plier immediately. Put the product back into its
packaging after the delivery check to protect it from
dust and contamination.
Fixing and installation material
Fixing and installation material is not part of the
supply package (unless stated otherwise), but
has to be provided by others; it has to be suitable
for the installation situation.
Transport and storage
Air terminal devices AIRNAMIC 3

Transport on site
CAUTION!
Danger of injury from sharp edges, sharp cor-
ners and thin sheet metal parts!
Sharp edges, sharp corners and thin sheet metal
parts may cause cuts or grazes.
– Be careful when carrying out any work.
–Wear protective gloves, safety shoes and a
hard hat.
Please note:
Be careful when unloading or moving the
product, and pay attention to the symbols and
information on the packaging.
If possible, take the product in its transport
packaging up to the installation location.
Use only lifting and transport gear designed for
the required load.
Always secure the load against tipping and
falling.
Do not move bulky items just by yourself. Get
help to prevent injuries and damage.
Storage
Please note:
Store the product only in its original packaging
Protect the product from the effects of weather
Protect the product from humidity, dust and
contamination
Storage temperature: -10 °C to 50 °C.
Relative humidity: 95% max., no condensation
Packaging
Properly dispose of packaging material.
Technical data
Dimensions and weight
Fig. 3: AIRNAMIC-Q with plenum box for horizontal
duct connection
AIRNAMIC-Q-*-H
NS □Q₁H1 □Q₃H3 ØD A C ①m
mm kg
Q/300
L
298 3 290 250 158 139 60 300 3
Q/300
H
298 3 290 250 158 139 60 300 3
Q/600 598 3 567 345 248 194 60 600 8.7
Q/625 623 3 567 345 248 194 60 600 8.7
① Plenum box AK-H-Q/xxx
Weights apply to the supply air variant.
Technical data
Air terminal devices AIRNAMIC4

Fig. 4: AIRNAMIC-R with plenum box for horizontal
duct connection
AIRNAMIC-R-*-H
NS ØD1 H1 ØD3 H3 ØD A C ①m
mm kg
250 250 3 274 293 158 189 60 1* 2.4
400L 400 3 362 290 198 166 60 2 4
400H 400 3 362 290 198 166 60 2 4
600 600 3 573 344 248 189 60 5 7.5
① Plenum box AKR
* AIRNAMIC 250 is fitted with a transition piece. Weights apply to
the supply air variant.
Fig. 5: AIRNAMIC-R with plenum box for horizontal
duct connection, nominal size 250
Fig. 6: AIRNAMIC-R-*-V
AIRNAMIC-R-*-V
NS ØD1 H1 ØD3 H3 ØD4 A1 ØD C m
mm kg
160 160 3 144 117 146 0.5-
30
98 50 0.3
250 250 3 222 117 225 0.5-
30
158 50 0.5
ØD4 is the size of the installation opening, which can be made with
a suitable hole saw, for example.
Technical data
Air terminal devices AIRNAMIC 5

Fig. 7: Diffuser face AIRNAMIC-Q
AIRNAMIC-Q
NS □Q₂□Q₁Aeff
m²
Q/300L 262 298 0.0139
Q/300H 262 298 0.0175
Q/600 539 598 0.0616
Q/625 539 623 0.0616
Fig. 8: Diffuser face AIRNAMIC-R
AIRNAMIC-R
NS ØD1 ØD2 Aeff
m²
R/160 160 132 0.0036
R/250 250 210 0.0098
NS ØD1 ØD2 Aeff
m²
R/400L 400 352 0.0186
R/400H 400 352 0.0258
R/600 600 546 0.0504
Installation
General information
Personnel:
Specialist personnel
Protective equipment:
Industrial safety helmet
Protective gloves
Safety shoes
Installation notes:
Fix the device only to load-bearing structural
elements.
Load suspension systems only with the weight
of the device. Adjacent components and con-
necting ducts must be supported separately.
Use only approved and adequately sized fixing
material (fixing material is not included in the
supply package).
Refer to the technical leaflets for product
weights and dimensions.
The air terminal devices must remain acces-
sible for cleaning even after installation.
Installation and sealing material which the
manufacturer provides is usually supplied in an
extra bag.
Before you install the device, take suitable precau-
tions to protect air distribution components from
contamination during installation (VDI 6022). If this
is not possible, at least cover the devices or take
other precautions to protect them from contamina-
tion. In this case you have to ensure that the
devices cannot be activated. Ensure that all compo-
nents are clean before you install them. If neces-
sary, clean them thoroughly. If you have to interrupt
the installation procedure, protect all openings from
the ingress of dust or moisture.
Installation
Air terminal devices AIRNAMIC6

Ceiling diffusers
It is recommended to suspend plenum boxes for
ceiling diffusers before you put the ceiling tiles into
place; if this is not possible, remove the adjacent
ceiling tiles. Nominal sizes 160 and 250 can be
installed at a later stage if the duct is already in
place.
Use only approved and adequately sized suspen-
sion systems (fixing material is not included in the
supply package). Dimensions and weights are
given in the technical leaflets.
Only work in pairs; preferably use a lift.
Fig. 9: Installation with plenum box or spigot
1. Fix the suspension parts such as ropes,
cables or metal hangers (Fig. 9) to the
ceiling.
2. Use all of the available suspension
points on the plenum box.
Use all of the factory fitted clamps to fix
the transition piece.
Installation with plenum box

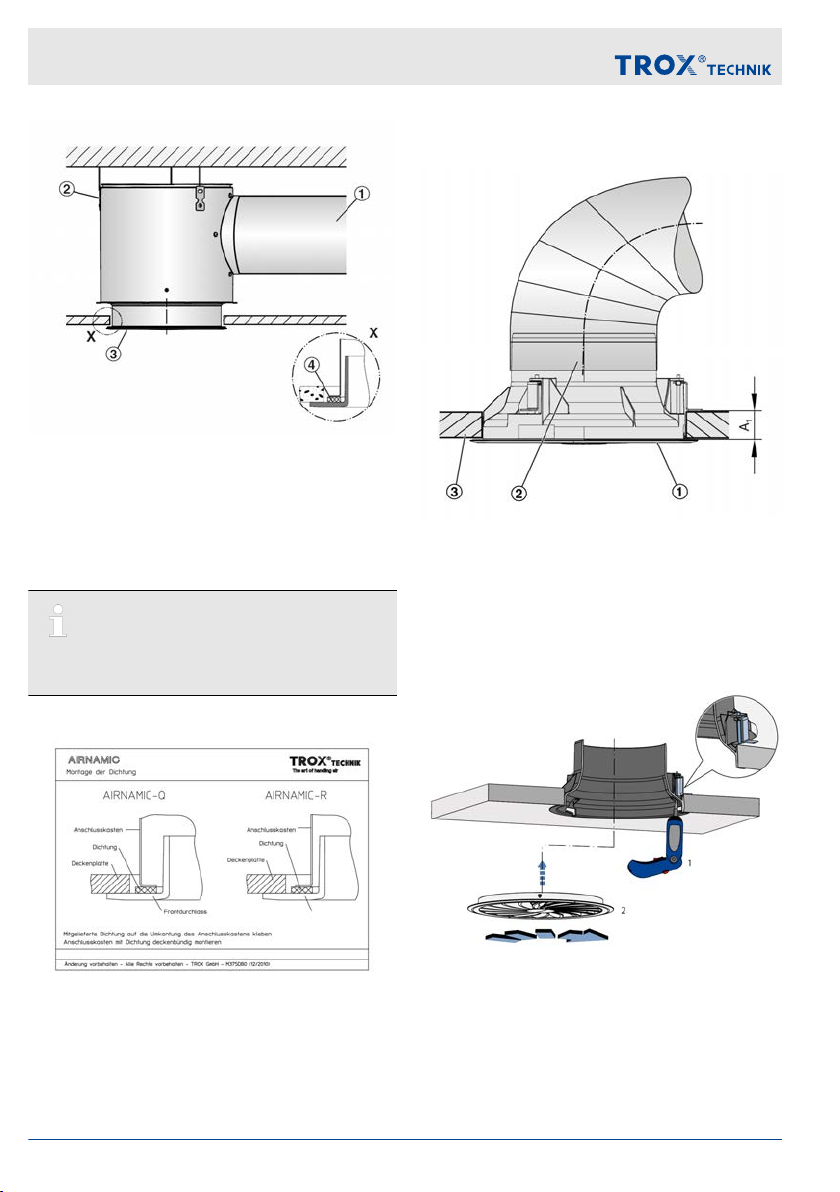

Fig. 10: Flush ceiling installation with square
plenum box
ÀDuct
ÁSuspension hole
ÂDiffuser face
ÃSeal
Fig. 11: Flush ceiling installation with circular
plenum box
ÀDuct
ÁSuspension lug
ÂDiffuser face
ÃSeal
Installation
Air terminal devices AIRNAMIC 7

Fig. 12: Flush ceiling installation with circular
plenum box
ÀDuct
ÁSuspension lug
ÂDiffuser face
ÃSeal
The optimum aerodynamic function is only ach-
ieved with flush ceiling installation
Fig. 13: Detail view
Installation without plenum box, nominal sizes
160 and 250
Fig. 14: Flush ceiling installation with spigot
ÀDiffuser face
ÁSpigot
ÂCeiling tile
Installation into ceiling tiles of thickness (A1) 0.5 to
30.0 mm
Fig. 15: Installing the transition piece
1 When you screw-fix the transition piece to the
ceiling (3 screws) and use a cordless drill, be
careful so as not to damage the ceiling tile.
2 Insert the diffuser face by turning it into the
transition piece
Installation
Air terminal devices AIRNAMIC8

Ceiling systems
Fig. 16: Ceiling systems
jInstallation in T-bar ceilings
kInstallation into grid ceilings
lInstallation in continuous ceilings
Fixing the diffuser face to the plenum box
In order to protect the surface of the diffuser face,
unpack and install it only after all other construc-
tion steps have been completed.
If there is a lengthy break between installation
and commissioning, cover all openings of the
casing (e.g. with plastic) to protect the interior
and avoid cumbersome cleaning procedures at
the time of commissioning.
Fig. 17: Installing the diffuser face
1. Glue the seal (Fig. 17/5) onto the reverse
edge of the plenum box.
2. Fix the diffuser face (Fig. 17/2) with the cen-
tral fixing screw (Fig. 17/3) to the cross bar
(Fig. 17/1) and cover it with the decorative
cap (Fig. 17/4).
The diffuser face and the fixing elements
may differ from the variant shown.
Installation
Air terminal devices AIRNAMIC 9

The central fixing screw for size 250 mm has to be
inserted into a clamp in the plenum box
Fig. 18: Installing the diffuser face
1. Insert the central fixing screw (Fig. 18/3) on
the back of the diffuser face (Fig. 18/2), then
insert the diffuser face with the fixing screw
into the plenum box (Fig. 18/1).
2. The diffuser face can be removed by turning
it.
Installation
Air terminal devices AIRNAMIC10

Diffuser face without plenum box
Fig. 19: Bayonet fixing and fixing points
3 fixing points
No tools required to fix the diffuser face, nominal sizes 160 and 250
Fig. 20: Installation of nominal sizes 160 and 250
Installation
Air terminal devices AIRNAMIC 11

Fig. 21: Installation of nominal sizes 160 and 250
Installation
Air terminal devices AIRNAMIC12

Duct connection
The plenum box has a spigot for duct connection.
Variants with a double lip seal allow for a sufficiently
tight connection; additional sealing is not required.
Initial commissioning, maintenance and
cleaning
Initial commissioning
Before you start commissioning:
Check that the air terminal devices are cor-
rectly seated.
Remove protective film, if any.
Ensure that all air terminal devices are clean
and free from residues and foreign matter.
Check that electrical connections (if any) have
been correctly made.
Ensure that the devices have been correctly
fixed and connected to the ducting.
For commissioning see also VDI 6022, part 1 – 'Hy-
giene requirements for ventilation and air-condi-
tioning systems and units'.
Volume flow rate balancing
When several diffusers are connected to just one
volume flow controller, it may be necessary to bal-
ance the volume flow rates.
AIRNAMIC
The diffuser face can be removed to access the
damper blade; the damper blade can then be set in
15° intervals between 0 and 90°
Fig. 22: Damper blade fully open (0°, only with
plenum box)
Initial commissioning, maintenance and cleaning
Air terminal devices AIRNAMIC 13

Fig. 23: Damper blade closed (90°, only with
plenum box)
①Damper unit or blade
②Sticker explaining the damper blade position
③Setting lever
Maintenance and cleaning
Please note:
The cleaning intervals given in the VDI 6022
standard apply.
Clean surfaces with a damp cloth.
Use only common household cleaners, do not
use any aggressive cleaning agents.
Do not use cleaning agents that contain
chlorine.
Do not use equipment for removing stubborn
contamination, e.g. scrubbing sponges or
scouring cream, as it may damage the sur-
faces.
Replace contaminated equalising elements
(fleece). For hygiene reasons you should not
use a vacuum cleaner or wash the interior of
the device.
Initial commissioning, maintenance and cleaning
Air terminal devices AIRNAMIC14
