Trox Technik TSD -3-NF Series User manual

Product overview
Installation instructions GB/en
Air diffusers
Slot Diffusers Type TSD
TROX UK
Caxton Way,
Thetford, Norfolk, IP24 3SQ,
UK
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.troxuk.co.uk/
Air diffusers Slot Diffusers Type TSD 1
12
3
4
5
7
89
6
1 TSD diffuser face; 1, 2, 3 or 4 slots
2 Air control blade
3 End plate/angle (optional)
4 Concealed plenum fixing S11 (optional)
5 AKV TSD plenum box
6 Plenum box support hole (11× 7)
7 Plenum box support bracket (11× 7)
8 Spigot
9 Spigot damper (optional)
TSD Installation Instructions, 02/2022, © 2022 TROX UK

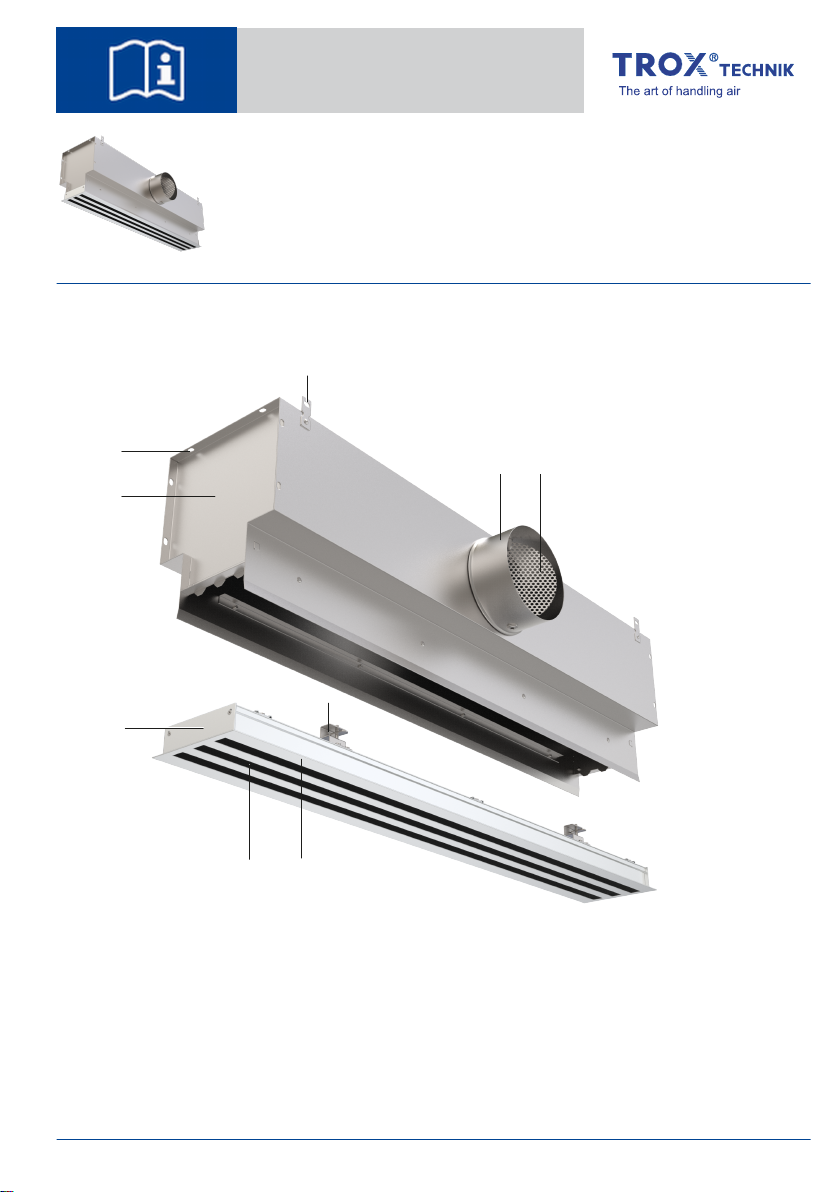

Fig. 1: TSD schematic diagram

Important notes
Information on the installation manual
This manual enables operating or service personnel
to correctly install the product described below and
to use it safely and efficiently.
It is essential that these individuals read and fully
understand this manual before starting any work.
The basic prerequisite for safe working is to comply
with the safety notes and all instructions in this
manual.
The local regulations for health and safety at work
and general safety regulations also apply.
Qualified staff
Specialist personnel
Specialist personnel are individuals who have suffi-
cient professional or technical training, knowledge
and actual experience to enable them to carry out
their assigned duties, understand any potential haz-
ards related to the work under consideration, and
recognise and avoid any risks involved.
Limitation of liability
The information in this manual has been compiled
with reference to the applicable standards and
guidelines, the state of the art, and our expertise
and experience of many years.
The manufacturer does not accept any liability for
damages resulting from:
Non-compliance with this manual
Incorrect use
Operation or handling by untrained individuals
Unauthorised modifications
The actual scope of delivery may differ from the
information in this manual for special constructions,
additional order options or as a result of recent
technical changes.
Personal protective equipment
Personal protective equipment must be worn for
any work in order to reduce health or safety haz-
ards to the minimum.
The appropriate protective equipment for a job must
be worn for as long as the job takes.
Industrial safety helmet
Industrial safety helmets protect
suspended loads, and the
effects stationary objects.
Protective gloves
Protective gloves protect hands
from friction, abrasions, punct-
-ures, deep cuts, and direct
contact with hot surfaces
Safety shoes
Safety shoes protect the feet
and prevent slipping on a
slippery floor.
Correct use
Air terminal devices are used for the ventilation of
internal spaces in industrial and comfort areas.
The air terminal devices are connected to a
supply air or extract air system (by others), which
is typically connected to and air handling terminal
unit (AHU, FCU etc.).
Air terminal devices supply cold or warm air to
rooms (within the stated supply air to room air
temperature differences).
Installation, operation and maintenance may
have to meet increased hygiene requirements for
certain areas of application.
Important notes
Air diffusers Slot Diffusers Type TSD2
Industrial safety glasses
Industrial safety glasses protect
the eyes from materials or debris
and the effects of striking the
head against stationary objects.

The installation of air terminal devices in humid
rooms, areas with potentially explosive atmos-
pheres or rooms with dust-laden or aggressive air
has to be assessed for each individual case.
Transport and storage
Delivery check
Upon delivery, carefully remove the packaging and
check the unit for transport damage and complete-
ness. In case of any damage or an incomplete ship-
ment, contact the shipping company and your sup-
plier immediately. Put the product back into its
packaging after the delivery check to protect it from
dust and contamination.
Fixing and installation material
Fixing and installation material is not part of the
supply package (unless stated otherwise), but
has to be provided by others; it has to be suitable
for the installation situation.
Factory setting
The air control elements within TSD diffusers
specified with alternating horizontal airflow are
factory set. Changing this factory setting
increases the commissioning time and cost.
Be careful when you unpack and install the
diffusers so as not to accidentally change their
position.
Transport on site
CAUTION!
Danger of injury from sharp edges, sharp cor-
ners and thin sheet metal parts!
Sharp edges, sharp corners and thin sheet metal
parts may cause cuts or grazes.
– Be careful when carrying out any work.
– Wear protective gloves, safety shoes and a
hard hat.
Please note:
Be careful when unloading or moving the
product, and pay attention to the symbols and
information on the packaging.
If possible, take the product in its transport
packaging up to the installation location.
Use only lifting and transport gear designed for
the required load.
Always secure the load against tipping and
falling.
Do not move bulky items just by yourself. Get
help to prevent injuries and damage.
Storage
Please note:
Store the product only in its original packaging
Protect the product from the effects of weather
Protect the product from humidity, dust and
contamination
Storage temperature: -10 °C to 50 °C.
Relative humidity: 95% max., no condensation
Packaging
Properly dispose of packaging material.
Transport and storage
Air diffusers Slot Diffusers Type TSD 3

Technical data
Dimensions

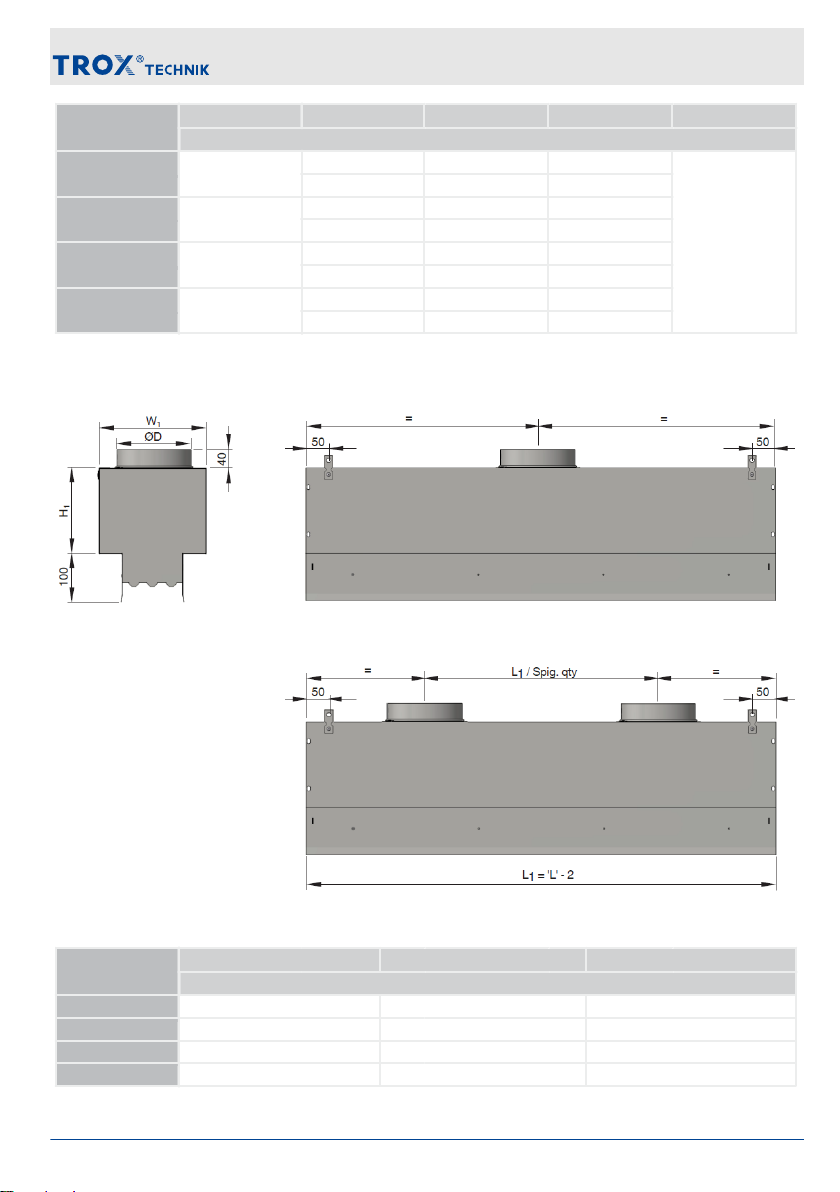

Fig. 2: Dimensions and spigot arrangement for construction ZH/AH
Technical data
Air diffusers Slot Diffusers Type TSD4
C*: Increase spigot length for M, MC damper options A**: Values for plenum with 'e' = 0
TSD type W1ØD
[mm]
TSD15-1 145.5 123
138
TSD15-2 180.0 138
158
TSD15-3 214.5 158
198
TSD15-4 249.0 198
248
A**
174.0
181.5
181.5
191.5
191.5
211.5
211.5
236.5
H1
145
160
160
180
180
220
220
270
C
40/75*

Fig. 3: Dimensions and spigot arrangement for construction ZV/AV
Technical data
Air diffusers Slot Diffusers Type TSD 5
TSD type W1ØD
[mm]
TSD20-1 150.5 123
158
TSD20-2 190.0 158
198
TSD20-3 229.5 198
248
TSD20-4 269 248
313
A**
174.0
191.5
191.5
211.5
211.5
236.5
236.5
269.0
H1
145
180
180
220
220
270
270
335
C
40/75*
C*: Increase spigot length for M, MC damper options A**: Values for plenum with 'e' = 0
TSD type W1ØD
[mm]
TSD15-1 145.5
180.0
TSD15-2
214.5
249.0
TSD15-3
TSD15-4
98
138
158
198
H1
160
180
220
270

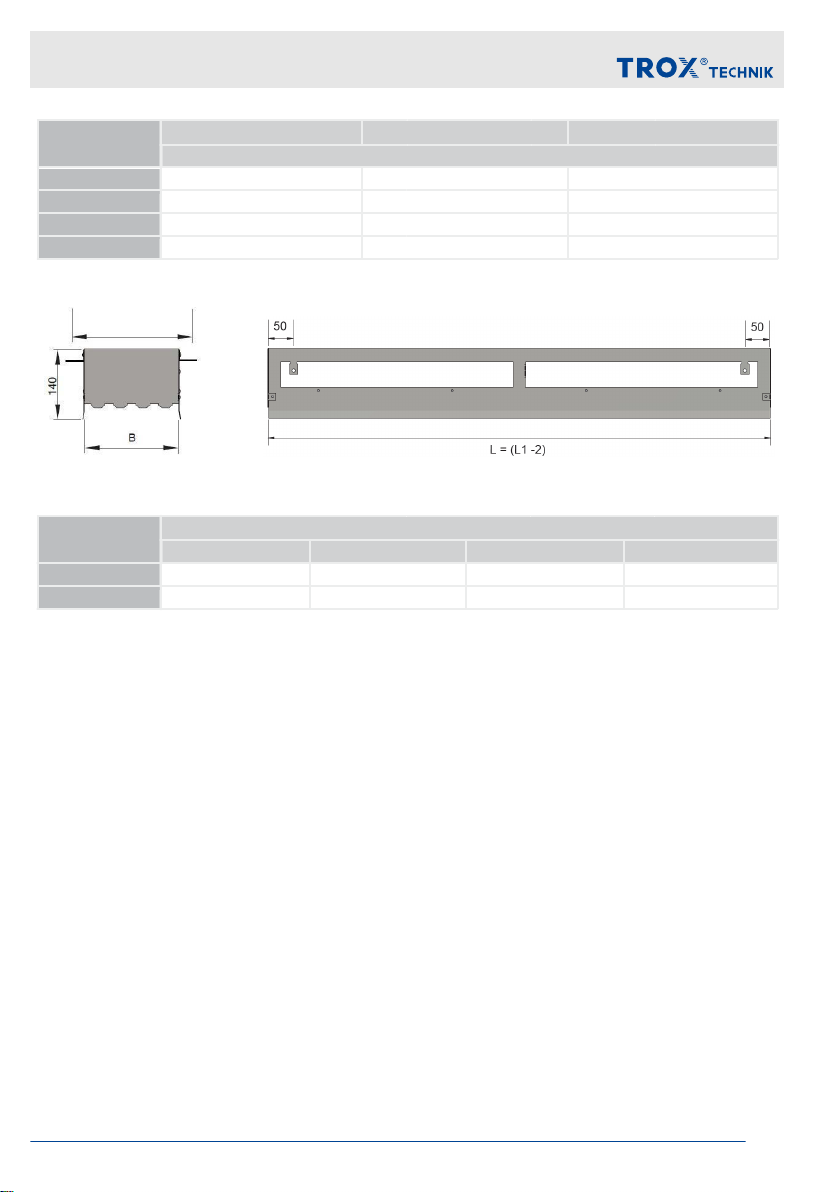

Fig. 4: Dimensions for construction RA
Technical data
Air diffusers Slot Diffusers Type TSD6
A
A = B + 44mm
TSD type
1 Slot
B [mm]
TSD15-1 43.5
48.5
TSD15-2
112.5
127.5
147.0
167.0
78.0
88.0
2 Slot 3 Slot 4 Slot
TSD type W1ØD
[mm]
150.5
190.0
229.5
269.0
123
158
198
248
H1
180
220
270
335
TSD20-1
TSD20-2
TSD20-3
TSD20-4

Technical data
Air diffusers Slot Diffusers Type TSD 7
TSD**-3-NF TSD**-3-FL
TSD**-3-P TSD20-3-PL
Fig. 5: Border options and dimensions
TSD type
1 Slot
P [mm]
TSD20-1 TSD15
TSD20
TSD20-2 TSD15
TSD20
TSD20-3 TSD15
TSD20
TSD20-4 TSD15
TSD20
2 Slot
90.5
101.5
103.5
113.5
115.5
125.5
-
-
3 Slot
125.0
140.0
138.0
153.0
150.0
165.0
-
299.0
4 Slot
159.5
179.5
172.5
192.5
184.5
204.5
-
299.0
56.0
61.0
69.0
74.0
81.0
86.0
-
-

Technical data
Air diffusers Slot Diffusers Type TSD8
End Plate TSDxx-P-Px End Plate TSD20-PL-PL2
End Plate TSDxx-NF-Px End Plate TSDxx-NF-Lx
End Angle TSDxx-FL-Ax
Fig. 6: End cap options and dimensions
30
TSD type
1 Slot
Width
TSD20-1 TSD15
TSD20
TSD20-2 TSD15
TSD20
TSD20-3 TSD15
TSD20
TSD20-4 TSD15
TSD20
2 Slot
92.0
102.0
92.0
102.0
92.0
102.0
-
-
3 Slot
126.5
141.5
126.5
141.5
126.5
141.5
-
300.0
Length
L + 5.5
L + 5.5
L + 8.0
L + 8.0
L + 5.5
L + 5.5
-
L + 5.5
57.5
62.5
57.5
62.5
57.5
62.5
-
-
4 Slot
161.0
181.0
161.0
181.0
161.0
181.0
-
300.0
Ceiling Opening Size [mm]

Technical data
Air diffusers Slot Diffusers Type TSD 9
For dimension 'P', please refer to diffuser dimension pages.
Mitred Corner

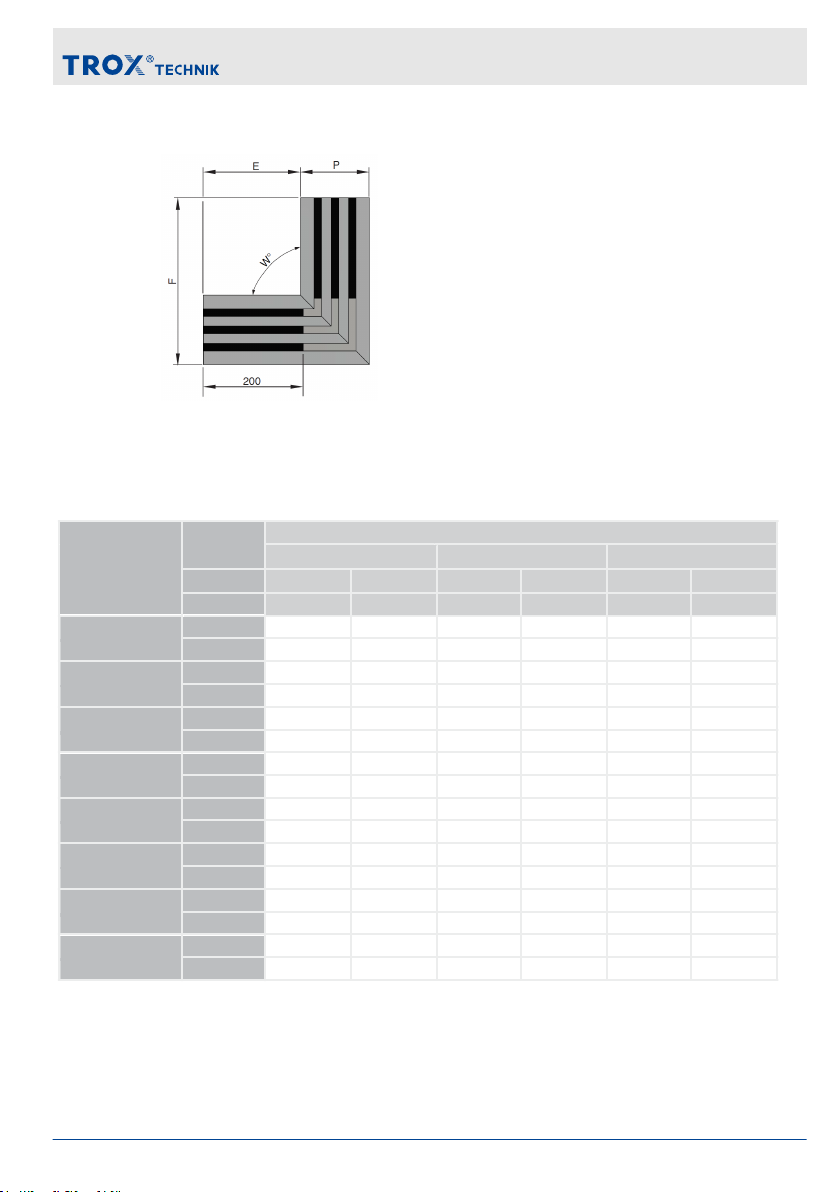

Fig. 7: Mitred corner options and dimensions
mm
TSD15-1 90
135
TSD15-2 90
135
TSD15-3 90
135
TSD15-4 90
135
mm
263.3
226.2
332.3
254.8
268.3
228.3
261.0
mm
200.75
200.3
200.75
200.3
200.75
200.3
200.3
194.25
197.62
194.25
197.62
194.25
197.62
197.62
mm
256.8
223.5
325.8
252.1
261.8
225.6
258.3
FL
W
°
TSD20-1 90
135
TSD20-2 90
135
TSD20-3 90
135
TSD20-4 90
135
297.8
240.5
366.8
269.1
307.8
244.6
386.8
277.4
200.75
200.3
200.75
200.3
200.75
200.3
200.75
200.3
194.25
197.62
194.25
197.62
194.25
197.62
194.25
197.62
291.3
237.8
360.3
266.4
301.3
241.9
380.3
274.7
Border Type
AngleTSD type
NF
mm
188.25
195.13
188.25
195.13
188.25
195.13
195.13
mm
269.3
228.7
338.3
257.3
274.3
230.8
263.5
188.25
195.13
188.25
195.13
188.25
195.13
188.25
195.13
303.8
243.0
372.8
271.6
313.8
247.7
392.8
279.8
P
347.3 200.75194.25 340.8 188.25 353.3
EF E F E F

Technical data
Air diffusers Slot Diffusers Type TSD10
Weights
TSD**...-FL/NF/P TSD**...-PL
AKV-TSD15-...-ZH-...
AKV-TSD20-...-ZH-...
Number of slots
0.3
0.6
0.9
1.2
300
600
900
1200
Nominal length Weight (kg)
1
0.5
1.0
1.6
2.0
2
0.8
1.5
2.2
2.9
3
1.0
1.9
2.8
3.7
4
1.6
1.9
1500
1800
2.6
3.1
3.6
4.3
4.6
5.5
Number of slots
2.2
3.6
5.0
6.4
300
600
900
1200
Nominal length Weight (kg)
1
2.5
4.0
5.5
7.5
2
2.9
4.6
6.3
8.0
3
3.3
5.3
7.2
9.1
4
8.3
9.7
1500
1800
9.0
10.6
10.2
11.9
11.6
13.5
Number of slots
2.3
3.8
5.3
6.7
300
600
900
1200
Nominal length Weight (kg)
1
2.7
4.4
6.1
7.7
2
3.2
5.1
7.0
8.9
3
3.9
6.1
8.2
10.4
4
8.7
10.2
1500
1800
9.9
11.6
11.3
13.2
12.6
15.3
Number of slots
1.1
2.2
3.2
4.3
300
600
900
1200
Nominal length Weight (kg)
3
1.3
2.5
3.7
4.9
4
5.3
6.4
1500
1800
6.1
7.3

Technical data
Nominal lengths 300 – 1800 mm, in
increments of 1mm
Number of slots 1, 2, 3 or 4
Minimum volume flow rate,
with ∆tz = –10 K
3 l/s or 12 m³/h
Maximum volume flow rate,
with LWA ≅ 50 dB(A)
360 l/s or 1297 m³/h
Supply air to room air tem-
perature difference
–10 to +10 K
Assembly
General information
Personnel:
Specialist personnel
Protective equipment:
 Industrial safety helmet
 Industrial safety glasses
 Protective gloves
Note:
 For room heights up to 4 m (lower edge of sus-
pended ceiling)
 Flush ceiling installation
 Fix the product only to load-bearing structural
elements.
 Load suspension systems only with the weight
of the product. Adjacent components and con-
necting ducts must be supported separately.
 The air terminal devices must remain acces-
sible for cleaning even after installation.
 Installation fixing materials which the
manufacturer provides is usually supplied in
an extra bag.
Before you install the product, take suitable precau-
tions to protect air distribution components from
contamination during installation (VDI 6022). If this
is not possible, at least cover the product or take
other precautions to protect it from contamination.
Assembly
Air diffusers Slot Diffusers Type TSD 11
Ensure that all components are clean before
you install them. If necessary, clean them
thoroughly. If you have to interrupt the install-
-ation procedure, protect all openings from the
ingress of dust or moisture.
Plenum installation
If possible, install the device before fixing the
ceiling tiles; if this is not possible, remove the
adjacent ceiling tiles.
Use only approved and adequately sized susp-
-ension systems (fixing material is not included
in the supply package).
If you have to install larger devices, it is best to
either ask someone to give you a hand or use a
lift.
1. Fix the suspension parts such as ropes,
cables or metal hangers to the ceiling.
This fixing should be of a suitable type
and load bearing capacity as determi-
-ned by others.
A = W1 + 44mm
W1 given pages 4-6

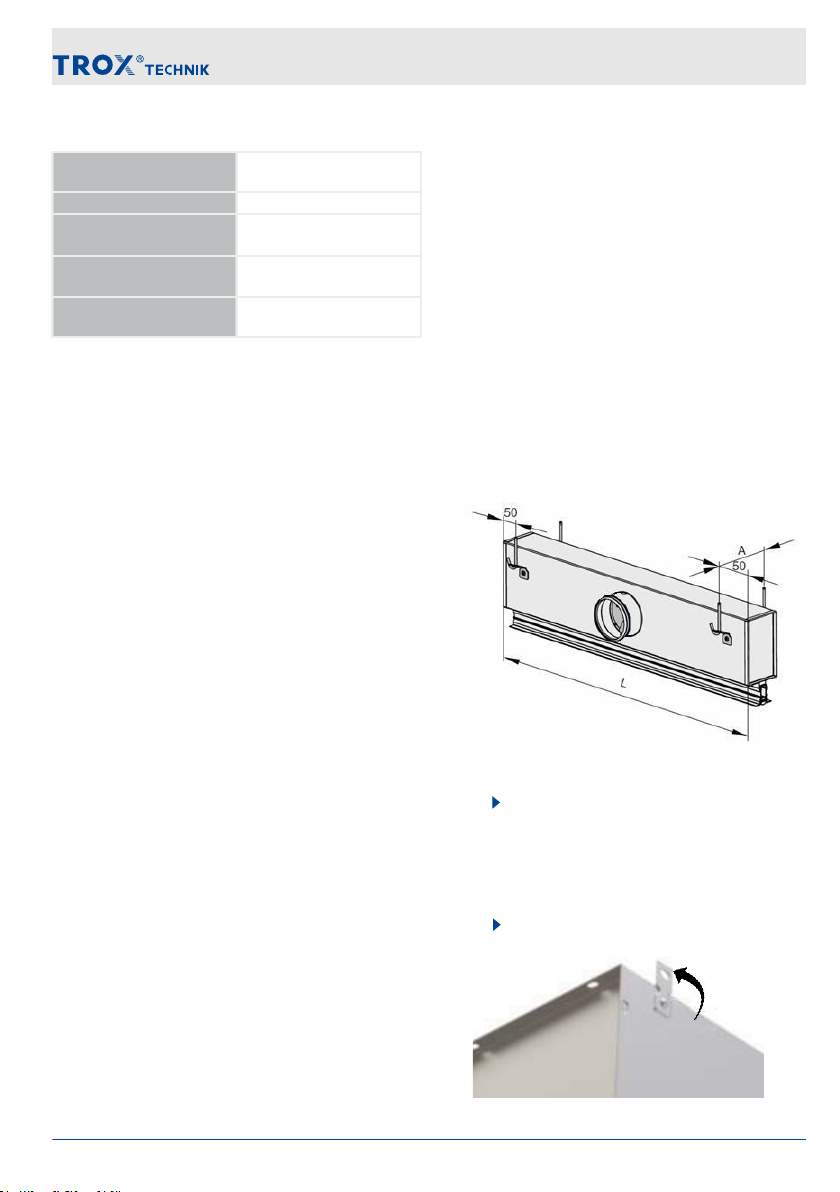

Fig. 8 Plenum box suspension
2. Turn up the suspension lugs.
Fig. 9: Suspension lugs
 Safety shoes

3. Use all 4 of the available suspension lugs
or at least 4 of the fixing holes on the
plenum box, one in each corner.
Plenums
Air diffusers Slot Diffusers Type TSD
12
Plenum neck flush
with plasterboard face
(pre-plaster skim)
1. Plenum supports (by others)
2. Plasterboard ceiling (by others)
3. Timber batten (by others)

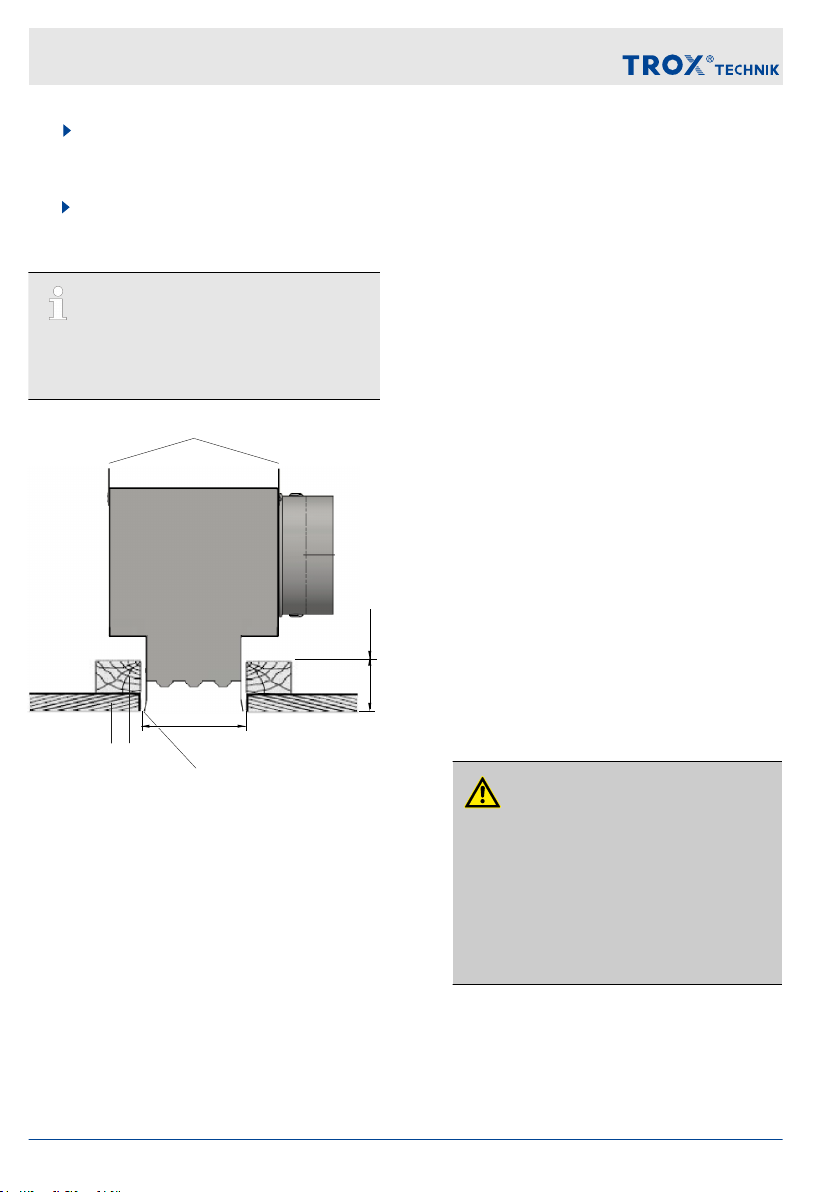

Fig. 10: Plenum suspension for plaster-
in installation
4.Adjust the height of the suspended
plenum box to align the lower edge of the
plenum with the finished ceiling surface.
1
23
MIN 40 mm
MAX 80 mm
Plasterboard ceilings
For plasterboard ceiling applications, align the
lower edge of the plenum with the unfinished
plasterboard face (pre-skim)
 MIN opening size for the plasterboard
ceiling can be found on page 8 of this IOM
MIN opening
size
 Along each linear side of the opening, a
support batten must be provided (typically
wooden) to support the plasterboard opening
and allow fixing screws for the diffuser face.
 Ensure combined depth of plasterboard and
batten is between 40 mm and 80 mm

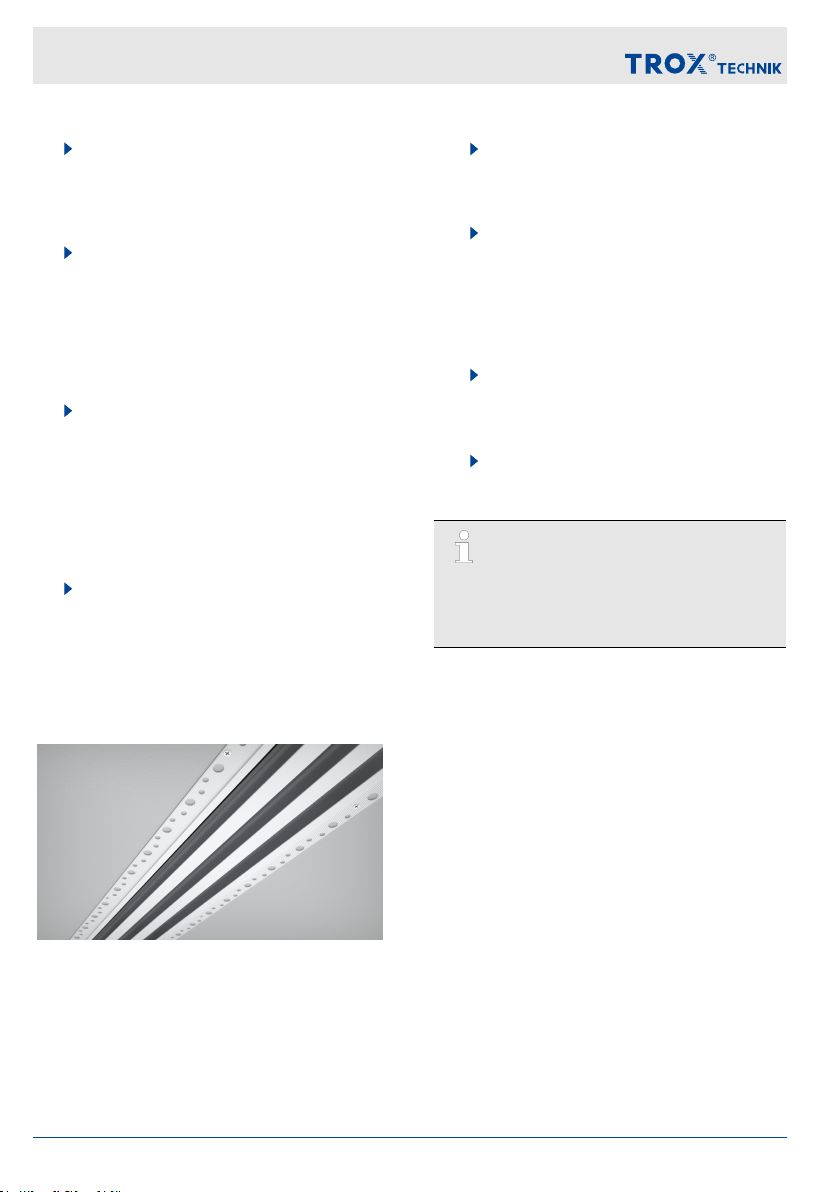

Diffuser installation
With the plenum box(es) installed and
suspended to the correct height, the diffuser
can be unpacked ready for installation.
 TSD diffusers are supplied with multiple
fixing options depending on the
installation situation
 For installation with TROX plenum boxes,
type S11 fixings must be used. These
fixings are supplied loose and should be
installed onto the TSD diffuser by the
equipment installer in the location of the
installed plenum box(es).
Installation details - S11 fixing
 S11 fixings are supplied loose for
assembly of AKV or RA plenums to the
TSD diffuser.
 The fixings should be installed to the
TSD diffuser by the equipment installer in
the location of the installed plenum
box(es).
 S11 fixings should be installed to the
TSD diffuser in locations approximately
100mm in from each end of the installed
plenum
TSD**-1...2: 2x S11 fixings per diffuser
TSD**3...4: 4x S11 fixings per diffuser
 Quantity of S11 fixings supplied with
each TSD diffuser is based on the
number of slots;
WARNING!
Overtightening of the fixing screws can
result in mechanical failure!
–Fixing screws to install S11 fasteners
to TSD diffusers should be hand
tightened only.
–The use of power tools is prohibited
and can result in stripped threads.

Fixing kits
Air diffusers Slot Diffusers Type TSD 13
1 S11 fixing
2 S11 fixing screws (2 per fixing)
3 TSD diffuser
Fig. 11: S11 fixing kit installation
Fig. 12: S11 fixing kit
Fig. 14: S11 fixing kit with plenum
Fig. 13: S11 fixing kit layout
1.Install the S11 fasteners (2 or 4) to the
TSD diffuser to suit the location of the
installed plenum box(es). If
necessary, offer up the diffuser to the
installed plenum and mark the end of
the plenum box(es) with removable
tape to ensure correct installation.
2.With the S11 fasteners installed, offer
up the diffuser to the installed plenum
and push the diffuser into the plenum
neck. Note, you may need to support
the plenum box to prevent movement
during this process.
3.With the weight of the diffuser
supported, tighten the adjustment
screw visible through the open slot on
each S11 fastener until the diffuser is
clamped to the plenum box.
WARNING!
Overtightening of the adjustment
screws can result in mechanical failure!
–Adjustment screws on S11 fasteners
should be hand tightened only.
4.If required, adjust the height of the
assembled plenum box and diffuser
using plenum supports to align with
the ceiling.
Adjustment screw

Installing the diffuser (Finite)
Ensure the grille border is flat and level
before fixing it in place. Secure using
counter sunk head 3.5 drywall screws (by
others) every 300mm.
Screw through the holes in the border,
through the plasterboard and into the timber
batten behind.
Ensure the screw heads are driven firmly
into the border and sit below the top edge of
the grille border so they will not visible when
the border is plastered. The border should
be firm with no movement. Jointing tape
should be applied over the plaster frame to
provide a good adhesion surface for the
plaster skim.
Suitable site masking of the diffuser is
required to prevent damage. The plaster can
then be applied using the top edge of the
diffuser border to level the plaster. Excess
plaster should be cleaned off the inside of
the diffuser & border before it dries to avoid
staining or damage to the paint finish.
Plaster-in
Air diffusers Slot Diffusers Type TSD
14
Installing the diffuser (Linear)
Before installing the grille border into
the builder's work opening, arrange the
grille sections next to each other on a
clean, level surface with the alignment
pins to hand to ensure a good fit prior
to installation.
Insert the alignment pins halfway into the
alignment ports located in the border
extrusion on one grille section.
Then proceed as instructions for finite
diffusers.
1.The plaster-in diffuser should be installed
into the builder's work opening, retaining the
plastic film on the front of the diffuser to
prevent marks during the installation.
2.
3.
4.
Linear diffusers will be supplied
with alignment pins (details on
page 15)
1.
2.
3.
4.
Fig. 15: Plaster-in installation
Linear lengths
Do not remove the tape that is present on
diffusers sections without end caps. The
alignments pins can be pushed through the
tape.

Fig. 16: Linking slot diffusers
1.
The supplied alignment pins help you align
slot diffusers for a continuous linear
arrangement.
Note:
Alignment pins cannot be installed after
diffuser installation
Alignment pins also used to align corner
sections
Offer up adjacent section and ensuring the
alignment pins are placed correctly, slide
the section into place.
2.
Insert the alignment pins into the outer
border section with 50% of the pin length
visible.
Air diffusers Slot Diffusers Type TSD 15
Linear runs

Installation details - GP fixing
 GP fixings are supplied loose for
installation of TSD diffuser without
plenum or with only a partial plenum.
 The fixings should be installed to the
TSD diffuser by the equipment installer.
 GP fixings should be installed to the
TSD diffuser in locations approximately
100mm in from each end of the diffuser
 Quantity of GP fixings supplied with
each TSD diffuser is based on the
whether the diffuser is supplied
with or without a plenum;
WARNING!
Overtightening of the fixing screws can
result in mechanical failure!
–Fixing screws to install GP fixings
to TSD diffusers should be hand
tightened only.
–The use of power tools is prohibited
and can result in stripped threads.
2x GP fixings are supplied with each TSD
diffuser section when specified. NB: 1x GP
fixing is also supplied with each diffuser
section when S11 fixings are specified to
cover diffuser nominal lengths > plenum
box length (border style FL, NF only).
Diffuser installation
 TSD diffusers are supplied with multiple
fixing options depending on the
installation situation
 For installation without TROX plenum
b boxes,
type GP or SB fixings must be used. These
fixings are supplied loose and should be
installed onto the TSD diffuser by the
equipment installer. 1 GP fixing
2 GP fixing screws (2 per fixing)
3 TSD diffuser
4 GP clamp screw
Fig. 17: GP fixing kit installation

Fixing kits
Air diffusers Slot Diffusers Type TSD
16
GP fixings are designed to clamp the
diffuser against the project ceiling system
(ceiling depth between 1... 40mm). A
minimum 25mm clearance should be
provided to either side of the opening to
facilitate installation with GP fixings.
With the GP fixing orientated across
the opening, tighten the fixing screw
through the diffuser face until the
diffuser is fixed into the ceiling system.
Fig. 18: GP fixing diffuser installation
Fig. 19: GP fixing diffuser installation
Fig. 20: GP fixing kit layout

1.
2.
Install the GP fixings to the TSD diffuser.
Fixings should be placed at the end of
each diffuser section approximately
100mm in.
With each GP fixing running parallel to the
diffuser, insert the diffuser into the opening
and once inserted, use a suitable tool to
turn the GP perpendicular to the diffuser.
3.
WARNING!
Overtightening of the adjustment screws
can result in mechanical failure!
–Fixing screws on GP fixing kits
should be hand tightened only.
Installation details - SB fixing
 SB fixings are supplied loose for
installation of TSD diffuser without
plenum or with only a partial
plenum.
 The fixings should be installed to the
TSD diffuser by the equipment installer.
 SB fixings should be installed to the
TSD diffuser in locations approximately
100mm in from each end of the diffuser

Fixing kits
Air diffusers Slot Diffusers Type TSD 17
1 SB fixing (11 x 7 hole)
2 SB fixing screw (1 per fixing)
3 TSD diffuser
To install the SB fixing to the rear of
the TSD diffuser. Fixings should be
placed at the end of each diffuser
section approximately 100mm in.
Fig. 21: SB fixing kit installation
1 M6 threaded rod or wire supports (by others)
Fig. 22: SB fixing diffuser installation
Fig. 23: SB fixing kit layout
 Quantity of SB fixings supplied with
each TSD diffuser is based on the
whether the diffuser is supplied
with or without a plenum;
WARNING!
Overtightening of the fixing screws can
result in mechanical failure!
–Fixing screws to install SB fixings
to TSD diffusers should be hand
tightened only.
–The use of power tools is prohibited
and can result in stripped threads.
4x SB fixings are supplied with each TSD
diffuser section when specified. NB: 2x SB
fixing is also supplied with each diffuser
section when S11 fixings are specified to
cover diffuser nominal lengths > plenum
box length (border style FL, NF only).
SB fixings are designed to facilitate support
to the building structure viaØ6mm threaded
rod or wire supports (by others). Fixings are
accessed via the rear of the diffuser only so
suitable access to the ceiling void shall be
required.
SB fixings can be bent to vertical position if
required to suit installation method.
With each SB fixing installed,
suspend the diffuser using Ø6.0mm
threaded rod or wire supports (by
others) to secure the diffuser within
ceiling system.
1.
2.


Blanking plates
Air diffusers Slot Diffusers Type TSD
18
Installing the blanking plate
Remove foam's the self-adhesive backing
and stick to the inside of the blanking tray.
Place the blanking tray over the neck of the
diffuser and secure into position by
bending the blanking plate (both sides).
Blanking plates and foam insulation are
supplied loose, for site cutting and
installation.
In addition to bending the blanking plate
the plate can be secured to position
using the screws supplied with the
blanking plate, if desired.
When necessary blanking plates need
to be cut around SB and GP fixing kits.
Fig. 24: Blanking plate installation
Fig. 25: Diffuser with Blanking plate
1.
2.

Blanking plates, if supplied, must be fitted
to the rear of the diffuser before it is
installed into the builder's work opening.

First determine the location for the blanking
plate by offering the diffuser up to builder's
work opening and mark the areas where
plenums are not installed.
Remove the grille from the opening and
place face down on a suitable protected
work surface, ensuring the area is free from
debris to avoid damaging the painted
surface.
Cut the blanking plate and foam insulation
to the required length/s to cover the areas
marked as non-active.

3.
4.
5.


TSD, apart from the alternating discharge variant, is supplied with the blades in the closed position
which need to be set on site by others. Setting the places is a two-hand operation, with hands at both
ends of the blade, to avoid deforming the blade. A non-metallic tool may be required to create a gap
between the extrusion and the blade. The blade should be opened until it hits the stop and can be
opened no further. It is common for TSD to be selected with slots discharging to both sides of the
diffuser, please refer to TROX schedule for slot configuration. Alternating discharge diffusers will have
the blades set in the factory.
Air discharge – ceiling installation
Air discharge Setting of the air control blades
Vertical air discharge
One-way horizontal air
discharge to the left
Initial commissioning, maintenance and cleaning
Air diffusers Slot Diffusers Type TSD 19
One-way horizontal air
discharge to the right
Alternating air
discharge

Volume flow rate balancing
When several diffusers are connected to just one
volume flow controller, it may be necessary to bal-
ance the volume flow rates.
Slot diffusers with plenum box and damper blade
(variant -M*): The damper blade can be adjusted
even after the diffuser face has been installed.
Fig. 26: Setting the damper blade, e.g. with a screwdriver
Initial commissioning, maintenance and cleaning
Air diffusers Slot Diffusers Type TSD
