Tru-Turf GR7000C User manual

56 Export Drive, Ernest Junction, Qld. 4214 Ph .+ 61 7 5594 7199
www.truturf.com email: [email protected] Fax + 61 7 5571 5493
GR7000C GOLF ROLLER MANUAL
rollers

1. Important
2. Machine Information Record
3. Safety Information
4. Warranty
5. Assembly
List of components
Mounting seat to seat frame
Mounting steering arm to machine
Attaching trailer arm to machine
Attaching dampener strut and trailer arm
Attaching drawbar to trailer arm
Attaching wheels to trailer arm
8. Operation and Maintenance
Correct dampener strut operation
Replacing oil
Replacing transmission oil
Lubricating pivot bearing and drive roller bearings
10. Pre-operation
Pre-operation checks
Standard operation Procedures
Points to remember
Maintenance
Storing
Service of drive system
Emergency and Park brake
13. Maintenance Schedule
14. Fault Finding
Roller looses power or slows down when operating
Roller will not move one or either way
Roller will not steer
Roller has excessive vibration
Smoothing rollers seized
Rubber drive roller will not rotate

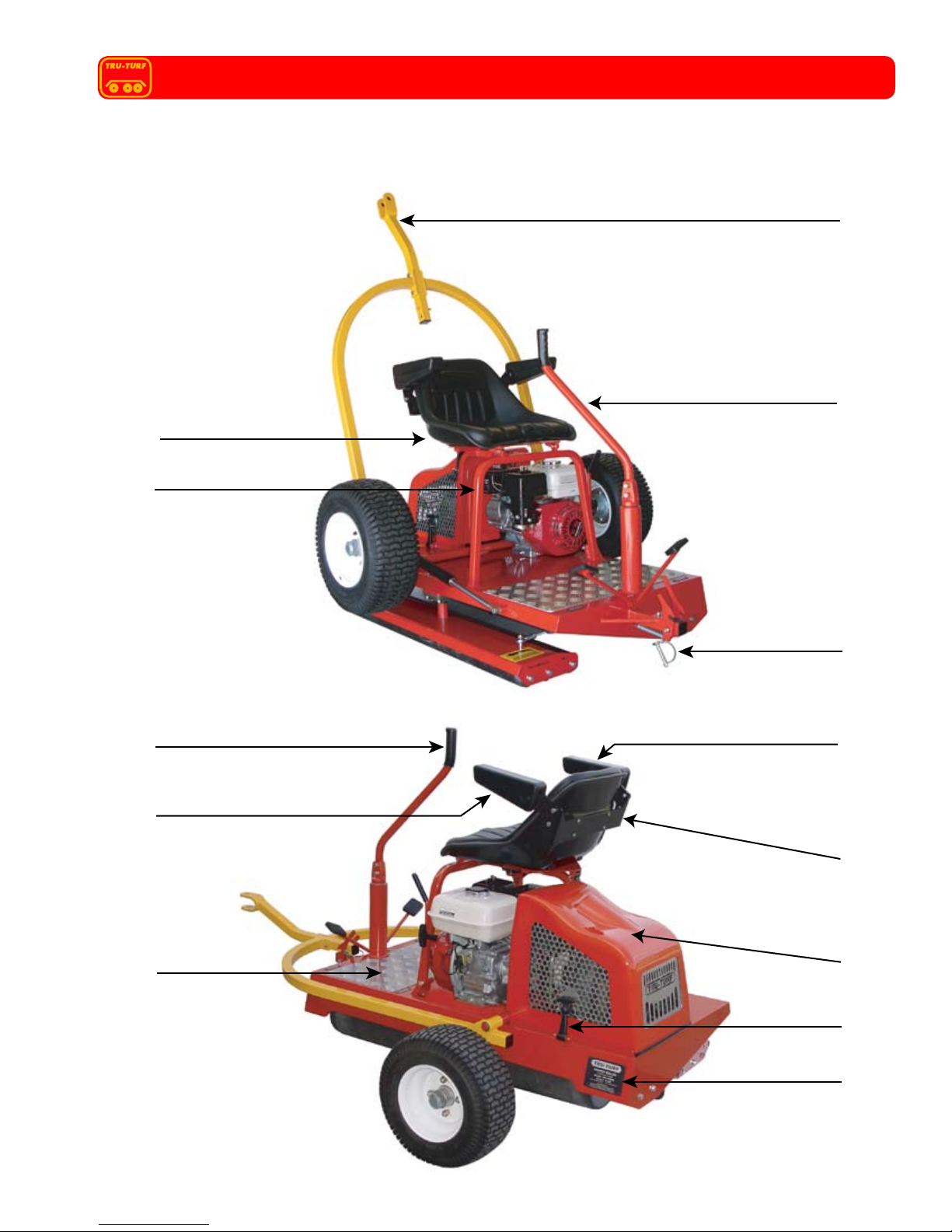

15. Machine Components
25. Labels
26. Options

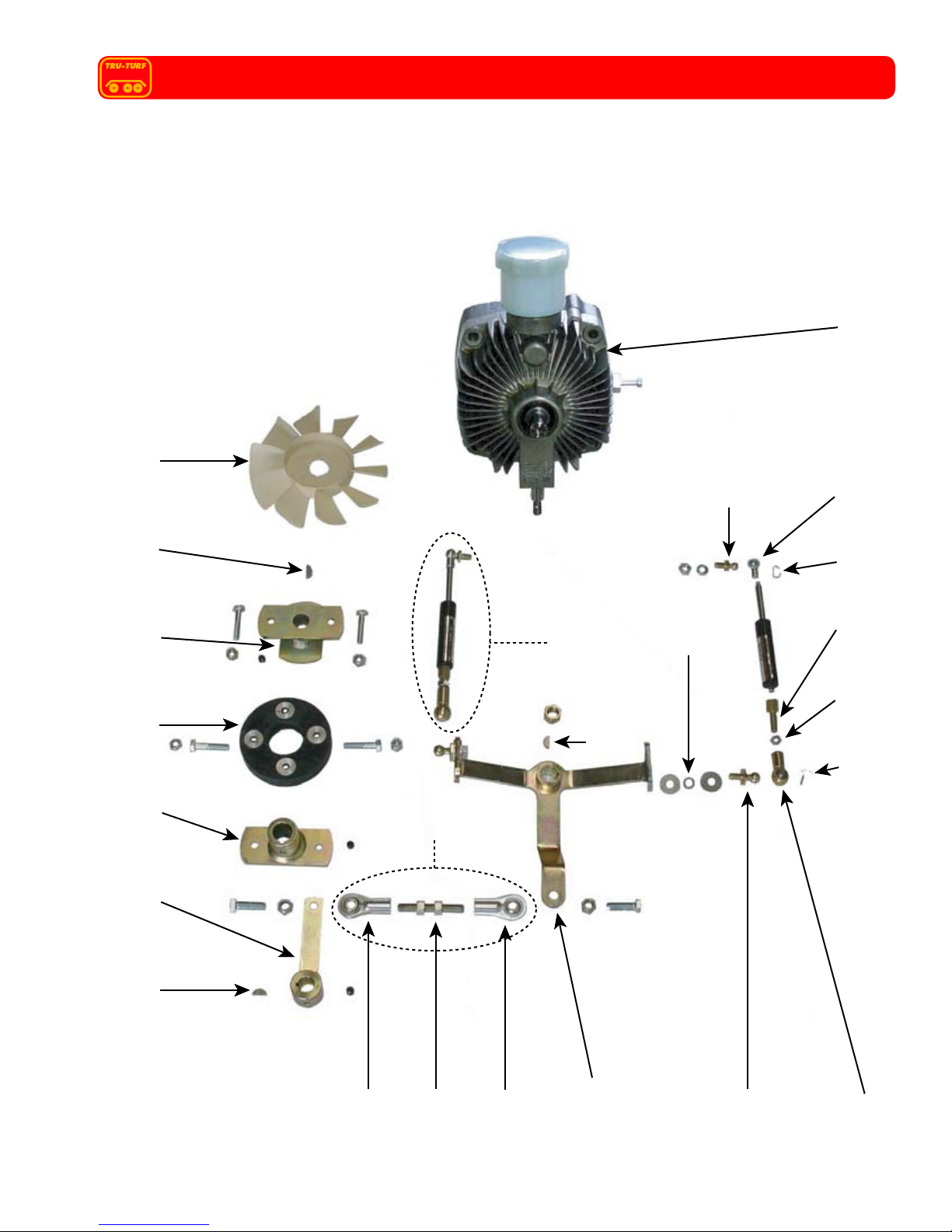

27-30. Parts List
Separate Engine Owners Manual Included
CONTENTS
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual

1
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
IMPORTANT
PLEASE READ AND UNDERSTAND BEFORE OPERATING MACHINE
1. Pre-check all nuts, bolts, grub screws for tightness prior to operating machine.
2. Understand the operating procedures and the controls before operating.
3. Use the machine to roll 18-36 greens then check that all nuts, bolts etc. are tight.
4. Loose transmission and drive roller sprockets will cause damage to shafts & keyways. Ensure they
are correctly tightened at all times.
5. For the initial transmission oil change, use the Roller to roll 18-36 Golf Greens, then change the oil
when it is hot as per servicing schedule on page 13.
6. Change the transmission oil after 50 hours of operation, then as per the servicing schedule on page 13
As a guide to correct transmission oil use, Mobil I 5W-50W Synthetic Oil or an alternate in the U.S.A. use
Lubemaster Synthetic, SAE 50 Transmission Lube, Phone. [phone] or in Australia only use – Penrite
Synthetic 5 SAE 5W-60. Phone [phone]. Or suitably equivalent oils from these manufacturers BP,
Caltex, Castrol, Chevron, Esso, Exxon, Texaco.

2
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
NAME:
ADDRESS:
TELEPHONE:
FACSIMILE:
MACHINE INFORMATION
GR7000C Golf Greens Roller
Serial No.
Engine No.
Transmission No.
Purchase Date No.
Congratulations on your investment in the GR7000C Golf Greens Roller and your move to smoother, faster,
more consistent putting Greens. The following operation and maintenance manual has been prepared for
use with the GR7000C Golf Greens Roller. It is intended as a guide and supplemental updates to the
manual may take place at a future date.
This machine is engineered to be simple to operate and easy to maintain. If you have any questions or
concerns that this manual does not address, please feel free to contact your distributor at:
MACHINE INFORMATION RECORD

3
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
SAFETY INFORMATION
Safety is of the utmost importance when operating turf equipment. To ensure safe operation of
the GR7000C Roller, please follow the following safety guidelines.
* Always make a pre-operation inspection before you start the engine. If this procedure is not carried
out damage to property or personnel may occur.
* Keep children, pets and inexperienced personnel away from the machine. This machine should
only be operated by trained and skilled personnel - check with your supervisor if you are unsure.
* Know how to stop the engine when in motion. Read and understand engine manufacturers manual,
as supplied.
* Never permit inexperienced operators to use the machine. This machine requires certain knowledge
and expertise to operate it; you must be a trained person to use this machine. Unskilled persons
can harm themselves and others if they operate this machine.
* Do not use in enclosed areas unless well ventilated. Carbon monoxide gases are dangerous if
inhaled, it can cause death; use the machine outdoors.
* When transporting the roller, make sure the trailer lock down mechanism is secure to prevent
premature release. If the trailer lock is not correctly engaged while towing and releases accidentally,
the front of the roller can drop and dig into the ground, causing the machine to move dangerously
in any direction causing bodily injury. When carrying out maintenance ensure the latch is engaged
correctly; if it is not the trailer arm could y up making contact with a person(s) causing serious
injury.
* When engine is running, always keep hands and loose clothing away from rotating chains and
sprockets in the transmission area. If hair, clothing or loose objects become entangled on a
rotating shaft serious bodily injury could occur. Stop engine before opening safety cover tted to
the transmission area.
OPERATOR, REMEMBER IT IS YOUR RESPONSIBILITY TO BE AWARE OF YOUR SURROUNDINGS.
TO AVOID ACCIDENTS, THINK SAFE AND OPERATE SAFE.

4
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
ONE YEAR WARRANTY
Universal Conditions: Tru-Turf Equipment will either repair or replace any item or part of a Tru-Turf
Equipment turf maintenance product that is defective in workmanship or material for a period of twelve (12)
months from the date of delivery of the new product to the original end user. These items will be repaired
or replaced free of charge and freight free.
Products Protected By This Warranty: This Warranty relates to the following products manufactured by
Tru-Turf Equipment and parts used to make these products:- GR39 Golf Greens Roller; GR48 Golf Greens
Roller; GR7000 Series Golf Greens Roller; GR11000 Series Golf Greens Roller; RS48 Roll ‘n’ Spike Golf
Greens Roller; RS48-11 Series, Roll ‘n’ Spike Golf Greens Roller; Triplex Roll ‘n’ Spike Mower Attachment
Heads and Brackets; MT2000-S&D Single and Dual; MT5000-S&D Single and Dual Tote for Walk Behind
Mowers; SR72 Sports Ground Roll ‘n’ Spike Turf Roller.
Parts Warranted By Suppliers To Tru-Turf: Specic component parts supplied to Tru-Turf Equipment are
covered by that supplier’s Warranty. These parts include Eaton Transmission, Honda Engines and Kohler
Engines.
Normal Wear and Tear: Tru-Turf Equipment will not repair or replace parts subject to normal maintenance
routines as specied in the products Operator’s Manual nor to parts subject to wear and tear during the
correct operation of the product. These parts include, but are not limited to, oils, lters, tires, shafts, bearings,
blades, spikers, slicers, brakes, belts, hoses and spark plugs.
Other Items Not Covered By This Warranty: Tru-Turf Equipment will not repair or replace free-of-charge
any item that has been damaged by accident, lack of reasonable care and protection or lack of suitable
storage. We will not cover parts that have been altered or modied by anyone other than Tru-Turf Equipment
nor will we cover used parts that are installed in place of failed parts. We will not cover parts that have not
been installed correctly by the end user or its agents nor will we cover parts that have not been maintained
as per the Operator’s Manual. Service calls and overtime labour rates will not be covered. We will not
cover freight costs related to the return of the faulty product to Tru-Turf Equipment or its agents. Tru-Turf
Equipment will not be liable for any consequential loss or damage or costs caused by or incidental to the
failure of any new part supplied with the original purchase or any new part supplied as a replacement for
any failed part.
Lodging Warranty Claims: The nal purchaser of the new Tru-Turf Equipment product must lodge a
Warranty Claim with Tru-Turf Equipment or its agents. The nal purchaser must provide written evidence
detailing the product’s delivery date to that purchaser and the reasons why the purchaser believes that
the product or its part is defective in the categories of faulty material or workmanship. The purchaser
is to deliver the faulty product or part to Tru-Turf Equipment or its agents at the purchaser’s expense.
Acceptance or rejection of the Warranty Claim is entirely at the discretion of Tru-Turf Equipment or their
Suppliers who warrant their own part/s.
No person or organization has the authority to modify the terms or conditions or limitations of this Warranty
without the written consent of Tru-Turf Equipment

5
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
ASSEMBLY
When you receive the crate, the machine will be broken down into components ready for assembly. If you
run into any problems during assembly, please feel free to call your local distributor or agent.
List of Components
QTY Description QTY Description
1 Operation, Maintenance & Parts Manual 2 Tires mounted on Wheel Rim
1 Machine Frame/Body 1 Drawbar Coupling Assembly
1 Drivers Seat 2 22mm External Circlips
1 Steering Joystick 1 Left-side Trailer Arm
1 Dampener Strut 1 Right-side Trailer Arm
2 2” x 3/8” UNF Hex Hd Bolts 2 3/8” UNF Nyloc Nuts

6
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
MOUNTING THE SEAT TO THE SEAT FRAME BASE
• Place the seat down with the seat back oriented toward the rear of the machine (the front of the
machine is the side where the pedals are located).
• Using the bolts supplied, in seat, align four correct holes of the seat base plate and x to seat
securing the bolts tightly.
MOUNT THE STEERING JOYSTICK TO THE STEERING SHAFT
• Select the steering joystick.
• Slide the joystick into the slot on the top of the steering shaft, already installed in the steering
column directly behind the foot pedal controls, insert the 3/8” bolt into the bottom or lower bolt hole,
select a comfortable operating position, joystick forward for extra operating room or back for less,
once determined insert the other 3/8” bolt into the upper hole & tighten both bolts securely.
ATTACHING THE LEFT-HAND TRAILER ARM TO MACHINE BODY
• Locate the trailer arm support axle 25mm in diameter (1”) which extends out on the side of the
machine, remove the circlip from the support axle. Oil machined portion. Slide the left hand side
trailer arm, onto the axle, replace the circlip, ensuring it is located in the groove correctly.
ATTACHING DAMPENER STRUT & RH TRAILER ARM
• Locate the trailer arm support axle 25 mm in diameter (1”) which extends out on the right side of the
machine, remove the circlip from the axle. Hold the right side trailer arm in the vertical position and
slide it part way onto the axle. Locate dampener strut., remove packing from the unattached end.
• Apply Thread lock “Loctite” to the M10 bolt attached to the dampener strut. Screw the M10 bolt into
the strut support on the trailer arm.
• If necessary use a soft headed hammer and tap the trailer arm onto the axle until the circlip groove
is revealed, t the circlip, ensuring it is located in the groove correctly.

7
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
ATTACHING DRAWBAR TO TRAILER ARMS
• Locate the drawbar assembly.
• Gather the ends of the right and left trailer arms.
• Place the drawbar assembly between the trailer arms and align the holes, ensure the bend is
upwards.
• Place one 2-1/4” x 3/8” bolt through each hole, t 3/8” Nyloc nut to each bolt & tighten securely
• Test to ensure the trailer latch is correctly locking the trailer arms in the down position. This is
important when trailing the machine. Use the catch locking pin when transporting the roller, for
safety.
ATTACHING WHEELS TO TRAILER ARMS
• Locate the two wheels for the left and right side trailer arms
• Check tires for the correct air pressure, approximately 15psi. Do not exceed this pressure.
• Remove wheel nuts from both hubs, slide wheels onto hub with air valves facing outwards. Replace
wheel nuts & tighten securely.

8
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
CORRECT DAMPENER STRUT OPERATION
• When the roller is in the trailing position and the front of the roller resting on the ground, carefully
hold the drawbar assembly, release the locking catch. With a rm grip begin to raise the drawbar,
when it has travelled sufciently the dampener strut will take over & prevent the trailer arms rapidly
rotating on it’s axle, allowing the roller to lower to the surface. This prevents the operator from being
injured. When the roller is resting on the ground push the trailer backwards gently, (do not use
excessive force) until the trailer arms will travel no further. The dampener strut is designed to hold
the trailer back behind the operator and the wheels off the ground.
REPLACE ENGINE OIL
• A tag is placed on the engine’s On/Off switch indicating you must ll the machine with oil prior to
operation. Low oil level will cause engine to stop on steep hills, the engine cut off safety switch is
designed this way to protect the engine from damage if low in oil.
• The oil in the engine upon delivery (if not pre-delivered) is to prevent the inside of the engine from
corroding, replace it with the correct engine oil, as per the manufacturers specications.
REPLACE TRANSMISSION OIL
• Ensure oil in transmission is hot prior to draining the oil.
• Remove drain plug from bottom of transmission using a socket and extension.
• Protect rubber coated drive roller from the draining oil. Oil left in contact with the rubber could
damage it’s surface.
• When oil has fully drained, replace plug and ll with recommended oil only - Refer to maintenance
schedule on pg. 13
• Fill through the upper plug on top of the transmission ensuring no contaminants enter the
transmission. (If this occurs rapid deterioration will occur and warranty will not apply).
• When transmission is full, leave the plug out and ll the plastic expansion cup with 3/8” of the
same oil. Allow the oil to gravity feed into the transmission until the oil overows from the plug hole,
expelling trapped air. Replace cap and tighten.
OPERATION AND MAINTENANCE

9
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
• It is necessary to ensure there is a minimum of 3/8” oil in the plastic expansion cup when in
the cold state. Do not over ll the cup as it is an expansion chamber to collect the oil from the
transmission when operating at high temperatures. Check oil level after rolling 3-4 greens, then
later when it has cooled off.
IMPORTANT: When the transmission is cold always ensure the minimum amount of oil is present
in the cup, as indicated by the minimum oil mark on the plastic cup. if the cup is dry of oil the
transmission will cavitate, overheat and lose drive ability.
LUBRICATE
• There is a grease nipple or zirk located on the smoothing head centre ball joint swivel. Apply
grease to lubricate tting.
• Grease drive roller bearings, sparingly.
• LubricateTransmission yoke slides, where the strut connects to the yoke on both sides.
• Rod ends.

10
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
PRE-OPERATION CHECKS
• Check engine as per Honda / Kohler manual.
• Ensure steering joystick has no looseness.
• Ensure that the trailer bar locking catch mechanism is securely locked to the main frame bolt when
in the towing position.
• Grease smoothing roller head centre ball-joint swivel lightly. Replace cap.
• Oil rod ends sparingly.
• Check all bearing races for correct function.
• Check for oil leaks - rectify before using machine.
STANDARD OPERATION PROCEDURES
• Check the position of the transmission neutral lever, (attached to the transmission bracket). Ensure
lever is in the upright position. If this lever is in the forward position, the transmission is in neutral
& the roller will not operate.
• Inspect and check that the roller is serviceable prior to departing from workshop.
• Use a suitable towing vehicle to move roller from green to green.
• Do not speed when towing roller or travel across rough terrain at excessive speeds. If you do,
damage may occur to the trailer or rubber coated drive roller. Maximum recommended speed
would be equal to a motorized golf buggy. Approximately 4mph / 7kph.
• When approaching the green do not tow roller onto the green to set up; put the roller on the fringe
of the green. Put trailer in the up position, start up the roller and drive it onto the green.
• Carefully select the direction you roll the greens, roll with the undulations not across them; take
care to ensure there are no crease lines produced on the surface.
• It is recommended that you place the smoothing head rollers on the high side of the green when
rolling. This applies more weight on the rubber drive roller and helps give more traction thus less
PRE-OPERATION

11
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
slipping or spinning of the drive roller will occur on or off the green.
• Whilst becoming familiar with the roller, set the throttle at about 1/2 speed. Press the left or right
foot pedal down gently the further the pedal is depressed the faster the roller will travel. Be smooth
with your action. Hold in this position until a short distance from the edge of the green, then take
your foot off the pedal gently until the roller comes to rest. Place your other foot on the opposite
pedal and gently apply pressure on the pedal. The roller will move in the opposite direction. Using
the left and right pedal in this manner, will ensure there is no damage to the green, less wear and
tear on the equipment and operator.
Remember high speed less torque, lowering the speed increases the power output.
• The correct procedure for rolling the green is:
(a) Select the correct direction to roll the green.
(b) Start on one side of the green and work your way across the green in a zigzag fashion,
slightly overlapping each lap you roll: this makes sure you miss no part of the green
and all of the green is rolled. Avoid coming back across the green to roll missed areas
if possible. You should be able to complete the rolling of 18 greens in the same time or
quicker than mowing using a triplex mower.
• When the rolling of the green is completed, move the roller onto the fringe, stop the engine, lock the
trailer into the trailing position, connect it to the towing vehicle then move off to the next green to be
rolled. Do not put the trailer down into the towing position on the green; damage may occur to the
green from the roller tires and body.
POINTS TO REMEMBER
1. Make sure the roller is serviceable before rolling.
2. Start rolling from the fringe of the green.
3. Smooth operation on the foot pedals.
4. Pick a point on the other side of the green to roll to.
5. Do not look at the green close to the roller; it makes it difcult to steer the roller; look well ahead.
6. Use 1/2 throttle until you are procient at operating the roller.
7. Move the steering joystick a little at a time to change direction; excessive movement of the joystick
makes it difcult to travel in a straight line.
8. Roll in straight lines; Zig Zag pattern, the roller is not designed to turn sharp corners.
9. Do not leave the roller engine running with the roller parked on the green; the engine vibration will
cause roller depressions to be left on the green.
10. Move off the green when rolling is complete before putting the trailer in the down position.

12
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
11. When rolling steep greens and the engine stops, check engine oil level. The engine is tted with a
safety switch; when the engine oil level is low the engine will stop.
12. Use oil as recommended by the manufacturer.
13.
CAUTION: Ensure emergency park brake is disengaged during operation. If not damage to the
rubber surface of the drive roller will occur.
MAINTENANCE
* Stop engine before performing any maintenance.
* Service the engine according to the manufacturers maintenance schedule.
*
Check Transmission oil level. The oil in the plastic container on top of the transmission
must be maintained at the level indicated on the container when the transmission is cold.
Important: Do not overll the plastic container, as the oil requires room to expand when hot.
* As a guide to correct transmission oil use Mobil 1 or Penrite Synthetic 5 5W-60
STORING
* It is important to store this roller in the towing position. This ensures the trailer strut is in the
closed position, protecting the shaft from corrosion, then failure.
SERVICE OF DRIVE SYSTEM
* Replacement - Use only the chain and Sprockets recommended.
* Tensioning the drive chain - No adjustment is required, the chain tension is automatically
adjusted.
EMERGENCY & PARK BRAKE
• To engage, push parking lever forward until it will travel no further, the lever operates on a over
cam principal, when it is fully engaged the lever will remain in this position with the brake applied.
To dis-engage the park brake, pull the lever up & back. The lever will remain in the off position until
re-applied.

13
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
MAINTENANCE SCHEDULE
Pre - Delivery
Check Engine Oil X Check Transmission Oil Level X Lubricate drive chain with WD40 or equivalent X Check Tyres Max P.S.I. 15 X Check Gas X Check Smoothing Roller Bearings X Check Drive Roller Bearings X Grease Trailer Arm Pivot Bushes X Check for loose Nuts & Bolts X
Monthly 3 Monthly 6 Monthly 12 Monthly
Renew Engine Oil Renew Transmission Oil (with Mobil 1, 5W-50) Synthetic X (Australia only) Penrite Synthetic 5 SAE, 5W-60 See pg. 1 Renew Smoothin
g
Roller Br
g
s When defective or
X
X
Renew Drive Roller Bearings When defective or X Renew Chain Tensioner Sprocket Bearings As required or X Renew Drive Chain As required or X Replace Foot Pedal Struts When defective Replace Trailer Strut When defective
or when dark in colour
APPLIES TO GR7000C
Pre-operating
X
MAINTENANCE SCHEDULE - ONGOING
fitted with the Eaton 7 Transmission
X X X X X
As per Manufacturers Handbook
Beware of contaminants entering the transmission
X X
LUBRICANTS & REPLACEMENT SCHEDULE

14
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
ROLLER LOOSES POWER OR SLOWS DOWN WHEN OPERATING
Check: * Correct oil is used in transmission (Mobil 1 or equivalent).
* Smoothing Rollers & Drive roller bearings are not seized.
* Drive chain seized.
* Engine problems.
* Faulty transmission.
ROLLER WILL NOT MOVE ONE OR EITHER WAY
Check: * Chain is okay.
* Foot control not operating - check all arms are secure .
* For Sheared Sprocket Key, Engine, Transmission and Drive roller.
* Ensure Transmission neutral lever is in the upright position.
ROLLER WILL NOT STEER
Check: * Joystick locating nut is in place and tight.
* Woodruff Key is in place.
* Rod ends are connected to smoothing roller head and the steering arm.
* Centre swivel bearing on top centre of smoothing rollers has not seized.
ROLLER HAS ExCESSIVE VIBRATION
Check: * Disconnect engine-to-transmission and isolate the drive chain to determine whether
the problem is in the engine or into the transmission.
* If engine is at fault contact your nearest Honda agent for rectication.
* If the transmission is at fault, repair or replace as necessary.
SMOOTHING ROLLERS SEIzED
Check: * Bearing has not seized .
RUBBER DRIVE ROLLER WILL NOT ROTATE
Check: * Roller shaft end bearings have not seized.
* Broken chain.
* Sheared Keys
FAULT FINDING

15
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
MACHINE COMPONENTS
R6008
R6017
R6019
R6037
R5005
G7020
R5007
R6002
R5009
R6036
R6015
R5016
G7019

16
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
R6006
R5129
R5158
R6002
R5159
G7000C
Bottom View
Foot Control
Top View
R5070
R5070
R5068
R5087
R5036
R5039A
R5039
G7001
R5068
R5036A
R5012
R5075
R5012
R8005
R5075
R5164
R8001

17
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
2
2
2
2
'#
2
2
'
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2

18
rollers
GR7000C GOLF GREENS ROLLER - Operation, Maintenance & Parts Manual
R5109
R5033
R5089
R5032
R5031
R5105
R8005
R5164
R5118 R5184 R5172
R5034
R5173
R5108 R5114
R5111
R5170
M8 nut
R5169R5179
R5168
R5090
R5046
R5118
