Tru-Turf RE50 User manual

Results through design, not weight.
OWNERS MANUAL
RE50 GOLF GREENS ROLLER
Original Instructions

EU Authorised Representative:
VeriSafe Compliance Ltd.
77 Lower Camden St
Dublin
DO2 XE80
Ireland
Original Instructions
The products detailed in this manual conform to the
following standards:
Machinery Directive 2006/42/EC, EMC Directive
2014/30/EU & EN ISO 4254-1:2015
CE Declaration available at www.truturf.com
Manual Revision: B
Change Description: Manual updated to CE cert level.
Released: 12/08/2023

Table of Contents
1. Machine Information Record
2. Specifications
3. Safety Information
4. Warranty
5. Pre-Operation Checklist
6. Standard Operation Procedures
7. Transport Lifting
8. Points to Remember
9. Maintenance Schedule
10. Maintenance
11. Safety and Instructional Decals
12. Operating Positions
13. Assembly, Cover, Electric
14. Assembly, Body
15. Assembly, Drive Unit
16. Assembly, Electric Belt Drive
17. Pulley Alignment
18. Assembly, Flex Tube Drive Roller
19. Assembly, Flex Belt Drive Roller
20. Assembly, Steering - Overlapping Heads
21. Assembly, Front Smoothing Head
22. Assembly, Rear Smoothing Head
23. Assembly, Nodule Sweeper, (Short)
24. Assembly, Nodule Sweeper, (Long)
25. Assembly, Pivot Beam
26. Connecting Rods
27. Assembly, Electric Joystick
28. Assembly, Trailer Frame
29. Assembly, Jockey Post
30. Assembly, Trailer Hub
31. Assembly, Seat
32. Options: Kit
33. Options: H-Frame
34. Options: Spiker
35. Options: Slicer
36. Options: Brush
37. Options: Lithium Batteries
38. Harness Loom
39. Motor Controller Fault Codes
40. Troubleshooting: Belts
41. Troubleshooting: Roller
42. Available Spare Parts
Separate electric motor Owner’s Manual can be downloaded from
www.truturf.com

RE50 Owner’s Manual
Machine Information Record
Machine Information - RE50 Golf Green Roller
Serial No. _________________________
Engine No. _________________________
Transmission No. _______________________
Purchase Date No. ______________________
Congratulations on your investment in the RE50 Golf
Greens Roller and your move to smoother, faster,
more consistent putting greens.
The following operation and maintenance manual has
been prepared for use with the RE50 Golf Greens
Roller.
It is intended as a guide and supplemental updates to
the manual may take place at a future date,
without prior notice. For the latest information visit
www.truturf.com
This machine is engineered to be simple to operate and
easy to maintain.
If you have any questions or concerns that this
manual does not address, please feel free to contact
your distributor or email [email protected]
Distributor Information
Name _____________________________
Address _____________________________
_____________________________
Email _____________________________
Phone _____________________________
Fax _____________________________
Each page contains a Table of
Contents hyperlink, lower centre of
page.
4

RE50 Owner’s Manual
Specifications
Motor
!
Type
48V AC Electric
Watts
2500 W - 48V
Engine Cover
Fully enclosed
Battery
Lead Acid - Standard, Lithium – Optional
Transmission
!
Manufacturer
Falk Ultramite
Type
Double reduction helical
Drive Train
Toothed belt
Drive Roller
Rubber coated, non-stick. Flexible, contour following
Direction Control
Fingertip switch
Speed Control
Progressive foot pedal movement, down/up
Operating Speed
0-9 mph (0-15kph)
Steering
Joystick - Light load, directly connected to smoothing
head
Seat
Premium UV protected, with adjustable armrests
Trailer
Integrated, extra heavy duty, folds from rolling
position to transport position
Ground Pressure
3.8 psi (26 kPa)
(Footprint)
!
Smoothing
Heads
2 overlapping, fitted with tri-rollers in each head, no
gap between heads
Rolling Width
(Swath)
50”, (1270mm)
Weight, (no batteries)
765lb (348kg)
Drawbar
!
Lifting weight when
connecting ball style
25lb (11kg)
Drop down leg
Quick release, pin built in Suits Ball style
drawbar only
Tires
18 x 6.50 x 4. 4 ply
Brake
!
Roller
Regenerative - finger switch or foot pedal
Park
Drum brake on roller
Roller Cleaning Nodules
41 independent nodules, adjustable, to
clean debris off smoothing rollers
Optional Equipment
!
Slicer - Quick release!
15 blades, self-rotating on shaft & bearings.
Slice depth up to 7/8”, (22mm)
Spiker - Quick release
30 wheels, self-rotating. SS shaft &
bearings. Spike depth 7/8”, (22mm)
!Brush - Quick release
Sti!or Medium strength bristles available
Pin Hitch
!
Warranty
2 years - Limited manufacturer’s warranty
5

RE50 Owner’s Manual
Safety Information
Safety is of the utmost importance when operating
turf equipment.
To ensure safe operation of the RE50 Golf Greens
Roller, please follow the following safety guidelines.
• Always make a pre-operation inspection before you
start rolling. If this procedure is not carried out,
damage to property or personnel may occur.!
• Keep children, pets and inexperienced personnel away
from the machine. This machine should only be
operated by trained and skilled personnel - check
with your supervisor if you are unsure.
• Know how to stop the machine when in motion. Read
and understand manufacturers manual, as supplied.
• Never permit inexperienced operators to use the
machine. This machine requires certain knowledge
and expertise to operate it; you must be a trained
person to use this machine. Unskilled persons can
harm themselves and others if they operate this
machine.

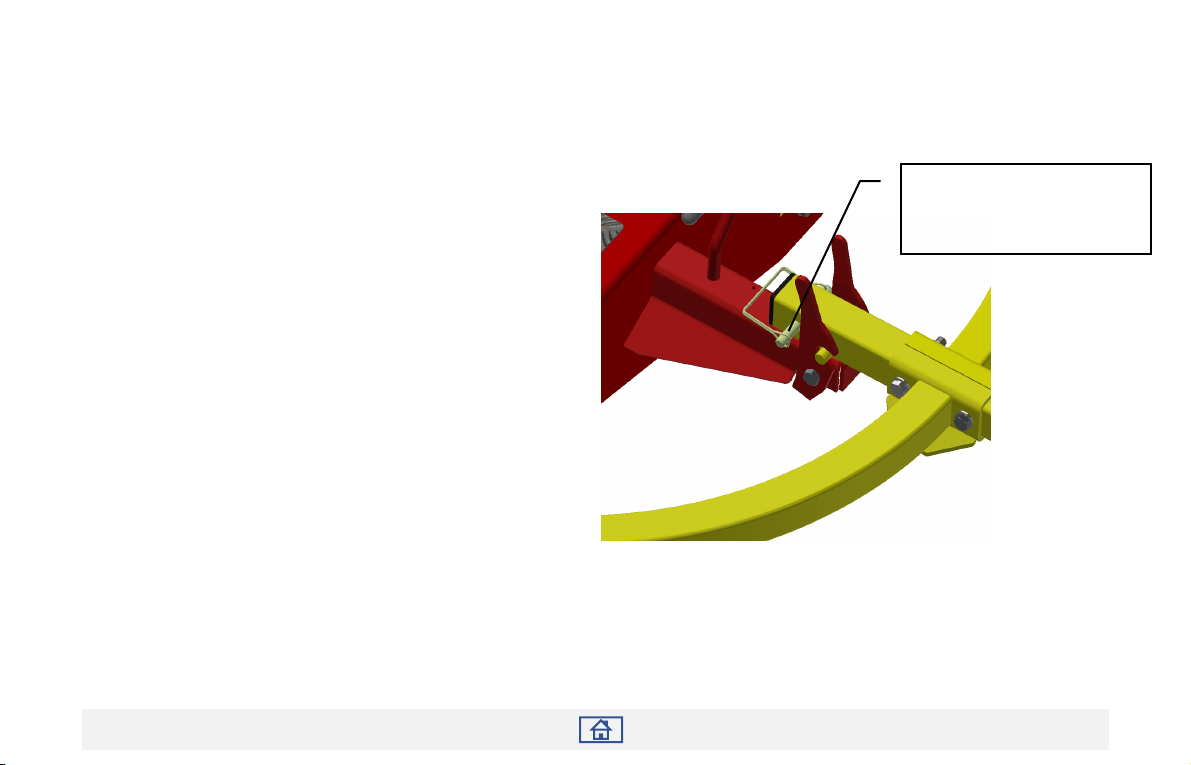

• When transporting the roller or carrying out
maintenance, make sure the trailer lockdown
mechanism is secured by the locking pin to prevent
premature release of the catch.
• If the trailer catch is not correctly engaged while
towing and releases accidentally, the front of the
roller can drop and dig into the ground, causing the
machine to move dangerously in any direction
causing bodily injury and result in damage to the
drive roller and other components.
• When the roller is running, always keep hands and
loose clothing away from rotating shafts, chains,
belts and sprockets in the transmission area.
• It is recommended to wear appropriate person
protection equipment, (PPE), as per local laws.
These may include hearing protection, eyes and
appropriate closed shoes and clothing PPE.
Environmental conditions should also be taken into
consideration.
6

RE50 Owner’s Manual
Safety Information
• If hair, clothing, or loose objects become entangled
on a rotating shaft, serious bodily injury could
occur. Always stop engine before opening safety
cover.
• Never ride on the machine when machine is being
towed.
Operator: remember it is your responsibility to be
aware of your surroundings.
To avoid accidents, think safe and operate safe.
7

RB48 Owner’s Manual
Safety Information
8
IMPORTANT EU MACHINERY DIRECTIVE INFORMATION
SAFETY WARNINGS
Hearing Protection.
Hearing protection to be worn whilst operating this
machine.
Read Operator’s Manual.
Only personnel that have read and fully understood the Operator’s
Manual should operate this equipment.
Keep Bystanders Away.
The operator should ensure that bystanders are not in the
immediate vicinity of the machine when it is in use.
Machine Rollover.
Do not use this machine on slopes greater than 10 degrees.

RB48 Owner’s Manual
Safety Information
9

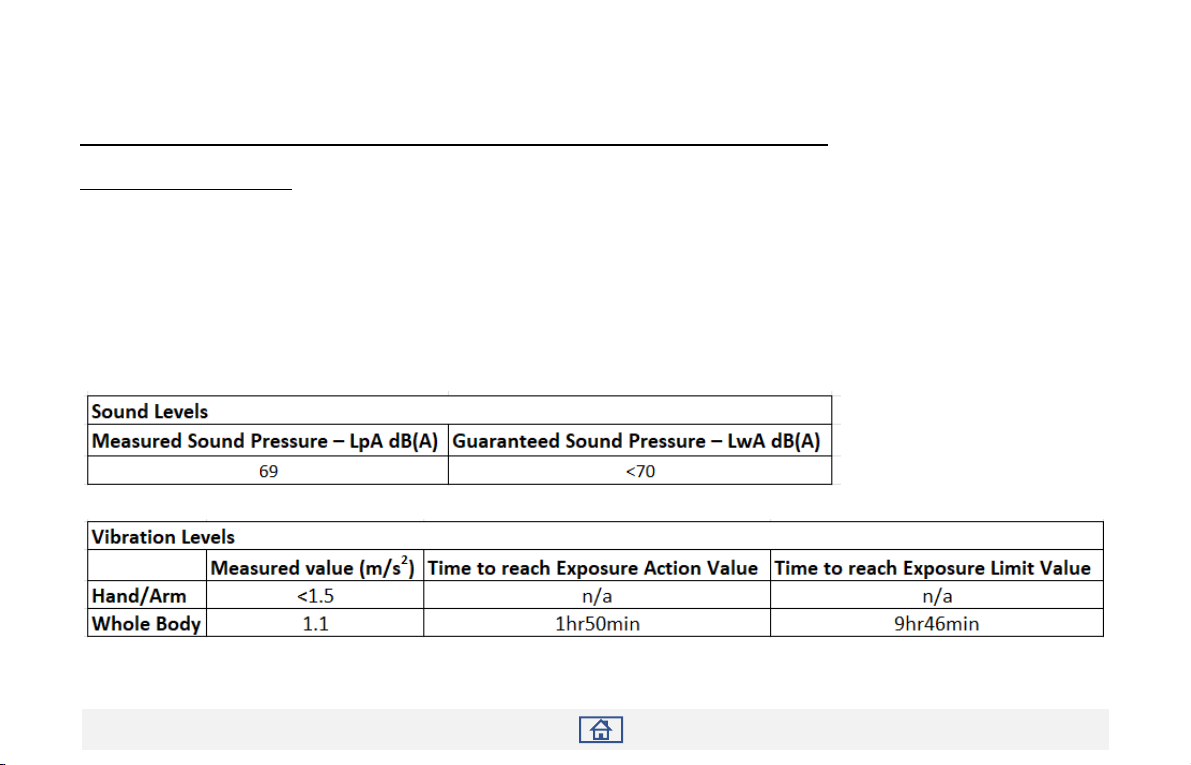

Readings taken at full power
SOUND AND VIBRATION LEVELS
The sound and whole body/hand/arm vibration levels are shown below. Please take note of the levels and
determine appropriate operator actions, (wearing hearing protection and/or limiting the time of use when
operating the machinery).
IMPORTANT EU MACHINERY DIRECTIVE INFORMATION
SAFETY WARNINGS

RE50 Owner’s Manual
Warranty
Conditions and Products Covered
Tru-Turf warrant your Tru-Turf Roller to be free from
defects in materials or workmanship for two years or
1550 operational hours*, whichever occurs first.
This warranty is applicable to all products. Where a
warrantable condition exists, we will repair the product
at no cost to you including diagnostics, labor, and parts.
This warranty begins on the date the product is
delivered to the original retail purchaser.
*Product to be equipped with an operating hour meter
fitted.
Claiming Warranty Service
You are responsible for notifying the products distributor
or authorized products dealer from whom you purchased
the product as soon as you believe a warrantable
condition exists. If you need help locating a products
distributor or authorized dealer, or if you have questions
regarding your warranty rights or responsibilities, you
may contact us at:"
Tru-Turf Service Department
Tru-Turf Pty Ltd
16/6 Energy Circuit, Robina
Queensland 4221, Australia
PH+61 7 5594 7199
E-mail: [email protected].
Owner Responsibilities
• As the product owner, you are responsible for
required maintenance and adjustments stated in
your operator’s manual. Failure to perform required
maintenance and adjustments can be grounds for
disallowing a warranty claim.
10

RE50 Owner’s Manual
Warranty
Items and Conditions Not Covered
Not all product failures or malfunctions that occur
during the warranty period are defects in materials or
workmanship. This warranty does not cover the
following:
• Product failures which result from the use of non-
Tru-Turf replacement parts, or from installation and
use of add-on, or modified non-Tru-Turf branded
accessories and products.
• Product failures which result from failure to perform
recommended maintenance and/or adjustments.
Failure to properly maintain your Tru-Turf roller per
the Recommended Maintenance listed in the
Operator’s Manual can result in claims for warranty
being denied.
• Product failures which result from operating the
Product in an abusive, negligent, or reckless
manner.
• Parts subject to consumption through use unless
found to be defective. Examples of parts which are
consumed, or used up, during normal Product
operation include, but are not limited to, brakes pads
and linings, slicers, spiker tines, tires, filters, belts,
springs, sprockets, chains, bearings and pulleys.
• Failures caused by outside influence. Items
considered to be outside influence include, but are not
limited to, weather, storage practices, contamination,
use of unapproved lubricants or additives, etc.
•Normal noise, vibration, wear and tear, and
deterioration.
• Normal “wear and tear” includes, but is not limited
to, damage to seats due to wear or abrasion, worn
painted surfaces or scratched decals.
11

RE50 Owner’s Manual
Warranty
• Specific component parts supplied to Tru-Turf by
OEM suppliers are covered by that supplier’s
Warranty. These parts and components include
but are not limited to, Eaton Transmissions,
Honda Engines, Sevcon Controllers, Foot Pedal
& Trailer Arm Struts, Curtis Controllers &
Electronic Foot Pedals, Toggle Switch, Rexnord
Gearboxes & Electric Motors, Seats, Drive
Rollers, Hour Meter, Rod Ends, Lights, Hood,
Transmission Cover, Fan, Rubber Coupling."
Parts
Parts scheduled for replacement as required
maintenance are warranted for the period up to the
scheduled replacement time for that part. Parts
replaced under this warranty are covered for the
duration of the original product warranty and the
removed parts become the property of Tru-Turf. Tru-
Turf will make the final decision whether to repair any
existing part or assembly or replace it. Tru-Turf may
use remanufactured parts for warranty repairs.
Note Regarding Deep Cycle Battery Warranty:
•Deep cycle batteries have a specified total number of
kilowatt-hours they can deliver during their lifetime.
Operating, recharging, and maintenance techniques
can extend or reduce total battery life. As the batteries
in this product are consumed, the amount of useful
work between charging intervals will slowly decrease
until the battery is completely worn out.
• Replacement of worn-out batteries, due to normal
consumption, is the responsibility of the product owner.
Battery replacement may be required during the
normal product warranty period at owner’s expense.
Maintenance is at Owner’s Expense
Maintenance of your Tru-Turf roller is to be conducted
as per the owner’s manual for your Tru- Turf product at
the owner’s expense.
12

RE50 Owner’s Manual
Warranty
General Conditions
Repair by an Authorized Tru-Turf Distributor or Dealer is
your sole remedy under this warranty.
Tru-Turf is not liable for indirect, incidental or
consequential damages in connection with the
use of the Tru-Turf Products covered by this
warranty, including any cost or expense of
providing substitute equipment or service during
reasonable periods of malfunction or non-use
pending completion of repairs under this
warranty. Except for the Emissions warranty
referenced below, if applicable, there is no other
express warranty.
All implied warranties of merchantability and fitness
for use are limited to the duration of this express
warranty. Some states/ countries do not allow
exclusions of incidental or consequential damages,
or limitations on how long an implied warranty lasts,
so the above exclusions and limitations may not
apply to you.
This warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state and country to country.
13

RE50 Owner’s Manual
Pre-Operation Checklist
❑Check that the batteries are fully charged."
❑Ensure steering joystick has no looseness. "
❑Check that foot pedal depresses under normal foot
pressure."
❑Ensure that the draw bar locking catch mechanism is
securely locked to the main draw bar and the safety pin
is fitted when trailing the roller."
❑Check and tighten grub screws fitted to the end bearing
lock rings on the rubber coated drive roller and the
spiker shaft bearings, (if fitted), and pivot bearings on
each smoothing head.!"
❑Lightly grease bearings fitted to drive roller, spiker
shaft, (if fitted), and smoothing head pivot bearings.
Replace plastic caps if missing."
❑Oil rod ends, sparingly."
❑Check tire pressure for proper operating pressure
(18-24psi). Do not over inflate."
❑Pre-check all nuts, bolts, grub screws for tightness
prior to operating machine."
❑Understand the operating procedures and the controls
before operating. "
❑Ensure you check with the battery manufacturer for
service and care instructions of your batteries
14

RE50 Owner’s Manual
Standard Operation Procedures
1. Inspect and check that the roller is serviceable prior to
departing from the workshop. Ensure the batteries are fully
charged.
2. Use a suitable towing vehicle to move the roller from green
to green.
3. Maximum recommended towing speed would be equal to
a motorized golf buggy, i.e., approximately 10-12mph/
19-19kph. Towing at excess speed or across rough terrain
may cause damage to the machine and trailer.
4. When approaching the green do not tow the roller onto
the green to set up, put the roller on the fringe of the
green. Put trailer in the up position, switch on the roller
and drive it onto the green.
5. Greens can be rolled in any direction; take care to ensure
there are no crease lines produced on the surface.
6. It is recommended that you place the smoothing head
rollers on the high side of the green when rolling. This
increases the weight onto the rubber drive roller and
creates better traction, it also reduces slipping or
spinning of the drive roller on the green, depending on
the operator’s ability.
7. To drive, switch the key to the ON position. Select the
direction of travel with the 2-way switch that is fitted on the
top of the joystick. To travel left push the switch to the left,
to travel to the right press the switch to the right. After
selecting the direction of travel depress the foot pedal
down until you have reached your desired operating
speed. Changing directions, can be done on the fly.
The roller will gently come to a stop under regenerative
braking and then gently take off in the opposite
direction until it reaches the chosen speed or full
speed. The other method of operation is to use the
accelerator pedal to slow down to a stop, change
direction with the switch then accelerate off in the
opposite direction. To s t o p , t a k e y our foot o!the foot
pedal and the machine will automatically come to a stop.
8. Adjusting position of the accelerator pedal:
a) Loosen the two bolts located at the rear outer
corners of the foot pedal assembly, do not fully
remove the bolts.
b) Slide the foot pedal assembly towards the front
or rear until you find the most comfortable
position to suit your leg and foot.
15

RE50 Owner’s Manual
Standard Operation Procedures
9. The correct procedure for rolling the green is:
a) Select the correct direction to roll the green, remember
this roller can roll the greens in all directions.
b) Start on one side of the green and work your way across
the green in a zigzag fashion, slightly overlapping each
lap you roll: this makes sure you don’t miss any part of
the green and all of the green is rolled. Avoid coming
back across the green to roll missed areas if possible.
You should be able to complete the rolling of 18 greens
in the same time or quicker than by mowing, using a
triplex mower on a single charge.
10.When rolling of the green is completed, move the roller
onto the fringe, switch o!the ignition, lock the trailer into
the towing position, connect it to the towing vehicle then
move o!to the next green to be rolled.
11. When using the pin hitch style drawbar, the following 3
points must be adhered to.
a) Ensure that the hole size in the tow hitch fitted to the
towing vehicle is at least 3/8” (10mm) larger in
diameter than the pin size fitted on the roller draw
bar hitch.
b) When towing forwards or reversing, be sure that the
roller is not put into a jack-knifed position as damage
to the pin hitch will occur.
c) Do not cross excessively steep hills or dips where
the tow hitch pin may gouge the turf and damage
the drive roller.
12. Keep the roller on the greens surface. It is not
necessary to roll onto the collars or fringes.
13. The operator needs to become familiar with the
timing required to stop and the distance required
to do so at the speed being travelled,
remembering that the roller is quite heavy.
14. There is a park brake fitted to the roller. This is to
be used only in an emergency or when parking
or leaving the machine on an incline. The park
brake should not be used in the normal
operation of the roller.
Do not put the trailer down into the towing
position on the green; damage may occur to the
green from the roller tires and body.
16

RE50 Owner’s Manual
Standard Operation Procedures
Park Brake
The park brake lever operates on an over-centre
principal.
To engage the park brake, pull the park brake
lever fully up and back.
The park brake lever will remain in this on position.
To disengage the park brake, push the park brake
lever fully forward and down.
The park brake lever will remain in this off
position.
Important: Always operate the roller with the park
brake off!
Caution: Do not operate the roller with the park
brake engaged as this will damage park brake
components.
When stopping and before getting off the
machine always apply the Park Brake.
Towing
17
Ensure that the safety pin
is correctly fitted in place,
before towing commences.

RE50 Owner’s Manual
Transport lifting
Sling here
(around pivot axle)
Sling here
(around channel)
Sling here
(around pivot axle)
WARNING: The lift points shown in the
diagram, must only be used to lift the
machine to carry out transport lifting.!It is not
permitted to carry out maintenance whilst
the roller is hanging from the slings.
18

RE50 Owner’s Manual
Points to Remember
• Ensure batteries are fully charged.
• Make sure the roller is serviceable before rolling.
• Start rolling from the fringe of the green.
• Pick a point on the other side of the green to roll to.
• Do not look at the green close to the roller, it makes it
difficult to steer the roller straight. Look well ahead.
• Use 1/2 throttle until you are proficient at operating the
roller.
• Once you choose your rolling line hold the joystick
steady, correcting direction gently as required.
• Move the steering joystick a little at a time to change
direction; excessive movement of the joystick makes it
difficult to maintain a straight line.
• Roll in straight lines.
• Move off the green when rolling is complete before
putting the trailer in the down position.
• Extra effort maybe required to raise the roller off the
ground into its towing position. An optional extension
bar is available for purchase to extend the drawbar
length. Once fitted, it is stored on the drawbar using
the spring clip. This extra length added the drawbar
gives the operator more mechanical advantage,
making it easier to raise the roller into its towing
position.
19

RE50 Owner’s Manual
Maintenance Schedule
Ongoing Maintenance, Replacement Schedule
and Lubricant (See chart).
Note. Areas indicated with a * need to be
changed when defective or as required. This may
be before the recommended replacement
schedule.
Please replace all parts, as necessary.
Description
Pre-Delivery
Pre-Operating
Monthly
12 Monthly
Check tires max 18 psi
√
√
!
!
Check smoothing roller bearing
!√
√
√
Check drive roller bearings
!√
√
√
Check for loose nuts and bolts
!√
√
!
Renew smoothing roller bearings
!*
!
√
Renew drive roller bearings
!*
!
√
Replace trailer strut
!*
!
as required
Check drive belts
√
√
20
