True TD-95-38-LT User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • Fax [phone] • [phone] • Intl Fax# [phone]
Parts Dept. (800)424-TRUE • Parts Dept. Fax# [phone] • www.truemfg.com
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS: AVAILABLE AT:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
.S.A.
TM
U.S.A.
TD-95-38-LT
TD-95-38-LT
Model Lids
Capacity
Bin
Dividers
Cabinet Dimensions
(inches)
(mm)
LD
†HHP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
12 oz.
Btls.
12 oz.
Cans
TD-95-38-LT 3 371/2
cases
55
cases
795
3/8
2423
265/8
677
333/8
848
1/2115/60/1 11.0 5-15P 9
2.74
455
207
†Depth does not include 11/2"(39 mm) for cap catchers and 1" (26 mm) for rear bumpers.
note: 12oz. bottles refers to 12 oz. longneck bottles.
1/07
True’s horizontal bottle coolers are
designed with enduring quality and
value. Our commitment to using
the highest quality materials and
oversized refrigeration assures colder
product temperatures and years of
trouble free service.
Oversized, factory balanced,
refrigeration system holds 20°F
(-6.6°C). For applications with high
ambient temperatures. Designed for
full alcoholic beverages only. Note;
some low alcohol products freeze
below 32°F (0°C).
Forced-air cooling. Positively guided
airflow cools bottles on top first.
Evaporator coil virtually runs length
of cooler for balanced temperatures
throughout the cabinet.
Exterior - all stainless steel
countertop and lids, heavy duty,
wear resistant laminated black vinyl
front and sides, matching black
aluminum back.
Interior - long lasting, heavy duty
galvanized steel.
Evaporator is epoxy coated to
eliminate the potential of corrosion.
Entire cabinet structure is foamed-
in-place using high density, CFC free,
polyurethane insulation.
Heavy duty, 10 mil thick pure grade
PVC coated adjustable bin dividers.
Removable, bottle cap openers and
cap catchers.
Deep Well Horizontal Bottle Cooler:
Low Temperature - Solid Lid
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • Fax [phone] • [phone] • Intl. Fax# [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

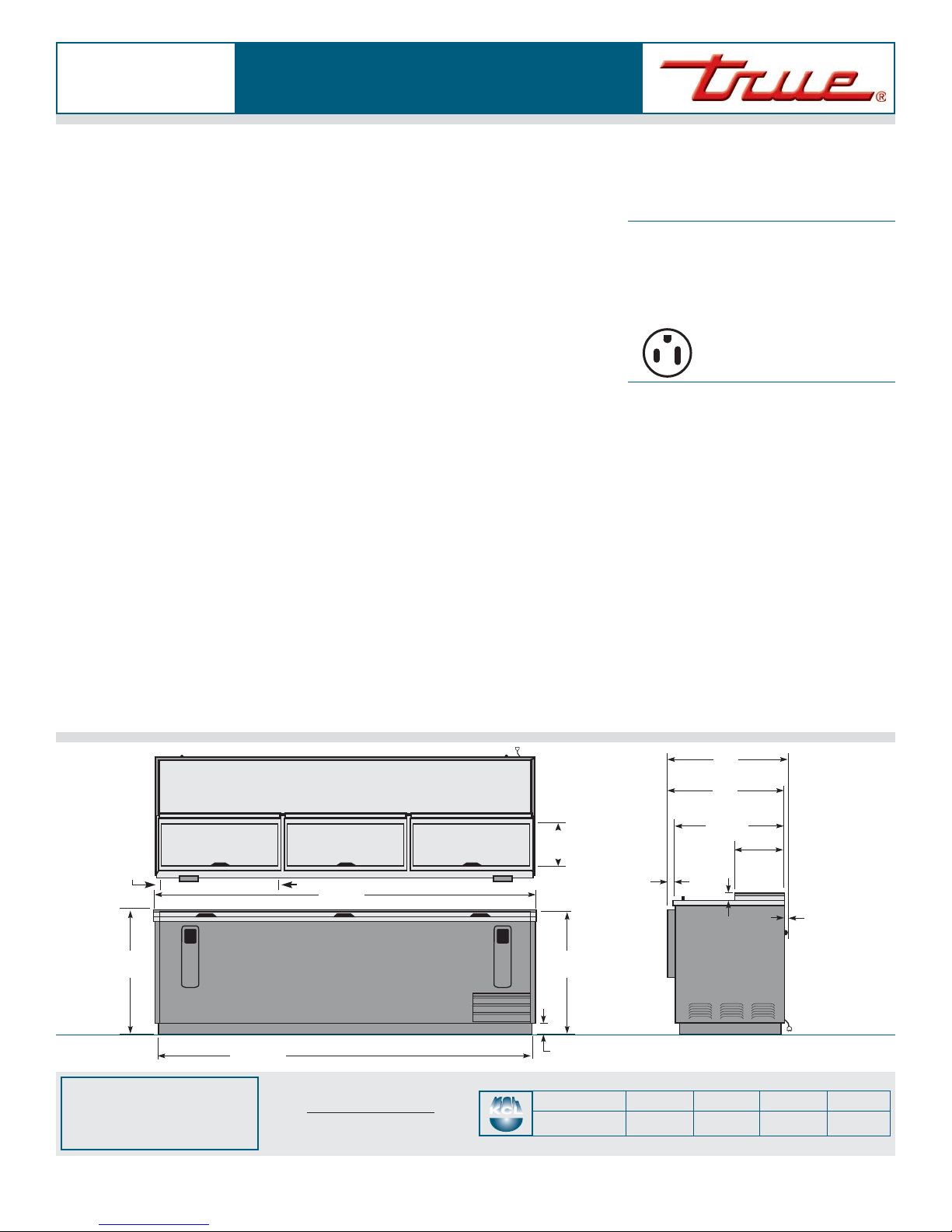

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TD-95-38-LT TFKY01E TFKY01S TFKY01P TFKY013
TD-95-38-LT
DESIGN
• True’s horizontal bottle coolers are
designed with enduring quality
and value. Our commitment to
using the highest quality materials
and oversized refrigeration assures
colder product temperatures and
years of trouble free service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
R404A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser.
• Maintains 20°F (-6.6°C) for
applications with high ambient
temperatures. Designed for full
alcoholic beverages only. Note;
some low alcohol products freeze
below 32°F (0°C).
• Sealed, cast iron, self-lubricating
evaporator fan motor(s) and larger
fan blades give True merchandisers
a more efficient low velocity, high
volume airflow design. This unique
design insures colder standard
temperatures and faster recovery in
high use situations.
• Condensing unit accessed from
behind front grill, slides out for
easy maintenance.
• Automatic defrost system time-
initiated, time-terminated.
• Forced-air cooling. Positively
guided air flow cools bottles on
top first. Evaporator coil virtually
runs length of cooler for balanced
temperatures throughout the
cabinet.
CABINET CONSTRUCTION
• Exterior - all stainless steel
countertop and lids, heavy duty,
wear resistant laminated black vinyl
front and sides, matching black
aluminum back.
• Interior - long lasting, heavy duty
galvanized steel.
• Insulation - entire cabinet structure
is foamed-in-place using high
density, CFC free, polyurethane
insulation.
• Welded, heavy duty galvanized
base rail dipped in rust inhibiting
enamel paint for corrosion
protection inside and out.
• Removable, bottle cap openers and
cap catchers.
BIN DIVIDERS
• Seven (7) heavy duty, 10 mil thick
pure grade PVC coated adjustable
bin dividers to maximize storage.
MODEL FEATURES
• Evaporator is epoxy coated
to eliminate the potential of
corrosion.
ELECTRICAL
• Unit completely pre-wired at
factory and ready for final
connection to a 115/60/1 phase - 15
amp dedicated outlet. Cord and
plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/flanged legs.
❒ 21/2" (64 mm) diameter rail castors.
❒ 3" (77 mm) diameter rail castors.
❒ Ratchet locks and handles. Requires
one per lid.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION
Deep Well Horizontal Bottle Cooler:
Low Temperature Solid Lid
955/16"
(2421 mm)
925/8"
(2353 mm)
333/8"
(848 mm)
31/16"
(78 mm)
RIGHT VIEW
17/16"
(37 mm)
123/4"
(324 mm)
269/16"
(675 mm)
1"
(26 mm)
28"
(712 mm)
29"
(737 mm)
313/8"
(797 mm)
2"
(51 mm)
87/8"
(226 mm)
273/4"
(705 mm)
