True THF-41AL User manual

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).
ROUGH-IN DATA
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366
[phone] • FAX [phone] • [phone] • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# [phone]
Model:
TRUE FOOD SERVICE
EQUIPMENT, INC.
Project Name:
Location:
Item #: Qty:
Model #:
AIA #
SIS #
Printed in U.S.A.
APPROVALS:
T RUE R EFRIGERATION
MADE IN
SINCE 1945
U.S.A.
TM
THF-41AL
THF-41AL
7/05
R
True’s horizontal freezers are
uniquely designed to promote
high-profit frozen products in
high impulse retail traffic areas.
Ideal for bolstering incremental
sales increases of frozen
merchandise and seasonal
specialties.
Cold wall, environmentally
friendly (134A) refrigeration
system. Maintains -10°F
(-23.3°C), ideal for both ice
cream and frozen food.
Exterior - non-peel or chip
white laminated vinyl with
black trim, durable and
permanent.
Interior - NSF approved, white
aluminum with 300 series
stainless steel floor.
Tempered, hard coated,
“Low-E” glass slide lid. Reduces
solar heat gain, enhances
energy efficiency and minimizes
condensation.
Locks standard, provide security,
prevents theft.
Convenient defrost drain.
11/2" (39 mm) dual swivel
castors.
Horizontal Freezer:
Glass Angled Lid
Model Doors
Capacity
(Cu. Ft.)
(liters)
Cabinet Dimensions
(inches)
(mm)
LDH
*HP Voltage Amps
NEMA
Config.
Cord
Length
(total ft.)
(total m)
Crated
Weight
(lbs.)
(kg)
THF-41AL 2
270
9.5 41
1042
253/4
655
337/8
861
1/3 115/60/1 5.6 5-15P 8
2.4
205
93
*Height does not include 21/8" (54 mm) for castors.
®

STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
St. Charles Industrial Center • P.O. Box 970 • O’Fallon, Missouri 63366 • [phone] • FAX [phone] • [phone] • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

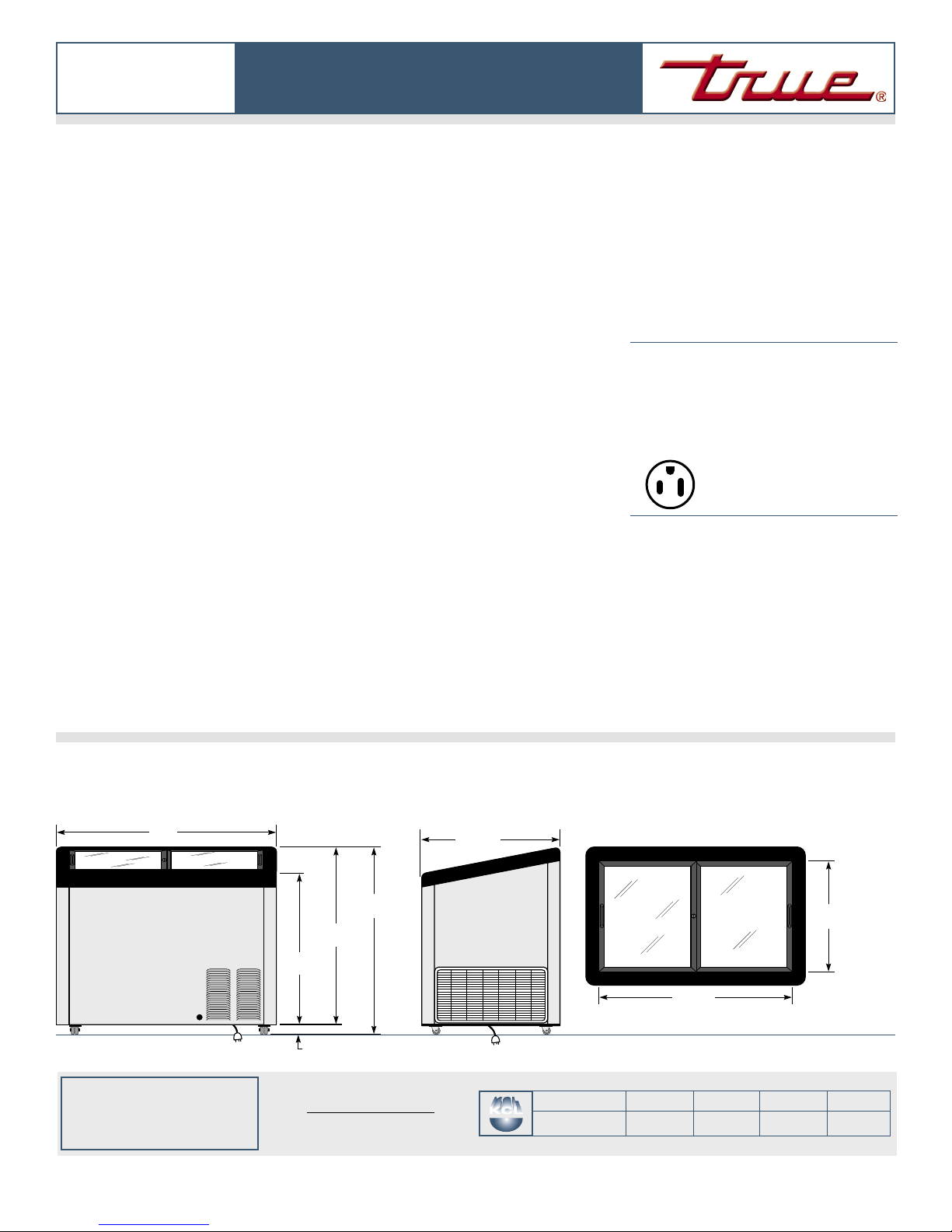

PLAN VIEW
KCL
Model Elevation Right Plan 3D
357/8"
(912 mm)
THF-41AL
Horizontal Freezer:
Glass Angled Lid
THF-41AL TFEY48E TFEY48S TFEY46P TFEY483
DESIGN
• True’s horizontal freezers are
uniquely designed to promote
high-profit frozen products in high
impulse retail traffic areas. Ideal
for bolstering incremental sales
increases for frozen merchandise
and seasonal specialties.
REFRIGERATION SYSTEM
• Factory engineered self-contained,
capillary tube system using
environmentally friendly (CFC
free) 134A refrigerant.
• Cold wall refrigeration system
maintains -10°F (-23.3°C) cabinet
temperature, ideal for both ice
cream and frozen food.
• Condensing unit is accessed from
behind grill on right side; slides
out for easy maintenance.
• Manual defrost system; convenient
drain located on front of cabinet.
CABINET CONSTRUCTION
• Exterior - non-peel or chip white
laminated vinyl; durable and
permanent; with black trim.
• Interior - attractive, NSF approved,
white aluminum liner; non-rust,
peel or chip. 300 series stainless
steel floor.
• Insulation - entire cabinet
structure is foamed-in-place
using high density, CFC free,
polyurethane insulation.
• 11/2" (39 mm) diameter dual swivel
castors permit easy placement.
GLASS SLIDE LIDS
• Tempered, hard coated, “Low-E”
Single pane glass slide lid,
assemblies reduce solar heat gain
and minimize condensation.
• Designed for convenient access,
fast service and attractive display.
• Door locks standard.
MODEL FEATURES
• Self-contained, portable system.
No plumbing required.
• Low profile design permits easier
placement, saves aisle space.
• Interior mounted temperature
monitor.
• Listed under NSF-7 for the storage
and/or display of packaged or
bottled product.
ELECTRICAL
• Unit completely pre-wired at
factory and ready for final
connection to a 115/60/1
phase - 15 amp dedicated outlet.
Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ Black vinyl exterior. See our
website www.truemfg.com for the
latest color offerings.
❒ Heavy duty novelty baskets
(accommodates three).
❒ Dividers for novelty baskets.
115/60/1
NEMA-5-15R
RIGHT VIEW
3313/16"
(859 mm)
ELEVATION
41"
(1042 mm)
21/16"
(53 mm)
3431/32"
(889 mm)
PLAN VIEW
1831/32"
(482 mm)
TRUE
297/8"
(759 mm)
253/4"
(655 mm)
