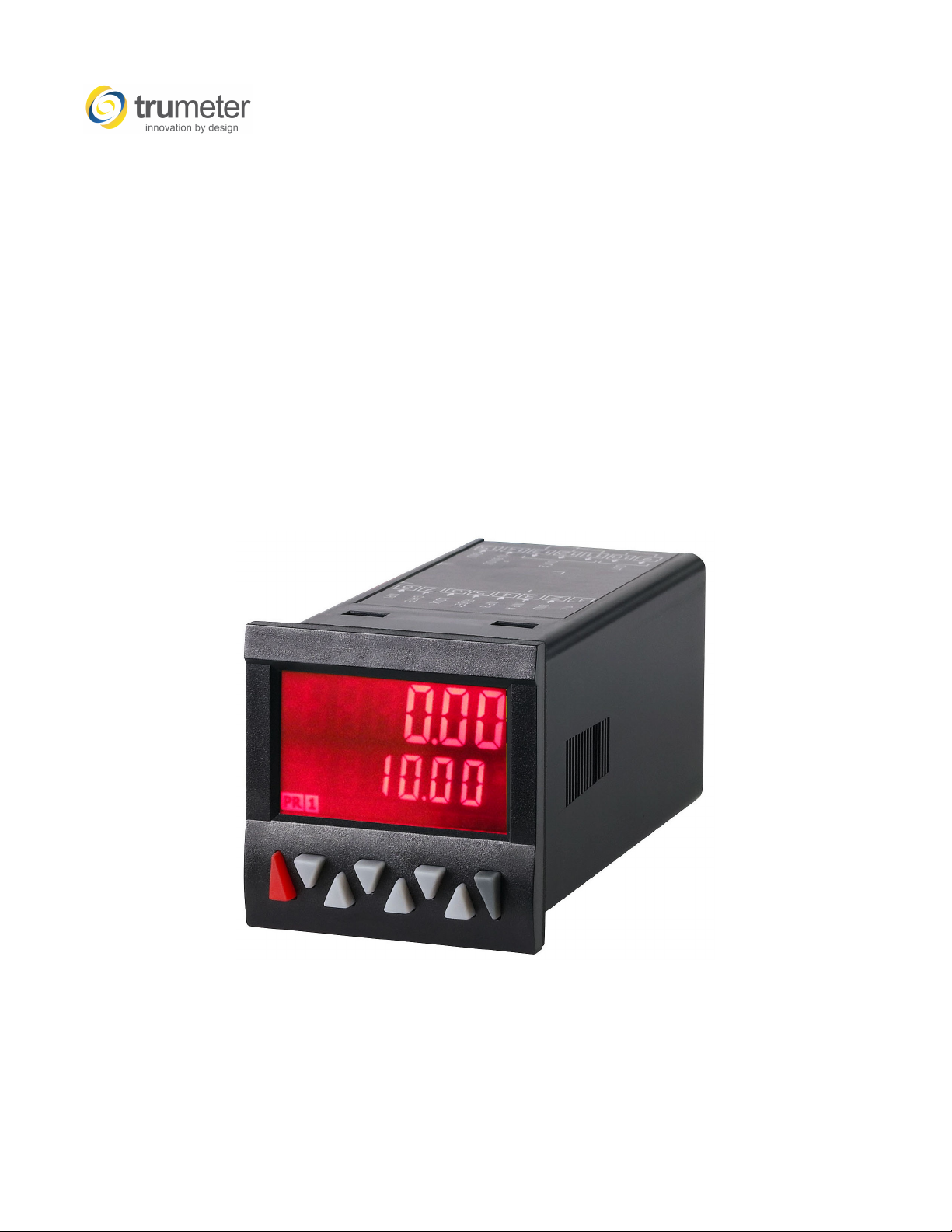

Trumeter 924K User manual

924K
Electronic Preset Counter with two presets
Installation and Operating Instructions
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 3
www.kuebler.com Seite 2
Table of Contents
1 Preface 4
2 Safety Instructions and Warnings 4
2.1 Use according to the intended purpose 4
2.2 Mounting in a control panel 4
2.3 Electrical Installation 4
3 Description 5
4 Display/Operating elements 5
5 Inputs 5
5.1 INP A, INP B 5
5.2 RESET 5
5.3 GATE 5
5.4 LOCK INPUT 5
5.5 MPI 5
6 Outputs 6
6.1 Output 1 6
6.2 Output 2 6
6.3 Active Outputs 6
7 Programming 6
7.1 Entering the programming 6
7.2 Choice of main menus 6
7.3 Entering a sub-menu 6
7.4 Selecting the menu items 6
7.5 Setting the menu items 6
7.6 Accepting the setting 6
7.7 Ending the programming 6
7.8 Programming Menu 7
7.8.1 Default parameters 7
7.8.2 Table: Parameter Sets 7
7.8.3 Setting the Basic Function 7
7.8.4 Pulse Counter 8
7.8.5 Tacho/Frequency meter 10
7.8.6 Timer 12
7.9 Setting the presets 16
7.9.1 Setting via Decade Keys 16
7.9.2 Setting with Teach-In Function 16
7.9.3 Setting the tracking presets 16
7.10 Set Function 16
8 Error message 16
9 Connections 17
9.1 Signal and Control Inputs 17
9.2 Supply voltage and Outputs 17
9.2.1 Version with relays 17
9.2.2 Version with Optocouplers 17
10 Technical Data 17
10.1 General Data 17
10.2 Pulse counter 17
10.3 Tacho/Frequency meter 17
10.4 Timer 18
10.5 Signal and Control inputs 18
10.6 Outputs 18
10.7 Supply voltage 18
10.8 Sensor supply voltage 18
www.kuebler.com Seite 3
10.9 Climatic Conditions 18
10.10 EMC 18
10.11 Device safety 18
10.12 Mechanical Data 18
10.13 Connections 18
11 Scope of Delivery 19
12 Ordering codes 19
13 Frequencies (typical) 20
13.1 Pulse counter 20
13.2 Frequency meter 20
14 Input modes: Pulse counting 21
15 Input modes: Timing 23
16 Input modes: Frequency meter 24
17 Output operations 25
18 Dimensional Drawings 27
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 4
www.kuebler.com Seite 4
1 Preface
Please read this instruction manual
carefully before installation and start-up.
Please observe all warnings and
advice, both for your own safety and for
general plant safety. If the device is not
used in accordance with this instruction
manual, then the intended protection
can be impaired.
2 Safety Instructions and
Warnings
Please use the device only if its
technical condition is perfect. It should
be used only for its intended purpose.
Please bear in mind safety aspects and
potential dangers and adhere to the
operating instructions at all times.
2.1 Use according to the intended
purpose
The preset counter 924 detects and measures
pulses, times and frequencies up to max. 60 kHz
and offers a wide variety of different operating
modes. At the same time, the preset counter
processes programmed presets. Use for any
purpose over and beyond this will be deemed as
not in accordance with its intended purpose and
thus not complying with the requirements.
The application area for this device lies in industrial
processes and controls, in the fields of
manufacturing lines for the metal, wood, plastics,
paper, glass, textile and other like industries. Over-
voltages at the terminals of the device must be kept
within the limits of Over-voltage Category II.
The device must only be operated when mounted
in a panel in the correct way and in accordance
with the section “Technical Data”.
Correct operation of the device requires the
mandatory use of the appropriate external safety
fuse. Advice concerning the recommended fuse-
protection can be found under “Technical Data”.
The device is not suitable for use in hazardous
areas and for areas excluded in EN 61010 Part 1.
If the device is used to monitor machines or
processes in which, in the event of a failure of the
device or an error made by the operator, there
might be the risk of damaging the machine or
causing an accident to the operators, then it is your
responsibility to take the appropriate safety
measures.
2.2 Mounting in a control panel
CAUTION
Mount the device away from heat
sources and avoid direct contact
with corrosive liquids, hot steam or
similar.
Mounting instructions
1. Remove mounting clip from the device.
2. Insert the device from the front into the panel
cut-out, ensuring the front-panel gasket is
correctly seated.
3. Slide the fixing clip from the rear onto the
housing, until the spring clamps are under
tension and the upper and lower latching lugs
have snapped into place.
2.3 Electrical Installation
DANGER
The device must be disconnected
from the power supply, before any
installation or maintenance work is
carried out. AC-powered devices
must only be connected to the low-
voltage network via a switch or
circuit breaker.
Installation or maintenance work
must only be carried out by qualified
personnel.
Advice on noise immunity
All connections are protected against external
sources of interference. The installation location
should be chosen so that inductive or capacitive
interference does not affect the device or its
connecting lines! Interference ( e.g. from switch-
mode power supplies, motors, clocked controllers
or contactors) can be reduced by means of
appropriate cable routing and wiring.
Measures to be taken:
Use only shielded cable for signal and control lines.
Connect cable shield at both ends.
The conductor cross-section of the cables should
be a minimum of 0.4 mm².
The shield connection to the equipotential bonding
should be as short as possible and with a contact
area as large as possible (low-impedance).
Only connect the shields to the control panel, if the
latter is also earthed.
Install the device as far away as possible from
noise-containing cables.
Avoid routing signal or control cables parallel to
power lines.
Cables and their insulation should be in accordance
with the intended temperature and voltage ranges.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 5
www.kuebler.com Seite 5
3 Description
6-digit multifunction LCD display
Easy-to-read 2-line LCD-display with annunciators
for both the displayed preset and the status of the
two outputs
Simultaneous display of the actual value and of the
presets or auxiliary counters
Versions with/without backlit display
Add./Sub. Preset counter with two presets
Relay or optocoupler outputs
Easy-to-program
Simple preset entry via the front keys or via the
Teach-In function
Step or tracking preset
Pulse, frequency, time or batch counter
Preset counter, Batch counter or Total Counter
(cumulative count)
Set function for pulse and time counter
Multiplication and division factor (00.0001 ..
99.9999) for pulse counter and frequency meter
Averaging and Start Delay for frequency meter
Input modes:
Pulse counter: cnt.dir , up.dn , up.up , quad ,
quad2 , quad4 , A/B , (A-B)/Ax100%
Frequency meter: A , A – B , A + B , quad , A/B ,
(A-B)/Ax100%
Timer: FrErun , Auto , InpA.InpB , InpB.InpB
Output operations:
Add , Sub , AddAr, SubAr , AddBat , SubBat ,
AddTot , SubTot , Trail , TrailAr
4-stage RESET-Mode
3-stage keypad locking (Lock)
MPI input for Display Latch, Teach-In function or
Set function
Supply voltage 90 .. 260 VAC or
10 .. 30 VDC

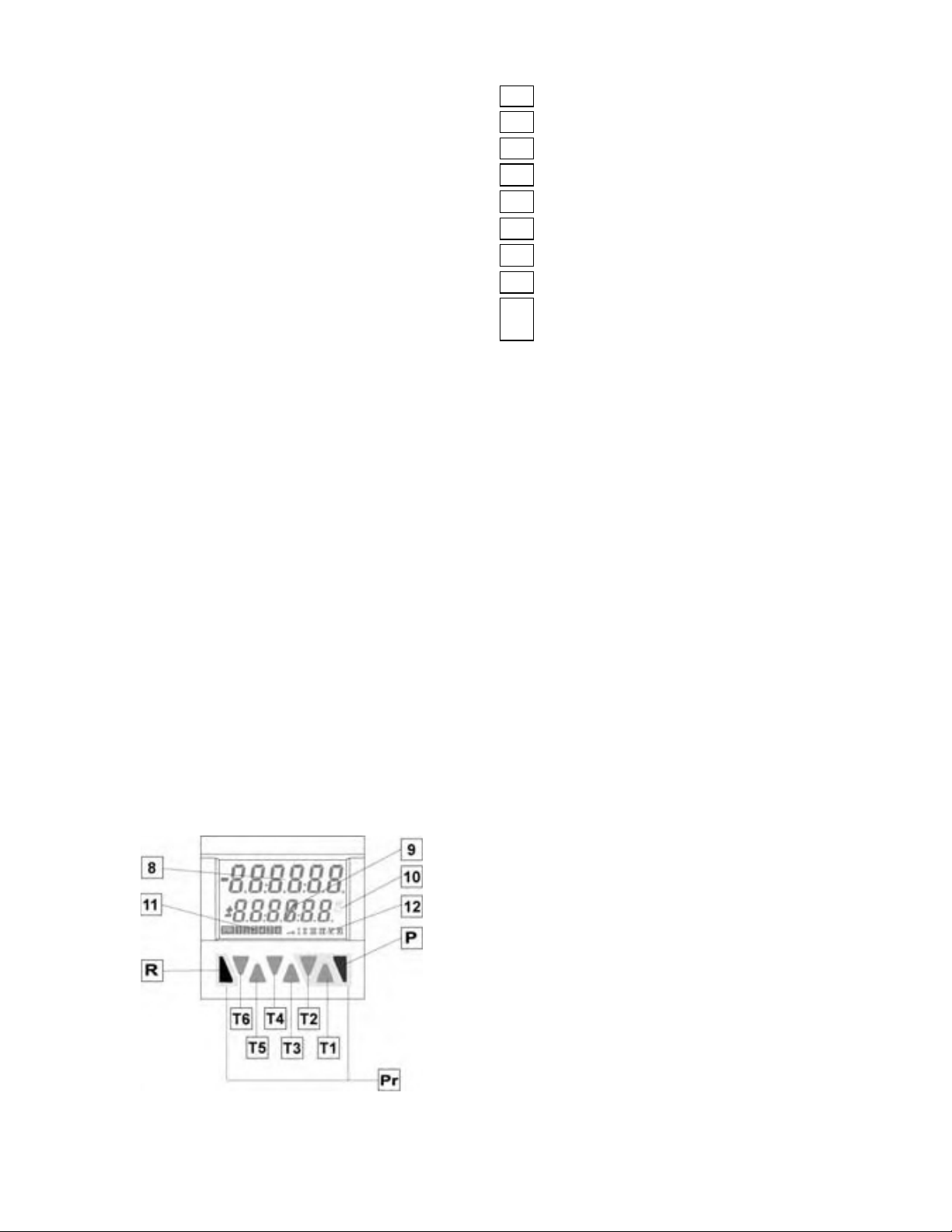

4 Display/Operating elements
T1-6 Decade key T1 … T6
P Prog/Mode key
R Reset key
8 Current count value / main counter
9 Preset value/ Total count/ Batch counter
10 Run display for Timer
11 Shows which preset value is being displayed
12 Shows which preset output is active
Pr Keys necessary for programming the
parameters (highlighted in grey)
5 Inputs
5.1 INP A, INP B
Signal inputs: function acc. to operating mode.
Max. frequency 60 kHz, can be damped in the
programming menu to 30 Hz.
Pulse counter: Count inputs
Frequency meter: Frequency inputs
Timer: Start input or
Start/Stop inputs
5.2 RESET
Dynamic reset input: resets the pulse counter or
timer to zero (adding mode) or to preset value 2
(subtracting mode). The reset input can be inhibited
in the programming menu.
Pulse counter: RESET input
Frequency meter: no function
Timer: RESET input
5.3 GATE
Static gate input: function depending on operating
mode.
Pulse counter: no counting while active
Frequency meter: no counting while active
Timer: no time measurement while
active(Gate.hi)
no time measurement while
not active (Gate.Lo).
5.4 LOCK INPUT
Static keypad lock input for presets or
programming. Lock-out level can be set in the
programming menu.
5.5 MPI
Input. Programmable as Display Latch, Set or
Teach-In input.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 6
6 Outputs
6.1 Output 1
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector
6.2 Output 2
Relay with potential-free make (NO) contact or
optocoupler with open emitter and collector.
6.3 Active Outputs
An active output will be shown on the display as
or .
For safety switching the relays or optocoupler
outputs can be inverted, i.e. the relay will be de-
energized or the optocoupler output disabled when
the presets are reached. To do this, the parameters
Pr.OUT1 and Pr.OUT2 must be set to (for
permanent signal) or or (for timed
signal).
7 Programming
7.1 Entering the programming
Press the Reset key and
Prog/Mode key simultaneously
for 3 s
ÖThe security prompt
appears in the display
Programming can be exited
again using the Prog/Mode key.
Press key T2 to continue with the
programming
ÖThe security prompt
appears in the display
Enter the main menu by pressing
the Prog/Mode key
7.2 Choice of main menus
The menus are selected using
the keys T2 (next) and T1 (back)
7.3 Entering a sub-menu
The sub-menu is opened with the
Prog/Mode key and the first
menu item is displayed.
7.4 Selecting the menu items
The Prog/Mode key is used to
select a menu item within the
sub-menu
7.5 Setting the menu items
The T2 key is used to select the
individual settings for the menu
items
When setting count values, each
decade has a key assigned to it.
Each time the key is pressed,
the value increments by one
7.6 Accepting the setting
Pressing the Prog/Mode key
causes the current setting to be
accepted. Programming then
switches to the next menu item.
7.7 Ending the programming
During programming, it is possible to exit the
programming at each menu item by pressing the
reset key.
Press the Reset key
ÖThe security prompt
appears in the display
Pressing the Prog/Mode key
acknowledges this prompt and
causes the programming menu
to start again from the beginning.
The previously-programmed
values are preserved. These can
now be changed or checked
again.
Pressing the decade key T2
selects the termination of the
programming
ÖThe security prompt
appears in the display
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 7
www.kuebler.com Seite 7
Pressing the Prog/Mode key
acknowledges this prompt and
terminates the programming; the
modified settings are saved in
the EEPROM.

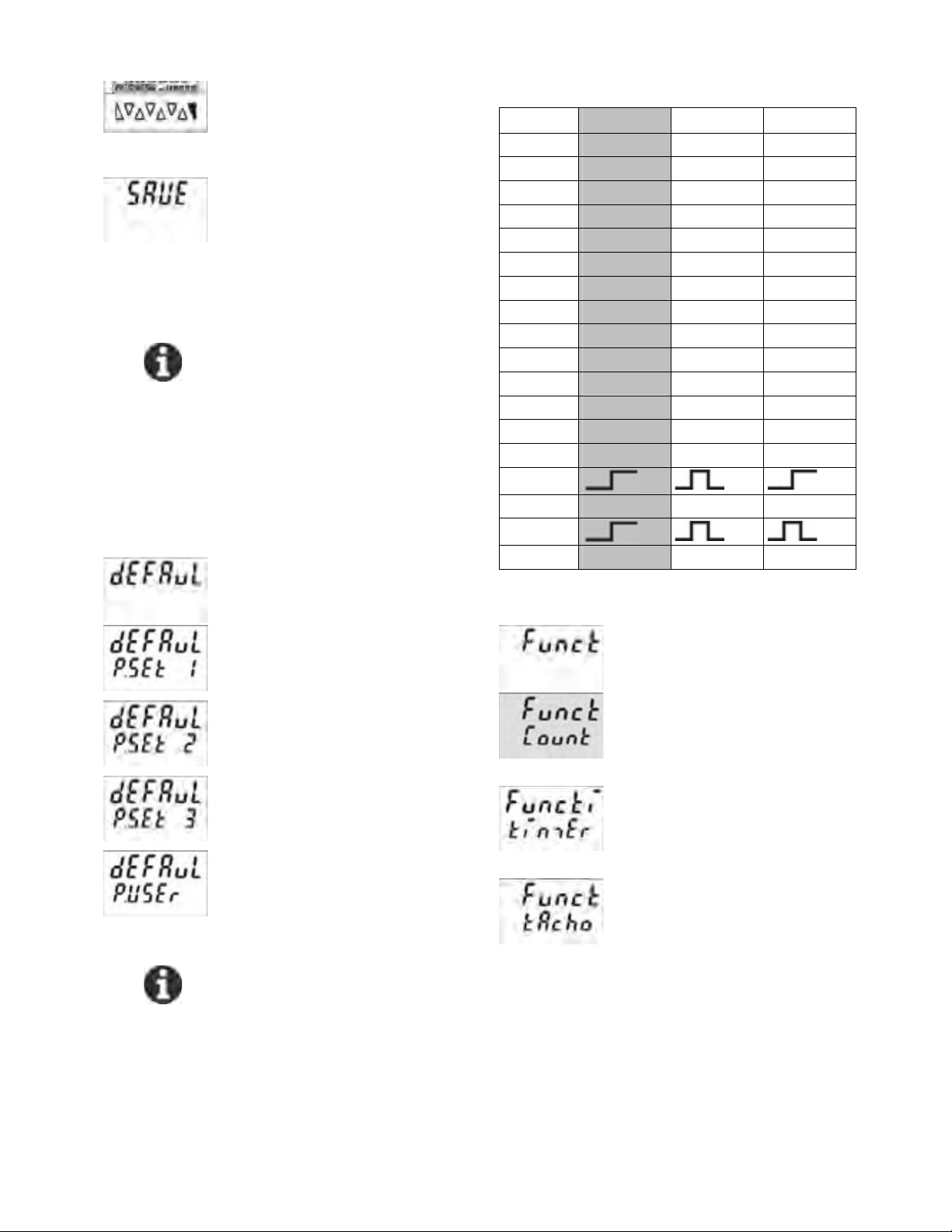

ÖThe text SAVE is
displayed for 2 s
7.8 Programming Menu
7.8.1 Default parameters
Note: Three default parameter
sets have been permanently
stored; these can be adapted as
required. With each
acknowledgment of the
parameter sets, all parameters
will be reset to the values listed
in the table.
The dEFAuL P.USEr can be
freely programmed.
Menu Parameter Sets
Default setting
Parameter set 1
Default setting
Parameter set 2
Default setting
Parameter set 3
Freely programmable
User settings
Factory settings are highlighted
in grey
7.8.2 Table: Parameter Sets
P.SEt 1 P.SEt 2 P.SET 3
Func Count Count Count
InP.PoL PnP PnP PnP
FiLtEr on oFF oFF
Count Cnt.dir uP.dn Quad
MPi LAtch LAtch Set
Loc.InP ProG ProG ProG
ModE Add Sub TrAiL
FActor 01.0000 01.0000 01.0000
diViSo 01.0000 01.0000 01.0000
dP 0 0 0.00
SEtPt 000000 000000 0000.00
CoLor red.Grn red.Grn red.Grn
rESmd Man.EL Man.EL Man.EL
PrES 1 on on on
Pr.Out 1
t.Out 1 00.10
Pr.Out 2
t.Out 2 00.10 00.10
7.8.3 Setting the Basic Function
Basic function menu
Programming menu
Pulse counter (7.8.4)
Programming menu
Timer/Hour meter (7.8.6)
Programming menu
Tacho/Frequency meter (7.8.5)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 8
www.kuebler.com Seite 8
7.8.4 Pulse Counter
7.8.4.1 Submenu for the Signal and
Control inputs
Menu for programming the signal
and control inputs

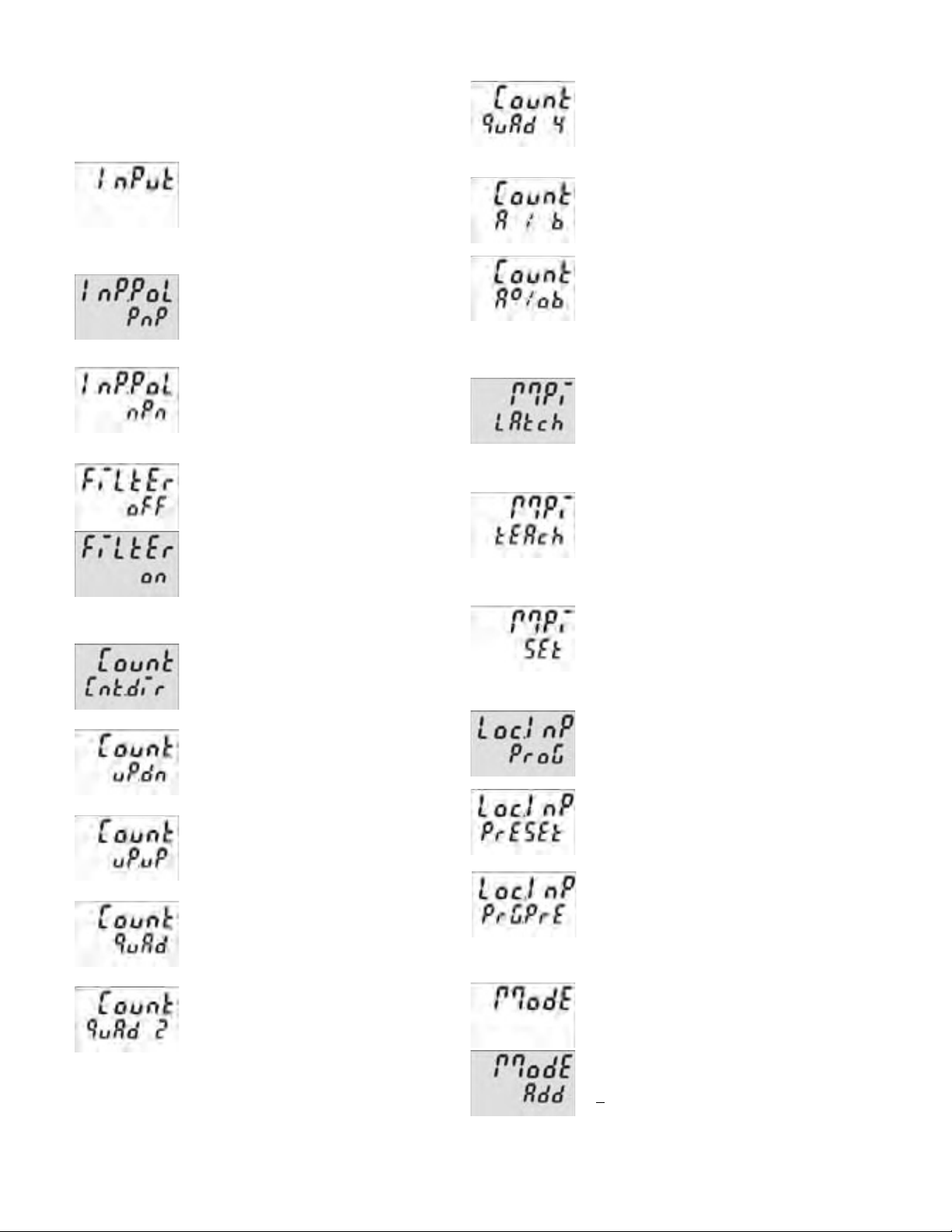

Input polarity
PNP: switching to Plus
for all inputs in common
NPN: switching to 0 V
for all inputs in common
Filter for the signal inputs InpA and InpB
Maximum count frequency
Damped to approx. 30 Hz
(for control with mechanical
contacts)
Count Input mode
Count/Direction
INP A: count input
INP B: count direction input
Differential counting [A – B]
INP A: count input add
INP B: count input sub
Totalising [A + B]
INP A: count input add
INP B: count input add
Quadrature input
INP A: count input 0°
INP B: count input 90°
Quadrature with pulse
doubling
INP A: count input 0°
INP B: count input 90°
Each pulse edge of INP A will be
counted
Quadrature x4
INP A: count input 0°
INP B: count input 90°
Each pulse edge of INP A and
INP B will be counted.
Ratio measurement [A / B]
Inp A: count input A
Inp B: count input B
Percentage differential
counting
[(A – B) / A in %]
Inp A: count input A
Inp B: count input B
User input
When the MPI input is activated
the display is “frozen” and
remains “frozen” until the MPI
input is deactivated.
Internally the preset counter
continues counting.
When the MPI input is activated
the current count value for the
preset that has just been
selected will be adopted as the
new preset value.
See also 7.9
When the MPI input is activated
the preset counter will be set to
the value specified in the
parameter SEtPt. See also 7.10
Lock input
When the Lock input is activated
the programming is inhibited.
When the Lock input is activated
the setting of the preset values is
inhibited.
When the Lock input is activated
the setting of the preset values
and the programming are both
inhibited.
7.8.4.2 Submenu for Output operations
Submenu for determining the
operation of the outputs
Count mode ADD
Outputs active when count status
>preset value
Reset to zero
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 9
www.kuebler.com Seite 9
Count mode SUBTRACT
Output 1 active when
count status < preset value 1
Output 2 active when
count status < 0
Reset to preset 2
Count mode ADDING with
automatic reset
Output 1 active when count
status > preset value 1
Output 2 (timed signal) active
when count status = preset value
2
Automatic reset to zero when
count status = preset value 2
Reset to zero
Count mode SUBTRACTING
with automatic reset
Output 1 active when count
status < preset value 1
Output 2 (timed signal) active
when count status = 0
Automatic reset to preset 2 when
count status = 0
Reset to preset 2
Count mode ADDING with
automatic reset and Batch
counter
Output 2 (timed signal) active
when main counter = preset
value 2
Automatic reset to zero when
main counter = preset 2
Batch counter counts the number
of automatic repetitions of preset
2
Output 1 active when Batch
counter > preset 1
Manual reset sets both counters
to zero.
Electrical reset only sets the
main counter to zero.
Count mode SUBTRACTING
with automatic reset and Batch
counter
Output 2 (timed signal) active
when main counter = zero
Automatic reset to preset 2 when
main counter = zero
Batch counter counts the number
of automatic repetitions of preset
2
Output 1 active when Batch
counter > preset 1
Manual reset sets main counter
to preset value 2 , batch counter
to zero
Electrical reset only sets the
main counter to preset value 2
Count mode ADDING with
automatic reset and Total
counter
Output 2 (timed signal) active
when main counter = preset
value 2
Automatic reset to zero when
main counter = preset value 2
Total counter counts all the count
pulses from the main counter
Output 1 active when total
counter > preset value 1
Manual Reset sets both counters
to zero
Electrical reset only sets the
main counter to zero
Count mode SUBTRACTING
with automatic reset and Total
counter
Output 2 (timed signal) active
when main counter = zero
Automatic reset to preset value 2
when main counter = zero
Total counter counts (sub from
preset value 1) all count pulses
from main counter
Output 1 active when Total
counter < zero
Manual reset sets both counters
to the preset values
Electrical reset sets only main
counter to preset value 2
Tracking Preset mode
When preset 2 is changed then
preset 1 automatically tracks it.
Reset to zero
Preset 1 relative to preset 2 (see
also section 17. Output
operations)
Tracking Preset mode with
automatic reset
When preset 2 is changed then
preset 1 automatically tracks it.
Reset to zero.
Automatic reset to zero when
main counter = preset value 2.
Preset 1 relative to Preset 2
(see also section 17. Output
operations)
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 10
7.8.4.3 Submenu for configuration
Submenu for matching the input
pulses and display

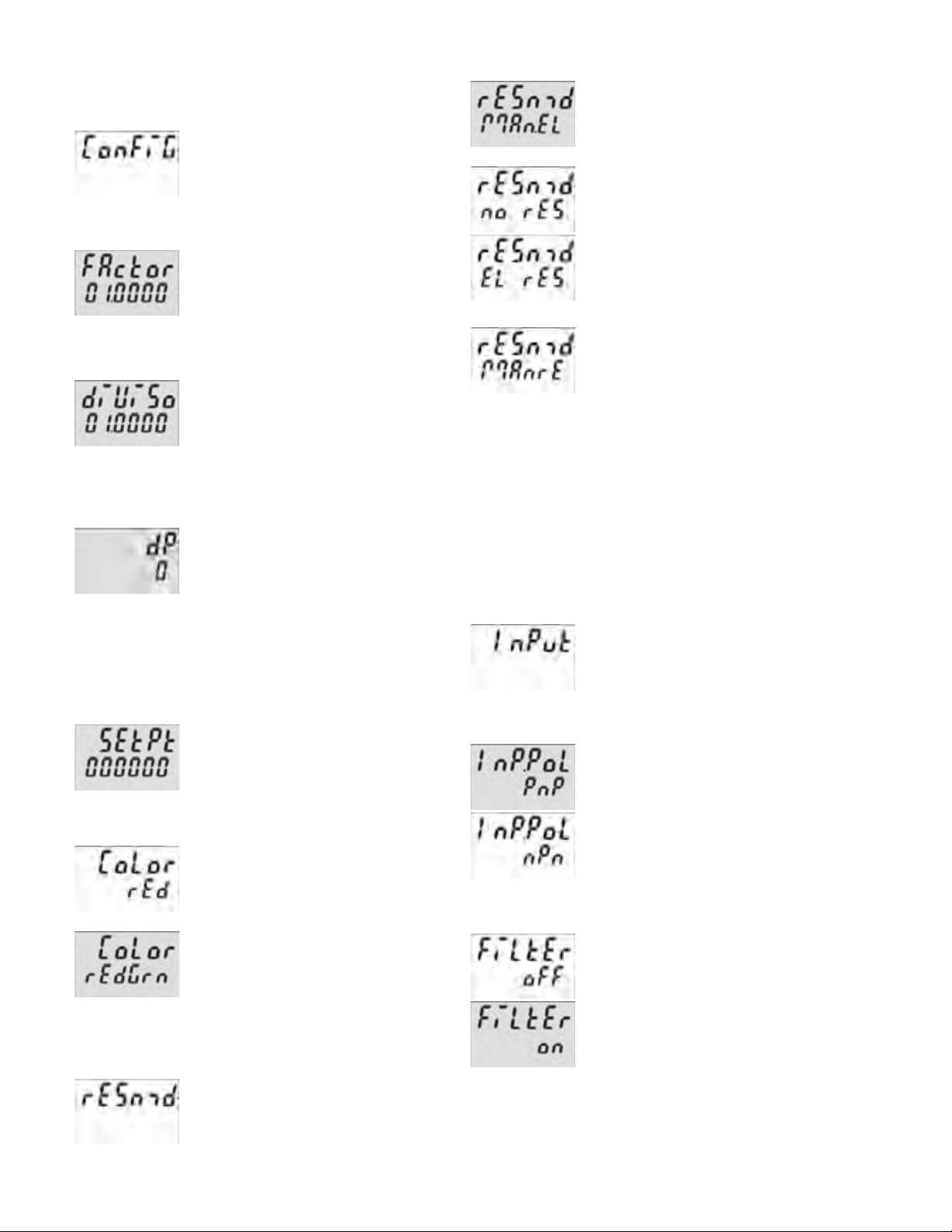

Multiplication factor
Multiplication factor can be
programmed from 00.0001 to
99.9999.
The setting 00.0000 will not be
accepted
Division factor
Division factor can be
programmed from 01.0000 to
99.9999.
The setting <01.0000 will not be
accepted
Decimal point setting
Decimal point (only optical
function)
0 no decimal place
0.0 1 decimal place
0.00 2 decimal places
0.000 3 decimal places
0.0000 4 decimal places
0.00000 5 decimal places
Set value
Set value can be programmed
from -999999 to 999999
A previously programmed
decimal point will be displayed
Display colour (for device 6.92x.x1x3.xx0)
Display colour
upper line red
lower line red
Display colour
upper line red
lower line green
7.8.4.4 Submenu for reset mode
Setting the reset mode
Manual reset (with red key) and
electrical reset (reset input)
No reset possible (red key and
reset input inhibited)
Only electrical reset possible
(reset input)
Only manual reset possible (red
key)
7.8.4.5 Preset 1
See below 7.8.6.5
7.8.4.6 Preset 2
See below 7.8.6.8
7.8.5 Tacho/Frequency meter
7.8.5.1 Submenu for the Signal and
Control inputs
Submenu for programming the
signal and control inputs
Input polarity
PNP: switching to Plus
for all inputs in common
NPN: switching to 0 V
for all inputs in common
Filter for the signal inputs Inp A and Inp B
maximum count frequency
damped to approx. 30 Hz
(for control with mechanical
contacts)
Input mode Frequency Measurement
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 11
www.kuebler.com Seite 11
Simple frequency
measurement
Inp A: Frequency input
Inp B: no function
Differential measurement
[A – B]
Inp A: Frequency input A
Inp B: Frequency input B
Total measurement [A + B]
Inp A: Frequency input A
Inp B: Frequency input B
Frequency measurement with
direction recognition [Quad]
Inp A: Frequency input 0°
Inp B: Frequency input 90°
Ratio measurement [A / B]
Inp A: Frequency input A
Inp B: Frequency input B
Percentage differential
measurement [(A-B) / A in %]
Inp A: Frequency input A
Inp B: Frequency input B
User input
When the MPI input is activated
the display is “frozen” and
remains “frozen” until the MPI
input is deactivated.
Internally the frequency meter
continues running.
When the MPI input is activated
the current frequency for the
preset that has just been
selected will be adopted as the
new preset value.
See also 7.9
Lock input
When the Lock input is activated
the programming is inhibited.
When the Lock input is activated
the setting of the preset values is
inhibited.
When the Lock input is activated
the setting of the preset values
and the programming are both
inhibited
7.8.5.2 Submenu for configuration
Submenu for matching the input
pulses and display
Multiplication factor
Multiplication factor can be
programmed from 00.0001 to
99.9999.
The setting 00.0000 will not be
accepted
Division factor
Division factor can be
programmed from 01.0000 to
99.9999.
The setting <01.0000 will not be
accepted
Display mode
Calculation and display of the
frequency / speed in 1/s
Calculation and display of the
frequency / speed in 1/min
Decimal point setting
Decimal point
(determines the resolution)
0 no decimal place
0.0 1 decimal place
0.00 2 decimal places
0.000 3 decimal places
Moving average
Moving average calculated
AVG 2 over 2 measurements
AVG 5 over 5 measurements
AVG 10 over 10 measurements
AVG 20 over 20 measurements
Start delay
Start delay
Programmable from 00.0 to
99.9 s
At the start of a measurement
the measurement results within
this time-period are ignored.
Waiting time
Waiting time
Programmable from 00.1 to
99.9 s.
This value specifies how much
time should elapse, after the last
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 12
www.kuebler.com Seite 12
valid edge, before zero is to be
displayed.
Display colour (for device 6.92x.x1x3.xx0)
Display colour
Upper line red
Lower line red
Display colour
Upper line red
Lower line green
7.8.5.3 Preset 1
See below 7.8.6.5
7.8.5.4 Preset 2
See below 7.8.6.6
7.8.6 Timer
7.8.6.1 Submenu for the Signal and
Control inputs
Menu for programming the signal
and control inputs
Input polarity
PNP: switching to Plus
for all inputs in common
nPn: switching to 0 V
for all inputs in common
Filter for the signal inputs Inp A and Inp B
for electronic control of the
signal inputs
for mechanical control of the
signal inputs(for control with
mechanical contacts)
Input mode Time measurement
Start: Edge to Inp A
Stop: Edge to Inp B
Start: 1. Edge to Inp B
Stop: 2. Edge to Inp B
Timing can only be controlled via
the Gate input
Inp A and Inp B: no function
The timer is reset by means of a
RESET (to zero when adding, to
preset 2 when subtracting) and
then starts timing again.
Timing is stopped with adding
operations when preset 2 is
reached.
Timing is stopped with
subtracting operations when zero
is reached.
A RESET during the timing
process also causes this to stop.
Inp A and Inp B: no function.
Gate control for Timing
Timing takes place when the
Gate input is not active.
Timing takes place when the
Gate input is active
User input
When the MPI input is activated
the display is “frozen” and
remains “frozen” until the MPI
input is deactivated.
Internally the preset timer
continues counting.
When the MPI input is activated
the current count value for the
preset that has just been
selected will be adopted as the
new preset value.
See also 7.9
When the MPI input is activated
the preset timer will be set to the
value specified in the parameter
SEtPt. See also 7.10
www.kuebler.com Seite 12
valid edge, before zero is to be
displayed.
Display colour (for device 6.92x.x1x3.xx0)
Display colour
Upper line red
Lower line red
Display colour
Upper line red
Lower line green
7.8.5.3 Preset 1
See below 7.8.6.5
7.8.5.4 Preset 2
See below 7.8.6.6
7.8.6 Timer
7.8.6.1 Submenu for the Signal and
Control inputs
Menu for programming the signal
and control inputs
Input polarity
PNP: switching to Plus
for all inputs in common
nPn: switching to 0 V
for all inputs in common
Filter for the signal inputs Inp A and Inp B
for electronic control of the
signal inputs
for mechanical control of the
signal inputs(for control with
mechanical contacts)
Input mode Time measurement
Start: Edge to Inp A
Stop: Edge to Inp B
Start: 1. Edge to Inp B
Stop: 2. Edge to Inp B
Timing can only be controlled via
the Gate input
Inp A and Inp B: no function
The timer is reset by means of a
RESET (to zero when adding, to
preset 2 when subtracting) and
then starts timing again.
Timing is stopped with adding
operations when preset 2 is
reached.
Timing is stopped with
subtracting operations when zero
is reached.
A RESET during the timing
process also causes this to stop.
Inp A and Inp B: no function.
Gate control for Timing
Timing takes place when the
Gate input is not active.
Timing takes place when the
Gate input is active
User input
When the MPI input is activated
the display is “frozen” and
remains “frozen” until the MPI
input is deactivated.
Internally the preset timer
continues counting.
When the MPI input is activated
the current count value for the
preset that has just been
selected will be adopted as the
new preset value.
See also 7.9
When the MPI input is activated
the preset timer will be set to the
value specified in the parameter
SEtPt. See also 7.10
www.kuebler.com Seite 12
valid edge, before zero is to be
displayed.
Display colour (for device 6.92x.x1x3.xx0)
Display colour
Upper line red
Lower line red
Display colour
Upper line red
Lower line green
7.8.5.3 Preset 1
See below 7.8.6.5
7.8.5.4 Preset 2
See below 7.8.6.6
7.8.6 Timer
7.8.6.1 Submenu for the Signal and
Control inputs
Menu for programming the signal
and control inputs
Input polarity
PNP: switching to Plus
for all inputs in common
nPn: switching to 0 V
for all inputs in common
Filter for the signal inputs Inp A and Inp B
for electronic control of the
signal inputs
for mechanical control of the
signal inputs(for control with
mechanical contacts)
Input mode Time measurement
Start: Edge to Inp A
Stop: Edge to Inp B
Start: 1. Edge to Inp B
Stop: 2. Edge to Inp B
Timing can only be controlled via
the Gate input
Inp A and Inp B: no function
The timer is reset by means of a
RESET (to zero when adding, to
preset 2 when subtracting) and
then starts timing again.
Timing is stopped with adding
operations when preset 2 is
reached.
Timing is stopped with
subtracting operations when zero
is reached.
A RESET during the timing
process also causes this to stop.
Inp A and Inp B: no function.
Gate control for Timing
Timing takes place when the
Gate input is not active.
Timing takes place when the
Gate input is active
User input
When the MPI input is activated
the display is “frozen” and
remains “frozen” until the MPI
input is deactivated.
Internally the preset timer
continues counting.
When the MPI input is activated
the current count value for the
preset that has just been
selected will be adopted as the
new preset value.
See also 7.9
When the MPI input is activated
the preset timer will be set to the
value specified in the parameter
SEtPt. See also 7.10
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 13
www.kuebler.com Seite 13
Lock input
When the Lock input is activated
the programming is inhibited.
When the Lock input is activated
the setting of the preset values is
inhibited.
When the Lock input is activated
the setting of the preset values
and the programming are both
inhibited.
7.8.6.2 Submenu for the output operations
Submenu for determining the
operation of the outputs
Count mode ADD
Outputs active when count status
>preset value
Reset to zero
Count mode SUBTRACT
Output 1 active when
count status < preset value 1
Output 2 active when
count status < 0
Reset to preset 2
Count mode ADDING with
automatic reset
Output 1 active when count
status > preset value 1
Output 2 (timed signal) active
when count status = preset value
2
Automatic reset to zero when
count status = preset value 2
Reset to zero
Count mode SUBTRACTING
with automatic reset
Output 1 active when count
status < preset value 1
Output 2 (timed signal) active
when count status = 0
Automatic reset to preset 2 when
count status = 0
Reset to preset 2
Count mode ADDING with
automatic reset and Batch
counter
Output 2 (timed output) active
when main counter = preset
value 2
Automatic reset to zero when
main counter = preset value 2
Batch counter counts the number
of automatic repetitions of preset
2
Output 1 active when batch
counter > preset 1
manual reset sets both counters
to zero
electrical reset sets only main
counter to zero
Count mode SUBTRACTING
with automatic reset and Batch
counter
Output 2 (timed signal) active
when main counter = zero
Automatic reset to preset 2 when
main counter = zero
Batch counter counts the number
of automatic repetitions of preset
2
Output 1 active bei Batchzähler >
Preset 1
Manual reset sets main counters
to preset value 2 and batch
counter to zero
Electronic reset only sets the
main counter to preset value 2
Count mode ADDING with
automatic reset and Total
counter
Output 2 (timed signal) active
when main counter = preset
value 2
Automatic reset to zero when
main counter = preset value 2
Total counter counts all the count
pulses from the main counter
Output 1 active when total
counter > preset value 1
Manual Reset sets both counters
to zero
Electronic reset only sets the
main counter to zero
Count mode SUBTRACTING
with automatic reset and Total
counter
Output 2 (timed signal) active
when main counter = zero
Automatic reset to preset value 2
when main counter = zero
Total counter counts (sub from
preset value 1) all count pulses
from main counter
Output 1 active when Total
counter < zero
Manual reset sets both counters
to the preset values
Electronic reset sets only main
counter to preset value 2
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 14
Tracking preset mode
When preset 2 is changed then
preset 1 automatically tracks it.
Reset to zero
Preset 1 relative to preset 2 (see
also section 17. Output
operations)
Tracking Preset mode with
automatic reset
When preset 2 is changed then
preset 1 automatically tracks it.
Reset to zero.
Automatic reset to zero when
main counter = preset value 2.
Preset 1 relative to Preset 2
(see also section 17. Output
operations)
7.8.6.3 Submenu for configuration
Submenu for matching the time
ranges and display
Unit of time
Unit of time: seconds
Decimal point setting determines
the resolution
Unit of time: minutes
Decimal point setting determines
the resolution
Unit of time: hours
Decimal point setting determines
the resolution
Unit of time: Hrs. Min. Sec.
Decimal point setting (Resolution)
Decimal place
(determines the resolution)
0 no decimal place
0.0 1 decimal place
0.00 2 decimal places
0.000 3 decimal places
Set value
Set value can be programmed
from 000000 to 999999
A previously programmed
decimal point will be displayed
Display colour (for 6.92x.x1x3.xx0]
Display colour
upper line red
lower line red
Display colour
upper line red
lower line green
7.8.6.4 Submenu for reset mode
Setting the reset mode
Manual reset (with red key) and
electrical reset (reset input)
No reset possible (red key and
reset input inhibited)
Only electrical reset possible
(reset input)
Only manual reset possible (red
key)
7.8.6.5 Submenu for Preset 1
Submenu for turning preset 1
ON/OFF
Preset 1 ON
Preset 1 OFF and no function
ADD mode output operations:
permanent signal at Output 1,
becomes active when count >
Preset 1
SUB mode output operations:
permanent signal at Output 1,
becomes active when count <
Preset 1
ADD mode output operations:
permanent signal at Output 1,
becomes passive when count >
Preset 1
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 15
www.kuebler.com Seite 15
SUB mode output operations:
permanent signal at Output 1,
becomes passive when count <
Preset 1
ADD mode output operations:
timed signal at Output 1,
becomes active when count >
Preset 1. (Activation only in
positive direction)
SUB mode output operations:
timed output at Output 1,
becomes active when count <
Preset 1 (Activation only in
negative direction)
ADD mode output operations:
timed signal at Output 1,
becomes passive when count >
Preset 1. (Deactivation only in
positive direction)
SUB mode output operations:
timed output at Output 1,
becomes passive when count <
Preset 1. (Deactivation only in
negative direction).
ADD mode output operations:
timed signal at Output1,
becomes active with positive
direction and when count >
Preset 1 and subsequently active
with negative direction and when
count < Preset 1
SUB mode output operations:
timed signal at Output 1,
becomes active with negative
direction and when count <
Preset 1 and subsequently active
with positive direction and when
count > Preset 1
ADD mode output operations:
timed signal at Output1,
becomes passive with positive
direction and when count >
Preset 1 and subsequently
passive with negative direction
and when count < Preset 1
SUB mode output operations:
timed output at Output 1,
becomes passive with negative
direction and when count <
Preset 1 and subsequently
passive with positive direction
and when count > Preset 1
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed signal is post-triggered
7.8.6.6 Submenu for Preset 2
Submenu for Preset 2
ADD mode output operations:
permanent signal at Output 2,
becomes active when count >
Preset 2
SUB mode output operations:
permanent signal at Output 2,
becomes active when count <
zero
ADD mode output operations:
permanent signal at Output 2,
becomes passive when count >
Preset 2
SUB mode output operations:
permanent signal at Output 2,
becomes passive when count <
zero
ADD mode output operations:
timed signal at Output 2,
becomes active when count >
Preset 2 (Activation only in
positive direction).
SUB mode output operations:
permanent signal at Output 2,
becomes active when count <
zero (Activation only in negative
direction)
ADD mode output operations:
timed signal at Output 2,
becomes passive when count >
Preset 2 (Deactivation only in
positive direction)
SUB mode output operations:
permanent signal at Output 2,
becomes passive when count <
zero (Deactivation only in
negative direction).
ADD mode output operations:
timed signal at Output 2,
becomes active with positive
direction and when count >
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes active with negative
direction and when count < zero
and subsequently with positive
direction and when count > zero
ADD mode output operations:
timed signal at Output 2,
becomes passive with positive
direction and when count >
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 16
Preset 2 and subsequently with
negative direction and when
count < Preset 2
SUB mode output operations:
timed signal at Output 2,
becomes passive with negative
direction and when count < zero
and subsequently with positive
direction and when count > zero
Duration of timed signal of
Output 1, programmable from
00.01 to 99.99 s.
Timed output is post-triggered.
Active:
Relay or optocoupler are
activated when the preset value
is reached.
Passive:
Relay becomes de-energized or
the optocoupler disabled when
the preset value is reached.
7.9 Setting the presets
7.9.1 Setting via Decade Keys
In programming mode Preset 2 will always be
displayed in the lower line. This is except for the
output operations AddBat, SubBat,AddTot and
SubTot.
Press the Prog/Mode key until
the preset to be changed is
displayed - or .
Press any decade key
ÖDisplay switches to the editor mode
Set the desired preset value
using the decade keys
Press the Prog/Mode key to
confirm the value and save it
ÖDisplay switches to the editor mode of the
next preset or
Approx. 3 s after the last press of
the decade keys or by pressing
the Reset key the new preset
value will be accepted and the
counter will switch back to
operating mode.
7.9.2 Setting with Teach-In Function
Program the MPI input to tEAch
In programming mode, select the
preset to be changed using the
Prog/Mode key
Briefly activate the MPI (NPN or PNP input logic)
ÖThe current count value will be adopted as
the new preset value
The preset value can subsequently be
further modified via the decade keypad.
7.9.3 Setting the tracking presets (trail)
If a tracking preset has been programmed, the
value for Preset 2 can be set either via the decade
keypad or via the Teach-IN function.
However the value for Preset 1 must be entered via
the decade keypad. In this instance, it is not
possible to use the Teach-In function.
7.10 Set Function
Both the pulse counter and the timer can be set to
a default value by means of the Set function.
Programme the MPI input to SEt
Set menu item SEtPt to the
desired value
Briefly activate the MPI (NPN or PNP input logic)
ÖFor add. output operations the pulse
counter or timer will be set to the SEtPt
default value
ÖFor sub. output operations the pulse
counter or timer will be set to the
difference between the value of Preset 2
and the value of SEtPt .
8 Error message
Err 1 Set value is outside the permitted range
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 17
www.kuebler.com Seite 17

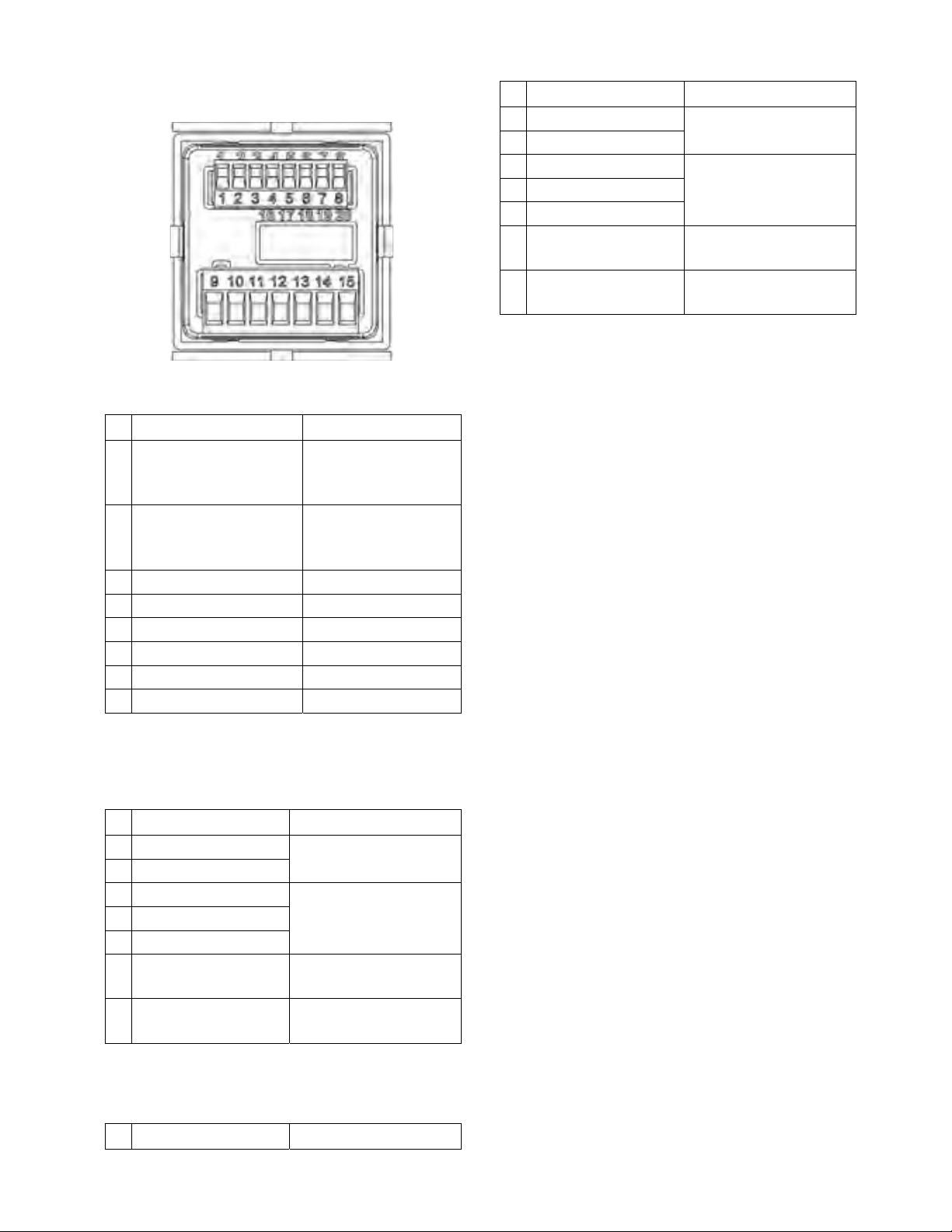

9 Connections
9.1 Signal and Control Inputs
N° Designation Function
1 AC: 24 VDC/80 mA
DC: UBconnected
through
Sensor supply
voltage
2 GND (0 VDC) Common connection
Signal and Control
inputs
3 INP A Signal input A
4 INP B Signal input B
5 RESET Reset input
6 LOCK Keypad lock
7 GATE Gate input
8 MPI User input
9.2 Supply voltage and Outputs
9.2.1 Version with relays
N° Designation Function
9 Relay contact C.1
10 Relay contact N.O.1 Output 1
11 Relay contact C.2
12 Relay contact N.O.2
13 Relay contact N.C.2
Output 2
14 AC: 90..260 VAC N~
DC: 10..30 VDC Supply voltage
15 AC: 90..260 VAC L~
DC: GND (0 VDC) Supply voltage
9.2.2 Version with Optocouplers
N° Designation Function
N° Designation Function
9 Collector 1
10 Emitter Output 1
11 Emitter 2
12 Not connected
13 Collector 2
Output 2
14 AC: 90..260 VAC N~
DC: 10..30 VDC Supply voltage
15 AC: 90..260 VAC L~
DC: GND (0 VDC) Supply voltage
10 Technical Data
10.1 General Data
Display LCD positive or negative,
backlit
2 x 6-digit
Digit height upper line 9 mm
lower line 7 mm
special characters 2 mm
Overload/ Blinking, 1 s
Underload Counter loses up to 1 decade
no pulses
Data retention > 10 years, EEPROM
Operation 8 keys
10.2 Pulse counter
Count frequency max. 55 kHz (see section 13.
frequencies typ.)
Response time of the outputs:
Relays
Add/Sub/Trail < 7 ms
With automatic repeat < 7 ms
A/B ; (A-B)/A < 29 ms
Optocouplers
Add/Sub/Trail < 1 ms
With automatic repeat < 1 ms
A/B ; (A-B)/A < 23 ms
10.3 Tacho/Frequency meter
Frequency range 0,01 Hz to 65 kHz (see
section 13. frequencies typ.)
Measuring d76.3 Hz Time interval
principle (period measurement)
> 76.3 Hz Gate time
Gate time approx.13.1 ms
Measuring error < 0.1% per channel
Response time of the outputs:
1-channel operation < 100 ms @ 40 kHz
< 350 ms @ 65 kHz
2-channel operation < 150 ms @ 40 kHz
< 600 ms @ 65 kHz
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 18
www.kuebler.com Seite 18
10.4 Timer
Seconds 0.001 s ... 999 999 s
Minutes 0.001 min ... 999 999 min
Hours 0.001 h .. 999 999 h
h.min.s 00h.00min.01s ...
99h.59min.59s
Min. time measurable 500μs
Measuring error < 50 ppm
Response time of the outputs:
Relays < 7 ms
Optocoupler < 1 ms
10.5 Signal and Control inputs
Polarity: programmable NPN/PNP
for all inputs in common
Input resistance 5 k:
Pulse shape any
Switching level with AC supply:
HTL level Low: 0 ... 4 VDC
High: 12 ... 30 VDC
5V level Low: 0 ... 2VDC
High: 3,5 … 30 VDC
Switching level with DC supply:
HTL level Low: 0 ... 0,2 x UB
High: 0,6 x UB ... 30 VDC
5V level Low: 0 ... 2 VDC
High: 3,5 ... 30 VDC
Minimum pulse length of the Reset input: 1 ms
Minimum pulse length of the Control inputs:10 ms
10.6 Outputs
Output 1
Relay with make contact
programmable as NC or NO
Switching voltage max. 250 VAC/ 110 VDC
Switching current max. 3 A AC/ V DC
min. 30 mA DC
Switching capacity max. 750 VA / 90 W
Mechanical service life (switching cycles) 2x107
N° of switching cycles at 3 A/ 250 V AC 1x105
N° of switching cycles at 3 A/ 30 V DC 1x105
or NPN optocoupler
Switching capacity 30 VDC/10 mA
UCESAT for IC = 10 mA: max. 2.0 V
UCESAT for IC = 5 mA: max. 0.4 V
Output 2
Relay with changeover contact
Switching voltage max. 250 VAC/ 150 VDC
Switching current max. 3 A AC/ A DC
min. 30 mA DC
Switching capacity max. 750 VA/ 90 W
Mechanical service life (switching cycles) 20x106
N° of switching cycles at 3 A/ 250 V AC 5x104
N° of switching cycles at 3 A/ 30 V DC 5x104
or NPN optocoupler
Switching capacity 30 V DC/10 mA
UCESAT for IC = 10 mA: max. 2.0 V
UCESAT for IC = 5 mA: max. 0.4 V
10.7 Supply voltage
AC supply: 90 ... 260 V AC / max. 8 VA
50/ 60 Hz
ext. fuse protection: T 0.1 A
DC supply: 10 ... 30 V DC/ max. 1.5 W
reverse polarity protection
ext. fuse protection T 0.2 A
10.8 Sensor supply voltage
AC supply: 24 V DC r15%, 80 mA
DC supply: max. 80 mA, external voltage
supply is connected through
10.9 Climatic Conditions
Operating temperature: -20°C .. +65°C
Storage temperature: -25°C .. +75°C
Relative humidity: RH. 93% at +40°C,
non-condensing
Altitude: to 2000 m
10.10 EMC
Noise immunity: EN61000-6-2
with shielded signal and
control cables
Noise emission: EN55011 Class B
10.11 Device safety
Design to: EN61010 Part 1
Protection Class: Class 2
Application area: Soiling Level 2
10.12 Mechanical Data
Housing: Panel-mount housing
to DIN 43 700, RAL 7021
Dimensions: 48 x 48 x 91 mm
Panel cut-out: 45+0,6 x 45+0,6 mm
Installation depth: ca. 107 mm incl. terminals
Weight: ca. 125 g
Protection: IP 65 (front)
Housing material: Polycarbonate UL94 V-2
Vibration resistance: 10 - 55 Hz / 1 mm / XYZ
(EN60068-2-6): 30 min in each direction
Shock resistance 100G / XYZ
(EN60068-2-27): 3 times in each direction
Cleaning: The front of the unit should
only be cleaned using a soft
damp (water!) cloth.
10.13 Connections
Supply voltage and outputs:
Plug-in screw terminal, 7-pin, RM5.08
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 19
www.kuebler.com Seite 19
Core cross section, max. 2.5 mm²
Signal and control inputs:
Plug-in screw terminal, 8-pin, RM 3.81
Core cross-section, max. 1.5 mm²
11 Scope of Delivery
Delivery includes:
Preset counter
Mounting clip
Instruction manual
12 Ordering codes
6.924.X1XX.XX0
Input trigger levels
0 = Standard (HTL)
A = 5V
Supply voltage
0 = 90 .. 260 VAC
3 = 10 .. 30 VDC
LCD version
0 = no backlighting
1 = green backlighting
2 = LED Look
3 = Multicolour
Outputs
0 = Relay
1 = Optocoupler
Front
0 = Kübler version
A = Neutral version
EXAMPLE 924K A 0
Series
Operating Voltage
A = 90 to 260 VAC
B = 10 to 30 VDC
Outputs
0 = Relay(s)
1 = Opto Coupler(s)
Ordering information:
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 20
www.kuebler.com Seite 20
13 Frequencies (typical)
13.1 Pulse counter
HTL level
AC supply typ. Low 2,5 V
typ. High 22 V
DC supply 12V typ. Low 2 V
typ. High 10 V
DC supply 24V typ. Low 2,5 V
typ. High 22 V
Add
Sub
Trail
AddAr
SubAr
AddBat
SubBat
TrailAr
AddTot
SubTot
Cnt.Dir 55 kHz 2,8 kHz 2,7 kHz
Up.Dn
Up.Up 29 kHz 2,8 kHz 2,7 kHz
Quad
Quad 2 28 kHz 1,4 kHz 1,3 kHz
Quad 4 18 kHz 1,2 kHz 0,9 kHz
A/B
(A-B)/A 29 kHz
5V level
typ. Low 1,0 V
typ. High 4,0 V
Add
Sub
Trail
AddAr
SubAr
AddBat
SubBat
TrailAr
AddTot
SubTot
Cnt.Dir 9 kHz 2,7 kHz 2,4 kHz
Up.Dn
Up.Up 9 kHz 2,7 kHz 2,4 kHz
Quad
Quad 2 9 kHz 1,2 kHz 1,2 kHz
Quad 4 9 kHz 1,2 kHz 0,9 kHz
A/B
(A-B)/A 9 kHz
13.2 Frequency meter
HTL level
AC supply typ. Low 2,5 V
typ. High 22 V
DC supply 12V typ. Low 2 V
typ. High 10 V
DC supply 24V typ. Low 2,5 V
typ. High 22 V
5V level
typ. Low 1,0 V
typ. High 4,0 V
HTL 5V
A 65 kHz 9 kHz
A – B
A + B
A / B
(A-B)/A
65 kHz 9 kHz
Quad 30 kHz 9 kHz
NOTE: Switching levels of the input
Switching levels with AC supply:
HTL level Low: 0 .. 4 VDC
High: 12 .. 30 VDC
5V level Low: 0 .. 2VDC
High: 3,5 .. 30 VDC
Switching levels with DC supply:
HTL level Low: 0 .. 0,2 x UB
High: 0,6 x UB .. 30 VDC
5V level Low: 0 .. 2 VDC
High: 3,5 .. 30 VDC
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

Page 21
www.kuebler.com Seite 21
14 Input modes: Pulse counting
Function Diagram
Note: No counting when GATE input is active
P = Preset
PNP: Count on rising edge
NPN: Count on falling edge
Cnt.Dir
Inp A: Count input
Inp B: Count direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
Up.Dn
Inp A: Count input add
Inp B: Count input sub
Add: Display 0 --> Preset
Sub: Display Preset -> 0
Up.Up
Inp A: Count input 1 add
Inp B: Count input 2 add
Add: Display 0 --> Preset
Quad
A 90° B
Inp A: Count input
Count on one edge
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
Quad 2
A 90° B
Inp A: Count input
Count on rising and on falling
edges
Inp B: Reverse direction
Add: Display 0 --> Preset
Sub: Display Preset -> 0
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
