Trynex SnowEx SP-65 Owner's manual

1
© Trynex International 2011 (REV A) F50753
FOR MODELS
SP-65 Serial No. PA-103354 and higher
Madison Heights, Michigan 48071
800-725-8377
www.snowexproducts.com
Customer Copy
This Manual Must Be Read Before Operating The Equipment
Owner / Operator’s Manual

© Trynex International 2011 (REV A) F50753
2
Table of Contents
General Information ..................................................................................................................................................................................... 3
Introduction ................................................................................................................................................................................................. 4
Safety .......................................................................................................................................................................................................... 5
Assembly Instructions .................................................................................................................................................................................. 6
Operating the Spreader ................................................................................................................................................................................ 7
Maintenance ................................................................................................................................................................................................ 8
Troubleshooting ........................................................................................................................................................................................... 9
Warranty .................................................................................................................................................................................................... 10
Spreader Views
Model # SP-65 ............................................................................................................................................................................ 11
Hopper Assembly Parts Breakdown
Model # SP-65 ............................................................................................................................................................................ 12
Axle Assembly Parts Breakdown
Model # SP-65 ............................................................................................................................................................................ 14
Handle Assembly Parts Breakdown
Model # SP-65 ............................................................................................................................................................................ 16

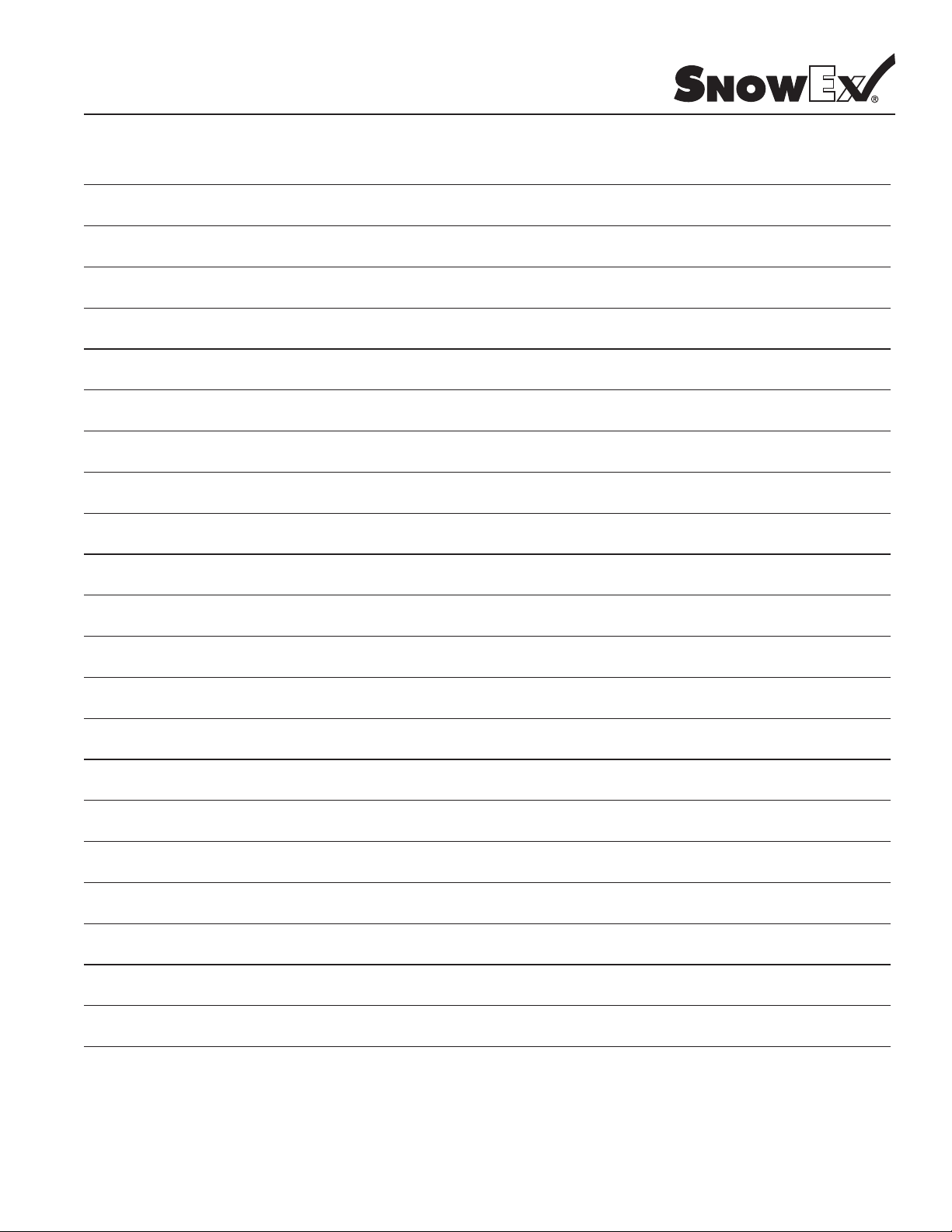

Notes .............................................................................................................................................................................................. 18-19
Have a question or need assistance?
SnowEx Customer Care
[phone]
or [phone]
Monday through Friday 8:00 AM to 4:30 PM EST
Fax: [phone]
E-Mail: [e-mail]
Website: www.snowexproducts.com

3
© Trynex International 2011 (REV A) F50753
General Information
CONGRATULATIONS!
The spreader you have purchased is an example of snow and ice control technology at its nest! Your spreader’s self-contained design is a
trademark of all SnowEx products. Here’s why…
SIMPLICITY: Fewer moving parts manufactured of higher quality means minimal maintenance for your SnowEx spreader.
RELIABILITY: High impact linear low density polyethelyne hopper. Custom engineered, powder coated frame. And a custom engineered trans-
mission found only on Snowex products.
VERSATILITY: Multi-use capabilities allows spreading of a variety of materials for snow and ice control.
WARRANTY: Best in the industry, hands down! 2 years standard and now 5 year extended (optional).
The benets you are about to recognize are that of time, money and effort.
We welcome you to the world of SnowEx Performance.
Registration
Record the following information in this manual for quick reference.
Spreader Model Number
Spreader Serial Number
Date of Purchase
Dealer Where Purchased
When ordering Parts, the above information is necessary. This will help to see that you
receive the correct parts.
At the right is a diagram of the ID tag. This tag on the spreader is located on the
frame.
Please ll out the warranty card with all the necessary information to validate it.
This will also give us a record so that any safety or service information can be
communicated to you.
PA-103354

© Trynex International 2011 (REV A) F50753
4
Introduction
This manual has been designed for your help. It will assist you and instruct you on the proper set-up, installation and use of this spreader.
Refer to the table of contents for an outline of this manual.
We require that you read and understand the contents of this manual completely (especially all safety information) before attempting any
procedure contained herein.
THIS SIGN SHOULD ALERT YOU:
The Society of Automotive Engineers has adopted this SAFETY ALERT SYMBOL to pinpoint characteristics
that, if NOT carefully followed, can create a safety hazard. When you see this symbol in this manual or on the
machine itself, BE ALERT! Your personal safety and the safety of others is involved.
Dened below are the SAFETY ALERT messages and how they will appear in this manual:
(RED)
Information that, if not carefully followed,
can cause death!
(ORANGE)
Information that, if not carefully followed,
can cause serious personal injury or death!
(YELLOW)
Information that, if not carefully followed,
can cause minor injury or damage to equipment

5
© Trynex International 2011 (REV A) F50753
Safety
Before attempting any procedure in this book, these safety instructions must be read and understood by all workers who have any part in the
preparation or use of this equipment.
For your safety warning and information decals have been placed on this product to remind the operator of safety precautions . If anything
happens to mark or destroy the decals, please request new ones from TurfEx.
Remember, most accidents are preventable and caused by human error. Exercising of care and precautions
must be observed to prevent the possibility of injury to operator or others.
Never operate equipment when under the inuence of alcohol, drugs, or medications that might alter your
judgment and/or reaction time.
Before working with the spreader, secure all loose tting clothing and unrestrained hair.
Always wear safety glasses with side shields when servicing spreader. Failure to do this could result in
serious injury to the eyes.
Never attempt to lift a unit with material in it.
Never allow children to operate or climb on equipment.
Always check areas to be spread to be sure no hazardous conditions or substances are in the area.
Always inspect unit for defects: broken, worn or bent parts, weakened areas on spreader.
Remember it is the owner’s responsibility to communicate information on safe usage and proper
maintenance of all equipment.
Always make sure personnel are clear of areas of danger when using equipment.
Never weld or grind on equipment without having a re extinguisher available.
Inspect the unit periodically for defects. Parts that are broken, missing or worn out must be replaced
immediately. The unit or any part of it can not be altered without prior written permission from the
manufacturer.
Never use wet materials or materials with foreign debris with any of these spreaders. These units are
designed to handle dry, clean, free owing material.
Never leave material in hopper for long periods of time. Be aware that all salt is hygroscopic and will attract
atmospheric moisture and harden up.
Do not tow spreader.

© Trynex International 2011 (REV A) F50753
6
Assembly Instructions
Model # SP-65
Step 1: Assemble Axle Assembly
A) Slide shaft collars onto axle toward gear housing.
B) Slide hopper frame onto axle through bushings.
C) Assemble wheels to axle with long cotter key through drive wheel and the short
cotter key outside free wheel through axle. See gure 1 page 1-11.
D) Snug up axle collars to frame and tighten. Make sure axle spins freely.
Step 2: Assemble Hopper to Frame
A) Insert spinner shaft through hole in bottom of hopper.
B) Assemble hopper to frame with (4) bolts (NOTE: do not tighten).
Step 3: Assemble leg to hopper frame with (4) bolts (NOTE: do not tighten).
Step 4: Assemble Handle
A) Assemble (2) Halves together with one bolt as shown.
B) Assemble cable bracket to handle with (2) bolts through both halves and tighten.
Step 5: Assemble handle assembly to leg
A) Slide handle onto leg and fasten with (2) bolts.
Step 6: Spin tires and make sure spreader is running smoothly.
Step 7: Tighten all bolts.
Step 8: Connect cable to gate.
Step 9: Tighten cable under cable clamp.

7
© Trynex International 2011 (REV A) F50753
Operating the Spreader
Model # SP-65
For a heavier pass:
Walk Slower
For a lighter pass:
Walk Faster
Spread ice melters with the storm to prevent unmanageable levels of ice.
Calculate spread pattern when near vegetation and vehicles.
Never operate spreader near pedestrians.
WARNING: Do not overload vehicle.
Use chart below to calculate weight of material. Weights of material are an average for dry materials.
WARNING: Never leave material in hopper for long periods of time as salt is hygroscopic and will attract atmospheric moisture and harden up.
When spreading sand mix, a 1:1 ratio for Sand/Salt mix is recommended to prevent the material from freezing.
Spreading Tips
Spreader Loading
Material Weight Per Cubic Ft.
Rock Salt 80-90 lbs.

© Trynex International 2011 (REV A) F50753
8

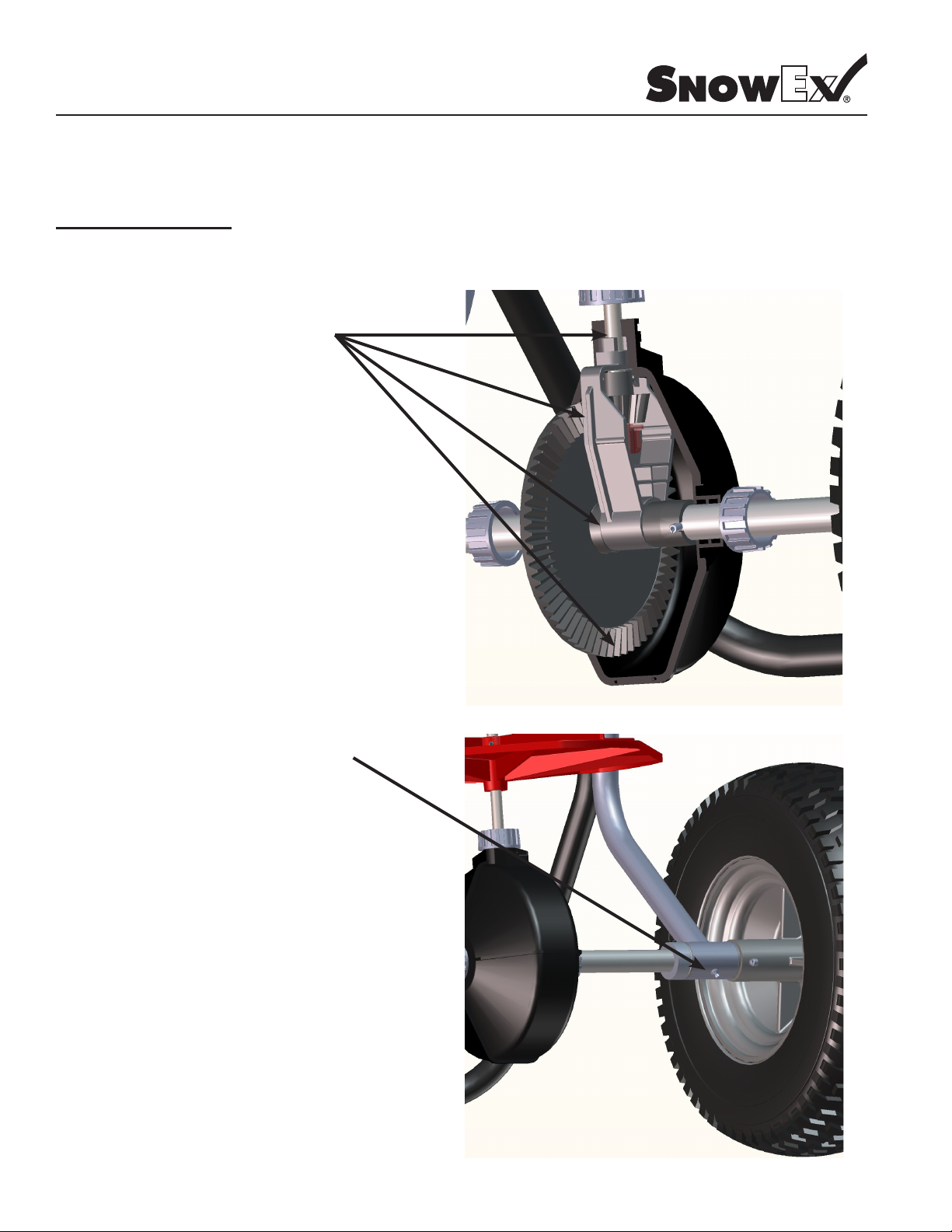

Maintenance
Model # SP-65
Remove Gear Housing and apply Chain Lube Spray
Lubrication.
Important
Gears and Axles Must Be Lubricated and Greased Every 20 Hours of Use.
Use General Purpose Grease on both Grease Zerks.

9
© Trynex International 2011 (REV A) F50753
Troubleshooting
Model # SP-65
PUSH SPREADER
NOT ENOUGH MATERIAL
FLOW
TOO MUCH
MATERIAL FLOW
POOR SPREAD PATTERN
EMPTY HOPPER
WRONG ROTATION.
SHOULD BE
COUNTER-CLOCKWISE
GATE STUCK CLOSED
(SEE ABOVE)
GATE STUCK OPEN
MATERIAL IS WET
SCREEN BLOCKED BY
CLUMPS OF MATERIAL REMOVE / BREAK CLUMPS
AGITATOR IN PLACE
BROKEN SPINNER
FILL WITH MATERIAL
PHYSICAL OBSTRUCTION
LUBRICATE LINKAGE
DRIVE WHEEL SHOULD BE
ON LEFT WHEN PUSHING
CABLE STUCK
RECONNECT
ACTUATOR / LINKAGE
LUBRICATE GATE SLIDES
REPLACE MATERIAL WITH
DRY MATERIAL
NO:
REPLACE
HANDLE DOES NOT WORK
ADJUST GATE STOP
REPLACE BROKEN PART
REMOVE
REMOVE AND CLEAN
NO: REVERSE
AXLE ASSEMBLY
LUBRICATE
DROP SPREADER:
ADJUST FRONT GATE
SLIDE
INSTALL WEATHER COVER
ADJUST/REPLACE
HARDWARE / HANDLE
IF BROKEN, REPLACE
REPLACE

© Trynex International 2011 (REV A) F50753
10
Warranty
Model # SP-65
Limited Warranty
Snowex products are warranted for a period of two years from the date of purchase against
defects in material or workmanship under normal use and service, subject to limitations detailed
below. Warranty period of two years begins on the date of purchase by the original retail user.
TheWARRANTY REGISTRATION CARD must be returned to the manufacturer for this warranty
to become effective. This warranty applies to the original retail purchaser only. This warranty does
not cover damages caused by improper installation, misuse, lack of proper maintenance, alterations
or repairs made by anyone other than authorized Snowex dealers or Snowex personnel. Due to the
corrosive properties of the materials dispensed by spreaders, Trynex does not warrant against
damage caused by corrosion. Warranty claims by the user must be made to the dealer from where
the product was purchased, unless otherwise authorized by Snowex. Snowex reserves the right to
determine if any part is defective and to repair or replace such parts as it elects. This warranty does
not cover shipping costs of defective parts to or from the dealer.
LIMITATION OF LIABILITY
Neither Snowex, nor any company affiliated with it, makes any warranties, representations for
promise as to the performance or quality other than what is herein contained. The liability of Snowex
to the purchaser for damages arising out of the manufacture, sale, delivery, use or resale of this
spreader shall be limited to and shall not exceed the costs of repair or replacement of defective
parts. Snowex shall not be liable for loss of use, inconvenience or any other incidental, indirect or
consequential damages, so the above limitations on incidental or consequential damages may not
apply to you.
NO DEALER HAS AUTHORITY TO MAKE ANY REPRESENTATION OR PROMISE ON BEHALF OF
SNOWEX, OR TO ALTER OR MODIFY THE TERMS OR LIMITATIONS OF THIS
WARRANTY IN ANY WAY.

11
© Trynex International 2011 (REV A) F50753
Spreader Views
Model # SP-65
0N
OFF
PA-103354

© Trynex International 2011 (REV A) F50753
12

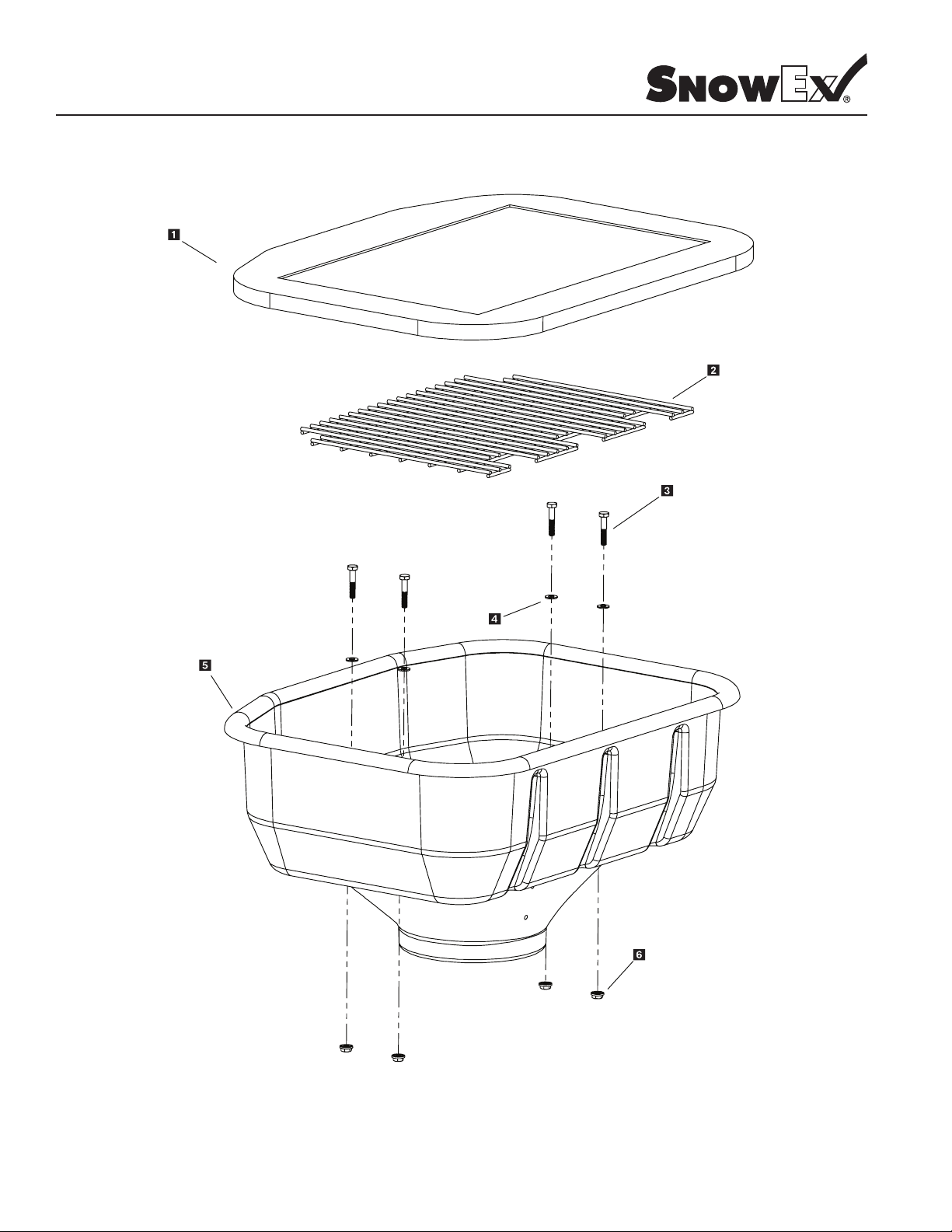

Hopper Assembly Parts Breakdown
Model # SP-65

13
© Trynex International 2011 (REV A) F50753
Hopper Assembly Parts Breakdown
Model # SP-65
Key Part No . Description Qt y.
D 5967 Hopper Cover 1
D 5973 Screen 1
D 5969 1/4-20 x 1-3/8 HHCS 4
D 5701 1/4” Flat Washer Zinc 4
1D 5981 Hopper
1/4-20 Serrated Hex Flange Nut
T 15133 4

© Trynex International 2011 (REV A) F50753
14

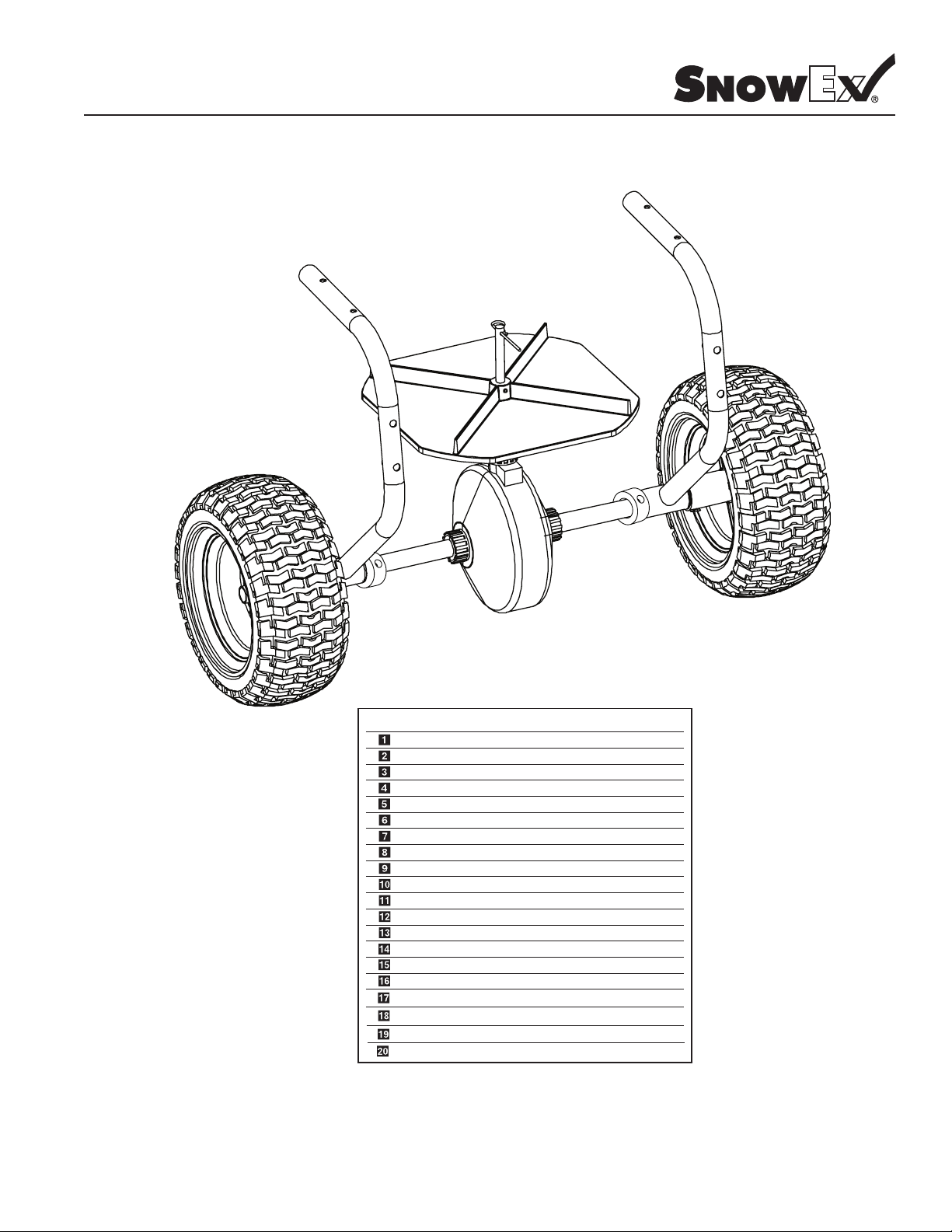

Axle Assembly Parts Breakdown
Model # SP-65

15
© Trynex International 2011 (REV A) F50753
Axle Assembly Parts Breakdown
Model # SP-65
Key Part No . Description Qt y.
D 5974 Hopper Frame Leg
D 5923 Axle Bushing
D 5972 Axle
2
1
D 5971 Wheel
D 5947 3/16 x 1-1/2” SS Cotter Pin
D 5930 Lock Ring
D 5916 Spinner Shaft
D 5941 Axle Spacer
2
1 Gear Cover195D
D 5913 Gear Support
D 5910 Pinion Gear
D 5926 Shaft Insert
D 5909 Drive Gear
D 5939 Spring Pin Spinner
D 5938 Spring Pin Pinion Gear
D 5993 Agitator Wire
D 5902 Plastic Spinner
4
2
1
1
1
1
1
1
3
1
1
1
1
1
D 6024 Axle Collar 2
D 5919 3/16 x 2” Cotter Pin 1
D 5921 3/16 x 1-1/4” Roll Pin 1

© Trynex International 2011 (REV A) F50753
16

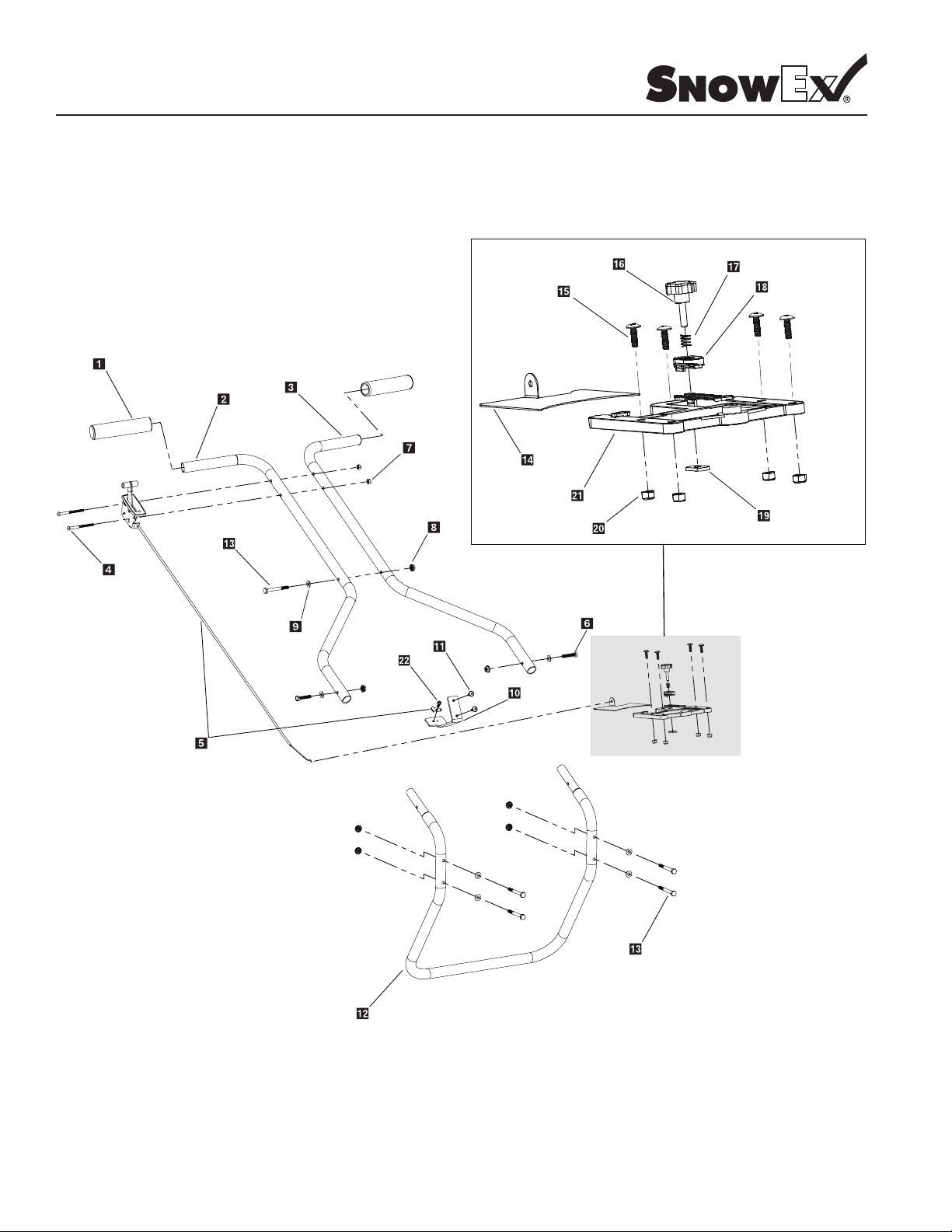

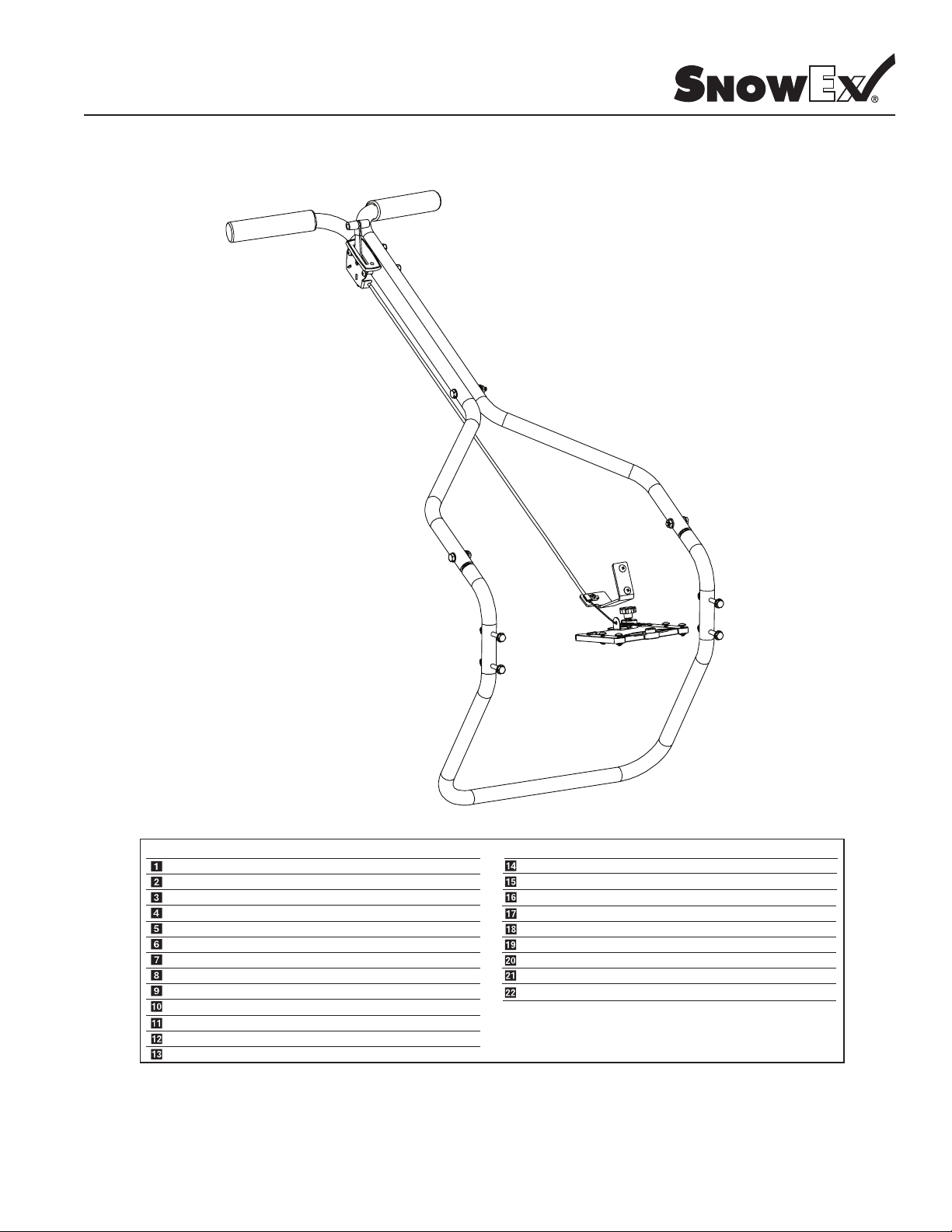

Handle Assembly Parts Breakdown
Model # SP-65

17
© Trynex International 2011 (REV A) F50753
Handle Assembly Parts Breakdown
Model # SP-65
D 5917 Handle Grip
Right Hand Upper Handle
Left Hand Upper Handle
10/32 x 2-1/2 Round Head Phillips
Cable Control
1/4-20 x 1-1/4 HHCS Zinc
10/32 Locknut
1/4-20 Serrated Flange Nut
1/4” Flat Washer
Cable Bracket
Locking Knob
Adjustment Knob Spring
Gate Stop Block
#10 Flat Nut
10-32 Nylox Nut SS
Gate Track
2
1
1
2
1
2
6
7
7
1
1
1
1
1
6
1
D 5975
D 5976
D 5985
D 5983
D 5964
D 6158
T 15133
D 5701
10/32 x 1/2 Phillips Truss Head 2 D 5970
Frame Stand 1 D 5977
1/4-20 x 2-1/4 HHCS 5 D 5987
Gate Slide 1 D 5345
Bolt | #10-32 X 1/2" Hex Head MS Stainless 4 D 5905
D 5982
D 5935
D 5936
D 5927
D 5928
D 5948
D 5912
10-32 x 3/8 Phillips Fillister Head MS 1
D 5968
Key Part No. Description Qty. Key Part No. Description Qty.

© Trynex International 2011 (REV A) F50753
18
Notes

19
© Trynex International 2011 (REV A) F50753
Notes

120510
