TTI TCB-771 User manual

4W MOBILE CB TRANSCEIVER
INSTRUCTION MANUAL
www.ttikorea.co.kr
Downloaded from www.cbradio.nl

CONTENTS
3
3
3
6
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
9
10
10
11
12
13
13
14
15
16
17
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
6
6
6
7
7
8
8
8
8
8
9
9
9
9
Introduction
Supplied Accessories
Installation
Transceiver Controls and Functions
LCD Display
Microphone
Menu Setting Mode
How to Operate the Transceiver
Band Selection
Trouble Shooting
CE Declaration
Safety Requirement
Specification
Restrictions on the use
Freequency Table
Microphone Jack
LCD Display
Emergency Button
Scan/Lock Button
AM/FM and LCR Button
Quick Up Button
Quick Down Button
Squelch Control knob
Volume and Power On/Off Knob
Channel Selector
Antenna Connector
S-Meter
Power 12/24V
EXT Jack
ENGLISH

ENGLISH
1. Introduction
1 unit
1 unit
1 unit
1 unit
2 pieces
3 pieces
2 pieces
1 piece
TCB-771 transceiver
Microphone with cord
Power cable
Radio mounting bracket
Radio mounting thumb screw with rubber washer
Mounting screw with washer (for transceiver bracket)
Mounting screw with washer (for microphone bracket)
Microphone mounting bracket
2. Supplied Accessories
3. Installation
TCB-771 transceiver is designed to have a good performance in any
conditions that the transceiver operates, using rugged build
chassis, PCB’s and components. This transceiver is also designed for
users’ convenience, implementing human ergonomics to locate the
knobs and buttons in the proper places. The combination of well
designed knobs and buttons as well as user friendly graphic layouts
will lead users to quickly adapt themselves for the easy operation.
The newly applied menu mode will make professional users more
satisfactory with pleasure. The elegant and luxury blue LED light
supporting the face design will go well with any vehicles.
This instruction manual has been designed to enable you to get the
best use from your CB Transceiver, therefore you are recommended
to take a few minutes to read this instruction manual before initial
use of your CB Transceiver.
Your transceiver is supplied with a full range of accessories to help
you get started and virtually benefit from all the features straight
away.
Plan the location of the transceiver and microphone first, which is
most convenient for the operation. The transceiver should normally
be mounted horizontally, but may be mounted vertically. The
bracket supplied can be fitted above or below the case allowing
the TCB-771 to be cradled by the bracket or suspended from it.
3
TCB-771

Consider that this location of the transceiver should not interfere
with the driver and passengers. Choose a spot where the
microphone and all controls are easily accessible.
1)
2)
3)
Put the mounting bracket on the proper location where you are
going to install.
Drill holes and fix mounting bracket on the location.

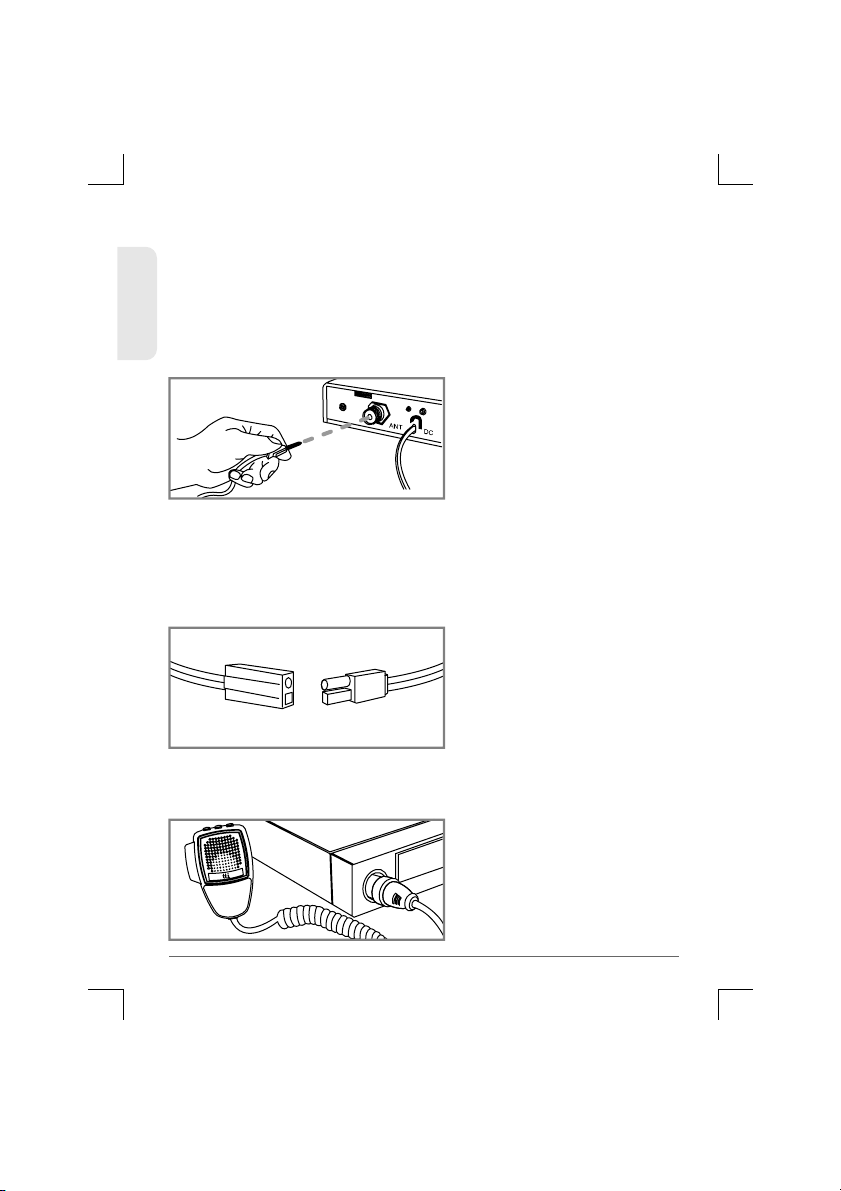

Connect the antenna cable plug to the standard receptacle
on the transceiver, which
is marked "ANT".
4)
5)
Connect the power cable directly to the vehicle battery or fuse
box of the car. Be careful to make sure of the polarity of the
battery first and connect the cable.(Red: Positive Pole(+), Black:
Negative Pole(-). The same colours are shown on the battery and
in the fuse box of the car.)
Connect the power cable to the transceiver cable.
6)
7)
Mount the microphone bracket on one side of the transceiver, or
near it using two screws included.
Connect the microphone to the transceiver’s microphone
receptacle. Now you are
ready to operate the
transceiver.
ENGLISH
4TCB-771

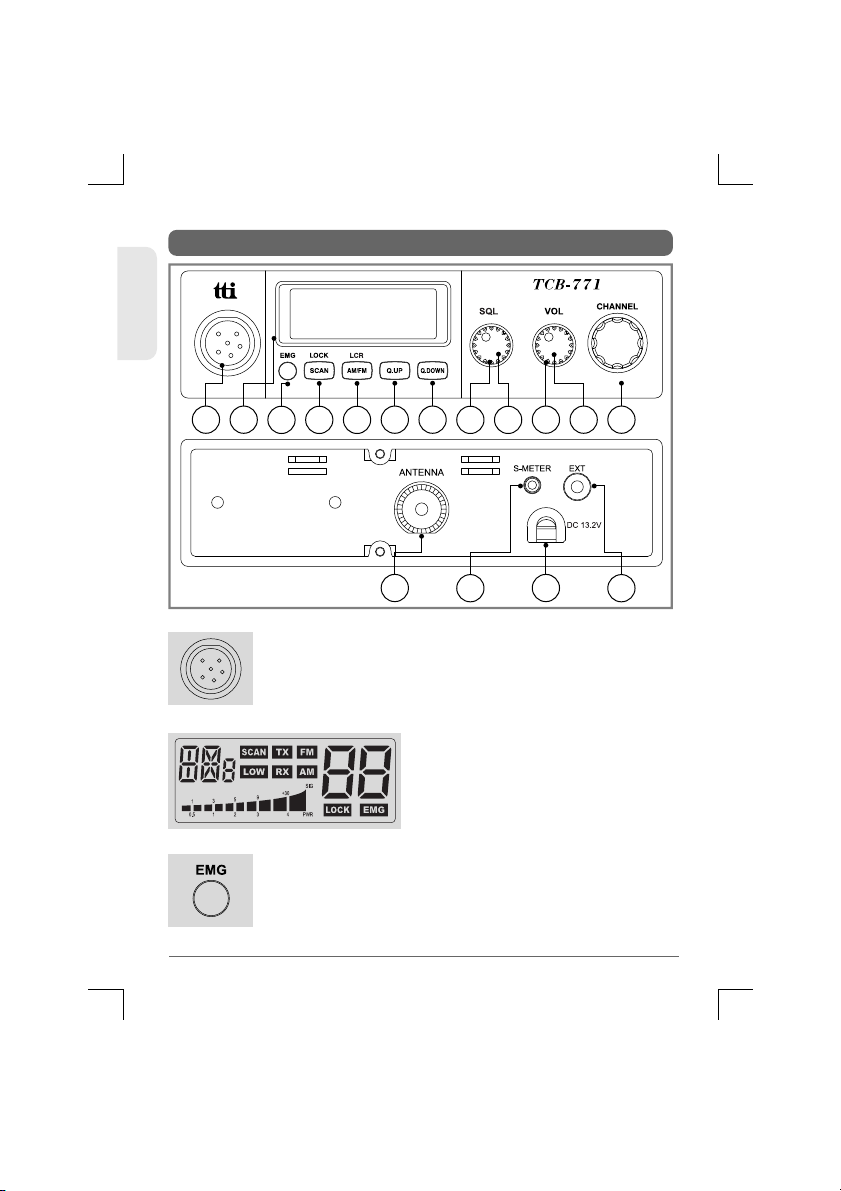

4.Transceiver Controls and Functions
3 4 5 6 7 8 9 10 11 12
13 14 15 16
21
1) Microphone Jack
3) Emergency Button
2) LCD Display
Insert the microphone into this jack. Use the guide for
easy connection.
Most of the operational
information is displayed.
Please see item no. 5 for the details
of information.
Pressing this button will lead you to the emergency
channel, "CH 9" and the EMG icon will be displayed.
The channel selector and quick up/quick
down
buttons will not work.To return to the previous
operation mode,momentarily press the emergency button again.
ENGLISH
6TCB-771

ENGLISH
4) Scan/Lock Button
5) AM/FM and LCR Button
Scan : Press this button momentarily to start scanning
upward to catch any channels that are occupied by
others.
When the transceiver is used in UK, UE, or EC
freequency band modes this button activates or
deactivates Last Channel Recall function. In all
other
modes (where national regulations permit this)
To activate/deactivate the channel scan, press the Scan button
briefly. The Scan icon will appear when the channel scan is active.
Scanning will only stop when you deactivate the scan function.
Turn the channel selector counter-clockwise during scanning in
order to change the scanning direction.
The transceiver will scan through the whole transceiver channels. If
your transceiver detects a valid signal the scan will pause for the
period that has been set by the menu mode setting (continuously
receiving or 1-99 seconds for scan receive time and immediate
response or 1-99 seconds for scan delay time).
If you press the PTT button when your transceiver detects a signal,
the radio will transmit on the same channel. Scanning will resume
after the scan receive time and/or the scan delay time. Use the
channel selector or quick up/quick down selector
to resume scanning immediately.
If you press the PTT button during scanning, the radio will return to
your original channel. Scanning will resume after the scan receive
time and/or the scan delay time. Use the channel selector or quick
up/quick down selector to resume scanning immediately.
Lock : Press this button for more than 2 seconds to activate and
deactivate the keypad lock function. This function locks only the
channel selector, quick up/quick down buttons, scan button. Other
buttons and selectors work normal.
this button allows user to switch between AM and FM modes by
momentarily pressing this button.
7
TCB-771

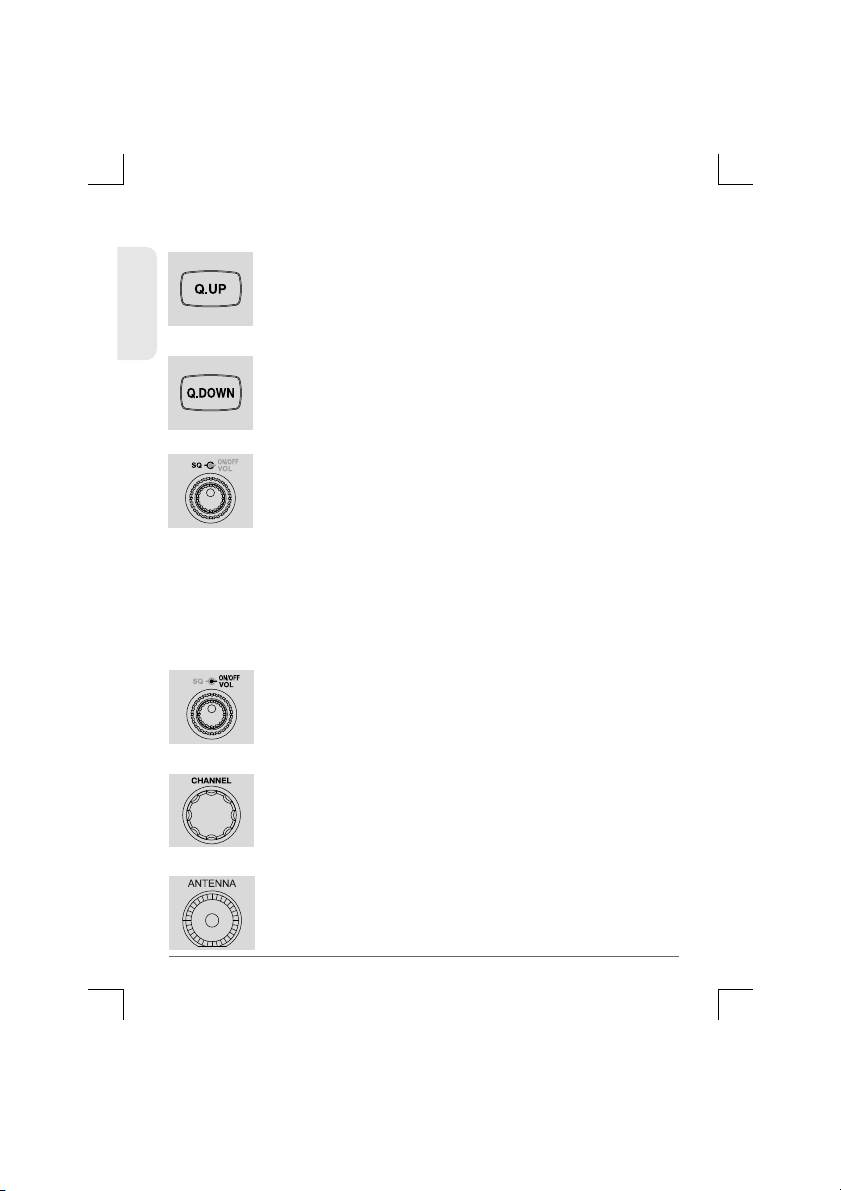

6) Quick Up Button
7) Quick Down Button
Press this button briefly to increase the channels by 10
steps.
Press this button briefly to reduce the channels by 10
steps.
ENGLISH
8TCB-771
8) Squelch Control knob
9) Volume and Power On/Off Knob
10) Channel Selector
Main Squelch Control: Turn this knob counter-
clockwise until you hear the background noise and
then turn the knob a little clockwise until the noise
disappears. In this way, you get the best receive
sensitivity.
Auto Squelch: Control if you like to use the auto squelch control,
turn this knob counter clockwise until hearing the click sound. To
return to the manual squelch turn this knob clockwise until
hearing the click sound and then follow the manual squelch
setting procedure.
To switch on the transceiver turn this knob clockwise.
After clicking sound the transceiver is switched on.The
more you turn this knob clockwise, the bigger the
audio sound grows.
Turn right or left, and this allows you to select the
channel one by one that you like to use.
11) Antenna Connector
Insert the mail connector of the antenna cable into
this female antenna connector.

ENGLISH
13) Power 12V/24V DC
Connect the power supply cable to this port.
14) EXT Jack
12) S-Meter
5. LCD Display
1 2 3 4 5 7
111098
61
2
3
4
5
6
7
8
9
10
11
Selected Frequency Band
Low Power (AM 1 Watt)
Scan
Transmit
FM Mode
AM Mode
Channel Display
Signal Strength Meter
Receive
Keypad Lock
Emergency Channel Display
Connect an external S-Meter (This is not supplied.) to
this port.
Connecting a loud speaker to this port makes the
built-in speaker turned off.
9
TCB-771

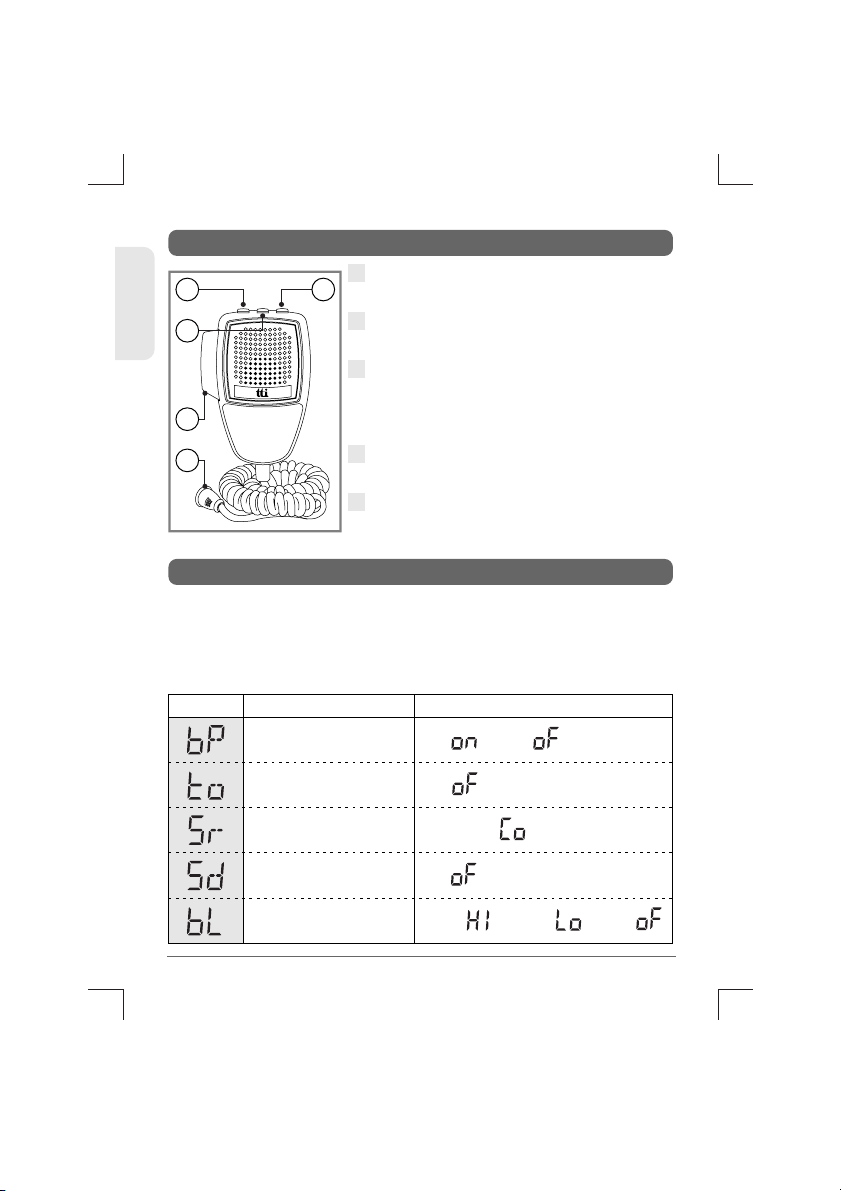

6. Microphone
7. Menu Setting Mode
1
2
4
5
3
On( ) / Off( )
High( ) / Low( ) / Off( )
Off( ) and 1~99 Sec.
Continue( ) and 1-99 Sec.
Off( ) and 1~99 Sec.
Beep Tone
Backlight Dimmer
Scan Delay Timer
(after Receiving signal)
Scan Receive Timer
Time-out Timer
Display SettingsFunctions
2
3
4
5
1Up Button : Use this button to change
the channels upward.
Down Button : Use this button to
change the channels downward.
Lock Button : This locks the up button
and down button of the microphone.
Also, this lock works same as the lock
button on the transceiver front panel.
PTT Button : While pressing this button,
you can transmit.
6 Pin Microphone Connector : Connect
this to the microphone jack on the front
panel of the transceiver.
Pressing the Lock button of the microphone, turn on the
transceiver. The transceiver goes to the Menu Setting Mode, which
has the following menu features. This menu setting mode allows
you to program user preferences, activate features and use
advanced functions.
10 TCB-771
ENGLISH

ENGLISH
8. How to Operate the Transceiver
Note :
1.
2.
3.
4.
5.
Use Channel Selector to selecte the main menu features such
as Beep Tone, Time-out Timer, Scan Receive Timer, Scan Delay
Timer, Backlight Dimmer and Backlight Timer.
Use AM/FM button to enter value setting level.
Use Channel Selector to select or change any value that you
like to have while the values are blinking.
Use SCAN button to return to the previous main menu
features.
Press Lock button or PTT button of the Microphone to
complete the selections and changes and return to the
stand-by mode. Or the selections and changes will be
automatically confirmed after 5 seconds of the selections
and changes. Using Scan button to return to the previous
main menu features will be accompanied by the automatic
confirmation of the selected values and changes.
1)
2)
3)
4)
5)
6)
7)
8)
9)
Make sure the microphone is connected to the
microphone jack.
Make sure the power cable is connected properly.
Make sure the antenna is connected to the antenna
receptacle.
It is better to put the squelch control knob turned fully
counter-clockwise.
Turn on the transceiver and control the volume level.
Adjust the squelch control knob to the optimum level.
Select your desired channel.
To transmit, press the PTT button and speak to the
microphone.
Release the PTT button to receive.
11
TCB-771

9. Band Selection
UE
(EU/UK)
I
I2
D
D2
EU
EC
E
F
PL
UK
DisplaySettings Band
Europe 40 Ch FM 4W
Spain 40 Ch AM/FM 4W
France 40 Ch FM 4W, 40 Ch AM 1W
UK 40 Ch FM 4W (British Frequencies)
Italy 40 Ch AM / FM 4W
Italy 34 Ch AM / FM 4W
Germany 80 Ch FM 4W, 12 Ch AM 1W
Germany 40 Ch FM 4W, 12 Ch AM 1W
Europe 40 Ch FM 4W, 40 Ch AM 1W
UK 40 Ch FM 4W (British Frequencies)
+ CEPT 40 Ch FM 4W (EC)
Poland 40 Ch AM / FM 4W
(Polish Frequencies : 5KHz)
Pressing AM/FM button and Scan
button at the same time, turn on the
transceiver. Using the channel selector,
select the band that you are
going to select. The LCD display offers you the band information.
The band chart for each area is as follows.
Press AM/FM button while the band information is blinking or wait
for 5 seconds to complete the selection and go to the transmit and
receive mode. This transceiver has "EC" band setting when it is
shipped out from the factory.
12 TCB-771
ENGLISH

ENGLISH

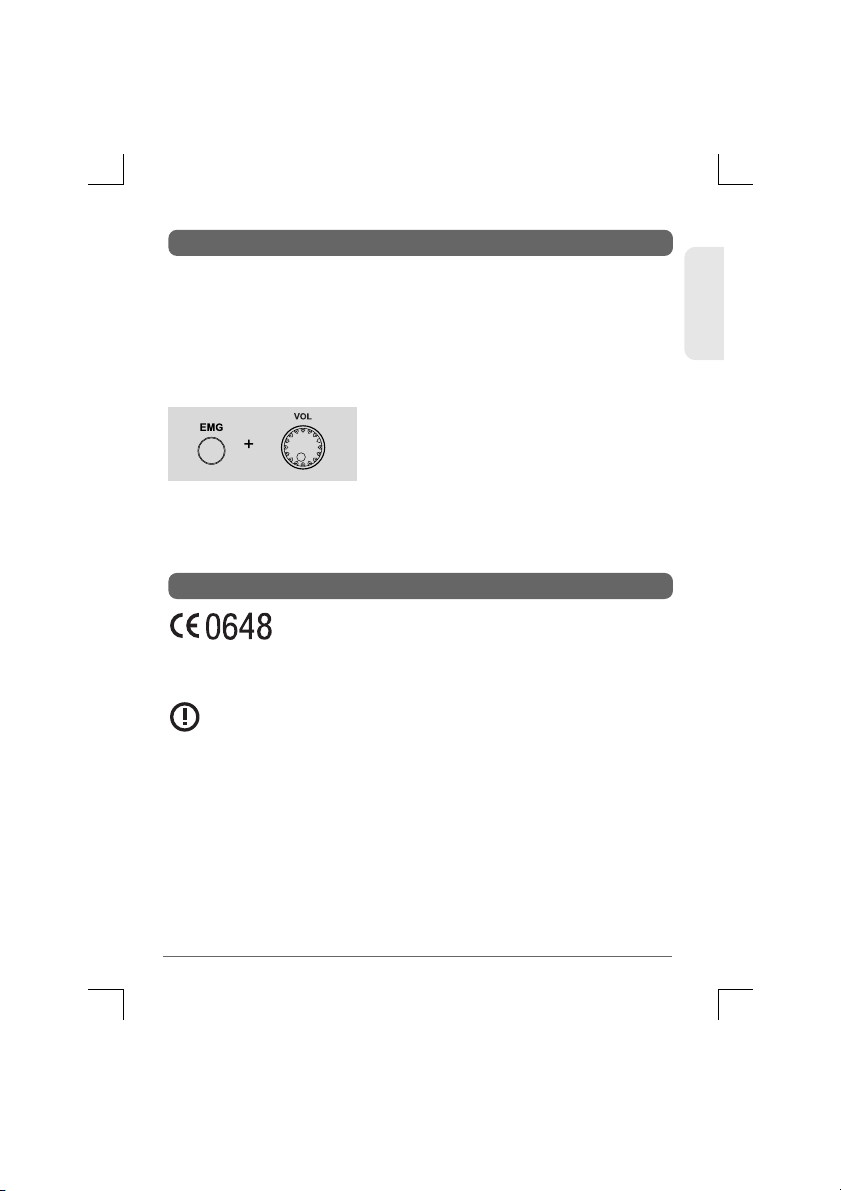

10.Trouble Shooting
1)
2)
11. CE Declaration
Switch off the transceiver.
Pressing EMG button, switch on the
transceiver.
This will reset the transceiver, so all the memories are erased and
the parameters return to the initial factory setting.
This should fix most problems. In case of further difficulty, please
consult your dealer or visit our website.
This unit can be used without license and charges in; Austria,
Belgium, Bulgaria,Cyprus, Czech, Denmark, Estonia, Finland,
France,Germanay, Greece, Hungary, Iceland, Ireland, Italy,
Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland,Portugal,Pomania, Slovakia, Slovenia, Spain, Sweden,
Switzerland, and U.K.
This warning symbol indicates that this equipment operates
in non-harmonised frequency bands and/or may
be subject to licensing conditions in the country of use.
Be sure to check that you have the correct version of this
radio or the correct programming of this radio, to comply
with your national licensing requirements.
CE versions of the TCB-771 which display the CE
symbol on the product label, comply with the
essential requirements of the European Radio and
Telecommunication Terminal Directive 1999/5/CE.
If this does not solve the problem, reset your transceiver as follows.
If you experience problems with your TCB-771 transceiver, first
check the power supply source. Poor connection of the power
supply source can cause problems such as no transmission, no
reception or poor reception, and weak or no sound. Ensure that the
microphone and antenna are also well connected.
13
TCB-771

12. Safety Requirement
The same colors are present on the battery and in the fuse box
of the car.
* Red : Positive pole (+)
* Black : Negative pole (-)
The power cable is for 12V/24V DC only. Be sure the transceiver is
off before connecting the leads of the power cable to the power
supply. It is important to observe the polarity even if the unit is
protected against the accidental inversion :
The unit must be wired for the negative ground only.
To avoid damage, do not operate your CB radio without connecting
a proper antenna.
14 TCB-771
ENGLISH

ENGLISH
13. Specification
Channel
Frequency Range
Operating mode
Frequency Control
Frequency Tolerance
Operating Temperature Range
Microphone
Input Voltage
Size
Weight
Antenna Connector
Power Output
Modulation
Frequency Response
Output Impedance
Harmonic Suppression
Current Drain
Receiving System
IF Frequencies
Sensitivity
Audio Output Power
Audio Distortion
Image Rejection
Adjacent Channel Rejection
Conducted Spurious
Frequency Response
Built-in Speaker
Squelch
* Specification is subject to change without prior notice.
T
R
A
N
S
M
I
T
T
E
R
R
E
C
E
I
V
E
R
G
E
N
E
R
A
L
40 (See the frequency band chart)
26.56 MHz ~ 28.00 MHz
F3E (FM), A3E (AM)
PLL Synthersizer
0.002%
-10 to + 55 C
Plug-in Type
12V /24V DC ± 10%
140 (W) x 186 (L) x 37 (H)
990 g
SO-239 type
Duty cycle 10% 4 Watts @13.8V DC
AM:from 85% to 95%
FM:1.8KHz ± 0.2KHz
300Hz to 3000Hz
50ohms, Unbalanced
More than -36dBm
AM Full Mod. 1.6A Max.
Dual conversion superheterodyne
Double Conversion 1st 10.695MHz/2nd 455KHz
0.7 V for 10dB(S+N)/N in AM Mode
0.5 V for 20dB SINAD in FM Mode
2.0W @ 8 Ohm
Less then 8% @ 1KHz
60 dB
60 dB
More than 60 dB
300 to 2500Hz
8 Ohms, round
Adjustable;Threshold less than 1 microvolt
15
TCB-771

14. Restrictions on the use
COUNTRY
BELGIUM
SWITSERLAND
DENMARK,NORWAY
LUXEMBOURG,CZECH
FINLAND,PORTUGAL
FRANCE,NETHERLANDS
GERMANY
GREECE
IRELAND
ITALY
SPAIN
SWEDEN
UK
POLAND
Use restrictions and other comments
40 Ch - 4W FM - Individual licence is required
40 Ch - 1W AM - Individual licence is required
40 Ch - 4W FM - Free use
40 Ch - 1W AM - Free use
80 Ch - 4W FM - Individual licence is required
12 Ch - 1W AM - Individual licence is required
40 Ch - 1W AM - Use ch 4-15 only
40 Ch - 4W FM - Free use
12 Ch - 1W AM - Individual licence is required
40 Ch - 4W FM - Free use
40 Ch - 5W AM - Free use
40 Ch - 4W FM - Free use
40 Ch - 1W AM - Free use
40 Ch - 4W FM - General authorisation is required
40 Ch - 1W AM - General authorisation is required
34 Ch - 4W FM
34 Ch - 1W AM(ERP)
40 Ch - 4W FM - Individual licence is required
40 Ch - 4W AM - Individual licence is required
40 Ch - 4W FM - Free use
40 Ch - 1W AM - Individual licence is required
40 Ch - 4W FM - Individual licence is required
40 Ch - 4W FM / AM - Free use
*AM mode allowed on ch1-23 only
Settings
EC
EC
EU
fx Allowed: from 26.960 to 27.410 MHz "BAPT 222 ZV 104"
T/R 20-02
S.I.No 436 of 1998.WIRELESS TELEGRAPHY ACT, 1926 (SECTIONS)
(EXEMPTION OF CITIZENS' BAND (CB) RADIOS) ORDER, 1998
PNF issued on DM 08.07.02 NOTES 49 A-B-C-D-E-G
Art. 57 - Law 11/1998 dated 24th April
UK-RA-MPT 1382/MPT1320; UK-R&TTE - S.IL. 2000:730
EU F
EC
EU
D
E EU F I
D2
EC
E EU F I EC
E EU F
I2
IEC
E EU F EC
EU F EC
ECUK
ECPL EU
F
EC
40 Ch - 4W FM - Free use
16 TCB-771
ENGLISH

ENGLISH
15. Frequency Table
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
27.215
27.225
27.255
27.235
27.245
27.265
27.275
27.285
27.295
27.305
27.315
27.325
27.335
27.345
27.355
27.365
27.375
27.385
27.395
27.405
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
27.215
27.225
27.255
27.235
27.245
27.265
27.275
27.285
27.295
27.305
27.315
27.325
27.335
27.345
27.355
27.365
27.375
27.385
27.395
27.405
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
27.215
27.225
27.255
27.235
27.245
27.265
27.275
27.285
27.295
27.305
27.315
27.325
27.335
27.345
27.355
27.365
27.375
27.385
27.395
27.405
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
27.215
27.225
27.255
27.245
27.265
26.875
26.885
26.895
26.905
26.915
26.925
26.935
26.945
26.955
EU/E/F/
UK(CEPT)
UK
(ENG.)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
27.215
27.225
27.255
27.235
27.245
27.265
27.275
27.285
27.295
27.305
27.315
27.325
27.335
27.345
27.355
27.365
27.375
27.385
27.395
27.405
D
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
EC
27.60125
27.61125
27.62125
27.63125
27.64125
27.65125
27.66125
27.67125
27.68125
27.69125
27.70125
27.71125
27.72125
27.73125
27.74125
27.75125
27.76125
27.77125
27.78125
27.79125
27.80125
27.81125
27.82125
27.83125
27.84125
27.85125
27.86125
27.87125
27.88125
27.89125
27.90125
27.91125
27.92125
27.93125
27.94125
27.95125
27.96125
27.97125
27.98125
27.99125
I
26.960
26.970
26.980
27.000
27.010
27.020
27.030
27.050
27.060
27.070
27.080
27.100
27.110
27.120
27.130
27.150
27.160
27.170
27.180
27.200
27.210
27.220
27.250
27.230
27.240
27.260
27.270
27.280
27.295
27.300
27.310
27.320
27.335
27.340
27.350
27.360
27.370
27.380
27.390
27.400
PLI2
26.965
26.975
26.985
27.005
27.015
27.025
27.035
27.055
27.065
27.075
27.085
27.105
27.115
27.125
27.135
27.155
27.165
27.175
27.185
27.205
27.215
27.225
27.255
27.235
27.245
27.265
27.275
27.285
27.295
27.305
27.315
27.325
27.335
27.345
27.355
27.365
27.375
27.385
27.395
27.405
D2
AM/FM FM
17
TCB-771
26.565
26.575
26.585
26.595
26.605
26.615
26.625
26.635
26.645
26.655
26.665
26.675
26.685
26.695
26.705
26.715
26.725
26.735
26.745
26.755
26.765
26.775
26.785
26.795
26.805
26.815
26.825
26.835
26.845
26.855
26.865
26.875
26.885
26.895
26.905
26.915
26.925
26.935
26.945
26.955

We, TTI Tech Co.,Ltd (TTI house, 163-4, Poi-dong, Gangnam-gu,
Seoul, Korea) declare on our sole responsibility that this equipment
complies with the essential requirements of the Radio and
Telecommunications Terminal Equipment Directive, 1999/5/EC, and
that any applicable Essential Test Suite measurements have been
performed.
DECLARATION OF CONFORMITY
TCB-771
This compliance is based on
conformity with the following
harmonized standards, specifications
or documents:
Kind of equipment:
Type-designation:
Version (where applicable):
MOBILE CB TRANSCEIVER
TCB-771
Seoul, Apr. 22, 2008
Place and date of issue
Signature
EN 300 135-2
EN 300 433-2
EN 301 489-1
EN 301 489-13
EN 60950-1
V1.1.1
V1.1.2
V1.6.1(2005)
V1.2.1(2002)
2004
COMMAX PL
46 Koniecznego Str.
32-040 Swiatniki Gorne
Poland
T. [phone]
F. [phone]
Authorized Representative
TCB-771 satidfies all the technial
regulations applicable to the product
within the scope of Council Directive
2006/95/EC, 2004/108/EC and 99/5/EC:
N. Y. Kim
Director
0648
