Tuff-Built BEST HOIST Pro Series User manual

Pro Series Safety Winch
Operator’s Manual
Man-Rated for:
Work Positioning
Confined Space Entry / Retrieval
Rescue
Fall Protection
Also Rated for Material Handling Applications

Pro Series Safety Winch
Operator’s Manual
2
October 18, 2011, Rev 05
Table of Contents
1. WARRANTY INFORMATION
2. INTRODUCTION to WINCH APPLICATIONS
3. APPLICATION RESTRICTIONS
4. GENERAL SYSTEM REQUIREMENTS
5. WINCH INSTALLATION and OPERATION
6. POWER DRIVE OPTION
7. TRAINING
8. INSPECTION
9. MAINTENANCE LUBRICATION and STORAGE
10. SPECIFICATIONS

Pro Series Safety Winch
Operator’s Manual
3
October 18, 2011, Rev 05
FIVE STAR
LIMITED WARRANTY
(Safety Equipment)
(Canada & U.S.A. Only)
Tuff Built Products Inc. hereinafter named the "Company" warrants, in accordance
with the provisions below, to each user/purchaser of new Tuff Built Products equipment
from an authorized Tuff Built Products Dealer or the “Company”, that such equipment is
free from defects in material and workmanship and will be warranted for a period of up
to 120 months from date of sale or lease to the first user/purchaser, if used and serviced
in accordance with the recommendations in the Operator's Manual. Replacement is at
the discretion of the “Company”.
The obligation of the “Company” under this FIVE STAR limited warranty is limited to
repairing, or at its option, replacing any part(s), which, in the “Company's” judgment, is
defective.
Except as set forth above, THE “COMPANY” SHALL HAVE NO OBLIGATION OR
LIABILITY OF ANY KIND ON ACCOUNT OF ANY OF ITS EQUIPMENT, AND SHALL
NOT BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES. THE
“COMPANY” MAKES NO OTHER WARRANTY, EXPRESS OR IMPLIED, AND
SPECIFICALLY, THE “COMPANY” DISCLAIMS ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS.
The specific details of the Owner's FIVE STAR Limited Warranty, outlined in more detail
in "Limited Warranty Detail" attached to this certificate, are expressive of the quality built
into your equipment.

Pro Series Safety Winch
Operator’s Manual
4
October 18, 2011, Rev 05
Limited Warranty Detail
FIVE STAR LIMITED WARRANTY DETERMINATION
Only defective parts are covered by this FIVE STAR limited warranty. Any part or parts
of a “Company” product found to be defective for a period of up to 120 months from
date of sale or lease to the first user/purchaser, in accordance with the provisions of this
FIVE STAR limited warranty, will be repaired or replaced by a “Company” authorized
technician at the discretion of the “Company”.
ITEMS COVERED BY FIVE STAR LIMITED WARRANTY
The Tuff Built Products FIVE STAR limited warranty includes the replacement or repair
of any part on the “Company’s” new equipment purchased from an authorized Tuff Built
Products Dealer or the “Company”, which are defective in material, workmanship, or
both (as determined by an authorized representative of the “Company”).
This FIVE STAR limited warranty is only valid if the scheduled maintenance is
performed as outlined in the Operator’s Manual by a “Competent Person” and a signed
log evidencing the work performed is maintained and provided to the “Company” upon
request. A “Competent Person is a representative of the user/purchaser who has been
trained on the proper use and maintenance of purchased Tuff Built equipment by a
factory authorized trainer. A factory authorized trainer may be a representative of the
Company or other such person who has been certified by the Company.
Genuine Tuff Built Products replacement parts will be warranted for 90 days from date
of purchase, or the remainder of the original equipment limited warranty period,
whichever is longer.
OBTAINING FIVE STAR LIMITED WARRANTY SERVICE
To obtain FIVE STAR limited warranty service, contact the “Company”. Provide a
written description of the issue and provide copies of the most recent completed
scheduled maintenance logs. Such logs must be completed by a Competent Person.

Pro Series Safety Winch
Operator’s Manual
5
October 18, 2011, Rev 05
FIVE STAR LIMITED WARRANTY EXCEPTIONS
1. MODIFIED OR ALTERED EQUIPMENT - No warranty shall apply on any equipment
or parts that have been modified, or altered in any way without prior approval and
knowledge of the “Company”. Nor is there warranty if service, other than normal
replacement of service items, is performed by someone other than a “Company”
authorized technician.
2. NORMAL WEAR OR MAINTENANCE PARTS –Tuff Built Products Inc. shall not be
responsible for normal replacement parts under the provisions of this FIVE STAR
limited warranty. Consult your Operators Manual to obtain a list of affected parts and
service coverage.
3. MISCELLANEOUS - No warranty shall apply to damage resulting for accident,
misapplication, abuse, or damage caused by environment (such as exposure to
corrosive material).
ABOUT IMPROVEMENTS
Tuff Built Products Inc. is continually striving to improve its products, and therefore
reserves the right to make improvements or changes when it becomes practical and
possible to do so, without incurring any obligations to make changes or additions to the
equipment sold previously.

Pro Series Safety Winch
Operator’s Manual
6
October 18, 2011, Rev 05
HOW TO ACTIVATE AND MAINTAIN THIS FIVE STAR LIMITED WARRANTY
1. Complete and return the Limited Warranty Registration Form to the “Company”
2. Scheduled maintenance may be performed by a representative of the
“Company”, a “Company” authorized Dealer, or by the user as authorized by the
“Company” (with valid certification). Determine how you wish scheduled
maintenance to be performed and so advise the “Company”. If scheduled
maintenance is performed by the user the person(s) involved must be authorized
by the “Company” and training may be required.
3. Establish the scheduled maintenance log as outlined in the Operator’s Manual
and perform scheduled maintenance. The original is to be maintained by the
user and available to a “Company” authorized technician when required.
4. IMPORTANT. The purpose of this procedure is to ensure that equipment
manufactured by Tuff Built Products Inc. is, to the best ability of the “Company”,
available when needed to perform its function, that is save lives. Failure to follow
this procedure increases the hazard that this equipment will not be available
when needed and will void the warranty.

Pro Series Safety Winch
Operator’s Manual
7
October 18, 2011, Rev 05

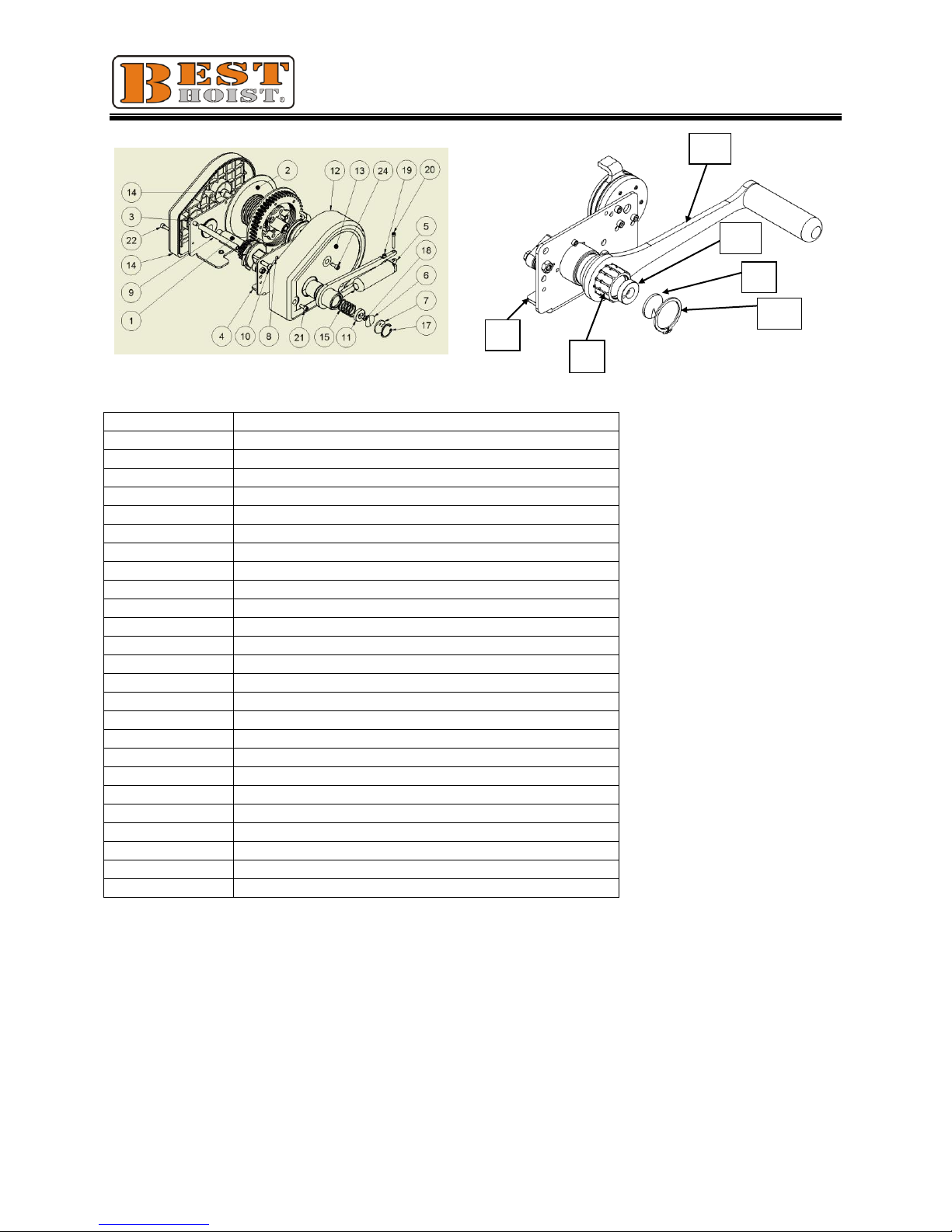

Fig 1a, Fixed Handle Models Fig 1b, Removable Handle / Power Drive Models
Item Number
Description
1
Pinion Shaft Assembly
2
Drum Spool Assembly
3
LHS Side Plate Assembly
4
RHS Side Plate Assembly
5
Crank Handle Knob Assembly
6
Brake Wear Indicator Label
7
Brake Wear Indicator Window
8
Removable Handle / Power Drive Input Hub Ass’y
9
Rear Frame Spacer
10
Rear Frame Spacer Screw
11
Crank Handle Spring Retainer Disc
12
RHS Cover
13
RHS Cover Label
14
LHS Cover
15
Crank Handle Spring
16
Removable Handle Assembly
17
Brake Wear Indicator Window Retainer Clip
18
Crank Handle Spring Retainer Disc Mounting Screw
19
Crank Handle Knob Assembly Mounting Screw
20
Crank Handle Knob Assembly Retaining Screw
21
Long RHS Cover Mounting Screw
22
LHS Cover Mounting Screw
23
Handle Retainer Snap Ring
24
Short RHS Cover Mounting Screw
Figure 1, Winch Parts and Location
Note:
For purposes of honoring warranty claims, wear to brake pads, cable retainer spring bar, labels, and
winch lifelines are considered part of normal winch operation and are not covered by the warranty.
7
11
16
8
23
4

Pro Series Safety Winch
Operator’s Manual
8
October 18, 2011, Rev 05
2. INTRODUCTION to WINCH APPLICATIONS
Congratulations on your purchase of a Best Safety Systems Pro-Series Man-Rated Winch as part of your
safety at heights equipment.
Pro-Series winches combine many advanced safety features, including multiple brake pawls, a secondary
inertia actuated brake, easy to read visual brake wear indicator, visual overload indicator integral to the
snap hook, and optional usage indicator.
Some versions of these winches feature a unique drive input hub design which allows the winch to be
easily switched from a manual crank to various power drive options to allow the winch to be driven with
different types of corded and cordless power hand drills (See Section 6 for further information on Power
Drive options).
The winch may be equipped with a variety of winch line options including, stainless or galvanized steel
cable in various diameters, and ropes in various diameters and constructions to meet your specific job
requirements.
This product has been specifically designed and carefully manufactured to provide reliable operation in
many different safety-at-heights applications. These include, but are not limited to:
2.1 WORK POSITIONING
The winch may be used for the suspension of a worker at a work position for the performance of a task.
When a worker is suspended in a work seat or harness, a secondary personal fall arrest system must be
used in addition to the suspension line. Personal fall arrest systems used with this winch must meet
applicable OSHA or other local requirements.
NOTE: OSHA 29 CFR 1926 Subpart L considers this application to be a single point suspension scaffold,
and requires treatment as such.
2.2 RESCUE
The winch may be used as part of a system to allow for the post-fall rescue of a worker protected by a
personal fall arrest system. This winch meets the requirements of ANSI/ASSE Z359.4 for use as a
rescue device.
2.3 CONFINED SPACE ENTRY / RETRIEVAL and RESCUE
The winch may be used as part of a system to facilitate access to and egress from a confined space as
well as non-entry rescue in the event of an emergency. This winch meets the requirements of OSHA
1910.146, and ANSI/ASSE Z117.1 for use as a confined space entry/retrieval and rescue device.

Pro Series Safety Winch
Operator’s Manual
9
October 18, 2011, Rev 05
2.4 FALL PROTECTION WHILE CLIMBING
In situations where it is not practical to install and use a temporary or permanently installed personal fall
arrest system, the winch may be used to guard against falling while climbing a fixed ladder or other
structure. The winch line can be used as essentially a travelling anchorage connector that moves up and
down with the climber. An energy absorbing lanyard is installed between the winch line and the dorsal D-
ring on the climber’s full body harness. The winch must be operated so as to continuously eliminate any
slack in the winch line as the climber moves up and down. The winch operator must be specifically
instructed in such use of this winch. All installations must be designed, installed, and used under the
supervision of a qualified person.
2.5 MATERIAL HANDLING
The winch may be used for the raising and lowering of tools, equipment, and other material not exceeding
the rated Working Load Limit of the winch. Various jurisdictions may not allow the use of the same
equipment to move personnel and material. Be aware of and follow the regulations governing your
workplace.
3. APPLICATION RESTRICTIONS
There are restrictions and limitations that must be carefully considered in the selection, installation, and
operation of this winch. Serious injury or death may result from failure to consider these factors.
3.1 WORKING LOAD LIMIT
This winch is designed and rated to a working load limit of 1 person weighing a maximum of 310lbs
(including all clothing, tools, and equipment) when used in a 1 Part Single Reeved System, or 2 persons
weighing a maximum 620 lbs when used in a 2 Part Single Reeved System (see Figure 2).

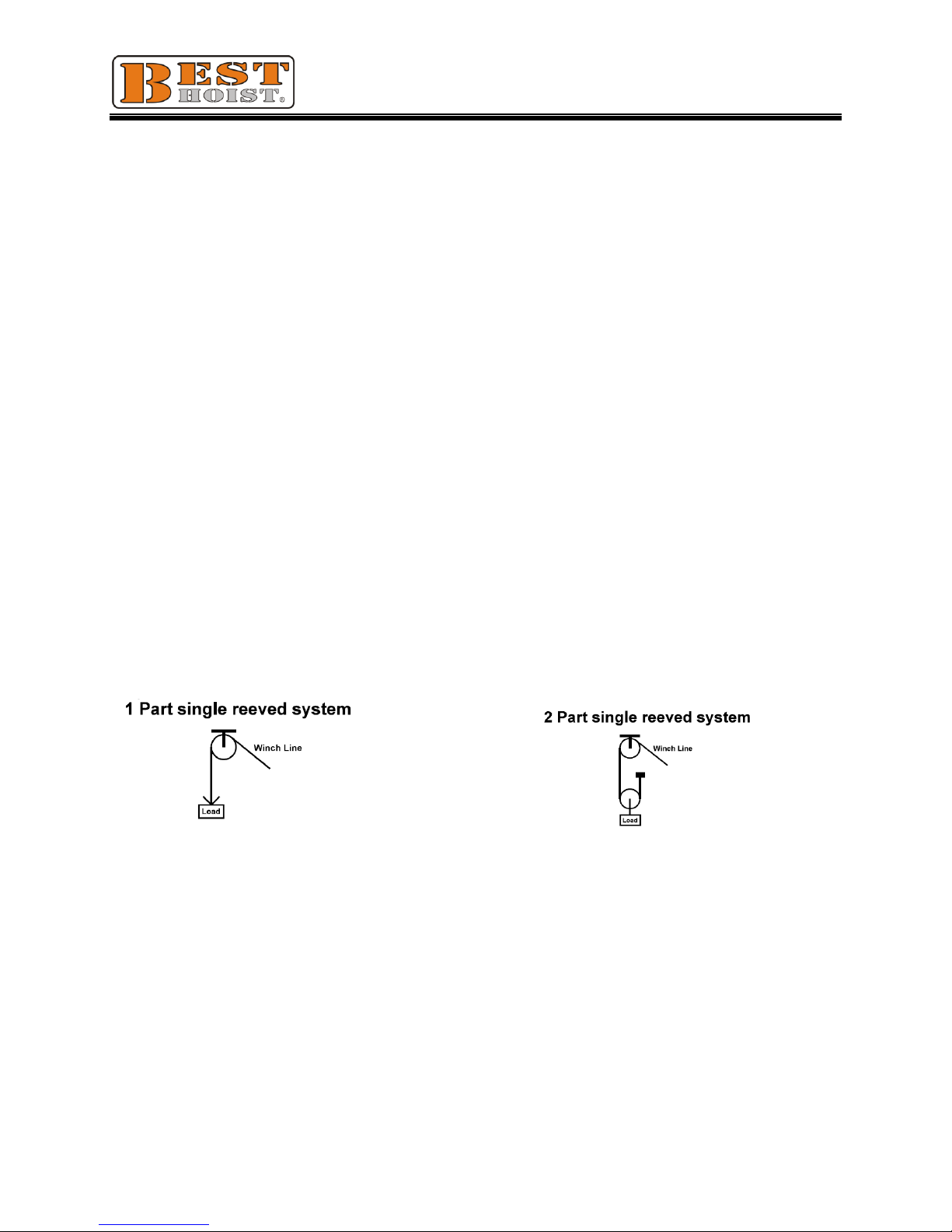

Figure 2, 1 & 2 Part Single Reeved Systems
Please refer to the Operator’s Manual(s) for all other accessories in the system to determine which
reeving option(s) are applicable to the system.
Note: Please be aware that a 2 Part Single Reeved System is rated for a higher working load limit, but
that raising/lowering speed is only half that of a 1 Part Single Reeved System.
Ensure that all other system components have a working load limit matching that of the winch. System
rating is equal to that of the lowest rated system component.

Pro Series Safety Winch
Operator’s Manual
10
October 18, 2011, Rev 05
3.2 SITE CHARACTERISTICS, PHYSICAL and ENVIRONMENTAL FACTORS
Work sites have associated with them any of a number of hazards related to the site itself. These may
include, but are not limited to poisonous or explosive atmospheric conditions, poisonous or corrosive
chemical hazards, hot surfaces, electrical hazards, sharp edges, engulfment hazards, or moving
machinery.
All of these factors must be taken into consideration when selecting equipment for a given application.
4. GENERAL SYSTEM REQUIREMENTS
This winch is designed for use with a variety of accessories to perform many functions. There are
requirements common to all such systems that include, but are not limited to, the following.
4.1 ANCHORAGE STRENGTH
This winch is designed to be used in conjunction with a supporting structure capable of providing the
required anchorage strength. Supporting structures designed, manufactured, and/or approved by Tuff
Built Products Inc. will have sufficient strength for the approved application. Any supporting structure not
designed, manufactured, and/or approved by Tuff Built Products Inc. MUST BE designed, installed, and
used under the supervision of a Qualified Person.
The standards governing different situations specify various anchorage requirements. However, at no
time can the anchorage provide any less than the greater of:
-a 2:1 safety factor on the maximum arrest force (MAF) rating of any fall arrest system being used,
-a 4:1 safety factor on personnel working loads applied to the system,
-a 4:1 safety factor on material handling loads applied to the system.
Anchorages selected must meet applicable local requirements for anchorage strength.
All installations MUST BE used under the supervision of a Qualified Person.
4.2 COMPATABILITY OF CONNECTORS
Connectors used to connect components in the system must be compatible with each other to ensure
sufficient strength and eliminate the risk of accidental disengagement or rollout during use. Connectors
supplied with products designed, manufactured, and/or approved by Tuff Built Products Inc. will meet all
applicable requirements for connectors. Any connectors not supplied by Tuff Built Products Inc. MUST
BE selected and approved by a Qualified Person.
4.3 FULL BODY HARNESS
Use only a full body harness designed, tested, and approved for fall arrest when connecting a person to
this winch. Body belts or straps do not provide adequate support to the body to prevent serious injury or
death in the event of a fall.

Pro Series Safety Winch
Operator’s Manual
11
October 18, 2011, Rev 05
4.4 FALL PROTECTION
Activities involving working at heights require the use of equipment to protect the worker in the event of a
fall. Suitable fall protection must be provided as required by applicable local regulations when using this
winch.
4.5 CONFINED SPACE SAFETY
When this winch is use as part of a system involving work in a confined space, always follow an approved
confined space safety plan meeting all local regulations.
4.6 SWING ANGLE
Care must be taken at all times to minimize the potential for swing fall when working at heights. At no
time should the angle of the winch line exceed 5 degrees with respect to the vertical (see Figure 3).
Figure 3, Maximum Swing Angle

Pro Series Safety Winch
Operator’s Manual
12
October 18, 2011, Rev 05
5. WINCH INSTALLATION and OPERATION
5.0 INTRODUCTION
This winch is designed for use in conjunction with various styles of support structures to meet different
requirements. These include tripods, davits, and pole hoists as well as a variety of special applications or
custom structures. This product is intended for use only with products designed, manufactured and/or
approved by Tuff Built Products Inc. Other applications must be designed, installed, and used under the
supervision of a Qualified Person. All installations must be approved by a Qualified Person.
5.1 WINCH INSTALLATION
This winch may be used in conjunction with a wide variety of accessory products. Please refer to the
Operator’s Manual provided with all Tuff Built Products Inc. accessories at the time of purchase for
detailed information on the installation of the winch onto the system.
For systems not supplied by Tuff Built Products Inc. the Qualified Person responsible for the design,
installation, and use of the system must provide detailed information regarding the installation of the
winch onto the system.
5.2 WINCH OPERATION
Once the winch has been properly installed into the system, the operation of the winch is as outlined
below. No person shall use this winch without receiving proper training as outlined in Section 6. Any
user must fully read and understand this manual and any other instruction manual(s) related to the
system being used, or have the instructions explained to them, before using this equipment.
5.2.1 INSPECTION
This winch must be inspected before each use as outlined in Section 7.1. Daily inspection instructions
are also given on the label on the handle-side cover of the winch (see Figure 4).

Pro Series Safety Winch
Operator’s Manual
13
October 18, 2011, Rev 05

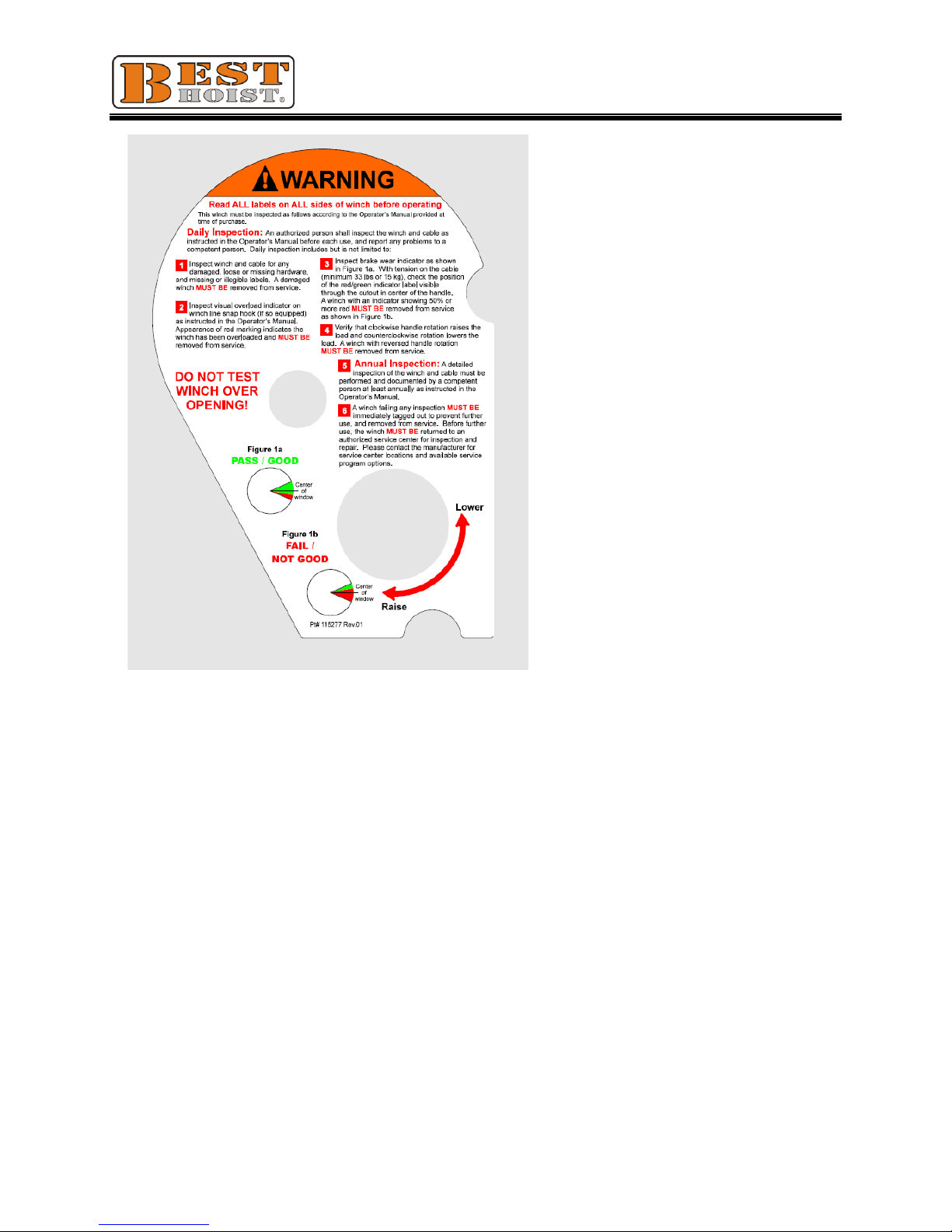

Figure 4, Daily Inspection Instructions
Any problems must be reported immediately to your supervisor, and the equipment labeled so as to
prevent further use until it has been repaired.
5.2.2 ATTACHING A WORKER TO THE WINCH LINE
Any worker who is connected to this winch MUST wear a full body harness designed, tested, and
approved for fall arrest. The winch line MUST be connected to the dorsal (rear) D-Ring on the harness,
unless otherwise instructed by a qualified person.
Extend sufficient winch line to allow the line to be easily attached to the worker’s dorsal D-Ring. Be sure
to maintain sufficient tension in the line to prevent “bird-nesting” of the winch line.
Attach the winch line to the worker’s dorsal D-Ring, making sure that the snap hook operates smoothly
and fully locks when attached.
Retract the winch line until the line is snug, and have the worker slowly lift their feet off the ground to
verify system integrity.
** DO NOT TEST SYSTEM INTEGRITY OVER AN OPENING OR WHERE THERE IS A
CHANCE OF FALLING**

Pro Series Safety Winch
Operator’s Manual
14
October 18, 2011, Rev 05
5.2.3 RAISING OR LOWERING A WORKER
A worker attached to the winch line is lowered by cranking the winch handle counterclockwise, and raised
by cranking the winch handle clockwise. DO NOT use the winch if the rotation of the winch handle is
reversed, or if the winch does not make a regular clicking sound when cranking the winch handle in a
clockwise direction.
Crank the handle at a smooth and steady pace that you find comfortable to maintain.
Wear gloves if your hands will come in contact with the winch line.
Maintain sufficient tension on the winch line, either from the weight of the worker or manually, to ensure
that the line winds evenly onto the spool. Do not allow any slack line to accumulate between the winch
and the worker if there is any risk of a fall occurring. Serious injury or death may result if a worker falls
while connected to a slack winch line.
6. POWER DRIVE APPLICATIONS
In applications involving repeated positioning activities or long vertical entries, it is sometimes desirable to
have a powered winch rather than relying on manual cranking.
The Pro-Series of winches are designed with a unique input drive hub (see Figure 5) that allows for
convenient switching between manual crank and powered operation while maintaining a manual backup
in the event of power failure or mechanical problems.
Figure 5, Winch Input Drive Hub
Depending on the nature of the application, the regulations governing the use of powered winches to
raise and lower workers in various jurisdictions, and the type and specifications of power drills available,
there are several configurations of Power Drive accessories that may be appropriate (see Figure 6).

Pro Series Safety Winch
Operator’s Manual
15
October 18, 2011, Rev 05
Figure 6, Pro-Series Winch Removable Handle & Power Drive Accessories
CONFIGURATION
AS PER FIGURE
#
MINIMUM
DRILL
TORQUE
(FT-LB /N-m)
MAXIMUM
DRILL
SPEED
(RPM)
RECCOMENDED
DRILL MAKE &
MODEL
8
40 / 54.2
300
Milwaukee Hole
Hawg (Model
9
10 / 13.6
1200
Hilti Model #
UH240-A
10
40 / 54.2
300
11
10 / 13.6
1200
Hilti Model #
UH240-A
Figure 7, Drill Requirements for Various Configurations
Figure 8 below shows the simplest option of directly driving the input hub using a solid drive shaft and a
low speed high torque drill.*
Combine these accessories as shown in
Figures 7-10 to make the configuration
best suited to your application.

Pro Series Safety Winch
Operator’s Manual
16
October 18, 2011, Rev 05
Figure 8, 1:1 Direct Drive Configuration
Figure 9 shows a direct drive configuration using the 4:1 gear reduction to allow use of a higher speed,
lower torque drill if desired.*
Figure 9, 4:1 Direct Drive Configuration
These direct drive configurations are not suitable for personnel handling applications, and is intended only
for material handling or cable spooling operations.

Pro Series Safety Winch
Operator’s Manual
17
October 18, 2011, Rev 05

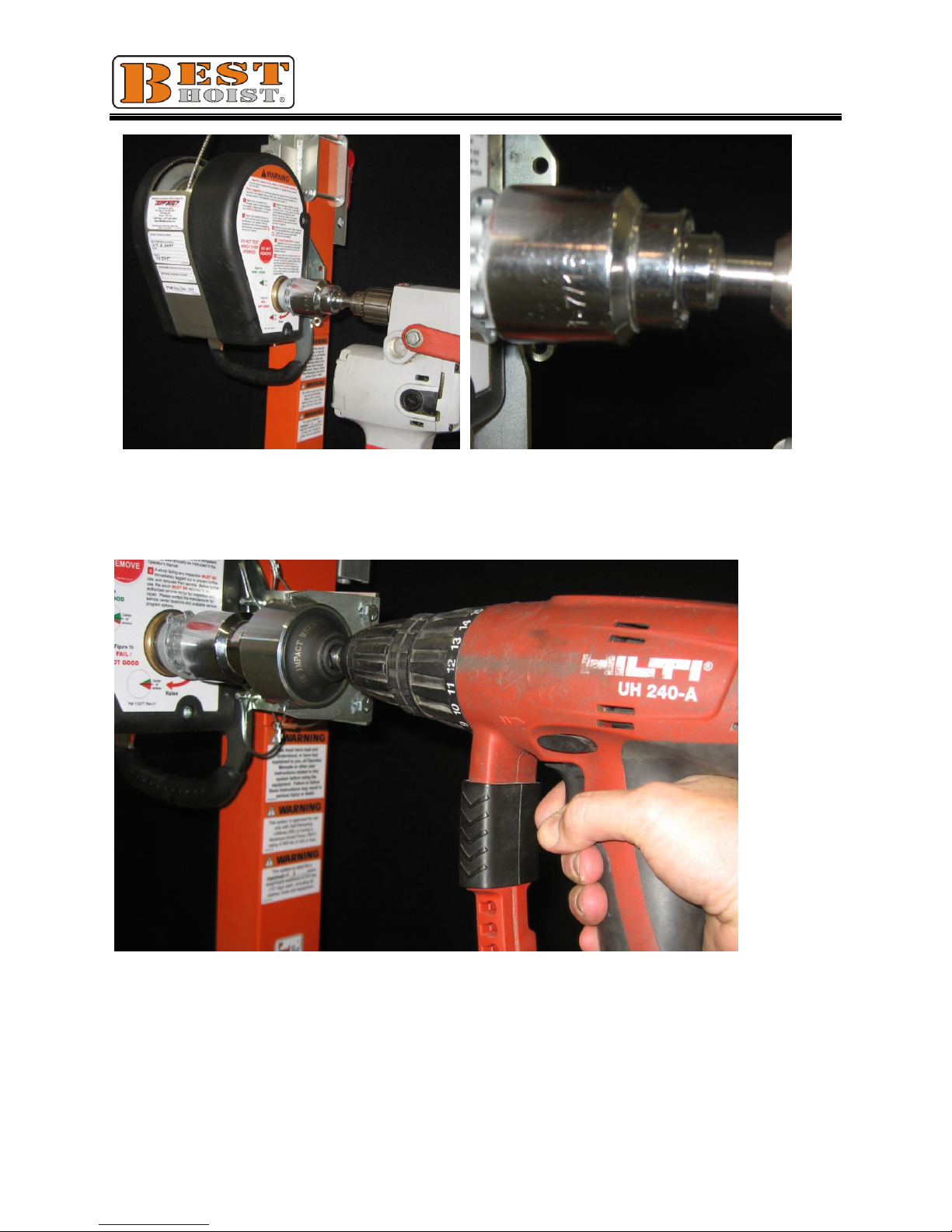

Figure 10 shows the most basic configuration recommended for personnel handling, driving the input hub
straight from the drill through an overload clutch designed to slip and prevent worker injury in the event of
entanglement during positioning.
Figure 10, 1:1 Drive With Overload Clutch
Figure 11 shows the combination of the 4:1 gear reduction drive with the overload clutch to allow Work
Positioning using a higher speed, lower torque drill if desired.
Figure 11, 4:1 Reduction Drive With Overload Clutch
7. TRAINING
Prior to working with this winch all users must receive training from their employer on all equipment
involved, as well as appropriate training in Fall Protection, Confined Space, Rescue, Material Handling,
General Safety and any other specific area necessary to safely complete the assigned work.
Users must fully read and understand this manual and any other instruction manual(s) related to the
system being used, or have the instructions explained to them, before using this equipment.

Pro Series Safety Winch
Operator’s Manual
18
October 18, 2011, Rev 05
7. INSPECTION
7.1 DAILY INSPECTION
The winch must be inspected before each use as described in Sections 7.1.1 to 7.1.5. Report any
problems or concerns to your supervisor, and do not use the equipment until they have approved doing
so.
7.1.1 Cleaning and Lubrication
If required, clean and lubricate the winch and all its parts as outlined in Section 8. Do not use solvents or
other chemicals to clean the winch.
7.1.2 Physical Damage
Inspect the winch, winch line, snap hook, and mounting brackets for physical damage; bent parts,
cracked housings, dented covers, loose or missing hardware or parts, missing, or illegible labels (see
Figure 5). Replacement labels are available from your dealer by ordering the part number shown on each
label.
Note: Not all labels shown may be present on your winch, as some are related to standards and
certifications that may not apply to your jurisdiction.

Pro Series Safety Winch
Operator’s Manual
19
October 18, 2011, Rev 05
Figure 5, Winch Labels (continued next page)

Pro Series Safety Winch
Operator’s Manual
20
October 18, 2011, Rev 05
Figure 5, Winch Labels (continued)
While minor cosmetic damage will not impair the function of the winch, a seriously damaged winch MUST
BE removed from service and returned to an authorized service center for repair prior to further use.
