Tuffline TV User instructions

TufflineTV®
Setting up
www.tuffline.tv
550x1630 TufflineTV®
Gently insert your media
card. The side with the
holes goes in first.
Do not force.
Make sure that:
1. Speaker plug is connected.
2. Monitor plug is connected.
3. Power plug is connected.
4. Turn media power on
and the presentation
will start.
1Connect power cord
to the TufflineTV as
shown.
3
2
2
31
4
The side with
the holes goes in first.

To apply the graphic, simply line up the top corners and slowly roll the graphic
down, aligning the edges and magnetic strip to the steel tape behind.
Applying Graphic Panel

To remove the graphic apply the suction
cup to top left corner, pull graphic panel
away from frame then run a finger behind
graphic to other corner. Lift away and roll
down frame.
Removing Graphic Panel

Media Player Remote Control
2Photo set-up Menu. Use scroll
buttons to select category, then
press select.
1Main Menu. Press set-up button
then use scroll buttons to select
category - Photo, Music or Video
then press select. Press exit setup
to leave the menu.
3Music Set-up Menu. Use scroll
buttons to select category, then
press select.
4Video Set-up Menu. Use scroll
buttons to select category, then
press select.

5Out of Range Screen. If this appears
press output button for 2 seconds to resume
normal playing. The output button may need
to be pressed up to 3 times.
Press to revert to
normal playing
Press to enter
set up menu
Press to for
2 seconds to
revert to normal
Press to
power unit
Volume
control
Press to enter
menu selection
Press to
navigate
menu
Mute sound control
Press for
playing content
information
The media player has already been set-up for video in
the factory, do not change settings.

OSD (On Screen Display) Controls
Use the buttons on the front control panel to display and adjust the OSD
controls which display on the screen. The OSD controls are explained at
the top of the next page.

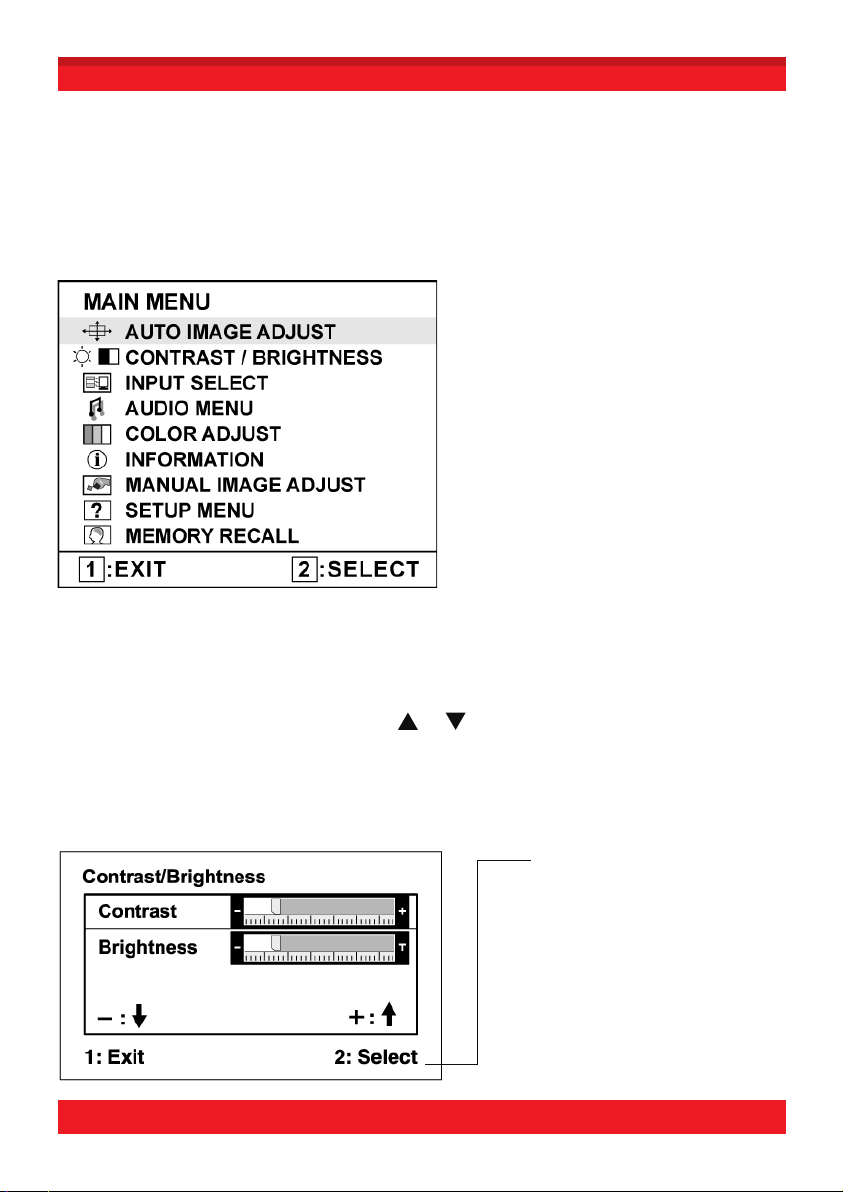

Main Menu
with OSD controls
Front Control Panel
shown below in detail

The screen has already been set-up in the factory,
do not change settings.
Do the following to adjust the display setting:
1. To display the Main Menu, press button [1].
NOTE: All OSD menus and adjustment screens disappear automatically after
about 15 seconds. This is adjustable through the OSD timeout setting in the
setup menu.
2. To select a control to adjust, press or to scroll up or down in the
Main Menu.
3. After the desired control is selected, press button [2]. A control screen like
the one shown below appears.
The command line
at the bottom of the
control screen tells
what to do next from
this screen. You can
toggle between control
screens, adjust the selected
option, or exit the screen.

4. To adjust the setting, press the up or down buttons.
5. To save the adjustments and exit the menu, press button [1] twice.
The following tips may help you optimize your display:
•Adjust the computer’s graphics card so that it outputs a 1440 x 900 @ 60Hz
video signal to the LCD display. (Look for instructions on “changing the
refresh rate” in the graphics card’s user guide.)
•If necessary, make small adjustments using H. POSITION and V. POSITION
until the screen image is completely visible. (The black border around the
edge of the screen should barely touch the illuminated “active area” of the
LCD display.)
