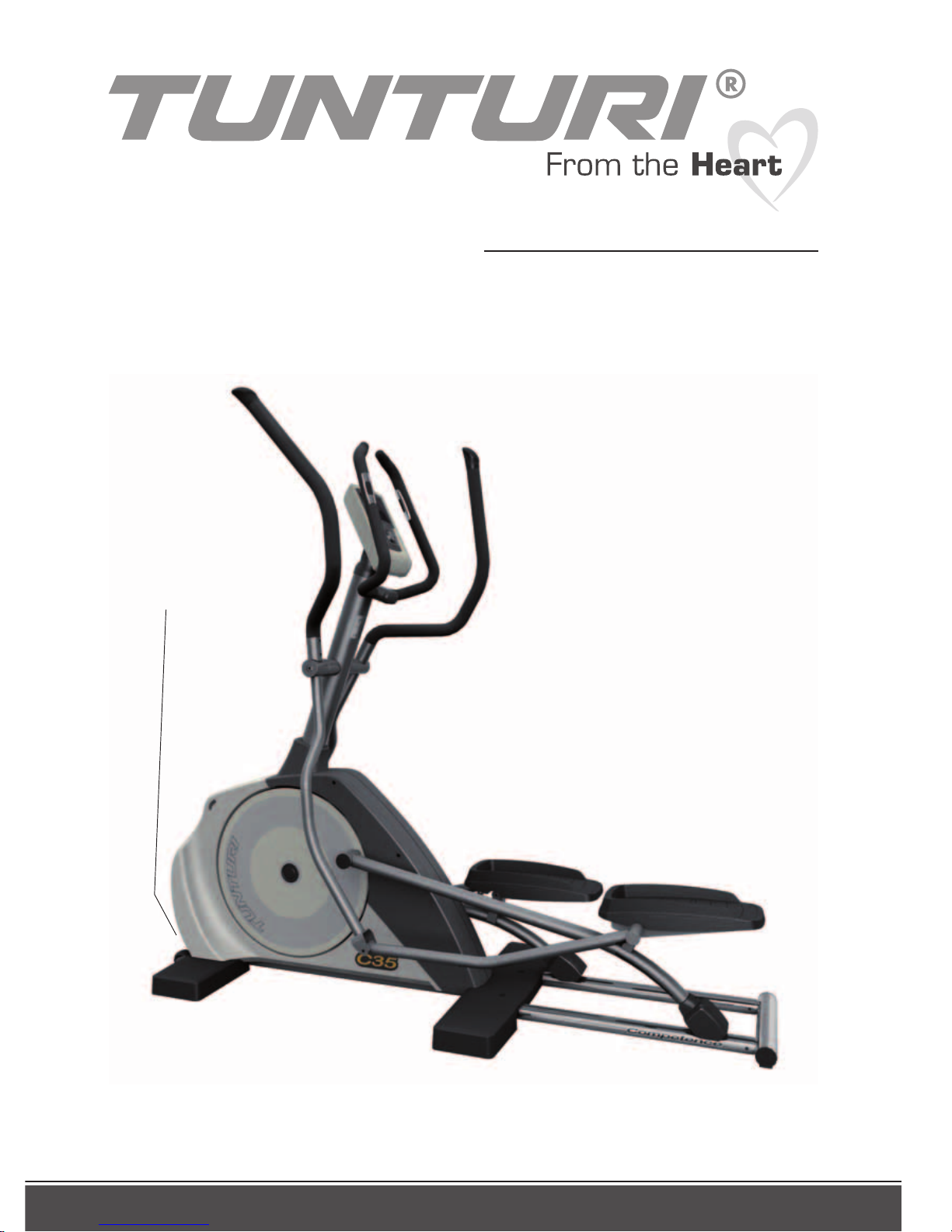

Tunturi C35 User manual

C35
OWNER’S MANUAL 2 - 6
BETRIEBSANLEITUNG 7 - 12
MODE D’EMPLOI 13 - 18
HANDLEIDING 19 - 24
MANUALE D’USO 25 - 29
MANUAL DEL USUARIO 30 - 34
BRUKSANVISNING 35 - 39
KÄYTTÖOHJE 40 - 44
OWNER’S MANUAL
www.tunturi.com
Serial number
Seriennummer
Numero de serie
Serienummer
Numero di serie
Nòmero de serie
Seriennummer
Sarjanumero

2
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 2
ASSEMBLY 45
EXERCISING 3
CONSOLE 4
MAINTENANCE 6
TRANSPORT AND STORAGE 6
TECHNICAL SPECIFICATIONS 6
WELCOME TO THE WORLD
OF TUNTURI EXERCISING!
Your choice shows that you really want to invest in your
well being and condition; it also shows you really value
high quality and style. With Tunturi Fitness Equipment,
you’ve chosen a high quality, safe and motivating
product as your training partner. Whatever your goal in
training, we are certain this is the training equipment to
get you there. You’ll find information about using your
exercise equipment and what makes for efficient training
at Tunturi’s website at WWW.TUNTURI.COM.
IMPORTANT SAFETY
INSTRUCTIONS
Read this guide through carefully before assembling,
using or servicing your fitness equipment. Please keep
the guide somewhere safe; it will provide you now
and in the future with the information you need to use
and maintain your equipment. Always follow these
instructions with care.
YOUR HEALTH
• Before you start any training, consult a physician to
check your state of health.
• If you experience nausea, dizziness or other abnormal
symptoms while exercising, stop your workout at once and
consult a physician.
• To avoid muscular pain and strain, begin each workout
by warming up and end it by cooling down (slow
pedaling at low resistance). Don’t forget to stretch at the
end of the workout.
EXERCISING ENVIRONMENT
• The equipment is not to be used outdoors.
• Place the equipment on a firm, level surface. Place the
equipment on a protective base to avoid any damages
to the floor beneath the equipment.
• Make sure that the exercising environment has
adequate ventilation. To avoid catching cold, do not
exercise in a draughty place.
• In training, the equipment tolerates an environment
measuring +10°C to +35°C. The equipment can be stored
in temperatures ranging between -15°C and +40°C. Air
humidity in the training or storage environment must never
exceed 90 %.
USING THE EQUIPMENT
• If children are allowed to use the equipment, they
should be supervised and taught to use the equipment
2
ENGLISH properly, keeping in mind the child’s physical and mental
development and their personality.
• Before you start using the equipment, make sure that
it functions correctly in every way. Do not use a faulty
equipment.
• Press the keys with the tip of the finger; your nails may
damage the key membrane.
• Never lean on the interface.
• Never remove the side covers. Do not step on the frame
casing.
• Only one person may use the equipment at a time.
• Hold the stationary handlebar for support when getting
on or off the equipment.
• Wear appropriate clothing and shoes when exercising.
• Protect the meter from sunlight and always dry the
surface of the meter if there are any drops of sweat on it.
• Further information on warranty terms can be found in
the warranty booklet included with the product.
• Please note that the warranty does not cover
damage due to shipping or negligence of adjustment or
maintenance instructions described in this manual.
• The equipment must not be used by persons weighing
over 135 kg.
• Make sure the equipment is unplugged before carrying
out any assembly or maintenance procedures.
• Do not attempt any servicing or adjustments other
than those described in this guide. Everything else must
be left to someone familiar with the maintenance of
electromechanical equipment and authorized under the
laws of the country in question to carry out maintenance
and repair work.
• This product must be grounded. If it should malfunction
or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric
shock. This product is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
SAVE THIS INSTRUCTION MANUAL
NOTE ABOUT SAFETY FOR UNITS WITH
ELECTRICAL POWER
Before connecting the equipment to a power source,
make sure that the local voltage matches that indicated
on the type plate: the equipment operates at either 230
v or 115 v (north american version). Note! The equipment
must be connected to a grounded wall socket. Do not
use extension wires when connecting the equipment
to the power source. Always switch off the power
and unplug the equipment from the electrical outlet
immediately after using!
To reduce the risk of burns, fire, electric shock or injury to
persons:
1. The equipment should never be left unattended when
plugged in. Unplug the equipment from the outlet when
not in use, before carrying out any maintenance or repair
procedures, and before moving the unit.
2. Do not operate the equipment under a blanket or other
combustive material. Excessive heating can occur and
cause fire, electric shock or injury to persons.
3. Do not connect the equipment to a power source, or
operate the equipment if there is any sort of damage to
the power cord or the unit itself.
4. Do not connect the equipment to a power source or
operate the equipment outdoors or in damp locations.

3
5. Keep the power cord away from hot objects.
6. Do not route the power cord beneath a carper or
place any objects on the cord. Also make sure that the
power cord does not run underneath the equipment.
7. Do not alter (for example lengthen) the cord between
the transformer and the unit.
NOTE ABOUT ASSEMBLING THE EQUIPMENT

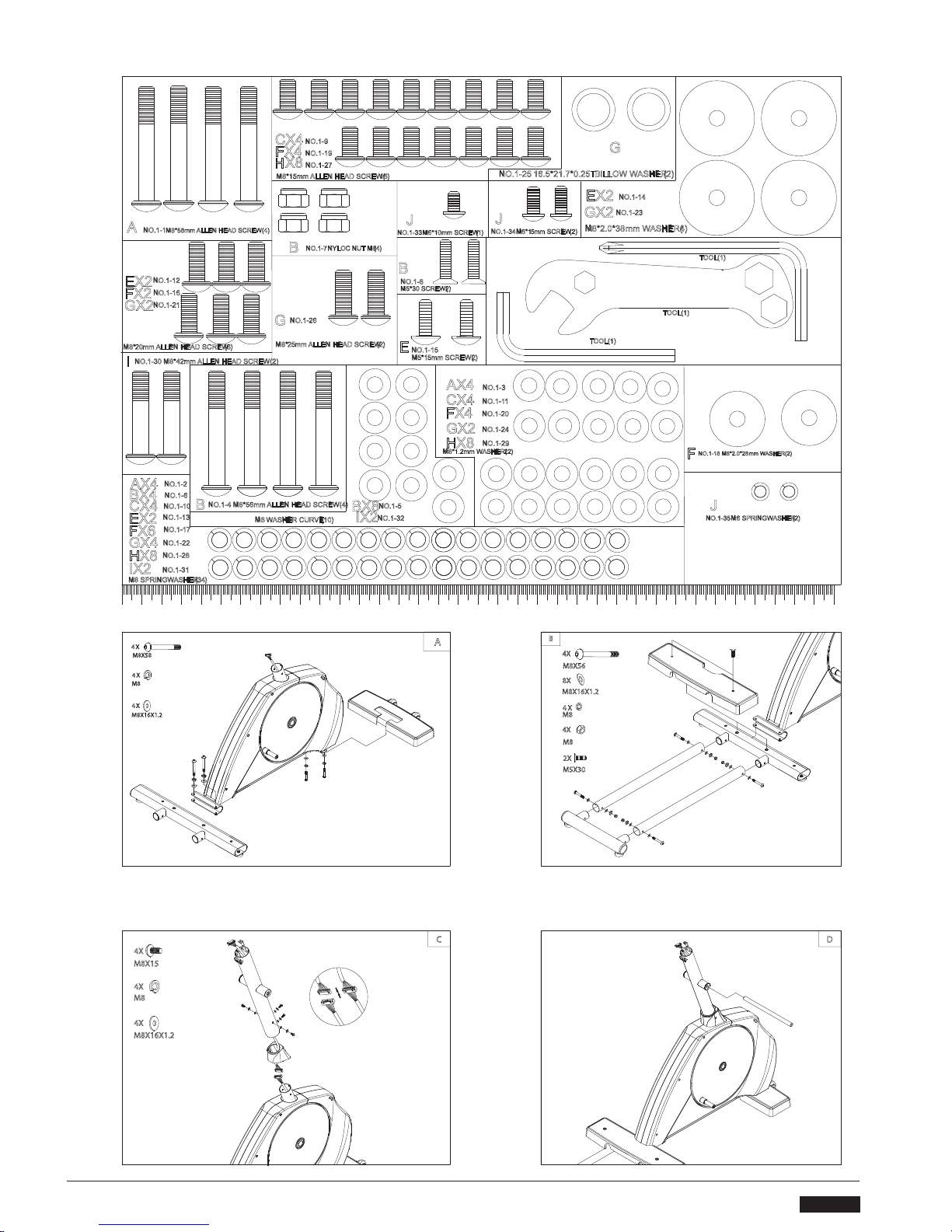

Start by unpacking the equipment. The detailed assembly
instructions can be found at the back of this guide. Follow
the instructions in given order.
Before assembly, check the contents of the packa
ge. If a part is missing, please contact your dealer with
the model, equipment serial no. and spare part no. of the

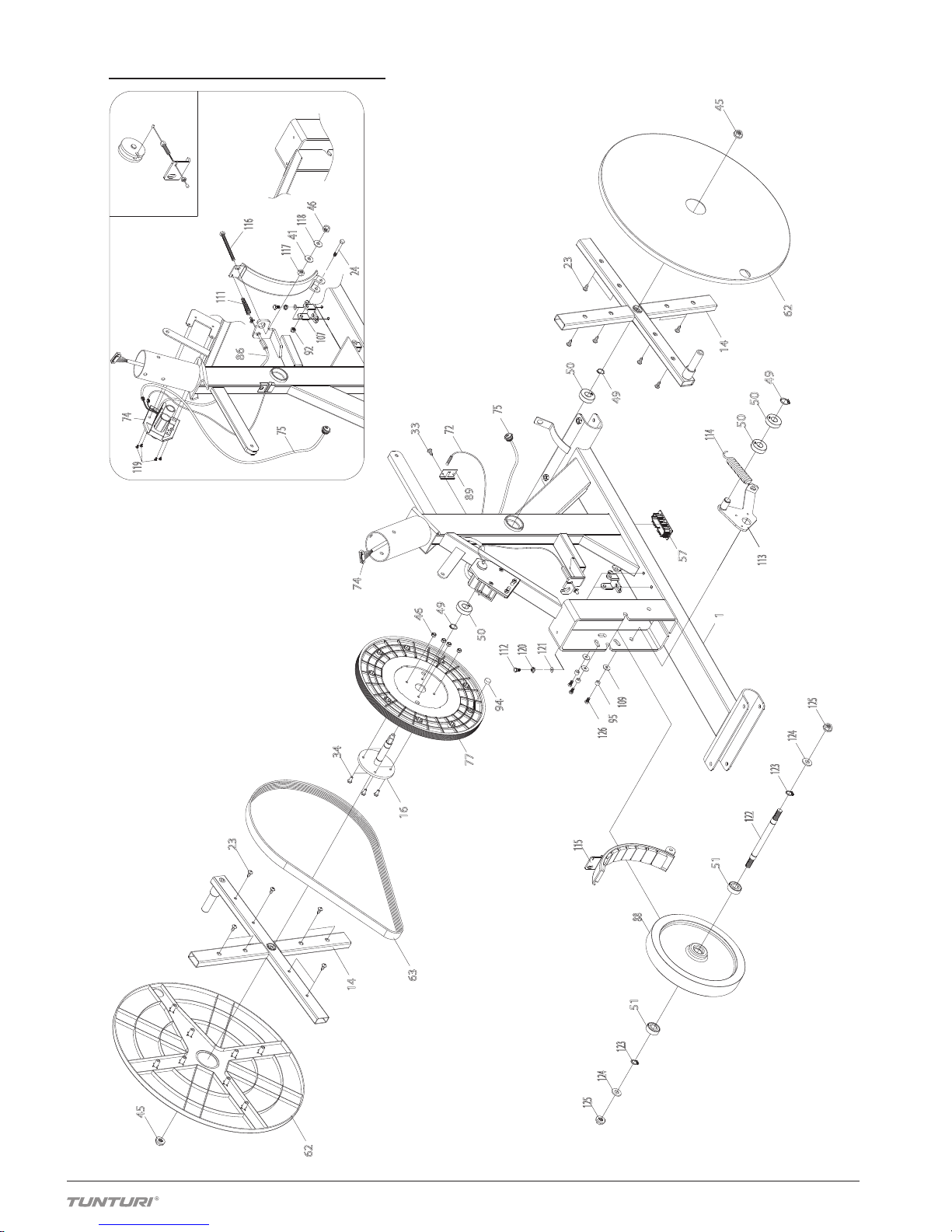

missing part. You’ll find a spare part list at the back of this
guide.
The hardware kit contents are marked with * in the spare
parts list. The directions left, right, front and back are
defined as seen from the exercising position. Keep the
assembly tools, as you may need them e.g. for adjusting
the equipment. Note that two people are needed for the
assembly.
The packaging includes a silicate bag for absorbing
moisture during storage and transportation. Please dispose
of the bag once you have unpacked the equipment.
Allow at least 100 cm of clearance around the
equipment. We also recommend opening the package
and assembling the product on a protective base.
EXERCISING
Working out using an elliptical trainer is excellent aerobic
exercise, the principle being that the exercise should
be suitably light, but of long duration. Aerobic exercise
is based on improving the body ‘s maximum oxygen
uptake, which in turn improves endurance and fitness.
The ability of the body to burn fat as a fuel is directly
dependent on its oxygen-uptake capacity. Aerobic
exercise should above all be pleasant. You should
perspire, but you should not get out of breath during the
workout. You must, for example, be able to speak and not
just pant while pedaling.
You should exercise at least three times a week, 30
minutes at a time, to reach a basic fitness level.
Maintaining this level requires a few exercise sessions
each week. Once the basic condition has been reached,
it is easily improved simply by increasing the number of
exercise sessions. Exercise is always rewarding for weight
loss, because it is the only way of increasing the energy
spent by the body. This is why it is always worthwhile to
combine regular exercise with a healthy diet. A dieter
should exercise daily, at first 30 minutes or less at a time,
gradually increasing the daily workout time to one hour.
You should start slowly at a low pedaling speed and low
resistance, because for an overweight person strenuous
exercise may subject the heart and circulatory system
to excessive strain. As fitness improves, resistance and
pedaling speed can be increased gradually. Exercise
efficiency can be measured by monitoring the pulse. The
pulse meter helps you monitor your pulse easily during
exercise, and thus to ensure that the exercise is sufficiently
effective but not over-strenuous. Start your workout with
slow tempo and low resistance. Gradually increase tempo
and resistance according to your own condition. Keep
your head up and neck long in order to avoid stress on
your neck, shoulders and back. Keep also your back
straight. Make sure that your feet are centered on the
foot pedals and that your hips, knees, ankles and toes are
facing forward. Keep your body weight centered over
your lower body regardless of whether you lean forward or
stand upright. Stop your workout by gradually decreasing
tempo and resistance.
Don’t forget to stretch afterwards. To strengthen
cardiovascular system, maintain low resistance but high
tempo. Exercising with higher resistance and slow tempo
strengthens correspondingly your back and hips.
HEART RATE
No matter what your goal, you’ll get the best results by
training at the right level of effort, and the best measure is
your own heart rate.
The C35 meter has a heart rate receiver compatible with
Polar equipment, so you can also use Polar uncoded
heart rate transmitter belts for heart rate measurement.
NOTE! If you are fitted with a pacemaker, please consult a
physician before using a heart rate transmitter belt.
The most reliable heart rate measurement is achieved
with a telemetric device, in which the electrodes of the
transmitter fastened to the chest transmit the pulses from
the heart to the console by means of an electromagnetic
field. If you want to measure your heart rate this way
during your workout, moisten the grooved electrodes
on the transmitter belt with saliva or water. Fasten the
transmitter just below the chest with the elastic belt, firmly
enough so that the electrodes remain in contact with the
skin while exercising, but not so tight that normal breathing
is prevented. If you wear the transmitter and belt over a
light shirt, moisten the shirt slightly at the points where the
electrodes touch the shirt. The transmitter automatically
transmits the heart rate reading to the console up to a
distance of about 1 m.
If the electrode surfaces are not moist, the heart-
rate reading will not appear on the display. If the
electrodes are dry, they must be moistened again. Allow
the electrodes warm up properly to ensure accurate
heart rate measurement. If there are several telemetric
heart rate measurement devices next to each other, the
distance between them should be at least 1.5 m. Similarly,
if there is only one receiver and several transmitters in
use, only one person with a transmitter should be within
transmission range. the transmitter is switched to an active
state only when it is being used for measurement. sweat
and other moisture can, however, keep the transmitter in
an active state and waste battery energy. therefore it is
important to dry the electrodes carefully after use.
When selecting training attire, please note that some
fibers used in clothes (e.g. polyester, polyamide) create
static electricity, which may prevent reliable heart rate
measurement. Please note that a mobile phone, television
and other electrical appliances form an electromagnetic
field around them, which will cause problems in heart rate
measurement.
C35 - OWNER’S MANUAL ENGLISH

44
HAND GRIP PULSE MEASUREMENT
(HGP-VERSION)
Pulse is measured by sensors in the handlebars. Pulse is
measured when the user of C35 is touching both sensors
simultaneously. Reliable pulse measurement requires that
the skin is constantly touching the sensors and that the
skin is slightly moist. Too dry or too moist skin weakens the
reliability of hand pulse measurement.
HEART RATE IN TRAINING
First find your maximum heart rate i.e. where the rate
doesn’t increase with added effort. If you don’t know your
maximum heart rate, please use the following formula as
a guide:
220 - AGE
The formula gives an average value, the maximum varies
from person to person. The maximum heart-rate diminishes
on average by one point per year. If you belong to a risk
group, ask a doctor to measure your maximum heart rate
for you.
We have defined three different heart-rate zones to help
you with targeted training.
BEGINNER • 50-60 % OF MAXIMUM HEART-RATE
Also suitable for weight-watchers, convalescents
and those who haven’t exercised for a long TIME.
Three sessions a week of at least a half-hour each is
recommended. Regular exercise considerably improves
beginners’ respiratory and circulatory performance and
you will quickly feel your improvement.
TRAINER • 60-70 % OF MAXIMUM HEART-RATE
Perfect for improving and maintaining fitness. Even
reasonable effort develops the heart and lungs
effectively, training for a minimum of 30 minutes at least
three TIMEs a week. To improve your condition still further,
increase either frequency or effort, but not both at the
same time!
ACTIVE TRAINER • 70-80 % OF MAXIMUM HEART-RATE
Exercise at this level suits only the fittest and presupposes
long-endurance workouts.
CONSOLE
BUTTONS
1. SELECTION DIAL
The selection dial functions in two ways:
A) Rotating the dial (+ / -). By rotating the dial clockwise,
you can scroll the menus to the right, and increase values
or resistance. By rotating the dial counter-clockwise, you
can scroll the menus to the left, and decrease values or
resistance.
B) Pressing the dial (ENTER). By pressing the dial, you can
accept the selection you made when rotating the dial.
2. STARTTART /STOP
Starts, pauses, and stops training. During training, pressing
this button once activates the pause mode. Pressing the
button again starts the program again.
3. RESET
Single push: return to the program menu. Long push:
restarts the meter.
4. Recovery ecovery
Calculates your recovery heart rate index.
5. BODY FAT
Calculates your body mass index (BMI) and shows your
body fat %.
Time (mm:ss), speed (km/h or ml/h), RPM (revolutions per
min), distance (km or ml), energy consumption (kcal),
power(W) and heart rate (bpm) are displayed.
PROGRAMS
1.MANUAL PROGRAM
Set target time and/or distance and/or energy
consumption and/or upper heart rate limit by using the
SELECTION DIAL.
Start training by pressing START/STOP button.
If you have set target/targets, the target/targets start to
count down. Adjust resistance with SELECTION DIAL.
2. PRESET PROGRAMS
Preset program profile is shown for two seconds while
programs are browsed. Select desired preset program by
using the SELECTION DIAL.
Set time for training and/or target distance and/or energy

5
and/or upper heart rate limit by SELECTION DIAL.
Start training by pressing START/STOP button.
If you have set target/targets, the target/targets start to
count down. During training you can scale the load by
SELECTION DIAL.
3. USER PROGRAM
The program profile used last time is displayed. You can
either start training with your personal memorized training
targets by pressing START/STOP or modify the program.
The program profile bar (1/20) that can now be modified
blinks. If you want to change, modify the blinking bar and
confirm. Next bar will blink. After the last bar, the display
switches back to the first bar. By pressing the ENTER button
for 2 seconds you can finish the profile modifying. Now
program is ready with your memorized personal training
data (time, distance, energy targets and heart rate limit).
Modify your targets if needed. Start training by pressing
START/STOP button.
If you have set target/targets, the target/targets start to
count down. During training you can scale the load by
SELECTION DIAL
4. HEART RATEATE CONTROL (H.R.C.)
Select between four different training intensities (55%, 75%,
90% or TARGET). By selecting TARGET you can insert target
heart rate.
Start training by pressing START/STOP button.
During the training the equipment will automatically adjust
the resistance so that your target will be reached and
maintained.
5. CONSTANT WATT )
Set target power in watts and target time and/or distance
and/or energy consumption and/or upper heart rate limit
by SELECTION DIAL.
Start training by pressing START/STOP button.
If you have set target/targets, the target/targets start to
count down. During training the equipment will adjust
resistance dependently on your pedaling speed, so that
target power level is achieved and maintained. You can
change the target power by SELECTION DIAL.
6. RECOVERY ECOVERY
Start the recovery calculation after training by pressing
RECOVERY button. Recovey heart rate calculation can
be started only if the heart rate measurement is activated
and the heart rate value is shown on the display The
measurement takes 60 seconds. After 60 seconds, the
display shows your recovery index F1-F6 (F1 = best result).
To get back to main menu, press RECOVERY button once
again.
7. BODY FAT
Press BODY FAT button to start measurement. Hold both
hands on the handgrips and wait for 8 seconds. The meter
will show body fat advice symbol, body fat % and BMI for
30 seconds.
SETTING USER DATA
Right after restarting the meter or reset (long push) you
can enter to the user menu. Select the user and confirm.
Set your sex, age, height and weight. Confirm by selection
dial. Personal exercise target data (time, distance,
energy, heart rate limit) will be memorized and recalled
as defaults every time when the user is selected. If you
modify your personal training data, it will automatically be
memorized.
ADDITIONAL NOTES
1. For speed and distance you can choose either metric
or English units by using the KM/ML switch located on
the back cover of the meter. The power cord has to be
unplugged and replugged to apply the change.
2. If you are not training and buttons are not pressed,
the meter switches into the Sleep mode after about four
minutes. Room temperature is displayed.
3. Training is paused for a maximum of 4 minutes by
pressing the START/STOP button. Pressing the button again
allows you to continue the paused training session using
the previous training data.
4. Entering training targets (time, distance, energy, heart
rate limit) is possible only in the STOP mode (not during
training).
5. If you don’t want to change your user data every
time you start training, press START/STOP to skip user data
editing. You’ll enter to the training in Manual mode.
6. This equipment cannot be used for therapeutic
purposes.
7. Energy consumption is calculated based on average
values. The energy expenditure is displayed in kilocalories.
To convert this into joules, use the formula: 1 Kcal = 4.187
KJ.
8. If you are training with heart rate measurement (either
chest belt or handgrip heart rate) you can set maximum
heart rate limit. When limit is exceeded
while training meter will give alarm beeps.
9. Preset programs are divided into 16 steps. Duration
of the one step depends on the time set for the whole
training. If time is not set, duration of one step will be 100
m in distance.
10. If you have set targets to count down, a signal sounds
and training automatically stops when any of target
reaches zero. You can restart training by pressing START/
STOP
11. Note that recovery index is in relation to the heart
rate frequency in both the beginning and the end of the
measurement.
12. In H.R.C program heart rate target ranges (55%,
75% and 90%) are calculated as percent from your age
predicted maximum heart rate (calculation formula:
maximum heart rate = 220 – age).
13. Automatic adjustment of the resistance during
H.R.C program occurs upwards every 30 seconds and
downwards every 15 seconds, if needed.
14. BODY FAT is a personal measurement and the result is
based on average european population values.
B.M.I. (Body Mass Index) table:
LOW < 20
LOW / MEDIUM 20 – 24
MEDIUM 24 - 26,5
MEDIUM / HIGH > 26,5
Formula for BMI = weight (kg) / height^2 (m)
BODY FAT % (average european population) table:
Male:
LOW < 13
LOW / MEDIUM 13 – 26
MEDIUM 26 – 30
MEDIUM / HIGH > 30
Female:
LOW < 23
LOW / MEDIUM 23 – 36
MEDIUM 36 – 40
MEDIUM / HIGH > 40
C35 - OWNER’S MANUAL ENGLISH

66
MAINTENANCE
The equipment requires very little maintenance. Check,
however, from time-to-time that all screws and nuts are
tight.
• After exercising, clean the equipment with a soft,
absorbent cloth. Do not use solvents.
• Never remove the equipment’s protective casing.
• The electromagnetic brake forms a magnetic field
that may damage the mechanism of a watch, or the
magnetic identification strip on a credit or cash card,
should they come into immediate contact with the
magnets. Never attempt to detach or remove the
electromagnetic brake!
• The electromagnetic brake is based on electromagnetic
resistance; resistance level is electronically measured
and shown as watt reading on the display. Due to the
measurement system, your Tunturi crosstrainer need not
be re-calibrated when assembled, serviced and used
according to this Owner’s Manual.
MALFUNCTIONS
Despite continuous quality control, defects and
malfunctions caused by individual components may
occur in the equipment. In most cases it’s unnecessary to
take the whole device in for repair, as it’s usually sufficient
to replace the defective part.
If the equipment does not function properly during use,
contact your Tunturi dealer immediately. Always give the
model and serial number of your equipment. Please state
also the nature of the problem, conditions of use and
purchase date.
If you require spare parts, always give the model, serial
number of your equipment and the spare part number for
the part you need. The spare part list is at the back of this
manual. Use only spare parts mentioned in the spare part
list.
TRANSPORT AND
STORAGE
Please follow these instructions when carrying and moving
the equipment about, because lifting it incorrectly may
strain your back or risk other accidents:
Always switch the power off and unplug the power cord
before you start moving the equipment around!
For transportation or moving of the device, two grown-ups
are needed. Remain standing in front of the device on
each side and take a sturdy grip at the handles. Lift the
front of the device so as to lift the rear of the device on
the wheels. Move the device and carefully put it down to
its new place.
NOTE! Transport the equipment with caution over uneven
surfaces, for example over a step. The equipment should
never be transported upstairs using the wheels over the
steps, instead it must be carried. We recommend that you
use a protective base when transporting the equipment.
To prevent the equipment malfunctioning, store in a dry
place with as little temperature variation as possible and
protected from dust.
TECHNICAL
SPECIFICATIONS
Length 183 cm
Width 70 cm
Height 170 cm
Weight 69 kg
The Tunturi C35 meets the requirements of the EU’s EMC
Directives on electromagnetic compatibility (89/336/EEC)
and electrical equipment designed for use within certain
voltage limits (73/23/EEC). This product therefore carries
the CE label.
The Tunturi model C35 meets EN precision and safety
standards (Class B, EN-957, parts 1 and 9) for fitness
devices. The precision of the capacity measurement is
secured during manufacturing by adjusting the brake
with a dynamometer. Calculation of exercise capacity is
based on rotation speed and moment.
Due to our continuous policy of product development,
Tunturi reserves the right to change specifications without
notice.
NOTE! The instructions must be followed carefully in the
assembly, use and maintenance of your equipment. The
warranty does not cover damage due to negligence of
the assembly, adjustment and maintenance instructions
described herein. Changes or modifications not expressly
approved by Tunturi Oy Ltd will void the user’s authority to
operate the equipment!
WE WISH YOU MANY ENJOYABLE ENJOYABLE
TRAININGS WITH YOUR NEW TUNTURI TRAINING
PARTNER !

45 C35 - KÄYTTÖOHJE FINNISH
4X
4X
4X
M8X16X1.2
M8
M8X15
A
CX4
FX4
HX8
AX4
M8*15mm ALLEN HEAD SCREW(16)
NO.1-9
NO.1-19
NO.1-27
M8*20mm ALLEN HEAD SCREW(6)
FX2
GX2
NO.1-12
NO.1-16
NO.1-21
NO.1-30 M8*42mm ALLEN HEAD SCREW(2)
I
NO.1-33M6*10mm SCREW(1)
J
BX4
CX4
EX2
FX6
GX4
NO.1-6
NO.1-10
NO.1-13
NO.1-2
NO.1-17
NO.1-22
NO.1-28
M8 SPRINGWASHER(34)
AX4
CX4
FX4
GX2
NO.1-11
NO.1-3
NO.1-20
NO.1-24
NO.1-29
M8*1.2mm WASHER(22)
EX2
F
GX2 NO.1-14
NO.1-23
NO.1-18 M8*2.0*28mm WASHER(2)
M8*2.0*38mm WASHER(4)
EX2
G
NO.1-1
HX8
HX8
NO.1-2516.5*21.7*0.25TBILLOW WASHER(2)
NO.1-15
EM5*15mm SCREW(2)
IX2 NO.1-31
M8WASHER CURVE(10) IX2
NO.1-8
B
M5*30 SCREW(2)
TOOL(1)
TOOL(1)
TOOL(1)
M8*25mm ALLEN HEAD SCREW(2)
GNO.1-26
NO.1-34M6*15mm SCREW(2)
J
BX8NO.1-32
NO.1-5
BNO.1-4 M8*56mm ALLEN HEAD SCREW(4)
M8*58mm ALLEN HEAD SCREW(4)
NO.1-7NYLOC NUT M8(4)
B
NO.1-35M6 SPRINGWASHER(2)
J
C
2X
4X
M8X56
B
M5X30
8X
M8X16X1.2
4X
M8
4 X
4 X
4 X
M8X58
M8X16X1.2
M8
A
4 X
M8
D

46
E
2X
2X
2X
M8X38X2.0t
M8
M8X20
2X
M5X15

47
2X
6X
2X
M8X28X2.0t
M8
M8X20
4X
M8X15
4X
M8X16X1.2t
8X
M5X12
8X
M5X 16X 1.5t
8X
M5
8X
M5X12
8X
M5X 16X 1.5t
8X
M5
F1
F5
F4F3
F2

48
M8X20
M8
M8X38X2.0t
2X
4X
2X
G
M8X16X1.2
2X
8X
8X
8X
M8X16X1.2
M8
M8X15
H
2X
2X
2X
M8X16X1.2
M8
M8X42
1X
M6X10
I J
4X
M5X12
2X
16.5*  21.7*0.25T
M8X25
2X
2X
M6X15
2X
M6

49
PARTLIST
1 Base frame 1
2 Upright tube (incl. Part 52) 1
3 Upper moving handle bar (L) (incl. 64, 83) 1
4 Upper moving handle bar (R) (incl. 64, 83) 1
5 Lower moving handle bar (L) (incl. 52) 1
6 Lower moving handle bar (R) (incl. 52) 1
7 Pedal tube (L) (incl. 53-55) 1
8 Pedal tube (R) (incl. 53-55) 1
9 Outer pedal post (L)(incl. Part 55) 1
10 Outer pedal post (R)(incl. Part 55) 1
11 Front foot (incl.19,32,37,48,61,84,103) 1
12 Middle foot (incl. 61) 1
13 Rear foot (incl. part 58,61) 1
14 Cross frame 2
15 Rail for roller 2
16 Axle for pulley 1
17 Axle for moving handle bars 1
18 Pedal shaft 2
19 Transport wheel bushing 4
20 Fixed handle bar bracket 1
21 Pedal fixing bracket 2
22 Fixed handlebar (incl. 59,82,90,91,100) 1
23 M5*20mm DIN 7981C Self tapping screw 16
24 M8*52mm DIN 931 Bolt 1
25 M6*53mm DIN 912 Allen head screw 1
26 M5*12mm DIN 7985A Screw 8
27 M6*10mm DIN 7985A Screw (*1pcs) 1
28 M8*15mm ISO 7380 Allen head screw (*8pcs) 16
29 M8*20mm ISO 7380 Allen head screw (*6pcs) 10
30 M8*42mm ISO 7380 Allen head screw (*2pcs) 2
31 M8*58mm ISO 7380 Allen head screw (*4pcs) 4
32 M8*63mm ISO 7380 Allen head screw 2
33 M6*12 mm DIN 7981 C Screw 1
34 M6*18mm DIN 933 Hex head bolt 4
35 M5*1.5 DIN 125 A Washer 8
36 M8*25mm ISO 7380 Allen head screw (*2pcs) 2
37 M8*1.2*16mm DIN 125A Washer (*22pcs) 30
38 M8*2*28mm Washer (*2pcs) 2
39 M8*2*38mm Washer (*4pcs) 4
40 Axle for roller 2
41 M6*1.2mm DIN 126 Washer 1
42 M8 DIN 127B Spring washer 38
43 M8*56mm ISO 738 Allen head screw 4
44 M8 DIN 137A Curve washer 10
45 3/8” turning plate axle nut 2
46 M6 DIN 985 Nyloc nut 5
47 M6 DIN 985 Nyloc nut 1
48 M8 DIN 985 Nyloc nut (*4 pcs) 6
49 17*1mm DIN 471 Retaining ring 3
50 6203 ZZ Bearing 4
51 6001 ZZ Bearing 6
52 Moving handle bar bushing 6
53 Inner pedal post bushing_1 4
54 Inner pedal post bushing_2 4
55 Pedal post bushing 8
56 Oval end cap 1
57 Square cap for 30 x 70mm tube 1
58 Round end cap for rail tube 2
59 Fixed handlebar end cap 2
60 Roller (incl. part 51) 2
61 Height adjustment screw 6
62 Turning plate 2
63 Belt 1
64 Moving handlebar end cap 2
65 Head tube sleeve 1
66 Main cover (L) 1
67 Main cover (R) 1
68 Screw cover 2
69 Front foot cover 1
70 Middle foot cover 1
71 Roller cover 2
72 Sensor wire 1
73 Upper UI cable 1
74 Servo motor 1
75 DC wire 1
76 Pedal 2
77 Pulley (incl. part 94) 1
78 Turning plate cap 2
79 UI mounting clamp 1
80 Base for user interface 1
81 Head tube adaptor 1
82 Fixed handlebar foam 2
83 Moving handlebar foam 2
84 Transport wheel 2
85 M5*15mm DIN 7981C Screw (*2pcs) 2
87 M8*15mm ISO 7380 Allen head screw (*8pcs) 2
88 Flywheel assembly set (incl. part 51) 1
89 Sensor bracket 1
90 Hand pulse sensor set 2
91 Hand pulse wire 2
92 DIN 985 Nyloc nut m8 1
93 User interface (UI)KM 1
94 Magnet 1
95 Spacer sleeve 3
96 Adaptor 9V/500ma 1
100 M3*12mm DIN 7981C Screw 2
101 M5*12mm DIN 7985A Screw 4
102 M5*20mm DIN 965A Self tapping screw 2
103 M5*30mm DIN 7981C Screw (*2 pcs) 2
104 M6*1.2 DIN 126 washer 1
105 M6*2t DIN 127 B Spring washer (*2 pcs) 2
106 M4*15mm DIN 7981C Screw 4
107 Magnet adjustment bracket 1
108 M6*15mm DIN 7985A Screw (*2 pcs) 2
109 M6*16*1.5 DIN 9021 Washer bk 3
110 M5 DIN 127 B Spring washer 8
111 Spring 1
112 M8*15mm DIN 933 Screw 2
113 Idle wheel bracket (incl. part 50) 1
114 Spring 1
115 Magnet bow 1
116 M6*65mm DIN 933 Screw 1
117 M6 DIN 985 Nyloc nut 1
118 M6 DIN 125 A Washer 1
119 M6*10mm DIN 7985A Bolt 4
120 M8 DIN 127 B Spring washer 2
121 M8 DIN 126 Washer 1
122 Flywheel axle 1
123 12*1mm DIN 471 Retaining ring 2
124 M10*2 DIN 1440 Washer 2
125 3/8” fly wheel axle nut 2
126 M6*14mm DIN 933 Screw 3
- Hardware kit 1
- Owner’s manual 1
- Warranty booklet 1
- Label set 1

50
C35 EXPLODED VIEW
45
62
14
63
14
62
23
50
50
49
23
57
1
33
89
50
50
49
86
16
34
49
46
94
77
74
114
113
112
120
121
126
95
109
74
111
116
117
41
118
46
24
107
92
119
51
51
45
72
75
75
88
115
122
123
124
125
123
124
125

51
61
61
48
15
12
61
13
58
58
9
21
53
54
7
38
51
60
29
51
29
37 42
29
55
55
55
55
87
39
29
28
28
28
52
52
54
53
53
54
10
51
60
51
55
55
39
29
28
29
29
55
38
28
37
8
29
39
37 42
36
28
28
37
52
18
83
4
29
17
37
11
61
37
32
48 19
84
3
5
37
52
42
37
28
37
37
28
31
1
2
15
18
19
21
39
27
26
43
43
36
37
44
44
35
37
42
42
42
42
42
42
42
42
42 42
42
42
42
42
42
42
42
37 37
37
37
47
52
65
71
85
71
64
67
66
70
69
76
76
55
78
79
80
25
81
61
87
73
74
85
68
6
29
93
40
40
37
42
31
103
61
102
104
101
44
44
48
48
43
43
44
44
42
42
44
44
54
53
26
35
26
35
20
82
22
56
30
42
59
90
91
100
26
35
52
96
102
108
110
110
110
105
108
105
106
48
10TUC35X00

52

53

54

55

56
OWNER’S MANUAL
Benelux
Accell Fitness Benelux
Koningsbeltweg 51
1329 AE ALMERE
The Netherlands
Tel: [phone]
Fax: + 31 36 5460055
Scandinavia
Accell Fitness Scandinavia
Varusmestarintie 26
20361 TURKU
Finland
Tel: [phone]
Fax: [phone]
Germany
Accell Fitness Deutschland
P/a Koningsbeltweg 51
1329 AE ALMERE
The Netherlands
Tel: [phone]
Fax: + 31 36 5460055
United Kingdom
Accell Fitness United Kingdom
Boland House
Nottingham South Industrial Estate
Ruddington Lane
Wilford
Nottingham NG11 7EP
United Kingdom
Tel: [phone]
Fax: [phone]
North America
Accell Fitness North America Inc.
130 Hayward Ave, Suite 2
N2C 2E4
Kitchener, ON Canada
Tel. [phone]
Fax: [phone]
www.accellfitness.com
www.tunturi.com
