turbionaire trend pur fan User manual

Fresh & purified air supply unit
Unitate de aport si purificare aer proaspăt
Zulufteinheit für frische & gereinigte Luft
Unidad de suministro de aire fresco y purificado
Unité d'alimentation en air frais et purifiéVentilateur
Unità di alimentazione dell'aria fresca e purificata
Instruction manual EN RO GE SP FR IT
trend
pur fan

EN: CONTENT
1. PRECAUTIONS
2. BOX CONTENTS
3. WALL INSTALLATION

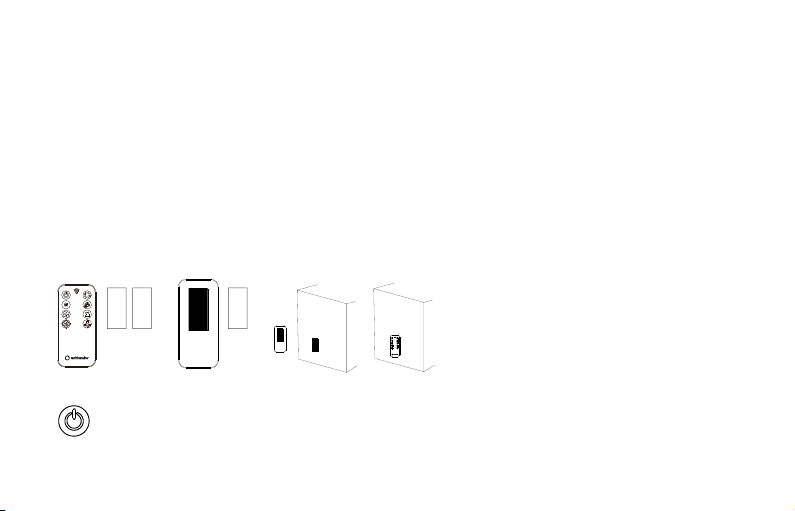

4. REMOTE CONTROL DESCRIPTION AND ACTIVATION
5. DESCRIPTION OF REMOTE CONTROL
6. DEVICE STATUS LEGEND
7. TROUBLESHOOTING
8. MAINTENANCE & SERVICE
9. PRODUCT DISPOSAL AND RECYCLING
4
8
9
11
12
15
16
17
19

PRECAUTIONS1.
Please read this manual carefully to operate this fan. Injury or even death can be
caused if these instructions are not applied!
Remove packing and make sure that the appliance is undamaged. In case of doubt do not operate the appliance and contact our service
center.
Immediately contact a qualified person (authorised dealer or the manufacturer) if the product is dropped or knocked to check its correct
functioning.
This appliance must only be used for the purpose it was built for, e.g. air exhaustion for domestic and similar purposes.
Do not leave parts of the packaging within reach of children or incompetent persons. To dispose of the packaging and the appliance at
the end of its useful life refer to the recycling norms in force in your country.
Immediately contact a qualified person (authorised dealer or the manufacturer) if the product is dropped or knocked to check its correct
functioning. The means of disconnection from the supply mains must have a contact separation in all poles and must provide full
disconnection under overvoltage category III conditions.
In the case of malfunction, anomaly or any type of fault disconnect the appliance from the electrical main supply and contact a qualified
person. Use only original spare parts for repairs. Damage can be caused to the device if the following instructions are not applied!
The product is to be installed at min 2.3 m above the floor and can be connected to the supply mains only if the voltage and the
frequency of the supply mains correspond to those written in the rating label.
The appliance must not be used to activate water heaters, room heaters, etc.
Do not use this product for uses that are different from those for which it has been designed.
After removing the product from its packaging ensure that it is complete and undamaged; if in doubt, immediately contact a qualified
electrician.
4

Do not touch the appliance with wet or humid parts of the body (e.g., hands or feet).
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
To avoid the risk of fire, do not use the product in the presence of inflammable substances or vapours such as alcohol, insecticides,
gasoline, etc.
Do not store the device out of the reach of children and disabled people if you decide to disconnect it from the power source and stop
using it.
If there is a fuel-powered device (water heater, gas boiler, etc. of the sealed chamber type) in the room where the product is to be
installed check that the re-circulation of air is sufficient to ensure a good combustion for the correct functioning of these devices,
therefore, precautions must be taken to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning
appliances.
ATTENTION: This symbol indicates that precautions that must be taken to avoid damage to the device.
Do not modify this device in any way.
Do not use the device when the ambient temperature is more than 40 °C.
Do not allow the product to be exposed to atmospheric agents (rain, sun, snow, etc.). Possible product applications are indicated in the
attached illustrations.
Do not sink the device or relative parts in water or liquids, except were indicated in the cleaning and maintenance section.
The air or fumes being extracted must be clean and free from greasy particles, soot, chemical and corrosive agents, inflammable or
explosive mixes. Its temperature must be below 50 °C (122 °F).
Do not obstruct the air inlet and outlet of the appliance in any way whatsoever. When using air ducting make sure that the ducting is not
blocked.
5

For optimum operation of the appliance, it is necessary to ensure an adequate re-circulation of air in the room. Consult the local norms
with regards to this.
In the case of malfunction, anomaly or any type of fault disconnect the appliance from the electrical main supply and contact a qualified
person. Use only original spare parts for repairs.
The device must be installed by a qualified electrician.
The electrical system to which the device is connected to must comply with the applicable standards.
The device is double insulated and therefore does not need to be earthed.
Do not operate the fan if a cable or plug is damaged, after a malfunction or if it has been dropped or damaged in any way.
The electrical power source / plug to which the device must be connected to must be able to provide the maximum electrical power
required by the device. Otherwise, contact an electrician to make the necessary changes before proceeding.
A multi-pole switch must be used to install the device. The distance between the switch contacts must be at least 3 mm.
Switch off the appliance using the main switch:
To ensure the unit adequate functioning, the room must have an adequate source to refresh the air. In addition, in case there is an
unsealed combustion-based appliance such as a water heater, gas stove, etc. in the same room, refreshing the air must be sufficient for
all devices to work efficiently together.
The device must discharge directly outdoors, through a short pipe (maximum length of 400 mm to ensure the standardized performance).
If the device is installed in pipelines subject to high levels of pressure, significant losses will occur. The device cannot be used to control
the water heaters, room heaters, etc. nor must it be connected to the hot air ducts used by other appliances.
·Install the appliance so that the rotor cannot be accessible from the air outlet side. If this is not possible, a protection system must be
installed.
a) if the device does not work properly.
b) before cleaning the casing of the device.
c) if the device is not to be used for a long period of time.
6

150
170
43 268-500
14
130

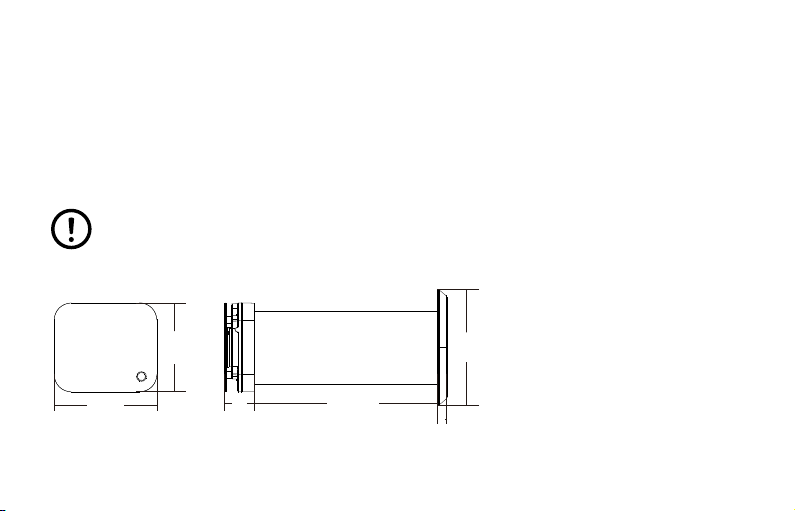

EXTERNAL DIMENSIONS (mm) - STANDARD EQUIPMENT
For walls thinner than 268 mm (between 210 AND 268 mm), cut the telescopic tube as required.
For walls thicker than 500 mm, you can add a tube extension (optional).
This device is used to introduce fresh outside air into the room, previously purifying it with the 3 in 1 T-Pur (High Particulate
Prefilter/HEPA/Active Carbon) filter. It is suitable for individual rooms, does not require additional piping and its installation requires a single
passage through the wall.
It is easily mounted on the wall from inside the building and is fitted with an exterior screen with rain blinds. Due to the adaptable telescopic
tube, the accepted thickness of the wall on which it is mounted is variable. The filter is also easy to change according to the instructions. The
unit can be controlled remotely, and with the included cover, it is possible to completely block the air transfer from outside to inside and
vice versa.
ATTENTION: DO NOT INSTALL ON THE CEILING
7

2. BOX CONTENTS
1. Cover for blocking the natural air inflow or outflow when the unit is
not working
2. Ventilation Unit
3. Power supply plate cover
4. Power supply plate
5. Bendable external grid with anti-insect netting
6. Telescopic tube
7. 3 in 1 filter (coarse dust filter - HEPA filter - active carbon filter)
8. Screws for fixing the wall power supply plate cover
9. Wall plugs
10. Remote Control
11. Instruction manual
12. Warranty
12 3 4 5
6 7
8 9
10
11
12
8

PRELIMINARY OPERATION
Check the wall thickness.
Make sure you have the required tools.
To install, follow the steps below:

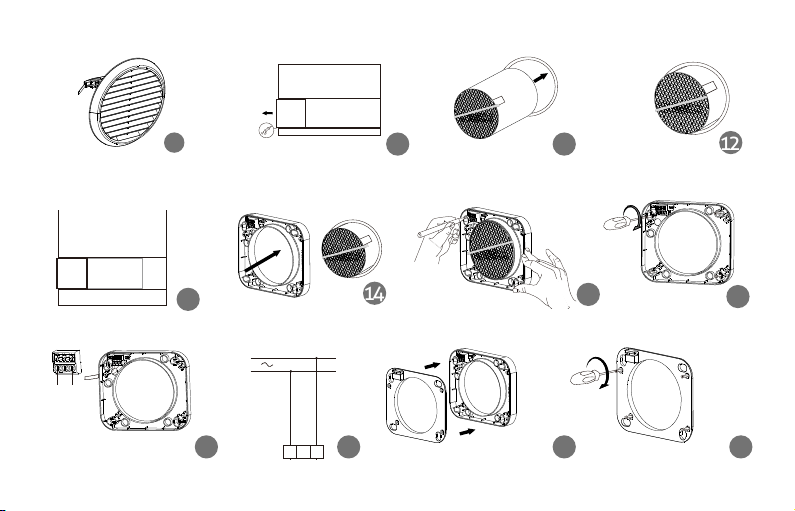

3. WALL INSTALLATION
ø110m m
1 2 3 4
Bend the grid so that the outer
tabs are horizontal (bend in the
direction indicated by the arrows
printed on the grid).
Insert the bent grid into the hole,
holding the grid support in one hand
and the safety thread in the other
5 6
Slide the bent grid through the hole
so as to make it completely come
out of the outer wall.
Bend the grid downwards and it
will open automatically.
78
9

910 11 12
13 14 15 16

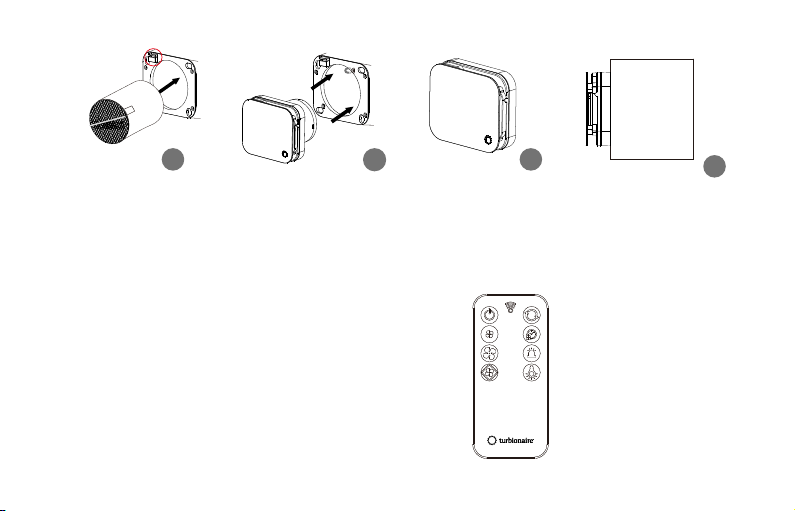

1817
Electrical Connections
L
N
LN
N L
2019
1
Always hold the grid by its support,
pull inwards until the grid is fully
laying against the wall.
Use expanded foam.
Seal up around the perimeter.
Use the 3 in 1 filter as a base centering
template
1
