4TurboLock TL - 200
Section 1
Information & Safety Warnings
1.1 Introduction
This user manual will guide you through the functions and usage of your TurboLock TL-200 Smartbolt. It is important that you
follow all instructions and regard all notes that appear throughout this manual. Consult this manual before you attempt to use
your lock. If you have questions not answered by this manual or are in need of repair or non-routine service, contact customer
service at 855-850-8031. Before contacting customer service, please have your purchase information ready as this may be
needed during the call. This information may be recorded below.
Date of Purchase:
Place of Purchase:
1.2 Safety Warnings
When reading this manual, note these icons:
Notes with this icon MUST be read, understood, and obeyed to prevent injury or damage etc.
Notes with this icon include relevant information.
Overall Usage
• Never insert objects into the lock other than batteries as described in this manual.
• The lock is not a toy. Do not leave children unsupervised around the lock.
• Verify that all parts of the lock are accounted for. If any part is missing, contact customer service.
• The lock is best suited for standard doors made for buildings within the US.
• Use only the parts included in the original packaging or received from TurboLock.

TurboLock TL - 200 5
• Replace the batteries after receiving the lock’s low battery notication.
• Only use clean water, mild cleaner, and soft, non-abrasive cloth when cleaning.
• Never submerge the lock or any of the lock’s components.
• Never apply any cleaner directly to any part of the lock.
• Do not let water and liquids get into the lock’s electric parts or battery compartment.
• Objects should not be hung from the lock’s handles at any time.
• Installation surfaces must be level. Do not install on doors or surfaces with any type of deformity as gaps or warping may
cause the lock to malfunction or fail to operate entirely.
• Old and new batteries as well as batteries from di󰀨erent brands may not be mixed.
• Use only four AAbatteries.
• Use the lock only as described in this user manual.
• If the battery compartment or surrounding parts are damaged, do not use the lock.
1.3 Disposal at End-of-Life
This product must not be disposed of by incineration, landlling, or mixing with household trash. Improper disposal of the
battery contained within this product may result in the battery heating up, rupturing, or igniting which may cause serious injury.
The substances contained inside the battery present chemical risks to the environment. The recommended disposal for any
TurboLock TL-200 Smartbolt at its end-of-life is to dispose of the entire unit at or through an e-waste recycling center, program,
or facility. Local regulations and laws pertaining to the recycling and disposal of certain batteries and/or products containing
them will vary according to country, state, and local governments. You must check laws and regulations corresponding to
where you live in order to properly dispose of the battery and/or unit. It is the user’s responsibility to dispose of their waste
equipment properly in accordance with local regulations and laws.
For additional information about where you should drop o󰀨 your batteries and electrical or electronic waste, please contact your
local or regional waste-management o󰀩ce, your household waste disposal service, or your point-of-sale.

6TurboLock TL - 200
Section 2
Overview
2.1 Package Contents
Outside Section 1x
Inside Section 1x
Plate 1x
Adjustable Latch Assembly 1x
Wood Screws 4x
Inside Screws 4x
Mounting Screws 3x
Keys 3x
Strike Box 1x
Strike Plate 1x
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
Outside Section Inside Section Plate
Mounting Screws Inside ScrewsWood Screws
Keys
Adjustable Latch Assembly
2-3/8” (60 mm) or 2-3/4” (70 mm)
Strike Plate
Strike Box

TurboLock TL - 200 7
2.2 Product Parts
L R
Keyhole
Keypad
Battery Compartment
(Batteries not included.)
Battery Cover
L/R Switch
Reset Button
Thumb Turn

8TurboLock TL - 200
2.3 Battery Information
The lock requires four standard or rechargeable ‘AA’ batteries which will be stored inside the back of the lock. New batteries
should be installed as soon as possible after receiving any low battery indication. When the notication begins, the lock will
only have enough power for approximately 50 uses before the batteries are fully depleted. This indication can be received from
the app or the lock itself; the lock will beep after being unlocked. Expected battery life is approximately 365 days.
Section 3
Installation (Retrot)
This section details installation steps needed if you are installing the TL-200 on a door with a single cutout already
made. Replacing an older xture with a newer one is known as a retrot. If your door has never had a lock or
doorknob installed or otherwise has no cutout, please skip to page 13.
• For easier installation, have another person help to hold the lock etc.
• Remove all parts of any old lock before installing the TL-200. In some cases, the old strike plate and/or box may be used.
• For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre-
Installation and Main Installation.
• If your door happens to have two cut-outs, check the clearance between the two. Make sure there is enough distance so that
you may seal o󰀨 any extra opening.
3.1 Pre-Installation
Part 1 Installing the Latch
KEEP DOORAJAR. At all times during, before, and shortly after installation, keep the door open. If the lock is incomplete or
improperly installed, and the door is then closed, the lock and/or door may become stuck.

TurboLock TL - 200 9
Step 1. Insert the latch into the hole and check it. The latch’s plate should sit ush against the edge of the door. (Fig. 1) If
there’s too much space behind the latch or if it’s sticking out of the door, the latch should be adjusted. If the latch
needs adjusting, move to Step 2. If it doesn’t need adjusting, skip to Step 3.
Step 2. Turn the latch and extend or retract it as needed. Make sure the metal peg pops into one of the two square holes in
the side and the deadbolt is pushed all the way in while adjusting the latch’s length. (Fig. 2) Insert the latch back into
the door.
Step 3. Add 2x wood screws and use a screwdriver (not included) to secure them. (Fig. 3)
Part 2 Installing the Strike
In most cases, the existing strike plate and setup can be used. If you wish to use the one included with your lock, refer to the
instructions for Part 3 on pages 15-16.
Part 3 Adjusting for Door Orientation
Step 1. With the door open, check it from the back and/or inside of the room. The lock’s parts should be oriented di󰀨erently
depending on whether the lock will be on the left side or right side of the door.
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
(Fig. 1) (Fig. 2) (Fig. 3)

10 TurboLock TL - 200
Step 2. Remove the battery cover from the inside section of the lock and adjust the switch and thumb turn as needed.
3.2 Main Installation
Step 1. Start with the outside section. Feed the power cables under the latch and
thread the latch pin and two of the pegs through the latch; the third and
lowest peg should be under the latch. If needed, have someone hold the
door itself or hold the outside section at against the front of the door. (Fig. 4)
It’s highly recommended to leave the door open and keep the keys in the
lock during installation.
2
3/4
”2
3/8
”
Left Side Door
Back switch pushed
to L side + thumb turn
vertical
Right Side Door
Back switch pushed
to R side + thumb turn
horizontal
L R
L R
L R
L R
Outside
Section Outside Section
(Fig. 4)
Silicone Backing
Latch Pin

TurboLock TL - 200 11
Step 2. Align the plate on the back of the door while making sure to thread the cables under the lowest peg. Move the
cables to the corner opening of the plate. Thread the latch pin through the larger hole and match up the pegs with
the smaller surrounding holes. Use the 3x mounting screws to fasten the plate to the back of the door. Make sure all
screws are tightened. (Fig. 5)
Check and adjust the plate or cables as needed to make sure the cables are tucked under the lowest peg. Do NOT
force the screw through the cables as this will damage the lock and/or make it unusable.
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
(Fig. 5)

12 TurboLock TL - 200
Step 3. Plug the cable into the inside section via the white connectors. Make sure
the lines and notches from each connector are on the same side.
Step 4. Check that the lock is set for the correct orientation. If needed, adjust the
switch and thumb turn according to the orientation needed for your door.
Step 5. Fit the inside section over the plate; make sure to thread the latch pin into
silver center part and tuck the cords away from the lowest screw hole. (Fig. 6)
Step 6. With the inside section at against the back of the door, use the 4x inside screws to fasten it to the back of the door.
Check the images and note the placements for the di󰀨erent sized screws. (Fig 7.) Make sure all screws are tightened.
Check and adjust the cables as needed to make sure they are tucked away from any screw hole opening. Do NOT
force the screw through the cables as this will damage the lock and/or make it unusable.
(Fig. 6) (Fig. 7)
Silver Center Part
Latch Pin

TurboLock TL - 200 13
Step 7. Add batteries to the battery compartment, then slide the cover down over it. The lock should now be ready to use.
It’s highly recommended to use the keys, default password, and the app to test the lock to make sure it works
before closing the door. See Section 6 for information on the default admin password. See Section 8 for information
on the app.
Section 4
Installation (New)
This section details installation steps needed if you are installing the TL-200 on a door without a cutout. If you are using
the TL-200 to replace an old lock or if your door otherwise already has a cutout, please go back to page 8.
• For easier installation, have another person help to hold the lock etc.
• For your convenience, installation instructions are broken into segments. Read and follow the instructions for both Pre-
Installation and Main Installation.
4.1 Pre-Installation
Part 1 Making the Opening

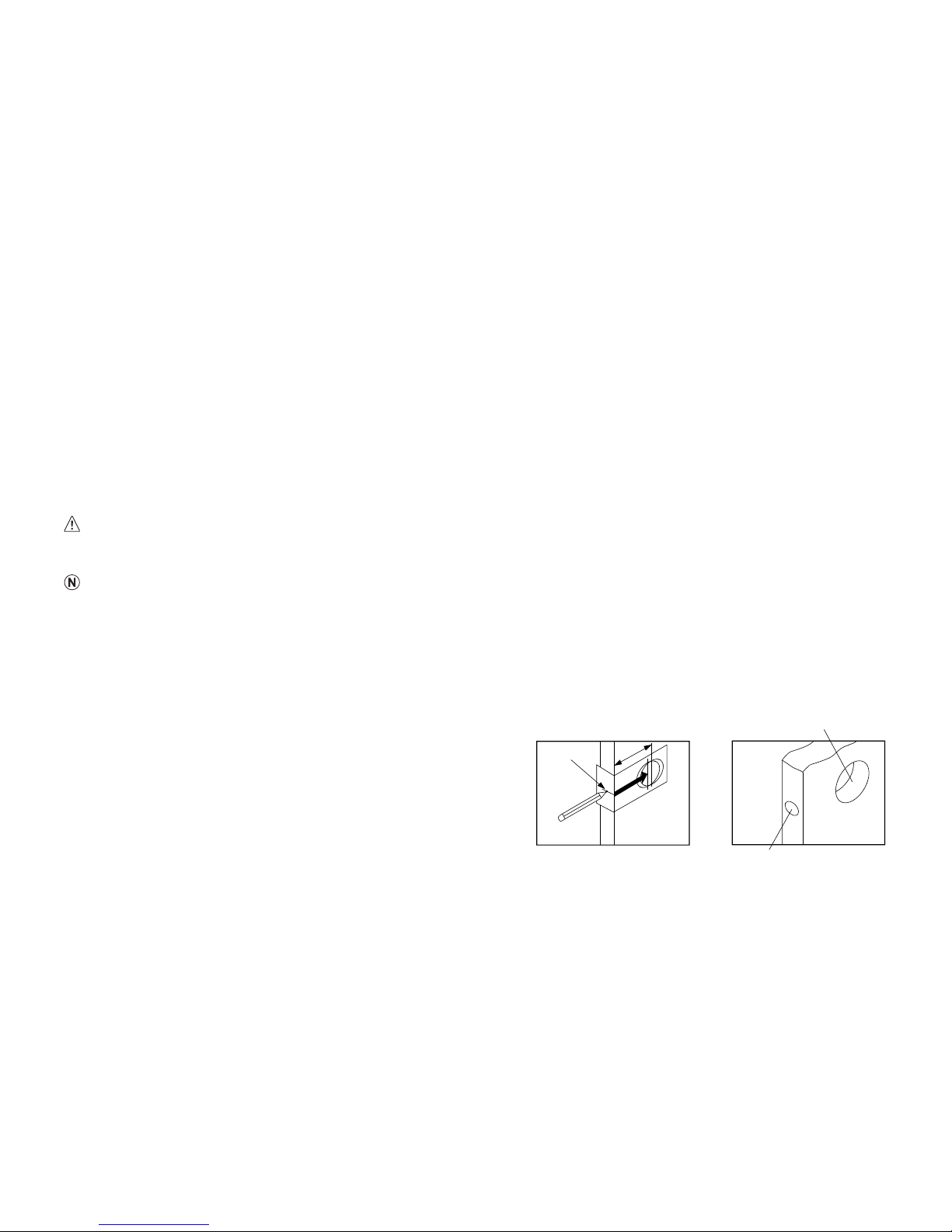

Step 1. Using the provided template, mark the locations for the
centers of the backset and the latch hole.
Step 2. Bore a 54mm (about 2” or 2 1/8”) hole on the door face,
then drill a 25mm (about 1”) hole into the edge of the door
so that it intersects with the larger hole.
2” dia. hole
7/8” to 1” dia. hole
Backset
Latch Hole
Side Hole

14 TurboLock TL - 200
• When drilling the 54mm (about 2” or 2 1/8”) hole, it’s recommended to drill from both sides of door to stop the wood from
splintering.
• It may be easier to drill the 54mm hole with a hole saw bit (not included).
• It may be easier to drill the 25mm hole with a hole saw bit (not included) or a 7/8” spade bit (not included). If using a spade
bit, do not drill at high speeds as this may tear out extra wood and damage the door.
Part 2 Installing the Latch

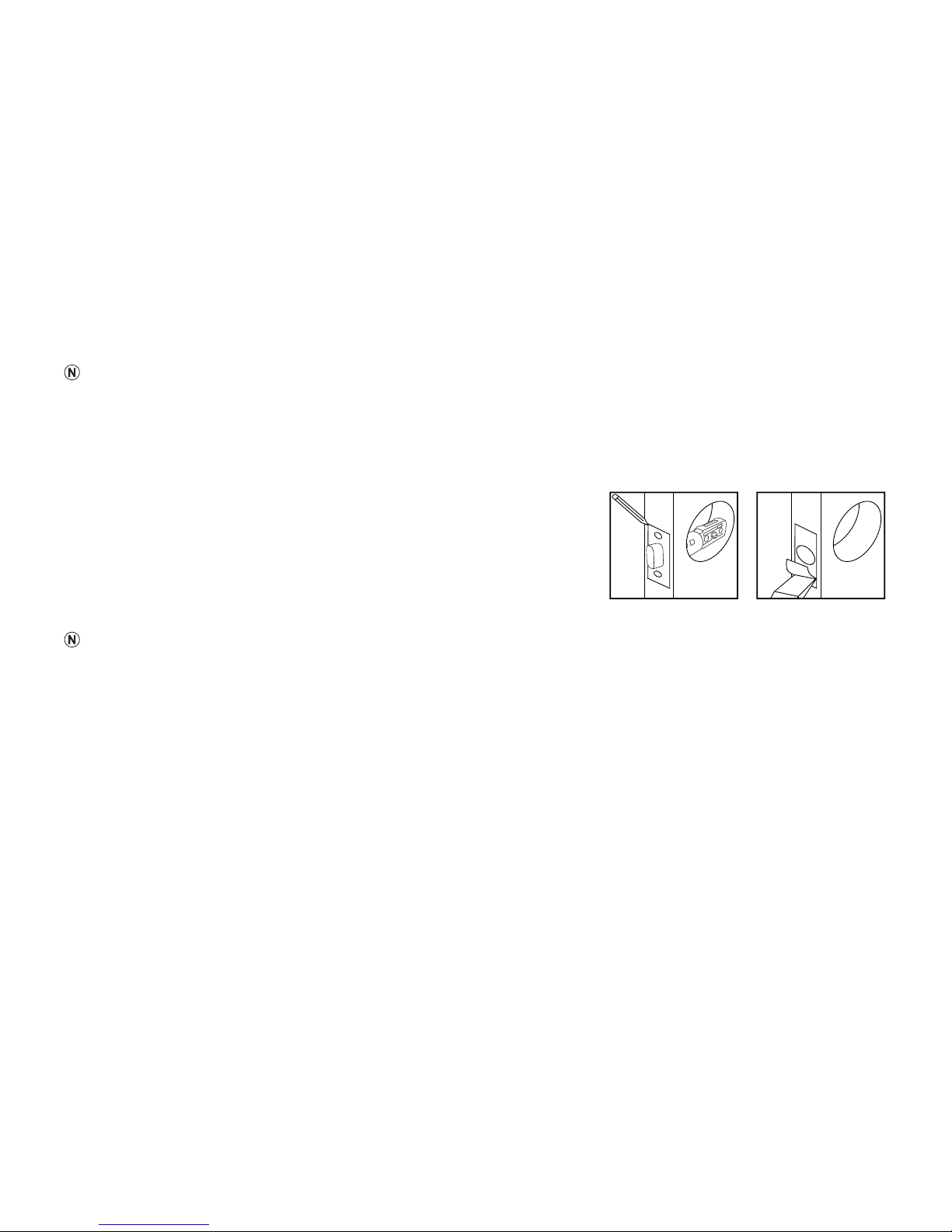

Step 1. Insert the latch into the hole. Using a pencil, mark a line around
the edges of the latch to use as a guide. After marking each side,
remove the latch. (Fig. 8)
Step 2. Chisel about 3mm (0.1”) deep or until the latch plate sits ush with
the door edge. (Fig. 9)
During chiseling, it’s highly recommended to stop and reinsert the latch every once in a while to see if it sits ush. If not, chisel
a little more and check again. Be careful not to chisel too deep otherwise the lock may not function correctly after installation.
Step 3. Insert the latch into the hole and check it. The latch’s plate should sit ush against the edge of the door. The latch
should be adjusted if there’s too much space behind it or if it’s sticking out of the door. If the latch needs adjusting,
move to Step 4. If it doesn’t need adjusting, skip to Step 5.
Step 4. Turn the latch and extend or retract it as needed. Make sure the metal peg pops into one of the two square holes in
the side and the deadbolt is pushed all the way after adjusting the latch. Insert the latch back into the door.
Step 5. Add 2x wood screws and use a screwdriver (not included) to secure them.
2
3/4
”2
3/8
”
(Fig. 8) (Fig. 9)

TurboLock TL - 200 15
Part 3 Creating a Mortise & Installing the Strike
Step 1. Push the door until nearly closed and check where the latch’s bolt touches the frame.
Step 2. First, use a pencil to mark the horizontal center of the latch on the door frame.
Step 3. Open the door again and extend the line over the edge of the door and inside the
frame.
Step 4. Measure the inside of the frame. Determine and mark the halfway point. From this
point, use a ruler to draw a line straight down so that it intersects the existing line.
Step 5. Use a 7/8” (22.2mm) spade bit and a drill to make two partially overlapping holes about
0.6” (15mm) deep centered both above and below the center line. If needed, use the
chisel to make the hollow (aka “mortise”) more square. Note, if you choose to use the
strike box, you may need to chisel slightly deeper.
If using a spade bit, do not drill at high speeds as this may tear out extra wood and damage the
door or doorframe.
Step 6. Hold the strike plate over the mortise. Using a pencil, mark a line around the edges of
plate to use as a guide. After marking at the straight edges of the plate, remove the
plate.
Step 7. Chisel about 1.5mm deep or until the strike plate sits ush with the door frame. Note, if
you choose to use the strike box, you may need to chisel slightly deeper.
During chiseling, it’s highly recommended to stop and check to see if the strike plate sits ush in the
doorframe over the strike box. If not, chisel a little more and check again. Be careful not to chisel too deep otherwise the lock may not
function correctly after installation.
2
3/4
”2
3/8
”

16 TurboLock TL - 200
Step 8. Position the strike and strike box, then use a pencil to mark the center
points of the screw openings in the strike plate. Set the strike and strike
box aside and drill two small holes at each center point.
Step 9. Position the strike and strike box. Add the 2x remaining wood screws and
use a screwdriver (not included) to secure them.
Part 4 Adjusting for Door Orientation
Step 1. With the door open, check it from the back and/or inside of the room. The lock’s parts should be oriented di󰀨erently
depending on whether the lock will be on the left side or right side of the door.
Step 2. Remove the battery cover from the inside section of the lock and adjust the switch and thumb turn as needed.
Left Side Door
Back switch pushed
to L side + thumb turn
vertical
Right Side Door
Back switch pushed
to R side + thumb turn
horizontal
L R
L R
L R
L R
Outside
Section Outside Section

TurboLock TL - 200 17
4.2 Main Installation
Step 1. Start with the outside section. Feed the power cables under the latch and
thread the latch pin and two of the pegs through the latch; the thrid and
lowest peg should be under the latch. If needed, have someone hold the door
itself or hold the outside section at against the front of the door. (Fig. 10)
It’s highly recommended to leave the door open and keep the keys in the lock
during installation.
Step 2. Align the plate on the back of the door while making sure to thread the cables
under the lowest peg. Move the cables to the corner opening of the plate.
Thread the latch pin through the larger hole and match up the pegs with the
smaller surrounding holes. Use the 3x mounting screws to fasten the plate to
the back of the door. Make sure all screws are tightened. (Fig. 11)
Check and adjust the plate or cables as
needed to make sure the cables are
tucked under the lowest peg. Do NOT
force the screw through the cables as
this will damage the lock and/or make it
unusable.
2
3/4
”2
3/8
”
Silicone Backing
2
3/4
”2
3/8
”
2
3/4
”2
3/8
”
2
3/4
”
70 60
2
3/8
”
2
3/4
”2
3/8
”
(Fig. 10)
(Fig. 11)
Latch Pin

18 TurboLock TL - 200
Step 3. Connect the cables with the white connectors. Make sure the lines and
notches from each connector are on the same side.
Step 4. Check that the lock is set for the correct orientation. If needed, adjust the
switch and thumb turn according to the orientation needed for your door.
Check the images on page 16.
Step 5. Fit the inside section over the plate; make sure to thread the latch pin into silver center part and tuck the cords away
from the lowest screw hole. (Fig. 12)
Step 6. With the inside section at against the back of the door, use the 4x mounting screws to fasten it to the back of the
door. Check the images and note the placements for the di󰀨erent sized screws. (Fig. 13) Make sure all screws are
tightened.
Check and adjust the cables as needed to make sure they are tucked away from any screw hole opening. Do NOT
force the screw through the cables as this will damage the lock and/or make it unusable.
(Fig. 12) (Fig. 13)
Silver Center Part
Latch Pin

TurboLock TL - 200 19
Step 7. Add batteries to the battery compartment, then slide the cover down over it. The lock should now be ready to use.
It’s highly recommended to use the keys, default password, and the app to test the lock to make sure it works
before closing the door. See Section 6 for information on the default admin password. See Section 8 for information
on the app.
Section 5
Using the Lock
In general, there are two simple ways to unlock your door via the lock other than using the keys.
Option 1
Via the keypad. Press any key so that the keypad lights up, use the keypad to enter a password, and then enter ‘#’. The lock
will engage.
Option 2
Via the app. With the app open, press any key so that the keypad lights up. The lock will engage and you may receive in-app
notication or sound to indicate that the lock was used.
Note, regardless of method, the TL-200 will not lock again on its own. To lock the door, close it, press any key so that the
keypad lights up, and then press ‘*’. The lock will engage and lock the door.
For more details regarding various entry methods, see the following information.
Using the Admin Password
Touch any key so that the keypad lights up, enter the Admin Password, and then press ‘#’. The lock will engage allowing you to
open the door. Note, the Admin Password must be changed from the default password. See Section 6.

20 TurboLock TL - 200
Using a User Password
Touch any key so that the keypad lights up, enter the password received from the app’s admin, and then press ‘#’. The lock
will engage allowing you to open the door. Note, User Passwords may have restricted access according to the app admin’s
discretion.
Using the Micro USB Port
Use a micro USB cable to connect a power bank via the port on the bottom of the lock. Make sure the power bank is on, touch
any key so that the keypad lights up, enter a password, and then press ‘#’. The lock will engage allowing you to open the door.
A micro USB cable and power bank are not included.
• The TL-200 also features a Mute Function. See Section 7.
• If a password has been entered wrong 3x in a row, regardless of the entry method, the lock will go into a 15-minute period of
inactivity where it cannot be used. This is a security feature designed to prevent unwanted parties from using the lock.
Section 6
Keypad Passwords
6.1 Changing the Admin Password
• The Admin Password must always be exactly 6 digits long.
• The default Admin Password is ‘123456’.
• For security, it is highly recommended that you change the Admin Password from the default.
Step 1. Use the keypad to enter the default (‘123456’) or current Admin Password, then press ‘#’.
