turck TN-UHF CDS Series User manual

Your Global Automation Partner
Instructions for Use
TN-UHF-…-CDS
UHF Read/Write Head

2Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com

V02.00 | 2020/08 3
Contents
1 About these Instructions................................................................................................................... 7
1.1 Target groups................................................................................................................... 7
1.2 Explanation of symbols used ........................................................................................ 7
1.3 Other documents ............................................................................................................ 7
1.4 Naming convention ........................................................................................................ 7
1.5 Feedback about these instructions.............................................................................. 7
2 Notes on the Product.........................................................................................................................8
2.1 Product identification..................................................................................................... 8
2.2 Scope of delivery ............................................................................................................. 8
2.3 Legal requirements......................................................................................................... 8
2.4 Manufacturer and service.............................................................................................. 9
3 For Your Safety..................................................................................................................................10
3.1 Intended use...................................................................................................................10
3.2 General safety notes .....................................................................................................11
4 Product Description .........................................................................................................................12
4.1 Device overview ............................................................................................................12
4.1.1 Indication elements ......................................................................................................................12
4.2 Properties and features................................................................................................13
4.3 Operating principle.......................................................................................................13
4.4 Functions and operating modes ................................................................................14
4.4.1 Operating frequency ....................................................................................................................14
4.4.2 Combination of UHF read/write heads and tags................................................................15
4.4.3 Multiprotocol function.................................................................................................................15
4.4.4 Data transfer to the PLC...............................................................................................................15
4.4.5 RFID channels – operating modes...........................................................................................15
4.4.6 RFID commands .............................................................................................................................16
4.4.7 Loop counter function .................................................................................................................16
4.4.8 CODESYS OPC UA server.............................................................................................................16
4.4.9 Compatible CODESYS versions.................................................................................................16
4.5 Technical accessories....................................................................................................17
5 Installing.............................................................................................................................................18
6 Connecting ........................................................................................................................................19
6.1 Connecting devices to Ethernet .................................................................................19
6.2 Connecting the power supply ....................................................................................20
6.3 Connecting digital sensors and actuators................................................................21
6.4 Connecting external antennas ...................................................................................22
7 Commissioning .................................................................................................................................23
7.1 Parameterizing read/write heads with the DTM .....................................................23
7.1.1 Connecting the device with the PC.........................................................................................24
7.1.2 Starting the extended read/write head parameter setting............................................27
7.1.3 DTM main menu – overview......................................................................................................28
7.1.4 Choosing the access level...........................................................................................................29
7.1.5 Setting multiplex operation.......................................................................................................30
7.1.6 Setting antenna power................................................................................................................33
7.1.7 Setting antenna polarization.....................................................................................................40

Contents
4Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
7.1.8 Switching on Presence sensing mode ...................................................................................43
7.1.9 Transferring the RSSI value – communication ....................................................................44
7.1.10 Setting the air interface parameters – EPC Class 1 Gen 2................................................45
7.1.11 Setting the RSSI filter – Post read filter...................................................................................46
7.1.12 Setting LED indication – Signaling ..........................................................................................47
7.2 Parameterizing read/write heads with the web server..........................................48
7.2.1 Opening a web server ..................................................................................................................48
7.2.2 Editing settings in the web server ...........................................................................................49
7.3 Testing read/write heads with the DTM ...................................................................54
7.3.1 Starting the RFID Test...................................................................................................................55
7.3.2 Start window – overview.............................................................................................................56
7.3.3 RFID Test – main menu ................................................................................................................57
7.3.4 RFID Test – Basic test window...................................................................................................58
7.3.5 RFID Test – Tag actions window...............................................................................................59
7.3.6 RFID Test – Logger window .......................................................................................................63
7.3.7 HF diagnosis window ...................................................................................................................63
7.4 Testing read/write heads with the web server ........................................................64
7.5 Querying device information with the DTM ............................................................67
7.6 Setting the IP address...................................................................................................69
7.6.1 Setting the IP address via the Turck Service Tool...............................................................69
7.6.2 Setting the IP address via the web server .............................................................................71
7.7 Connecting the device to a Modbus master ............................................................72
7.7.1 Connecting the device with the controller ..........................................................................73
7.7.2 Renaming a Modbus slave..........................................................................................................77
7.7.3 Setting up network interfaces...................................................................................................78
7.7.4 Setting Modbus channels (registers)......................................................................................82
7.7.5 Setting the I/O mapping .............................................................................................................84
7.7.6 Writing the application to the device.....................................................................................91
7.7.7 Connecting the device online with the controller.............................................................98
7.7.8 Reading out process data ...........................................................................................................98
7.8 Connecting a device to an EtherNet/IP controller ..................................................99
7.9 Connecting a device to a Siemens controller ..........................................................99
7.9.1 Configuring the device in CODESYS as a PROFINET device ........................................ 100
7.9.2 Setting up the network interface.......................................................................................... 106
7.9.3 Connecting a device to a Siemens controller in the TIA Portal.................................. 110
7.9.4 Reading out process data ........................................................................................................ 115
7.10 Starting the device as the Modbus master............................................................ 116
7.10.1 Setting up the network interface.......................................................................................... 121
7.10.2 Setting Modbus channels (registers)................................................................................... 125
7.10.3 Connecting Modbus master and Modbus slave online................................................ 127
7.10.4 Reading out process data ........................................................................................................ 127
7.11 Linking the device to the Turck Cloud ................................................................... 128
7.11.1 Register or login user and project in the cloud................................................................ 130
7.11.2 Creating a Cloud project .......................................................................................................... 131
7.11.3 Activate a device as Cloud gateway in Turck Cloud Portal.......................................... 134
7.11.4 Configuring the Cloud access in the web server............................................................. 137
7.11.5 Transfer process data from CODESYS to the cloud ........................................................ 139
7.11.6 Manage data node points from CODESYS symbol table.............................................. 140
7.12 Setting up a CODESYS OPC UA server.................................................................... 142

V02.00 | 2020/08 5
8 Setting ..............................................................................................................................................147
8.1 RFID channels – parameter data ............................................................................. 147
8.1.1 Meaning of the parameter bits .............................................................................................. 148
8.1.2 Setting Continuous presence sensing mode.................................................................... 148
8.1.3 Transferring the read/write head settings......................................................................... 149
8.2 RFID channels – process input data........................................................................ 150
8.2.1 Meaning of the status bits ....................................................................................................... 152
8.2.2 Tag in detection range (TP) – using bit or pre-loading the command.................... 153
8.3 RFID channels – process output data ..................................................................... 154
8.3.1 Meaning of the command bits............................................................................................... 156
8.4 Digital channels – process input data .................................................................... 157
8.4.1 Meaning of the status bits ....................................................................................................... 157
8.5 RFID channels – overview of the commands ........................................................ 158
8.5.1 Command: Idle............................................................................................................................. 160
8.5.2 Command: Inventory................................................................................................................. 161
8.5.3 Command: Read.......................................................................................................................... 164
8.5.4 Command: Write ......................................................................................................................... 165
8.5.5 Command: Write and verify .................................................................................................... 167
8.5.6 Command: Continuous mode................................................................................................ 169
8.5.7 Command: Get data from buffer (Continuous mode)................................................... 171
8.5.8 Command: UHF continuous presence sensing mode................................................... 173
8.5.9 Command: End Continuous (presence sensing) mode ................................................ 174
8.5.10 Command: Read/write head identification....................................................................... 175
8.5.11 Direct read/write head command ........................................................................................ 176
8.5.12 Command: Set tag password.................................................................................................. 178
8.5.13 Command: Set read/write head password........................................................................ 179
8.5.14 Command: Reset read/write head password ................................................................... 180
8.5.15 Command: Set tag protection................................................................................................ 181
8.5.16 Command: Tag info.................................................................................................................... 183
8.5.17 Command: Permanently deactivate UHF tags (Kill) ....................................................... 185
8.5.18 Command: Restore UHF read/write head settings......................................................... 186
8.5.19 Command: Backup settings of the UHF read/write head............................................. 187
8.5.20 Command: Query error/status of UHF read/write head ............................................... 188
8.5.21 Command: Reset......................................................................................................................... 192
8.6 Setting devices via the web server ......................................................................... 193
9 Operation .........................................................................................................................................197
9.1 Executing a command and calling data................................................................. 197
9.2 Using fragmentation ................................................................................................. 197
9.3 Using commands with a loop counter function ................................................... 197
9.4 Using Inventory command and Continuous (presence sensing) mode .......... 198
9.5 LEDs............................................................................................................................... 199
9.6 Software diagnostic messages ................................................................................ 201
9.6.1 Diagnostic messages – gateway functions........................................................................ 201
9.6.2 Diagnostic messages – RFID channels ................................................................................ 201
9.6.3 Diagnostic messages – digital channels............................................................................. 202
9.6.4 Diagnostic messages – device status .................................................................................. 202
9.7 Reading error codes................................................................................................... 203
10 Troubleshooting .............................................................................................................................206
10.1 Rectifying errors ......................................................................................................... 207
11 Maintenance....................................................................................................................................211
11.1 Executing the firmware update via FDT/DTM ...................................................... 211

Contents
6Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
12 Repair................................................................................................................................................216
12.1 Returning devices....................................................................................................... 216
13 Disposal ............................................................................................................................................216
14 Technical Data.................................................................................................................................217
15 Appendix: Flow charts showing the operation of the device ................................................219
15.1 Flow chart: Command processing........................................................................... 219
15.2 Flow chart: Rapid command processing with loop counter .............................. 220
15.3 Flow chart: Command processing with fragmentation...................................... 221
15.4 Flow chart: Continuous mode with interruption before reading data ............ 222
15.5 Flow chart: Continuous mode without interruption before reading data...... 223
16 EU Declaration of Conformity ......................................................................................................224

V02.00 | 2020/08 7
1 About these Instructions
These operating instructions describe the structure, functions and the use of the product and
will help you to operate the product as intended. Read these instructions carefully before using
the product. This is to avoid possible damage to persons, property or the device. Retain the in-
structions for future use during the service life of the product. If the product is passed on, pass
on these instructions as well.
1.1 Target groups
These instructions are aimed at qualified personal and must be carefully read by anyone
mounting, commissioning, operating, maintaining, dismantling or disposing of the device.
1.2 Explanation of symbols used
The following symbols are used in these instructions:
DANGER
DANGER indicates a dangerous situation with high risk of death or severe injury if
not avoided.
WARNING
WARNING indicates a dangerous situation with medium risk of death or severe in-
jury if not avoided.
CAUTION
CAUTION indicates a dangerous situation of medium risk which may result in minor
or moderate injury if not avoided.
NOTICE
NOTICE indicates a situation which may lead to property damage if not avoided.
NOTE
NOTE indicates tips, recommendations and useful information on specific actions
and facts. The notes simplify your work and help you to avoid additional work.
uCALL TO ACTION
This symbol denotes actions that the user must carry out.
aRESULTS OF ACTION
This symbol denotes relevant results of actions.
1.3 Other documents
Besides this document the following material can be found on the Internet at www.turck.com:
nData sheet
nApprovals
nConfiguration manual
1.4 Naming convention
Common synonyms for "data carriers" include "tag", "transponder", and "mobile storage
device". Read/write heads are also described as "transceivers" or "readers".
1.5 Feedback about these instructions
We make every effort to ensure that these instructions are as informative and as clear as pos-
sible. If you have any suggestions for improving the design or if some information is missing in
the document, please send your suggestions to [email protected].

Notes on the Product
Legal requirements
8Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
2 Notes on the Product
2.1 Product identification
These instructions apply to the following UHF read/write heads:
T N -UHF -Q300 -EU -CDS
EU Country of deployment -
Country of deployment
AUS Australia
BRA Brazil
CHN China
EU Europe
KOR Korea
NA North America (USA, Canada,
Mexico)
RUS Russia
CDS Software platform
Software platform
CDS CODESYS V3 Runtime
T N Read/write head -
Read/write head, mounting
condition
NNon-flush
Turck RFID system
UHF Frequency range -
Frequency range
UHF UHF frequency range
Q300 Design -
Design
Q180L300 Rectangular
180 × 300 × 61.7 mm
Q300 Rectangular
300 × 300 × 61.7 mm
2.2 Scope of delivery
The scope of delivery includes:
nRead/write head
nWall bracket (metal rail)
nQuick Start Guide
2.3 Legal requirements
The devices are subject to the following EU directives:
n2014/30/EU (electromagnetic compatibility)
n2011/65/EU (RoHS Directive)
n2014/53/EU (RED Directive)

V02.00 | 2020/08 9
2.4 Manufacturer and service
Hans Turck GmbH & Co. KG
Witzlebenstraße 7
45472 Mülheim an der Ruhr
Germany
Turck supports you with your projects, from initial analysis to the commissioning of your applic-
ation. The Turck product database contains software tools for programming, configuration or
commissioning, data sheets and CAD files in numerous export formats. You can access the
product database at the following address: www.turck.de/products
For further inquiries in Germany contact the Sales and Service Team on:
nSales: [phone]
nTechnology: [phone]
Outside Germany, please contact your local Turck representative.

For Your Safety
Intended use
10 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
3 For Your Safety
The product is designed according to state-of-the-art technology. However, residual risks still
exist. Observe the following warnings and safety notices to prevent damage to persons and
property. Turck accepts no liability for damage caused by failure to observe these warning and
safety notices.
3.1 Intended use
These devices are designed solely for use in industrial areas.
The read/write heads with an integrated RFID interface are used for contactless data exchange
with the BL ident tags in the Turck UHF RFID system. The following table shows the operating
frequency of the devices:
Type code Operating frequency Region
TN-UHF-…-EU-CDS 865…868 MHz Europe
TN-UHF-…-NA-CDS 902…928 MHz North America (USA, Canada, Mexico)
TN-UHF-…-CHN-CDS 920.5…924.5MHz China
TN-UHF-…-KOR-CDS 917…920.8 MHz Korea
TN-UHF-…-BRA-CDS 915…928 MHz Brazil
TN-UHF-…-RUS-CDS 866…868 MHz Russia
TN-UHF-…-AUS-CDS 920…926 MHz Australia
These devices may only be started up under the following conditions:
nThe particular frequency range is permissible for the use of UHF-RFID.
nThe operating frequency range of the devices is compliant with the permissible UHF RFID
range of the region.
nA valid certification and/or approval is available for the region of use.
The integrated RFID interface enables the read/write heads to communicate directly with the
PLC or other higher-level systems. Read data is sent to the controller via the device. The device
can perform autonomous controller and diagnostics functions in order to reduce the workload
of the controller. The functions of devices can be programmed using the IEC61131-3 compliant
CODESYS V3 programming software.
Four configurable digital channels are also provided for connecting digital sensors and actuat-
ors. The multiprotocol interfaces can be used as an EtherNet/IP device, Modbus TCP Turck slave,
or PROFINET RT device. In Modbus TCP systems the devices can also be used as masters.
The devices may only be used as described in these instructions. Any other use is not in accord-
ance with the intended use. Turck accepts no liability for any resulting damage.

V02.00 | 2020/08 11
3.2 General safety notes
nThe device only meets the EMC requirements for industrial areas and is not suitable for use
in residential areas.
nThe device may only be assembled, installed, operated, parameterized and maintained by
professionally-trained personnel.
nThe device may only be used in accordance with applicable national and international regu-
lations, standards and laws.
nAny extended stay within the area of radiation of the UHF read/write heads may be harmful
to health. Observe minimum distances from the actively radiating surface of the UHF read/
write head:
Region Max. permissible
total radiant output power
Safety distance
Europe, Russia, China 2 W ERP (according to ETSI) > 0.24 m
USA, Canada, Brazil, Korea,
Australia, New Zealand
4 W EIRP > 0.30 m
Singapore 0.5 W ERP > 0.24 m
nThe radiation of the UHF read/write heads may have an adverse effect on the operation of
electrically controlled medical equipment. Keep an additional distance from active radiation
sources up to the maximum transmission distance.

Product Description
Device overview
12 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
4 Product Description
The devices are designed with an aluminum housing and degree of protection IP67. The active
face is made out of plastic. Devices are available with an integrated antenna (Q300) or for con-
necting external antennas (Q180). Both device variants are suitable for connecting up to four
external passive UHF RFID antennas.
The terminals for the Ethernet and for digital I/Os are M12 sockets. The device has an M12 plug
connector for connecting the power supply. Terminals are provided for up to four external an-
tennas.
4.1 Device overview
180
300
61.7
100
100
46.125
219
126
Ø 6.5

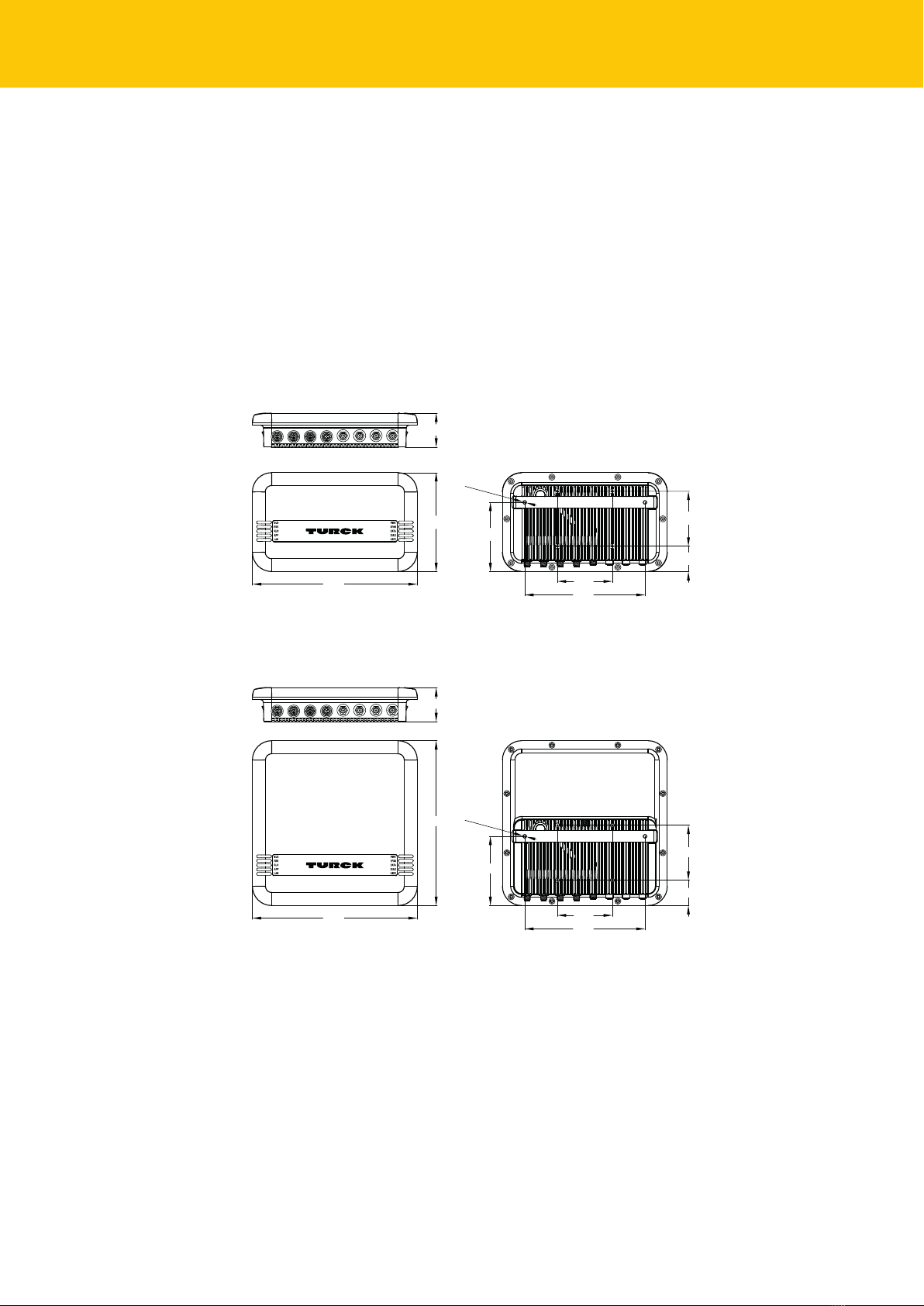

Fig.1: Dimensions – TN-UHF-Q180L300…
300
300
61.7
100
100
46.125
219
126
Ø 6.5
Fig.2: Dimensions – TN-UHF-Q300…
4.1.1 Indication elements
The device has the following LED indicators:
nPower supply
nGroup and bus errors
nStatus
nDiagnostics
An audible alarm can also be set using software tools.

V02.00 | 2020/08 13
4.2 Properties and features
nRectangular, height 180 or 300 mm
nActive front face, UV-resistant
nFour terminals for passive UHF RFID antennas
nFour configurable digital channels, which can be configured as PNP inputs and/or
0.5 A outputs
n2 W (ERP) maximum output power
nProgrammable according to IEC 61131-3 with CODESYS V3
nCODESYS V3 PLC Runtime
nCODESYS OPC UA server
nPROFINET device, EtherNet/IP device or Modbus TCP master/slave
nData interface “U” for convenient use of the RFID functionality
nClose to control integration in PLC systems without the use of a special function block
nIntegrated web server
nLED indications and diagnostics
4.3 Operating principle
The read/write heads are used for contactless data exchange with tags. For this the controller
sends commands and data via the interface to the read/write head and receives the corres-
ponding response data from the read/write head. The reading of the IDs of all RFID tags in the
read area or the writing of an RFID tag with a specific production date are examples of typical
commands. To communicate with the tag, the data of the read/write head is coded and trans-
ferred via an electromagnetic field, which at the same time supplies the tags with power.
A read/write head contains a transmitter and a receiver, an interface to the interface and a
coupling element (coil and dipole antenna) for communicating with the tag. Electromagnetic
wave propagation is used for the transmission between read/write head and tag on devices for
the UHF range.
IC
Read/write head Data carrier
UHF: electromagnetic wave
Fig.3: Operating principle of UHF-RFID
The antenna of the read/write head generates electromagnetic waves. This produces a trans-
mission window as a so-called air interface in which the data exchange with the tag takes place.
The size of the transmission window depends on the combination of read/write heads and
tags, as well as on the relevant environmental conditions.
Each read/write head can communicate with a number of tags. This requires the read/write
head and the tag to operate in the same frequency range. Depending on the power and fre-
quency used, the device ranges vary from a few millimeters up to several meters. The specified
maximum read/write distances only represent typical values under laboratory conditions
without allowing for the effect of materials. The achievable distances may vary due to compon-
ent tolerances, the mounting situation in the application, ambient conditions and the effect of
materials (particularly metal and liquids).

Product Description
Functions and operating modes
14 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
4.4 Functions and operating modes
The devices operate with an integrated or external antenna (TN-UHF-Q300…) or only with an
external antenna (TN-UHF-Q180L300…). The devices enable passive UHF tags to be read or
written in single and multitag operation. For this the devices form a transmission zone that
varies in size and range according to the tags used and the operating conditions of the
application. Refer to the data sheets for the applicable maximum read/write distances. The
devices can be fully tested, configured and parameterized from a PC using the specified
software tools.
The integrated RFID interfaces transfer data between the RFID level and the controller level.
The devices can be used as an EtherNet/IP device, Modbus TCP Turck slave, or PROFINET RT
device. The devices can also be used as masters in the Modbus TCP fieldbus system.
The device enables the execution of different commands such as Inventory (single-tag and
multitag applications), read, write and password protection. Additional functions are provided
for optimizing the speed, the self triggering of the system, as well as for backup and restore op-
erations. In every write or read cycle, up to 128 bytes can be transferred on each channel to the
controller. The data must be fragmented in order to transfer more than 128 bytes.
Sensors and actuators can be connected to the configurable digital channels. Up to four 3-wire
PNP sensors or two PNP DC actuators with a maximum output current of 0.5 A per output can
be connected. The total output current of all devices connected to the DXP channels must not
exceed max. 1 A.
The device can perform autonomous controller and diagnostics functions in order to reduce
the workload of the controller. The devices can be programmed using the IEC61131-3 compli-
ant CODESYS 3 programming software.
4.4.1 Operating frequency
The Turck UHF system uses nationally specified transmission frequencies for the communica-
tion between the tags and read/write heads. These national operating frequencies for UHF are
the frequency ranges that are individually specified by the national regulation bodies.
The operating frequency of the devices in the UHF band is for example 865…868 MHz for
Europe and 902…928 MHz for the USA. The BL ident read/write heads in the UHF band can
therefore only be used in the countries they are intended for and must not be put into opera-
tion outside of these regions. As the BL ident UHF tags do not radiate their own radio waves,
these are suitable for use worldwide.
Turck offers different tag variants that are specially designed and optimized for national fre-
quency bands in order to achieve as large a communication range as possible. Wide-band
multi-range tags for international use are also available as an alternative.
The various Turck read/write heads support the following operating frequencies:
n865…868 MHz (e.g. for Europe, Turkey and India)
n866…868 MHz (e.g. for Russia)
n902…928 MHz (e.g. for USA and Canada)
n920…925 MHz (e.g. for China and Singapore)
n902…907.5 MHz and 915...928 MHz (e.g. for Brazil)
n917…920.8 MHz (e.g. for Korea)
The relevant national specifications for UHF such as frequency range, output and the status of
any national regulations can be obtained from the Internet at:
http://www.gs1.org/docs/epcglobal/UHF_Regulations.pdf
For more detailed information please contact the regulation authorities of the country where
you wish to use the UHF RFID system.
HF RFID systems can be run parallel to UHF RFID systems in an installation.

V02.00 | 2020/08 15
4.4.2 Combination of UHF read/write heads and tags
The UHF read/write heads form a transmission zone for which the size depends on the combin-
ation of read/write head and tag. The listed maximum read/write distances only represent typ-
ical values under laboratory conditions without the effect of materials. The achievable dis-
tances may be different due to component tolerances, mounting location in the application,
ambient conditions and the effect of materials (particularly metal).
For this reason, the application must be tested in all cases under real conditions (particularly
with read and write operations in motion).
4.4.3 Multiprotocol function
The devices can be used in the following three Ethernet protocols:
nModbus TCP
nEtherNet/IP
nPROFINET
The Ethernet protocol used must be selected in the CODESYS project.
Manual protocol selection
The protocol must be defined manually in the CODESYS program. After that only read access to
the device is allowed with the other protocols. Manual protocol selection thus also provides an
additional permanent locking feature.
4.4.4 Data transfer to the PLC
In every write or read cycle, up to 128 bytes can be transferred on each channel. The data must
be fragmented in order to transfer more than 128 bytes. The amount of data transferred per
read or write cycle can be set as follows for different Ethernet protocols:
PROFINET EtherNet/IP Modbus TCP
n8 bytes
n16 bytes
n32 bytes
n64 bytes
n128 bytes
(default setting)
n16 bytes
n64 bytes
n128 bytes
(default setting)
n128 bytes (permanently set)
Adjustable fragment size:
n8 bytes
n16 bytes
n32 bytes
n64 bytes
n128 bytes
(default setting)
4.4.5 RFID channels – operating modes
Two different data interfaces can be selected for the RFID channels:
nUHF compact: Transfer of up to 128bytes possible, recommended for single tag applications
nUHF extended: Transfer of more than 128bytes possible, recommended for multi-tag applic-
ations

Product Description
Functions and operating modes
16 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
4.4.6 RFID commands
The device can perform the following commands and functions. A complete description of the
commands is provided in the section “Setting”.
nIdle
nInventory
nRead
nWrite
nWrite and verify
nContinuous mode
nGet data from buffer (Continuous mode)
nUHF continuous presence sensing mode
nEnd Continuous (presence sensing) mode
nRead/write head identification
nDirect read/write head command
nSet tag password
nSet read/write head password
nReset read/write head password
nSet tag protection
nTag info
nPermanently deactivate UHF tags (Kill)
nRestore UHF read/write head settings
nBackup settings of the UHF read/write head
nQuery error/status of UHF read/write head
nReset
4.4.7 Loop counter function
The loop counter function is provided for rapid command processing. The loop counter func-
tion only requires two PLC cycles to execute a command repeatedly (flow chart see [}220]).
This increments the loop counter to execute a command repeatedly. At least four PLC cycles
are required in conventional command processing. In order to execute a command repeatedly
with conventional command processing, a command has to be reset and then set again. The
loop counter function is provided for special commands. If the command was successfully ex-
ecuted, the command code is output in the response data.
4.4.8 CODESYS OPC UA server
The device can exchange data with any OPC UA clients via the integrated CODESYS OPC UA
server.
The device can be connected via OPC UA to higher-level systems such as MES, ERP or Cloud
systems. The data transfer is defined according to the Micro Embedded Device Server protocol
of the OPC Foundation for supporting OPC UA in field devices. For this data transfer, the integ-
rated OPC UA server of the interface communicates with the OPC UA client of the higher-level
system.
4.4.9 Compatible CODESYS versions
The device is compatible with the following CODESYS versions:
CODESYS
programming
environment
CODESYS
runtime
Firmware
version
CODESYS
package
3.5.12.10 3.5.11.20 1.0.1.0 1.0.1.0

V02.00 | 2020/08 17
4.5 Technical accessories
Accessories for mounting, connecting and parameterizing can be found in product database or
the Accessories List for TBEN (D301367) under www.turck.com. The accessories are not part of
the scope of delivery.

Installing
18 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
5 Installing
The device is provided with a bracket in accordance with VESA 100 × 100 for mounting. The
device is provided with four M4 threaded holes spaced 100 mm apart (horizontally and vertic-
ally). The maximum length of the screws is 8mm plus the thickness of the VESA bracket. The
devices can be mounted in any position.
Fasten the device with four M4 screws to a bracket in accordance with VESA 100 × 100.
100
[3.94]
100
[3.94]
219 [8.62]
126
[4.96]
Ø 6.5
[0.26]
4 × M4
46.1
[1.82]
100
[3.94]
100
[3.94]
126
[4.96]
Ø 6.5
[0.26]
4 × M4
46.1
[1.82]
219 [8.62]
Fig.4: Rear view – TN-UHF-Q180… Fig.5: Rear view – TN-UHF-Q300…

V02.00 | 2020/08 19
6 Connecting
6.1 Connecting devices to Ethernet
The device is provided with a 4-pin M12 female connector for connecting the device to an
Ethernet system.
Fig.6: M12 Ethernet connector
Connect the device to Ethernet as per the following pin assignment (max. tightening
torque 0.8 Nm).
v
4
13
2
ETH1/PoE
1 = TX +
2 = RX +
3 = TX –
4 = RX –
flange = FE
Fig.7: Pin assignment of the Ethernet connections
NOTE
With PoE transfer the power supply via PoE Mode A with 4-wire cables.

Connecting
Connecting the power supply
20 Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [email protected] | www.turck.com
6.2 Connecting the power supply
The device is provided with a 5-pin M12 plug connectors for connecting the power supply.
Fig.8: M12 plug connector for connecting the power supply
Connect the device to the power supply as per the following pin assignment (max. tight-
ening torque 0.8 Nm).
1 = V1
2 = TX/RX –
3 = GND
4 = TX/RX +
5 = PE
2
1
54
3
3
2
1
5
4
24 VDC / COM
Fig.9: Pin assignment of the power supply terminals
