Turnigy PRM0282 User manual

User Guide
3D Printer
1

Table of Contents
1. General
1.1 Main parts identification
1.2 What’s in the package
2. Assemble the 3D printer
3. Operational checks and preprint setup
3.1 Sensors check
3.2 Print platform leveling and preheat
3.3 Loading filament
4. Trouble shooting
Potentially hazardous situation to be avoided.
Failure to avoid may result in minor or moderate injury.
CAUTION:
Potentially hazardous situation to be avoided.
Failure to avoid may result in serious injury.
WARNING:
Use standard electrostatic discharge precautions
ATTENTION
ELECTROSTATIC
SENSITIVE DEVICE
Beware of Hot Surface: Some devices may radiate high temperature.
Be cautious and use safety gloves to avoid burns.
Wear safety glasses to avoid injury to your eyes.
The following safety precautions identifications are used in this manual
Turn off and lock-out system power before servicing.
Risk of electric shock or burn if failed to comply.
p3
p4~5
p6~49
2
p51~52
p53~56
p57~58
* NOTE: THERE IS A VIDEO SERIES AVAILABLE ONLINE
FOR VISUAL REFERENCE FOR ASSEMBLY

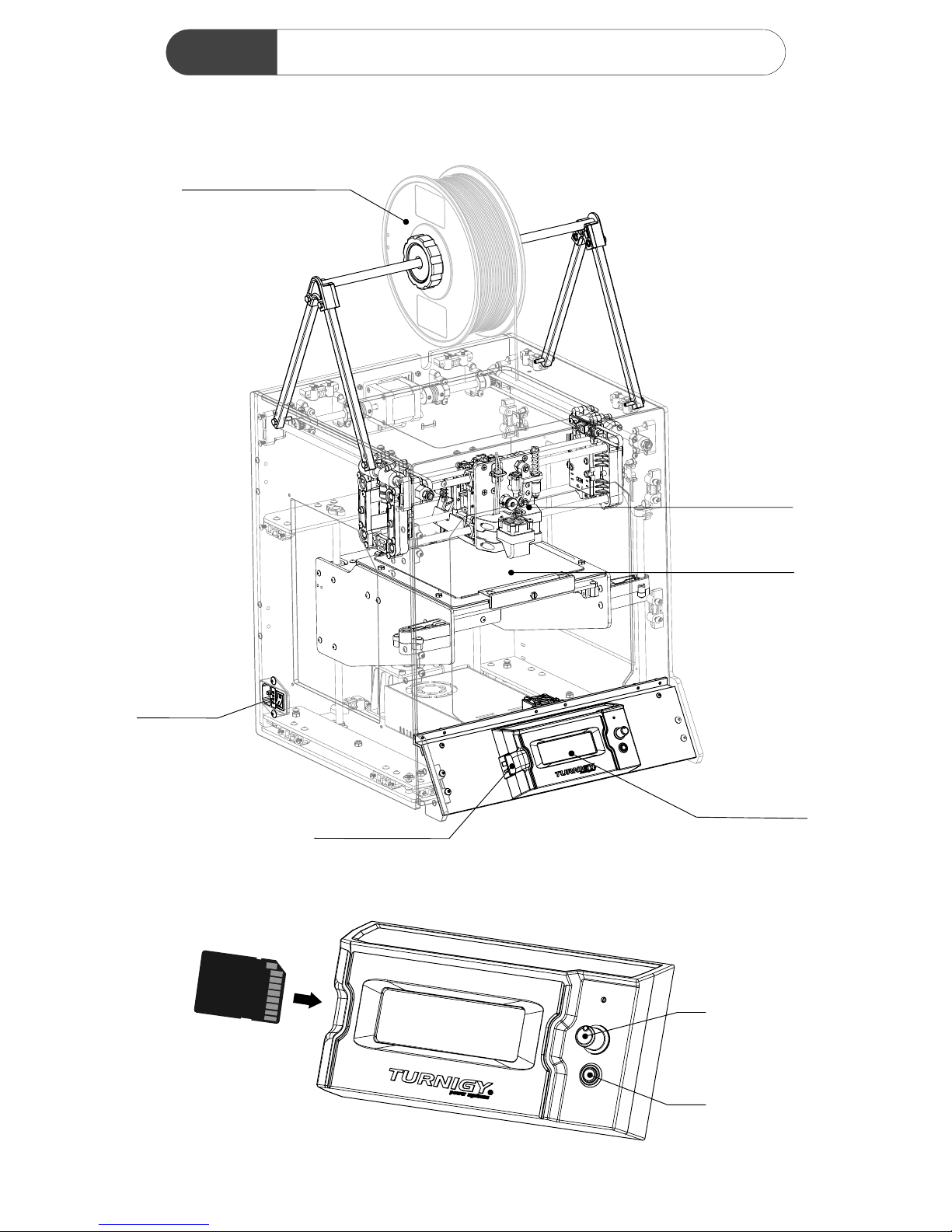

Power On / Off
Filament Spool(Sold separately)
Print platform
Printer gantry
1) Rotary (for + / -)
2) Press (to select)
SD card slot
Main control panel
Reset button
SD card insertion direction
(SD card not included)
3
Main parts identification
1.1

Gantry
Right Panel
Control Panel
Gantry rail
x1
x2
x1
Model cooling fan
x1
Box-A
Back Panel
x1
Box-E
Front Panel
x1
Print Platform
Box-B
x1
Box-F
Left Panel
x1
Top Panel
x1
x1
Box-D
Box-C
Bottom Panel & A/C Receptacle
x1
4
Filament spool holder Set (DSA3302-U17)
x1 SCW0188
(HM4x22)
x5
Screws
this box:
x1
x2
+
Filament spool
support
What’s in the box
1.2

Box-G
MDT0140
x4
MDT0142
x1 x1
Nut (silver color)
(TB3x12)
Z-axis lead screw
Torque coupling
Lower bearing support
MST0651
x1
MST0865
“Thick” Nut
(bronze color)
MST0866
“Thin” Nut
(bronze color)
Thin
Thick
Spring Bearing
BER0038
x1
x1 x1 x1 x1
x4
Rod
MST0600
Pre-assembled Rod
(for Left and Right panels)
x2x2
PM-3PT04-P01
x3
Timing belt (Long)
ETP0110
Timing belt (Short)
ETP0111
x2x1
Spiral cut cable loom
x1
Power
x1
USB cable (type A to type B)
x1
Zip tie
x10
x40 x10 x45
MDT0139
x2
Small nut (silver color)
(TM3x8)
SCW0039
x5
5
What’s in the box
1.2

Assemble the 3D printer
2
This section will guide you through the process of building the
3D printer, step by step. Pre-assembled pieces can be located
from Boxes A to G.
6

2.1
<1>
Z-axis Lead Screw
x1 x1 x1 x1
x1
Box G
Shorter non-threaded
end
Longer non-threaded
end
Push up (compressing the spring
slightly) while threading the lead
screw (MST0625) up from the
bottom.
Anti-backlash nut
Small amount of
brass bushing is
still visible
Once done there will be a slight drag while
turning the lead screw.
A small amount of brass bushing (MST0866)
should still be exposed at the bottom. This is
called an Anti-backlash nut that is used to
remove play or slop in the Z-axis.
Thick
Thin
Find the following accessories from:
7

2.1
<2>
Z-axis Lead Screw Find the following accessories from: Box G
x3
DSA3302-U07 Print platform
from Box-B
The Z lead screw can now be installed to
the print platform by using a 2.0mm hex
driver. The screws go in from the top
2.1
<1>
(TB3x12)
DSA3302-U02 Back panel
from Box-E
2.0mm hex
driver
(TB3x12)
x2
Rod
MST0600
x2
Rod
MST0600
2.5mm hex
driver
Back Panel preparation
Start installing the 2 metal rods (MST0600)
to the back panel as shown on the right
8
2.2
<1>

2.2
<2>
Assemble to Back and Base Panels
Insert the print platform onto
the shafts of the back panel
as shown.
Turn the lead screw so that we
have approximately 2 inches
exposed from the top.
This will help to align with the
bearing.
2.1
<2>
The movement of the bearings and rods will
feel tight at this point, but we will tram (align)
the system later.
Slide the print platform upwards so that the
Z-axis lead screw inserts into the bearing.
Approx.
2”
2.2
<1>
9
2.2
<3>

2.2
<4>
Box-G
Torque couplingBearing Lower bearing support
MDT0142 MST0651BER0038
x3 x1 x1 x1

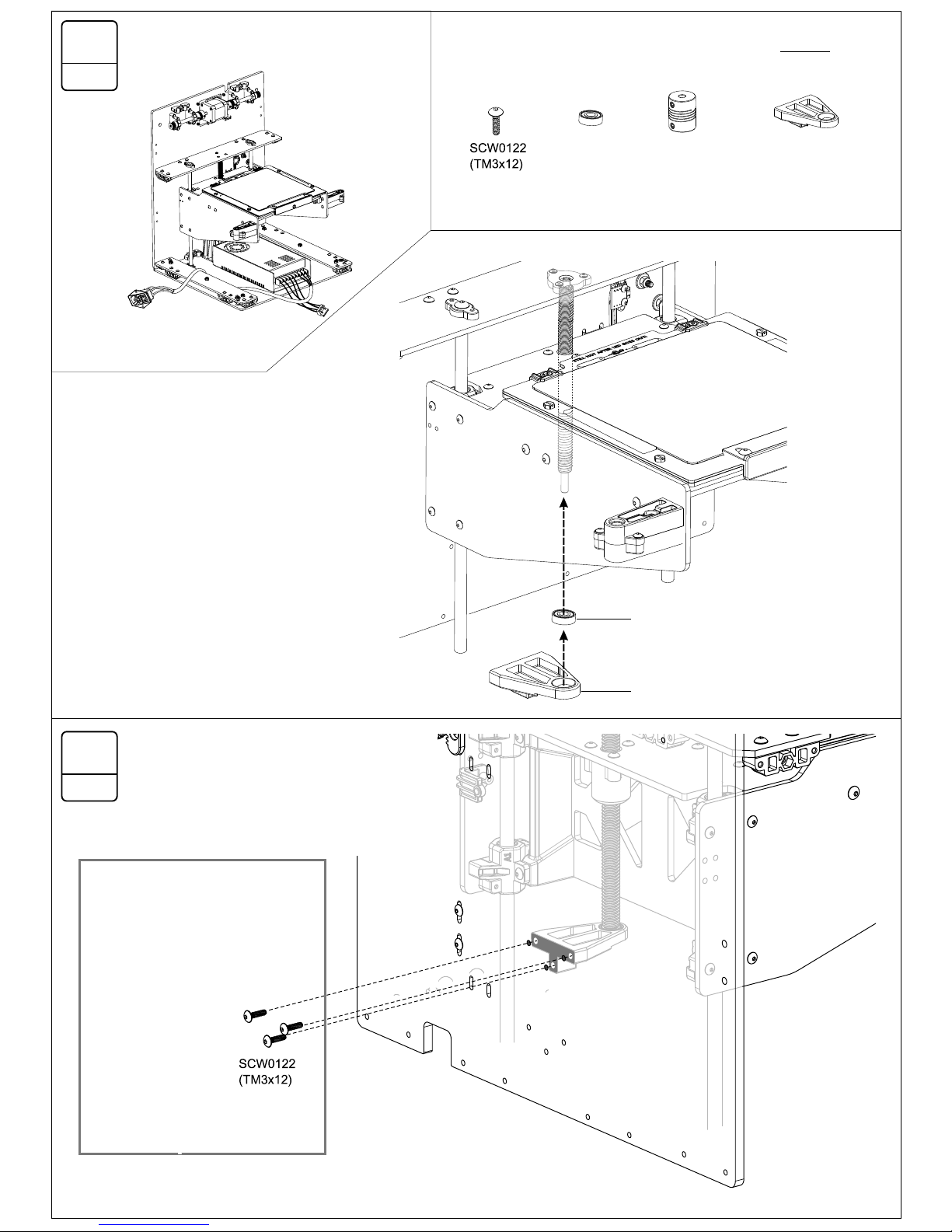

Install the bearing in to the lower bearing
support, and slide it onto the bottom of the
Z-axis lead screw (bearing facing upward).
BER0038
MST0651
Install the 3 screws from the back side to
secure the bearing support.
When tightening the support screws, push
lightly up to put a little tension on the
bearings.
x3
2.0mm hex
driver
Back and Bottom panels Find the following accessories from:
10
2.2
<5>

2.2
<6>
Now install the torque coupling to the bottom of the lead screw.
Positioning of torque coupling is not critical.
But at this moment, leave approx. 3mm distance
(for tramming procedure later) between bearing
support and the coupling.
Then tighten the coupling’s UPPER screw only.
Leave approx.
3mm gap for
now
Torque coupling
MDT0142
(TB3x12)
SCW0153
x8 x2
Box-G
Next we are going to assemble the back panel
to the bottom panel.
It is recommended to turn the back panel on its
side and slide the bottom panel in place
(making an “L” shape)
As you slide the bottom panel up you will need
to align the torque collar to the stepper motor
and the 2 vertical rods into the base.
Any flat surface
(eg. table top)
DSA3302-U01 Bottom panel
from Box-C
Find the following accessories from:
11
2.2
<7>

2.2
<8>
(TB3x12)
SCW0153
x8
Install 8pcs SCW0153 (TB3x12)
screws from back side
(TM4x12)
SCW0157
x2
Install 8pcs SCW0157 (TM4x12)
screws from bottom side

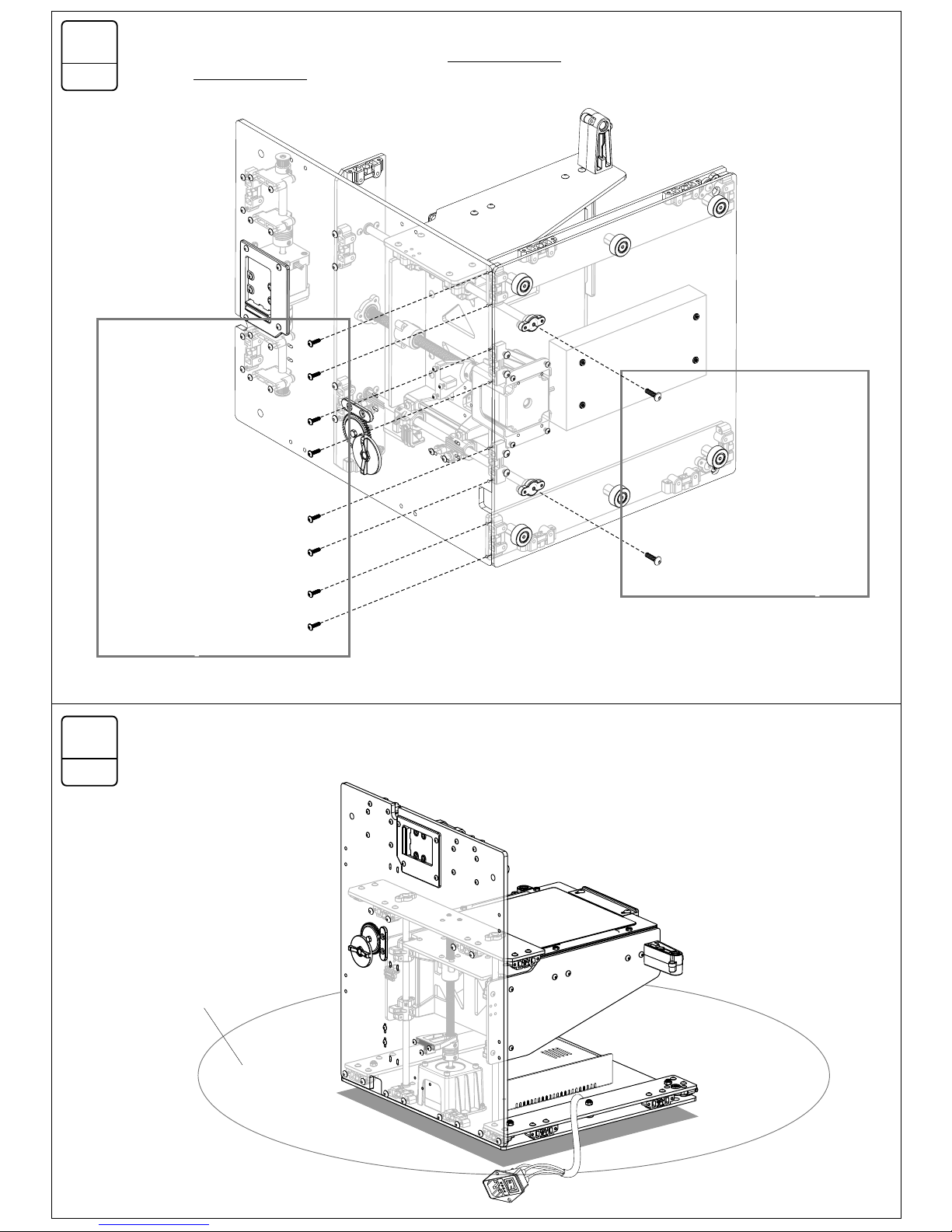

Once seated (shown below), install 8pcs SCW0153 screws from the backside and
2pcs SCW0157 screws from the bottom side into the rods
With the back panel and bottom panel attached reposition the frame vertical to the upright position.
At this point we need to start to tram or square up the mechanics to ensure a smooth bind free motion
Any flat surface
(eg. table top)
2.0mm hex
driver
2.5mm hex
driver
12
2.2
<9>

2.2
<10>
Tramming Back and Base Assembly
We need to check the start friction, turn the torque coupling (that is at the bottom of the lead screw)
that we just installed left and right a few times, you will notice a heavy drag and possible binding on
the print platform just make a mental note of how much strength it takes to rotate the rod.
During this test the lower clamp to
stepper motor should not be tightened
so that the motor is not rotating and
only the drag of the rod is felt

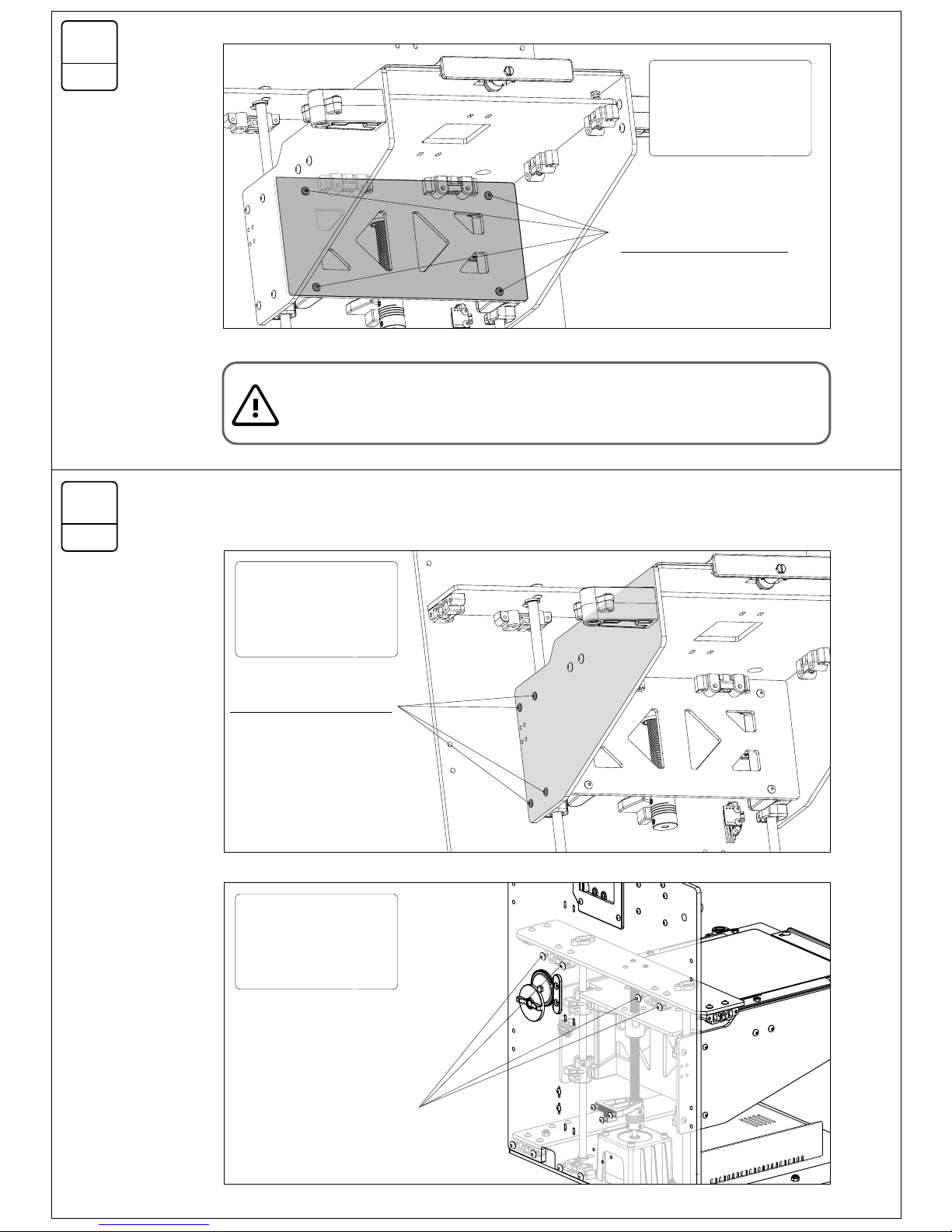

Now to fix this problem, refer to diagrams 2.2a to 2.2c and loosen all the noted screws
in order.
Loosen them just enough that there is no contact with
the screw head and frame (Example on the right).
First loosen these 7
screws at the back
Then loosen these screws on
BOTH sides of print platform
2.2a
2.2b
2.0mm hex
driver
2.0mm hex
driver
13
2.2
<11>

2.2
2.2
<12>
<11>
Now following diagrams 2.2d to 2.2g for tightening order (The sequence is critical), go
through the hardware and re tighten the screws
Then loosen these 4 screws on
Underneath the build platform
2.2c
Tighten these screws on
BOTH sides of print platform
2.2d
Tighten these 4
screws at the back
2.2e
By loosening the hardware the mechanical parts can adjust
to their natural tension-free positions alleviating binding.
2.0mm hex
driver
2.0mm hex
driver
2.0mm hex
driver
14

2.2
<12>
Tighten these 4 screws on
Underneath the print platform
2.2f
2.2g
Finally, tighten these 3
screws at the back
After following the above tightening sequence the build platform will
move much easier and this can be verified by now turning the torque
coupling again and feeling a reduced amount of force needed.
Try turning the torque coupling again
after the above procedures
There will always be some drag as this is calculated
to remove play and slop in the system.
If you are not satisfied, you can do the procedure again
2.0mm hex
driver
2.0mm hex
driver
15

2.2
<13>
Now that the first components are trammed we need to secure the torque coupling to
the stepper motor.
Loosen the coupling from the lead screw and slide it down so that there is an equal
distance top and bottom from the lead screw and motor (shown below).
Then tighten both ends of coupling
1
Equal
Equal
2
2
Loosen Tighten
Tighten
3
3
Great job up to this step!
2.5mm hex
driver
Next we are going to install the side panels. The side panels have a few things we need to
pay special attention to.
Both sides have the forward print platform vertical rods. This requires us to install the side
panel by sliding them down from the top.
The left panel (DSA3302-U06) has the A/C receptacle that needs to be attached from the
inside using some screws and nuts before we slide it down making installation easy to get to.
Place Side panel close to printer bottom
so we do not pull or damage the AC wires
from the power supply
Box-G
Find the following accessories from:
Pre-assembled Rod
(for Left and Right panels)
MDT0139
Nut
x2
SCW0157
(TM4x12)
x2
(TB3x12)
x2
2.0mm hex
driver
DSA3302-U06
from Box-F
Left panel
Pre-assembled Rod
(for Left and Right panels)
x1
A/C receptacle from
bottom panel
SCW0153
x2
16
2.3
<1>

2.3
<2>
A/C receptacle from
Bottom panel
DSA3302-U01
Put the two screws (SCW0157) in from the outside of Left panel (DSA3302-U06) and then
slip the power receptacle over the exposed screws from the inside and install the nuts
(MDT0139) as shown below.
NOTE: the switch goes toward the front of the printer and the tapered side toward the
rear matching the panel cutout.
2.5mm hex
driver
7mm
wrench
(Inner side)
Assembled (seen from outer side)
2.3
<3>
With the power switch / receptacle installed in the panel, it’s time to install the left panel by
carefully sliding the vertical rod down the front print platform bearing (pictured below right)
and making sure the rod aligns with its lower mount (pictured below right bottom).
2.3
<1>
2.3
<2>
2.2
<13>
17

2.3
<4>
Now check to make sure no wires are loose or damaged to the Switch / Power receptacle
to the power supply. Now well, we have easy access to the power supply, let’s set the
voltage.
(TB3x12)
SCW0153
x6 x4
x4
(TB3x12)
SCW0153
x6
Power from your home outlet varies depending on
where you live, for example, the USA is 110V
while Hong Kong is 220V. There is a switch on the
right side of the power supply marked 110-220V
(see above picture).
Set this switch to the appropriate position for your
region. If you are unsure about any of the above
steps or specification consult with a qualified
professional electrician.
Left panel installation
2.0mm hex
driver
Box-G
Find the following accessories from:
2.5mm hex
driver
Loosely install these screws without tightening them as we
need to align and tram the rods later (Example on the right).
2.3
<5>
2.3
<3>
18

Great job! Let’s move on to the right side panel. This one is easier than the left side, we
will install it in the same way as the left and loosely install the screws as we did on the right.
Make sure as you are installing the
right panel the sensor wires do not
get pinched or caught on anything
Sensor wires
2.3
<6>
(TB3x12)
SCW0153
x8 x4
Right panel installation Box-G
Find the following accessories from:
Pre-assembled Rod
(for Left and Right panels)
x1
Pre-assembled Rod
(for Left and Right panels)
DSA3302-U05
from Box-F
Right panel
SCW0153
x2
2.0mm hex
driver
2.3
<6>
2.3
<7>
SCW0157
(TM4x12)
x4
2.3
<4>
19

2.3
<8>
With the panels loosely installed carefully lay the printer on it’s side
Loosely install these screws without tightening them as we
need to align and tram the rods later (Example on the right).
2.3
<9>
2.5mm hex
driver
2.0mm hex
driver
x4
(TB3x12)
SCW0153
x6
20
