Turtle Beach Ear Force XL1 User manual

TB521-2240-01
Programmable Game and Chat Sounds
Includes18 interchangable audio presets for
different gaming situations.
Wireless Game & Chat on PS3
Experience wireless digital CD-quality game
sound and wireless chat on PS3. (XBOX LIVE
requires included chat cable)
Rechargable Battery
Provides more than 10 hours of uninterrupted
gameplay.
Ear Guard™ with Blast Limiter
Limit the intensity of deafening sounds such
as explosions and gunfire.
Microphone Monitor
Let’s you hear what you’re saying.
Dynamic Chat Boost™
Chat volume automatically increases as the
game gets louder.
Sonic Lens™with Sound Field Expander
Widen or narrow the sound field and focus
in on specific frequencies.
Sonic Silencers
Eliminate background noise on your mic and
online chat.
Auxiliary Input
Listen to your favorite songs while gaming.
Programmable Wireless Gaming Headset
User Guide
TURTLEBEACH.COM
Join The Conversation
Join The Conversation
ENGINEERED FOR GAMING™

What’s in the Box
PX3 Headset
PX3 Transmitter
Transmitter
USB Cable RCA Splitter Cable
XBOX 360®
Talkback Cable
Headset Charging Cable
T
U
R
T
L
E
B
E
A
C
H
.
C
O
M
PC/Mac
®
PS3™
XBOX
®
PX3 Presets
Reference Card Turtle Beach Sticker
User Guide

Table of Contents
About the Ear Force®PX3 pg 1
PX3 Headset pg 2
PX3 Transmitter pg 5
Pairing the Headset and Transmitter pg 8
PS3 Setup pg 9
XBOX 360®Setup pg 13
PC/Mac Setup pg 15
Presets pg 17
Recharging the Headset pg 18
Technical Specifications pg 19
Troubleshooting and Support pg 20
Maintaining Your Headset pg 21
Important Safety Information pg 22
download PX3 software and additional presets at:
www.TurtleBeach.com
View our YouTube videos:
www.youtube.com/TurtleBeachVideos
product support and warranty information:
www.TurtleBeach.com/support

1
About the Ear Force PX3
The Ear Force PX3 is an advanced wireless headset that is engineered for the PS3, and also works with XBOX 360
and PC/Mac gaming. To get the most from your gaming experience with your PX3, please take a few minutes to
review this user guide.
Digital RF Technology
The PX3 provides wireless CD-quality game and chat sound on the PS3 via digital RF (radio frequency) that
communicates with the PX3 transmitter. The PS3 chat and voice signals are transferred between the PS3 and
transmitter via the USB connection. When used on the XBOX 360, chat and voice signals are sent to the controller
via the included XBOX 360 Talkback Cable.
Digital Signal Processing (DSP)
The PX3 uses digital signal processing to customize the game and chat audio signals, improving performance
in specific gaming situations. These settings are stored as presets that can be easily called up to change the
characteristics of the game and chat sound. For example, you can use the presets to accentuate sounds like
footsteps or enemies reloading a gun that might otherwise be difficult to hear with normal game audio.
Interchangeable Presets
The USB connection on the transmitter lets you connect your PX3 to a PC and replace the factory presets with new
presets downloaded from TurtleBeach.com. That means you can customize your PX3 and turn it into your
own “secret weapon” that’s unlike anyone else’s headset!
Rechargeable Battery
The PX3 includes an internal rechargeable battery that lets you play for more than 10 hours before requiring
a recharge. By connecting the included Headset Charging Cable to the transmitter, you can continue playing
while the headset recharges.
Listen to your favorite music while playing a game
The PX3 transmitter includes a stereo input for your digital music player, so you can enjoy your favorite songs while
playing the game.
Engineered for High Quality Sound
The PX3 is designed to deliver high-quality audio that makes it ideal for gaming, movies and digital music playback.
The high-fidelity, 50mm speakers are encased in acoustically-tuned, circumaural ear cups with soft fabric cushions
and deliver extended bass with extraordinary dynamic range for optimum audio performance.

2

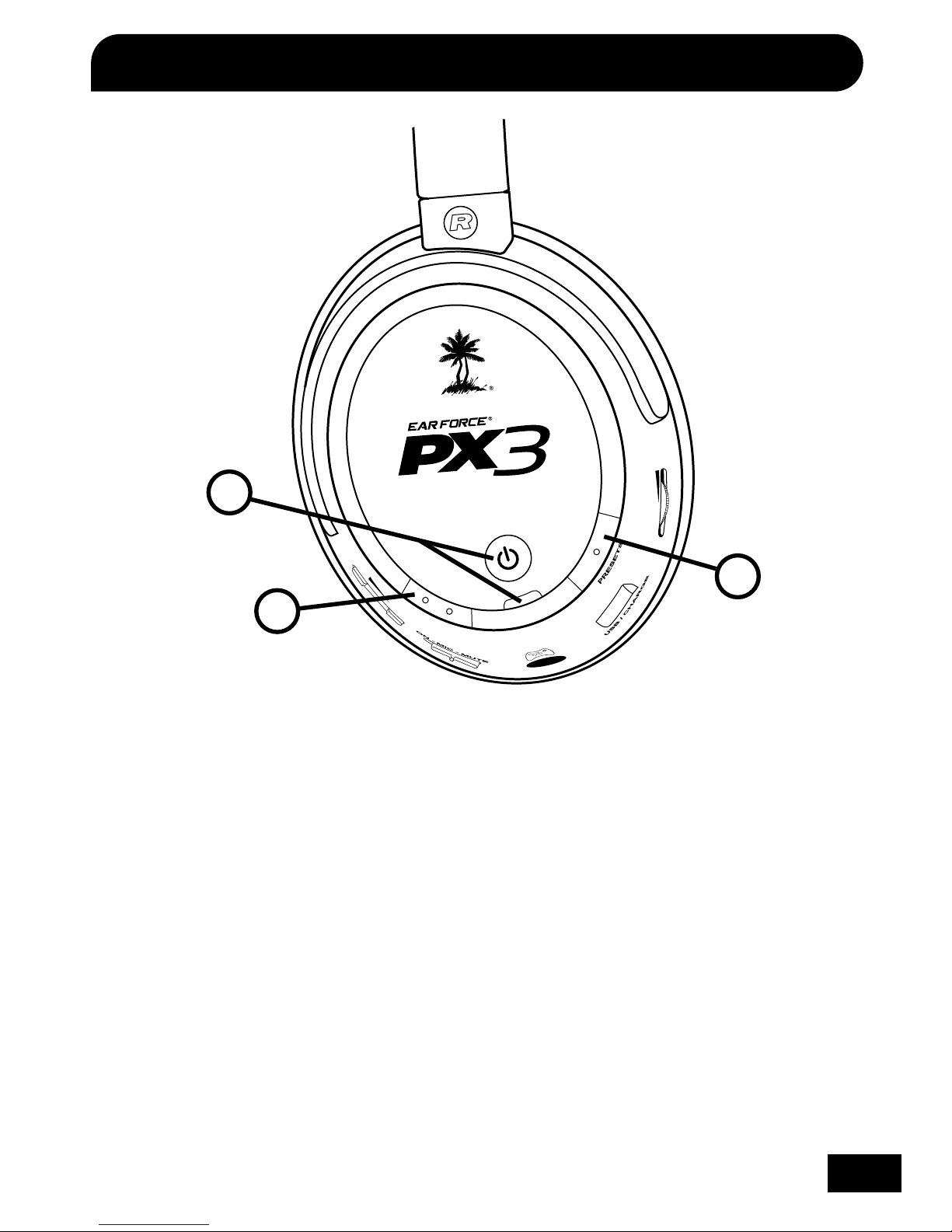

1. Main Power Button with LED
Powering ON: Press and hold for 3 seconds. A double high tone will sound and the LED will begin to blink
about once per second.
Powering OFF: Press and hold for 3 seconds. A double low tone will sound and the LED will turn off.
Automatic Power OFF: If the Headset doesn’t detect any audio for more than 5 minutes, or if the
Transmitter has been powered off for more than 5 minutes, the headset will automatically shut down to
conserve battery power.
Pairing Mode: Press and hold for more than 6 second to initiate pairing mode between the headset and
transmitter. (See “Pairing the Headset and Transmitter” on pg. 8 for further details.)
2. Main (Main Preset Button)
Press to toggle between the selected (alternate) preset and the main (default) preset. One high tone and
one low tone will sound when the main preset is activated. (See "Presets" on pg. 17 for further details)
3. Presets (Alternate Presets Button)
Press to select one of eight (8) alternate game audio presets. A series of low and high beeps indicate
the active presets. (See "Presets" on pg. 17 for further details)
GAME
MAIN
CHAT
1
2
3
PX3 Headset

3
PX3 Headset (con't)
4
5
6
7
8
9
10

4
4. Game Volume Control
Turn to adjust game volume level.
NOTE: This is a continuous-turn control and does not stop at each end of the rotation.
5. Mini USB Input

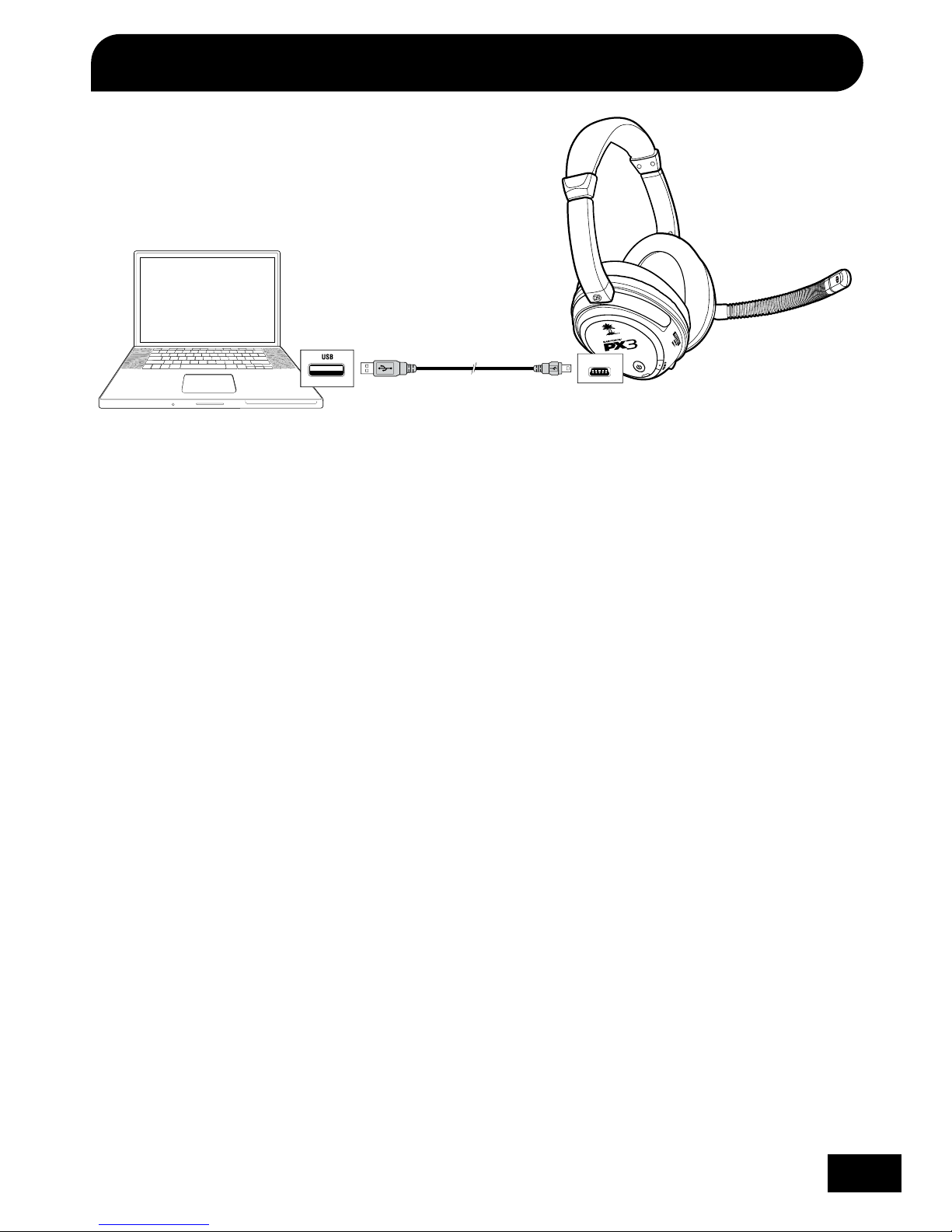

Used for charging the headset or for connecting the headset to a computer. The headset may be charged by
connecting this Mini USB input to the USB input on the transmitter using the included Headset Charging Cable.
NOTE: The Headset Charging Cable included with the PX3 can only be used to charge the headset and cannot be
used as a standard USB data cable. An optional USB Standard-A to USB Mini-B cable is required to use wired mode
with a PC.
6. XBOX 360 Controller Jack
When using the PX3 for XBOX LIVE chat, insert the straight end of the included XBOX 360 Talkback Cable into
this jack and the right angle end into the XBOX 360 controller.
7. Mic Mute Switch
Toggles the MUTE on the microphone.
8. Chat Volume Control
Press to adjust the chat volume level.
9. Swivel Ear Cups
The ear cups may be turned 90 degrees to rest conveniently around your neck.
10.Flexible Microphone with Adjustable Boom

5
PX3 Transmitter
1
PC/Mac
®
PS3™
XBOX
®
PAIR
GAME USB AUX
2
3456
7

6
1. Mode Selection Switch
Slide to change between PS3, XBOX 360, and PC/Mac modes.
2. LED Indicator
A solid LED indicates the Transmitter is powered on and communicating with the Headset. A slowly blinking
LED indicates the Transmitter can’t communicate with the headset because it is powered off, not paired,
or out of range. If this occurs, please refer to “Pairing the Headset and Transmitter” on pg. 8.
3. Pairing Button
Press and hold for 3 seconds to activate pairing mode. The LED will begin to blink rapidly.
(See "Pairing the Headset and Transmitter” on pg. 8 for further details)
4. Game Audio Input Jack
Insert the 3.5mm end of the included RCA Splitter Cable into this jack.
5. USB Port
Insert the included Transmitter Power Cable into this port. Insert the other end into an available USB port on
your gaming console or computer.
6. Auxiliary Input Jack
Provides a 3.5mm input for digital music players or additional audio sources (cable sold separately). The audio
from the auxiliary input will be mixed with the game audio and can be adjusted with the game volume control on
the headset.
NOTE: The auxiliary input is only active in PS3 and XBOX 360 modes.
7. Charging Port
Used for recharging the Headset battery. Insert one end of the included Headset Charging Cable into
this port and insert the other end into the USB/CHARGE port on the Headset. You can continue to use
the headset while charging.

7
Transmitter Range
The Transmitter sends game audio to the Headset via digital radio frequency (RF) signal, so a direct line of sight is
not required. When you’re out of range, you may hear popping or clicking sounds if the Headset loses the RF signal.
For best performance, place the Transmitter in an open area that is unobstructed by objects that might absorb RF
signals from the internal antenna. Avoid placing it on metal surfaces, such as the top of a home theater A/V receiver.
When the Transmitter and Headset are communicating, the LED on the Transmitter will be solid on. If this LED is
slowly blinking, it means the Transmitter can’t communicate with the Headset. This could happen if the headset is
turned off, out of range or needs to be “paired”.
Using the Transmitter
Optimum range: up to 30 ft.

8
GAME
MAIN
CHAT
Pairing the Headset and Transmitter
The Headset and Transmitter in this package are “paired”, which means they’re synchronized to ensure they work
together. When they are communicating, the LED on the Transmitter will be solid. If this LED is slowly blinking, it
means the Transmitter can’t communicate with the Headset. This could happen if the Headset is turned OFF or out
of range. If the LED is slowly blinking when the Headset is ON and within range, then they might need to be “paired”
as described below.
After a few seconds, the LED on the Transmitter should be solid and the Headset LED should be blinking
about once per second, indicating that the units are paired.
Exit Pairing: A single press on the Headset power button will exit the pairing process.
1
2
3
Step 1:
Make sure the Headset is OFF.
(The LED on the Headset should
be OFF)
Step 2:
Press and hold the POWER button
on the Headset for more than
6 seconds. A tone will sound and
the LED on the Headset will begin to
blink rapidly.
Step 3:
Press and hold the PAIR button on
the Transmitter for 3 seconds.
The LED on the Transmitter will
begin to blink rapidly.
PAIR
GAME USB AUX

9

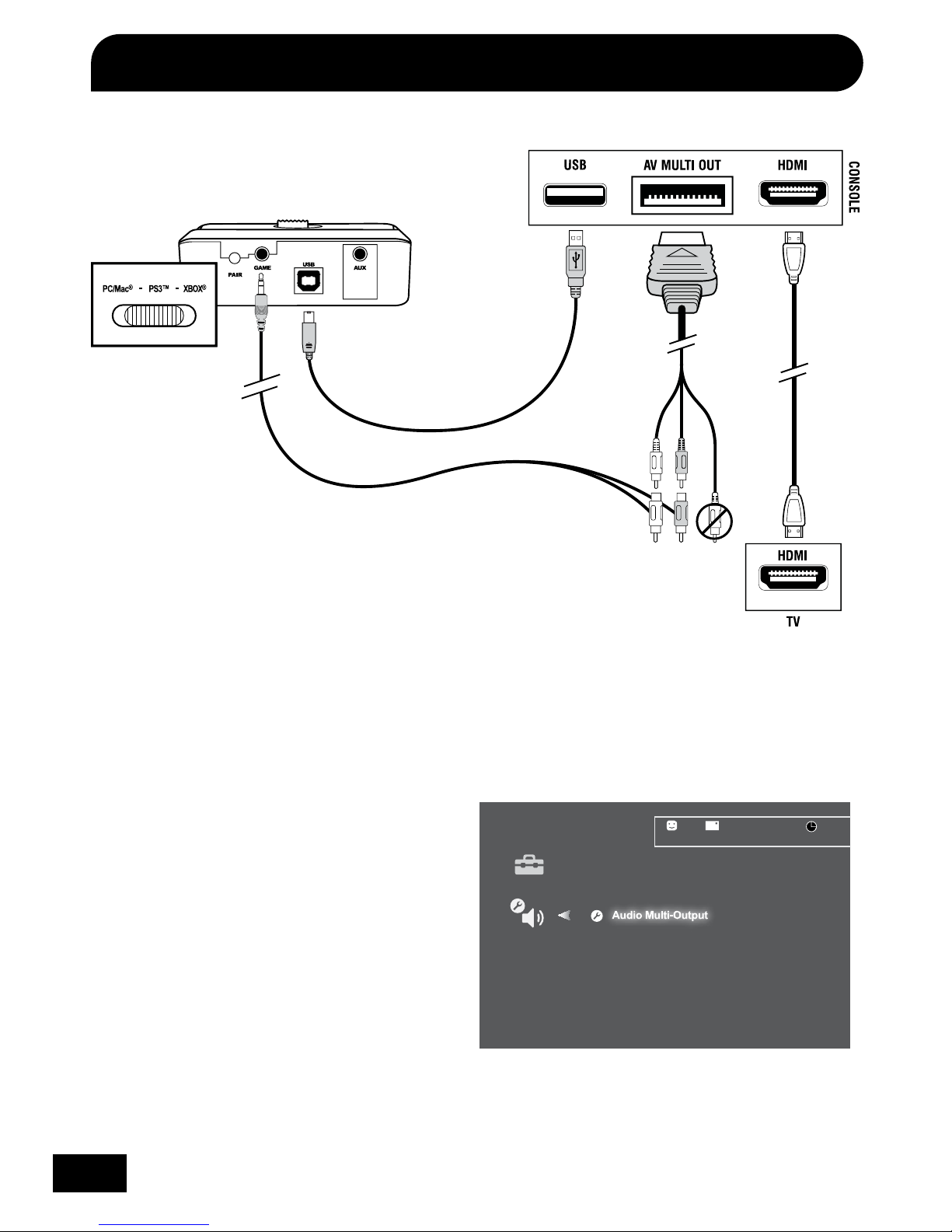

PS3 Setup (HDMI)
Configure PS3 Sound Settings
In the PS3 menu select:
"Settings > Sound Settings > Audio Multi-Output > On"Audio Output Settings
12/14 12:15 PM
0
On
Sets to output audio through multiple connectors
simultaneously. Audio output to connectors that are
not selected in [Audio Output Settings] is downscaled
to 2 Ch.
Transmitter USB Cable
(included)
PS3 AV Cable
HDMI
RCA Splitter Cable
(included)

10

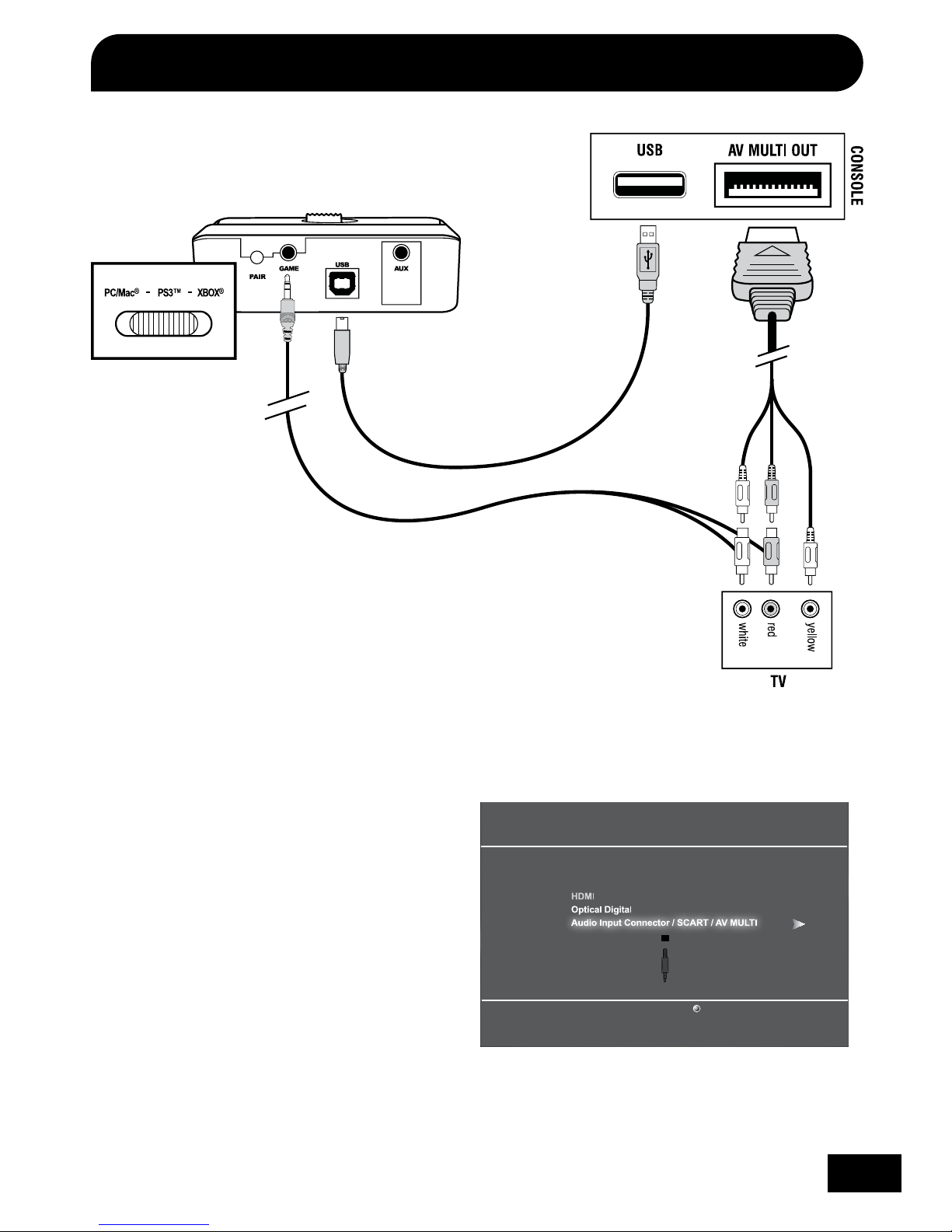

PS3 Setup (Composite)
Audio Output Settings
Select the connector on the TV or AV amplifier (receiver).
Turn on the power of the connected device.
Cancel
Configure PS3 Sound Settings
Step 1
In the PS3 menu select: “Settings” > “Sound
Settings” > “Audio Output Settings”.
Step 2
Select ”Audio Input Connector / SCART / AV MULTI”
to send the audio output to the PX3.
Step 3
Press “X” to save this setting.
PS3 AV Cable
Transmitter USB Cable
(included)
RCA Splitter Cable
(included)

11
Configure PS3 Accessory Settings
Audio Device Settings
Microphone Level 3
Output Device
Back Options
X Enter
OK
Turtle Beach PX3 (PS3)
Turtle Beach PX3 (PS3)
Audio Device Settings
Vocie Changer
Keyboard Type
Key Repeat Interval
Key Repeat Speed
Mouse Type
12/14 12:15 PM
0
Sets the audio input and output devices for voice/video
chat and other communicatin features.
Camera Device Settings
Manage Bluetooth Devices
Audio Device Settings
Microphone Level 3
Back Options
X Enter
OK
Turtle Beach PX3 (PS3)
Turtle Beach PX3 (PS3)
Audio Device Settings
Microphone Level 3
Back Options
X Enter
OK
Turtle Beach PX3 (PS3)
Turtle Beach PX3 (PS3)
Step 1:
In the PS3 menu select “Settings” > “Accessory Settings” >
“Audio Device Settings”.
Step 2:
Set the Input Device and Output Device to
Turtle Beach PX3 (PS3).
Step 3:
Set the Microphone Level so that the bar graph barely reaches
the red area when you speak loudly.
Recommended setting: 4 or 5
Step 4:
Select OK

12

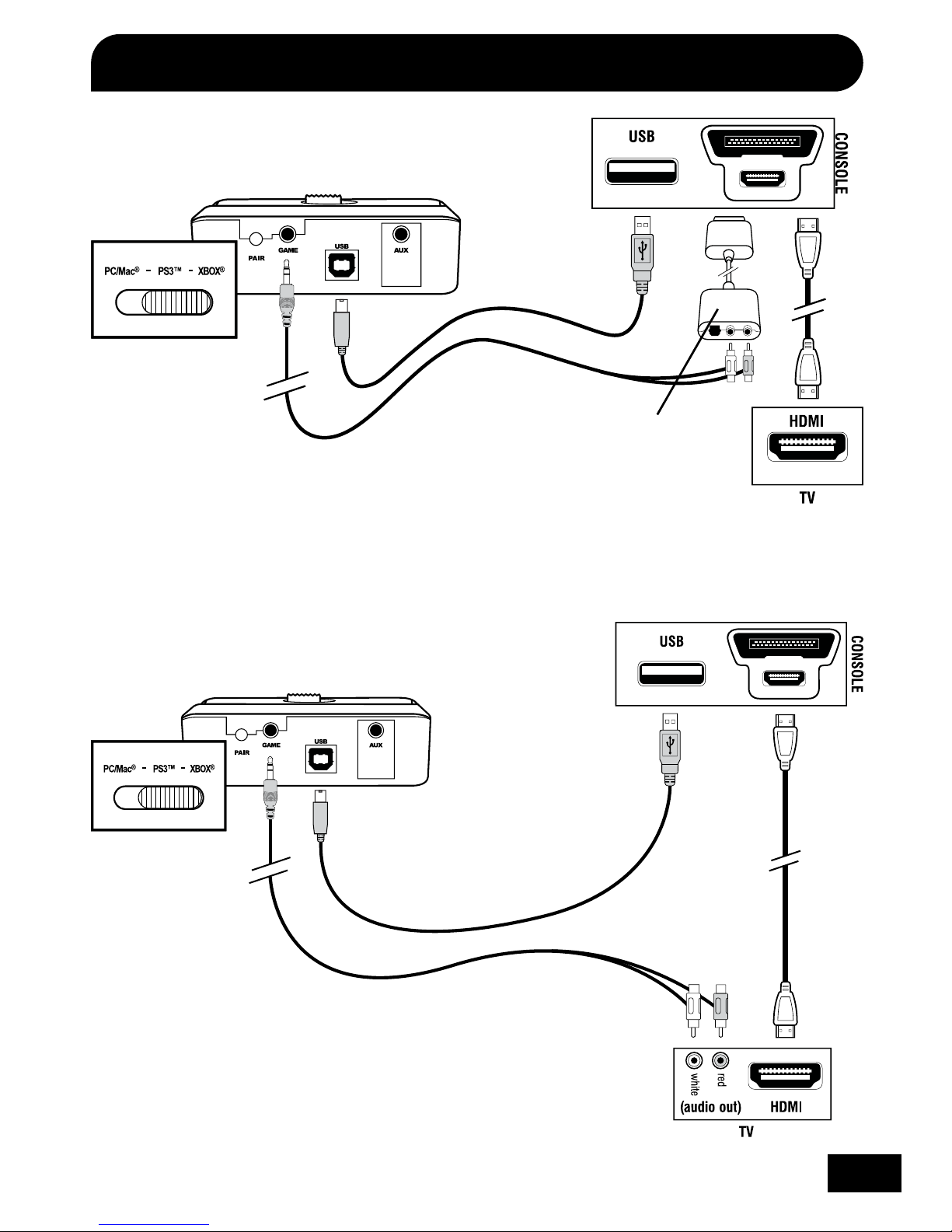

XBOX 360 Setup (HDMI)
(Alt. Setup)
*All XBOX 360 models require an XBOX 360 Audio Adapter Cable for audio output
when used with an HDMI connection (available from third party sellers).
NOTE: If your HDMI TV has red/white AUDIO OUT RCA jack you can use it to feed
the sound from your TV to your Turtle Beach headset. (AUDIO IN jacks will not
send sound out to your headset, you need AUDIO OUT.)
XBOX 360
Audio Adapter Cable*
HDMI
HDMI
Transmitter USB Cable
(included)
RCA Splitter Cable
(included)
Transmitter USB Cable
(included)
RCA Splitter Cable
(included)

13
XBOX 360 Setup (Composite)
XBOX 360
AV Cable
Transmitter USB Cable
(included)
RCA Splitter Cable
(included)

14
XBOX LIVE Chat Setup
1. Press the XBOX 360 Guide Button, select
"Settings > Preferences > Voice"
2. Voice Volume = 10
3. Game Volume = 10
4. Voice Output = Play Through Headset
Configure XBOX 360 Voice Settings
Voice Volume 10
Voice
Mute Kinect
Voice Output
Play Through Headset
Play Through Speakers
Voice Output
Game Volume 10
XBOX 360
Talkback Cable
(included)
XBOX 360
Controller Jack
XBOX 360
Controller

15
PC/Mac Setup (wireless)
Wireless Mode (switch Transmitter to PC/Mac mode: presets are deactivated)
The PX3 functions as a wireless USB stereo headset when connecting the Transmitter to a PC or Mac, and appears
as Turtle Beach PX3 (PC) in Windows®and Mac operating systems. This lets you assign the PX3 microphone and
chat in your game software as a USB audio device.
NOTE: When using this mode, the headset operates as a wireless stereo USB headset and the DSP presets do not
operate. To use the presets with a PC/Mac, configure it in PS3 mode as described below.
NOTE: The Game volume can be adjusted from the headset. Chat volume control on the headset is inactive, but
can be adjusted in your computer's operating system. The Auxiliary input on the Transmitter is also inactive in
this mode.
PC/Mac
®
PS3™
XBOX
®
PC/MAC PS3
™
XBOX
®
PAIR
GAME USB AUX
Wireless Mode with Presets* (switch Transmitter to PS3 mode)
The PX3 functions as both a wireless stereo analog and USB mono headset with presets when connecting the
Transmitter to a PC or Mac, and appears as Turtle Beach PX3 (PS3) in Windows®and Mac operating systems. In
addition to the USB cable (as shown in the setup diagram above), a 3.5mm to 3.5mm cable (sold separately) must be
connected from the Transmitter GAME audio jack to the computer’s headphone jack.
* 3.5mm to 3.5mm cable required (sold separately).
Transmitter USB Cable
(included)
Transmitter USB Cable
(included)
3.5mm Cable
(sold separately)*

16
USB/CHARGE
PC/Mac Setup (wired)*
Wired Mode (presets are deactivated)
The PX3 functions as a wired USB stereo headset by connecting a USB Standard-A to USB Mini-B cable* (sold
separately) from a PC or Mac directly to the headset (the PX3 Transmitter is not used for this setup).
Insert the USB Mini-B end of cable into the headset and the USB Standard-A end of the cable into your computer.
Double press the Power button on the Headset to enter Wired mode. A double tone will sound and the LED on the
headset will change to solid RED.
NOTE: The Game volume can be adjusted from the headset. Chat volume control on the headset is inactive, but
can be adjusted in your computer's operating system. The Auxiliary input on the Transmitter is also inactive in
this mode.
NOTE: Do not use the included Headset Charging Cable for PC/Mac wired mode. It does not include data lines.
* A USB Standard-A to USB Mini-B cable is required and sold separately. PS3 console users can use their PS3
controller cable for Wired Mode setup.
USB Standard-A to USB
Mini-B Cable
(sold separately)*

17
Main and Alternate Presets
The PX3 includes 2 preset modes that are optimized for the PS3 and XBOX 360. Each mode contains 9 presets that
are grouped into (1) Main preset and (8) Alternate presets.
The Main preset is “flat”, meaning that it does not process the sound, while the Alternate presets are optimized for
specific game conditions. Each Alternate preset has different settings to modify the game audio, so as you cycle
through them you'll hear the sound change as it’s processed by the DSP.
Using Presets
For best results, start with the Main preset and then toggle to an Alternate preset that’s optimized for the game situ-
ation you're in. When the situation has passed, you can switch back to the Main preset. For example, if you want to
focus in on the sound of enemy footsteps, toggle to an Alternate preset that’s optimized for footsteps, then toggle
back to the Main preset when you’re done.
Changing Presets
The default presets can be replaced with new presets by downloading them from the Turtle Beach website and
installing them on your headset. For more information visit www.turtlebeach.com.
Presets
MAIN
PRESET
Press the
Main Preset Button
to jump between
Main and the
Selected Preset
Press the Preset Button to switch
between the 8 alternate presets
PRESET 1
PRESET 2
PRESET 3
PRESET 4
PRESET 5
PRESET 6
PRESET 7
PRESET 8
ALTERNATE PRESETS
Each time a preset is selected, a tone will
sound to indicate the selected preset:
Main: one high and one low tone
Preset 1: one high tone
Preset 2: two high tones
Preset 3: three high tones
Preset 4: four high tones
Preset 5: one low tone
Preset 6: two low tones
Preset 7: three low tones
Preset 8: four low tones
