TVU networks TVU One Installation manual

TVU One transmitter
Document Part Number:
TVUOne UG Rev A EN 04-2019
TVU Networks®
Hardware User Guide
TVU OneTM
Transmitter

TVU Networks® Corporation, © Copyright 2019
Legal notices
TVU®, TVU Networks®, TVU networks®, and TVUPack®, TVU Grid®,
TVU One®, TVU Era®, TVU CAS™, TVU Me™, TVU Anywhere™, TVU
MLink™, TVU RPS™, TVU Dashboard™, TVU MediaMind™, and
TVU Sports™ are trademarks of TVU Networks Corporation and/
or its aliates in the United States and/or other countries.
Verizon® is a trademark of Verizon Communications, Inc., AT&T®
is a registered trademark of AT&T, Inc. Huawei® is a registered
trademark of Huawei Technologies Co. Ltd., and Velcro® is a reg-
istered trademark of Velcro Industries, B.V. All other trademarks
are the property of their respective owner.
Photographs are the copyright of their respective owners.
Specications in this publication are subject to change. Contact
TVU Networks Corporation for specications that are critical to
your application. Go to www.tvunetworks.com for the latest
product information.
Related literature and media
The following list contains related literature and media:
Product data sheets
• TVU One Data Sheet
Hardware Set up and Operating manuals
• TVU One Transmitter Hardware User Guide
(part number: TVUOne UG EN Rev A 04-2019)
Software Set up and User manuals
• TVU One Transmitter Software User Guide
(This manual, part number: TVU One Software User Guide
Document part number: TVUOne SW User Guide Rev A EN
04-2019)
Media
Not applicable
FCC/CE Compliance
Federal Communications Commission (FCC) Regulation of
Electronic News Gathering (ENG) Mobile Systems
The FCC provides specic policies and procedures related to
radio frequency (RF) emissions in mobile and portable devices.
The FCC outlines test requirements and specic test procedures
based on the type of device. These test requirements and proce-
dures can also cover Specic Absorption Rates (SAR) for RF.
TVU transmitter devices have always conformed to all appli-
cable FCC regulations covering mobile systems for electronic
news gathering. All required tests for TVU transmitter devices
as outlined in the regulations were performed by a third-party
testing lab, which issued a certicate of compliance for TVU
transmitters. The certicate is applicable to both the FCC and
CE. Additionally, the data modems used in TVU transmitters are
commercially available o-the-shelf brands and have been FCC
and carrier certied.
Contact us
Supporting documentation demonstrating TVU transmitters’
compliance with the applicable FCC regulations is available
upon request. Contact TVU Networks at +1.650.440.4812 for
assistance and questions regarding approved modem cards for
use with TVU transmitters.

Table of contents | iii
TVU Networks® Corporation, © Copyright 2019
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019
Contents
Legal notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Related literature and media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
FCC/CE Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Contact us . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
1 Introduction, setup, and base operation 1
Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Contents and features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
About this user guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Before you begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety notices and statements in this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TVU One unit and battery safety and airline travel guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
TVU One transmitter components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TVU One standard components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
TVU One optional components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
TVU transmitter controls and operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Front panel LCD display and power indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

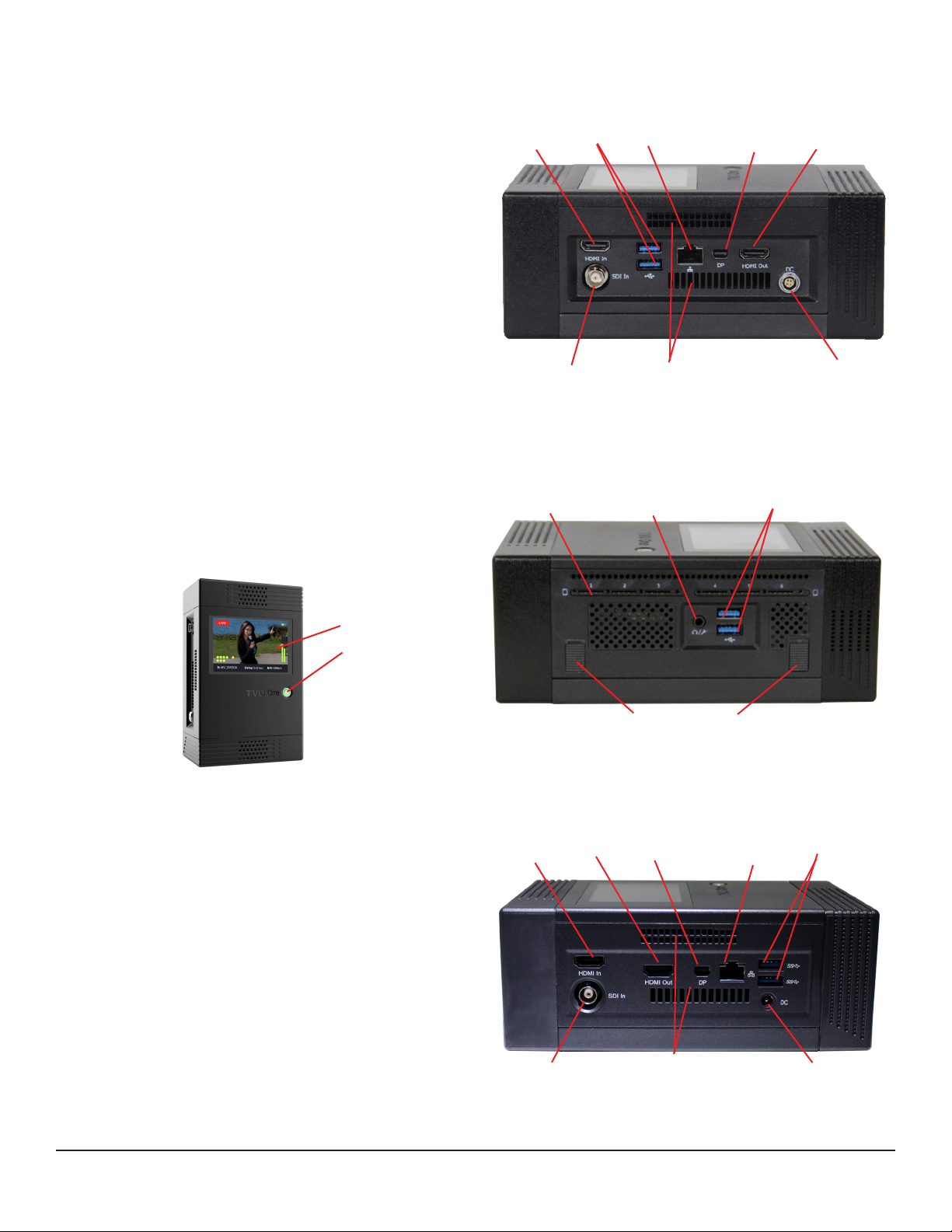

TVU One transmitter side panel overviews . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Setting up the TVU One transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Transmitter connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

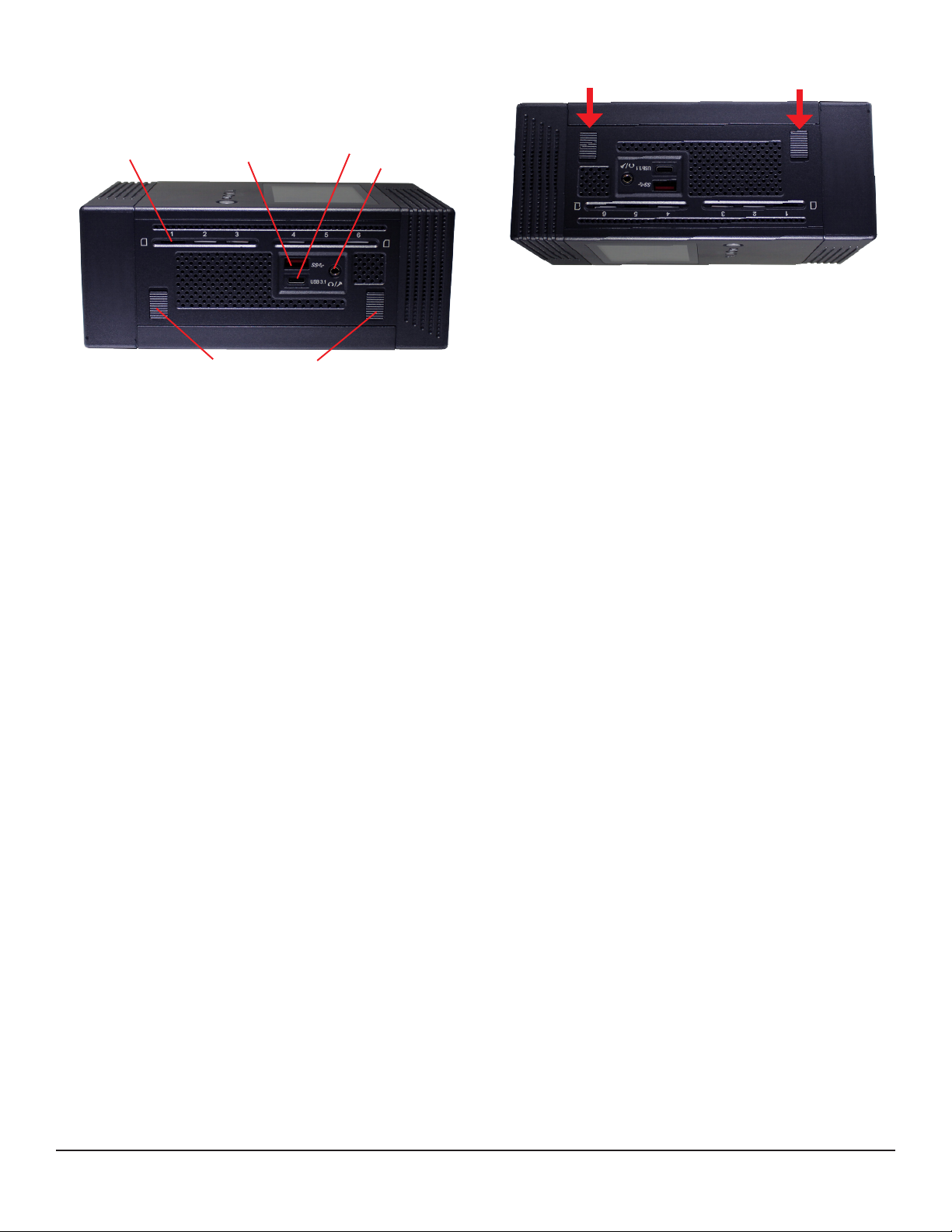

Detaching the internal battery from the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Charging the internal battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Inserting SIM cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
TVU transmitter bag congurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
V-type battery conguration examples:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
G-type battery conguration examples: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
TVU transmitter LCD touch screen
interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TVU One transmitter Live status screen
descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating the TVU transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Going Live . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Selecting a preset transmission mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

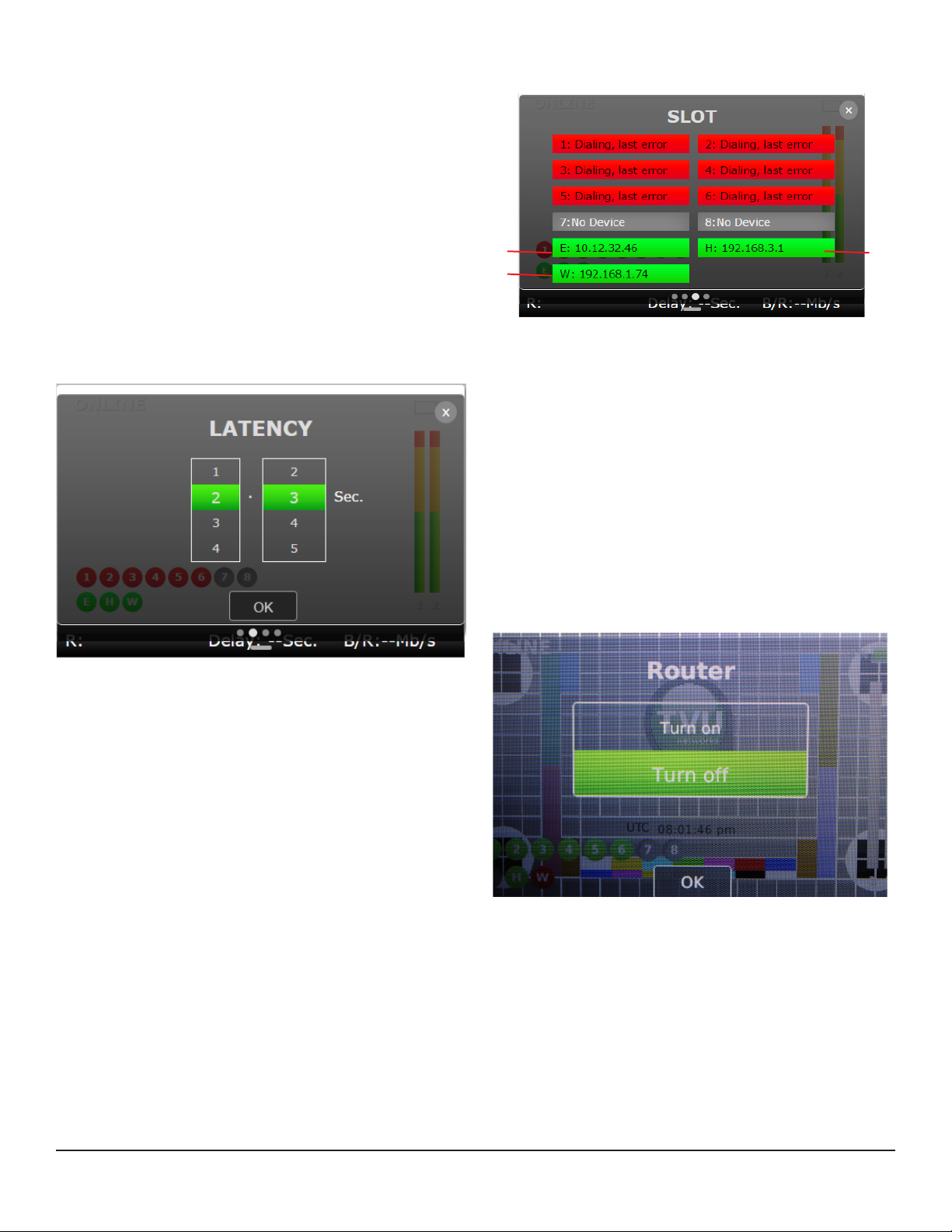

Latency management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Data card monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

iv | TVU One Hardware User Guide
TVU Networks® Corporation, © Copyright 2019
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019
Selecting a router option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TVU One transmitter information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Turning O the TVU One transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2 Product specications 11
Contents

TVU One Hardware User Guide | 1
TVU Networks® Corporation, © Copyright 2019
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019
• Fully Compatible with TVU Grid – TVU’s IP based video
switching, routing and distribution solution allows a
broadcaster to share a TVU One live video transmission with
any other TVU Grid enabled station, operations center or
physical location. TVU Grid features very low latency when
switching, routing or distributing live video.
TVU Grid Web interface
The TVU One integrates with the TVU Command Center Web
interface which provides a cloud-based centralized manage-
ment and control solution of all TVU devices and services. For
detailed information about TVU Command Center, refer to the
“TVU Command Center Set up and User Guide“.
TVU Command Center Web interface
1 Introduction, setup, and base operation
This User Guide provides a product overview, setup, and base operation information for the TVU One transmitter.
Product overview
TVU One represents a tremendous leap forward in professional
live video streaming solutions. TVU One delivers high-denition
picture quality with 0.5 second latency at 3 Mbps within an ultra
compact and rugged hardware design. It uses HEVC or H.265
compression standard to deliver greater eciency in data use
as well as increased transmission stability. With TVU One, broad-
casters of live video can fully leverage the versatility of a small,
lightweight, IP-based high-denition video eld transmitter
without sacricing performance, features or picture quality.
Contents and features
TVU One has a robust set of features and functions designed to
t the needs of any live broadcaster. The TVU One runs on the
TVU platform and includes the following features:
• Simple Worry-Free Operation – TVU pioneered one button
operation in portable live video streaming transmitters,
and TVU One carries on that tradition. TVU One requires no
in-eld conguration, and boots up in less than 20 seconds
with just the push of a button.
• Small Form Factor, Big Features – Despite its small
size, TVU One is feature-rich with no compromises to
performance or capabilities. To see a full list of hardware
and software specications for TVU One, refer to “Product
Specications” .
• Inverse StatMux Plus – TVU One features proprietary video
transmission technology called Inverse StatMux Plus (IS+).
With IS+, unsurpassed HD picture quality is dependably
delivered at sub-second latency over cellular 3G/4G/LTE
modems even when transmitting in a moving vehicle
traveling at over 60 mph/100 kph.
• Powerful Real-Time Store and Forward – TVU One can
simultaneously live stream and record. TVU One can record
up to 7 hours of full HD footage, depending upon the
selected conguration. Additionally, TVU has HD le transfer
functionality that ensures the delivery of a HD quality error-
free video clip to the studio in real-time without needing to
wait until the clip is fully recorded on the transmitter.

2 | TVU One Hardware User Guide
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019 TVU Networks® Corporation, © Copyright 2019
About this user guide
This user guide provides detailed information about the follow-
ing topics:
• Important safety guidelines
• TVU One transmitter components
• Setting up the TVU One transmitter
• Using the TVU One touch screen controls
• Operating the TVU One transmitter
Before you begin
Before you begin setting up the TVU One transmitter, it is recom-
mended that you identify the devices you intend to use with the
unit including: cameras, cables, power sources, modems and
unit accessories.
Be sure to read and follow the Safety notices contained in this
guide before you setup your new TVU One.
Safety notices and statements in this
document
The safety notices and statements that may appear in this docu-
ment are as follows:
Note: These notices provide important tips, guidance, or advice.
IMPORTANT: These notices provide information or advice that
might help you avoid inconvenient or problem situations.
ATTENTION: These notices indicate potential damage to pro-
grams, devices, or data. An attention notice is placed just before
the instruction or situation in which damage could occur.
CAUTION: These statements indicate situations that can be
potentially hazardous to you. A caution statement is placed just
before the description of a potentially hazardous procedure
step or situation.
TVU One unit and battery safety and
airline travel guidelines
CAUTION:
The following CAUTION statements indicate situations that can
be a potentially hazardous procedure step or situation:
To reduce the risk of electric shock, do not remove cover (or back).
No user-serviceable parts inside. Refer servicing to qualied service
personnel
1. To reduce the risk of re or electric shock and interference,
use the recommended accessories only.
2. This apparatus can be operated at a voltage in the range of
12 - 19 V DC.
3. Only use a TVU networks supplied AC adapter with this unit.
Important information regarding the supplied AC adapter:
• The supplied AC adapter is designed to be used with an
input voltage in the range of 100-240 V AC.
• Voltages other than 120 V are not intended for U.S.A. and
Canada.
• Operation at a voltage other than 120 V AC may require
the use of a dierent AC plug. Please contact either a local
or foreign TVU Networks authorized service center for
assistance in selecting an alternate AC plug.
4. A coin type battery is installed inside of the unit. Do not
store the unit in temperatures over 60 °C (140 °F).
5. Danger of explosion or re if battery is mistreated.
6. Do not leave the battery in an automobile exposed to direct
sunlight for a long period of time with doors and windows
closed.
7. Do not disassemble the battery or dispose of it in re.
8. Do not store the battery in temperatures over 60°C (140°F).
9. Replace battery only with same or specied type.
10. To completely disconnect this equipment from the AC
mains, disconnect the mains plug from the AC receptacle.
11. To maintain adequate ventilation, do not install or place this
unit in a conned space. To prevent risk of electrical shock
or re due to overheating, ensure that nothing obstructs
ventilation.
IMPORTANT:
The following safety notices and instructions provide informa-
tion or advice that might help you avoid inconvenient or prob-
lem situations:
1. Unplug this apparatus during lightning storms or when
unused for long periods of time.
2. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
AC adapter
The rating plate is on the underside of the AC Adapter. Discon-
nect the AC mains plug from the AC mains socket when not in
use.

TVU One Hardware User Guide | 3
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019TVU Networks® Corporation, © Copyright 2019
Use onlyTVU Networks supplied or authorized batteries and
chargers
This device is designed to be used only with TVU Networks
supplied batteries. Use only TVU Networks supplied devices and
chargers to charge the supplied batteries. To see a list of quali-
ed external batteries to use with this device, please contact
TVU Networks. Use of non-qualied batteries with this system
may cause damage to the unit or possibly re.
FAA regulations
FAA Regulations require rechargeable and non-rechargeable
lithium batteries, cell phone batteries, laptop batteries, external
batteries, portable rechargers, spare (uninstalled) lithium ion
and lithium metal batteries must be carried in carry-on baggage
only.
When a carry-on bag is checked at the gate or at plane side, all
spare lithium batteries must be removed from the bag and kept
with the passenger in the aircraft cabin. The battery terminals
must be protected from short circuit.
This includes spare lithium metal and spare rechargeable
lithium ion batteries for personal electronics such as cameras,
cell phones, laptop computers, tablets, watches, calculators, etc.
This also includes external battery chargers (portable recharg-
ers) containing a lithium ion battery. For lithium batteries that
are installed in a device (laptop, cell phone, camera, etc.), see
the entry for “portable electronic devices, containing batteries”
in this chart.
Size limits
Lithium metal (non-rechargeable) batteries are limited to 2
grams of lithium per battery. Lithium ion (rechargeable) bat-
teries are limited to a rating of 100 watt hours (wh) per battery.
These limits allow for nearly all types of lithium batteries used by
the average person in their electronic devices. With airline ap-
proval, passengers may also carry up to two spare larger lithium
ion batteries (101-160 watt hours). This size covers the larger
after-market extended-life laptop computer batteries and some
larger batteries used in professional audio/visual equipment.
Quantity limits
None for most batteries – but batteries must be for use by
the passenger. Batteries carried for further sale or distribution
(vendor samples, etc.) are prohibited. There is a limit of two
spare batteries per person for the larger lithium ion batteries
described above (101-160 watt hours per battery).
Batteries must be protected from damage. Battery terminals
(usually the ends) must be protected from short circuit (i.e., the
terminals must not meet other metal). Methods include: leaving
the batteries in their retail packaging, covering battery terminals
with tape, using a battery case, using a battery sleeve in a camera
bag, or putting them snugly in a plastic bag or protective pouch.
See the regulation: 49 CFR 175.10(a)(18)
Tip: Newer lithium ion batteries have the watt hour (wh) rating
marked on them. To calculate watt hours, multiply the battery
voltage by the amp hours (ah). To learn more about lithium bat-
teries, their restrictions, and how to tell what size they are, go to
http://SafeTravel.dot.gov.
Refer to the link below for International Air Transport Associa-
tion (IATA) regulations and information regarding airline travel
with lithium batteries:
http://www.iata.org/whatwedo/cargo/dgr/Documents/Lithi-
Additional airline travel information
When traveling, the TVU One transmitter’s onboard battery
should be removed from the unit to prevent accidental power
on. The onboard battery terminals should be protected to
prevent accidental short circuit. Protect the onboard battery ter-
minals by placing them in a plastic bag or covering the battery
terminals with electrical tape.
TVU onboard batteries should always be transported as carry-on
baggage. It should never be transported in the cargo hold.
TVU One transmitter components
The TVU One transmitter is comprised of the encoder, internal
battery, and embedded modems. Weighing just 2.2 lbs./1 kg, the
transmitter ts easily in the average person’s hand.
TVU One transmitter
TVU One standard components
Standard Components for the TVU Transmitter include the fol-
lowing:
• TVU transmitter with SDI/HDMI input
• Power supply (AC Adaptor)
• TVU transmitter Bag

4 | TVU One Hardware User Guide
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019 TVU Networks® Corporation, © Copyright 2019
TVU One optional components
Optional Components for the TVU Transmitter include the fol-
lowing:
• SIM cards
• AC car adapter
• Universal adaptor
• External modems
TVU transmitter controls and operations
TVU transmitter is the central component of the TVU One sys-
tem. The transmitter handles video capturing, video encoding
and transmission, modem management and dialing, and status/
monitoring of the system.
Front panel LCD display and power indicator
Simply press the power button on the front panel to turn on
the transmitter. The button turns green when transmitter is
powered on. The LCD screen displays conguration and status
information for connected modems as well as video input and
transmission. When a video input is connected, an input pre-
view is displayed on the LCD.
LCD display and power indicator
TVU One transmitter side panel overviews
The TVU One transmitter model TM1000 v1 left-side panel fea-
tures the following input/output connections and controls.
TVU One model TM1000 v1 transmitter left-side panel
The TVU One transmitter model TM1000 right-side panel fea-
tures the following input/output connections and controls.
TVU One model TM1000 v1 transmitter right-side panel
The TVU One transmitter model TM1000 v2 left-side panel fea-
tures the following input/output connections and controls.
TVU One model TM1000 v2 transmitter left-side panel
Ethernet port
HDMI In
USB Ports
(spare) Display port
out
DC Input
SDI IN Vents
(Do not obstruct)
HDMI Out
Audio input USB ports (spare)
Battery release tabs
Embedded
modems (6X)
Display port
HDMI In HDMI Out USB ports
DC Input
SDI input Vents
(Do not obstruct)
Ethernet
port
LCD display
Power button

TVU One Hardware User Guide | 5
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019TVU Networks® Corporation, © Copyright 2019
Battery release latches
Charging the internal battery
To charge the internal battery without removing it from the
transmitter, simply connect the provided AC power adapter
to the DC input on the unit and plug in the other end of the
adapter into an electrical outlet. The battery will then begin to
charge. Please note that the battery will charge signicantly
faster (approximately 3 hrs.) when the transmitter is turned o.
Inserting SIM cards
The transmitter SIM card slots are designed to hold up to 6-Mini
SIM (2FF) cards in six embedded modems. Take the following
steps to insert a SIM card into the embedded modem slots on
the transmitter:
1. The SIM card slots are spring loaded. Simply push in the
desired SIM card into the appropriate slot until it clicks into
place.
2. To remove a SIM card, simple push the SIM card in until it
clicks, and it will pop back out.
TVU transmitter bag congurations
The TVU transmitter is designed to be used as a standalone
transmitter or in a bag conguration. The carrying bag comfort-
ably holds the transmitter while allowing users easy access to
the power button, connections and SIM card slots.
The touchscreen LCD interface on the transmitter can also be
used while the unit is in the bag. In addition, the mesh sections
allow for the essential ventilation of the transmitter, so it will not
overheat in the carrying bag. The transmitter carrying bag can
be worn as a back pack.
The TVU One transmitter model TM1000 V2 right-side panel
features the following input/output connections and controls.
TVU One model TM1000 v2 transmitter right-side panel
Setting up the TVU One transmitter
Transmitter connections
Complete the following steps to setup the TVU One transmitter:
1. Connect the HDMI cable to the HDMI In port (PAL, NTSC,
720p or 1080i).
2. Connect the HDMI cable to the SDI In port (PAL, NTSC, 720p
or 1080i).
3. Connect the Ethernet input cable into the Ethernet port for
a LAN connection.
4. To preview the TVU One screen on a monitor, connect the
standard HDMI cable to the HDMI Out port or connect a
monitor cable to the DP display port.
5. Connect your custom DC power to the DC Input port.
6. Connect the audio component (3.5 mm mini audio output
jack) into the IFB output port.
Detaching the internal battery from the
transmitter
The transmitter internal battery is designed to t within the
unit, but it can also be easily removed. Complete battery power
management for the TVU One transmitter is available on the
LCD touch screen as well as on the Receiver interface.
Complete the following steps to detach the internal battery
from the transmitter:
1. On the side of the transmitter that is opposite the LCD touch
screen, users will nd two spring-loaded latches.
2. Orient the transmitter LCD panel down and push down on
the latches to release the battery and slide it away from the
transmitter.
USB 3.0
port USB 3.1 port
Battery release tabs
Embedded
modems (6X)
SDI input

6 | TVU One Hardware User Guide
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019 TVU Networks® Corporation, © Copyright 2019
There are four transmitter carrying bag congurations for exter-
nal batteries, they are as follows:
V-type battery congurations:
• TM1000 v1 V-type battery with a black connector
• TM1000 v2 V-type battery with a green connector
G-type battery congurations:
• TM1000 v1 G-type battery with a black connector
• TM1000 v2 G-type battery with a green connector
V-type battery conguration examples:
V-type battery
TM1000 v1 V-type battery, black connector
TM1000 v2 V-type battery, green connector
G-type battery conguration examples:
Type G battery
TM1000 v1 G-type battery, black connector
TM1000 v2 G-type battery, green connector

TVU One Hardware User Guide | 7
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019TVU Networks® Corporation, © Copyright 2019
TVU transmitter LCD touch screen
interface
The transmitter has an LCD touch screen interface that allows for
transmission control while out in the eld. When the transmitter
is rst turned on and SDI connected, the user will see the status
display screen.
TVU One LCD touch screen
If there is no transmission feed connected, the TVU test pattern
will display on the LCD screen.
TVU One test pattern
TVU One transmitter Live status screen
descriptions
Transmission Status: The transmission status monitor
displays the current transmission status of the TVUPack. If the
LCD screen displays “LIVE”, it indicates the transmission is Live.
If a camera or input source is not connected to the TVU One
transmitter, the LCD display panel will display“Online” (Standby)
or Preview mode.
Data Card Status Monitor:
Displays the current number and status of all data cards con-
nected to the TVU One. The status of data cards connected to
the Pack will appear as green, red, orange or black. Green status
indicates that the data card is connected. Orange status indicates
that the data card is attempting to dial. Red status indicates that
the data card is not connected. Black status indicates there is no
card.
Ethernet Connection: Displays the status of the Ethernet
connection.
Receiver Name: Shows the receiver name to which the unit
is transmitting.
Hotspot Connection: Displays the status of the hotspot
connection.
WiFi Connection: Displays the status of the WiFi connec-
tion.
Latency Status: Displays the current latency of the trans-
mission.
Bit Rate Status: Displays the current Bit Rate (B/R).
Audio Input Level Monitor: Dynamically displays the audio
input level (DBFS) for the unit with graphical colors.
Battery Status: Indicates the status of battery.
Operating theTVU transmitter
The LCD screen on the transmitter can be operated with simple
taps and swipes of a nger, much like a smartphone that has
a touch screen user interface. When accessed, the operational
functions and status display interfaces available will appear as a
pop-up window or drop-down menu that overlays the preview
or live video input. Follow these instructions to access all the
features and functions the transmitter has to oer through its
LCD touch screen.
Going Live
To go Live complete the following steps:
1. Turn On the TVU transmitter.
2. Connect the TVU transmitter to a camera source.
3. Tap the center of the LCD screen. A pop-up screen displays.
4. Select the receiver with which you would like to go Live
with. Then, press the red Go Live button.
Go Live screen

8 | TVU One Hardware User Guide
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019 TVU Networks® Corporation, © Copyright 2019
5. When prompted, touch the LCD screen and slide the toggle
to the right to start the Live transmission.
To Exit from going Live, touch the X in the top right corner of the
screen to close the window.
6. To stop a Live transmission, tap the center of the LCD screen.
A “Stop Live” option will display at the bottom of the screen.
Slide the toggle from left to the right to stop the Live trans-
mission.
Slide to go live
Starting the Live transmission
To stop a live transmission, simply tap the middle of the touch
screen and a pop-up screen will appear. A “Stop Live” toggle will
appear at the bottom of the page. Slide the toggle from left to
right to stop the live transmission
Slide to Stop Live
Stop the Live transmission
Selecting a preset transmission mode
To select a preset transmission mode, complete the following
steps:
1. Touch the center of the LCD screen and slide your nger
down. The Mode window displays.
2. Tap to select one of the following options:
Your selection will highlight green
• Interview: Bitrate 2048, delay 2 seconds
• Normal: Bitrate 5120 delay 4 seconds
• Fast Moving: Bitrate 5120, delay 8 seconds
• SD: Bitrate 2048, delay 4 seconds
• Tapefeed: Bitrate 10240, delay 10 seconds. This mode is
optimized for content with multiple scene changes
• Custom: A custom transmission mode set by the receiver

TVU One Hardware User Guide | 9
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019TVU Networks® Corporation, © Copyright 2019
3. To save your selection, Click OK.
4. To exit from the menu, click the Xin the top right corner of
the screen.
Latency management
To manage the second and sub-second Latency settings, com-
plete the following steps:
1. Touch the top of the LCD screen and slide your nger down.
2. Touch the LDC screen and swipe from the right to the left
once. The Latency window displays.
3. Scroll through the menu and tap the menu to make your
selection. Then, press OK.
Latency menu
4. To exit from the menu, click the Xin the top right corner of
the screen.
Data card monitoring
To monitor detailed transmitter information as well as Ethernet,
hotspot, and WiFi connections, complete the following steps:
1. Touch the center of the LCD screen and slide your nger
down.
2. Touch the LDC screen and swipe from the right to the left
three times. The Slot monitoring window displays.
Ethernet
Hotspot
WiFi connection
Slot monitoring
3. To exit from the menu, click the Xin the top right corner of
the screen.
Selecting a router option
TVU Router delivers secure high-speed broadband Internet con-
nectivity and delivers private network access from anywhere.
To select a router option, complete the following steps:
1. Touch the top of the LCD screen and slide your nger down.
2. Touch the LDC screen and swipe from the left to the right
once. The Router window displays.
3. Tap the menu to make your selection. Then, press OK.
Router menu
4. To exit from the menu, click the Xin the top right corner of
the screen.

10 | TVU One Hardware User Guide
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019 TVU Networks® Corporation, © Copyright 2019
TVU One transmitter information
To access the TVU One model number, PeerID, software version,
app version input, format, and transmitter conguration infor-
mation, complete the following steps:
1. Touch the top of the LCD screen and slide your nger down.
2. Touch the LDC screen and swipe from the right to the left
four times. The transmitter information window displays.
About screen
3. To exit from the menu, click the Xin the top right corner of
the screen.
Turning O the TVU One transmitter
To turn o the TVU One transmitter complete the following
steps:
1. Press the power button once. A sliding toggle button will
display on the LCD screen.
2. Slide the toggle from left to right to power down the unit.
XXXXXXXXXXXXXXXXXXXXXX

TVU One Hardware User Guide | 11
TVU One Hardware User Guide
Document part number: TVUOne UG Rev A EN 04-2019TVU Networks® Corporation, © Copyright 2019
2 Product specications
This section provides product specications for the TVU One model TM1000 v1and TM1000 v2 transmitters.
Product specications
Specication TVU One transmitter
Video Input formats HD/SD-SDI (BNC) input -1080i 59.94/50, 720p-59.94/50 480i-59.94, 576-50.
Audio input Up to 8 channels of embedded audio.
Audio/Video encoding
and compression
TVU264 or enhanced H265/HEVC
(The TVU One TM1000 v1 model does not support HEVC)
Transmission Inverse StatMux Plus (IS+)
Dual encoders Simultaneously live stream a transmission over IP while also encoding a completely
separate recording to the internal SSD that can be retrieved for future use.
Return video feed TVU One feed or SDI input at TX; Requires hotspot
Start-up time Less than 40 seconds
Supported data connections Simultaneously aggregates up to 12 data connections including WiFi and Ethernet.
System supports cellular 3G/4G/LTE modems, 2.4 GHz WiFi, 5 GHz WiFi, WiMax,
Ethernet, Microwave and KaBand, KuBand, BGAN Satellite connections.
Glass-to-glass latency 0.5 seconds
Video recording Up to 7-hours of live recording
External interface connectors SDI, HDMI, USB, Ethernet, IFB
Power source A single removable, rechargeable internal battery
Internal battery run time 120 minutes
DC input Right angle Mini Jack DC input that connects to external
battery or supplied AC adapter.
External power adapter: 11-18V DC.
Transmitter controls - One button start
- On-unit monitoring and management
- Remote monitoring and management using mobile smart device or laptop
TVU social support Supports live streaming to Facebook Live. Also capable of capturing and
posting still images of TVU One’s live stream to social media platforms
Encoder hardware dimensions 7.48 in. x 4.72 in. x 2.76 in.
(19 x 12 x 7 cm)
Weight 2.2 lbs (1 kg)
Carrying case Belt-mount or shoulder bag carrying case options with hot swappable battery mount
Operating temperature 32°F to 104°F (0°C to 40°C)
TVU Software version TVU6 v6.5

Document Part Number:
TVUOne UG Rev A EN 04-2019
TVU networks Corporation
857 Maude Avenue,
Mountain View, CA 94043
Ph: +1 (650) 969-6732
Fax: +1 (650) 969-6747
E-mail: www.tvunetworks.com
TVU networks Corporation
11030 Raven Ridge Road, Suite 117
Raleigh, NC 27614
Support Ph: +1 (650) 440-4812
Support E-mail:
E-mail: www.tvunetworks.com
Contact information
Printed in USA.
© Copyright 2019 TVU Networks Corporation
All rights reserved in all media.
Table of contents
Other TVU networks Transmitter manuals
