TVX TVX-HD M-6600 Series User manual


Quick Guide
TVX-HD M-6600 Series
- Some specifications could change with new firmware versions. Please refer to
the FAQ on our homepage for further information.
- For detailed instructions, please refer to the enclosed TVX-HD CD or the latest pdf file
on the TVX-HD Homepage.
- Without internal tuner box, some functions of PVR ( EPG or Channels) doesn’t work.
◈ TVX-HD M-6600A – optional DVB-T dual tuner
◈ TVX-HD M-6600N – Memory card reader + WiFi + optional DVB-T DUAL tuner box


English

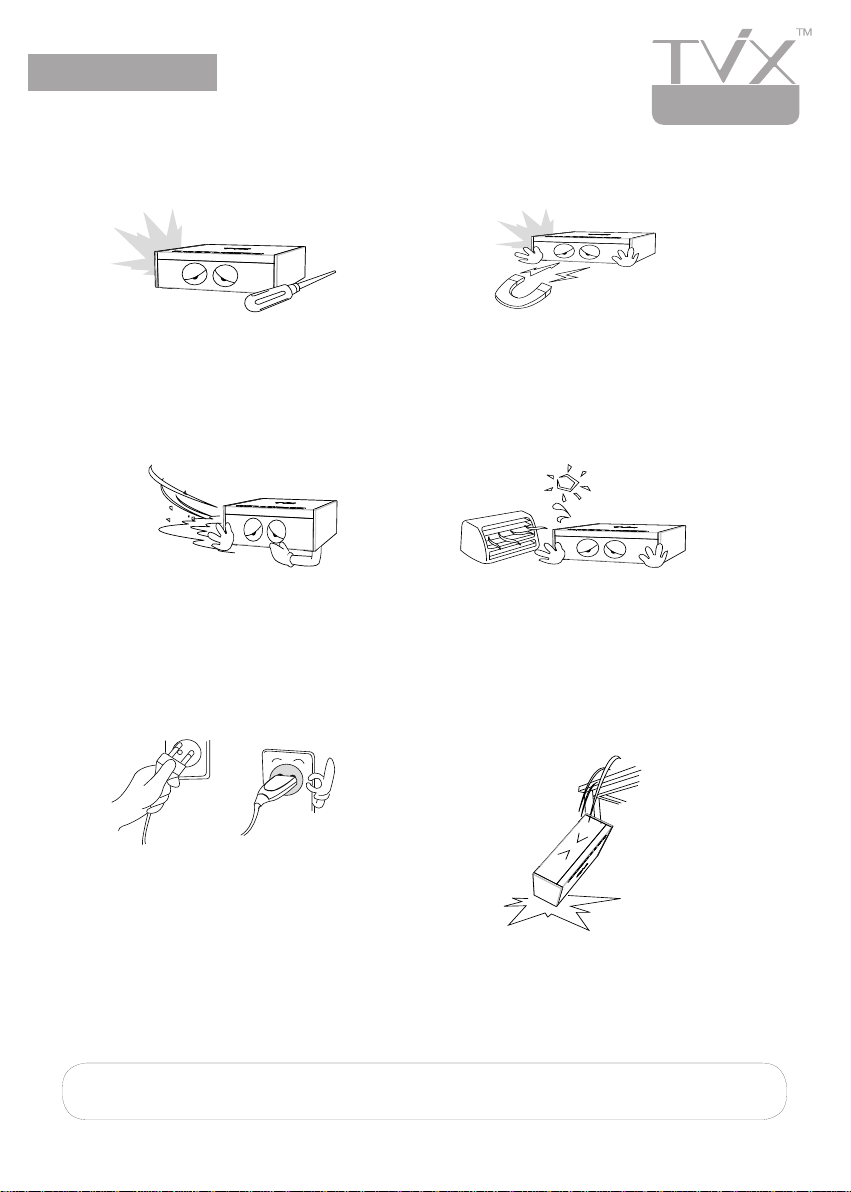

Safety Notice
Do not try to disassemble
or remodel the TVX-HD
unit. Doing so may cause
malfunction or fire.
Place all magnetized devices, such as
speakers, away from the TVX-HD .It
may erase or cause damage to the
data stored in the hard disk.
Do not Place the TVX-HD .
In places that are exposed
to oil, water, dust, humidity,
rain or wind.
Keep your TVX-HD away from heated
areas, such as direct sunlight exposure,
heaters and etc. Place it in a well
ventilated location. Ensure that a
free airflow is maintained around the
appliance.
Do not touch the power
plug with wet hands or use
defective power cables &
electric outlets. It may cause
electric shocks or fire. Do not drop the TVX-HD from
heights. Doing so may cause
critical damage to the hard drive.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Unplug the power cable when you are not using the product for a long time.


1.1 TVX-HD PVR Function
The TVX-HD PVR can play HDTV broadcasts without a
digital TV set-top box, with excellent and super-clear
pictures on HDTV screens. The TVX-HD PVR supports
standard DTV features, such as EPG and Time-shifting.
DVICO Inc has no responsibility for recorded programs or files made or distributed
for any illegal purposes. The party or parties who record or distribute the contents
bear all responsibility (Civil or Criminal) direct or indirect.
1. Introduction
English
Time-shifting is a function that allows the user to record broadcasts,
and save them in a storage device so that they can be viewed at a more
convenient time for the user. When you are interrupted while watching a
live TV program (such as picking up phone calls & answering the door),
all you need to do is simply press the OK button to freeze the picture
for a period of time, and then press OK again later in order to restart
it from where you have left off. Note: You cannot use the DTV time-
shifting on FAT32 partitions, so we recommend that you format your
SATA HDD to NTFS.
The TVX-HD PVR has various recording features, including direct
recording, scheduled recording, and repeated manual recording, to help
the user not to miss a any programs on digital TV. It's a completely
different type of PVR since you can easily upgrade and expand the HDD
capacity yourself, which is similar to PC upgrading. And you can back up
recorded files to/from a PC. In case of dual tuner, you can watch other
channels while recording a program of your choice.
TVX-HD PVR implements DTV features such as EPG-scheduled recording
and connection to PC, to let the user enjoy all the dainty bits of digital
broadcasting as well as supreme audio and video qualities. You can set
up scheduled recording and scheduled watching using the EPG window.
When using the DTV mode, you can easily reserve for sleep mode
time with the FUNCTION key. If the sleep mode is enabled while it is
still recording something, the TVX-HD will shut down after it finishes
recording. In the file list mode, the FUNCTION key performs the File
copy/delete and password functions.


1.2 Multimedia Player Function
The TVX-HD is a standalone, multimedia hard disk player that
plays digital videos, digital music, digital still images and DVD
files on TV screens and home entertainment systems. You can
enjoy digital contents in your living room without having to burn
discs or to play it back on a DVD or CD player anymore.
TVX-HD plays back DVD movies with the full functionality of DVD
navigation. You can create your own virtual DVD library by storing your
personal collection of DVDs in .ISO or .IFO format, and watch them exactly
as if they were running from the original DVDs (all the original features
are included: Menu, Chapter, Audio Stream, Subtitle, Fast Forward, Rewind,
Pause, Repeat, Search etc.).
Using the latest multimedia processor, TVX-HD supports the latest
multimedia formats such as MKV, MPEG-4 AVC(H.264), VC-1( MP@HL, AP@
L3), WMV9 & WMV HD as well as MPEG4 3.11,4.0 , 5.0. and H.264, which
is a brand-new and superb compression technology. It can now play more
stunning HD movies with lower storage requirements.
HDMI provides unparalleled qualities to digital videos and audios, while DVI
only serves digital videos. With HDMI you don’t have to deal with multiple
AV cables. It lets you make a connection to digital videos as well as audios,
and enjoy them with just one cable. It can deliver uncompressed digital
video up to 1080P as well as digital audio.
TVX-HD has a DTS hardware decoder to mix DTS sound into 2 channels
for a more dynamic stereo sound quality.
The TVX-HD can be networked with a PC system using either a wired
network or its optional wireless network adapter. You can navigate to a
PC file through TVX-HD’s wired/wireless network and play the file from its
original location without having to copy it into the TVX-HD first. Also, TVX-
HD’s FTP server and Samba server allow you to transfer files from your
PC. It also allows you to connect to network easily with uPnP support,
and it does not require an IP address. You can immediately playback uPnP
connected files.
With two USB2.0 host ports, you can attach additional external USB hard
drives to further extend the storage capacity. You can also play back files
from a digital cameras, USB flash drives, USB flash card reader or an MP3
player.
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
English
UPnP
H.264


2. Name of Each Part
2.1Unit Control button
TVX-HD can be controlled by the buttons on the product as well as by the remote
control.
2.2 Cable Connection
You can connect the TVX-HD to an analog TV display or audio amplifier using the
A/V cable. Memory card reader is placed on the side of the unit.
English
The VFD shown below may differ when you play a file.


2.3 Package Contents
Thank you for choosing this TVX-HD product.
The TVX-HD PVR package contains the following items. The items described below
may differ from the actual contents.
TVX-HD unit Remote
Controller USB PC Cable
RCA Cable
Quick Guide
Manual CD Power Cable
** For detailed instructions, please refer to the TVX-HD CD enclosed or the latest
pdf file on the TVX-HD Homepage.
* TVX-HD automatically formats when you install an unformatted new hard disk. Do
not shut the power down when formatting the hard disk.
English


2.4 HDD Installation/Exchange
** Installing or exchanging your HDD is very easy. Just follow the instructions
below. If you have a pre-installed HDD, you may skip this chapter.
English
① Assemble the HDD guide and your
HDD by using the screws included in t
the product package.
② Open the lid of the TVX-HD as shown
in the below picture.
③ Position the HDD as in the below
picture and then insert it.
④ You don’t need to connect any cables.
Just push the HDD into the TVX-HD.


English
⑤ Close the lid of TVX-HD.
⑥ To change the hard disk, pull the HDD’s
guide out while pressing the lock
button.


3. Installation and Connection
3.1 Connecting the Video
The TVX-HD supports HDMI and Composite video output for connection to a TV, and each
output needs to be selected in the settings menu depending on what cable is being used.
Connection to Composite Connection to HDMI Output
Connect the TVX-HD output to your TV
using the included Composite (yellow)
video cable.
Select the appropriate video input mode
on your TV until you get the main page
of the TVX-HD
For the Audio, please connect the stereo
cable (red/White cable).
Connect the TVX-HD output to your TV
using an HDMI cable.
TVX-HD plays back high definition
videos (up to 1920x1080P) by using
HDMI cables.
HDMI cable can transmit uncompressed
audio and video signals together at the
same time. No additional cables are
needed.
English
After you connect the video cable to your TV, you must press the TV Out button on
your remote repeatedly control until you see the main page of the TVX-HD on the
screen.
NOTE

0
3.2 Connecting the Audio
Connection to 2 CH Normal TV Connection to 5.1CH Amplifier (Digital)
Connect the two audio cables, the white
one on the left side and the red one
on the right side, to the appropriate
terminals of your TV or Hi - Fi system for
sound output.
If you have a multi-channel decoder/
amplifier with an coaxial/optical input,
you can enjoy 5.1 CH high- quality
sound through the coaxial or optical
cables.
The illustration above shows how to
connect the optical cable with an
included optical jack.(These cables are
not included in the package and must
be purchased separately.)
If there is no sound after connecting the coaxial/Optical Cable, you have to change
the audio setup of TVX-HD to Digital on the SETUP menu.
NOTE
English


3.3 Connecting the USB HOST
The TVX-HD also provides two USB-host ports with USB 2.0 compliant host/ function
processor.
USB-host allows communication between two USB devices. You can connect any
external storage device (e.g. memory stick) or any external hard disk to play files
stored in these external devices. You can even connect your Digital Camera directly to
play digital images and pictures without any other devices.
English
After connecting the client device, press the left-arrow button on your remote
control and then navigate to the desired storage unit. You can thereby change the
location from internal hard disk to external USB device and back.


◈ TVX-HD M-6600A – optional DVB-T dual tuner
◈ TVX-HD M-6600N – Memory card reader + WiFi + optional DVB-T DUAL tuner box
Connect the included power cable at the back of the TVX-HD. Then plug the other
end of the power adapter into an available wall socket. Make sure that your TV is
switched to the AV input to which the TVX-HD is connected (at the back of the TV).
3.4 Connecting the Antenna
1) Before connecting the Antenna or R.F. cable, the power of TVX-HD must be turned
off.
2) To improve the picture quality in a poor signal area, please purchase a signal
amplifier and install it properly.
3) recommend using a threaded-type antenna connector. Move it clockwise to tighten
it.
4) If the signal strength meter does not reach even half of the scale, adjust your
antenna to increase the signal strength. Continue adjusting the antenna until you find
the position that gives the strongest signal.
English


3.5 Using the remote control
This indicates Remote Buttons.
Some buttons have different functions in PVR mode and file play mode.
POWER Toggle Unit Power on / off
MUTE Stop Audio Output from the Player
TV/HDTV Switch between TV or DTV mode
MOVIE Go to Movie folder
MUSIC Go to Music folder
PHOTO Go to Photo folder
Numeric Key Insert number or text
16:9/4:3 Aspect ratio(16:9/4:3 letter box/4:3 Pan&Scan)
ZOOM Zoom Video / Image Playback
PREV Previous Chapter / File / Page Up on List
Next Next Chapter / File / Page Down on List
JUMP/REW
SORT/FF File Sort or FF playback
OK/TIMESHIFTING Selection/play/pause/time-shifting on/pause
ARROW
RETURN Stop Playback/Return to Previous Screen / Folder
VOL + / - Volume (Increase / Decrease)
CH + / - Switch TV channel/adjust subtitle sync
INFO Display Media File Information
SUBTITLE Subtitle ON / OFF, Change Settings
FAVORITE Switch favorite channel
GOTO Time-Stamp based Search/TV channel list
SETUP Enter Setup Menu, Apply/Confirm Setup Settings
AUDIO Select multi audio
REPEAT Repeat Media file(s) Playback
SHUFFLE Switch between Random – Sequential Playback
TV OUT Toggle Video Output Modes
TITLE Select subtitle file
MENU Display Main Menu Screen/ DVD Title Screen
FUNCTION File copy/ folder password/ Sleep Timer
GUIDE Display DTV EPG Guide
BOOKMARK/SCH Bookmark / manual recording in TV mode
ADD/DELETE Add/Remove the recording list/ delete file
REC Instant recording in DTV
English
Jump to USB Host or network drive
Cursor Navigation Arrow/Rewind / FF playback


3.6 Initial Setting
① Connect the TVX-HD to your TV using A/V cables, and turn on the TVX-HD. You
will see the following screens when you turn the unit on for the first time or when
you select “Load Default Setting”.
② When you see the initial page on your TV screen shown in the picture below, press
the “OK” button on the remote controller.
- In case of HDMI connection: TVX-HD does not show this page but sets to the best
resolution automatically and leads you to the next stage, “Language setting”.
- In case of other connections: TVX-HD changes screen resolutions between NTSC,
PAL, 480P, and 576P about every three seconds until the “OK” button is pressed, so
press the “OK” button when you can see a clear screen
③ Select your language.
④ Now you can see the TVX-HD main page.
English


4. TVX-HD Setup Menu
4.1 SYSTEM Setting
This section is about SYSTEM (Language or Time) settings. Press SETUP button on the
remote control and select SYSTEM.
This screen allows you to adjust the SYSTEM settings of your TVX-HD to your
personal taste. Select menu to exit this SETUP.
Menu Language : Select your
language.
File List Type : Switch between
File list mode and Preview.
Date/Time : Adjust the clock by
using the arrow and numeric
keys. With a DTV tuner, Auto
(Via TV or Via Network) is also
available.
Automatic F/W Update : Now you can upgrade a new firmware if your TVX-HD
is connected to the internet. To upgrade it with our beta version of firmware,
please press 2,3,8,2 of the numeric keys and then press the ‘Function’.
Auto Run : You can make files play automatically when TVX-HD gets loaded. If
you select “random”, they play in a random order.
Set Screen Position : Adjust the UI display position, so that you can see the main
UI display at the right place on your TV.
Check Disk : TVX-HD provides HDD check utility. If you have any problem with
recording or file playback, we recommend running this utility before proceeding.
TVX-HD automatically formats when you connect an unformatted hard disk to
the TVX-HD. Do not shut down the power while the hard disk is being formatted.
Load Default Setting : In order to revert to the Default setting, Select this option.
You will need to configure the video and sound settings again.
English


4.2 Audio/Video Setting
This section is about A/V (Video or Audio) settings. Press SETUP button on the
remote control and select the A/V.
This screen allows you to adjust the A/V settings of your TVX-HD to your personal
taste. Select menu to exit this SETUP.
Set the audio output setting.
Select the HDMI or the S/PDIF that you want to hear the audio.
If you select the S/PDIF, you can set the detailed audio output with your
Decoder/Amplifier. We recommend you to set the Dolby Digital and DTS to
digital and AAC to analog.
You don't need set this option when you connect the RCA cable.
Dynamic Range Control : This function is for either decreasing high level sounds
or increasing low level sounds.
[ON]: low volume at late night.
[OFF]: full dynamic range of the volume.
English

Video Aspect Ratio : 4:3 Letter Box / 4:3 Pan & Scan for ordinary TVs / 16:9 for
Wide TVs like HDTV or Plasma TV.
If the ratio of the TV is 4:3, select the 4:3 letter box or 4:3 Pan & Scan.
If the ratio is 16:9, select 16:9.
* The 4:3 Letter box can show the original ratio of the multimedia file in 16:9.
* The 4:3 Pan & Scan will adjust the image of the 16:9 multimedia file to the 4:3
of the TV screen by scaling the image. (Currently, not support this mode)
* 16:9 can adjust any ratio of the multimedia file to the TV screen with the
original image.

Video Auto Switch : the video out switches automatically to 1080P 24Hz
according to the frame rate.
Apply Video Output : press ‘Apply Video output’ to save current Video output
mode.
English
Video Adjust : Set the Brightness - Contrast - Hue - Saturation.
Press OK or STOP button to save and exit current video setting.
Video Output : Select this when you want to connect the video through a
composite or a HDMI cable. With HDMI setting, you can select an output
resolution between NTSC,PAL, 720p 50hz/60hz, 1080i 50hz/60hz and 1080P.
1080i should work on all HD grade TVs.
RF Mode Compression : This function keeps approximately constant average
loudness levels between different audio formats. Users do not need to adjust
their volume control as they switch between program services.
Turn it off to enjoy full dynamic range of Dolby Digital.


English
Audio Language : select default audio. To change the audio format, press the
AUDIO button on the remote control.
Start Channel Scan : Press ‘Start Channel Scanning’ if you want to scan the
channel.
Country/Location : Select your country or location.
Time Zone : to use the EPG guide with the correct recording time zone, you have
to configure your time zone by using the arrow keys.
Daylight Saving Time : set this option on if you are in the area of DST.
TV Input : Select your input.
4.3 HDTV Setting
This section is about HDTV settings. Press the SETUP button on the remote control
and select HDTV.
This screen allows you to adjust the HDTV settings of your TVX-HD to your personal
taste. Select menu to exit this SETUP.

4.4 PVR Setting
This section is about PVR settings. Press the SETUP button on the remote control, and
select PVR.
This screen allows you to adjust the PVR settings of your TVX-HD to your personal
taste. Select menu to exit this SETUP.
This setting will be activated when you connect the tuner box.
TimeShift Duration : Set the maximum time-shifting interval
Auto Timeshift start : Time-shift will be started automatically whenever TV
mode is active.

English

It allows you to connect to network
easily with uPnP support, and it
does not require an IP address. You
can immediately playback uPnP
connected files on wired/wireless
network environment.
With NFS, TVX-HD can play high bit-
rate files from a PC flawlessly over a
LAN. We recommend NFS connection
over SAMBA. You need to install the
TVX-HD Netshare program (or other
NFS server) on the server PC, but
the settings are much easier than in
SAMBA mode.
0
Setup Network Disk: This function searches and helps you find PCs connected to
the network.
SAMBA: If you have a guest account, shared folder names can be listed and can
be selected.
NFS: Connected PCs are listed automatically in NFS of NAS storage or Netshare.
TVX-HD Network Info: You can see the information of TVX-HD’s Network.
FTP Password: to use FTP function, you must use the ID & password displayed on
the Network Menu within SETUP. The FTP ID is tvixftp. you can use capital
letters only for the password.
English
Default Network Device : Select Wired network or Wireless network.
Wired IP Setting: Default setting is DHCP. If you cannot access via LAN with DHCP
setting, use the Static IP setting.
Search Wi-Fi Network: Connect the USB module to TVX-HD after connecting the
AP Router to a PC. Select “Search Wi-Fi Network” to search for your AP or AP
router. Spend some time searching for it, and you will see the AP LIST popup
menu. Select the AP that you want to connect to.
Wi-Fi IP Setting: Default setting is DHCP. If you cannot access via LAN with DHCP
setting, use the Static IP setting.
4.5 NETWORK Setting
This section is about NETWORK (Network or FTP) settings. Press the SETUP button
on the remote control, and then select NETWORK.
