TW Audio VERA10 User manual
Operation manual
VERA10
Operation manual VERA10
2
Introduction
Named for the VERtical Arrays in which these systems are used, our VERA line array solutions
are transforming large-format sound reinforcement, led by the VERA10 series. The series
is based on the VERA10 top, a compact line array element measuring just 50 cm (19.7“) in
width yet scalable up to an array length of 18 elements.
This means that the VERA10 is arguably the most versatile component in the whole TW AUDiO
range – with just two tops, a core VERA10 system can be created to deliver uncompromising
high quality sound reproduction in an extremely compact format. Yet VERA10 has been desi-
gned and developed to deliver so much more.
The starting point was the desire to provide our customers with a single, flexible system that
can be extended with a multitude of additional components to meet their specific require-
ments. Everything from gala events, touring roadshows, through to large, open-air or stadium
rock concerts can be served with an investment in VERA10.
The modular design of the VERA10 series offers countless possibilities for every user.
Whether flown or stacked, VERA10 offers you a fully flexible solution for delivering the very
best in audio reproduction for every event, from small gigs to mid-sized indoor shows and
even open-air concerts.
Within the VERA10 top element itself is a single 10“ loudspeaker and two 1“ high frequency
drivers. Our compression chamber phase plug is positioned in front of the 10“ chassis while
VERA10‘s optimised waveguide is coupled to the HF-drivers, all combining to deliver striking
tonal depth with sparkling high end in 10 degree vertical dispersion.
Exchanging the mid-high horn allows the horizontal dispersion to be set to either
80 or 120 degrees. Additional versatility is achieved by the addition of the optional PWVERA10
passive crossover which makes it possible to switch between passive operation on a single
amplifier channel and standard bi-amped, two-way active operation.
Instructions in this user manual
WARNING
WARNING
Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand
TW AUDiO.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
Operation manual VERA10
3
NOTE
TIP
CAUTION
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the
VERA10 loudspeaker.
General information
Operation manual: OM-VERA10
Version 2.0 en, 02/2022
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
© by TWAMBO 2022; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAMBO.
TWAMBO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TWAMBO reserves the right to update this document based on recent developments.
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Operation manual VERA10
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
2.2 Variants ................................................................................................................... 8
2.2.1 Horn - horizontal coverage 80° / 120° ................................................................ 8
2.2.2 VERA10A / VERA10P models............................................................................. 8
2.3 Operating modes..................................................................................................... 9
2.3.1 Horizontal selector switch................................................................................... 9
2.3.2 Vertical selector switch ..................................................................................... 10
3. Technical data .............................................................................................................. 11
3.1 Data sheet............................................................................................................. 11
3.2 Wiring diagram ...................................................................................................... 11
3.2.1 Variant: VERA10A............................................................................................. 11
3.2.2 Variant: VERA10P............................................................................................. 12
4. Commissioning............................................................................................................. 13
4.1 Setup .................................................................................................................... 13
4.2 Exchanging the horn.............................................................................................. 13
4.3 Operation .............................................................................................................. 14
4.4 Connecting the cable............................................................................................. 14
5. Transport and storage .................................................................................................. 15
6. CE Conformity Declaration............................................................................................ 16
7. Disposal ....................................................................................................................... 17
Operation manual VERA10
5
1. Safety | Intended use
The VERA10 loudspeaker was developed for use in professional sound systems. The
loudspeaker may only be used by trained and qualified personnel.
WARNING
WARNING
WARNING
NOTE
NOTE
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TWAMBO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permit-
ted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.
When working with heavy loads exceeding 20 kg (44lbs.), use suitable aids (dollies, hoisting
slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• Direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres-
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90dB SPL can lead to long-term hearing impairment.
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.
Operation manual VERA10
6
WARNING
NOTE
NOTE
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over-
loads may cause a fire and result in serious personal injury and property damage.
Note that TWAMBO does not provide a warranty for damage that can be attributed to this type
of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TWAUDiO.
Operation manual VERA10
7
2. Overview
2.1 Components
1. Splay link
2. 15 mm multiplex enclosure – polyurea finish
3. VERA10 „rear“ rigging plate
4. Splay link
5. Locking pin 8×30
6. Ergonomic carrying handles (left and right)
7. Locking pin 8×20
8. VERA10 „front“ rigging plate
9. Phase plug
10. 10“ cone drivers
11. Waveguide with two 1“ compression drivers
12. Exchangeable horn
13. Standard connection panel with two speakON® connectors
14. Type label
15. Label plate
16. Passive crossover PWV10

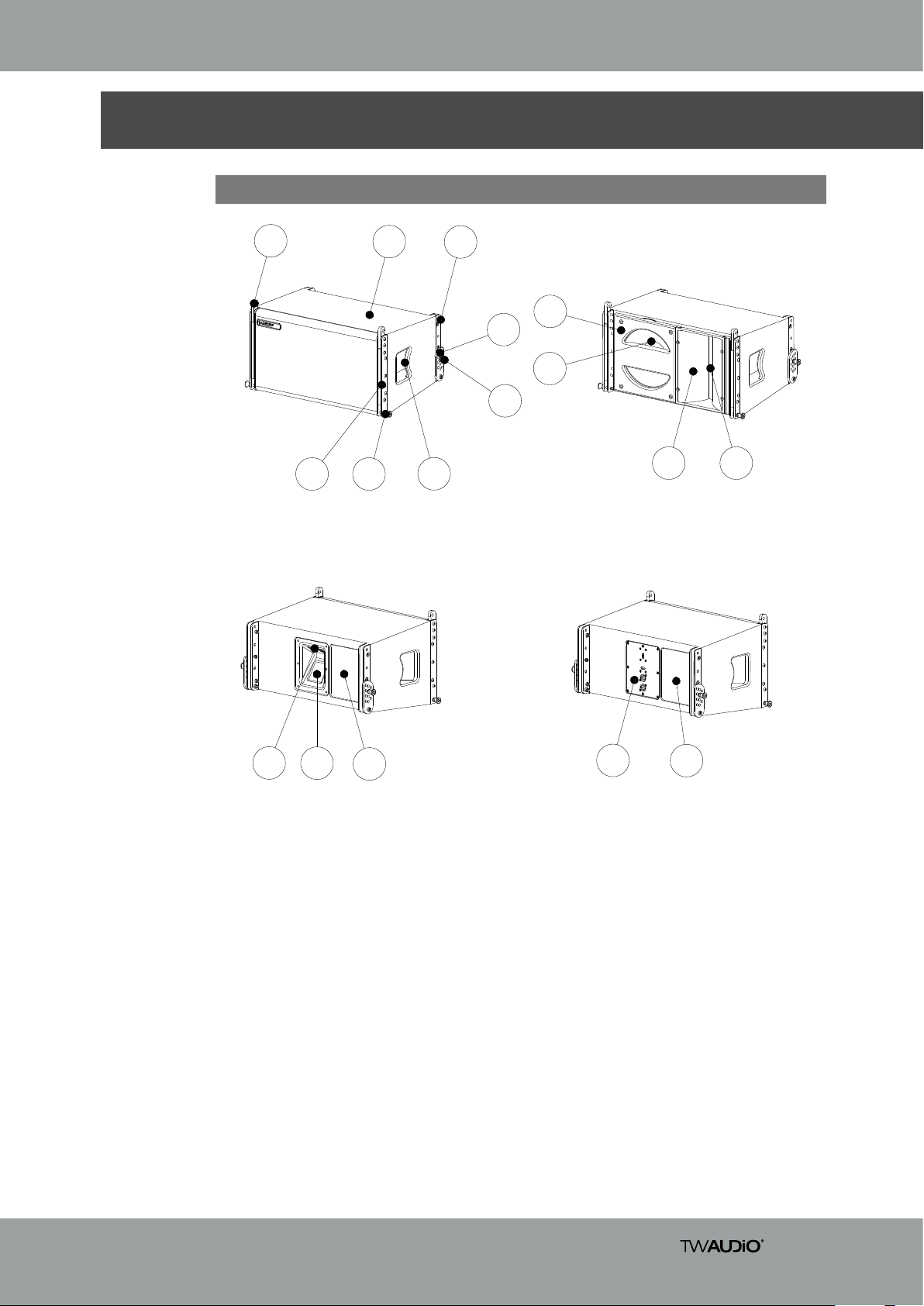

Figure 2.1 - Overview
9
10
11
16 15
13 14
2
8
1
7
4
3
6
5
12
15
Operation manual VERA10
8
The VERA10 loudspeaker comes in four different variants. These are differentiated by their
horizontal coverage (80° or 120°) and are further subdivided into VERA10A (BIAMP model)
and VERA10P (PASSIVE model).
The VERA10 loudspeaker can be equipped with either an 80° × 10° horn or a 120° × 10° horn.
The degrees refer to the horizontal and vertical radiation angles. The VERA10 horn variant can
be identified by the legend printed on the horn (see figure 2.2).
The horn can be exchanged for the other type at any time. See section 4.2 „Exchanging the
horn“.
2.2 Variants
Figure 2.2 - VERA10 horn variants
2.2.1 Horn - horizontal coverage 80° / 120°
2.2.2 VERA10A / VERA10P models
The standard model of the VERA10 loudspeaker is the VERA10A, which can only be opera-
ted in the „biamped“ mode. It is supplied with a standard connection panel and requires two
amplifier channels for operation. The compression driver and cone driver are separated by the
DSP of the amplifier.
The VERA10P model can additionally be switched to the „passive“ mode. This enables opera-
tion with only one amplifier channel, for which the enclosure contains a passive crossover. The
built-in passive crossover features two selector switches described in section 2.3.
80°
80°
120°
120°
Operation manual VERA10
9
The passive version (VERA10P) features two selector switches on the rear (figure 2.3.1 and
2.3.2) for switching between two different operating modes and for attenuating the high fre-
quency range (see figure 2.1, no. 16).
In the „PASSIVE“ mode, the loudspeaker is operated on a passive audio crossover with a
single amplifier channel.
2.3 Operating modes

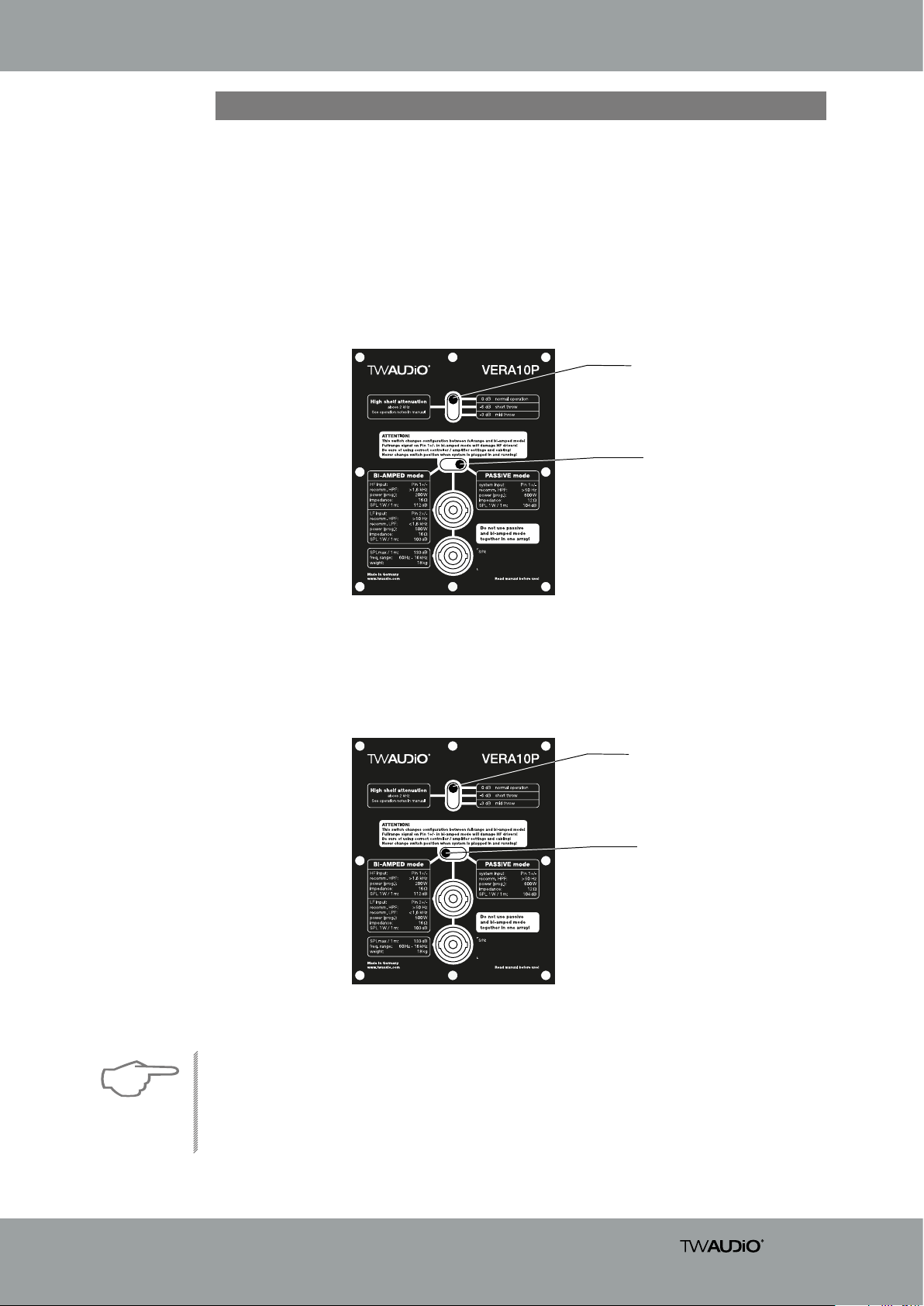

Figure 2.3.1.2 - Operating mode „BIAMPED“
2.3.1 Horizontal selector switch
In the „BIAMP“ mode, the internal passive crossover bypasses the signal path and the indivi-
dual routes of the loudspeaker must be driven separately by two DSP channels.
Figure 2.3.1.1 - Operating mode „PASSIVE“
PASSIVE
0 dB
-6 dB
-3 dB
BIAMPED
0 dB
-6 dB
-3 dB
Never change the operating mode while the loudspeaker is connected. In addition to setting
the switch, the corresponding preset on the amplifier must be changed.
Using a wrong, out dated or a preset not provided by TWAUDiO can lead to destruction of
the speaker.
NOTE
Operation manual VERA10
10
The „High shelf attenuation“ vertical selector switch lowers the frequency range above 2kHz
independent of the VERA10P operating mode.
In the „0 dB normal operation“ mode, the frequency response is not attenuated above 2kHz.
In the „-6 dB short throw“ mode, the frequency response above 2 kHz is attenuated by 6 dB.
In the „-3 dB mid throw“ mode, the frequency response above 2 kHz is attenuated by 3 dB.

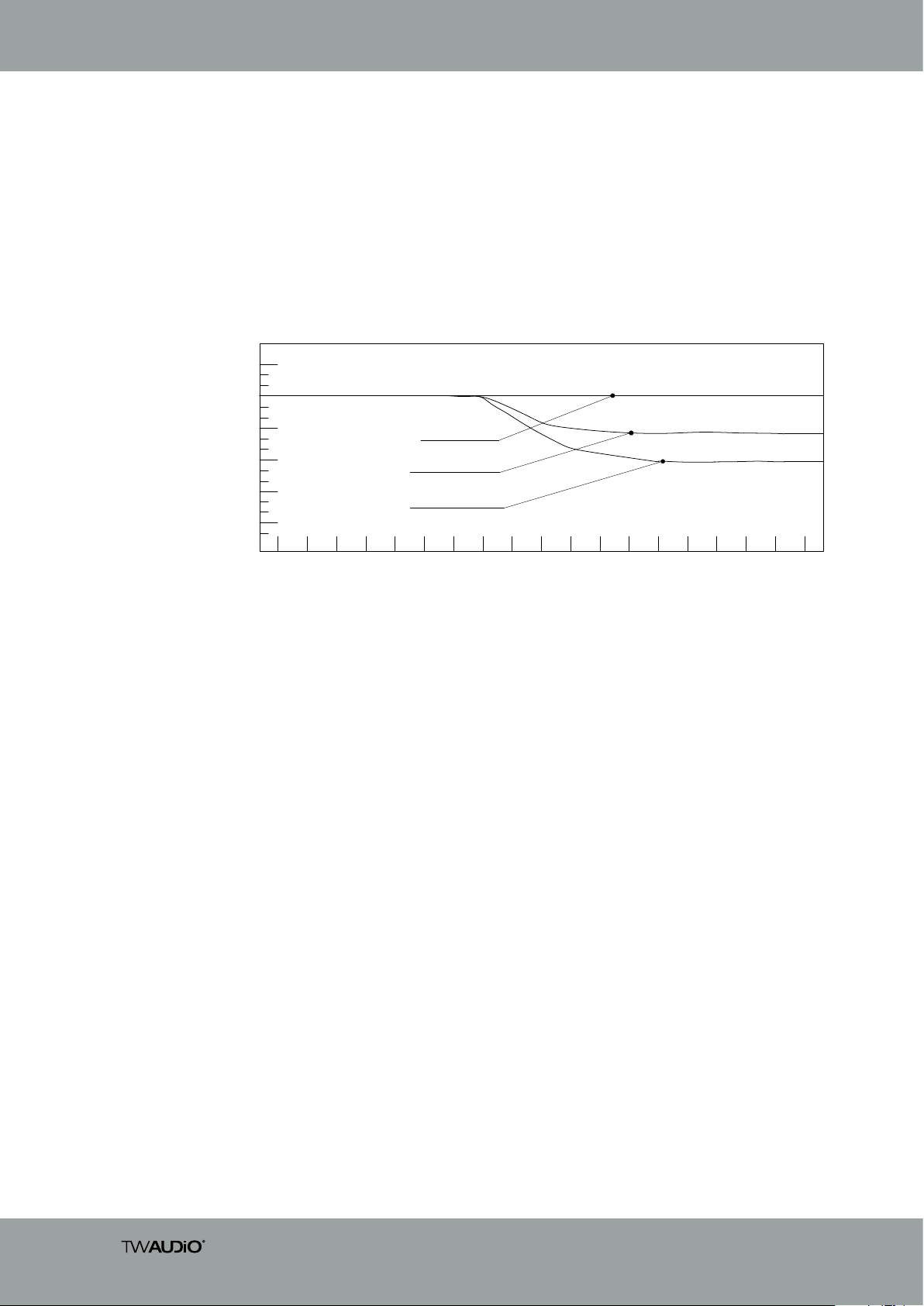

Figure 2.3.2 - High frequency range attenuation
2.3.2 Vertical selector switch
8000
4000
2000
1000250 500
- 6 dB
- 3 dB
0 dB
16000
0 dB
-3 dB
-6 dB
-9 dB
-12 dB
3 dB
Operation manual VERA10
11
3. Technical data
3.1 Data sheet

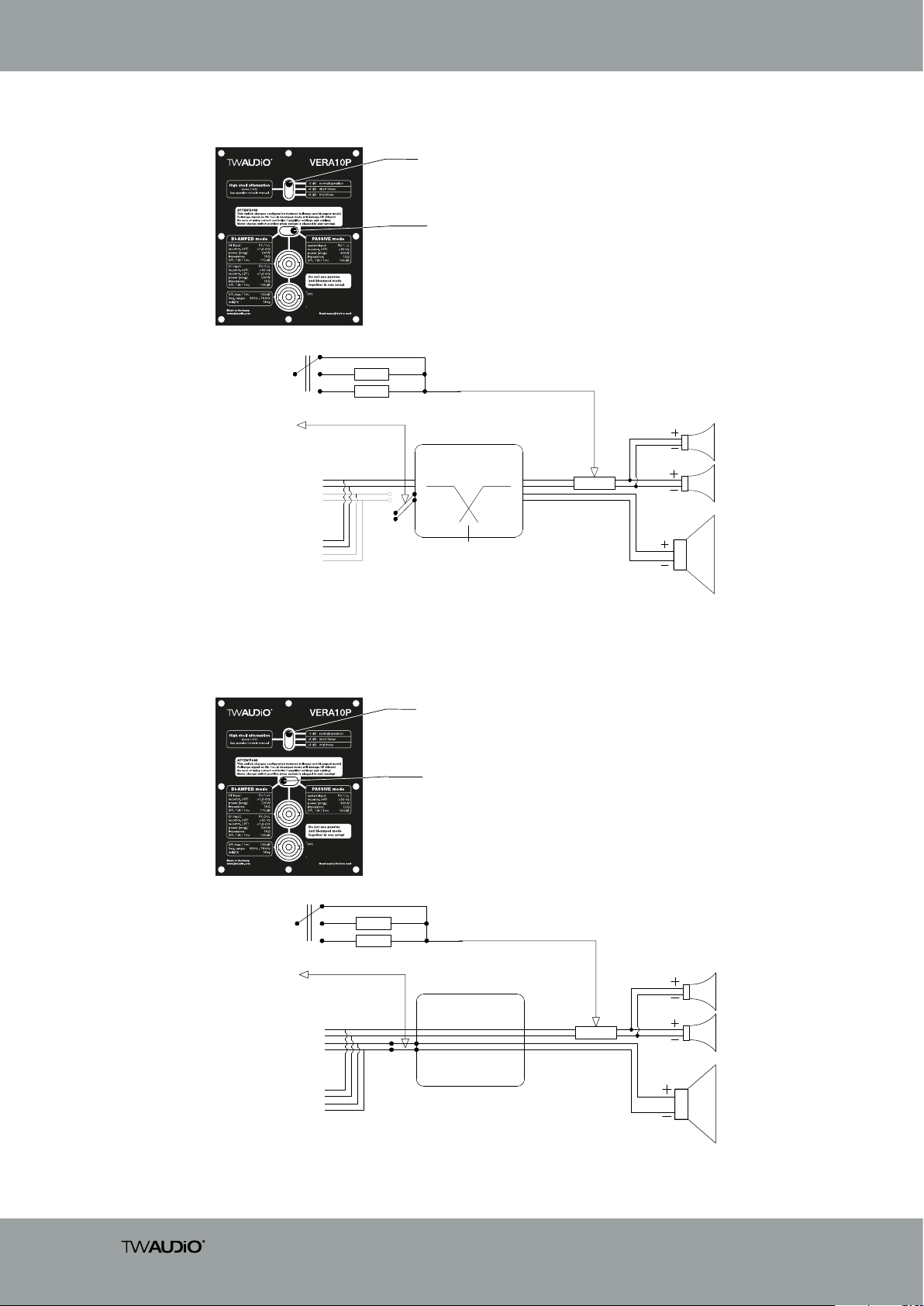

3.2 Wiring diagram
Figure 3.2.1 - Wiring diagram VERA10A
Variant
VERA10A VERA10P
Component 1x 10“ LF / 2x 1“ HF
Frequency response 60 - 16000 Hz
Power handling
(program/peak)
500 / 1000 W LF
200 / 400 W HF
BIAMP Mode PASSIVE Mode
500 / 1000 W LF
200 / 400 W HF 600 / 1200 W
Impedance 16 Ω LF
16 Ω HF
16 Ω LF
16 Ω HF 12 Ω
Coverage (h x v) 80° x 10° or 120° x 10° HF-horn
Max. SPL / 1 m 133 dB
Dimensions
(h x w x d) 275 x 500 x 355 mm [10,83 x 19,69 x 13,98 in]
Weight 16 kg [35,3 lbs] 18 kg [39,7lbs]
Finish Polyurea-coating
3.2.1 Variant: VERA10A
HF 1"
HF 1"
LF 10"
PIN 1+
PIN 1-
PIN 2+
PIN 2-
parallel
PIN 1+
PIN 1-
PIN 2+
PIN 2-
16 Ohm
16 Ohm
Operation manual VERA10
12
3.2.2 Variant: VERA10P
Figure 3.2.2.1 - Wiring diagram VERA10P - PASSIVE Mode
Figure 3.2.2.2 - Wiring diagram VERA10P - BIAMPED Mode
PASSIVE
X-OVER
PIN 1+
PIN 1-
PIN 2+
PIN 2-
HF 1"
HF 1"
LF 10"
PW VERA10
16 OHM
16 OHM
12 OHM
parallel
0 dB
-6 dB
-3 dB
HF ATT.
HF ATT.
HF SHELF
SWITCHER
MODE
SWITCHER
PASSIVE ON
FIG 2.3.2
PIN 1+
PIN 1-
PIN 2+
PIN 2-
1,5 kHz
X-OVER NOT
INVOLVED
16 OHM
16 OHM
16 OHM
16 OHM
HF 1"
HF 1"
LF 10"
0 dB
-6 dB
-3 dB
HF ATT.
HF ATT.
HF SHELF
SWITCHER
MODE
SWITCHER
BIAMPED ON PW VERA10
PIN 1+
PIN 1-
PIN 2+
PIN 2-
parallel
PIN 1+
PIN 1-
PIN 2+
PIN 2-
FIG 2.3.2
PASSIVE
0 dB
-6 dB
-3 dB
BIAMPED
0 dB
-6 dB
-3 dB
Operation manual VERA10
13
4.1 Setup
The VERA20 loudspeaker has been designed for horizontal operation in stacked and flown
vertical arrays. TW AUDiO provides a wide range of accessories to securely attach the loudspe-
aker.
NOTE
WARNING
4. Commissioning
WARNING
4.2 Exchanging the horn
Depending on the variant, either the 80° × 10° or the 120° × 10° horn (see section 2.2.1) is
built into the VERA10 loudspeaker. For some applications, it may be advantageous to exch-
ange the horn for the other variant in order to change the horizontal coverage. Proceed as
follows.
1. Place the VERA10 loudspeaker on its back with the front grill facing up. Ensure that you
are working on a clean and non-slip surface. To secure the speaker against lifting and
slipping, ask a second person for assistance.
2. To remove the front grill a 3mm hex key is required. Use it to remove the four mounting
screws on the left and right side of the speaker enclosure. (two on every side).
3. Release the four screws of the horn using a 3 mm hex key.
4. Pull the horn upward out of the loudspeaker enclosure.
5. Check that the sealing lip between the waveguide and horn is properly seated.
6. Insert the new horn in the opening. Screw it onto the enclosure using mediumstrength
thread locker.
7. Screw the front grill back on.
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
Make sure the speakers are securely fastened to prevent personal injury and property damage.
Secure stacked loudspeakers properly so that they can be tipped by 10° in any direction
without toppling.
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.
Operation manual VERA10
14
4.3 Operation
4.4 Connecting the cable
Operation of the VERA10A speaker requires a DSP-Controller. For this purpose, only presets
developed by TW AUDiO are recommended. The TWAUDiO system racks are ideally suited
for this purpose.
Please note the technical data in section 3.1 on page 11.
NOTE
NOTE
Before connecting the loudspeaker to the amplifier, ensure that the right preset has been
loaded.
Using a wrong, out dated or a preset not provided by TWAUDiO can lead to destruction of
the speaker.
Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that
doesn’t meet the specifications can destroy the loudspeaker.
The pin connections of the VERA10 loudspeaker can be found in section 3.2 (“Connection dia-
gram”) on page 11 and 12.
The internal wiring of the VERA10 loudspeaker allows for parallel connection of multiple
loudspeaker units.
NOTE
To create a cable connection with an amplifier rack from TW AUDiO, proceed as follows.
Ensure that the cable cross sectional area is sufficient (at least 1.5 mm²) to avoid power losses.
TW AUDiO recommends using the loudspeaker cables available from TWAUDiO.
When connecting the cables to the loudspeaker, ensure that polarity (+/-) and pin assignment
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s
sound characteristics and may damage the driver.
Please note that parallel connections will decrease the total impedance of your loudspeaker
configuration.
The total impedance and the resulting power of the speaker configuration must match the
output power of the amplifier.
Operation manual VERA10
15
5. Transport and storage
NOTE
• VERA DL10 (dolly for up to 12 VERA10)
• CaseVERA10 (flight case for 2x 2 VERA10 elements)
To transport the unit with a single person, TW AUDiO recommends using the VERA DL10 dolly.
Alternatively, the VERA10 can also be transported in the CaseVERA10 flight case.
When transporting and storing the unit, it is important to ensure that the surface and front
grill of the loudspeaker are not damaged. Moisture can penetrate through exposed wood
surfaces and cause the wood to swell. A bent or broken front grill will no longer adequately
protect the sensitive speaker membranes.
In addition, appreciable dust deposits may considerably impair the functionality of a loudspe-
aker membrane. For this reason, the loudspeakers should be transported and stored in a
safe, careful, dry and largely dust-free manner.
The following accessory parts for transport and storage are available from TW AUDiO:
The original packaging is unsuitable as permanent storage and transport packaging.
Operation manual VERA10
16
6. CE Conformity Declaration
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
• 2011/65/EU
Applicable national standards and technical specifications:
• DIN EN 18 800
• DIN EN ISO 12 100
• DGUV Vorschrift 17 und 18
• EN 50581: 2013-02
Berlin, Germany, January 1st, 2021
Bernhard Wüstner
This declaration applies to the following components
• VERA10A-80
• VERA10A-120
• VERA10P-80
• VERA10P-120
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and
construction, and in the configuration placed on the market by us, satisfy the safety and
health requirements of the applicable EC directives. This declaration becomes invalid in
case of modifications that have not been approved by us.
Operation manual VERA10
17
7. Disposal
It is prohibited to dispose of used electrical equipment with household refuse.
All TWAMBOGmbH products are so-called B2B-products. This means that they are sold by
a commercial business to a commercial business. TWAMBO products that bear the trash can
symbol shown here may only be disposed of by TWAMBO.
The loudspeaker owner is legally responsible for proper disposal of used devices that do not
bear this symbol. This pertains to all products delivered prior to March 29, 2010. Nevertheless,
TWAMBO will also be happy to assist you in this case.
If you have any question regarding the disposal of used devices, please contact us under the
following telephone number:
+49 (0) 71 41 - 48 89 89 0
Thus, TWAMBO is in strict compliance with the Waste Electrical and Electronic Equipment
Directive (2012/19/EU) for the protection of our environment.
TWAMBO is registered under the following WEEE-reg.-no. with the German National Register
EAR as a B2B-manufacturer and distributor of electrical devices:
DE93295191
In countries outside of the European Union, comply with local regulations.
Operation manual VERA10
18
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone: + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
WWW: www.twaudio.de
Table of contents
