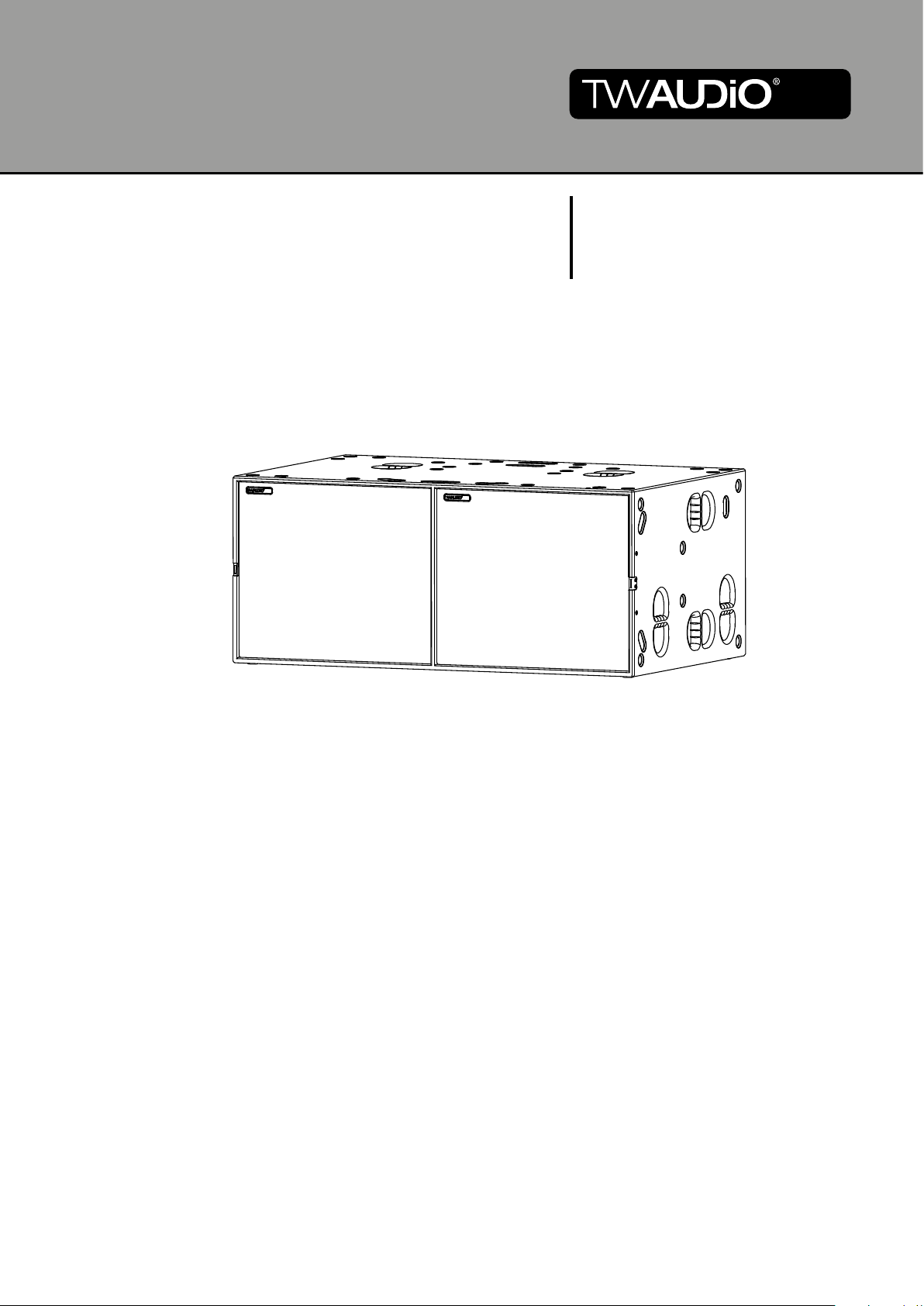

TW Audio BSX User manual

Operation manual BSX

Operation manual BSX
2
Introduction
Thank you for choosing a high-quality product “MADEIN GERMANY” from TW AUDiO.
So far the Big-Subwoofer-eXtender is the biggest TW AUDiO sub to date.
Equipped with two powerful 21“ drivers with a peak performance potential of 10kW per dri-
ver, this speaker is able to reproduce a truly massive bass foundation.
Thanks to the hybrid enclosure principle its efficiency is maximised so that the energy is still
perceptible even at a great distance. Primarily the BSX functions as a true sub bass exten-
sion.
Because of its extremely stiff yet lightweight membranes the BSX is able to deliver frequen-
cies of up to 120 Hz clean and true to its impulses. As a full range sub the BSX is directly
combinable with the M, T, C or VERA systems.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
TIP
CAUTION
WARNING
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
WARNING

Operation manual BSX
3
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the BSX loudspe-
aker.
General information
Operation manual: OM-BSX
Version 1.1 en, 02/2019
© by TW AUDiO 2019; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: [email protected]
WWW: www.twaudio.de

Operation manual BSX
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
2.2 Operation modes..................................................................................................... 8
2.2.1 Full ..................................................................................................................... 8
2.2.2 Infra.................................................................................................................... 8
3. Technical specifications .................................................................................................. 9
3.1 Data sheet............................................................................................................... 9
3.2 Connection diagram ................................................................................................ 9
4. Commissioning............................................................................................................. 10
4.1 Setup .................................................................................................................... 10
4.2 Operation .............................................................................................................. 11
4.3 Connecting the cable............................................................................................. 12
5. Transport and Storage.................................................................................................. 13
6. CE Conformity Declaration............................................................................................ 14
7. Disposal ....................................................................................................................... 15

Operation manual BSX
5
1. Safety | Intended use
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
The BSX loudspeaker was developed for use in professional sound systems. The loudspea-
ker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TW AUDiO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permit-
ted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.
When working with heavy loads exceeding 20kg (44,09 lbs.), use suitable aids (dollies, hois-
ting slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
WARNING
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres-
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90dBSPL can lead to long-term hearing impairment.
WARNING
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.
WARNING
NOTE
NOTE

Operation manual BSX
6
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over-
loads may cause a fire and result in serious personal injury and property damage.
WARNING
Note that TW AUDiO does not provide a warranty for damage that can be attributed to this
type of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TWAUDiO.
NOTE
NOTE

Operation manual BSX
7
2. Overview
2.1 Components
1. Milling for rubber feet for safely stacking loudspeakers
2. Ergonomic carrying handles (12 pieces)
3. 18 mm multiplex enclosure – polyurea surface finish
4. Rubber feet (8 pieces)
5. Type label
6. Standard connection panel
7. 100 mm castor with stopper (2 pieces)
8. 100 mm castor without stopper (2 pieces)
9. 21“ cone drivers
Figure 2.1 - Overview
2
2
2
7
8
9
3
6
4
4
1
1
5
9

Operation manual BSX
8
2.2 Operation modes
The BSX loudspeaker can be operated in two operation modes. The operation mode is selec-
ted by choosing the preset in the system amplifier.
2.2.1 Full
In full mode, the BSX has a higher upper cutoff frequency. This mode is recommended for
operating the BSX with tops only.
2.2.2 Infra
Infra operating mode is recommended when using the BSX loudspeaker in a system with addi-
tional subwoofers. In this mode, the lower cutoff frequency results in a bass range extension.

Operation manual BSX
9
3. Technical specifications
3.1 Data sheet
Drivers 2x 21“ LF
Frequency response 27 - 120 Hz
Power handling (program/Peak) 2x 3600 / 2x 7200 W
Impedance 2x 4 Ω
Max. SPL / 1 m 142 dB
Dimensions (h x w x d) 606 x 1406 x 900 mm [23,86 x 55,35 x 35,43 in]
Weight 109 kg [240,3 lbs]
Surface Polyurea surface finish
3.2 Connection diagram
Figure 3.2 - Connection diagram
PIN 1+
PIN 1-
PIN 2+
PIN 2-
parallel
PIN 1+
PIN 1-
PIN 2+
PIN 2-
LF 21"
LF 21"
S1
S2
4 OHM
4 OHM
+
+
-
-

Operation manual BSX
10
4.1 Setup
The BSX loudspeaker is designed for standing, vertikal and horizontal operation.
Make sure the speakers are securely fastened to prevent personal injury and property damage.
WARNING
4. Commissioning
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
WARNING

Operation manual BSX
11
4.2 Operation
Operation of the BSX speaker requires a DSP-Controller. For this purpose, only presets
developed by TW AUDiO are recommended. The TWAUDiO system racks are ideally suited
for this purpose.
Make sure that the amplifier’s specifications meet the requirements. Using an amplifier that
doesn’t meet the specifications can destroy the loudspeaker.
Please note the technical data in section 3.1 on page 9.
NOTE
Before connecting the loudspeaker to the amplifier, ensure that the right preset has been
loaded.
Using the wrong preset or a preset not provided by TWAUDiO preset can destroy the speaker.
NOTE

Operation manual BSX
12
4.3 Connecting the cable
To create a cable connection with an amplifier rack from TW AUDiO, proceed as follows.
Ensure that the cable cross sectional area is sufficient (at least 1.5 mm²) to avoid power losses.
TW AUDiO recommends using the loudspeaker cables available from TW AUDiO.
When connecting the cables to the loudspeaker, ensure that polarity (+/-) and pin assignment
(1/2) are correct. Incorrect connection can lead to a significant change in the loudspeaker’s
sound characteristics and may damage the driver.
The pin connections of the BSX loudspeaker can be found in section 3.2 (“Connection dia-
gram”) on page 9.
The internal wiring of the BSX loudspeaker allows for parallel connection of multiple loudspe-
aker units.
Please note that parallel connections will decrease the total impedance of your loudspeaker
configuration.
The total impedance and the resulting power of the speaker configuration must match the
output power of the amplifier.
NOTE

Operation manual BSX
13
5. Transport and Storage
To transport the unit with a single person, TWAUDiO recommends the storage on the back
rollers.
When transporting and storing the unit, it is important to ensure that the surface and front
grill of the loudspeaker are not damaged. Moisture can penetrate through exposed wood
surfaces and cause the wood to swell. A bent or broken front grill will no longer adequately
protect the sensitive speaker membranes.
In addition, appreciable dust deposits may considerably impair the functionality of a loudspe-
aker membrane. For this reason, the loudspeakers should be transported and stored in a
safe, careful, dry and largely dust-free manner.
The following accessory parts for transport and storage are available from TW AUDiO:
• FDBSX (front cover)
• CoverBSX (protective cover)
The original packaging is unsuitable as permanent storage and transport packaging.
NOTE
Due to the BSX loudspeaker weighing over 100 kg [220.46lbs.], four persons are required to
handle and transport the unit.

Operation manual BSX
14
Copy and translation of the original CE Conformity Declaration:
We hereby declare that the below-referenced components by virtue of their design and
construction, and in the configuration placed on the market by us, satisfy the safety and
health requirements of the applicable EC directives. This declaration becomes invalid in
case of modifications that have not been approved by us.
This declaration applies to the following components
• BSX
as well as all model variants based on these, provided that they correspond to the original
factory models and have not been technically modified in any way.
Applicable directives:
• 2001/95/EG
• 2011/65/EU
Applicable national standards and technical specifications:
• DIN EN 18 800
• DIN EN ISO 12 100
• BGV C1 / BGI 810-3
• EN 50581: 2013-02
Ludwigburg, Germany, April 1st, 2014
Tobias Wüstner
6. CE Conformity Declaration

Operation manual BSX
15
It is prohibited to dispose of used electrical equipment with household refuse.
All TW AUDiO GmbH products are so-called B2B-products. This means that they are sold by
a commercial business to a commercial business. TW AUDiO products that bear the trash
can symbol shown here may only be disposed of by TWAUDiO.
The loudspeaker owner is legally responsible for proper disposal of used devices that do not
bear this symbol. This pertains to all products delivered prior to March 29, 2010. Nevertheless,
TW AUDiO will also be happy to assist you in this case.
If you have any question regarding the disposal of used devices, please contact us under the
following telephone number:
+49 (0) 71 41 - 48 89 89 0
Thus, TW AUDiO is in strict compliance with the Waste Electrical and Electronic Equipment
Directive (2012/19/EU) for the protection of our environment.
TW AUDiO is registered under the following WEEE-reg.-no. with the German National Register
EAR as a B2B-manufacturer and distributor of electrical devices:
DE54488702
In countries outside of the European Union, comply with local regulations.
7. Disposal

Operation manual BSX
16
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: [email protected]
WWW: www.twaudio.de
