Operation manual VERA S30

Operation manual VERA S30
2
Introduction
Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO.
The VERA S30 subwoofer has integrated rigging tracks on all four sides allowing you to build
flown columns of upright or sideways positioned VERAS30s, and directional dispersion
arrays with individual subs reversed by 180degree can also be realized. Its first-class ratio of
volume-weight to output is what makes the VERA S30 the standard sub for our VERA-SYS-
ONE and VERA-SYS-TWO systems.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TWAUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
TIP
CAUTION
WARNING
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
WARNING

Operation manual VERA S30
3
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the
VERA S30 loudspeaker.
General information
Operation manual: OM-VERA S30
Version 1.2 en, 02/2019
© by TW AUDiO 2019; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: [email protected]
WWW: www.twaudio.de

Operation manual VERA S30
4
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
3. Technical specifications .................................................................................................. 8
3.1 Data sheet............................................................................................................... 8
3.2 Connection diagram ................................................................................................ 8
4. Commissioning............................................................................................................... 9
4.1 Setup ...................................................................................................................... 9
4.2 M20 pole mount flange............................................................................................ 9
4.3 Rigging.................................................................................................................. 12
4.3.1 Setup of flown VERA S30 with CBH30, in vertical orientation ............................ 12
4.3.2 Setup of flown VERA S30 with CBQ30, in horizontal orientation ........................ 13
4.4 Operation .............................................................................................................. 14
4.5 Connecting the cable............................................................................................. 14
5. Transport and Storage.................................................................................................. 15
6. CE Conformity Declaration............................................................................................ 16
7. Disposal ....................................................................................................................... 17

Operation manual VERA S30
5
1. Safety | Intended use
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
The VERA S30 loudspeaker was developed for use in professional sound systems. The
loudspeaker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TW AUDiO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permit-
ted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.
When working with heavy loads exceeding 20 kg (44 lbs.), use suitable aids (dollies, hoisting
slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
WARNING
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• Direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres-
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90dBSPL can lead to long-term hearing impairment.
WARNING
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.
WARNING
NOTE
NOTE

Operation manual VERA S30
6
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over-
loads may cause a fire and result in serious personal injury and property damage.
WARNING
Note that TW AUDiO does not provide a warranty for damage that can be attributed to this
type of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TWAUDiO.
NOTE
NOTE

Operation manual VERA S30
7
2. Overview
2.1 Components
1. 15 mm multiplex enclosure – polyurea surface finish
2. M20 pole mount flange for attaching a distance rod
3. Rigging plate for attaching accessory parts
4. Milling for rubberfeet for safely stacking loudspeakers
5. Dolly latch base to attach the TW AUDiO B30 front dolly
6. Rubber feet (8 pieces)
7. 15“ cone drivers
8. Standard connection panel
9. Type label
10. Carrying handle (rear, top and bottom, left and right)
11. Ergonomic carrying handle (top and bottom, left and right)
Figure 2.1 - Overview
2
3
4
1 2 3 4 6 11
7 6 109
5 8

Operation manual VERA S30
8
3. Technical specifications
3.1 Data sheet
Drivers 2x 15“ LF
Frequency response 35 - 200 Hz
Power handling (program/Peak) 2000 / 4000 W
Impedance 8 Ω
Max. SPL / 1 m 133 dB
Dimensions (h x w x d) 706 x 446 x 800 mm [27.80 x 17.56 x 31.50in]
Weight 42 kg [92 lbs]
Surface Polyurea-coated
3.2 Connection diagram
Figure 3.2 - Connection diagram
LF 15"
LF 15"
PIN 1+
PIN 1-
PIN 2+
PIN 2-
parallel
PIN 1+
PIN 1-
PIN 2+
PIN 2-
POL.REV.
POL.REV.

Operation manual VERA S30
9
4.1 Setup
The VERA S30 loudspeaker is designed for hanging and standing, vertical and horizontal ope-
ration.
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.
NOTE
Make sure the speakers are securely fastened to prevent personal injury and property damage.
WARNING
4. Commissioning
4.2 M20 pole mount flange
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
WARNING
For all system components mounted on top of the M20 pole mount flange, observe the res-
pective operating instructions!
Also be sure to observe all of the following warnings:
Make sure that the maximum load of 50kg / 110lbs for the M20 pole mount flange is not
exceeded! See figure 2.1 – Item 10.
WARNING
Make sure that no unauthorized persons can access the system structures!
Cordon off the area professionally!
WARNING
Please note that the M20 pole mount flange is not designed for side loads! See figure 2.1 –
Item 10.
Make sure that no external forces are applied to the system structures. No objects or persons
should lean against the structures, no objects such as balls should be thrown against them.
WARNING

Operation manual VERA S30
10
Before setting up the system outdoors, consider unexpected wind conditions at the opera-
tion site!
Disassemble your system immediately when wind speeds exceed 8 bft (34 to 40kn / 62 to
74 kph / 38.5 to 46mph) and secure the system components!
Make sure that there are no persons in the immediate vicinity of the system structure!
WARNING
Figure 4.2.1 - system setup VERAS30

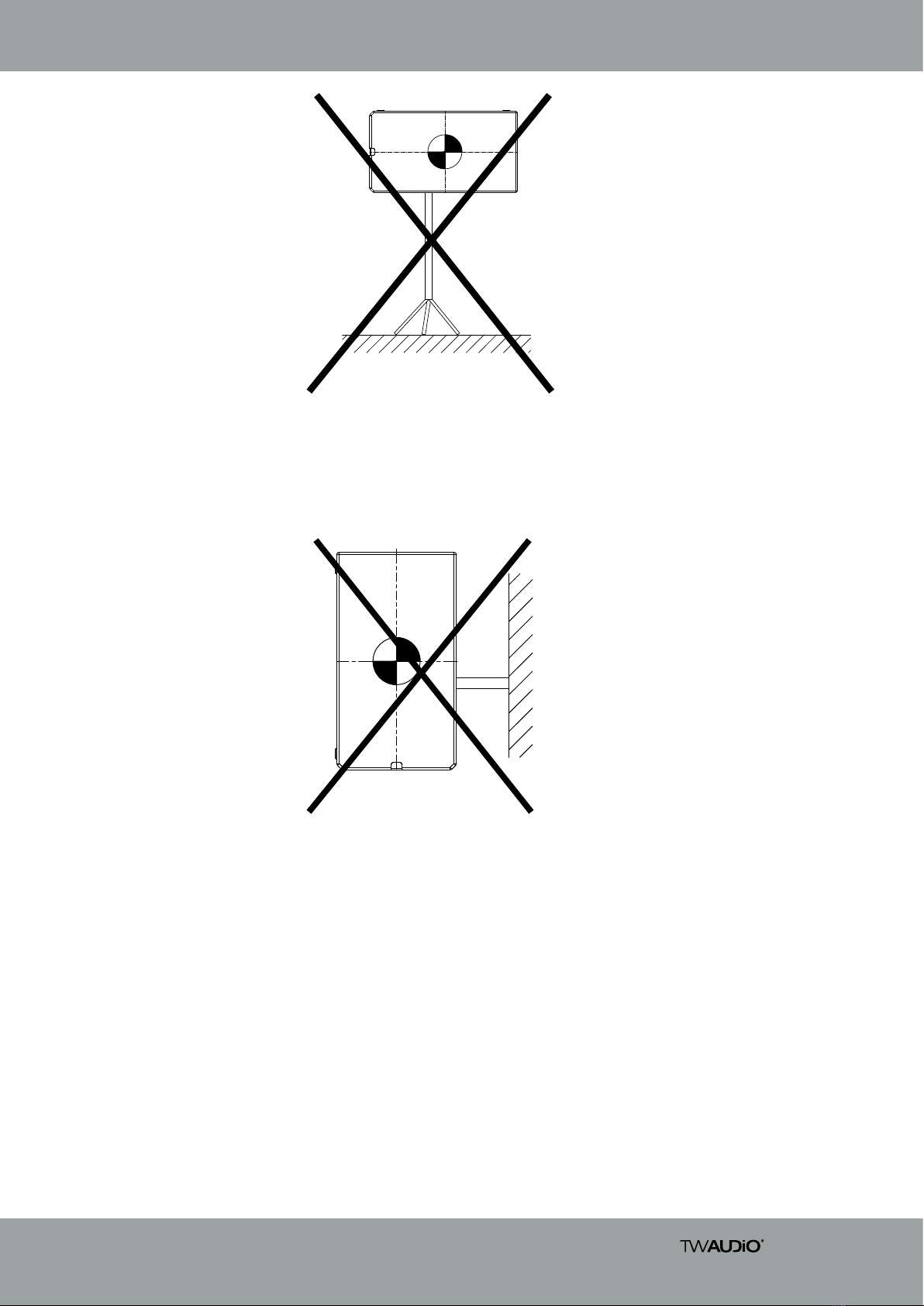

Please note that only centered loads should be placed on the M20 pole mount flange – see
figure 2.1 – Item 10.
WARNING
Make sure that the system structures are not operated over the audience at wind speeds in
excess of 6 bft (22 to 27kn / 39 to 49kph / 24.2 to 30.45mph) and that there are no persons
in the immediate vicinity of the system structure!
WARNING
