TW Audio T30i User manual

T30i Operation manual

2
Operation manual T30i
Introduction
The T30i is a full range installation loudspeaker equipped with two 15” long excursion chas-
sis for the low-mid range and a 1.4” compression driver placed in between for the mid-high
range.
The user has the possibility of covering the entire frequency range with just one loudspea-
ker: Whether in multi-purpose venues, sports halls, churches, theatres or clubs as a power
DJ monitor, wherever it is not possible or necessary to place an additional subwoofer but the
importance is a natural, punchy, clear musical reproduction and outstanding speech intelligi-
bility, that‘s where the T30i finds its place.
The mid-high range is reproduced from 700Hz with a newly developed compression driver
which is coupled to a large-scale 90° × 50° constant directivity horn. This results in a precise
and dynamic voice and musical reproduction at already low volume.
As the T30i is compatible with all TW AUDiO subwoofers, those can also be used for more
sub bass.
Instructions in this user manual
CAUTION
WARNING
WARNING
Thank you for choosing a high-quality product “MADE IN GERMANY” from the brand
TW AUDiO.
If you lend your product to another party, inform that party of the safety-related operating pro-
cedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.

3
Operation manual T30i
NOTE
TIP
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the T30i loudspe-
aker.
General information
Operation manual: OM-T30i
Version 2.0 en, 01/2022
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TWAUDiO products on the basis of practical experience.
© by TWAMBO 2022; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TWAMBO.
TWAMBO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TWAMBO reserves the right to update this document based on recent developments.
TWAMBO GmbH
Karl-Hofer-Str. 42
14163 Berlin
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: [email protected]
WWW: www.twaudio.de

4
Operation manual T30i
Content
1. Safety | Intended use...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
3. Technical specifications .................................................................................................. 8
3.1 Data sheet............................................................................................................... 8
3.2 Connection diagram ................................................................................................ 8
4. Commissioning............................................................................................................... 9
4.1 Setup ...................................................................................................................... 9
4.2 M10 threaded inserts............................................................................................... 9
4.3 Rotating the HF horn ............................................................................................. 10
4.4 Connection options ............................................................................................... 10
4.5 Operation .............................................................................................................. 11
4.6 Connecting the cable............................................................................................. 11
5. Transport and Storage.................................................................................................. 12
6. CE Conformity Declaration............................................................................................ 12
7. Disposal ....................................................................................................................... 13

5
Operation manual T30i
1. Safety | Intended use
The T30i loudspeaker was developed for use in professional sound systems. The loudspea-
ker may only be used by trained and qualified personnel.
WARNING
WARNING
WARNING
NOTE
NOTE
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
Note the operating modes described in this operating manual. Other uses are not permis-
sible.
Damage caused by improper use is not covered by TWAMBO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permit-
ted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.
When working with heavy loads exceeding 20 kg (44 lbs.), use suitable aids (dollies, hoisting
slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• Direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres-
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90dBSPL can lead to long-term hearing impairment.
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.

6
Operation manual T30i
WARNING
NOTE
NOTE
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal over-
loads may cause a fire and result in serious personal injury and property damage.
Note that TWAMBO does not provide a warranty for damage that can be attributed to this type
of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TWAUDiO.

7
Operation manual T30i

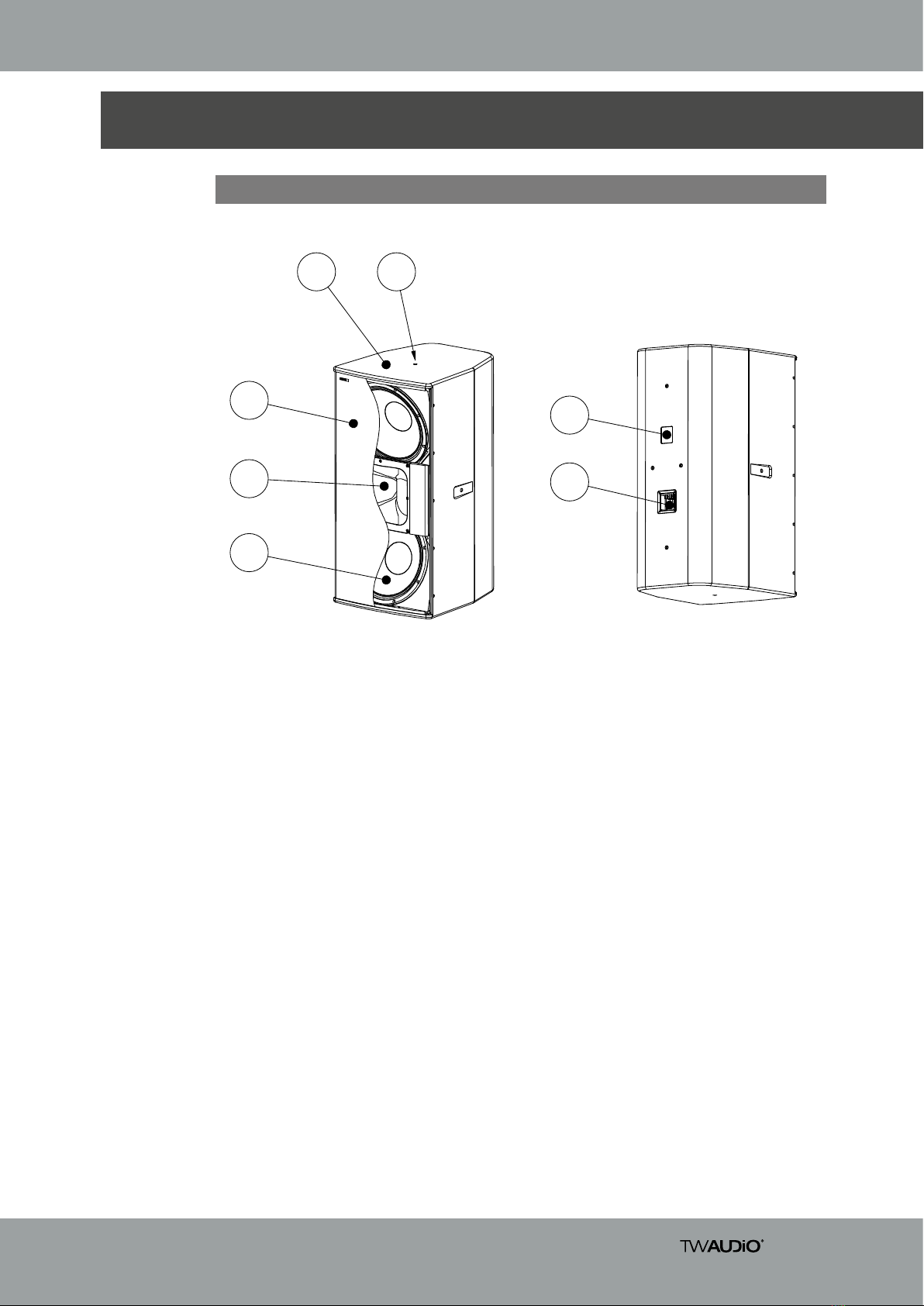

2. Overview
2.1 Components
1. 15“ cone driver
2. Rotatable horn with 1,4“ compression driver
3. Front grill
4. 18 mm Multiplex enclosure - Warnex textured paint surface
5. M10 threaded insert for attaching accessories (8 pieces)
6. Type label
7. Standard i-series screw terminal
Figure 2.1 - Overview
1
2
3
4 5
7
6

8
Operation manual T30i
white
blue
red black
3. Technical specifications
3.1 Data sheet
Drivers 2x 15“ LF / 1x 1,4“ HF
Frequency response 34 - 20000 Hz
Power handling (program/Peak) 4000 / 8000 W LF
160 / 320 W HF
Impedance 4 Ω LF
8 Ω HF
Coverage (h x v) 90° x 50°
Max. SPL / 1m 132 dB
Dimensions (h x w x d) 1000 x 500 x 600 mm [39.37 x 19.69 x 23.62 in]
Weight 58,0 kg [127.9 lbs]
Surface Warnex textured paint
3.2 Connection diagram
Figure 3.2 - Connection diagram

9
Operation manual T30i
4.1 Setup
The T30i loudspeaker is designed for hanging, vertical and horizontal operation. TW AUDiO
provides a wide range of accessories to securely attach the loudspeaker.
NOTE
WARNING
4. Commissioning
WARNING
4.2 M10 threaded inserts
Before fitting the accessories follow the subsequent steps:
4. For the T30i loudspeaker M10 threaded inserts, various TWAUDiO accessories can be
mounted. For each product refer to the instructions. (If you have further questions, please
contact TW AUDiO Support.)
5. Note that the load capacity is limited to a single speaker.
3. Please note that once the countersunk screws are removed, water and moisture may
enter into the enclosure.
1. To remove the countersunk screws remove the texture paint by using a cutter knife. Avoid
damaging the surrounding paint to prevent chipping.
2. Remove for your application required countersunk screws. Use a hexalobular key with the
size of TX50.
NOTE
WARNING
Make sure that all system structures are located on a firm, level surface and that the surface
can bear the total weight!
Make sure the speakers are securely fastened to prevent personal injury and property damage.
Secure stacked loudspeakers properly so that they can be tipped by 10° in any direction
without toppling.
TW AUDiO recommends using only the accessories specified by TWAUDiO for securing and
mounting loudspeakers.

10
Operation manual T30i
4.4 Connection options
The T30i loudspeaker is equipped as standard with the i-series screw terminal.
NOTE
NOTE
4.3 Rotating the HF horn
With the factory default orientation of the T30i loudspeaker horn, the horizontal coverage is
90° and the vertical coverage is 50°. In some situations, it may be advantageous to change
the high frequency dispersion pattern. To adjust the dispersion pattern, the T30i loudspeaker’s
HF horn can be rotated. Proceed as follows:
1. Place the T30i loudspeaker on its back, with the speaker grill facing up. Make sure to place
the speaker on a clean, non-slippery surface.
2. To remove the front grill, a hexalobular key with the size of TX25 is required. Remove all
front grill mounting screws from the side of the loudspeaker (10 pieces). Lift the front grill
of the loudspeaker away. Secure the speaker against lifting and slipping if necessary with
a second person.
3. Loosen the twelve screws on the horn using a hexalobular key with the size of TX30. Pull
the horn with the compression driver up and out of the speaker cabinet.
4. Check the seal between housing and horn for correct fit.
5. Carefully turn the horn by 90° and re-insert the horn with the driver back into the recess.
Screw it to the housing and apply medium-strength thread-locking fluid.
6. Attach the grill using the screws provided.
As options there can be mounted a panel with cable gland (CG-option) or a panel with two
built-in speakON® jacks (SO-option).
Furthermore, a blind cover option is available.
All connection options are only available in black colour.
More information about the different connection options can be found in the respective opera-
ting instructions in the download area on the homepage of TWAMBO.
