Twin-Star International DFH-CH-11-T User manual

ATTENTION
IF YOU HAVE ANY PROBLEMS OR QUESTIONS, EMAIL
OR CALL CUSTOMER SERVICE BEFORE YOU RETURN
THIS PRODUCT TO THE STORE WHERE IT WAS PURCHASED.
For Customer Service: www.twinstarhome.com
in English Call: 800-318-9373
in Spanish Call: 800-318-9374
in French Call: 800-318-9374
ATENCIÓN
SI TIENE ALGÚN PROBLEMA O PREGUNTAS,
ENVÍE UN MENSAJE DE CORREO ELECTRÓNICO O LLAME AL SERVICIO
DE ATENCIÓN AL CLIENTE ANTES DE DEVOLVER
ESTE PRODUCTO A LA TIENDA EN LA QUE LO COMPRÓ.
Servicio de atención al cliente: www.twinstarhome.com
Línea para llamadas en inglés: 800-318-9373
Línea para llamadas en español: 800-318-9374
Línea para llamadas en francés: 800-318-9374
STOP STOP
PARE PARE
ATTENTION
SI VOUS AVEZ DES PROBLÈMES OU DES QUESTIONS,
ENVOYEZ UN COURRIEL AU SERVICE À LA CLIENTÈLE OU APPELEZ LE
SERVICE À LA CLIENTÈLE AVANT DE RETOURNER
CE PRODUIT OÙ VOUS L’AVEZ ACHETÉ.
Pour le service à la clientèle : www.twinstarhome.com
pour le service en anglais, appelez au: 800-318-9373
pour le service en espagnol, appelez au: 800-318-9374
pour le service en français, appelez au: 800-318-9374
ARRÊT ARRÊT
INSTRUCTION MANUAL ENCLOSED
MANUEL D’INSTRUCTION À L’INTÉRIEUR
MANUAL DE INSTRUCCIONES ADJUNTO
INSTRUCTION MANUAL ENCLOSED
MANUEL D’INSTRUCTION À L’INTÉRIEUR
MANUAL DE INSTRUCCIONES ADJUNTO

1500W Oil-Filled Heater
Homeowners Operating Manual
Model #: DFH-CH-11-T
E-1
CONSUMER SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USE.
FOR HOUSEHOLD USE ONLY.
WARNING
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN
ELECTRIC SHOCK OR FIRE MAY RESULT CAUSING PROPERTY DAMAGE,
PERSONAL INJURY OR LOSS OF LIFE.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
CONSUMER SAFETY INFORMATION
Whenever used, the following items identify safety and property damage messages
and designate a level of hazard seriousness.
- This is the safety alert symbol. It alerts you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
DANGER - Indicates an imminently hazardous situation, which, if not avoided, will
result in death or serious injury. Usage of this signal word is limited to the most
extreme situations.
WARNING - Indicates a potentially hazardous situation, which, if not avoided, could
result in death or serious injury.
CAUTION - Indicates a potentially hazardous situation, which, if not avoided, may
result in minor/moderate injury or product/property damage. It also alerts against
unsafe practices.
NOTICE - Addresses practices not related to personal injury, such as product and/or
property damage.
Made in China
Printed in China
©2012,Twin-Star International,Inc.
www.twinstarhome.com
In English Call: 800-318-9373
In Spanish Call: 800-318-9374
For Customer Service:
Twin-Star International, Inc.
Delray Beach, FL 33445
Made in China • Printed in China

E-2
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to
reduce the risk of re, electrical shock, and injury to persons including the following:
READ ALL INSTRUCTIONS BEFORE USE.
1. Keep the product out of the reach of children and pets. This product is not intended
for use by children. Extreme caution is necessary when any heater is used near
children or the physically challenged and whenever the heater is left operating and
unattended.
2. Do not let bare skin touch hot surfaces, as heater is hot! To avoid burns, use the
handle when moving this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9m) from all sides
of the heater.
3. Always unplug the heater when not in use.
4. Do not use this product in bathrooms, laundry areas, or similar damp/wet indoor
locations. Do not place the product where it may fall into a bathtub or other water
container.
5. Do not run the power cord under carpeting or cover it with throw rugs, runners, or
similar coverings. Arrange the cord away from trafc areas where it will not be
tripped over.
6. To disconnect the product from an electrical outlet, turn any controls to the Off
position, and then pull directly on the plug to remove it from the outlet; do not pull on
the power cord.
7. Do not insert or allow foreign objects to enter any ventilation or exhaust opening of
the product as this may cause electric shock or re, or damage the heater.
8. Do not block air intakes or exhaust, as this may cause a risk of re. Do not use the
product on soft surfaces, such as a bed, where openings may become blocked.
9. Do not use this product in an area where gasoline, paint, or ammable liquids are
used or stored, as this product has hot and arcing or sparking parts inside.
10. Do not place the product near a bed because objects, such as pillows or blankets,
can fall off and be ignited by the product.
11. Use this product only as described in this manual. Any other use not recommended
by the manufacturer may cause re, electric shock, or injury to persons.
12. Do not immerse or expose the power cord, plug, or product to water or other liquids.
If the product falls into water, immediately unplug it from the electrical outlet; do not
touch or reach into the water. If water or other liquids reach any internal areas of this
product, permanently discontinue its use.
13. Ensure the product is unplugged from the electrical outlet and allowed to cool before
relocating or cleaning it.
14. Use the heater in a vertical position only.
15. Do not place the product in or near an open window. Rain, snow, or other weather
elements could cause electrical short-circuiting in the product.
16. Do not use outdoors.
17. To disconnect heater, turn controls to the off position, then remove plug from outlet.
18. Do not plug into or unplug the product from the electrical outlet with a wet hand.

E-3
19. Do not operate this product if it has a damaged power cord or plug, if it malfunctions,
or if it has been dropped or damaged. This product has no user-serviceable
parts. Do not attempt to examine or repair this product yourself. Only qualied
service personnel should perform any servicing; take the product to an appliance
repair shop of your choice for inspection and repair.
20. This appliance is not intended for use by persons (included children) with reduced
physical, sensory or mental capability, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
21. Children should be supervised to ensure that they do not play with the appliance.
22. This product is intended solely for indoor, non-commercial, non-industrial use in
temporarily heating rooms. Do not use this product outdoors.
23. Do not operate the product continuously. Portable electric heaters are designed for
nite space heating or as a supplementary heat source. They are not intended to be
main sources of heat during the normal heating season.
24. Do not hang or wall-mount the product.
25. Place the product upright on a at, level, stable, heat-resistant surface.
WARNING: This product is equipped with a polarized plug (one blade is wider than
the other blade). To reduce the risk of electrical shock, this plug will t into a polarized
outlet only one way. This is a safety feature. If you are unable to insert the plug into the
electrical outlet, try reversing the plug. If the plug still does not t, contact a qualied
electrician. Always plug heaters directly into a wall outlet/ receptacle. Never use with an
extension cord or relocatable power tap (outlet/ power strip).
SAVE THESE INSTRUCTIONS
Figure A

E-4

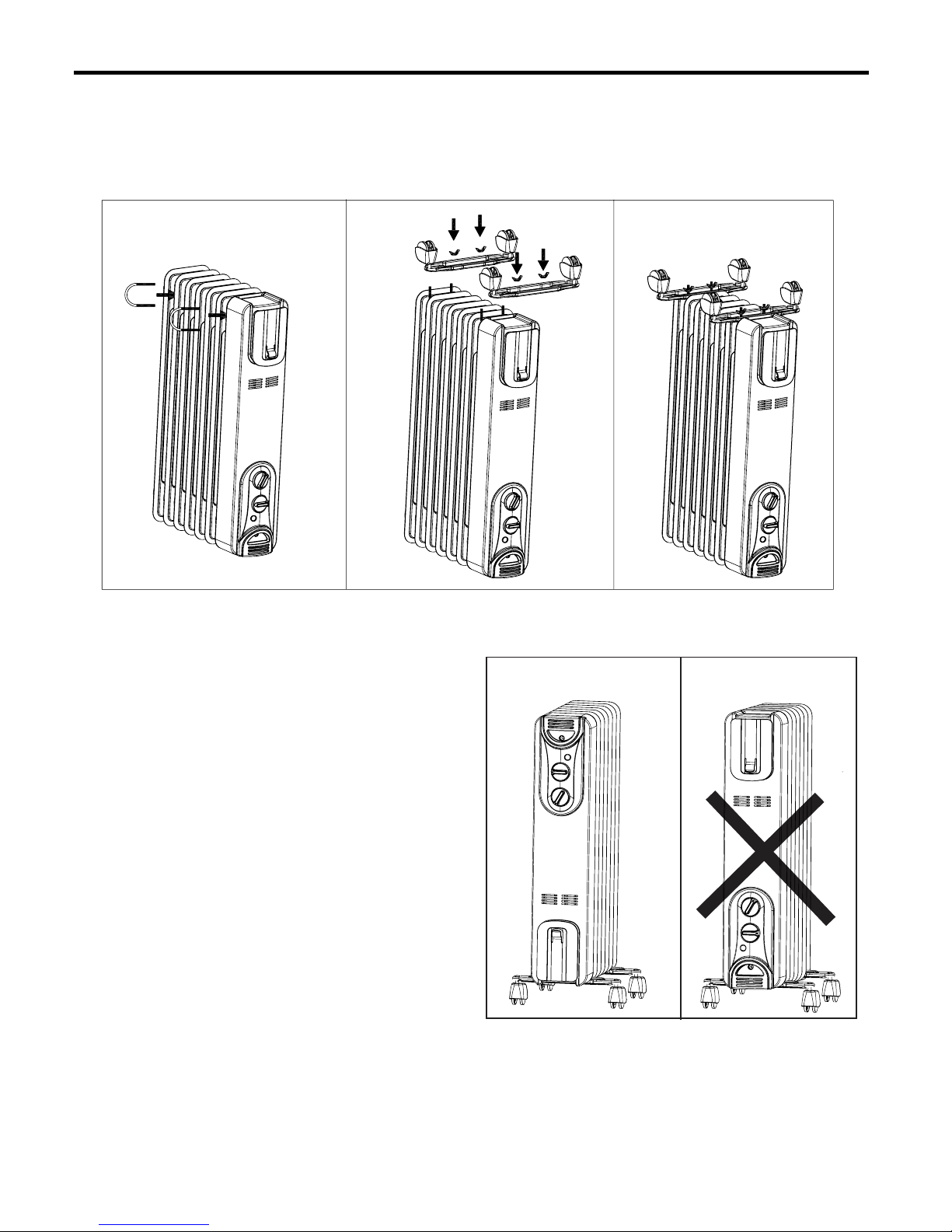

INSTALLATION INSTRUCTIONS
NOTE: It is normal for the oil to move inside the radiator when moving the product.
1. Place the product upside down on a at, stable surface, ensuring it will not tip over.
2. Remove the Wing Nuts from the U-Bolts.
3. Place a U-Bolt between the last and
second-to-last Fin of the product,
align the center holes in the rounded
side of the Caster Bracket with the
U-Bolt, and then tightly secure using
the Wing Nuts (Figures 1-3).
NOTICE: Do not over-tighten the Wing
Nuts.
4. Repeat Step 3 for the remaining
U-Bolt/Caster Bracket between the
rst and second Fin, ensuring the
holes in the side of the Bracket align
with the protruding Bolts of the
product.
5. Set the product upright and wait at
least three minutes for the oil to
settle before turning on.
1
23
Correct Incorrect

E-5
PRODUCT ORIENTATION
Figure B
PRODUCT SPECIFICATION
Voltage Frequency Wattage (Max) Max. Amperage
120 V~ 60 Hz 1500W 12.5 A
Note: Tolerances on all specication: +5%, -10%
Carry Handle
Power Indicator
Thermostat
Control Knob
Main
Control Knob
Plug and
cord storage
Caster

OPERATION INSTRUCTIONS
WARNING: Do not operate the product until fully assembled (including Casters).
1. Place the product upright on a at, level, stable, heat-resistant surface, and then
uncoil the Power Cord, removing it completely from the Cord Storage Spool.The
power indicator will illuminate after plugged.
WARNING: Operate the product in an upright position only.
2. Turn the Thermostat Control Knob clockwise to its maximum range (Figure B).
3. Main Control Knob: Use this knob to set the heat setting (Figure B):
"I" – Low Heat Setting (600 Watts)
"II" – Medium Heat Setting (900 Watts)
"III" - High Heat Setting (1500 Watts)
4. When the desired ambient temperature is reached, slowly turn the Thermostat Knob
back toward MIN until it clicks. The product will cycle on and off to maintain that
setting.
NOTE: The product may emit an odor during rst use; this is normal. Ventilate the
area as needed.
5. Turn off the product by rotating the Main Control Knob to the "O" position, and
then unplug the product from the electrical outlet.
WARNING: Always unplug the product when it will be left unattended or not in use.
Safety Protection Systems
This product has protection safeguards that shut off the product when parts become
excessively hot or if it tips over. If the product shuts off, immediately turn the Control to
the "O" position and unplug it from the electric outlet.
If tipped over:
Place the product on a at, level, stable surface in order to prevent the product from
tipping over again.
TIP: Always install and maintain at least one smoke detector in good operating
condition on each oor of your home. Periodically check and/or replace the battery in
your smoke detector with a new battery.
E-6

E-7
CARE AND MAINTENANCE
WARNING: Do not attempt to disassemble this product for any reason, as incorrect
re-assembly could cause a risk of re or electric shock. Only qualied service personnel
should perform any servicing.
WARNING: Always unplug the product from the electrical outlet and allow it to cool
before cleaning or storing it.
NOTICE: This product is permanently lubricated at the factory before shipping and will
not require further lubrication for the life of the product.
Clean only the exterior surface by wiping with a soft, damp cloth, and allow the product
to dry completely before storing or using. Dust can be removed from any vents using a
small vacuum.
WARNING: Do not allow water or other liquids to enter the interior of the product.
NOTICE: Do not use abrasive cleaners/pads to clean the product.
To store, wind and secure the power cord using a twist tie or rubber band, and then
place the product in a cool, dry location.

1-YEAR LIMITED WARRANTY
The manufacturer warrants that your new Electric heater is free from manufacturing and
material defects for a period of one year from date of purchase, subject to the following
conditions and limitations.
1. Install and operate this Electric heater in accordance with the installation and
operating instructions furnished with the product at all times. Any unauthorized repair,
alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that
the purchase was made through an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in
material or workmanship, provided that such part(s) have been subjected to normal
conditions of use and service, after said defect is conrmed by the manufacturer’s
inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to
this warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses
arising from defective part(s), repair, replacement, or otherwise of same, will not be
covered by this warranty, or shall the manufacturer assume responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect
or consequential loss or damage arising out of the use, or inability to use the product,
except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its
components and accessories, or any obligations/liabilities on the part of the
manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its
behalf, any other liabilities with respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non accessories
used in conjunction with the installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights
which vary from state to state.
This warranty is void if:
a. The heater is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
IF WARRANTY SERVICE IS NEEDED
Contact the manufacturer by calling customer service department at 1-800-318-9373,
9 a.m.-5 p.m., EST, Monday-Friday. Make sure you have your warranty, your sales
receipt, location of purchase and the model/serial number of your product.
E-8

Calentador de Aceite de 1500W
MANUAL DE OPERACIÓN DEL PROPIETARIO
MODELO# : DFH-CH-11-T
Impreso en China
Fabricado en China
©2012,Twin-Star International,Inc.
INFORMACIÓN SOBRE SEGURIDAD PARA ELCONSUMIDOR
LEA TODAS LAS INSTRUCCIONES ANTES DE UTILIZAR EL PRODUCTO.
PARA USO DOMÉSTICO ÚNICAMENTE.
ADVERTENCIA
EN CASO DE NO SEGUIR LA INFORMACIÓN EN ESTE MANUAL
CON EXACTITUD, PODRÍAN PROVOCARSE DESCARGA ELÉCTRICA
O INCENDIO Y DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O
LA PÉRDIDA DE LA VIDA.
NO GUARDE NI USE GASOLINA NI OTROS VAPORES Y LÍQUIDOS
INFLAMABLES CERCA DE ESTE APARATO, NI DE CUALQUIER OTRO.
INFORMACIÓN SOBRE SEGURIDAD PARA ELCONSUMIDOR
Los siguientes elementos, siempre que se utilizan, identican mensajes de seguridad
y daños a la propiedad, y designan un nivel de gravedad de riesgo.
- Éste es el símbolo de una alerta de seguridad. Se usa para prevenir al operario
de las lesiones corporales que podría sufrir. Siga todas las instrucciones que
acompañan este símbolo para evitar posibles lesiones o la muerte.
PELIGRO: Indica una situación de peligro inminente que, si no se evita, provocará la
muerte o lesiones graves. El uso de esta palabra de advertencia está limitado a las
situaciones más extremas.
ADVERTENCIA: Indica una situación de peligro potencial que, si no se evita, podría
ocasionar la muerte o lesiones graves.
PRECAUCIÓN: Indica una situación de peligro potencial que, si no se evita, podría
ocasionar lesiones leves o moderadas o daños al producto o a la propiedad.
También, advierte acerca de prácticas que no son seguras.
AVISO: Advierte de la existencia de prácticas que no están relacionadas con lesiones
personales, como por ejemplo, daños al producto y a la propiedad.
S-1
www.twinstarhome.com
Línea para llamadas en inglés: 800-318-9373
Línea para llamadas en español: 800-318-9374
Servicio de atención al cliente:
