TYAN S7067 User manual

http://www.tyan.com
1
S7067
Version 1.0
Copyright
Copyright © 2013 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
Intel®is a trademark of Intel®Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Winbond®is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com
2
About this guide
This user guide contains the information you need when installing and configuring
the motherboard.
How this guide is organized
This guide contains the following parts:
Chapter1: Instruction
This chapter describes the features of the motherboard and the new technology it
supports.
Chapter2: Board Installation
This chapter lists the hardware setup procedures that you need to abide by when
installing system components. It includes description of the jumpers and connectors
on the motherboard.
Chapter3: BIOS Setup
This chapter tells how to change system settings through the BIOS setup menu.
Detailed descriptions of the BIOS parameters are also provided.
Chapter4: Diagnostics
This chapter introduces some BIOS codes and technical terms to provide better
service for the customers.
Appendix: Fan and Temp Sensors
This section aims to help readers identify the locations of some specific Fan and
Temp Sensors on the motherboard. A table of BIOS Temp sensor name
explanation is also included for readers’ reference.

http://www.tyan.com
3
Contents
Before you begin…....................................................................................4
Chapter 1: Instruction ................................................................................ 5
1.1 Congratulations .................................................................................5
1.2 Hardware Specifications....................................................................5
1.3 Software Specifications.....................................................................9
Chapter 2: Board Installation................................................................... 11
2.1 Board Image....................................................................................12
2.2 Block Diagram.................................................................................14

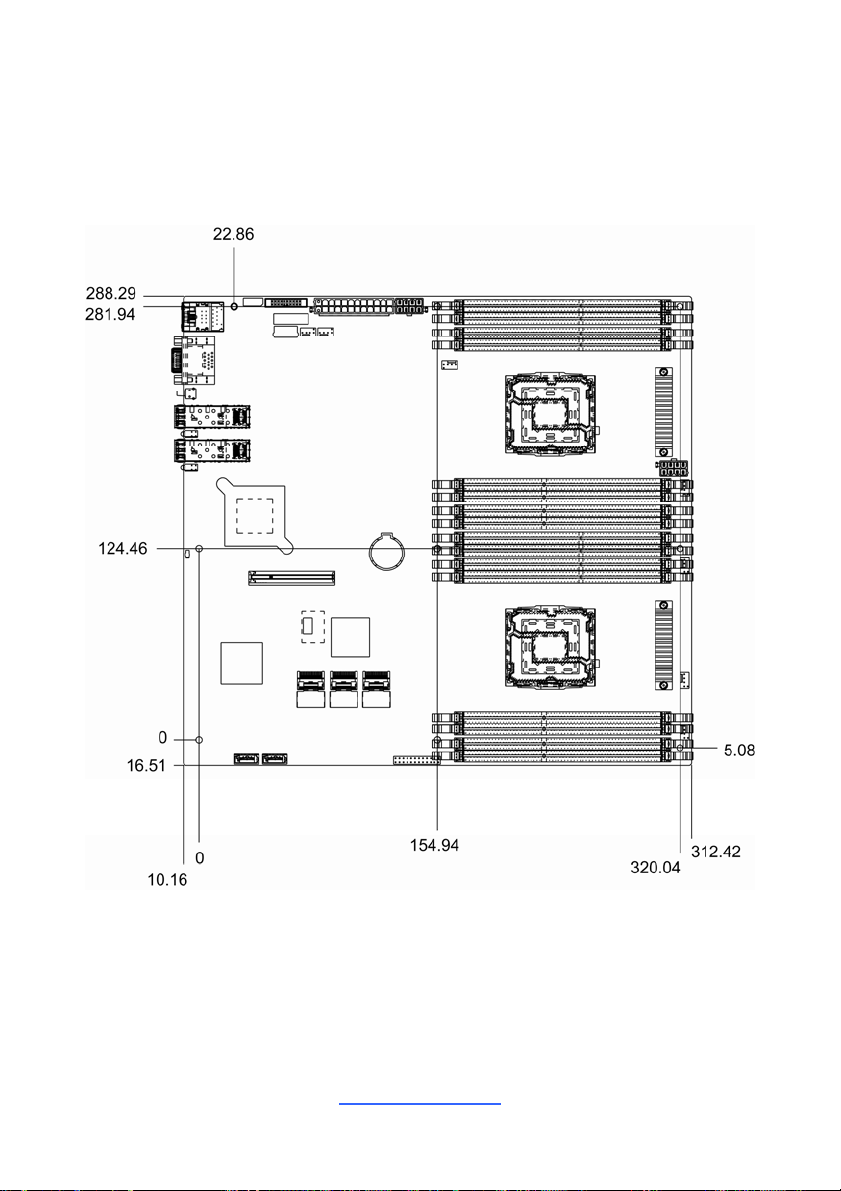

2.3 Mainboard Mechanical Drawing......................................................15
2.4 Board Parts, Jumpers and Connectors...........................................16
2.5 Installing the Processor and Heatsink.............................................26
2.6 Thermal Interface Material ..............................................................30
2.7 Tips on Installing Motherboard in Chassis ......................................31
2.8 Installing the Memory ......................................................................33
2.9 Attaching Drive Cables....................................................................39
2.10 Installing Add-In Cards..................................................................40
2.11 Connecting External Devices ........................................................41
2.12 Installing the Power Supply...........................................................43
2.13 Finishing Up...................................................................................44
Chapter 3: BIOS Setup ............................................................................. 45
3.1 About the BIOS................................................................................45
3.2 Main Menu.......................................................................................47
3.3 Advanced Menu...............................................................................48
3.4 Chipset Menu ..................................................................................75
3.5 Boot .................................................................................................85
3.6 Security............................................................................................89
3.7 Server Management........................................................................94
3.8 Event Logs.......................................................................................97
3.9 Save & Exit......................................................................................98
Chapter 4: Diagnostics........................................................................... 101
4.1 Flash Utility....................................................................................101
4.2 AMIBIOS Post Code (Aptio)..........................................................102
Appendix: Fan and Temp Sensors........................................................109
Glossary................................................................................................... 113
Technical Support ..................................................................................119

http://www.tyan.com
4

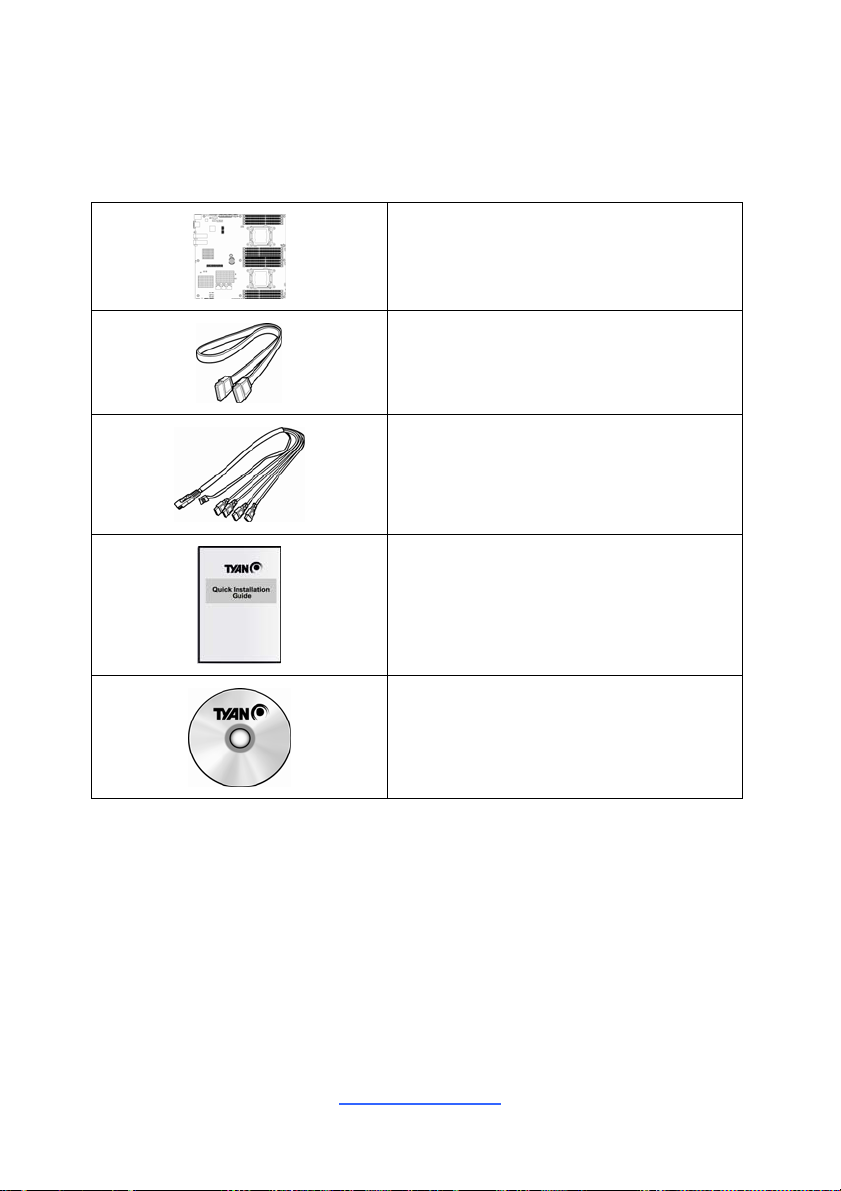

Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1 x S7067 Motherboard
2 x SATA Single Cable
1 x Mini-SAS to SATAx4 Cable
1 x S7067 Quick Installation Guide
1 x TYAN®Driver CD
IMPORTANT NOTE:
Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above items,
please contact your sales representative to help order accessories.

http://www.tyan.com
5
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S7067 motherboard, based on the
Intel®Patsburg (C602) chipset. The S7067 is designed to support dual Intel®
Xeon E5-2600 Series processors, and up to 128GB UDIMM / 256GB RDIMM /
512GB LRDIMM DDR3 memory. Leveraging advanced technology from Intel®,
the S7067 is capable of offering scalable 32 and 64-bit computing, high-
bandwidth memory design, and lightning-fast PCI-E bus implementation.
The S7067 not only empowers you in today’s demanding IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S7067 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can find
all the information on all TYAN®products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
TYAN S7067 (S7067WGM3NR-2T)
Supported CPU
Series Intel Xeon Processor E5-2600 Series
Socket Type / Q'ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage Max up to 130W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
DIMM Type / Speed RDIMM ECC 1600/1333/1066 / UDIMM/LRDIMM ECC
1333/1066
Capacity up to 128GB UDIMM / 256GB RDIMM / 512GB
LRDIMM
Memory channel 4 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
Expansion
Slots PCI-E (1) PCI-E x8 Gen.3 slot
Port Q'ty (2) 10GbE SFP+ + (1) GbE RJ45 shared with IPMI
LAN Controller Intel 82574L / Broadcom BCM57810S

http://www.tyan.com
6
Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller LSI SAS2308
Speed 6.0 Gb/s
SAS
RAID RAID 0/1/1E/10 (LSI Integrated RAID)
Connector (1) Mini-SAS (4-ports) + (2) SATA (totally support 6
ports)
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
USB (5) USB2.0 ports (2 at rear, 2 via cable, 1 type A
onboard)
COM (2) ports (1 at rear, 1 via cable)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port
SFP+ (2) 10GbE ports
Power SSI 24-pin + 8-pin + 8-pin power connectors
Input /Output
SATA (2) SATA-III connectors + (1) Mini-SAS (4-in-1)
connectors
Chipset Aspeed AST2300
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & memory
System
Monitoring
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote
platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension Board Dimension 12"x13" (305x330mm)
Operating OS supported list Please refer to our Intel OS supported list.

http://www.tyan.com
7
System
FCC (DoC) Class A
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S7067 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
Package
Contains
Cable SATA (2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
TYAN S7067 (S7067GM3NR-2T)
Supported CPU
Series Intel Xeon Processor E5-2600 Series
Socket Type / Q'ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage Max up to 130W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
DIMM Type / Speed RDIMM ECC 1600/1333/1066 / UDIMM/LRDIMM ECC
1333/1066
Capacity up to 128GB UDIMM / 256GB RDIMM / 512GB
LRDIMM
Memory channel 4 Channels per CPU
Memory
Memory voltage 1.5V or 1.35V
Expansion
Slots PCI-E (1) PCI-E x8 Gen.3 slot
Port Q'ty (2) 10GbE SFP+ + (1) GbE RJ45 shared with IPMI
LAN Controller Intel 82574L / Broadcom BCM57810S
Connector (1) Mini-SAS (4-ports) + (2) SATA (totally support 6
ports)
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Graphic Connector type D-Sub 15-pin

http://www.tyan.com
8
Chipset Aspeed AST2300
USB (5) USB2.0 ports (2 at rear, 2 via cable, 1 type A
onboard)
COM (2) ports (1 at rear, 1 via cable)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port
SFP+ (2) 10GbE ports
Power SSI 24-pin + 8-pin + 8-pin power connectors
Input /Output
SATA (2) SATA-III connectors + (1) Mini-SAS (4-in-1)
connectors
Chipset Aspeed AST2300
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
Temperature Monitors temperature for CPU & memory
System
Monitoring
LED Fan fail LED indicator / Over temperature warning
indicator / Fan & PSU fail LED indicator
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote
platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature 24-bit high quality video compression / 10/100/1000 Mb/s MAC interface
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension Board Dimension 12"x13" (305x330mm)
Operating
System OS supported list Please refer to our Intel OS supported list.
FCC (DoC) Class A
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S7067 MotherboardPackage
Contains Manual (1) Quick Installation Guide

http://www.tyan.com
9
Cable SATA (2) SATA signal cables
(1) Mini-SAS cable to 4 x SATA cables
1.3 Software Specifications
For the latest OS (operation system) support and IPMI Configuration Guide, please
visit our Web site for information.

http://www.tyan.com
10
NOTE

http://www.tyan.com
11
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
7kgf/cm (6.09 lb/in) on each mounting screw for
motherboard installation.
2. Do not apply power to the board if it has been
damaged.

http://www.tyan.com
12
2.1 Board Image
S7067
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.

http://www.tyan.com
13
NOTE:
The Broadcom BMC57810S has two MAC addresses. One is for 10GbE LAN and
the other is for iSCSI support.

http://www.tyan.com
14
2.2 Block Diagram
S7067 Block Diagram

http://www.tyan.com
15
2.3 Mainboard Mechanical Drawing

http://www.tyan.com
16
2.4 Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. The
DIMM slot numbers shown above can be used as a reference when reviewing the
DIMM population guidelines shown later in the manual. For the latest board
revision, please visit our web site at http://www.tyan.com.

http://www.tyan.com
17
Connectors, Jumpers & Slots
Connectors
1 USB2.0 ports and LAN Port #3 (LAN3,
shared with IPMI port) 19 SAS0~3 (J73)
2 Type-A USB Connector 20 Front Panel Header (J39)
3 COM Port/VGA Port 21 CPU0 Fan Power Connector (J63)
4 ID LED Button 22 SYS_FAN3 (J64)
5 LAN Port #2 (LAN2) 23 SYS_FAN2 (J65)
6 LED For Port #2 24 SYS_FAN1 (J66)
7 LAN Port #1 (LAN1) 25 8-pin Power Connector (PW3)
8 LED For Port #1 26 CPU1 FAN Power Connector (J45)
9 Battery 27 BMC
10 ID_LED 28 BIOS
11 Reset Button (J18) 29 SYS_FAN4 (J19)
12 Power Button (J13) 30 8-pin Power Connector (PW2)
13 USB Front Panel Header (blue, J26) 31 24-pin Power Connector (PW1)
14 Serial ATA Connector (J31) 32 SYS_FAN5 (J20)
15 Serial ATA Connector (J36) 33 PSMI Connector (J34)
16 SATA SGPIO Header (J30) 34 Front Fan Connector (J14)
17 SATA2~5 (J12) 35 IPMB Connector (J29)
18 SAS4~7 (J74) 36 SAS SMB Header (J33)
Headers Slots
aBIOS Recovery Pin Header (J2) ACPU1 DIMM SLOT [Channel A/B]
bClear CMOS Header (J3) BCPU1 DIMM SLOT [Channel C/D]
cChassis Intrusion Header (J4) CCPU0 DIMM SLOT [Channel A/B]
dSPI Write Protect Pin Header (J38) DCPU0 DIMM SLOT [Channel C/D]
e LAN2 LED Pin Header (J44) E PCIE slot (x8)
f Flash Security Override Pin Header
(J68) Jumpers
h ME Recovery Pin Header (J69) g LSI 2308 Enable/Disable Jumper (J75)
i LAN1 LED Pin Header (J5012)
Jumper Legend
OPEN - Jumper OFF Without jumper cover
CLOSED - Jumper ON With jumper cover

http://www.tyan.com
18
J19
J45
J66
J65
J20
J64
J26
J30
J39
J63

http://www.tyan.com
19
J19/J20/J45/J63/J64/J65/J66: 4-Pin FAN Connector
Pin 1 2 3 4
Signal GND +12V Sensor Control
Use this header to connect the cooling fan to your motherboard to keep
the system stable and reliable.
J19: SYS_FAN_4 J20: SYS_FAN_5 J45: CPU1_FAN
J63: CPU0_FAN J64: SYS_FAN_3 J65: SYS_FAN_2
J66: SYS_FAN_1
J26: USB Front Panel Header (blue)
Signal Pin Pin Signal
VCC 1 2 VCC
USBD- 3 4 USBD-
USBD+ 5 6 USBD+
GND 7 8 GND
KEY 9 10 NC
J30: SATA SGPIO Header for BB HD Board
Signal Pin Pin Signal
SMBCLK 1 2 SDATAOUT0
SMBDATA 3 4 SDATAOUT1
GND 5 6 SLOAD
KEY 7 8 SCLOCK
VCC3_AUX 9 10 HDD_FAULT
J39: Front Panel Header
Signal Pin Pin Signal
PWRLED+ 1 2 V3P3_AUX
KEY 3 4 IDLED+
PWRLED- 5 6 IDLED-
HDDLED+ 7 8 SYS_FAULT1-
HDDLED- 9 10 SYS_FAULT2-
PWR_SW# 11 12 LAN1LED+
GND 13 14 LAN1LED-
RESET_SW# 15 16 SMBDATA
GND 17 18 SMBCLK
IDLED_SW# 19 20 INTRUSION#
NC 21 22 LAN2LED+
NMI_SW# 23 24 LAN2LED-

http://www.tyan.com
20

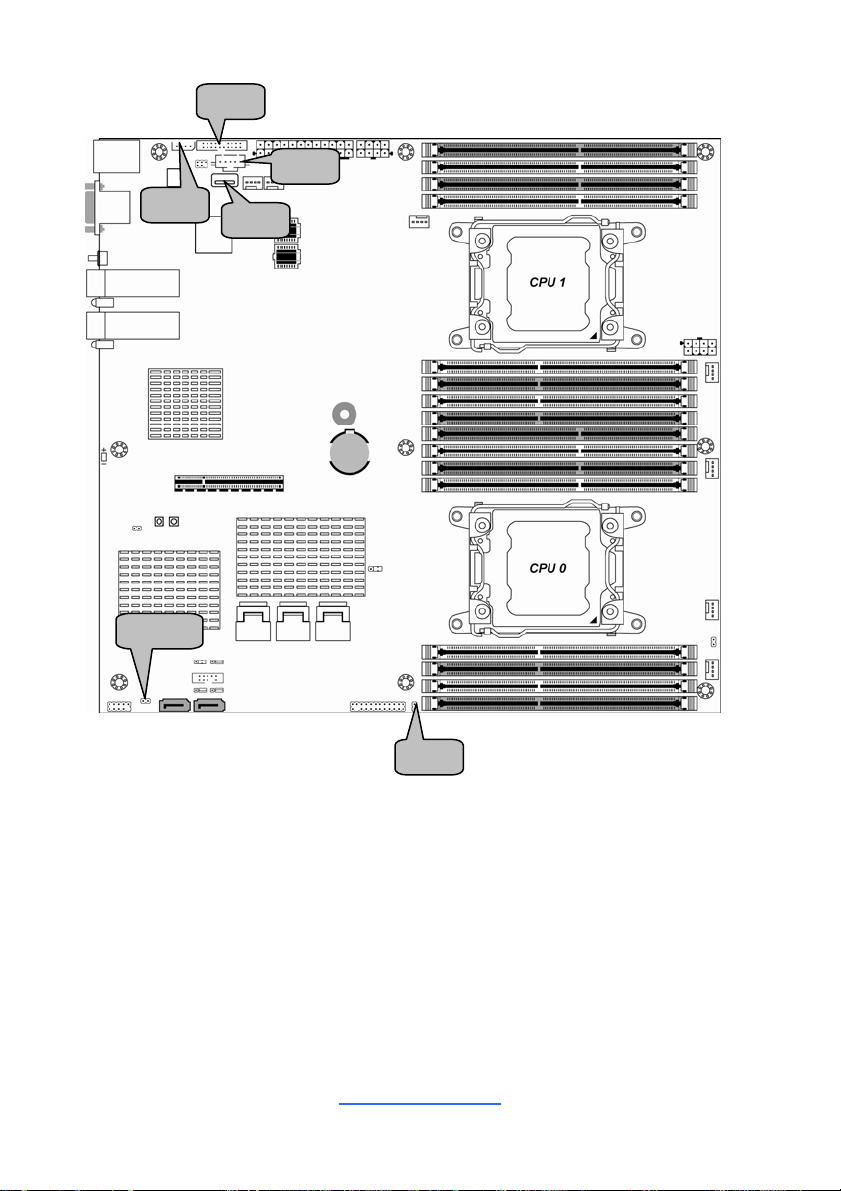

J5012
J29
J34
J44
J24
J14
