About this Manual
This manual provides you with instructions on installing your
Tank GT25. This manual is intended for experienced users and inte-
grators with hardware knowledge of personal computers.
This manual consists of the following parts:
Chapter 1: Provides an introduction to the GT25 B5381 bare-
bones, packing list, describes the external compo-
nents, gives a table of key components, and pro-
vides block diagrams of the system.
Chapter 2: Covers procedures on installing the CPU, mem-
ory modules, an optional PCI-X card, and hard
drives.
Chapter 3: Covers removal and replacement procedures for
pre-installed components.
Chapter 4: Covers details of BIOS Setup.
Chapter 5: Covers information on Beep Codes, Flash Utility
and BIOS Post Code.
Chapter 6: Provides information on installing SMDC cards.
Appendix: Describes how to make a driver diskette. The
cable connection tables is also provided for refer-
e n c e o f s y s t e m s e t u p .
For information on the SAS controller software, please refer to the
following web sites:
ftp://ftp.tyan.com/manuals/m_install_LSI-SAS.pdf
ftp://ftp.tyan.com/manuals/m_LSI_SAS_1068E.pdf

iv
SAFETY INFORMATION
Before installing and using the Tank GT25, take note of the following
precautions:
–Read all instructions carefully.
–Do not place the unit on an unstable surface, cart, or stand.
–Do not block the slots and opening on the unit, which are pro-
vided for ventilation.
–Only use the power source indicated on the marking label. If
you are not sure, contact the power company.
–The unit uses a three-wire ground cable, which is equipped
with a third pin to ground the unit and prevent electric shock.
Do not defeat the purpose of this pin. If your outlet does not
support this kind of plug, contact your electrician to replace
your obsolete outlet.
–Do not place anything on the power cord. Place the power
cord where it will not be in the way of foot traffic.
–Follow all warnings and cautions in this manual and on the
unit case.
–Do not push objects in the ventilation slots as they may touch
high voltage components and result in shock and damage to
the components.
–When replacing parts, ensure that you use parts specified by
the manufacturer.
–When service or repairs have been done, perform routine
safety checks to verify that the system is operating correctly.
–Avoid using the system near water, in direct sunlight, or near
a heating device.
–Cover the unit when not in use.

v
Table of Contents
Chapter 1:Overview
1.1 About the Tank GT25 B5381 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.3 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
1.4 About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
1.5 FRU List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Chapter 2:Setting Up
2.1 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
2.2 Installing Motherboard Components. . . . . . . . . . . . . . . . . . . . . . .29
2.3 Installing the External Hard Drive . . . . . . . . . . . . . . . . . . . . . . . .40
2.4 Installing the Slim FDD (Option) . . . . . . . . . . . . . . . . . . . . . . . . .42
Chapter 3:Replacing Pre-Installed Components
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
3.2 Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
3.3 Removing the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
3.4 Replacing Motherboard Components . . . . . . . . . . . . . . . . . . . . . .49
3.5 Replacing the Slim CD-ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
3.6 Replacing the LED Control Board . . . . . . . . . . . . . . . . . . . . . . . .53
3.7 Replacing the M1012 Adapter Board . . . . . . . . . . . . . . . . . . . . . .55
3.8 Replacing the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Chapter 4:BIOS Setup
4.1 About the BIOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
4.2 BIOS Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
4.3 Advanced Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
4.4 Security Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
4.5 Power Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
4.6 Boot Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
4.7 Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Chapter 5:Diagnostics
5.1 Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
5.2 Flash Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
5.3 BIOS POST Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Chapter 6:Setting Up SMDC
6.1 Installing SMDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103

vi
6.2 SMDC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
Appendix I: Cable Connection Tables
Appendix II: How to Make a Driver Diskette
Technical Support

Chapter 1: Overview 1
Chapter 1: Overview
1.1 About the Tank GT25 B5381
Congratulations on your purchase of the TYAN®TankTM
GT25 B5381, a highly-optimized rack-mountable barebone
system. The Tank GT25 B5381 is designed to support dual
Intel®Xeon® 5000 series processors, providing a rich feature
set and incredible performance. Leveraging advanced tech-
nology from Intel, the Tank GT25 B5381 server system is
capable of offering scalable 32 and 64-bit computing, high-
bandwidth memory design, and a lightning-fast PCI-E bus
implementation. The TankTM GT25 B5381 not only empowers
your company in today’s demanding IT environment but also
offers a smooth path for future application usage.
TYAN®is also proud to deliver the TankTM GT25 B5381 in
SATA flavor while supporting up to four (4) hot-swap hard
drives and one (1) slim DVD-ROM. The TankTM GT25 B5381
uses TYAN®’s latest tooling-made chassis featuring a robust
structure, tool-less and modularized design, and a solid
mechanical enclosure. All of this provides the TankTM GT25
B5381 the power and flexibility to meet the needs of nearly
any server application.

2 Chapter 1: Overview
1.2 Features
Enclosure
• Industry 19” rack-mountable 1U
chassis storage bay
– (4) 3.5” HDD bays
– (1) slim FDD (optional)
– (1) slim line DVD-ROM bay
• Dimensions: D 27.87 x W 17.17 x H
1.71 inch (708x436x43.5mm)
Processor
• Dual LGA771 sockets
• Supports up to two Intel®Xeon®
5000 series processors
• 667/1066/1333MHz FSB
Chipset
• Intel 5000P Memory Controller Hub
• Intel ESB2-E I/O Controller Hub
• Winbone W83627EHG Super I/O
chip
• ADT7463 Hardware Monitoring IC
(on fan board)
• On board LSI1068E SAS controller
Memory
• 12 dual ranked DDRII 533/667 FBD
sockets
• Supporting up to 48GB memory
size
• Four channels of Fully Buffered
DIMM (FBD)
• Supports up to 4GB FB-DDRII
DIMM
Expansion Slots
• Aligned (1) 64-bit/133MHz PCI-X
slot and (1) x8 PCI-E slot, support-
ing (1) full height/full length add-on
PCI-X (M2055) or PCI-E (M2082)
card
• Aligned (1) 64-bit/133MHz PCI-X
slot and (1) x8 PCI-E slot, support-
ing (1) low-profile PCI-X (M2057) or
PCI-E (M2086) add-on card
• 2 usable expansion slots

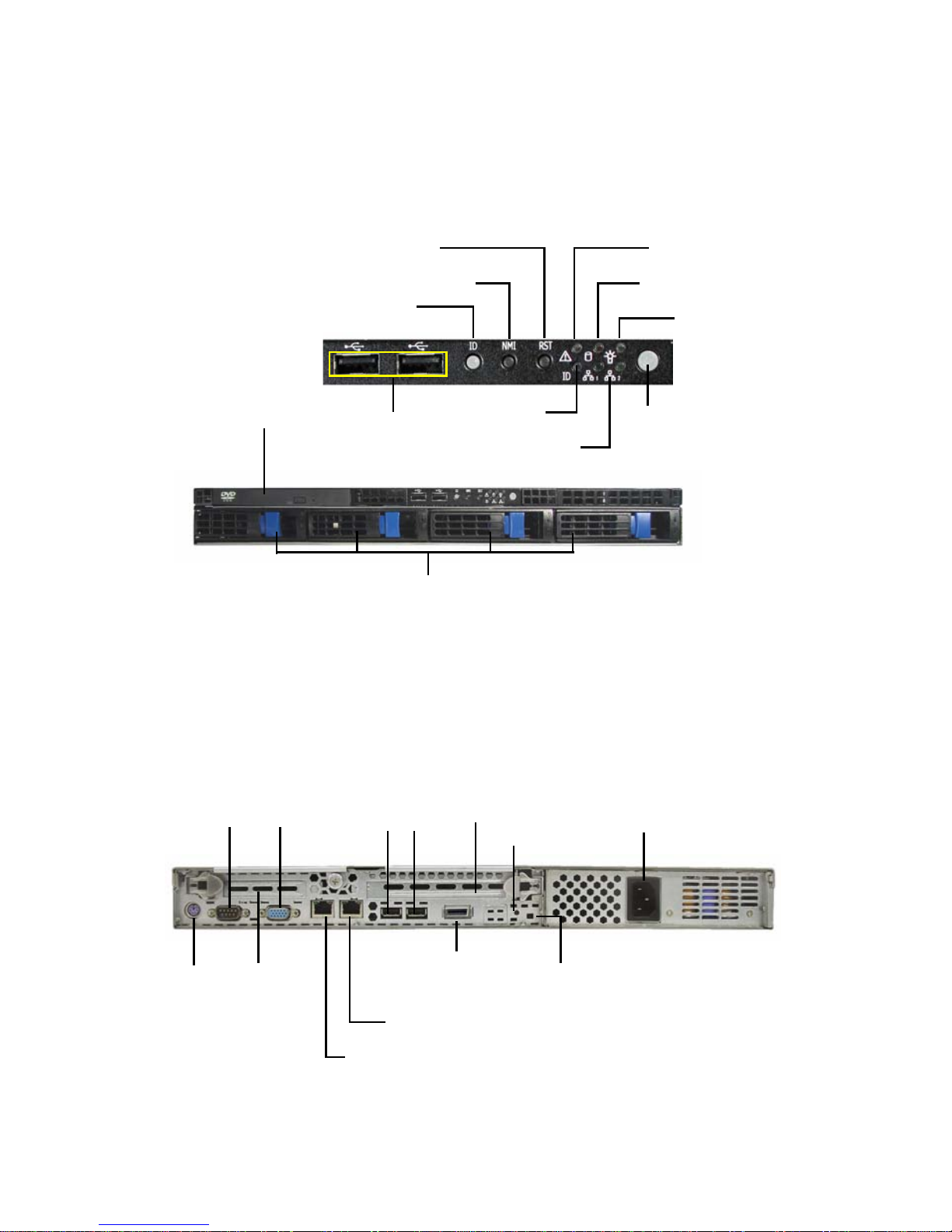

Back I/O Ports
• (1) PS/2 mouse & keyboard port
• (1) 9-pin UART serial port
• (1) 15-pin VGA port
• (2) RJ-45 10/100/1000 ports
• (2) USB 2.0 ports
• (1) 4-port SAS connector (SSF-
8470)
Front Panel Features
•I/O
– (2) USB 2.0 ports
• LED indicators
– Power LED
– (2) LAN LEDs
– HDD active LEDs
– System warning LED
–IDLED
•Switches
– Power
– Reset
–NMI
–ID
Integrated Storage Controller
• Supports 8-port SAS: 4 ports for
internal connection and 4 ports for
external storage connection
Storage
• B5381G25W4HR/W4H: supports
(4) hot-swappable SAS HDD with
RAID 0, 1, 1E
• Pre-installed slim type DVD-ROM
Networking
• Dual Gigabit Ethernet ports (ESB2
embedded MAC with Intel i82563EB
PHY)
Video
• ATI ES1000 with 16MB frame
buffer
Motherboard
•TYAN
®S5381 system board
• Customized 15”x16” (381x406mm)
BIOS
• PHOENIX BIOS on 8Mbit LPC
Flash ROM
• Serial Console Redirect
• Supports APM 1.2 and ACPI 2.0
• PnP, DMI 2.0, WfM 2.0 power man-
agement

Chapter 1: Overview 3
Server Management
• System fan speed control and moni-
toring
• Chassis intrusion alert
• Supports TYAN®Server Manage-
ment (TSM)
•TYAN
®SMDC, M3291, IPMI 2.0
compliant remote server manage-
ment kit (optional)
System Cooling
• (7) 40*40*56mm 15800rpm heavy-
duty fans
• (2) passive CPU heatsinks
Power Supply
•B5381G25W4HR: ERP 1U, 650W
(1+1) redundant hot-swap PSU
•B5381G25W4H: EPS 1U, 650W
single PSU
• 100V~240V AC input
Regulatory
• FCC Class B (Declaration of Con-
formity)
• CE (Declaration of Congormity)
• VCCI
•C-Tick
•UL
Environment Temperature
• Operating temperature (5oC~35oC)
• Non-operating temperature (-40oC
~ 70oC)

4 Chapter 1: Overview
1.3 Unpacking
This section describes the Tank GT25 B5381 package con-
tents and accessories.
1.3.1 Opening the Box

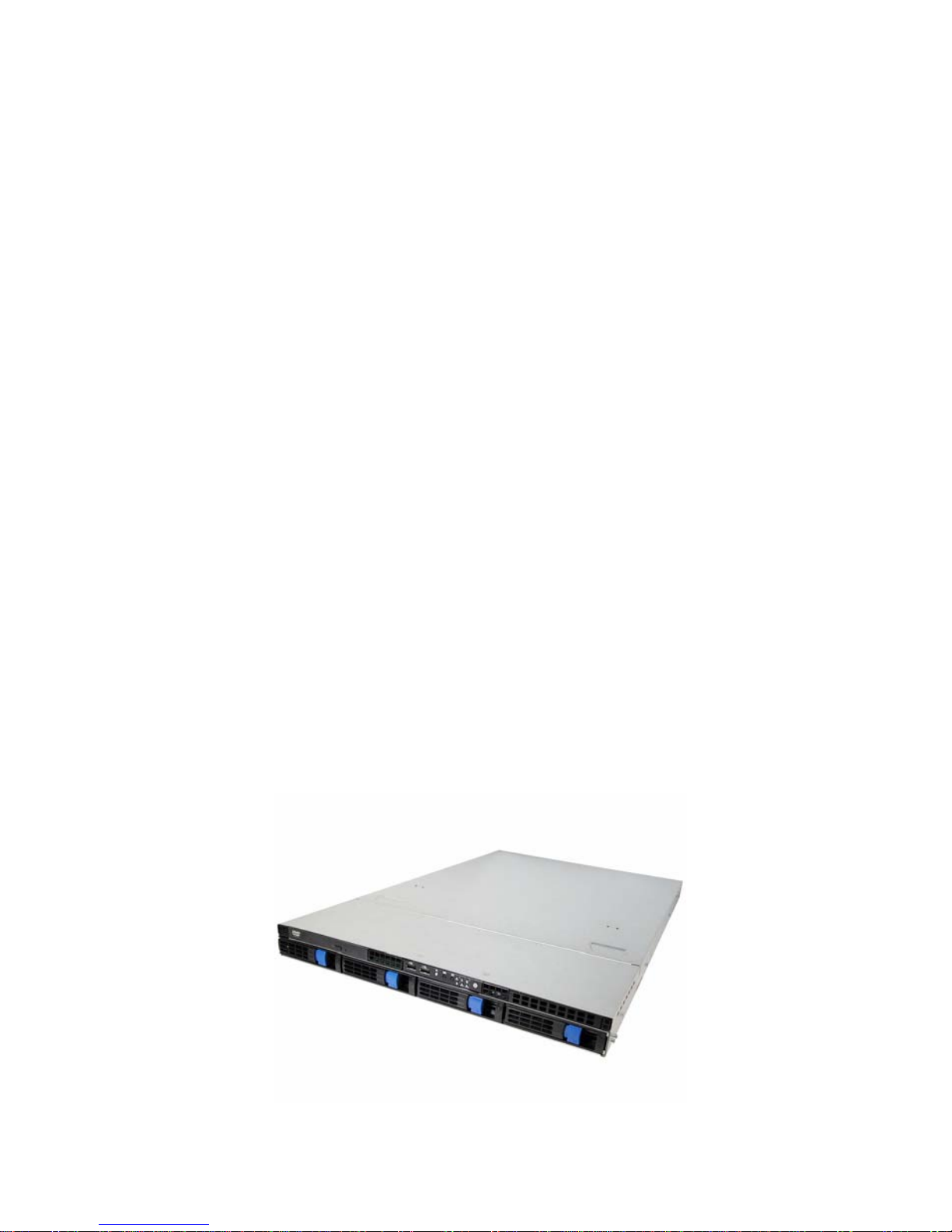

Open the box carefully and ensure that all components are
present and undamaged. The product should arrive pack-
aged as illustrated below.

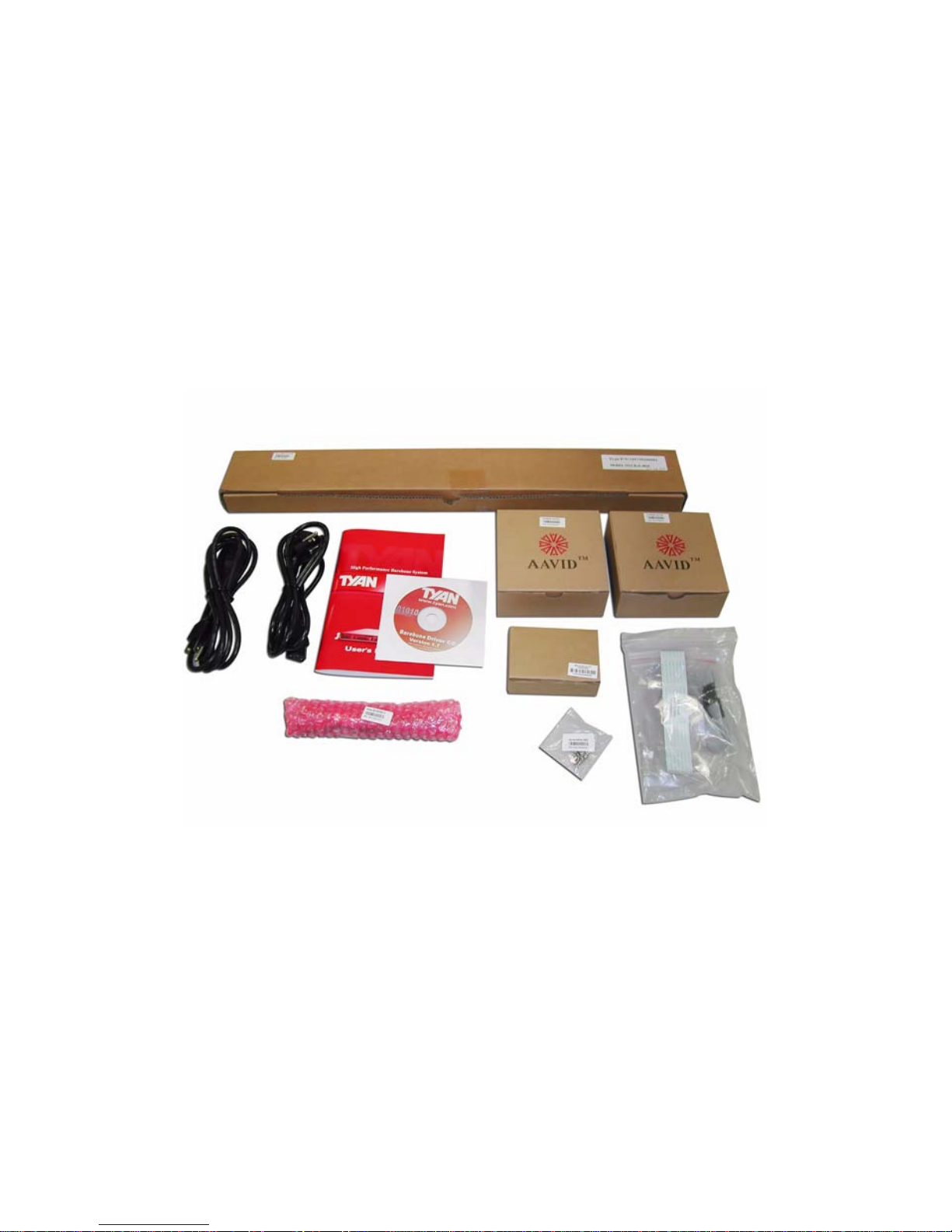

Packaged accessories

Chapter 1: Overview 5

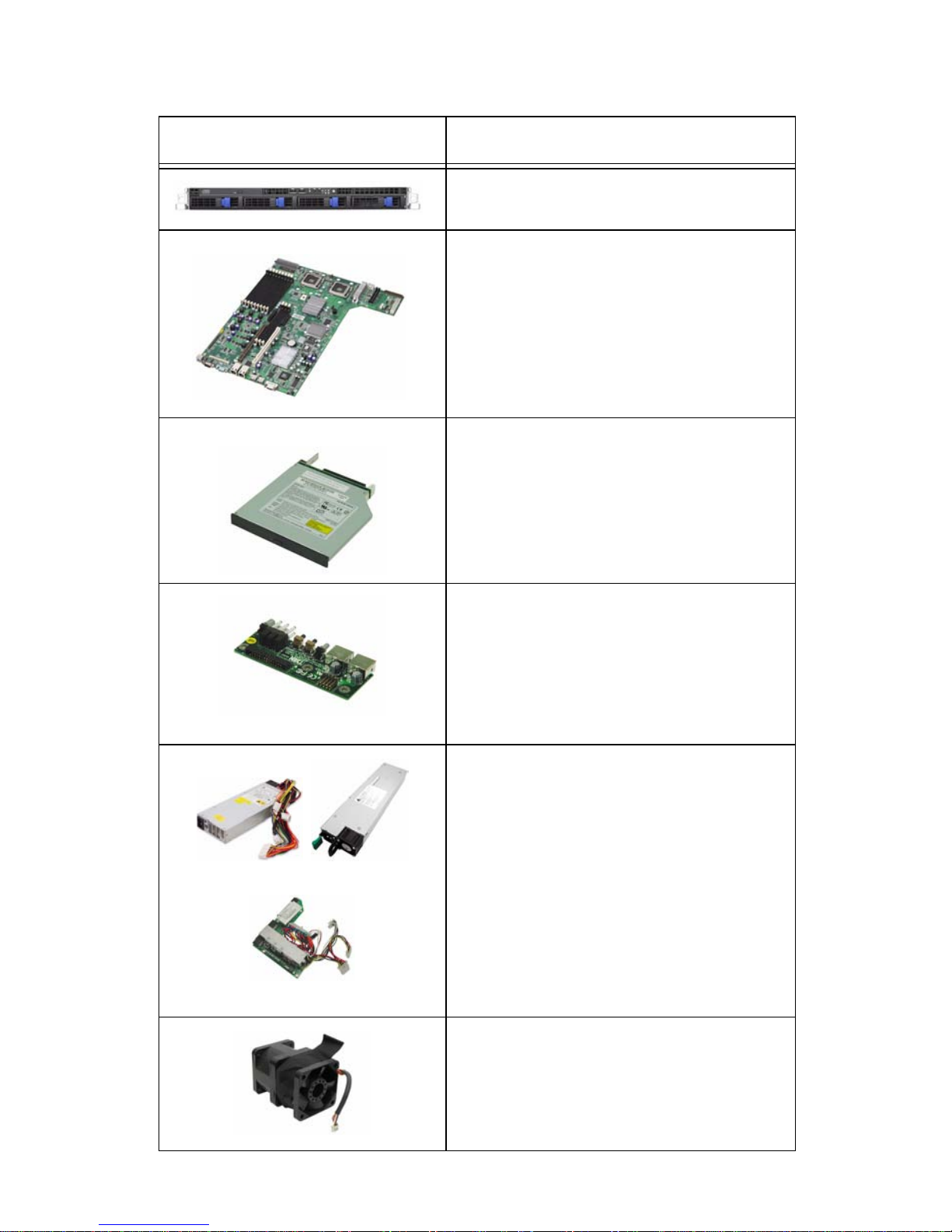

1.3.2 Box Contents
Component Description
Industry standard 1U chassis, (4) hot-swap
HDD bays
TYAN®S5381 system board (pre-installed)
8x slim DVD-ROM drive (pre-installed)
M1003 LED and USB control board (pre-
installed)
A B
C
B5381G25W4H: (A)
B5381G25W4HR: (B), (C)
(7) System fans (40 mm x 56 mm)

6 Chapter 1: Overview
M1210 Adapter board
M5002 FPC cable
Component Description

Chapter 1: Overview 7

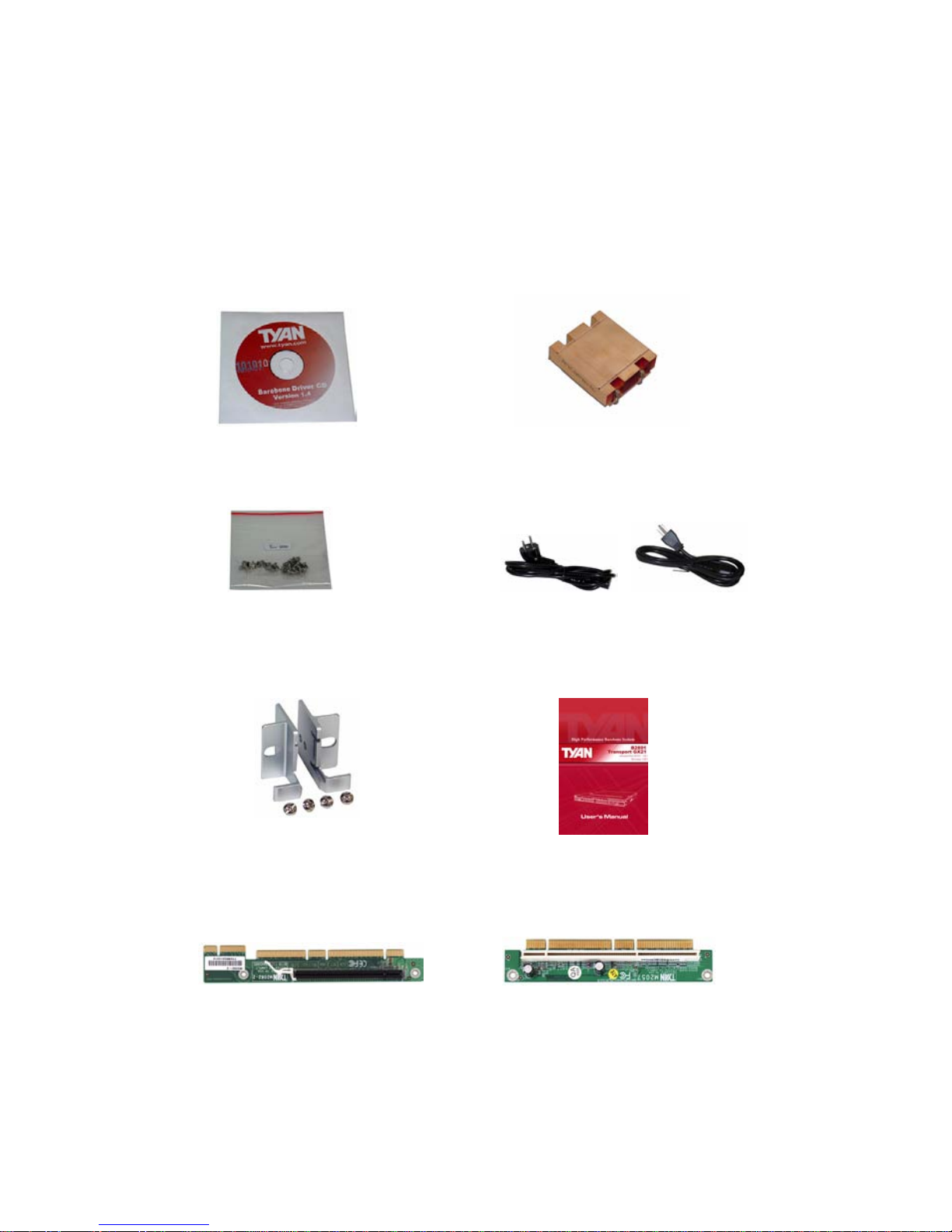

1.3.3 Accessories
If any items are missing or appear damaged, contact your
retailer or browse to TYAN®’s website for service:
http://www.tyan.com.
The Web site also provides information on other TYAN®
products, plus FAQs, compatibility lists, BIOS settings, and
more.
1 x TYAN®Driver CD
Power Cables
Left to right: Europe, US
HDD Screws
Mounting Ears & Screws
2 x Heatsink
Barebone Manual
Riser Card
M2082 Riser Card
M2057

8 Chapter 1: Overview
Rail Kit
Mounting Bracket x 4
Sliding Brackets
Front L-Bracket x 2
Rear L-Bracket x 2
Screw Kit
Sliding Rail x 2
FDD Kit
FDD Backplane Cable
FDD Cable
FDD Rails & Screws

Chapter 1: Overview 9
1.4 About the Product
The following views show you the product.
1.4.1 Front View
1.4.2 Rear View
Case A (Single Power)
DVD-ROM Drive
Hard Drive Bay x 4
Power switch
Reset switch
USB ports 2 x LAN LEDs
ID Switch
ID LED
HDD activity LED
NMI switch
Warning LED
Power LED
Power Supply Socket
LAN Port (NIC2)
LAN Port (NIC1)
PS/2
Key-
board
Port
VGA
Port PCI-X Slot
USB Ports
COM1
Port
SAS B5381G25W4H
(Optional)
PCI-E
Slot
ID LED
ID Switch

10 Chapter 1: Overview
Case B (Redundant Power)
1.4.3 LED Definitions
Front Panel
LED Color State Description
Power Green
OFF
ON
OFF
Power ON
Power OFF
HDD Activity Amber
OFF
Random Blink
OFF
HDD access activity
No disk activity
LAN1/LAN2 Linkage Green
Green
OFF
ON
Blinking
OFF
Linked to LAN
Accessing LAN
No LAN link
Warning Red
OFF
ON
OFF
Fan failiure
Normal
Hot Swappable HDD
Tray Power LED
Green
OFF
ON
OFF
Power connected
Power disconnected
Hot Swappable SATA
HDD Access LED
Amber
OFF
Random Blinking
OFF
HDD access activity
No disk activity
Hot Swappable SAS
HDD Access LED
Amber
Amber
OFF
On
Random Blinking
OFF
HDD ready
HDD access activity
HDD not ready
ID LED Blue ON System identified
Power Supply Sockets
Power Supply Fans
LAN Port (NIC2)
LAN Port (NIC1)
PS/2
Key-
board
Port
VGA
Port PCI-X
Slot
USB
Ports
COM1
Port
SAS B5381G25W4H (Optional)
PCI-E
Slot ID Switch
ID LED

Chapter 1: Overview 11
Rear I/O LED *Right or Left is viewed from the rear.
LED Color State Description
RJ45 NIC1 Linkage
(Left Side)
Green
Green
OFF
ON
Blinking
OFF
Linked to LAN
Accessing LAN
No LAN link
RJ45 NIC1 Mode
(Right Side)
Yellow
Green
OFF
ON
ON
OFF
Gigabit mode
100M mode
10M mode
RJ45 NIC2 Linkage
(Left Side)
Green
Green
OFF
ON
Blinking
OFF
Linked to LAN
Accessing LAN
No LAN link
RJ45 NIC2 Mode
(Right Side)
Yellow
Green
OFF
ON
ON
OFF
Gigabit mode
100M mode
10M mode
ID LED Blue
OFF
ON
OFF
System identified
System not identified

12 Chapter 1: Overview
1.4.4 Internal View
Case A - Single Power
1. Power Supply
2. SAS Connector
3. Link Bar
4. Fully Buffered DIMM Memory
Slots
5. Fully Buffered DIMM Memory
Slots
6. CPU Sockets
7. Fans
8. M1210 Adapter Board
9. Four SATA / SAS HDD Bays
10. LED Control Board Cable
11. DVD-ROM Power Cable
12. DVD-ROM Cable
13. M2055 Riser Card
14. M2086 Riser Card
1234
5
6
7
8
9
10
12
11
Fan2
Fan1
4
3
68
75
10
9
12
11
Fan14
Fan13
13 14
