Tycon Power Systems TP-SW8GAT/24-SFP User manual

8000109 Rev 1 14 July 2021 Combined Quick Start Guide
ManagedSwitch
User Manual
Industrial PoE Switches
TP-SW8GAT/24-SFP
&
TP-SW8GAT/BT/24-SFP

Tycon’s Industrial managed PoE switch series features industrial performance, which can operate in severe working environments.
With multiple PoE port configurations, settable in the console or web based user interface, the switches are suitable for many
different industrial applications. Featuring an advanced management interface, the switches provide for comprehensive security,
easy ring network application, QOS strategy and rich VLAN functionality. The switches are easy to manage and maintain which
makes them suitable for complex, high density environments such as in factories, mines, industry automation, broadband systems,
security applications, transportation, infrastructure, port and farmlands. In addition to the High-power PoE power supply and
intelligent management functions, the unique ability to supply 802.3AT (35W), 802.3BT(90W), Passive 24V PoE from the same 8
port switch provides unsurpassed flexibility.
Features
◆Unique industrial management interface, achieving high-efficiency network management.
◆Lightning protection: up to 6KV.
◆ESD static protection: up to 8KV.
◆Supports Industrial temperature range: -40℃~80℃;
◆Supports Industrial humidity range: 10%~90% RH non-condensing.
◆802.3at (bt) or 24V Passive PoE Output (Configurable in user interface).
◆802.3bt power supply up to 90W.
◆Dual voltage inputs for primary and backup power sources.
◆Wide input voltage range: 12-37VDC(Switch Only) / 37-57VDC(PoE Enabled).
◆Unique one button ring network creation.
◆Unique advanced PoE watchdog function.
Industrial 8GE PoE+2SFP, 8*10/100/1000M PoE ports + 2*1000M SFP ports
Item
PoE Port
TP-SW8GAT/24-SFP
PoE 1~8 (802.3at or 24V Passive)
TP-SW8GAT/BT/24-SFP
Port 1-2 (24V Passive), Port 3-4 (802.3bt), Port 5-8 (802.3at)

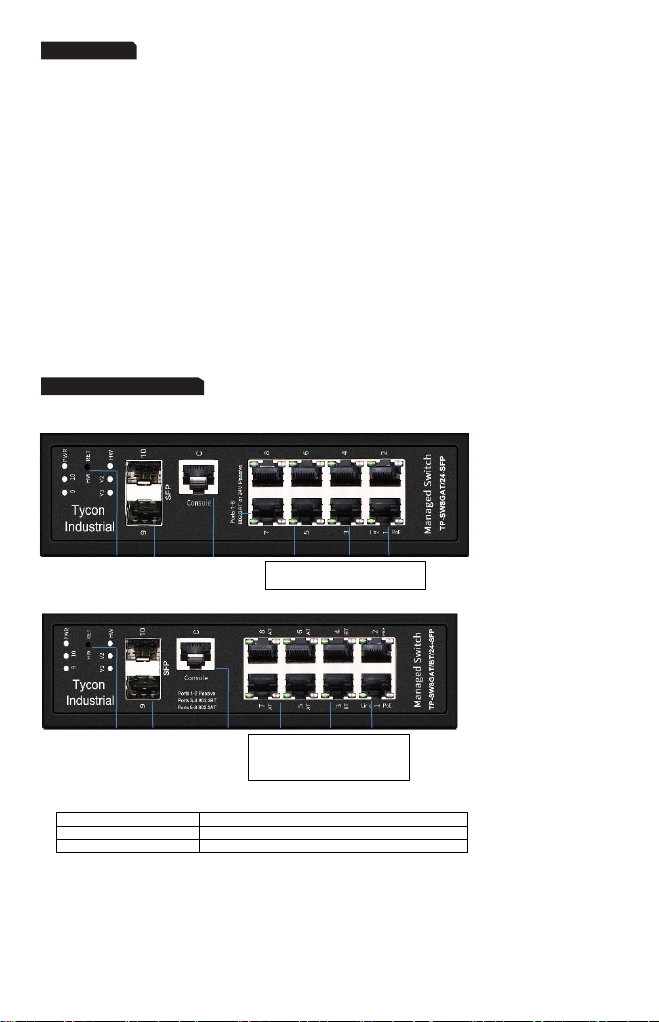

Overview
9
Display& Description
SFP
Ring Network
Button
Console
Port
PoE Port 1~8 (802.3at or 24V)
Ring Network
Button
SFP
Console
Port
PoE Port PoE Port PoE Port
5~8(AT) 3~4(BT) 1~2(PASV)

Alarm Output
Reset Key
Temperature and Humidity Detector
Input Interface
Alarm
Input
Alarm
Input
Power Input (Secondary DC+)
Power Input (Secondary DC-)
Power Input (Primary DC+)
Power Input (Primary DC-)

Indicators
Indicator (Front)
Status
Description
PWR: Power/system LED
Always ON
System loading(<30S) / System crashed(>30S)
Always OFF
Power Disconnected
Flashing (1Sec Interval)
System normal operation
Port Link Indicator
Link-Green
Flashing ON
Port is connected and passing data
Always OFF
Network signal not communicated
TP-SW8GAT/24-SFP
PoE Port
Indicator
(Port 1~8)
PoE
Orange
Always ON
24V Passive PoE is configured
Always OFF
PoE is OFF
Green
Always ON
48V PoE is configured (802.3af/at)
Always OFF
PoE is OFF
TP-SW8GAT/BT/24-SFP
PoE Port
Indicator
(Port 1~2)
PoE
Orange
Always ON
24V Passive PoE is configured
Always OFF
PoE is OFF
Green
Always ON
48V PoE is configured (802.3af/at)
Always OFF
PoE is OFF
PoE Port
Indicator
(Port 3~8)
PoE-Green
Always ON
PoE Detection is successful and PoE is ON
Always OFF
PoE is OFF
Function Indicators
Status
Description
Function
Indicators
Status
Description
HW: Ring network LED
Always ON
Ring network active
9~10 SFP LED
Always ON
SFP connected
Always OFF
Ring network not active
Always OFF
SFP not connected or abnormal
V1
Primary
power LED
Always ON
Primary power is normal and
is master power
V2:
Secondary
power LED
Always ON
Secondary power is normal and is
master power
Always OFF
No primary power input
Always OFF
No secondary power input
Flash (1/4s)
Power and voltage abnormal
Flash (1/4s)
Power and voltage abnormal
Flash (1s)
Primary power is normal and is
backup power
Flash (1s)
Secondary power is normal and
is backup power

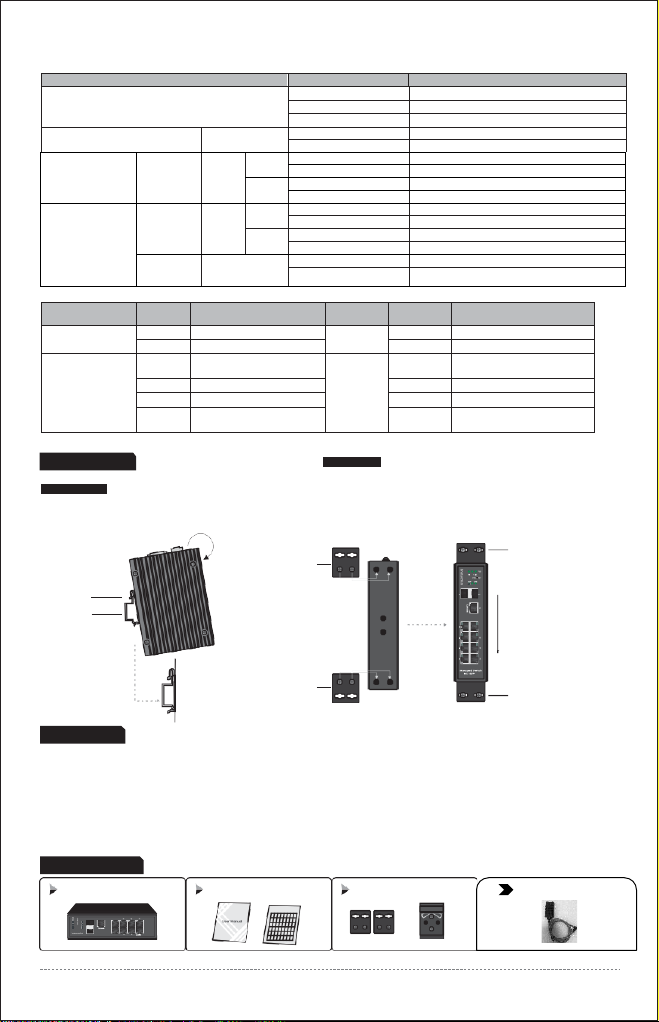

DIN Guide Rail
①
Insert the top of DIN guide rail into the groove at the bottom of rigid metallic spring.
Wall-mounting
① Install the wall hangers onto the switch.
②
Secure the switch length onto the wall by
using screws.
Screw
Wall Hanger
Metal Spring
DIN Guide Rail
②
Install DIN guide rail base unit
as shown in the pictures
Wall Hanger
Screw
1. Please read the user manual before using the switch, or improper operation could cause damage to switch components.
2. Do not use it near a fire source.
3. Do not submerse it into water or allow water to wet the inner switch components.
4. Do not short circuit the positive and negative poles of the various connections as this may damage the switch.
5. Do not open the enclosure or disassemble inner components. You will void the warranty.
Attentions
HW
1*Switch
1*User Manual +Warranty Card
Wall hangers +guide rail
Warranty Card
Link Giga
9 10
V1 V2
H W
9 10
C
7 8
Manage d S witc h
8GE +2SFP
Installation
Product List
Temperature/humidity sensor

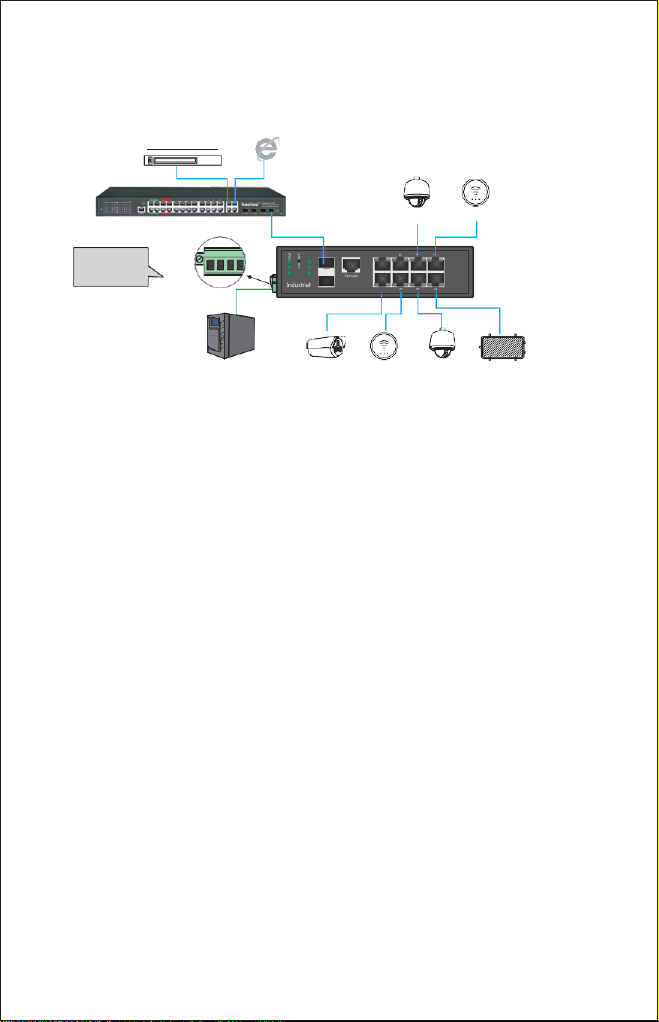

1. Typical PoE Network Application - 24V/48V PoE and High Power
90W PoE maximum supported.
NVR Internet
90W Dome Camera
24V AP
R e c e i v e p o w e r t h r o u g h
industrial switch power and
connect network
Link Gi ga
Industrial Switch Power 30W Camera 30W AP 90W Dome Camera 48V AP
9 10
V1 V2
HW
9
10
C
7
8
Managed Switch
8GE + 2SFP

Model
TP-SW8GAT/24-SFP & TP-SW8GAT/BT/24-SFP
Product
Industrial 8+2 Managed PoE Switch
Console Port
38400 Baud, 8 Bit, N parity, 1 stop bit, N flow control
Reset Button
Press for <1sec to reset the switch, press for >5sec to reset to factory defaults
PoE Ports
TP-SW8GAT/24-SFP
8*10/100/1000M
Port 1~8 supports 24V Passive PoE or 802.3at PoE (MAX 30W per port)
TP-SW8GAT/BT/24-SFP
8*10/100/1000M
Port 1~2 supports 24V Passive PoE or 802.3at PoE (MAX 30W per port)
Port 3~4 supports 802.3bt PoE (MAX 90W per port)
Port 5~8 supports 802.3at PoE (MAX 30W per port)
Uplink Ports
2*10/100/1000M SFP
Function Interface
1: HW RET Button for quick formation of ring network. Needs to be enabled in User Interface of master switch.
2: Dual independent power inputs with over/under voltage protection.
3: Alarm input with a range of 5-57VDC 0.5mA. Detects alarm input voltage changes.
4: Alarm/Relay output (<60V <3A), can define various custom condition triggers.
5: TMS Environmental temperature and humidity detection.
6: Real-time system of crucial voltage monitoring using alarm output function.
7: Real-time system temperature, environment temperature, humidity using alarm output function.
8: Real-time detection and display of input voltage, current, power.
9: Multiple custom port control and intelligent management.
Network protocol
I EEE 802.3x
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
IEEE 802.3ad
IEEE 802.3q, IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S IEEE 802.3z 1000BASE-X
STP (Spanning Tree Protocol)
RSTP/MSTP (Rapid Spanning Tree Protocol) EPPS ring network protocol
EAPS ring network protocol
IEEE 802.3af, 802.3at, 802.3bt
AUTO/24V Passive PoE PSE
Environment
Detection
TMS temperature and humidity sensor
Port Specification
1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
Transmission Mode
Store and Forward (full wire speed)
Bandwidth
56Gbps
Packet Forwarding
14.44Mpps
MAC
8K
Buffer
4.1M
Transmission
Distance
10BASE-T: Cat3,4,5 UTP (≤250 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-TX: Cat6 or later UTP (≤1000 meter)
1000BASE-SX: 62.5μm/50μm MMF(2m~550m)
1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
BIDI supported
FLASH
16M
RAM
128M
Power
Standby power consumption ≤5W
Network full-load power consumption ≤15W
Whole device full-load powerconsumption ≤360W
LED Indicator
Port 9-10: (SFP LED)
TP-SW8GAT/BT/24-SFP: PoE Port 1-2:(Green=48V; Orange=24V)
TP-SW8GAT/24-SFP: PoE Port 1-8:(Green=48V; Orange=24V)
Link port:(Green=Link LED）
PWR:( Power/systemLED), Flashing means Normal Power
V1: (Master power LED)
V2: (Slave power LED)
HW:(Ring network ONLED)
Power Input
Dual independent power inputs: Switch Only: 12-37VDC / PoE Enabled: 37-57VDC
Operating
Temp/Humidity
-40 ～+80°C, 10% ～90% RH Non-condensing
Storage
Temp/Humidity
-40～+85°C, 5%～95% RH Non-condensing
Lightning
Protection Level
6KV 8/20us, 8KV ESD
Environmental
Protection Level
IP40
Product Size(L*W*H)
160mm*130mm*45mm
Hardware Parameter

N.W(kg)
1kg
Installation
DIN rail or Wall Mount
Certificate
3C; CE mark, commercial;
CE/LVD En60950;
FCC Part 15 Class B;
RoHS;
Warranty
3 Years
Model
TP-SW8GAT/24-SFP & TP-SW8GAT/BT/24-SFP
Monitoring
Platform
Quick formation of ring network with one button.
System temperature monitoring and alarm.
External temperature and humidity monitoring and alarm.
Input power monitoring and alarm.
System each channel key voltage monitoring and alarm.
System total current, total power monitoring and alarm.
All-Port network monitoring and alarm.
Support one group input and output signal monitoring and alarm.
Network Protocol
IEEE 802.3x
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3z IEEE 802.3ad
IEEE 802.3q, IEEE 802.3q/p
IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE 802.1X
MAC
Support 16K MAC address, auto aging and learning
VLAN Configuration
Support port-based VLAN Up to 4096 VLANs;
Support Voice VLAN, can configure Qos for voice data 802.1Q VLAN
Spanning Tree
STP (Spanning tree protocol);
RSTP/MSTP (Rapid spanning tree protocol);
EPPS/EAPS (Ring network protocol);
802.1x
Port Aggregation
Support 8 groups of aggregation, each group supports up to 8 ports
Port Mirroring
Support many-to-one port mirroring
Loop Guard
Support loop protection, real-time detection, quick alarm, concise location, Intelligent blocking, automatic
recovery
Port Isolation
Support downlink ports isolated from each other and communicate with uplink port as well
Flow Control
Half duplex based on Back pressure; Full duplex based on PAUSE frame
Speed Limitation
Bandwidth management based on port input and output
Multicast Control
IGMPv1/2/3 and MLDv1/2 Snooping GMRP protocol registration;
Multicast address management, multicast VLAN, multicast routing port, static multicast address
DHCP
DHCP Snooping
Storm Suppression
Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression;
Storm suppression based on bandwidth adjustment and storm filtering
Security
Supports User port +IP address +MAC address; ACL based on IP, MAC;
Support security properties of number of MAC address based on port
QOS
802.1p port queue priority algorithm;
Cos/Tos, QOS remark;
WRR (Weighted Round Robin), weighted priority rotation algorithm;
WRR, SP, WFQ priority scheduling modes
Cable Sequence
Auto-MDIX; auto detection on straight-through and cross-over cable
System
Maintenance
Upgrade package upload, System log viewing, WEB recovery factory configuration
PoE Function
8 Port PoE switch;
Individual PoE port on/off recurring scheduling;
Display of PoE Voltage, Current, Power;
System total power display and configuration;
PoE watchdog: supports auto reset when Port power fails or PD device become unresponsive;
PoE configuration can be set to 802.3af, 802.3at or passive 24V; also 802.3bt on the BT model
Indication of over-power
Network
Management
WEB interface;
CLI Command Line Interface based on Telnet, TFTP, Console;
SNMP V1/V2/V3;
RMON V1/V2
Software Parameter
