Thank you for purchasingthe YT20-TL series Water Ionizer.
Pleaseread all safety warnings and this User’s Manual carefullybeforeusingthis
product to ensure proper product usage. (Keep the manualhandy for easy reference.)
I ntendedUse
This device creates functional alkaline, ionized water.It changes the properties
of regular tap water through the use of electrolysis. Following are the changes normal
tap water undergoesviathis process:
Wearenot responsiblefor anyaccidents and/or malfunctions due to the
improper use of this machine.
Pleasekeep the manualand warranty card in a safe place, so that it’s
easilyaccessible when you need it.
Pleasereferto this manualoftenwhen you havequestions during the
use or when troubleshootingthis unit.
Anincrease or decrease in pH level
Creation of negativelycharged hydrogen ions (anti-oxidants)
Smallerwater moleculeclustersfor better absorption
Purificationthrough filtration
To Our ValuedCustomers
23

Before Usage
Safety Precautions andWarnings
Safety Precautions and Warnings
Do not use ifthe power cord is damaged or ina
loose power outlet.
Pleasealways use a grounded power outlet.
Do not pull the power cord. Never touch power
cord or power outlet with wet hands.
Do not forcibly bend, squeeze, damage or crush
the power cord under heavy objects.
Unplug the power cord during general mainte-
nance, repair, inspection and while replacing parts.
Do not use power surge protectors with this unit.
Use unit with its own dedicated power source.
Regarding PowerSupply
Before Usage
Safety precautions are provided for the safe and proper use of this unit and can prevent
danger, bodily harm and/or possible damage due to misuse. Please make sure you are
familiar with all the safety precautions and warnings associated with this unit.
DANGER (Red Warning Sign) indicates an imminent hazard that could result in serious injury
or death. Ifyou see this, stop the use of this unit immediately.
WARNING (Orange Warning Sign) indicatesa potential hazard that could result in significant
bodily harm or damage to the unit. Ifyou see this, stop the use of this unit.
ATTENTION (Yellow Warning Sign) indicatesa potentialhazard that could resultin minor
bodily harm ordamage to the unit.
1. Do not drink functional water with medication. Use filtered water instead.
2. Always consult your primary care physician before drinking functional water. If you
are a first-time drinker, only drink a small amount for the first week near a neutral pH
level. This will give the body time to adjust to functional water during the
detoxification period.
3. If you notice any negative effects from drinking functional water, stop drinking imme-
diately and consult with your primary care physician about changes in your body’s
pH level.
4. If you are currently under the care of a primary care physician for an existing condi-
tion, consult with your primary care physician about how changes in pH and other
characteristicsof functional water could affectyour condition.
5. If you suffer from gastric anacidity, kidney failure or potassium excretion, you should
not drink functional water.
6. Verify the pH levels of the functional water dispensed from this unit on a monthly
basis to ensure proper function. This can be done with the supplied reagent drops
and apH color chart.
7. When switching from one pH to another, it is good practice to let the water run for
severalseconds before using.
8. It is common to drink half your body weight in ounces. For example, if you weigh
180 pounds, it may be wise to drink 90 ounces of water per day. This especially
applies after you have given your body some time to adjust to the new pH level.
9. 9.5 pH(±0.3) is the recommended drinking level for functional water. It is not recom-
mended to drink functional water above 10 pH.
10. If you wish to store functional water, use a glass, or other non-leaching material with
an airtight lid and store in the refrigerator. Functional water will begin to weaken
immediatelyand loses most benefit after3 days.
11. Neverrun hot water throughthis unit.
12. Neverdrink acidic water.
B e fo r e U s a g e Safety P re ca ut ions andW ar n in gs
45

Safety Precautions andWarnings Safety Precautions andWarnings
To reduce the risk of electric shock, do not remove
cover; no user-serviceable parts inside. Refer
servicing to qualified service personnel. Removing
the cover will void the warranty.
Only use the unit with the correct voltage.
Do not place this unit near heat sources.
Do not place this unit on an uneven surface.
Do not drop or use excessive force on this unit.
Do not connect water line to a hot water supply.
Do not use unfit raw water in accordance to the
standards of the water service act.
Installation
Do not use in areas of high humidity and/or high
temperature.
Usage
Place this product near a sink and always allow
water to drain into the sink.
Place acidic water outlet hose withinthe height of the
unit. Make sure the end of the hose is placed less
than 8 inches (20 cm)from the bottom of the unit.
In the case where the unit isn’t used over a long
period of time, shut off the valve and unplug the
power cord.
In case of strange noises, burning odor or smoke,
unplugthepower cordimmediatelyandreferservicing
to qualified service personnel.
Turn off
Replace filtersevery6 months to optimizethepurifica-
tion performance of this unit even if the replacement
indicator light isn’t turned on.
Ifthe unit is not used fora few days, let the water run
for 1-2 minutes before drinking functional water.
Safety Pre cautions andW ar nin gs Safety Pre cautions andWarn in gs
67

F1 5 0 % F2 50%
A L KH 2 O
A C D TURBO
14:59
Safety Precautions andWarnings Safety Precautions andWarnings

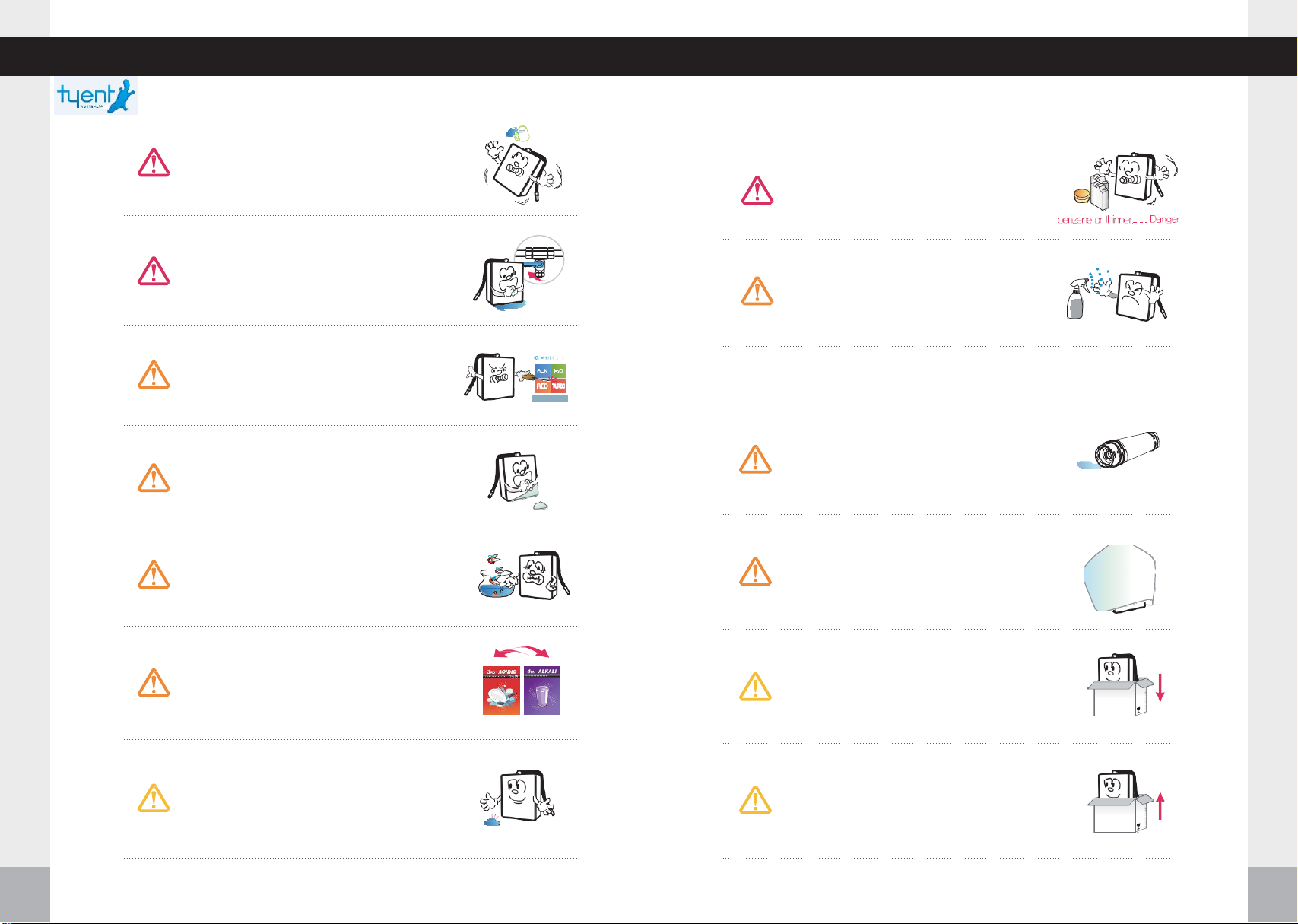

Do not poke or scratch the touch pad or LCD
display with sharp objects.
Do not place any objects on top of this unitregard-
less of how small.
In case water leaks out of the unit (other than
hoses) or unit is standing in a puddle of water,
shut off the water supply, unplug the power cord
and refer servicing to qualified service personnel.
Do not use alkaline or acidic water in fish bowls
or aquariums. The sudden change in pH could
be harmful or fatal to some marine life.
In areas of hard water(Calcium scaling present
on faucets) notify service provider and install cell
safe anti scale Pre-filter, protects against scaling
of ionizer.
It is beneficial for the maintenance of the
machine to run a strong acidic level for a period
of 5 minute cycles twice weekly. This will help to
maintainaclean chamber.
It is normal for condensation to be present on the
unit during humid summer months. If condensa-
tion persists despite weather conditions, unplug
the power cord and refer servicing to qualified
service personnel.
Turn off
Cleaning
Do not store unit near chemicals, food, metalsor
medication.
Do not spray water on the main unit. Do not
clean with a damp cloth, benzene or other
chemicals, which mayleak into the unit.
Storage
In case the original packaging is not available,
cover the unit in plastic to avoid scratching the
surface.
Store unit in its original packaging in a cool, dry
place when not in use.
Carefully remove this unit from packaging. Keep
original packaging for future storage and unit
transportation.
Remove the filtersand turn them upside down to
remove excess water before storing.
Safety Pre cautions andW ar nin gs Safety Pre cautions andWarn in gs
89

Product Features Product Features
P r o d u c t F e a t u r e s P r o d u c t F e a t u r e s
Product Features
FULL TOUCH LCD –TRANSFORMATION AT YOUR FINGERTIP
The Industry’s First Full Touch ScreenPanel
The Full Touch Screen Panel System automatically activates the
unit’s operations through a simple touch to the desired icon
displayed on the screen.
GUI [Graphical User Interface]
Touch LCD Screen with a Clear PictureTone
A 262,000 Color Touch LCD Display provides diverse informa-
tion in true vivid colors for user convenience.
CAREFUL CONSIDERATION FOR THE USER
Electrodes with Round-Mesh PlateTechnology
These Platinum-Coated Titanium Plates are made with highly
stable, durable mesh technology that enhances the instanta-
neous electrolysis efficiency.
A Graphical User Interface is designed specifically for ease of
use and operation. Communication between the user and
ionizer has never been this simple!
MORE POWERFUL SYSTEM ENGINE !
Upgraded Power Turbo System
Turboupgrades to the SMPSPowerSupply systemproduce both
the acid turbo water and strong alkalinewater youneed!
Excellent Sound Quality with GuidedSupport
Multiple Languages Supported
Functions under operation can be further identified by the top
quality voice guided system.
Diversifiedlanguage guide support is availableby selecting 1
of 4 languages featured from across the world.
Temperature Sensor Function for SafeOperation
If the temperature of the source water exceeds 95℉(35℃)
then water will stop flowing and a warning message will
appear on the screen.
Power SMPS Power Supply System
Power SMPS Power Supply System provides the maximum
instantaneous output needed to produce the highly stable electric
power requiredforeach phase of electrolysis.
Automatic Water Discharge Interruption Function
In order to prevent the overflow of water due to user
negligence, the water discharge is automaticallystopped after
15 minutes of use.
*Turbo : 5minutes
15minutes
1. K O RE A N
2. ENG LISH
3. CHI NE SE
4. S P A N I S H
a
A LK H 2 O
ACD TURBO
F1 5 0 % F2 50%
10 11

Product Features Product Features
CARE FOR THE ENVIRONMENT
FRESH, PURIFIED WATER IS AMUST ALONG WITH HEALTHY MINERALS!
P r o d u c t F e a t u r e s P r o d u c t F e a t u r e s
Product Features
Automatic Electrolysis Tank Cleaning Function
The interior of the Electrolysis Tank is automaticallycleaned on
a regular basis, ensuring stable electrolysis operating condi-
tions.
Automatic Memory Function
The last function used by the user is automatically memorized
and displayed on the Standby Screen for fast and convenient
operation.
SELF MAINTENANCE MADE EASY –FROMINSTALLATION TOAFTER-SERVICE
Filter Usage Indication and Replacement TimeGuide
Super Simple Filter Replacement System
Level of filter usage can be identified through the LCD Screen
on a real time basis. The recommended replacement time is
automatically displayed on the screen with avoice guide.
A simple filter replacement system along with one-touch Filter
Usage Initialization Setting System makes filter management
easyfor any one.
Convenience of Operating Condition SettingSystem
Easy Setting System familiar to common users is employed,
allowing the convenience of setting or canceling the desired
through the LCD Screen.
pH Control Function
Respective alkali, acid & turbo phases can be easilycontrolled
by the user.
Self Diagnosis Function
When the condition of the source water is not suitable, the
water discharge is automatically suspended, displaying a
WarningSign on screen.
Water Discharge Nozzle with Directional Control
Thewater discharge direction maybe adjusted to many
diverse angles based on user preference.
Earth-Friendly Technology when in ECOMode
When setting the eco-mode, the LCD backlight will be turned
off automatically during periods of non-use and the Time
function is displayed.
Water Purification through a CleanProcess
Perfect, seamless elimination of foreign substances including
residual chlorine, organic &inorganic compounds through the
filtering process using functional UF and πCeramic materials,
enhancing the alkali water producing condition.
360˚
23 /Oct/2015
10 :30 AM
F1 RESET
F2 RESET
12 13

Product Features
Package Contents
P a c k a g e cont ents P a c k a g e cont ents

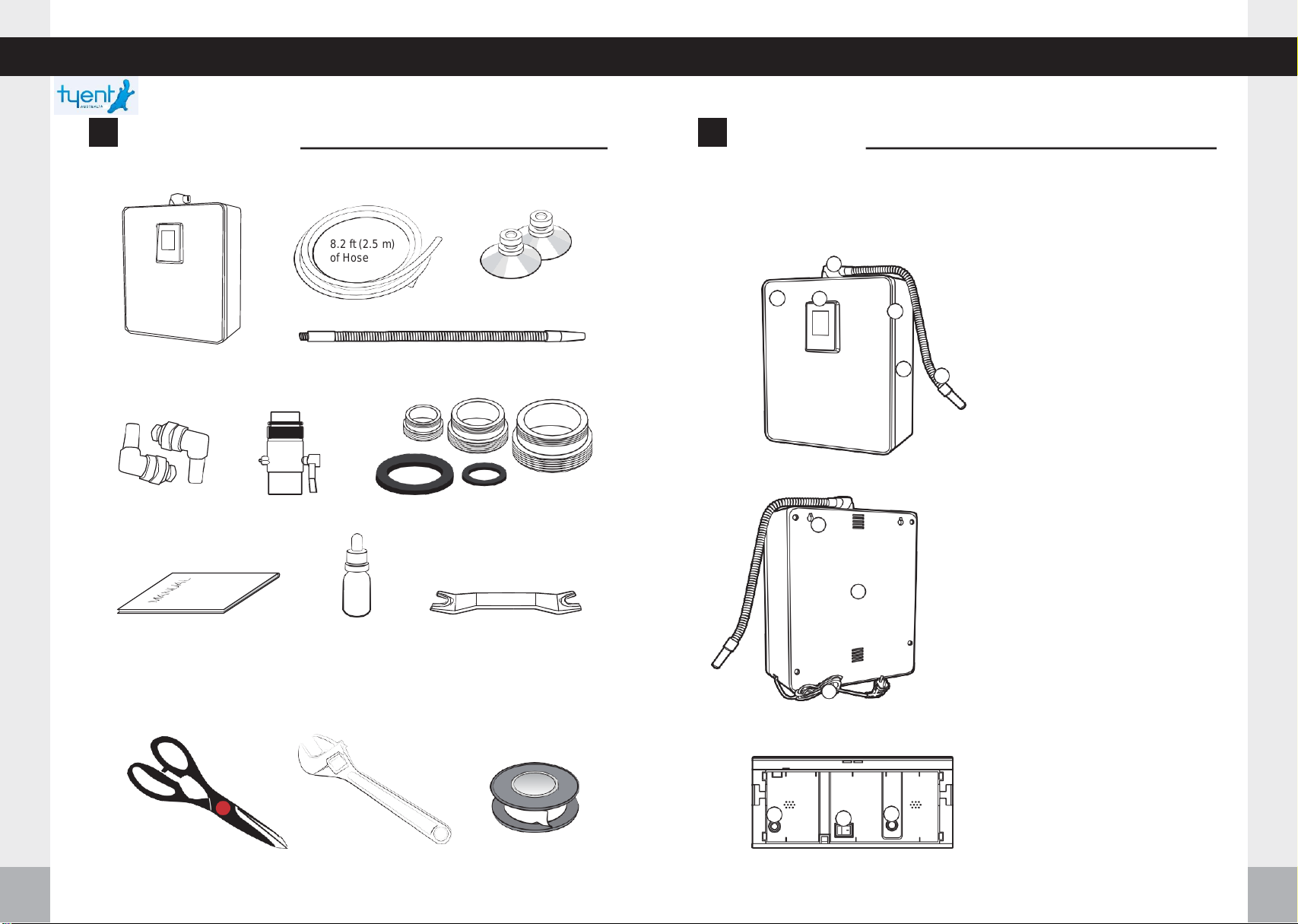

Package Contents Unit Overview
Tool you will Need
Make sure you arefamiliarwith the partsand features of this unit,and carefully readthe
user’s manualand other important information
1 WaterOutlet Tube
1 WaterIonizer
2 Stem Elbows 1 Faucet Diverter
1 pH Testing
SolutionBottle
8.2 ft (2.5 m)
of Hose
1 User’s Manual
2 Tube Suction Cups
Assortment of Sizers
and Rubber Washers
AdjustableWrenchUtility Scissors Plumber’s Tape
Front View
1. WaterOutlet Unit
2. FrontCover
3. LCD Display
4. FrontCase
5. Middle Case
6. WaterOutlet Tube
Rear View
1. HangingGroove
2. Rear Case
3. Power Cord
BottomView
1. WaterInflow
2. Power Switch
3. WaterOutflow
2
1
3
2
56
4
3
1
Wrench
2
14 15
3
1

H o w to Install the Unit H o w to Install the Unit
How to Install the Unit How to Install the Unit
How to Install theUnit
Determineif you willconnect unit directlyto cold water supply line(under-sink) or to
faucet(see image)
Option A l Faucet: Faucet connectionrequires faucet diverter(included) or
Option B l Under-Sink: under-sinkconnectionrequires under-sinkadapterkit
(not included) or compatible t-valve (available from most hardware stores)
Option A –Faucet Installation
Many faucets vary in design, and your faucet may require different setup instruc-
tions than those featured in this manual. Please consult a qualified service profes-
sional if you are unable to correctly complete the installation. For more help with instal-
lation, please visit www.evontis.com.
1. Shut off both hot and cold water main supply at pipe under-the sink.
2. Ifyour faucetfeatures a screw-on style aerator, remove it by unscrewing it from
the tip of the faucet.
3. Ifthe includedfaucet diverterdoes not fitdirectlyto the tip of the faucet, select an
appropriatesize connector and rubber washer (included).
4. When connecting diverter or adapter to faucet,be sureto useplumbingpipe thread
sealtape (notincluded)to prevent leaks.
5. Connect faucet diverter or faucet diverter (with appropriateconnector) to faucet.
6. Be sure allconnectionsaresecure but do not over tighten.
1. Purchase either an under-sinkinstallation kit (not included) or purchase T-
connection (with shut-off valve) from a hardware or plumbing supply store.
2. Shut off both hot and cold water main supply at pipe under-the sink.
3. Locate the cold water supply line valve.
4. Disconnect faucet cold water supply linefrom maincold water pipe –usetowel
to catch smallamountof water that may come from faucetsupply line.
5. Whenconnecting T-connection to cold water pipe, be sure to useplumbing
pipe thread sealtape (notincluded)to prevent leaks.
6. Reconnect faucet cold water supply line to T-connection (now secured tomain
cold water pipe)
7. Be sure all connectionsaresecure but do not over tighten.
Option B –Under-SinkInstallation
Both Options
Do not turn on main water supply until all hoses are properly installed to the unit.
Unit and components are subject to change without prior notification in order to
enhance performance.
16 17

Inflow
W a t e r H o s e Installation W a t e r H o s e Installation
Water Hose Installation
※INTROScreen appears in about 10 seconds only
when initial power is supplied.
Water Hose Installation
Water Hose Installation
1. Place the unit on the planned installation location and
screw the flexibletube clockwise into the water outlet
hole positioned at the top of the unit. Do not over
tighten.
5. Cut an appropriate length of drain hose and connect
it the drain on the rear of the unit.Make sure the drain
hose is positioned lower than the unit and in the sink
to drain properly.
6. Make sure all hose connections are firmly seated in
the correct holes, both on the unit and at the water
supply
7. Turn on both the cold and hot water supply. Make
sure there are no leaks at any of the connections.
Make sure the faucet is working with both hot and
cold water. Make sure there are no leaks from the
hose connections on the bottom of the unit. Make
sure the hoses are firmlyseated in the unit holes.
8. Plug in the power cord and turn on the unit. You
should hear a series of tones when you power up the
unit.
2. Press the stem elbows into the water inflow and
outflow holes located on the bottom of the unit until
you hear a click and feel the hose sit firmly in place.
3. Measure between where the unit willbe located (on
the counter) and the water faucet (or under-sink T-
connection) where the diverter (or T-connection) will
be installed. Cut enough hose to allow connec- tion
from the rearof theunit to the water supply (either
faucet diverter or under-sink T-connection). Note:
Keep the length under-16 feet (5 meters) from the
unit to the faucet. You may need apressure pump
or larger size hose if the pressure is too low. Be sure
to leave a few extra inches (centimeters) of length so
the faucet can still be rotated.
4. Connect the hose from theinflow hole to the cold
water supply, either at the faucet diverter (Option A
- remove the nut from the diverter, slide the nut on
to the hose, firmly seat the hose on the faucet
diverter, and screw the nut over the hose and back
on to thefaucetdiverter)or theunder-sinkT-connection.
(Option B –route the hose through the counter-top
to the T-connection, firmly seat the hose on the T-
connection, make sure the connection is sealed
completely)
Inflow Drain
hose tofaucet
hose tosink
Drain
18 19

Custo mer Se rvicea b le P a r t s H ow to Change the Filt er s
How to Change the Filters
Customer ServiceableParts
PrimaryFilter:YT20 1st Filter
1st Filter
2nd Filter
Customer Serviceable Parts
ATTENTION: The consumer accepts any and all responsibility and/or liability if
replacement filters and/or parts are not manufacturer specific. Thisunit contains high-
performancepurifyingfiltersand an advanced control system.
The life of the filter can vary greatly due to use, water pressure, water quality and the
changing of the seasons. Filters may need to be replaced sooner than the scheduled
timedue to thesereasons,youmaynoticereducedwaterqualityor decliningwater taste.
Recommended filter replacement cycle:
951.0 gallons (3,600 L)/ Every6months
Removes harmful chemicals like chlorine and
compounds like agrichemicals, detergents,
largesuspended matterlikerust,sediments,and
other volatile organic compounds efficiently via
activated absorption method. It also eliminates
bad smells and the remaining chlorine
dissolvedin the water.
SecondaryFilter:YT202nd Filter
Recommended filter replacement cycle:
951.0 gallons (3,600 L)/ Every6months
0.01 micrometer artificial film filters contami-
nated materials including ordinary bacteria, etc
and maintainsmineralsin water.
How to Change the Filters
1. Shut off the water supply to the unit and
turn the power off and unplug the power
cord. Open the door in front of the
product.
2. Raisethefilterto be replaced and turn it
counter clockwiseto remove it.
3. Putnew filterinto the right position by
truing it clockwise.
4. When installing the filter, the connection
bump of the head and the connection
groove on the top of the filter should be
completelycombined.
5. Close the door, plug the power cord
back in, reengage the water supply and
switch the unit back on.
Close
Open
20 21

F1 50% F2 50%
ACD TURBO
F1 100% F2 100%
AL
F1K RES
HET2O
AL K ACD
F2HR
2
E
OSET
F1 RESET
F2 RESET
H o w to R es e t the F il te rs Operation T o u c h S c r e e n
Operation TouchScreen
How to Reset the Filters
1. First Filter Reset
①Press the bottom part of LCD Screen.
MENUWindow appears upper the bottompart of LCD Screen.
②Toinitialize,press the“F1 RESET”icon 2 times.
※LCD : percentage (%)of initializationof filter
2. Second Filter Reset
①Press the bottom part of LCD Screen.
MENUWindow appears upper the bottompart of LCD Screen.
②Toinitialize,press the“F2 RESET”icon 2 times.
※LCD : percentage (%)of initializationof filter
CAUTION! Use the Filter InitializationIcon only after Filter is changed.
: Filter1 reset
: Filter2 reset
How to Reset the Filters Operation Touch Screen
F1 50% F2 50%
ALK H2O
ACD TURBO
Set up ALK Alkaline water
Voiceon ACD Acidic water
Voiceoff H2OPurifiedwater
Cleaning TURBO Turbo water
Eco mode
on
F1 Filter1 usage
Eco mode
off
F2 Filter2 usage
Alkalinescreen
ALK 1ALK 2
ALK 3ALK 4
Alkalinelevel 1
Alkalinelevel 2
Alkaline level 3
Alkalinelevel 4
Press the“” RETURNbutton when returning on the Home screen.
Acidic screen
ACD 1
ACD 2ACD 3
Acidic level 1
Acidic level 2
Acidic level 3
Home button
①Display lineof the set status
②Functional wateroperation
③Display lineof filterusage (default :
00%)
1 Standby mode
Homescreen
1
2
3
22 23

정
수
알칼리 산 성
F1 50% F2 50%
F1 50% F2 50%
ACD TURBO
F1 100% F2 100%
F2HR
2E O
SET
Operation TouchScreen Operation TouchScreen
Push the bottom part of LCD screen.
MENU Window appears on the LCD Screen.
15:00
Selectedmode
Auto flowstop
timeindicator
Workingindicator
1 Set up mode (page 31)
2 Voiceon/off (page36)
3 Cleaning (page37)
4 Eco mode on/off (page38)
1 Filter1reset
2 Filter2reset
Push the upper part of LCD screen.
MENUWindowappearson the LCD Screen.
Use the Filter InitializationIcon onlyafter the filters have
been changed.
CAUTION!
DISPLAYSCHANGE
LCDdisplaywill matchthe pH level color according to water pH level being used
aftericon is pressed.
15:00 15:00 15:00
DarkRedColor
05:0015:00
Alkaline Water 1 Alkaline Water 2 Alkaline Water 3 Alkaline Water 4 Acidic Water 1
light Blue Color BlueColor Dark Blue Color Purple Color LightYellowColor
15:00
Acidic Water 2
Light OrangeColor
15:00 15:00
Acidic Water 3
RedColor
Clean Water Turbo Water
GreenColor
15:00

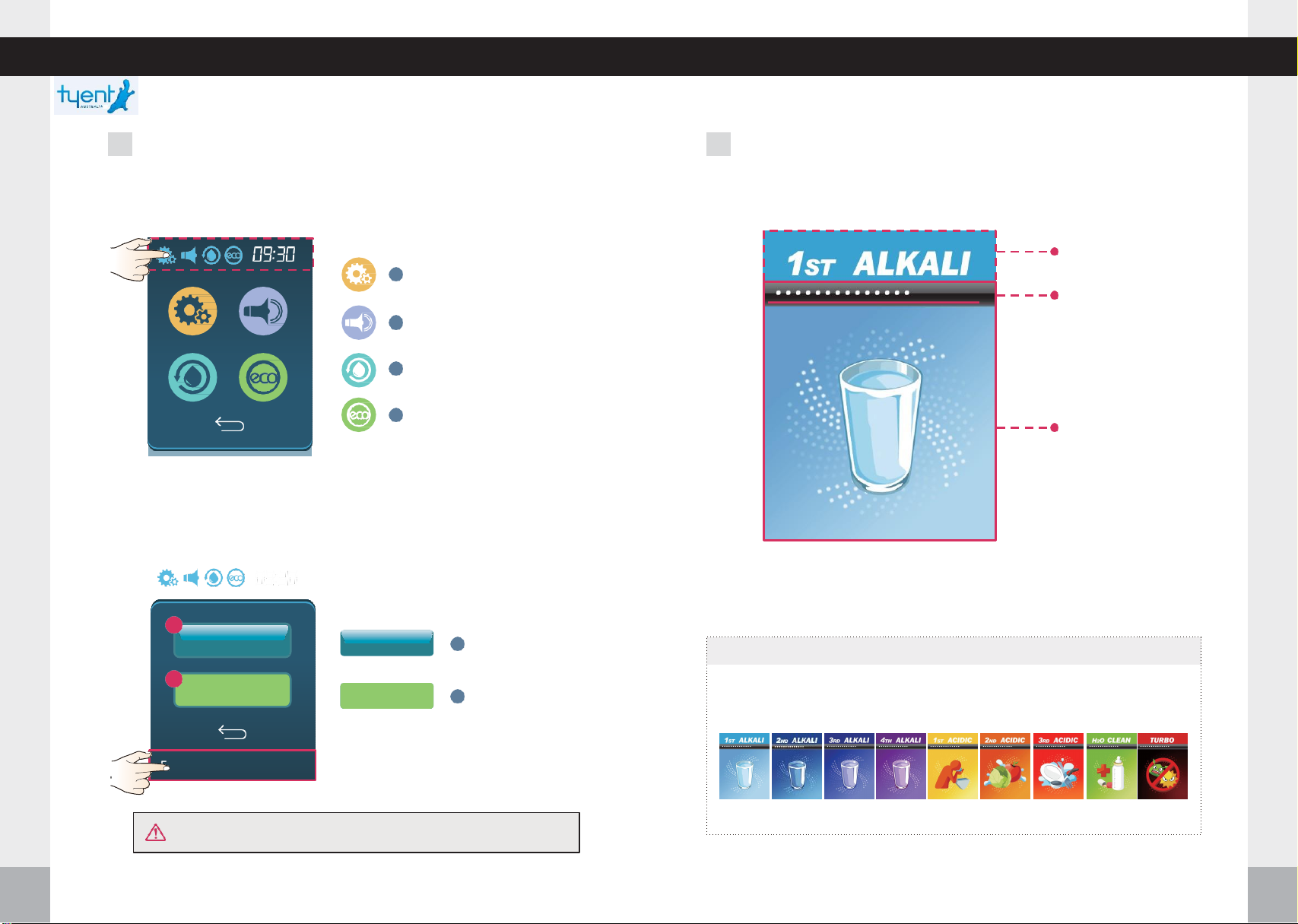

2 Menuwindow 3 LCD Display
Operation T o u c h S c r e e n Operation T o u c h S c r e e n
F1 RESET
F2 RESET
1
AL
F1K RES
HET2O
AL K ACD
2
a
24 25

OUTFLOW STOP
When using the TOUCH Screen
Operation TouchScreen

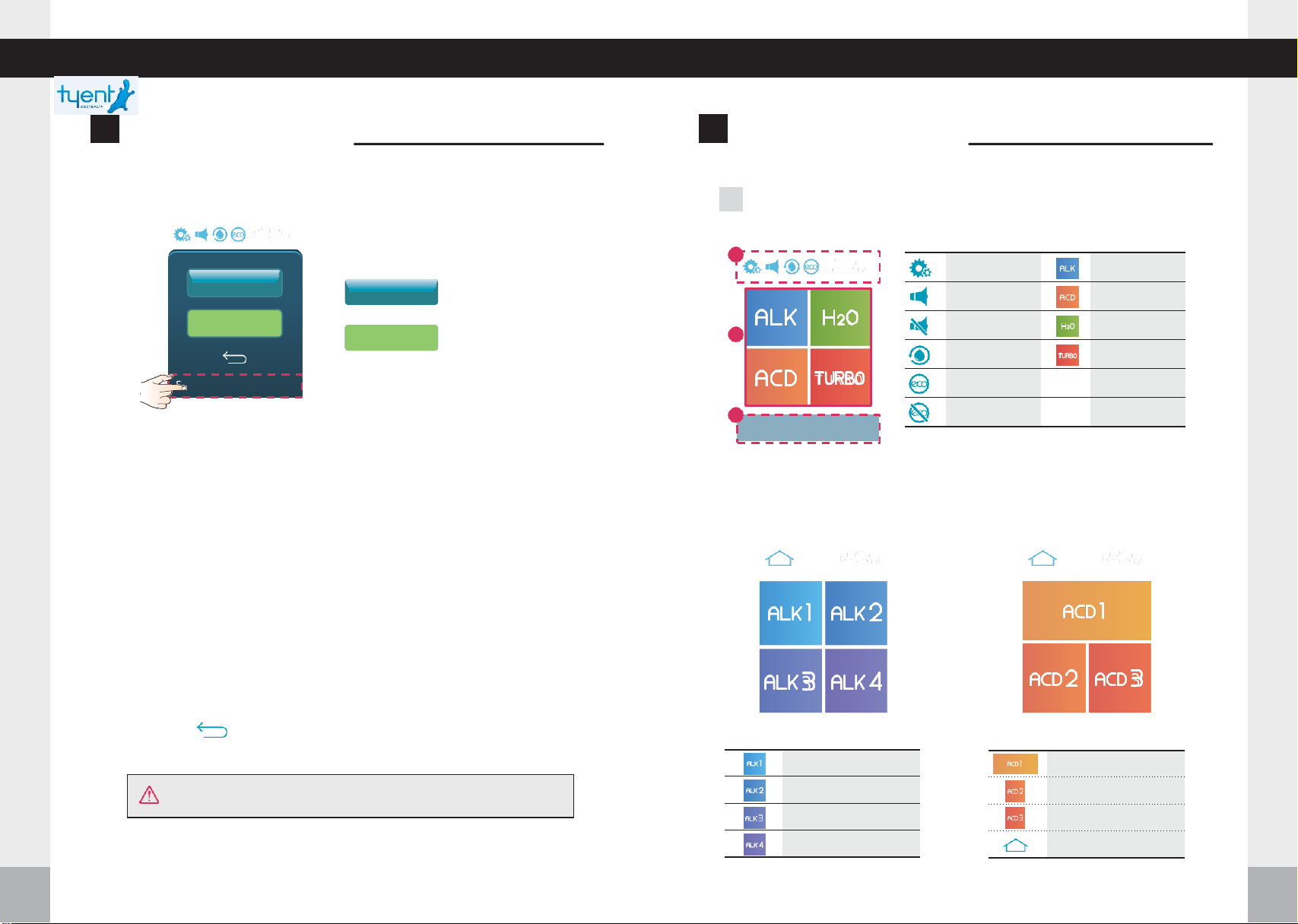

4 MessageDisplay
1 Alkalinewateroutflow
Operation T o u c h S c r e e n W he n using the T O U C H S c r e e n
:15
When this is displayed, it is time to
replace the filters (p. 21~22)
When this is displayed, water inside
the unit is higher than 95℉(35℃). The
water supply will then be shut off and
the unit will stop operating. (p.42)displayed.
When the automatic When this is displayed,
cleaning time comes, the unit is being cleaned
CLEANINGNOTICEis whichcanbe done
automaticallyand/or
manually.
CAUTIONSinusingtheTOUCHScreen
1. Screen maynot be seen wellunder direct sunlight.
2.Do not push the Screen hard with sharp or pointy objects.
Whenthisis been asuspensionof water
suppliedto theunit,issuingthismessage
priorto stopping wateroutflow.
2 Press thedesiredwater level icon on the alkaline screen.
3 Wateroutflowstarts. Screendisplayscurrentleveland
stop time. Pressthe screen to stop the flow of water.
4 When done, screen moves to Alkaline screen.
When using the TOUCH Screen
FILTERREPL.
TEMP.ERROR CLEANING
00:15
F1 50% F2 50%

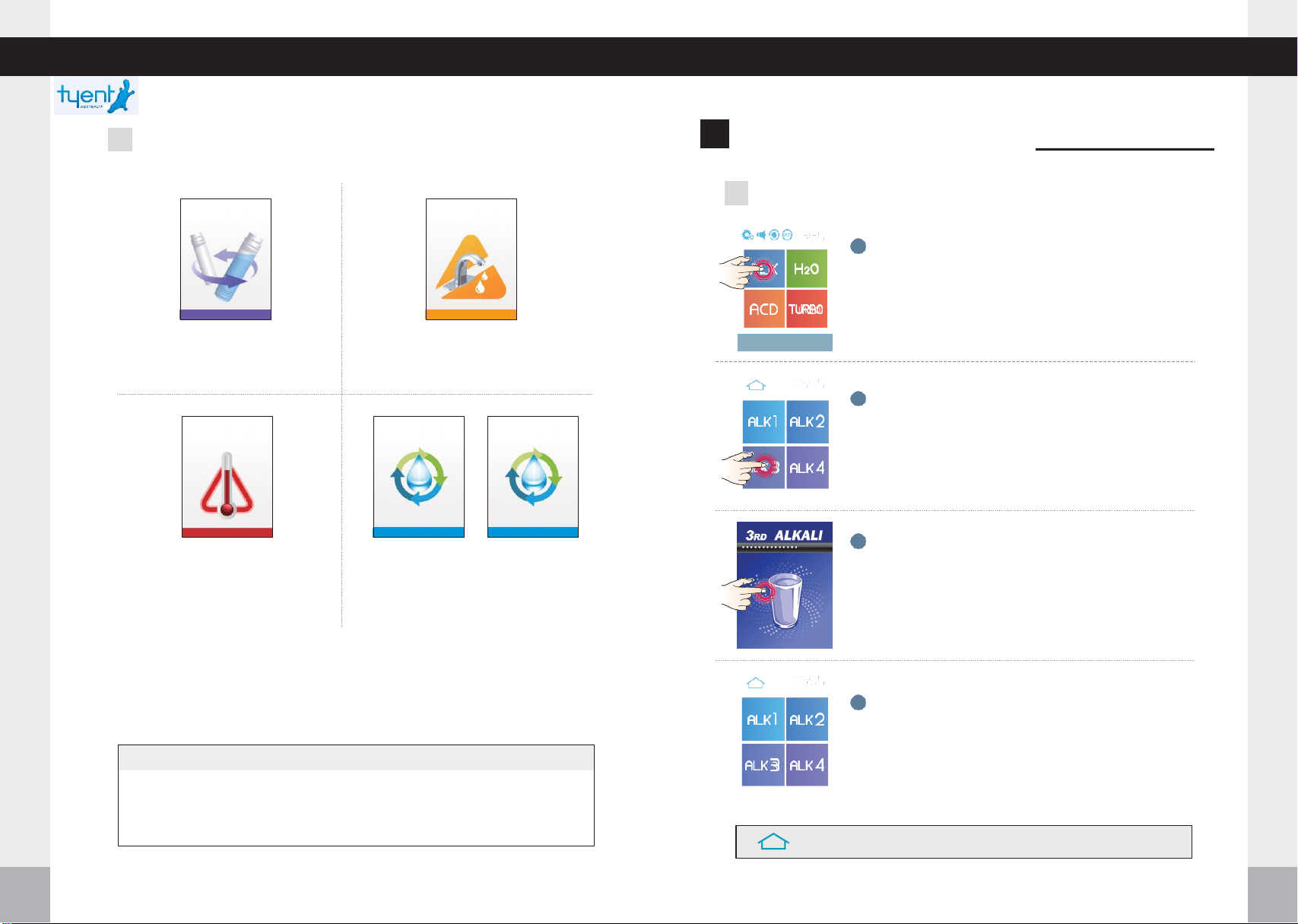

1 Press the “ALK” icon on theHome screen.
ALK H2O
ACD TURBO
ALK 1ALK 2
ALK 3 ALK 4
15:00
ALK 1ALK 2
ALK 3 ALK 4
Return to the Home screen when pressing the “Home” button.
CLEANING
NOTICE
Touch thescreen
26 27

05:00
ACD 1
ACD 2 ACD 3
15:00
ACD 1
ACD 2ACD 3
When using the TOUCH Screen When using the TOUCH Screen
Wh en using the T O U C H S c r e e n W he n using the T O U C H S c r e e n

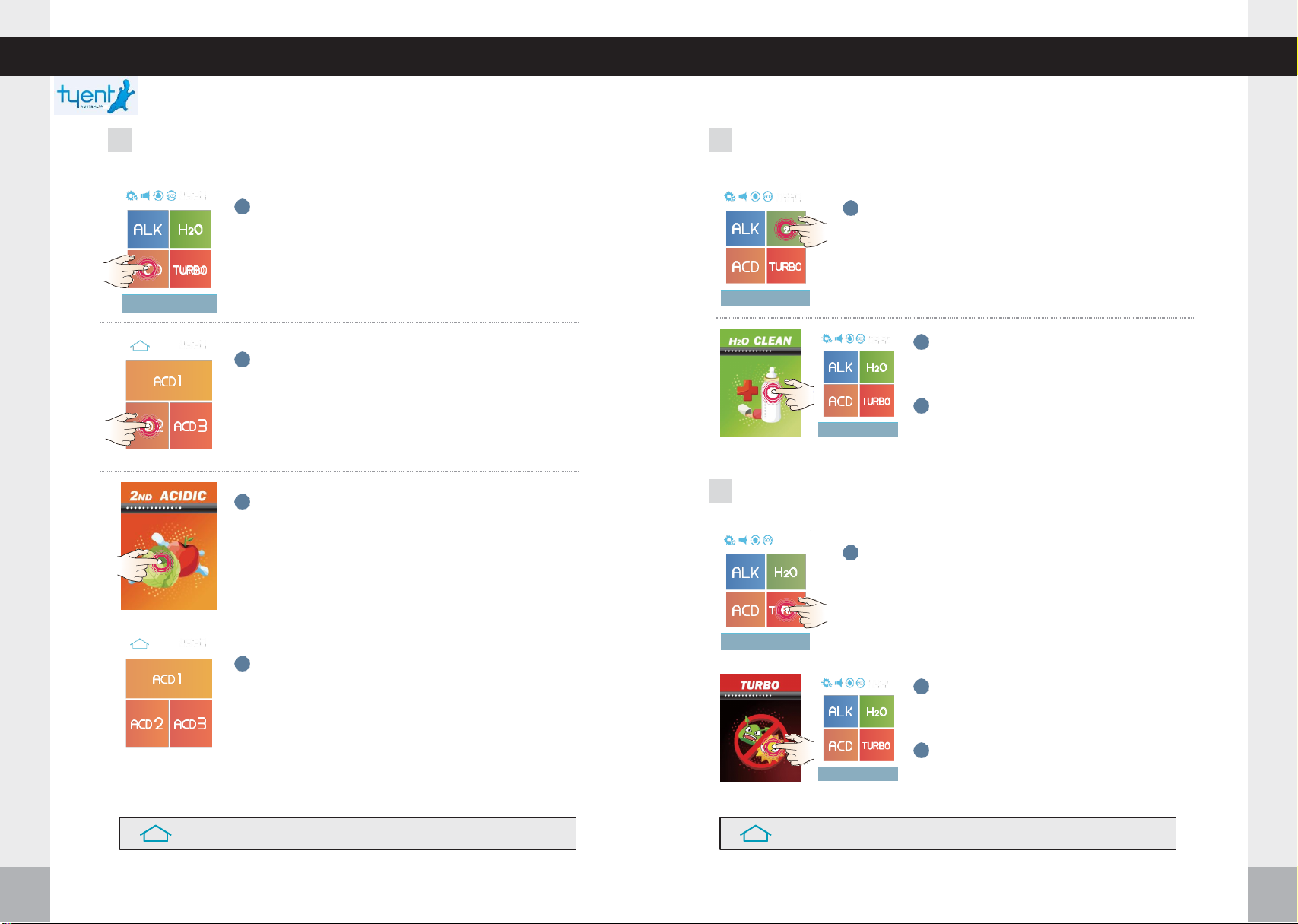

2 Acidicwateroutflow
1 Press the “ACD” icon on the Home screen.
2 Press the desiredwater levelicon on the acidicscreen.
3 Wateroutflowstarts. Screendisplayscurrentleveland
stop time. Press the screen to stop the flow of water.
4 When done, screen movesto acidic screen.
F1 50% F2 50%
ALK H2O
ACD TURBO
3 Purifiedwateroutflow
4 Turbofunctionoutflow
1 Press the “H2O” icon on the Home screen.
2Water outflow starts. Screen displays current
level and stop time. Press the screen to stop
the flowof water.
3 Whendone, screen movesto Home screen.
F150% F2 50%
AL K H2O
A C D TURBO
F1 50% F2 50%
A LK H 2 O
ACD TURBO
15:00
2Water outflow starts. Screen displays current
level and stop time. Press the screen to stop
the flowof water.
3 Whendone, screen movesto Home screen.
F1 50% F2 50%
A LK H 2 O
ACD TURBO
1 Press the “Turbo” icon on the Home screen.
AL K H2O
A C D TURBO
F1 50% F2 50%
Return to the Home screen when pressing the “Home” button. Return to the Home screen when pressing the “Home” button.
28 29

System SetupMethod
pH L e v e l Adjustment Sy st em Setup M e t h o d
Color of pH Testing ofEach Level :
Just remember when testing the pH be sure to allow unit to run for 2
minutes before taking a sample of the water. If you have to adjust percent-
age, after adjusting, run an additional 2 minutes before taking sample.
When testing pH values we like to use 2 Tablespoons of the water being
produced and 4 Drops of the Re-Agent in aclear glass.
The minimum and maximum Turbo waters produce will be dependent on
the water source quality. Set Turbo at 99% for maximum pH levels, these
levelscan range normallyas follows:
pH Chart
AlkalineTurbo (DarkPurple)
AcidTurbo (Dark Red)
Alkaline Level 1 = Approx 8.0 pH (light blue)
Alkaline Level 2 = Approx 8.5 pH (blue)
Alkaline Level 3 = Approx 9.0 pH (Dark blue)
Alkaline Level 4 = Approx 9.5 pH (Purple) H2O
= Approx 7.0 pH (green)PurifiedWater Acid
Level 1 = Approx 6.5 pH (lightyellow) Acid
Level 2 = Approx 5.5 pH (lightorange) Acid
Level 3 = Approx 4.5 pH (Red)
※pH value indicated foreach level is based on standardized test result which have used average tap water.
pH Level Adjustment System Setup Method
pH LevelAdjustment
ALK1ST :
ALKALIpH
ACIDICpH
LANGUAGE
VOLUME
3 Press “ALKALIpH”
4 Press desiredlevel.
2 Press the setupicon.
1 Press the top left cornerof screen. MENU
options willfallbelow upper partof screen.
: ALKpH levelup (09%,10%, 11%...)
5
: ALKpH leveldown (07%, 06%, 05%...)
1ALKALI
p
H LevelAdjustment
PushRETURNicon for previous menu screen. Voicesays :“Applied”
PushRETURNicon again to complete set up.
Voice says :“Set up was completed”
If UP/DOWN Icon is pushed, digital number moves by onestep.
ALK1ST: 4%
ALK2ND:
5%
ALK3RD :
6%
ALK4TH:
7%
4
%
ALK2ND:
5%
ALK3RD :
6%
ALK4TH:
7%
Backcolor
Orange highlight shows currentposition on menu.
A blue highlight means that changes to that setting are possible.
a
알칼리 산 성
정 수
F150% F2 50%
P S
S
30 31

정 수
알칼리 산성
F1 50% F2 50%
System SetupMethod System SetupMethod
Syste m Setup M e t h o d Syste m Setup M e t h o d

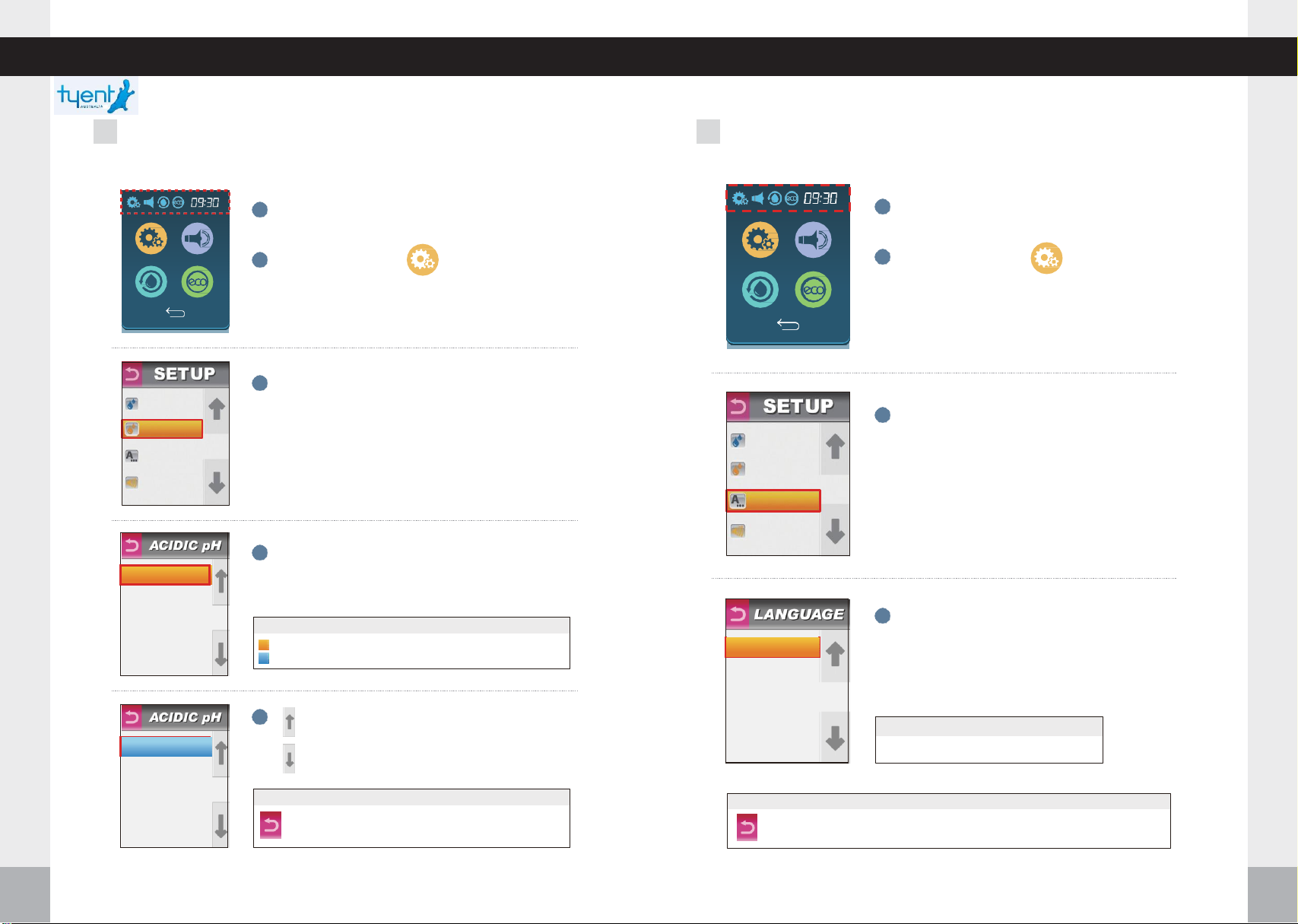

2 ACIDIC
p
H LevelAdjustment 3 LANGUAGEMode
ALKALIpH
ACIDICpH
LANGUAGE
VOLUME
3 Press “ACIDICpH”
4 Press desiredlevel.
: ACDpH levelup (08%,09%, 10%...)
5
: ACDpH leveldown (06%,05%, 04%...)
Backcolor
Orange highlight shows current position on menu.
A blue highlight means that changes to that setting are possible.
PushRETURNicon for previous menu screen. Voicesays :“Applied”
PushRETURNicon againto complete set up.
Voice says :“Set up was completed”
If UP/DOWN Icon is pushed, digital number moves by onestep.
PushRETURNicon for previous menu screen. Voicesays :“Applied”
PushRETURNicon again to complete set up. Voice says :“Set up was completed”
If UP/DOWN Icon is pushed, digital number moves by onestep.
ACD1ST: 15%
ACD 2ND :26 %
ACD 3RD :36 %
TURBO:70 %
ACD1ST: 15 %
ACD 2ND :26 %
ACD 3RD :36 %
TURBO:70 %
ALKALIpH
ACIDICpH
LANGUAGE
VOLUME
4 Press desiredlanguage.
1
2 Press the setup icon.
Press the top left cornerof screen. MENU
options willfallbelow upper partof screen.
3 Press“LANGUAGE”
KOREAN,ENGLISH,CHINESE, SPANISH
Supportedlanguage
1.
KOREAN
2.
ENGLISH
3.
CHINESE
4.
SPANISH
알칼리 산 성
정 수
F150% F2 50%
2 Press the setupicon.
1 Press the top left cornerof screen. MENU
options willfallbelow upper partof screen.
aa
32 33

Year
Month
Day
Hour
Min
Year
Month
Day
Hour
Min
ACIDICpH
LANGUAGE
VOLUME
TIME
System SetupMethod System SetupMethod
Syste m Setup M e t h o d Syste m Setup M e t h o d
알칼리 산 성
정 수
F150% F2 50%
2 Press the setupicon.
1 Press the top left cornerof screen. MENU
options willfallbelow upper partof screen.

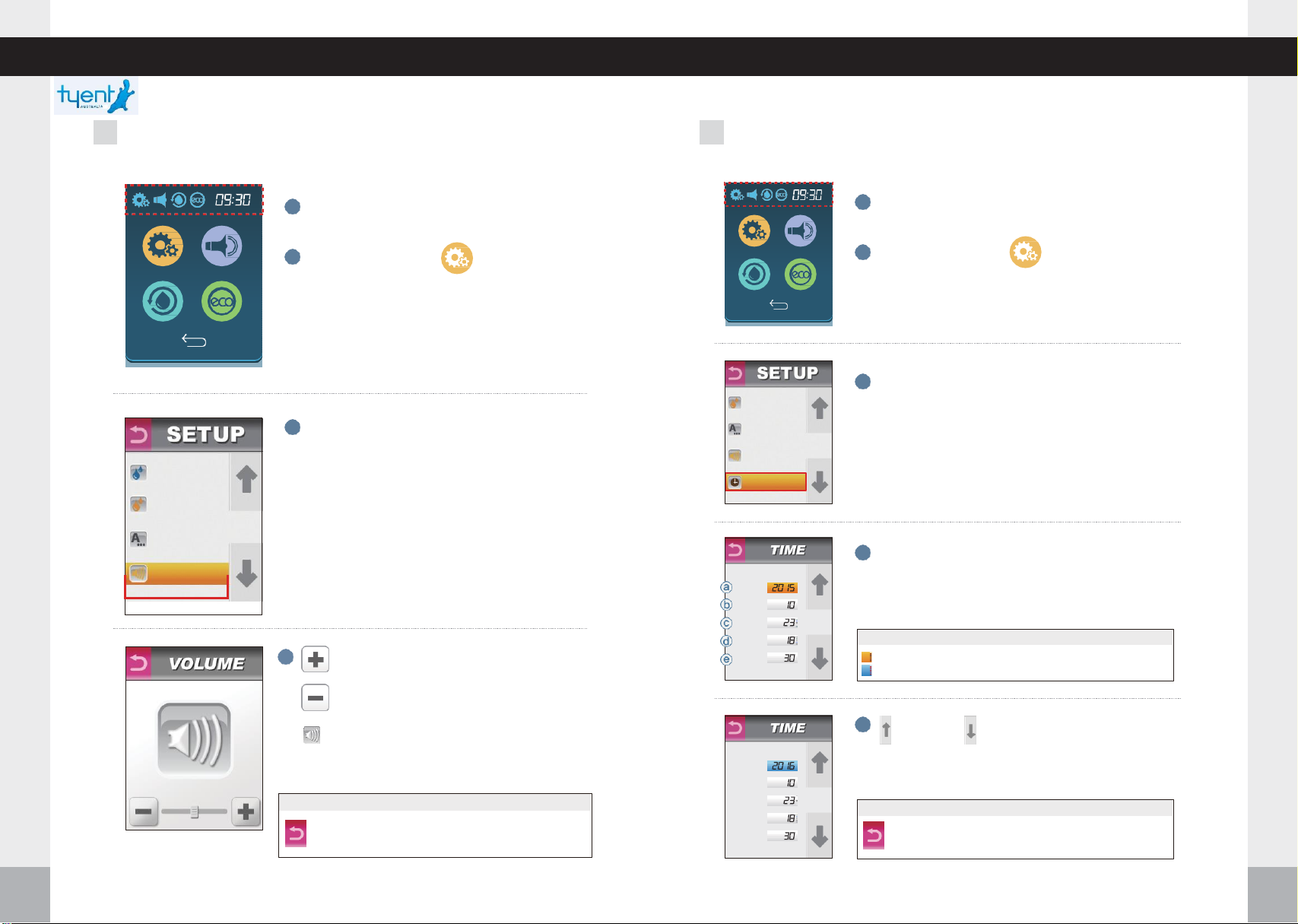

4 VOLUMELevelAdjustment 5 SettingtheTIME
ALKALI pH
ACIDICpH
LANGUA
GE
VOLUME
3 Press “VOLUME”
4
5
: Volumeup (0-10step)
: Volumedown (0-10step)
Pressing this icon will let you hear current volume.
PushRETURNicon for previous menu screen. Voicesays :“Applied”
PushRETURNicon again to complete set up.
Voice says :“Set up was completed”
If UP/DOWN Icon is pushed, digital number moves by onestep.
Adjustment time and date with the arrows :
ⓐYear ⓑMonth
ⓒDay ⓓHour
ⓔMinute
3 Press“TIME”
4
5: for up : fordown
Time set up is complete.
PushRETURNicon for previous menu screen. Voicesays :“Applied”
PushRETURNicon again to complete set up.
Voice says :“Set up was completed”
If UP/DOWN Icon is pushed, digital number moves by onestep.
Backcolor
Orange highlight shows currentposition on menu.
A blue highlight means that changes to that setting are possible.
정 수
알칼리 산 성
F150% F2 50%
1
Press the setup icon.
2
Press the top left cornerof screen. MENU
options willfallbelow upper partof screen.
aa
34 35

Touch thescreen
CLEANING
00:15
CLEANING
00:15
Cleaning Function
Selecting VoiceOn/Ou
selecting Voice On/Off Cleaning Function
Cleaning Function
1
2
Ifthe screen is touched, it changes to the previous used screen.
When functional water is selected on Standby mode, it goes into auto-
matic cleaning for 15 seconds, and the selected functional water will
be dispensed.
1Press the top left corner of screen. MENUoptions willfall below upper
part of screen.
2Press the Cleaning icon.
3 Cleaningmode stops after 15 minutes and the screen changes to the
Home screen.
Cleaning can take place automatically and/or manually.
Auto Cleaning (15 seconds) is performed during water outflowafter
more than 24 hours of non-operating or after 30 liters of water outflow.
Manual Cleaning (15 seconds) is performedwhenever desiredsimply
by touching the icon.
Auto Cleaning
CLEANING
NOTICE 15:00
ManualCleaning
정 수
알칼리 산 성
F150% F2 50%
정 수
알칼리 산 성
F150% F2 50%
정 수
알칼리 산 성
F150% F2 50%
Selecting Voice On/Off
2 Select the VOICE icon.
1 Press the top left cornerof screen. MENU
options willfallbelow upper partof screen.
※Evenif volume is turned off, warning notifications
willstillplay through speaker if necessary.
(filter replacement, water not supplied, TEMP,
Cleaning, Setup mode)
F1 50% F2 50%
AL K H2O
ACD TURBO
a
a
a3 The voice willbe turnedon/off by selecting the
voice icon in this sequence.
F1 50% F2 50% F1 50% F2 50%
A LK H 2 O
A CD TURBO
a
알칼리 산 성
정 수
F1 50% F2
50%
C
S
S
a
알칼리 산 성
정 수
36 37
Cleaning Function
Selecting Voice On/Off

TURBO Function ECO Mode
ECO M O D E T U R BO Function
ECO Mode
2 Select the ECO icon.
1Press the top left corner of screen. MENU
options willfallbelow upper partof screen.
3 ECOMode willbe turned on/off by selecting
the ECO icon inthis sequence.
ECO Mode is a feature to indicate time on the display during periods of non-use.
When ECO MODE is set, unit consumers less
power during periods of non-use. The Screen will
displaytimeif ECOModeis setafter10 minutesafter
using the unit. If the screen is touched, it changes
to standby Mode by displaying last screen used.
정 수
알칼리 산 성
F150% F2 50%
알칼리 산 성
정 수
F150% F2 50%
TURBO Function
The TURBOFunction allows you to createstrong alkalineand acidicwater. These
types of water are ONLY to be used for cleaning, sanitizing and disinfecting purposes.
TURBO
Strong AcidicWater pH 2.5
~ pH3.8 Used to Disinfect
and Sterilize
TURBO
Strong Alkaline Water
pH 10.0
~ pH11.8 To remove stains from
fabrics/carpet/upholstery.
Alkaline Turbo WaterOutflow Acidic Turbo WaterOutflow
Caution
Thewaters produced in TURBO mode arenot intended for drinking.
DO NOT DRINK thesetypes of waters.
DO NOT Use the TURBO function in a manner other than directed.
05:00 05:00
a
a
23 /Oct/2016
10:30AM
38 39
