TYPHOON Digi User manual

TYPHOON DIGI POCKET PLAYER
(MP3 PLAYER)
INSTRUCTION MANUAL
Article Number: 83068
Version 1.00
http://www.typhoonline.com
CE
Declaration of Conformity
We, the manufacturer / importer
Anubis Electronic GmbH
Am Langfeld 38
66130 Saarbrücken
Germany
Declare that the product
Brand: TYPHOON
Product Name: DIGI POCKET PLAYER
Model No: 83068
Is compatible with the following norms and standards:
EN55022 : 1998+A1 : 2000 CLASS B
EN55024 : 1998+A1 : 2001
And is in compliance with the requirements and bears CE mark in accordance
with the provis
ions from the Electromagnetic Compatibility (EMC) Directive
89/336/EEC.
Manufacturer and Authorized Representative
Judy Hsu
Project Manager February 28, 2004

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 1
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
FCC INTERFERENCE STATEMENT
Note
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
Caution
Do not change or modify the product without permission or authority of manufacturer.
It may cause undesirable operations, permanent damages or harmful interferences.
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 2
Contents
PC System Requirements ..................................................................................................3
Description of Product Part ................................................................................................ 3
Package contents .............................................................................................................. 4
USB Port Inspection .......................................................................................................... 4
Driver installation ………………………………………………………………………………… 4
Formatting ………………………………............................................................................. 5
Inserting a Battery ............................................................................................................. 6
Button Operation by Modes ............................................................................................... 6
Music File Playing .............................................................................................................. 7
Section Repeat (REPEAT A-B) ..........................................................................................8
Hold Function (HOLD) ....................................................................................................... 8
Installation check ………………………………………………………………………………… 8
Remove Digi Pocket Player …………………………………………………………………… 9
Troubleshooting Tips ......................................................................................................... 10
Product Specification ......................................................................................................... 12
Warranty ............................................................................................................................ 13
Design and specifications are subject to change without notice for product improvement purposes.

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 3
INSTRUCTION MANUAL
PC System Requirements
•Processor: Intel® Pentium® III 533MHz or better
•System Memory: 64MB DRAM or more
•USB port version 1.1 or later
•Windows 98SE / ME / 2000 SP4 / XP SP 1 or later
•Hard Disk: 5MB or more
•CD-ROM drive to install Software application and driver
Description of Product Part
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 4
Package Contents
•Instruction Manual
•Installation CD for Windows® 98 SE
•Earphones
•Neck Strap
•Battery type: 1 x 1.5V AAA
USB Port Inspection
1. Before program installation, please check the USB port for proper installation.
2. Go to “Start menu -Control Panel –System applet –click on Hardware button -
Device Manager tab”.
3. Check if there is “Universal Serial Bus Controllers” line in the device controller list.
4. It will be displayed as “General Serial Bus Controllers” or “Universal Serial Bus
Controllers” depending on the PC environment.
5. The USB port cannot be used if there is no such “Universal Serial Bus Controllers”.
In such a case, please ask the vendor of your PC for its service before installation.
Driver Installation (for Windows® 98 SE)
•Before installation, please disconnect other USB products connected to the USB
port.
•Do not connect the product to your PC until complete installation of the application
and driver. If you have already connected the product to your PC, please disconnect
it before proceeding.
1. Place the supplied CD-ROM into the CD-ROM drive of your PC.
2. The Auto-run will launch the installation screen.
3. If the installation program does not start automatically, double-click “setup.exe” in
the CD.

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 5
4. Follow the installation screen instructions and reboot after completion of the
installation.
5. For Windows ME / 2000 and XP, just insert the Digi Pocket Player directly to the
USB port and the system will self detect and install.
6. Windows will alert that the device is ready for use and launch Windows Explorer to
transfer your Music files over to the Digi Pocket Player.
7. For files management, follow standard Windows operating procedures for Windows
Explorer.
Formatting
1. Formatting the Digi Pocket Player, all of the files and folders on the device will be
deleted.
2. Go to Windows Explorer, Digi Pocket Player will automatically recognized as a
"Removable Disk" and you can format it directly.
3. In Windows Explorer, right-click on the removable disk and select Format from the
popup menu, as shown below.
4. Select "FAT" as the file system. If you select "FAT32" to format the device, the
device’s memory information will be displayed incorrectly. In such case, please re-
format the device using FAT.
5. After formatting is complete, click "Close" to exit the Format window.
6. Remove the Digital Player and reboot
7. Re-connect to the computer once Windows restarts.
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 6
Inserting a Battery
1. Open the cover on the right side of the product by pushing it to the arrow direction
and pull open.
2. Insert the battery into the compartment according to the direction inscribed on the
back and push the cover shut.
Button Operation by Modes
Button Normal Mode
uI Power On / Off
Playback / Pause
STOP Stop (Pause)
}} I Forward to next song
I|| Rewind to the song before
A-B
Repeat Repeat A -B Setup
+ button Increase volume level
-button Decrease volume level
“+”
“
-
”

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 7
LED actions Function indication
Blink continuously (3 seconds)
till steady Power On
Blink slowly (Once per second) Stop
Blink quickly (Twice per second) Playback
Blink twice quickly (Twice per
second) and one second stop Pause
5 blink and stop Power Off
Blink slowly (Once per second)
after Power ON Ready
Playback Function
Music File Playing
1. Turn on the product and press the “uI” button to play MP3 music.
2. Press the button one more time to pause.
3. To select a song you want to play, use the “uuI” or “Itt” dial control to move to the
song in the list (must aware of the list sequence as displayed in Windows Explorer)
and press the playback button.
4. To stop, press the “Stop” button that is also the dial but instead of rotating, press the
dial inwards.
5. To play another song while a song is playing, turn the “uuI” or “Itt” dial and the
selection will either jump in front or back of the song list.
6. By pressing the “+” or “-” button the volume will increase or decrease respectively.
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 8
Section Repeat (REPEAT A-B)
1. Press the “A-B” button on the front to mark the repeat start point while a song or
voice message is playing.
2. Press the “A-B” button again to mark the last point of the file to repeat.
3. The Playback will automatically start the Re.
Hold Function (HOLD)
1. This function is used to prevent other functions from operating while the product is
running.
2. Slide the “HOLD” switch at the bottom of the Digital Player towards the arrow
direction. All the functions are now locked.
3. To unlock, slide the HOLD switch back.
Installation check
1. To confirm that Windows had detected and install the Digi Pocket Player correctly,
go to Control Panel –System applet –Hardware button –Device Manager tab.
2. Check under the Disk Drive and USB Controller device list. Refer to below for the
Device name.

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 9
Remove Digi Pocket Player

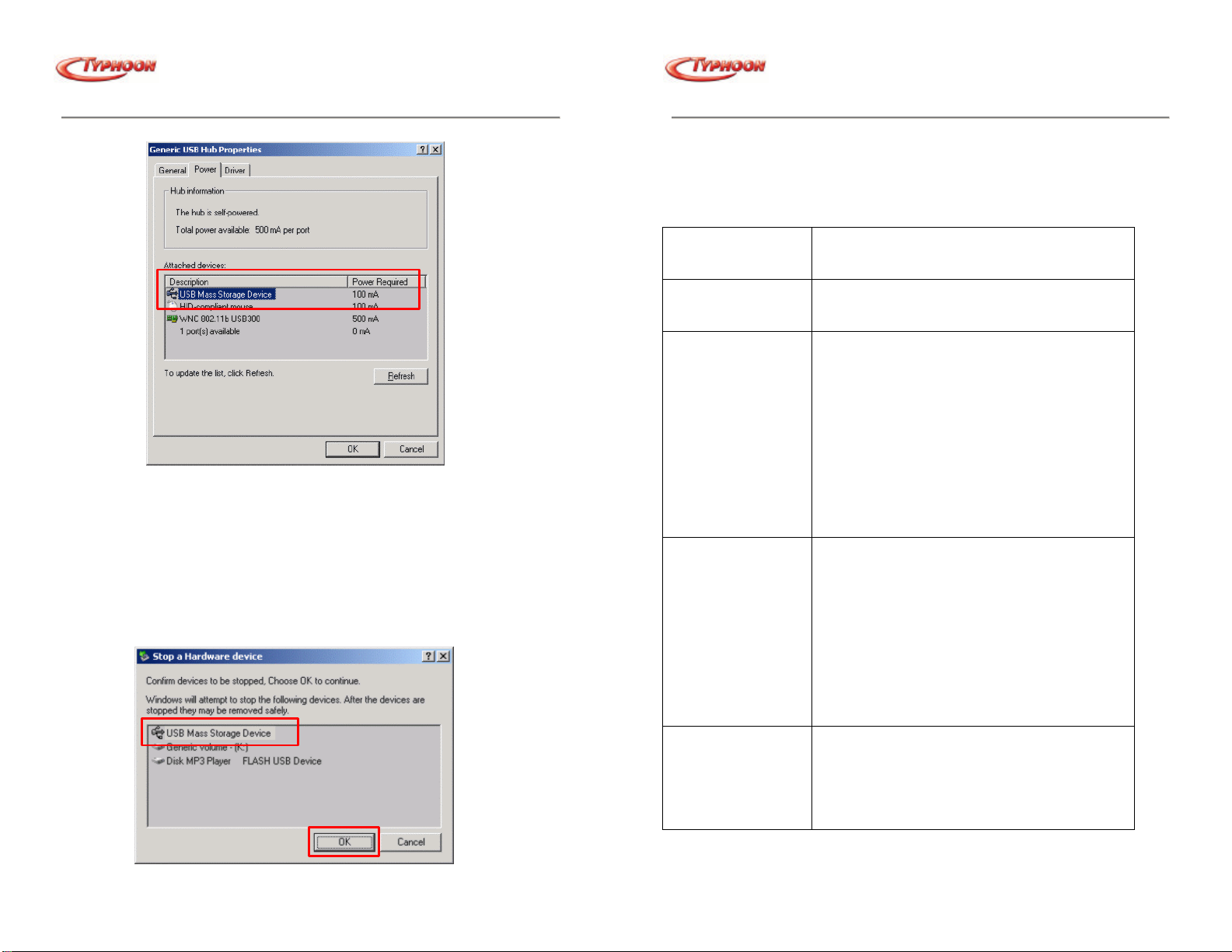

1. To remove the Digi Pocket Player after file transfer operation, please right click on
the Notification area’s “Safely Remove Hardware” applet.
2. Then select the USB Mass Storage Device and click on OK button. Windows will
then prompt at the Notification area that it is now safe to remove, then unplug the
Digi Pocket Player.
3. If Windows did not respond, reboot the system with the Digi Pocket Player attached.
Re-try the safe removal again.
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 10
Troubleshooting Tips
•Please check the followings first if the product does not work properly.
Problems Solution
The buttons of the
product do not work Check if the “HOLD” switch on the lower end of the product is locked.
Turn the “HOLD” switch to the original direction.
The music file is not
played.
Check if the extension is “MP3”.
This product can play only the “MP3” files.
Power is not on.
It stops in an initial
state.
Used space is
displayed while there
is no file stored.
Other errors of the
product.
Check the polarity of the battery.
Check the remained capacity of the battery.
Remove the battery from the product, connect the
product to a PC using a USB cable and power it on.
When you power the product on, “READY” sign will
appear on the LCD.
In this status, refer to the Formatting Procedure of this
manual.
Although the product
is connected to a PC,
the removable disk is
not generated.
Remove the battery from the product and reinsert it.
If not detected normally, click the right button of the
mouse to delete it.
After deletion, click “hardware change search” icon in
the upper end to newly install the device.
When it is normally installed, the yellow exclamation
mark in the front will disappear.
If there no new
hardware is detected
Check “Control Board _System (System Registration
Information) _Device Controller and see if there is
“USB Controller (General Series Bus Controller,
Universal Series Bus Controller).
If you do not have the above devices in your PC, you

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 11
cannot use a USB port. In this case, you have to so set
the bios (CMOS) environment that you can use a USB
port.
Contact the sales agent for a detailed setting method.
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 12
Product Specification
Main Function MP3 Player / USB Mass Storage Device
Memory 256MB 256MB Flash Memory
128MB 128MB Flash Memory
Interface USB port ver1.1 or later
File Transmission Speed Full Speed -12Mbps
LED Green
Battery 1 x AAA
Operating Time
8-hour consecutive play (Alkaline battery used)
Output Power 5mW + 5mW
Frequency Range 20Hz –20KHz
S/N (Noise Ratio) 85dB ~ 90dB
Total Distortion 0.08%
Case Plastic
Safety Standard FCC & CE
Dimension (L x W x D) 72 x 30 x 15.6 (mm)

TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 13
-end -
TYPHOON DIGI POCKET PLAYER
Article number: 83068
Version 1.00 All specifications are subject to changes without further notice 14
