TYPHOON 4000 User manual

OPERATION MANUAL
Typhoon 4000
PRESSURE
BLASTER
TyphoonBlaster.com

2 |
TABLE OF CONTENTS
Safety
3 - Safety Warning Symbols and Meaning
 4-5 -IntroductionandProductIdentication
 6-13 -ImportantSafetyEquipmentSpecicWarnings
Inspection
14 - 15 - Gas Washer Components
16 - Pre-Operation Checklist
Operations
17 - 21 - Starting Your Washer
22 - Shutting Down Your Washer
23 - Spray Tips
24 - Using Black Soap Nozzle
25-26 - Change Spray Tip / Adjust Pressure
Maintenance
27 - 28 - Winter Storage
Troubleshooting
29 - 31 - Troubleshooting
Assemby
32 - 33 - Assembly Kit
34 - 37 - Frame Assembly
Operations
38 - 39 - Limited Warranty
Feaatures and Specications
40 -Specications
Do not operate equipment until reading and
understanding operator’s manual.
REVIEW THIS MANUAL THOROUGHLY
Follow all instructions provided within this manual. This equipment
can cause serious injury to people and animals and severe damage to
property if operated negligently or incorrectly. Pay particular attention
to all safety instructions, warnings and notices.

| 3

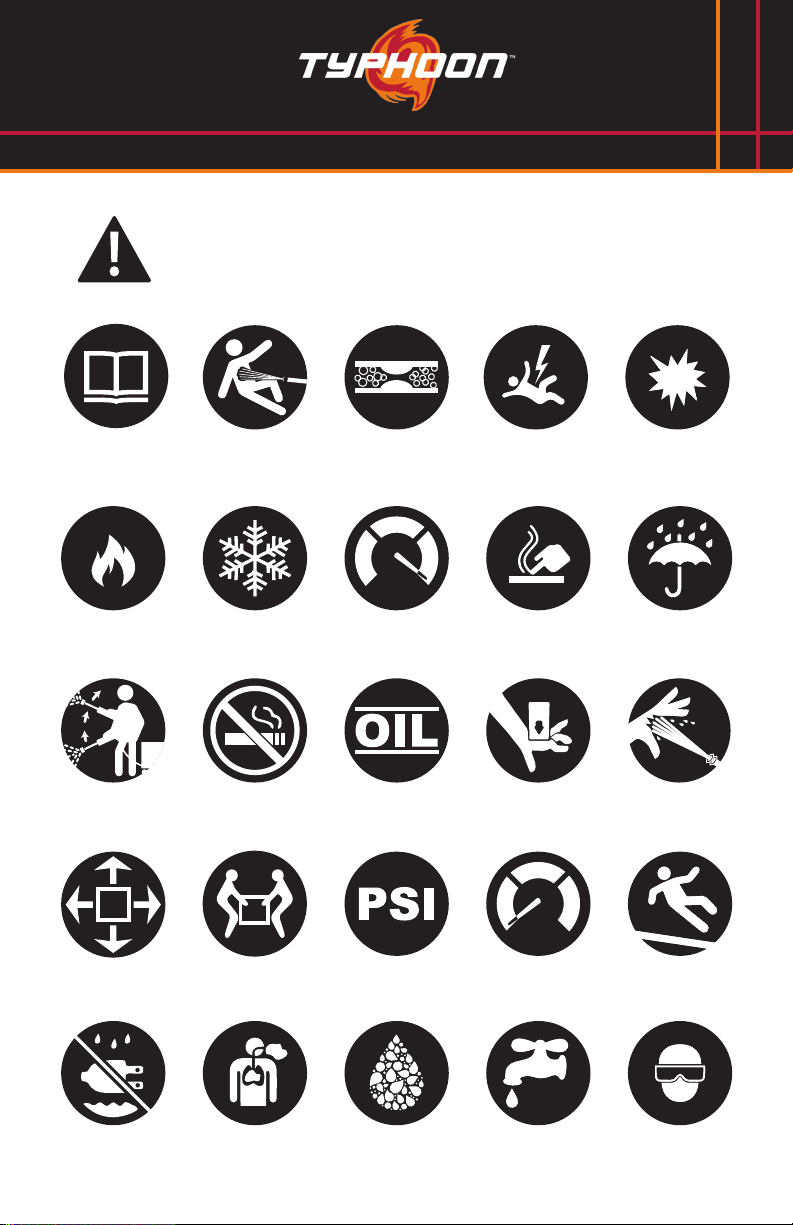

SAFETY WARNING SYMBOLS
The signal words and meanings are intended to explain
the level of risk associated with this product.
Store in
Dry Place Toxic Fumes Water Water Supply Wear Eye Protection
Read Operator’s
Manual Bodily Harm Clogged Electric Shock Explosion
Fire Freezing High Pressure Hot Surfaces Keep Dry
Kickback No Smoking Oil Pinching Powerful Spray
Proper Clearance Proper Lifting PSI Relieve Pressure Slippery

4 |
INTRODUCTION
Using the Operator’s manual
The operating manual is an important part of your pressure blaster
and should be read thoroughly before initial use, and referred to
often to make sure adequate safety and service concerns are being
addressed. Reading the owner’s manual thoroughly will help avoid any
personal injury or damage to your machine. The information in this
manual will offer you the most effective tools for cleaning as well as
the safest. By knowing how best to operate this machine you will be
better positioned to show others who may also operate the unit. This
manual contains information for the complete range of be pressure
blasters, and is placed in order starting from the safety requirements
to the operating functions of your machine. You can refer back to
themanualatanytimetohelptroubleshootanyspecicoperating
functions, so store it with the machine at all times.
Notice
Actual pressure released at the point of discharge may vary by
machine due to varying factors including: Volume of water being fed to
the machine by the water source, the inclusion of a Chemical injector
in the line, or variations in Engine performance
Attention: Read through the
complete manual prior to the initial
use of your pressure blaster.

| 5
Record Identication Numbers
Pressure Blaster
If you need to contact an Authorized Dealer or Customer Service line
(1-866-338-7519) for information on servicing, always provide the
productmodelandidenticationnumbers.
You will need to locate the model and serial number for the machine
and record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identication Numbers
Model Number:
Serial Number:
Engine
Horse Power:

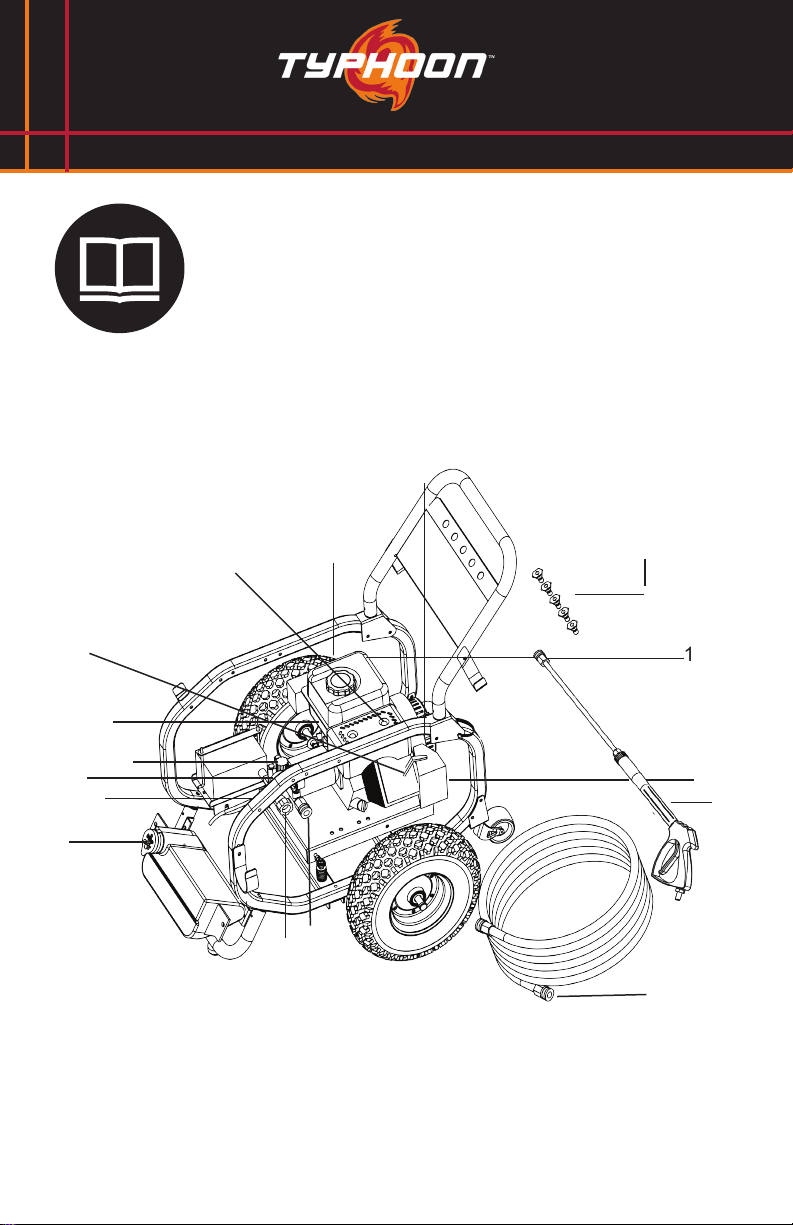

PRODUCT IDENTIFICATION

6 |
Understanding the Machine Safety Labels
The machine safety label shown below is placed on your machine to
draw attention to potential safety hazards.
SAFETY
Do not leave unit running longer than 1 minute
without using or pump will overheat. Ne pas
laisser fonctionner inutilement l’unité pendant plus
d’une minute.
Do not let unit freeze.
La pompe risquerait de surchauffer.
Always wear eye protection.
Porter toujours des lunettes de sécurité.
High pressure sprays can cause serious bodily
inury. Use with Caution. Les jets à haute pression
peuvent causer de graves blessures corporelles.
Soyez prudent.
Warranty is void if you exceed preset pressure
causing severe damage to gauge and unloader.
Ne pas exposer cette unité au gel la guarantie
n’est pas applicable si vous exédez la mesure
de préssion PSI indiqué. Causez beaucoup de
dommage à la indicateur et la dechargeur.

| 7
SAFETY
Save these Instructions Safety Rules
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible
injury or death.
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION, WARNING), a pictorial and/or a safety
message to alert you to hazards.
Follow safety messages to avoid or reduce the risk of injury or death.

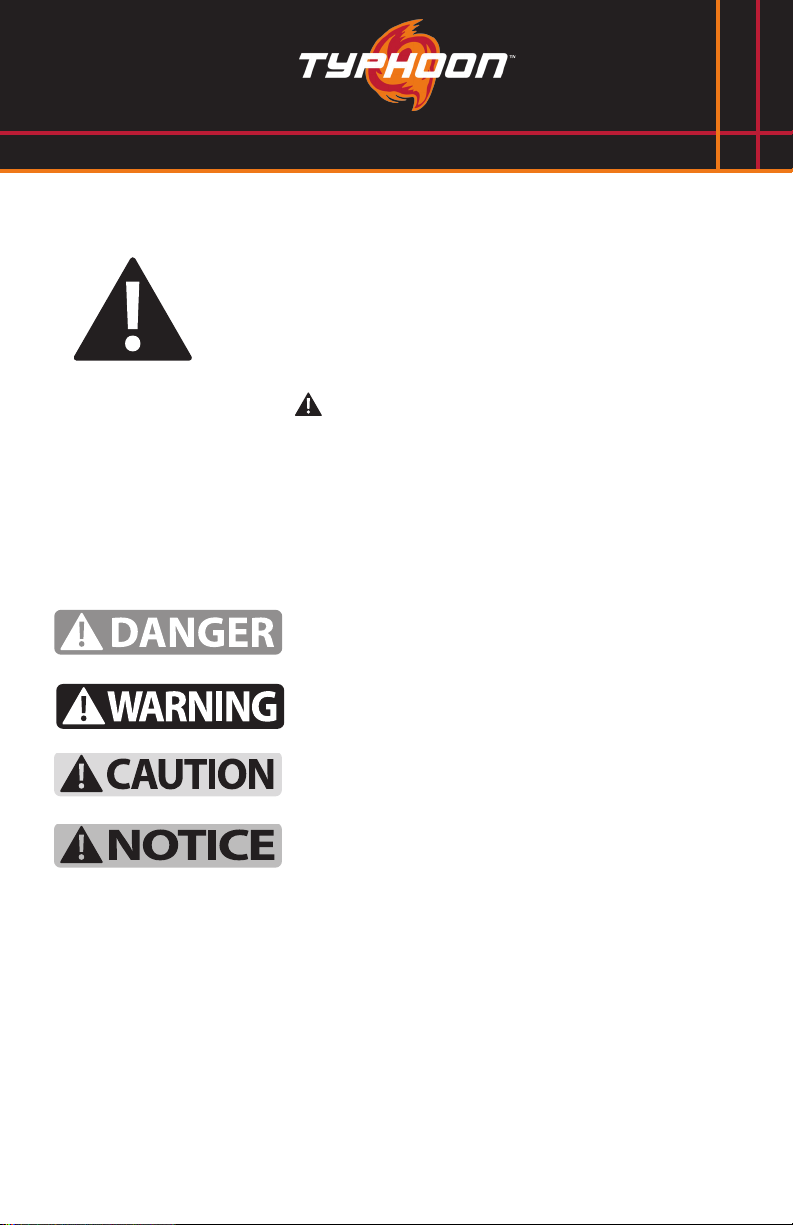

Hazard Symbols and Meanings
Indicates a hazard which, if not avoided,
WILL result in death or serious injury.
Indicates a hazard which, if not avoided,
could result in death or serious injury.
Indicates a hazard which, if not avoided,
could result in minor or moderate injury.
Indicates a situation that could result in
equipment damage.

8 |
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
Some chemicals or detergents may be harmful if inhaled or ingested,
causing severe nausea, fainting, or poisoning.
• Operate pressure washer ONLY outdoors.
• Keepexhaustgasfromenteringaconnedareathroughwindows,
doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if
windows and doors are open.
• Use a respirator or mask whenever there is a chance that vapors
may be inhaled.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful vapors.
Use of pressure washer can create puddles and
slippery surfaces.
Kickback from spray gun can cause you to fall.
Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a
ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
SAFETY

| 9
Fuelanditsvaporsareextremelyammableand
explosive.
Fire or explosion can cause severe burns or
death.
When Adding or Draining Fuel
• Turn pressure washer OFF and let it cool at least 2 minutes before
removing fuel cap. Loosen cap slowly to relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• DONOToverlltank.Allowspaceforfuelexpansion.
• If fuel spills, wait until it evaporates before starting engine.
Keepfuelawayfromsparks,openames,pilotlights,heat,
and other ignition sources.
DO NOT light a cigarette or smoke.
When Starting Equipment
• Ensuresparkplug,mufer,fuelcap,andaircleanerareinplace.
• DO NOT crank engine with spark plug removed.
When Operating Equipment
• DO NOT tip engine or equipment at angle which causes fuel to
spill.
• DONOTsprayammableliquids.
When Transporting or Repairing Equipment
• Transport/repair with fuel tank EMPTY or with fuel shutoff valve
OFF.
• Disconnect spark plug wire.
SAFETY

10 |
When Storing Fuel or Equipment with Fuel in Tank
• Store away from furnaces, stoves, water heaters, clothes dryers,
or other appliances that have pilot light or other ignition source
because they can ignite fuel vapors.
Risk of electrocution.
Contact with power source can cause electric
shock or bum.
NEVER spray near power source.
After each starting attempt, where engine fails
to run, always point spray gun in safe direction
and squeeze spray gun trigger to release high
pressure.
Firmly grasp spray gun with both hands when
using high pressure spray to avoid injury when
spray gun kicks back.
Contactwithmuferareacanresultinserious
burns.
Exhaust heat/gases can ignite combustibles,
structuresordamagefueltankcausingare.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
Keep at least 5 feet (1.5 m) of clearance on all sides of
pressure washer including overhead.
SAFETY

| 11
Unintentionalsparkingcanresultinreorelectric
shock.
When Adjusting or Making Repairs to Your Pressure Washer
• Disconnect the spark plug wire from the spark plug and place the
wire where it cannot contact spark plug.
When Testing for Engine Spark
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
Spray gun traps high water pressure, even when engine is stopped
and water is disconnected, which can cause injury.
• DO NOT allow CHILDREN to operate pressure water.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind.
Replace o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
Keep high pressure hose connected to pump and spray gun
while system is pressured.
ALWAYS point spray gun in safe direction and squeeze spray
gun trigger, to release high pressure, every time you stop
engine.
SAFETY

12 |
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• ALWAYS be certain spray gun, nozzles and accessories are
correctly attached.
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
NEVER operate pressure washer without
protective housing or covers.
• DO NOT wear loose clothing, jewelry, or anything that may be
caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
Risk of eye injury.
Spray can splash back or propel objects.
Always wear safety goggles when using this
equipment or in vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitue safety glass for safety goggles.
High pressure spray may damage fragile items
including glass.
• DO NOT point spray gun at glass when using red 0° spray tip.
• NEVER aim spray gun at plants.
SAFETY

| 13
Improper treatment of pressure washer can
damage it and shorten its life.
• If you have questions about intended use, ask dealer or contact
nearest authorized dealer.
• NEVER operate units with broken or missing parts, or without
protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts of
the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided
on unit.
• Check fuel system for leaks or signs of deterioration, such as
chafed or spongy hose, loose or missing clamps, or damaged tank
or cap.
• Correct all defects before operating pressure washer.
NEVER ALLOW UNIT TO RUN FOR LONGER
THAN 1 MINUTE WITHOUT RELIEVING
PRESSURE ON PUMP BY PULLING TRIGGER ON GUN.
SAFETY

14 |
Read this operator’s manual and
safety rules before operating your
pressure blaster.
GAS WASHER COMPONENTS
1.
2.
3.
4. 5.
6.
7
8
9
10
11
12 13
14
15
16

| 15
1. Spray Tips detergent, 0°, 15°, 25° and 40°: for various high
pressure cleaning applications.
2. High Pressure Hose connect one end to water pump and the
other end to spray gun.
3. Pressure Control Knob varies pressure of high pressure spray.
4. Water Inlet connection for garden hose.
5. High Pressure Outlet connection for high pressure hose.
6. Pump develops high pressure.
7. Oil Level Indicator level should be at halfway
8. Detergent Siphoning Tube/Filter use to siphon pressure blaster
safe detergent into the low pressure stream.
9. Choke Lever prepares a cold engine for starting.
10. Fuel Valve used to turn fuel supply on and off to engine.
11. Recoil Starter used for starting the engine manually.
12. Throttle Lever sets engine in starting mode for recoil starter.
13. Engine Switch set switch to “On” to start engine. Set switch to
“OFF” to stop a running engine.
14. Air Filterprotectsenginebylteringdustanddebrisoutofintake
air.
15. Fuel Tanklltankwithregularunleadedfuel.Alwaysleaveroom
for fuel expansion.
16. Spray Gun Extension with Quick Connect Nozzles controls
the application of water onto cleaning surface with trigger device.
Includestriggerlock.Allowsyoutoswitchbetweenvedifferent
spray tips.
GAS WASHER COMPONENTS
14
16

16 |
Follow the Checklist Below Prior to Using the Machine
Each Time
1. Check to ensure the engine oil is at the proper level. Use SAE
10W30 Oil
2. Add fuel to the gas tank.
3. Connect and tighten the garden hose to the GHA (garden hose
inlet) connection.
** Water must be turned on prior to starting the washer, pull
the spray trigger to ensure water is moving the through the
lines and out the nozzle without any leaks before starting the
unit.**
4. Review the safety guidelines in the manual prior to starting the
unit.
If you have any issues operating the pressure blaster, call the
customer service line at 1-866-338-7519.
Always check the level of the engine oil prior to
starting the washer.
Failure to do so could cause the engine to seize if
the oil is low or empty.
Connect Hose and Water Supply to Pump Before Starting
DO NOT start your pressure washer without the
water supply turned on.
Failure to do so will result in damaging the pump
from overheating and void the warranty.
PRE-OPERATION CHECKLIST

| 17
Starting an Electric Start Unit
Tostartyourpressureblasterforthersttime,followtheseinstruc-
tions step-by-step. This starting information also applies if you have
let the pressure blaster sit idle for at least a day.
• Unit is shipped with battery cables disconnected.
• Attachpositive(red)leadrst.
• Attach negative (black) lead last.
• Rotate the fuel valve to the ‘on’ position.
• Move choke to the ‘closed’ or ‘start’ position. Consult your engine
manual.
• Assure the throttle is pushed to the left.
• Turn key to the ‘start’ position.
• Once engine starts, return key to the ‘run’ position.
• Move choke to the ‘open’ or ‘run’ position.
DO NOT run the pump without the water supply
connected and turned on.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
STARTING YOUR WASHER

18 |
STARTING YOUR WASHER
Starting a Manual Start Unit (If Applicable)
• Rotate the fuel valve to the ‘on’ position.
• Move the choke to the ‘closed’ or ‘start’ position. Consult your
engine manual.
• Assure the throttle is pushed to the left.
• Turn key or on/off switch to on position.
• Pull recoil starter grip slowly until resistance is felt.
• Pull recoil cord briskly
• Return starter cord gently into the recoil housing.
• If the engine does NOT start, release the built up pressure by
pointing the high pressure gun in a safe direction and squeezing
the trigger.
• Repeat pulling the recoil starter cord.
• Once engine starts, move choke to the ‘open’ or run position.

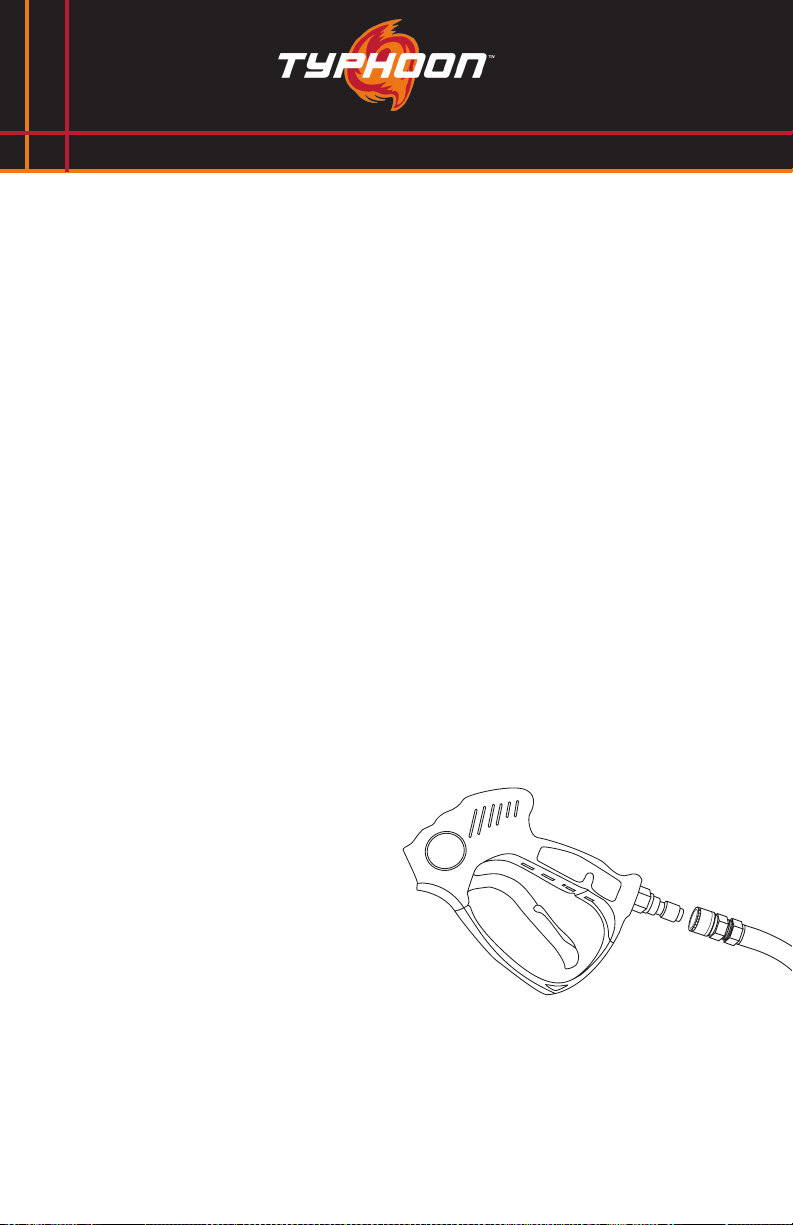

Uncoil high pressure hose and
attach quick connect end of hose
to base of spray gun. Pull down
on collar of quick connect, slide
onto spray gun and let go of
collar. Tug on hose to be sure of
tight connection.

| 19
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
NEVER ALLOW UNIT TO RUN FOR LONGER
THAN 1 MINUTE WITHOUT RELIEVING
PRESSURE ON PUMP BY PULLING TRIGGER ON GUN.
Similarly, attach other end of high pressure hose to high pressure
outlet on pump. Pull down on collar of quick connect, slide onto pump
and let go of collar. Pull on hose to be sure of tight connection.
STARTING YOUR WASHER
Soap intake
Garden hose to the pump. High pressure hose
to the gun.
Throttle Control System
(FOUND ONLY ON 4000 MODEL)
The automated throttle control system spontaneously shifts from full
engine speed to a low idle (RPM) upon release of the spray trigger.
Thisallowsforalong-lasting,efcientlyrunning,andquiettransaction.

20 |
Turn Water Supply on, point gun in a safe direction and squeeze the
trigger to purge the pump of air and debris. Do this for at least 30
seconds.
Take a look at all connections to make sure there are no leaks or
loose connections.
IMPORTANT: DO NOT siphon standing water for the water supply.
Use ONLY cold water (less than 100°F).
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
• Operate pressure washer ONLY outdoors.
• Keepexhaustgasfromenteringaconnedareathroughwindows,
doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if
windows and doors are open.
IMPORTANT: Before starting the pressure washer, be sure you are
wearing adequate safety goggles.
Risk of eye injury.
Spray can splash back or propel objects.
Always wear safety goggles when using this
equipment or in vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
STARTING YOUR WASHER
