TYPHOON 4000 User manual

OPERATION MANUAL
Typhoon 4000
PRESSURE
BLASTER

2 | 2 |
TABLE OF CONTENTS
Introduction
4 - Using the Operators Manual
Product Identication
5 - Pressure Blaster
5 - Engine
Safety
6 - Understanding the machine Safety Decal
7 - Safety Rules
7 - Hazard Symbols and Meanings
8 - Warnings
Pressure Blaster Components
14 - Component Chart
Pre-Operation Checklist
15 - Follow the Checklist Below
15 - Connect Hose and Water Supply to Pump
Starting Your Waster
16 - How to Start your Pressure Blaster
Shutting Down Your Washer
20 - How to Shut Down your Pressure Blaster

| 3 | 3
Spray Tips
21 - How to Use Spray Tips
21 - Change Spray Tips
21 - Usage Tips
Adjusting The Pressure
22 - Adjusting The Pressure
Using Black Soap Nozzle
23 - Apply Detergent
Troubleshooting
24 - Gas Engine Troubleshooting Chart
25 - Pump Troubleshooting Chart
Storage
26 - Winter Storage
26- Long Term Storage
26 - Protect Fuel System
27 - Storing the Engine
Assembly
28 - Assembly Kit
30 - Frame Assembly

4 | 4 |
INTRODUCTION
4
Using the Operator’s manual
The operating manual is an important part of your pressure washer and
should be read thoroughly before initial use, and referred to often to make
sure adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your machine. The information in this manual will offer you
the most effective tools for cleaning as well as the safest. By knowing
how best to operate this machine you will be better positioned to show
others who may also operate the unit.
This manual contains information for the complete range of BE pressure
washers, and is placed in order starting from the safety requirements
to the operating functions of your machine. You can refer back to the
manual at any time to help troubleshoot any specific operating functions,
so store it with the machine at all times.
Notice
Actual pressure released at the point of discharge may very by machine
due to varying factors including: Volume of water being fed to the ma-
chine by the water source, the inclusion of a Chemical injector in the line,
or variations in Engine performance
Attention: Read through the complete
manual prior to the initial use of your
pressure washer.
INTRODUCTION
Using the Operator’s manual
The operating manual is an important part of your pressure
blaster and should be read thoroughly before initial use, and
referred to often to make sure adequate safety and service
concerns are being addressed. Reading the owner’s manual
thoroughly will help avoid any personal injury or damage to
your machine. The information in this manual will offer you the
most effective tools for cleaning as well as the safest.
By knowing how best to operate this machine you will be better
positioned to show others who may also operate the unit.
This manual contains information for the complete range of be
pressure blasters, and is placed in order starting from the safety
requirements to the operating functions of your machine.
You can refer back to the manual at any time to help troubleshoot
any specic operating functions, so store it with the machine at
all times.
Notice
Actual pressure released at the point of discharge may vary
by machine due to varying factors including: Volume of water
being fed to the machine by the water source, the inclusion of a
Chemical injector in the line, or variations in Engine performance
Attention: Read through the
complete manual prior to the initial
use of your pressure blaster.

| 5 | 5
Record Identication Numbers
Pressure Blaster
If you need to contact an Authorized Dealer or Customer Ser-
vice line (1-866-338-7519) for information on servicing, always
provide the product model and identication numbers.
You will need to locate the model and serial number for the ma-
chine and record the information in the places provided below.
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identication Numbers
Model Number:
Serial Number:
Engine
Horse Power:
PRODUCT IDENTIFICATION

6 | 6 |
SAFETY
Understanding the Machine Safety Labels
The machine safety label shown below is placed on your
machine to draw attention to potential safety hazards.
6
Understanding the Machine Safety Labels
The machine safety label shown below is placed on your machine
to draw attention to potential safety hazards.
SAFETY
Always wear eye protection.
Porter toujours des lunettes de sécurité.
High pressure sprays can cause serious bodily injury.
Use with Caution. Les jets à haute pression peuvent
causer de graves blessures corporelles. Soyez prudent.
Do not let unit freeze.
La pompe risquerait de surchau er.
Warranty is void if you exceed preset pressure
causing severe damage to gauge and unloader.
Ne pas exposer cette unité au gel la guarantie n’est
pas applicable si vous exédez la mesure de préssion
PSI indiqué. Causez beaucoup de dommage à la
indicateur et la dechargeur.
36,
Do not leave unit running longer than 1 minute
without using or pump will overheat. Ne pas laisser
fonctionner inutilement l’unité pendant plus d’une minute.
:$51,1* 35(&$87,216
85.609.158
:$51,1*

| 7 | 7
Save these Instructions Safety Rules
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible
injury or death.
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION, WARNING), a pictorial and/or a safety
message to alert you to hazards.
DANGER indicates a hazard which, if not avoided, will result in
death or serious injury.
WARNING indicates a hazard which, if not avoided, could result
in death or serious injury.
CAUTION indicates a hazard which, if not avoided, might result
in minor or moderate injury.
NOTICE indicates a situation that could result in equipment
damage. Follow safety messages to avoid or reduce the risk of
injury or death.
Hazard Symbols and Meanings
6
Understanding the Machine Safety Labels
The machine safety label shown below is placed on your machine
to draw attention to potential safety hazards.
SAFETY
Always wear eye protection.
Porter toujours des lunettes de sécurité.
High pressure sprays can cause serious bodily injury.
Use with Caution. Les jets à haute pression peuvent
causer de graves blessures corporelles. Soyez prudent.
Do not let unit freeze.
La pompe risquerait de surchau er.
Warranty is void if you exceed preset pressure
causing severe damage to gauge and unloader.
Ne pas exposer cette unité au gel la guarantie n’est
pas applicable si vous exédez la mesure de préssion
PSI indiqué. Causez beaucoup de dommage à la
indicateur et la dechargeur.
36,
Do not leave unit running longer than 1 minute
without using or pump will overheat. Ne pas laisser
fonctionner inutilement l’unité pendant plus d’une minute.
:$51,1* 35(&$87,216
85.609.158
:$51,1*
SAFETY

8 | 8 |
SAFETY
8
SAFETY
WARNING
Running engine gives off carbon monoxide, an odorless,
colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures, nausea,
fainting or death.
Some chemicals or detergents may be harmful if inhaled
or ingested, causing severe nausea, fainting, or
poisoning.
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows,
doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if
windows and doors are open.
• Use a respirator or mask whenever there is a chance that vapors may
be inhaled.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful vapors.
WARNING
Use of pressure washer can create puddles and
slippery surfaces.
Kickback from spray gun can cause you to fall.
• Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a
ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.

| 9 | 9
9
SAFETY
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or death.
When Adding or Draining Fuel
• Turn pressure washer OFF and let it cool at least 2 minutes before
removing fuel cap. Loosen cap slowly to relieve pressure in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other
ignition sources.
• DO NOT light a cigarette or smoke.
When Starting Equipment
• Ensure spark plug, muffler, fuel cap, and air cleaner are in place.
• DO NOT crank engine with spark plug removed.
When Operating Equipment
• DO NOT tip engine or equipment at angle which causes fuel to spill.
• DO NOT spray flammable liquids.
When Transporting or Repairing Equipment
• Transport/repair with fuel tank EMPTY or with fuel shutoff valve OFF.
• Disconnect spark plug wire.
When Storing Fuel or Equipment with Fuel in Tank
• Store away from furnaces, stoves, water heaters, clothes dryers, or
other appliances that have pilot light or other ignition source because
they can ignite fuel vapors.
WARNING
Risk of electrocution.
Contact with power source can cause electric shock
or burn.
• NEVER spray near power source.
SAFETY

10 | 10 |
SAFETY
10
SAFETY
WARNING
Starter cord kickback (rapid retraction) can result in
bodily injury. Kickback will pull hand and arm toward
engine faster than you can let go.
Broken bones, fractures, bruises, or sprains could
result.
• NEVER pull starter cord without first relieving spray gun pressure.
• When starting engine, pull cord slowly until resistance is felt and then
pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point
spray gun in safe direction and squeeze spray gun trigger to release
high pressure.
• Firmly grasp spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
WARNING
Contact with muffler area can result in serious burns.
Exhaust heat/gases can ignite combustibles, structures
or damage fuel tank causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
11
SAFETY
WARNING
Unintentional sparking can result in fire or electric
shock.
When Adjusting or Making Repairs to Your Pressure Washer
• Disconnect the spark plug wire from the spark plug and place the
wire where it cannot contact spark plug.
When Testing for Engine Spark
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace
o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger
guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly
attached.
• After each starting attempt, where engine fails to run, always
point spray gun in safe direction and squeeze spray gun trig-
ger to release high pressure.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury when spray gun kicks back.
10
SAFETY
WARNING
Starter cord kickback (rapid retraction) can result in
bodily injury. Kickback will pull hand and arm toward
engine faster than you can let go.
Broken bones, fractures, bruises, or sprains could
result.
• NEVER pull starter cord without first relieving spray gun pressure.
• When starting engine, pull cord slowly until resistance is felt and then
pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point
spray gun in safe direction and squeeze spray gun trigger to release
high pressure.
• Firmly grasp spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
WARNING
Contact with muffler area can result in serious burns.
Exhaust heat/gases can ignite combustibles, structures
or damage fuel tank causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
11
SAFETY
WARNING
Unintentional sparking can result in fire or electric
shock.
When Adjusting or Making Repairs to Your Pressure Washer
• Disconnect the spark plug wire from the spark plug and place the
wire where it cannot contact spark plug.
When Testing for Engine Spark
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace
o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger
guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly
attached.

| 11 | 11
11
SAFETY
WARNING
Unintentional sparking can result in fire or electric
shock.
When Adjusting or Making Repairs to Your Pressure Washer
• Disconnect the spark plug wire from the spark plug and place the
wire where it cannot contact spark plug.
When Testing for Engine Spark
• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace
o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger
guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly
attached.
SAFETY

12 | 12 |
SAFETY
12
SAFETY
WARNING
Starter and other rotating parts can entangle hands,
hair, clothing, or accessories.
• NEVER operate pressure washer without protective housing or
covers.
• DO NOT wear loose clothing, jewelry or anything that may be caught
in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in vicinity
of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
NOTICE
High pressure spray may damage fragile items including glass.
• DO NOT point spray gun at glass when using red 0° spray tip.
• NEVER aim spray gun at plants.

| 13 | 13
13
SAFETY
NOTICE
Improper treatment of pressure washer can damage it and shorten its
life.
• If you have questions about intended use, ask dealer or contact
nearest authorized dealer.
• NEVER operate units with broken or missing parts, or without
protective housing or covers.
• DO NOT by-pass any safety device on this machine.
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
• DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts of
the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on
unit.
• Check fuel system for leaks or signs of deterioration, such as chafed
or spongy hose, loose or missing clamps, or damaged tank or cap.
Correct all defects before operating pressure washer.
18

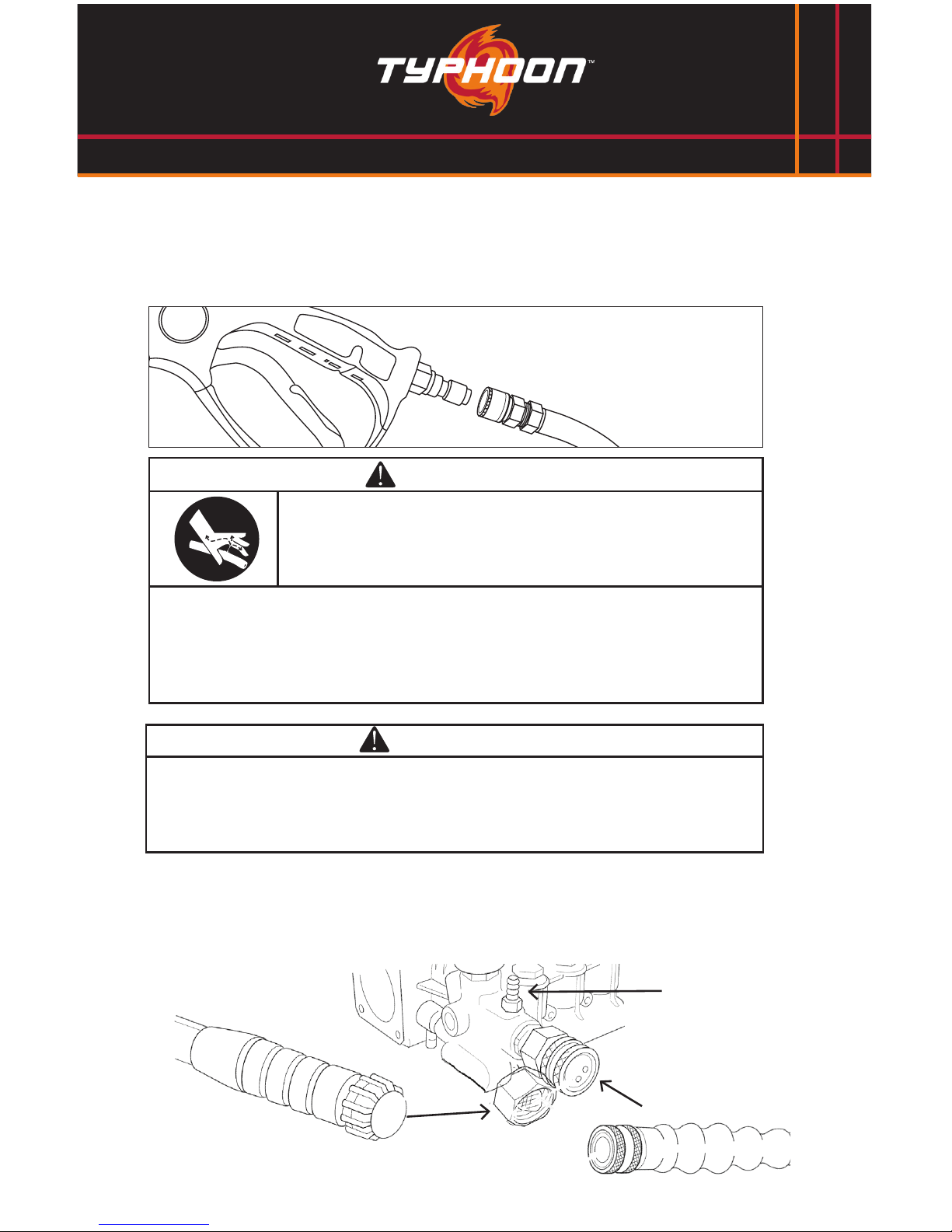

6. Uncoil high pressure hose and attach quick connect end of hose to
base of spray gun. Pull down on collar of quick connect, slide onto
spray gun and let go of collar. Tug on hose to be sure of tight
connection.
7. Similarly, attach other end of high pressure hose to high pressure
outlet (A) on pump. Pull down on collar of quick connect, slide onto
pump and let go of collar. Pull on hose to be sure of tight connection.
8. Turn Water Supply on, point gun in a safe direction and squeeze the
trigger to purge the pump of air and debris. Do this for at least 30
seconds.
9. Take a look at all connections to make sure there are no leaks or loose
connections.
IMPORTANT: DO NOT siphon standing water for the water supply. Use
ONLY cold water (less than 100°F).
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• Always be certain spray gun, nozzles and accessories are correctly
attached.
STARTING YOUR WASHER
AA
BB
AXIAL PUMP TRIPLEX PUMP
Pump Uses 30W Non-Detergent Mineral Oil
NEVER ALLOW UNIT TO RUN FOR LONGER THAN 1
MINUTE WITHOUT RELIEVING PRESSURE ON PUMP BY
PULLING TRIGGER ON GUN.
SAFETY

14 | 14 |
Read this operator’s manual and safety
rules before operating your pressure
blaster.
1. Spray Tips Detergent, 0°, 15°, 25° and 40°: for various high pressure cleaning applications.
2. High Pressure Hose Connect one end to water pump and the other end to spray gun.
3. Pressure Control Knob Varies pressure of high pressure spray.
4. Water Inlet Connection for garden hose.
5. High Pressure Outlet Connection for high pressure hose.
6. Pump Develops high pressure.
7. Oil Level Indicator Level should be at halfway
8. Detergent Siphoning Tube/Filter Use to siphon pressure blaster safe detergent into the low
pressure stream.
9. Choke Lever Prepares a cold engine for starting.
10. Fuel Valve Used to turn fuel supply on and off to engine.
11. Recoil Starter Used for starting the engine manually.
12. Throttle Lever Sets engine in starting mode for recoil starter.
13. Engine Switch Set switch to “On” to start engine. Set switch to “Off” to stop a running
engine.
14. Air Filter Protects engine by ltering dust and debris out of intake air.
15.Fuel Tank Fill tank with regular unleaded fuel. Always leave room for fuel expansion.
16.Spray Gun Extension with Quick Connect Nozzles Controls the application of water onto
cleaning surface with trigger device. Includes trigger lock. Allows you to switch between ve
different spray tips.
4
Using the Operator’s manual
The operating manual is an important part of your pressure washer and
should be read thoroughly before initial use, and referred to often to make
sure adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your machine. The information in this manual will offer you
the most effective tools for cleaning as well as the safest. By knowing
how best to operate this machine you will be better positioned to show
others who may also operate the unit.
This manual contains information for the complete range of BE pressure
washers, and is placed in order starting from the safety requirements
to the operating functions of your machine. You can refer back to the
manual at any time to help troubleshoot any specific operating functions,
so store it with the machine at all times.
Notice
Actual pressure released at the point of discharge may very by machine
due to varying factors including: Volume of water being fed to the ma-
chine by the water source, the inclusion of a Chemical injector in the line,
or variations in Engine performance
Attention: Read through the complete
manual prior to the initial use of your
pressure washer.
INTRODUCTION
1.
2.
3.
4. 5.
6.
7
8
9
10
11
12
13
14
15
16
GAS WASHER COMPONENTS

| 15 | 15
Follow the Checklist Below Prior to Using the Machine Each Time
1. Check to ensure the engine oil is at the proper level.
Use SAE 10W30 Oil
2. Add fuel to the gas tank.
3. Connect and tighten the garden hose to the GHA (garden
hose inlet) connection.
** Water must be turned on prior to starting the washer, pull
the spray trigger to ensure water is moving the through
the lines and out the nozzle without any leaks before start-
ing the unit.**
5. Review the safety guidelines in the manual prior to starting
the unit.
If you have any issues operating the pressure blaster, call the
customer service line at 1-866-338-7519.
16
PRE-OPERATION CHECKLIST
Follow the Checklist Below Prior to Using the Machine Each Time
1. Check to ensure the engine oil is at the proper level.
Use SAE 10W30 Oil
2. Check the 2 handle knobs to ensure they are tight and will not vibrate
loose.
3. Add fuel to the gas tank.
4. Connect and tighten the garden hose to the GHA (garden hose inlet)
connection.
** Water must be turned on prior to starting the washer, pull the
spray trigger to ensure water is moving the through the lines and
out the nozzle without any leaks before starting the unit.**
5. Review the safety guidelines in the manual prior to starting the unit.
If you have any issues operating the pressure washer, call the customer
service line at 1-866-850-6662.
Connect Hose and Water Supply to Pump Before Starting
WARNING
DO NOT start your pressure washer without the water
supply turned on.
• Failure to do so will result in damaging the pump from overheating
and void the warranty.
WARNING
Always check the level of the engine oil prior to starting
the washer.
• Failure to do so could cause the engine to seize if the oil is low or
empty.
16
PRE-OPERATION CHECKLIST

16 | 16 |
Starting an Electric Start Unit
To start your pressure blaster for the rst time, follow these
instructions step-by-step. This starting information also applies
if you have let the pressure blaster sit idle for at least a day.
• Unit is shipped with battery cables disconnected.
• Attach positive (red) lead rst.
• Attach negative (black) lead last.
• Rotate the fuel valve to the ‘on’ position.
• Move choke to the ‘closed’ or ‘start’ position.
Consult your engine manual.
• Assure the throttle is pushed to the left.
• Turn key to the ‘start’ position.
• Once engine starts, return key to the ‘run’ position.
• Move choke to the ‘open’ or ‘run’ position.
17
STARTING YOUR WASHER
How to Start Your Pressure Washer
To start your pressure washer for the first time, follow these instructions
step-by-step. This starting information also applies if you have let the
pressure washer sit idle for at least a day.
1. Place pressure washer near an outside water source capable of
supplying water at a flow rate greater than 3.8 gallons per minute and
no less than 20 PSI at pressure washer end of garden hose. DO NOT
siphon supply water.
2. Make sure unit is in a level position.
3. Connect garden hose to water inlet on pressure washer pump.
4. Attach wand extension to spray gun. Tighten by hand.
5. Choose desired spray tip, pull back nozzle extension collar, insert spray
tip and release collar. Tug on spray tip to make sure it is securely in
place. See Spray Tips.
NOTICE
DO NOT run the pump without the water supply connected and
turned on.
• Damage to equipment resulting from failure to follow this instruction
will void warranty.
Starting a Manual Start Unit (If Applicable)
• Rotate the fuel valve to the ‘on’ position.
• Move the choke to the ‘closed’ or ‘start’ position. Consult your
engine manual.
• Assure the throttle is pushed to the left.
• Turn key or on/off switch to on position.
• Pull recoil starter grip slowly until resistance is felt.
• Pull recoil cord briskly
• Return starter cord gently into the recoil housing.
• If the engine does NOT start, release the built up pressure
by pointing the high pressure gun in a safe direction and
squeezing the trigger.
• Repeat pulling the recoil starter cord.
• Once engine starts, move choke to the ‘open’ or run position.
STARTING YOUR WASHER

| 17 | 17
18
6. Uncoil high pressure hose and attach quick connect end of hose to
base of spray gun. Pull down on collar of quick connect, slide onto
spray gun and let go of collar. Tug on hose to be sure of tight
connection.
7. Similarly, attach other end of high pressure hose to high pressure
outlet (A) on pump. Pull down on collar of quick connect, slide onto
pump and let go of collar. Pull on hose to be sure of tight connection.
8. Turn Water Supply on, point gun in a safe direction and squeeze the
trigger to purge the pump of air and debris. Do this for at least 30
seconds.
9. Take a look at all connections to make sure there are no leaks or loose
connections.
IMPORTANT: DO NOT siphon standing water for the water supply. Use
ONLY cold water (less than 100°F).
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• Always be certain spray gun, nozzles and accessories are correctly
attached.
STARTING YOUR WASHER
AA
BB
AXIAL PUMP TRIPLEX PUMP
Pump Uses 30W Non-Detergent Mineral Oil
Uncoil high pressure hose and attach quick connect end of
hose to base of spray gun. Pull down on collar of quick connect,
slide onto spray gun and let go of collar. Tug on hose to be sure
of tight connection.
Similarly, attach other end of high pressure hose to high
pressure outlet on pump. Pull down on collar of quick connect,
slide onto pump and let go of collar. Pull on hose to be sure of
tight connection.
Garden hose to the pump.
High pressure hose to the gun.
Soap intake
18
6. Uncoil high pressure hose and attach quick connect end of hose to
base of spray gun. Pull down on collar of quick connect, slide onto
spray gun and let go of collar. Tug on hose to be sure of tight
connection.
7. Similarly, attach other end of high pressure hose to high pressure
outlet (A) on pump. Pull down on collar of quick connect, slide onto
pump and let go of collar. Pull on hose to be sure of tight connection.
8. Turn Water Supply on, point gun in a safe direction and squeeze the
trigger to purge the pump of air and debris. Do this for at least 30
seconds.
9. Take a look at all connections to make sure there are no leaks or loose
connections.
IMPORTANT: DO NOT siphon standing water for the water supply. Use
ONLY cold water (less than 100°F).
WARNING
The high pressure stream of water that this
equipment produces can cut through skin and its
underlying tissues, leading to serious injury and
possible amputation.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• Always be certain spray gun, nozzles and accessories are correctly
attached.
STARTING YOUR WASHER
AA
BB
AXIAL PUMP TRIPLEX PUMP
Pump Uses 30W Non-Detergent Mineral Oil
NEVER ALLOW UNIT TO RUN FOR LONGER THAN 1
MINUTE WITHOUT RELIEVING PRESSURE ON PUMP BY
PULLING TRIGGER ON GUN.
STARTING YOUR WASHER

18 | 18 |
19
STARTING YOUR WASHER
10. Connect the garden hose to the water inlet. Tighten by hand.
11. To start the machine, locate the engine switch on the side of the
engine, and switch it to the ON position. (see component chart to
locate switch) Check to ensure fuel valve is in the ON position and if
starting cold apply the choke.
12. Pull recoil cord slowly until resistance is felt and then pull rapidly to
avoid kickback. Make sure to position yourself in a balanced
position. DO NOT place hand on engine muffler for balance, this will
result in severe burn.
WARNING
Running engine gives off carbon monoxide, an odorless,
colorless, poison gas.
Breathing carbon monoxide can cause headache,
fatigue, dizziness, vomiting, confusion, seizures,
nausea, fainting or death.
• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows,
doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if
windows and doors are open.
IMPORTANT: Before starting the pressure washer, be sure you
are wearing adequate safety goggles.
WARNING
Risk of eye injury.
Spray can splash back or propel objects.
• Always wear safety goggles when using this equipment or in vicinity
of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate safety goggles.
• NEVER substitute safety glasses for safety goggles.
IMPORTANT: Before starting the pressure blaster, be sure you
are wearing adequate safety goggles.
Turn Water Supply on, point gun in a safe direction and squeeze the
trigger to purge the pump of air and debris. Do this for at least 30
seconds.
Take a look at all connections to make sure there are no leaks or
loose connections.
IMPORTANT: DO NOT siphon standing water for the water supply.
Use ONLY cold water (less than 100°F).
STARTING YOUR WASHER

| 19 | 19
20
STARTING YOUR WASHER
WARNING
Starter cord kickback (rapid retraction) can result in
bodily injury. Kickback will pull hand and arm toward
engine faster than you can let go.
Broken bones, fractures, bruises, or sprains could
result.
• NEVER pull starter cord without first relieving spray gun pressure.
• When starting engine, pull cord slowly until resistance is felt and then
pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point
spray gun in safe direction and squeeze spray gun trigger to release
high pressure.
• Firmly grasp spray gun with both hands when using high pressure
spray to avoid injury when spray gun kicks back.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• NEVER repair leaking connections with sealant of any kind. Replace
o-ring or seal.
• NEVER connect high pressure hose to nozzle extension.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
• NEVER use a spray gun which does not have a trigger lock or trigger
guard in place and in working order.
• ALWAYS be certain spray gun, nozzles and accessories are correctly
attached.
Throttle Control System
The automated throttle control system spontaneously
shifts from full engine speed to a low idle (RPM) upon
release of the spray trigger. This allows for a long-lasting,
efciently running, and quiet transaction.
(FOUND ONLY ON 4000 MODEL)
STARTING YOUR WASHER

20 | 20 |
How to Shut Down Your Pressure Blaster
1. Release spray gun trigger and let engine idle down.
2. Turn the engine switch to the OFF position.
•Rotate key counterclockwise to the ‘off’ position.
•Rotate the fuel valve to the ‘closed’ position for storage
maintenance or transportation.
•Disconnect battery for storage or maintenance.
3. ALWAYS point spray gun in a safe direction, squeeze spray gun
trigger to release retained high water pressure.
IMPORTANT: Spray gun traps high water pressure, even when
engine is stopped and water is disconnected. Couplings will not
release if under pressure.
21
SHUTTING DOWN YOUR WASHER
WARNING
Contact with muffler area can result in serious burns.
Exhaust heat/gases can ignite combustibles, structures
or damage fuel tank causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
How to Shut Down Your Pressure Washer
1. Release spray gun trigger and let engine idle down.
2. Turn the engine switch to the OFF position.
3. ALWAYS point spray gun in a safe direction, squeeze spray gun trigger
to release retained high water pressure.
IMPORTANT: Spray gun traps high water pressure, even when engine
is stopped and water is disconnected. Couplings will not release if under
pressure.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
21
SHUTTING DOWN YOUR WASHER
WARNING
Contact with muffler area can result in serious burns.
Exhaust heat/gases can ignite combustibles, structures
or damage fuel tank causing a fire.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5 m) of clearance on all sides of pressure
washer including overhead.
How to Shut Down Your Pressure Washer
1. Release spray gun trigger and let engine idle down.
2. Turn the engine switch to the OFF position.
3. ALWAYS point spray gun in a safe direction, squeeze spray gun trigger
to release retained high water pressure.
IMPORTANT: Spray gun traps high water pressure, even when engine
is stopped and water is disconnected. Couplings will not release if under
pressure.
WARNING
The high pressure stream of water that this equipment
produces can cut through skin and its underlying
tissues, leading to serious injury and possible
amputation.
Spray gun traps high water pressure, even when engine
is stopped and water is disconnected, which can cause
injury.
• Keep high pressure hose connected to pump and spray gun while
system is pressurized.
• ALWAYS point spray gun in safe direction and squeeze spray gun
trigger, to release high pressure, every time you stop engine.
STARTING YOUR WASHER
