TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
TZ SlideHandle™
Date: January 2015
Document Number: 112346.01_A
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited.
Patents Pending.
Product Manual TZ SlideHandle™Models: 4267CF, 4271CF, 4272CF

page i
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
About TZ
Telezygology, Inc. (TZ) is a wholly owned subsidiary
of publicly listed intellectual property and technology
development company TZ Limited with design and
engineering operations throughout the United States, Europe
and Australia.
TZ is a leader in the integration of intelligence and software
control into everyday objects to enable new levels of
functionality. Supported by a full product development
capability, TZ technology is a platform on which many
dierent solutions can be created by third parties seeking to
integrate remote controlled intelligent locking and sensory
devices to add functionality to their products.
TZ solutions fuse software controlled remote locking and
fastening, environmental sensing, real time analysis and
measurement to provide adopters with compelling benets
for their products and businesses.
Disclaimer
This document is intended to provide basic technical
information related to the TZ SlideHandle™locking device.
This document is not meant to be an exhaustive statement of
all relevant data. By using this document, however, you agree
to accept and comply with the terms, conditions, notices and
disclaimer contained in this document.
While TZ has used all due care and skill to ensure that the
information contained in this document is accurate, correct,
and current at the time of publication, it does not warrant
or represent that the information is free from errors or
omissions, and does not accept responsibility for any defect
in the information.
Use of Information Contained
in This Document
The correct functions of the TZ SlideHandle™will require
consideration of installation and system integration issues
such as networking for power and data, and subsequent
programming for functionality.
The TZ SlideHandle™described has not been tested or
qualied for a specic application other than for compliance
to the specication outlined. Specic qualication testing
may be required for t-for-purpose application design.
Caution
Changes or modications not expressly approved by TZ
could void the user’s authority to operate the equipment
(FCC Code of Federal Regulations Title 47 Part 15.21).

page ii
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Contents
1. TZ SlideHandle 1
1.1 Introduction 1
1.2 Device Overview 1
1.3 Contents of the Standard Package 2
1.4 Features 2
1.5 System Example 3
1.6 SlideHandle Model and Cabinet Model 3
2. Operation / Behavior 4
2.1 Electrical Connections and Features 4
2.2 LED Display 5
2.3 Opening / Closing 6
2.4 Use of Key 7
3. Installation 7
Appendix 1: TZ SlideHandle Reference Data 8
Appendix 2: TZ SlideHandle Electrical Specications 9
Appendix 3: TZ SlideHandle Models and Cutouts 10
Appendix 4: Compatibility Chart 11

page 1 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
1.2. Device Overview
TZ SlideHandle in Figure 1 is an intelligent locking device that
oers a drop-in replacement for legacy manual swing-handle
data center cabinet locks. The device integrates a high load
Shape Memory Alloy (SMA) actuated locking mechanism
with touch to release option, a multi-color LED status
indicator, manual key over-ride, electronic door status sensor
and RJ-45 connector.
The TZ SlideHandle is powered and controlled via standard
UTP Cat5e / Cat6 cabling through a TZ Praetorian Junction
or TZ Centurion Bridge. Additionally, it may also be rmware
congured for direct connection to a relay output or dry
contact closure system using a TZ Port Link device.
1.1. Introduction
Telezygology, Inc. (TZ) is the inventor of intelligent fastening,
locking and actuation devices that in combination with TZ
software and communication gateways provide a networked
platform that extends traditional access control networks
to asset level protection and creates compelling security,
locking, monitoring and control applications across a number
of market segments.
TZ control networks consist of the TZ SlideHandle, TZ Radial
and other locking devices, interconnect modules, physical
and environmental sensors and industry standard access
control input translators, all of which can be connected
to and controlled from stand-alone control devices and
computers via the Internet.
This manual only provides detailed technical information
about the TZ SlideHandle locking device. Please refer to the
appropriate system or component manual for information on
other TZ products.
Figure 1: TZ SlideHandle™

page 2 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
1.4. Features
Unlike standard cabinet handles, the TZ SlideHandle
contains a microprocessor that is able to execute a wide
variety of features and functions – both internal and external
– to facilitate the safe and ecient operation of a data center.
These features and functions include:
>Design to replace existing swing handle latches with a
simple and reversible installation procedure.
>Mounting compatible with industry standard 25mm wide
openings for swing handle latches.
>Housing sits completely outside the cabinet door.
>Mechanism interfaces with existing designs for multi-
point latching and split French doors, and provides same
level of physical security.
>Communicates device status and connected sensor
status (depending on protocol).
>Can be powered via up to 100m cable length via twisted-
pair cabling (Cat5 or Cat6).
>Connects into RJ45 based twisted pair cabling
infrastructure with standard patch cables.
>RS-485 serial communication allows remote unlocking,
opening, and feedback on status.
>Multiple sensors allow reporting on true security status of
an enclosure, not just whether latch is open or closed.
>Status LED indicator visible from end of cabinet row.
>Integrated manual key override.
>Auxiliary sensor devices (temperature, humidity, liquid)
available.
Many of these capabilities can be programmed to provide
specic, customised behavior to suit an extensive range of
applications.
1.3. Contents of the Standard Package
The TZ SlideHandle comes complete with the following items
in the box:
>1 x TZ SlideHandle 4200 Series
>1 x Magnetic reed door sensor
>1 x Installation yer
>1 x Accessory kit (contains various mounting hardware)
The specic model of TZ SlideHandle and the contents of the
accessory kit depend on what cabinet the TZ SlideHandle
is to be used with. A list containing the exact part number,
cabinet model, and additional mounting hardware can be
found at: ixp.tz.net/sites/default/les/cabinet_compatiblity.
pdf or contact TZ to obtain the latest TZ SlideHandle cabinet
compatibility matrix.
In order to allow for dierent keying possibilities, the key and
lock cylinder for the override are not included in the standard
package, and they are not installed until on-site installation of
the system. There are ve dierent possible keys for the TZ
SlideHandle, although more can be accommodated. Contact
TZ for more information on ordering.

page 3 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
1.6. TZ SlideHandle Model and Cabinet Model
In order to retrot the large number of cabinet manufacturers
and cabinet models, there are a few dierent models of TZ
SlideHandle device, and an additional mounting kit (beyond
what is included in the box) may be necessary. Please refer
to (http://ixp.tz.net/sites/default/les/cabinet_compatiblity.
pdf) or contact TZ to obtain the latest TZ SlideHandle cabinet
compatibility matrix.
1.5. System Example
The TZ SlideHandle is part of a technology-driven access
control solution and is typically part of a larger networked
system of devices like that shown in Figure 2.
The system is an example of a simple conguration that can
be used to give remote-controlled access to a small set of
cabinets through the use of a Radio-Frequency Identication
(RFID) cards or through the web. Devices are networked
through standard Cat 5 network cabling, and the complete
system is controlled by an embedded web enabled TZ
Centurion Bridge.
Every application is dierent, and TZ solutions oer the
exibility to accommodate multiple situations.
Structured Cable
TZ Centurion™
Bridge
TZ SlideHandle™
TZ Centurion™
Weigand Translator
Third Party
Card Reader
TZ Centurion™Server
Network
Figure 2: TZ Centurion™System

page 4 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
2. Operation / Behavior
2.1. Electrical Connections and Features
The TZ SlideHandle has several features and electrical
connections outlined in Figure 3.
Figure 3: Features and electrical connections of the TZ SlideHandle™

page 5 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF

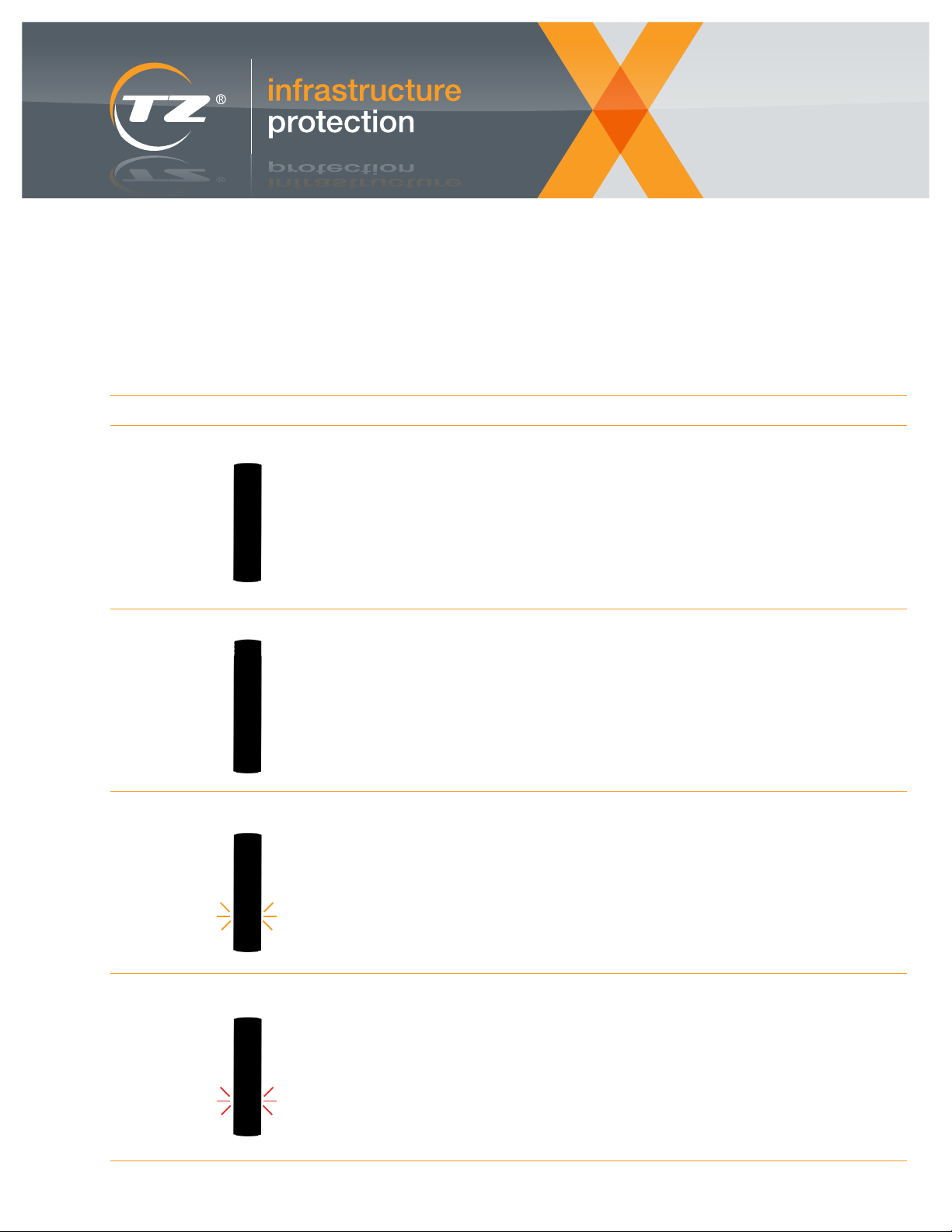

2.2. LED Display
The LED display on the front face of the TZ SlideHandle indicates the state of the device and the secureness of the enclosure.
The default colors are given in Table 1. This behavior is programmable in the TZ Centurion system, but not the TZ Praetorian
system. Consult the appropriate manual for more details.
TZ SlideHandle™Device Status Door State Description
Solid Red
SlideHandle is closed and locked
Door is closed
Solid Green
TZ SlideHandle is unlocked via any authorized access method through the access controller.
Door may be open or shut
Flashing Orange
Door is closed.
The TZ SlideHandle is ready to be opened either by pressing the button on the TZ Praetorian
Trigger, or by pressing the top of the TZ SlideHandle
Flashing Red
SlideHandle is locked with the door open
or
The key override has been used to unlock the TZ SlideHandle without electronically
authorizing the unit
Table 1: Explanation and behavior of icons and TZ SlideHandle™in the Device Status tab

page 6 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
2.3. Opening / Closing
To open the TZ SlideHandle, the controller (typically a TZ Centurion Bridge or a TZ Praetorian Junction) must send the proper
authorisation command, which is typically done when the user swipes an RFID card or presents other similar credentials.
Once properly authorised, the LED display will ash orange. Simply press lightly on the top of the TZ SlideHandle as shown in
Figure 4.
The top portion will pop up, the LED indicator will change from ashing orange to solid green, and the enclosure door(s) will be
unlocked. The enclosure can now be opened by pulling on the TZ SlideHandle as though it where a doorknob.
To secure the enclosure again, close the enclosure door(s) and press the top portion of the TZ SlideHandle down as shown in
Figure 5. The top should click securely, and the solid green LED indicator should turn solid red.
Figure 5: User closes and secures the cabinet by shutting the door and pressing the top down.
Figure 4: User opens the TZ SlideHandle™by pressing on top.

page 7 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
2.4. Use of Key
To open via the key override, simply insert the key into lock
cylinder in the base of TZ SlideHandle (as shown by key icon)
and rotate it approximately 1/8 turn until the TZ SlideHandle
opens. The top will pop open and the LED indicator will
ash red. Return key to original position and remove. The TZ
SlideHandle will not lock, and the key cannot be removed
until key is returned to original position.
3. Installation
Because the TZ SlideHandle is designed to retrot a large
number of cabinet manufacturers and cabinet models, the
installation procedures vary. Installation yers are included
with each model, and are available on the website
(http://ixp.tz.net/sites/default/les/cabinet_compatiblity.pdf)
or contact TZ to obtain the latest TZ SlideHandle cabinet
compatibility matrix.

page 8 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Appendix 1: TZ SlideHandle Reference Data
Specications Overview
Specications subject to change to suit particular application requirements.
Physical And Mountings
>Dims (mm): 182.3mm tall (207.3mm when open), 43.5mm
wide, 35.9mm out from door, 21.2mm in from door.
>Dims (inches): 7.17” tall (8.16” when open), 1.71” wide,
1.41” out from door, 0.83” in from door.
>Mounting:
via 2 x M4 (#8) screws and clamp piece.
Mounts to doors with standard 25mm x 150mm (5.9” x
1”) or 25mm x 125mm (4.9” x 1”) opening (with or without
center of cutout blanked).
5mm max door panel thickness.
>Grip dimensions of 3mm to 24mm can be accommodated
with standard spacers and locking cams. Contact TZ for
specic application requirements.
Environmental and Performance
>Operating temperature: -15°C to +55°C (5°F to 131°F).
>Survival temperature: -55°C to +85°C (-67°F to +185°F).
>Humidity (operating): 95% RH at 50°C (122°F).
>Operating cycles: MTTF > 125,000.
>Ingress protection: IP 51.
Electrical
>Supply voltage: 9.0 – 32.0 VDC.
>Power consumption (operating): < 3.5 W average.
>Power consumption (standby): < 400 mW.
>RJ-45 pin-out: 1: +Coms | 2: -Coms | 3: AUX-OUT1 |
4: AUX-IN1, 5: Gnd | 6: AUX-OUT2, 7: AUX-IN2 | 8: +V.
>RS485 coms for communication with TZ control systems;
closing contact operation for connection to dry contact
systems.
Standards Compliance
>FCC Part 15, CE, UL (c-us) per IEC/UL/CSA 60950-1.
>RoHS compliant
>One year limited warranty.
Dimensions (mm)

page 9 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Appendix 2: TZ SlideHandle Electrical Specications
The following is a description of the electrical specications of the 4200 Series TZ SlideHandle, including voltage, power supply
and interfacing.
Electrical Application Description
Absolute maximum supply voltage: 12V/24V nominal: 32.0 VDC
Operating supply voltage range: 12v nominal: 9.0 – 32.0 VDC
Power supply conditioning: Must be operated from a well-conditioned, regulated power supply free of noise
and transients.
Reverse Polarity Supply Protection: Not protected.
Power Supply Current Limiting: No internal supply current limiting is provided. Devices should be connected to
their power supply via a current limiting protection device, such as a re-settable
fuse of appropriate rating.
Power Supply Filtering: No power supply ltering is included internal to the device. High level, fast
rise-time pulse width modulation artifacts with a fundamental frequency of
nominally 100 kHz will be superimposed on the power supply during operation.
External power supply ltering will normally be required to meet electromagnetic
compatibility and other power feed system requirements.
Electromagnetic Compatibility: No conformance with EMC requirements is guaranteed without the use of
external power conditioning and ltering provisions.
Auxiliary Sensing Interface: Auxiliary A/D sensing interface providing 8 bit resolution for signals in the range
0V to full scale of 3.3V. Input is protected from damage by voltages in the range
+/- 20 VDC.
RS-485 Interface: Depending on device conguration, may be used for RS-485 network control
(using TZ proprietary protocol). RS-485 port lines are not protected against
over-voltage, transients or static, beyond the inherent capability of the MAX3471
interface chip used within the device. Refer to the device data sheet for details.

page 10 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Appendix 3: TZ SlideHandle™Models and Cutouts

page 11 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Manufacturer Cabinet Model SlideHandle™
ModelNumber
SlideHandle™
Part Number
MountingKit
APC NetShelter SX, Single Door, Left Hinge
NetShelter SX, Single Door, Right Hinge
Net Shelter SX, Split Door
VX Seismic, Single or Split Door
4272CF-R
4272CF
4272CF
4272CF
112479.08
112479.04
112479.04
112479.04
Not Required
Not Required
Not Required
Not Required
Belden XSF, XMF, XME, XMER, with Swing Handle, Right Hinge
XSF, XMF, XME, XMER, with Swing Handle, Left Hinge
4272CF
4272CF
112479.04
112479.08
Not Required
Not Required
Chatsworth -
CPI
TeraFrame (F-series & N-series)
SteelFrame (T-series), Single or Split Door
SteelFrame (Gen 1) with Cam Lock, Single Door
MegaFrame, Single Door
GlobalFrame, Single Door
GlobalFrame, Split Door
CubeIT, Single Door
4272CF
4272CF
4272CF
4272CF
4272CF
4272CF
4272CF
112479.04
112479.04
112479.04
112479.04
112479.04
112479.04
112479.04
Not Required
Not Required
112526.01
112526.01
Not Required
Not Required
112745.01
Dell 4210 4272CF 112479.04 112525.01
EMC EMC Symmetrix with Compression Latch, Right or Left Hinge
EMC Vmax, Single Front Door
EMC Vmax, Single Rear Door
EMC Vblock Single Front Door
EMC Vblock Double Rear Door
4272CF
4272CF
4272CF
4272CF-R
4272CF
112479.04
112479.04
112479.04
112479.08
112479.04
112834.01
112505.01
112505.01
Not Required
Not Required
Gesab Eglon V2 4272CF 112479.04 112723.01
Great Lakes Lake Eect
E-Series
ES-Series
4272CF
4272CF
4272CF
112479.04
112479.04
112479.04
Not Required
Not Required
Not Required
Hitachi AMS 2500 H5 with Slam Lock
VSP with Single Point Lock
SAN Frames using Hex Key Latch system - Left Hinge
SAN Frames using Hex Key Latch system - Right Hinge
4272CF
4272CF
4272CF-R
4272CF
112479.04
112479.04
112479.08
112479.04
112767.01
112766.01
112886.01
112886.01
Homan Net Series, Single Door, Left Hinge
Net Series, Single Door, Right Hinge
Net Series, Split Door
4272CF-R
4272CF
4272CF
112479.08
112479.04
112479.04
112505.01
112505.01
112505.01
TZ SlideHandle is compatible with the following cabinets:
Appendix 4: Compatibility Chart

page 12 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Manufacturer Cabinet Model SlideHandle™
ModelNumber
SlideHandle™
Part Number
MountingKit
HP 10000 Series G2, Single Door, Left Hinge
10000 Series G2, Split Door
10000 Series G1, Single Door, Left Hinge
10000 Series G1, Split Door
4271CF-R
4272CF-R
4271CF-R
4272CF-R
112479.07
112479.08
112479.07
112479.08
112484.01
112535.01
112640.01
112641.01
IBM Netbay with Compression Latch
Netbay with Compression Latch
T42 Single Door , Right Hinge
T42 Split Door , Left Hinge
Cabinets using Southco Compression latch, Right Hinge
Cabinets using Southco Compression latch, Left Hinge
DS8300 Series Front Door
DS8300 Series Rear Door
4272CF
4272CF
4272CF
4272CFR
4272CF
4272CFR
4272CF
4272CFR
112479.04
112479.04
112479.04
112479.08
112479.08
112479.08
112479.04
112479.08
112765.01
112765.01
112765.01
112765.01
112765.01
112765.01
112765.01
112765.01
IMS Titan DT, Single Door, Right Hinge
Titan DT, Single Door, Left Hinge
Titan DT, Split Door with Gear Box
4272CF
4272CF-R
4272CF
112479.04
112479.08
112479.04
Not Required
Not Required
112733.01
Knurr Miracel, Single Door, Multi-Point Latch 4272CF 112479.04 112502.01
Ortronics Mighty Mo with Swing Handle, Right Hinge
Mighty Mo with Swing Handle, Left Hinge
4272CF
4272CF-R
112479.04
112479.08
112505.01
112505.01
Panduit Net Access (CS1, CS2, CN1, CN2, CN4, CN5), Single Door, Left Hinge
Net Access (CS1, CS2, CN1, CN2, CN4, CN5), Single Door, Right Hinge
Net Access (CS1, CS2, CN1, CN2, CN4, CN5), Split Door
Net Access, Dual Hinging Door using Both Hinges, Left Hinge
Net Access, Dual Hinging Door using Both Hinges, Right Hinge
Net Access, Dual Hinging Door using One Hinge Only, Left Hinge
Net Access, Dual Hinging Door using One Hinge Only, Right Hinge
Net-Serv, Single Door, Left Hinge
Net-Serv, Single Door, Right Hinge
Net-Serv, Split Door
4272CF-R
4272CF
4272CF
4272CF-R
4272CF
4272CF-R
4272CF
4272CF-R
4272CF
4272CF
112479.08
112479.04
112479.04
112479.08
112479.04
112479.08
112479.04
112479.08
112479.04
112479.04
Not Required
Not Required
Not Required
112642.01⁴
112642.01⁴
112642.02
112642.02
Not Required
Not Required
Not Required
RF Mote and
Cable Talk
RFM Series Cabinets with Paddle Latch, Left Hinge
RFM and CableTalk Cabinets with Paddle Latch, Right Hinge
RFM and CableTalk Cabinets with Standard Swinghandle, Right Hinge
RFM and CableTalk Cabinets with Standard Swinghandle, Left Hinge
4272CF-R
4272CF
4272CF-R
4272CF-R
112479.08
112479.04
112479.04
112479.08
112665.01
112665.01
Not Required
Not Required
TZ SlideHandle is compatible with the following cabinets:
Appendix 4: Compatibility Chart

page 13 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
Manufacturer Cabinet Model SlideHandle™
ModelNumber
SlideHandle™
Part Number
MountingKit
Rittal TS-8, Single or Split Door, Comfort Handle, Right Hinge,
Solid or Diamond Mesh Door
TS-8, Single or Split Door, Comfort Handle, Left Hinge,
Solid or Diamond Mesh Door
TS-8, Single or Split Door, Comfort Handle, Right Hinge,
Solid or Hex Mesh Door
TS-8, Single or Split Door, Comfort Handle, Left Hinge,
Solid or Hex Mesh Door
TS-8, Split Door, Slam Lock
4271CF
4271CF-R
4271CF
4271CF-R
4272CF
112479.03
112479.07
112479.03
112479.07
112479.04
112482.01
112482.01
112821.01
112821.01
112525.01
Wrightline Paramount, Single Door, Left Hinge
Paramount, Split Door
Vantage S2, Single Door, Left Hinge
Vantage S2, Split Door
4272CF
4272CF-R
4272CF-R
4272CF-R
112479.04
112479.08
112479.08
112479.08
112466.01
112466.01
112466.01
112466.01
TZ SlideHandle is compatible with the following cabinets:
Note:
1. TZ SlideHandle is compatible with the majority of server cabinets and does not require any special mounting kit. If a mounting kit is required, it is listed above.
2. Mounting kits are designed for standard cabinet congurations as specied by the cabinet manufacturer.
3. In the event that you cannot nd your cabinet model in the table, please contact TZ for further information. This table is updated frequently.
4. Only 1 mounting kit required for each dual hinging door.
Appendix 4: Compatibility Chart

page 14 of 13
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
TZ SlideHandle™
TZ SlideHandle™ Models: 4267CF, 4271CF, 4272CF
A TZ Business | ixp.tz.net | © 2015
TZ®, TZ Centurion™, TZ Praetorian™, TZ SlideHandle™, TZ SwingHandle™, TZ Radial™and TZ SMArt™are trademarks of TZ Limited. Patents Pending.
ixp.tz.net
