Introduction 1

u-line.com
USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and
follow these general precautions with those listed
throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
DANGER
This unit contains R600a (Isobutane) which is a
flammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specifications” section included in the
User Guide. Do not damage the refrigerant
circuit.
WARNING
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
Safety and Warning 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE
u-line.com
Disposal and Recycling
DANGER
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take off
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
Disposal and Recycling 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications
only and is not to be used in installations that are
open/ exposed to natural elements.
This unit is designed to operate between 50°F (10°C)
and 100°F (38°C). Higher ambient temperatures may
reduce the unit’s ability to reach low temperatures
and/or reduce ice production on applicable models.
For best performance, keep the unit out of direct
sunlight and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside
surfaces. This is considered normal. The condensation
will evaporate when the humidity drops.
CAUTION
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
Environmental Requirements 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Electrical
WARNING
SHOCK HAZARD —Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or
circuit breaker is recommended. A GFCI (ground fault
circuit interrupter) is usually not required for fixed
location appliances and is not recommended for your
unit because it could be prone to nuisance tripping.
However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended
receptacle location.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Electrical 1
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed for either
freestanding or built-in installation. When built-in, your
unit does not require additional air space for top,
sides, or rear. However, the front grille must NOT be
obstructed, and clearance is required for an electrical
connection in the rear.
CAUTION
Unit can NOT be installed behind a closed cabinet
door.

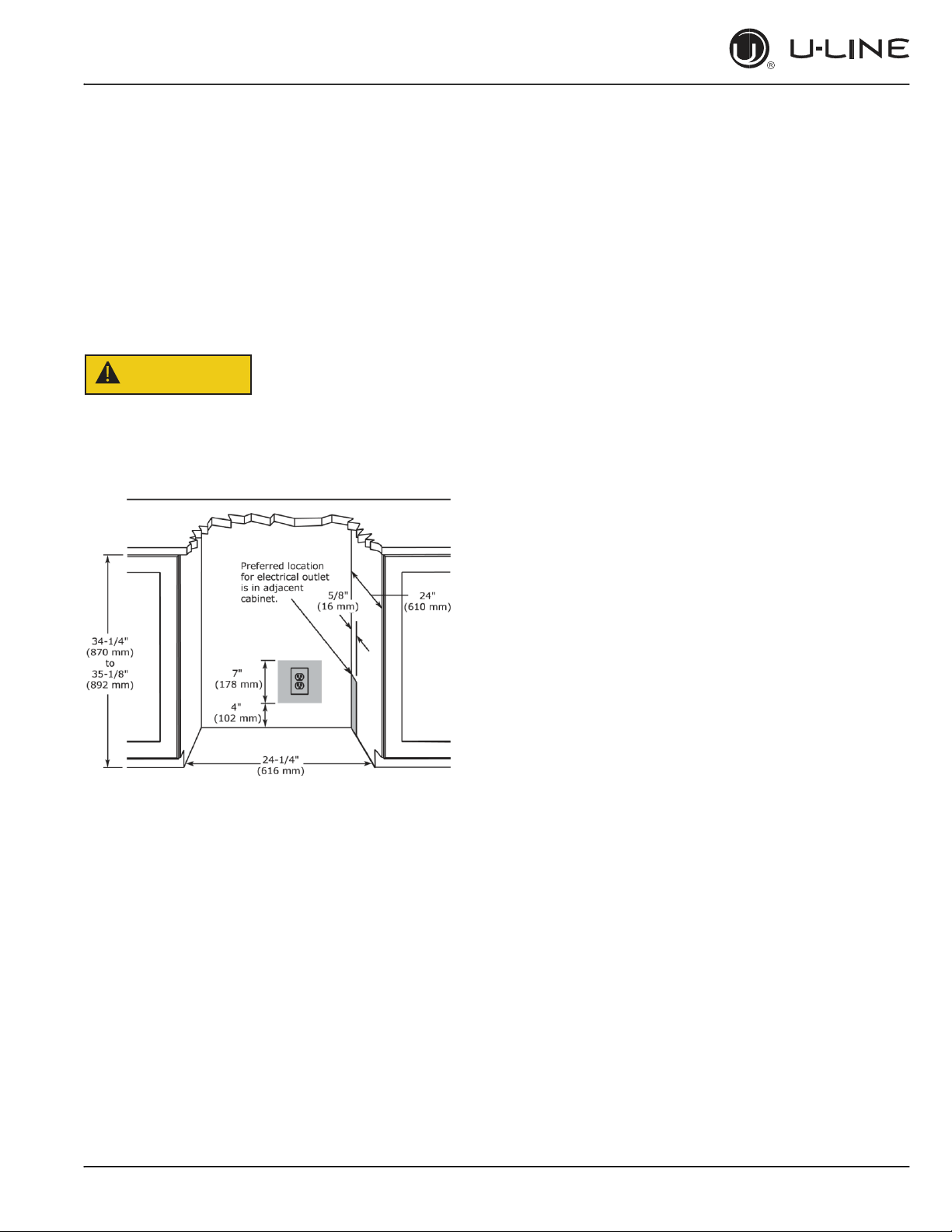

CUTOUT DIMENSIONS
Cutout Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com

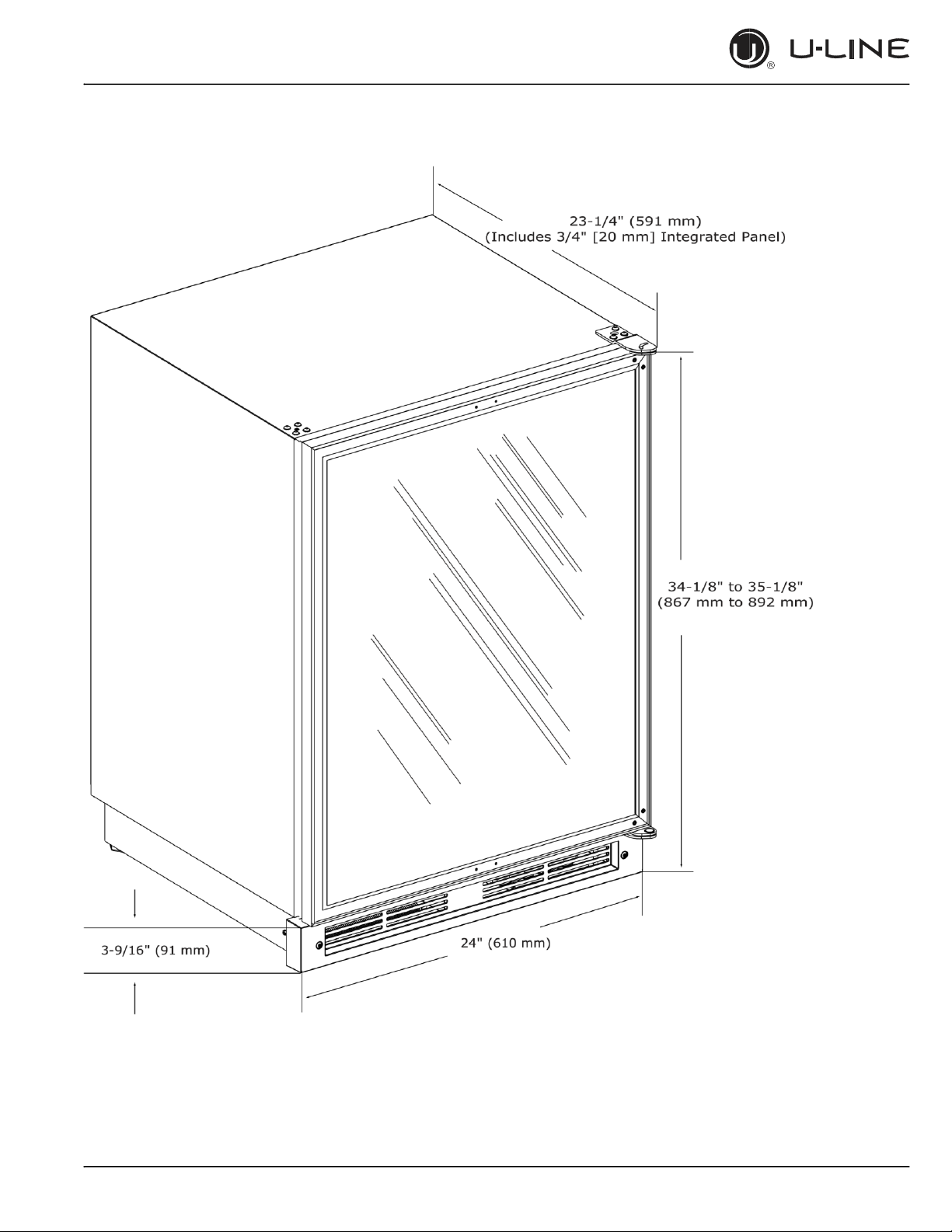

Product Dimensions

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Product Dimensions 1
Side-by-Side Installation
Two units may be installed side-by-side.
Cutout width for a side-by-side installation is the
cutout dimension of a single unit times two.
No trim kit is required. However, 1/4" (6 mm) of
space needs to be maintained between the units to
ensure unobstructed door swing.
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Side-by-Side Installation with Bracket

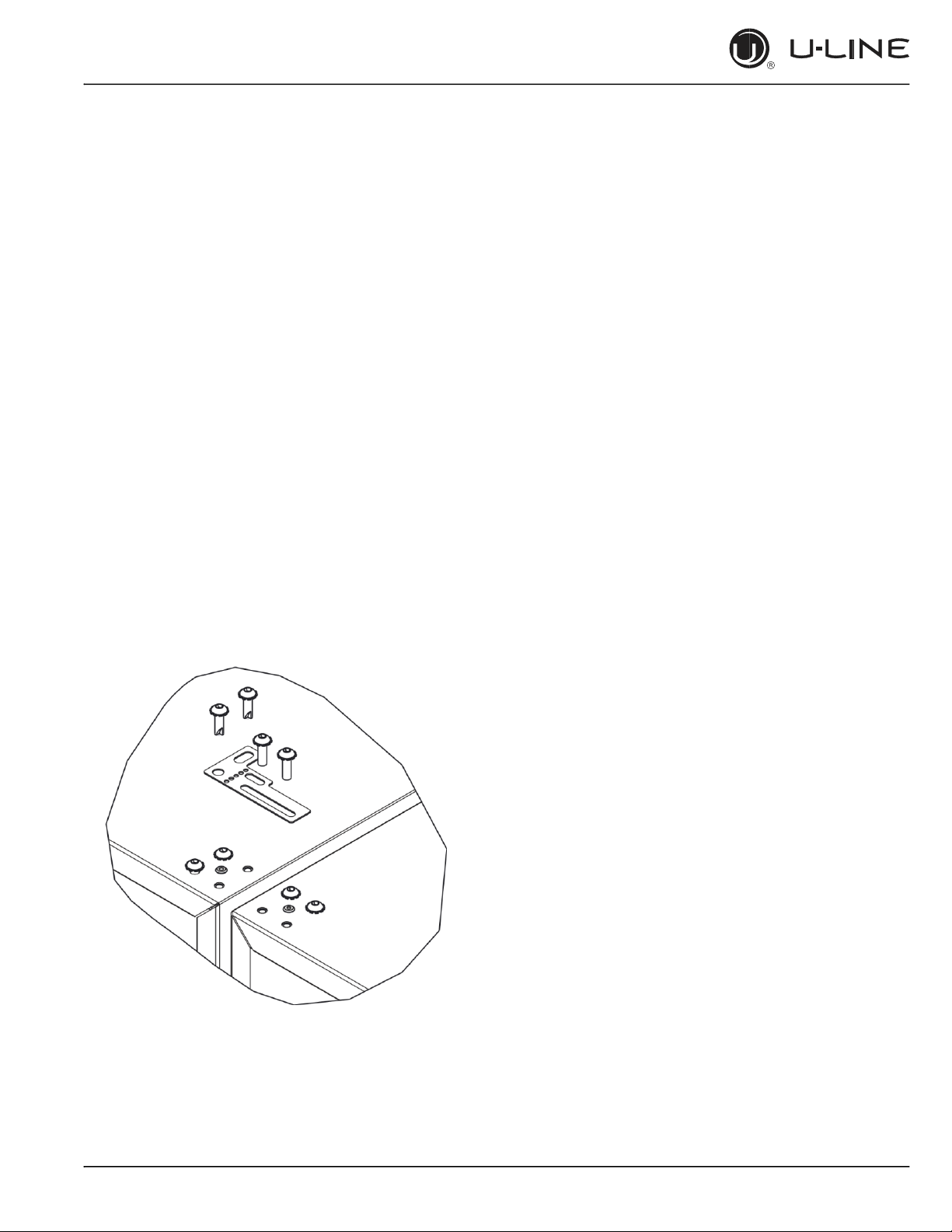

1. Slide both units out so screws on top of units are
easily accessible.
2. Remove screws as shown below.
3. Place bracket over holes and attach to unit with
two screws removed in step 2 using a T-25 Torx
driver.
Tighten screws fully.
4. Gently push units into position. Be careful not to
entangle the electrical cord or water line, if
applicable.
5. Re-check the leveling, from front to back and side
to side. Make any necessary adjustments. The
unit’s top surface should be approximately 1/8" (3
mm) below the countertop.
Side-by-Side Installation 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Anti-Tip Bracket

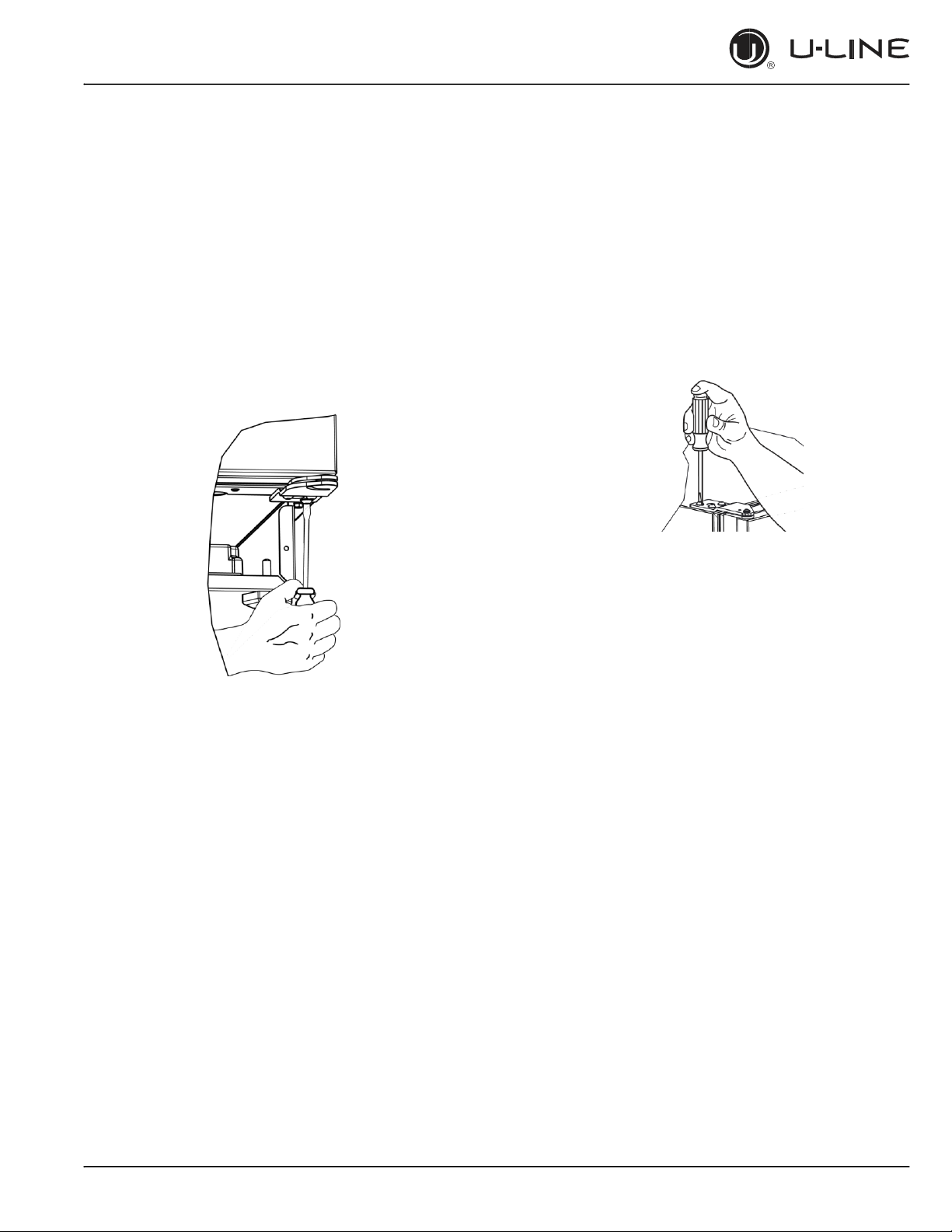

1. Slide unit out so screws on top of unit are easily
accessible.
2. Remove the two screws from the opposite side of
the hinge assembly using a T-25 Torx driver (see
below).
NOTE: 1224 models shown with four screws. 1215
models only have three screws, but same screws are
used in both applications.
3. Place bracket (part #14154) over holes and attach
to unit with two screws removed in step 2 using a
T-25 Torx driver. Tighten screws fully.
4. Gently push unit into position. Be careful not to
entangle the electrical cord or water line, if
applicable.
5. Check to be sure the unit is level from front to
back and side to side. Make any necessary
adjustments. The unit’s top surface should be
approximately 1/8" (3 mm) below the countertop.
6. Secure bracket into adjoining surface.
FLOOR MOUNTED ANTI-TIP INSTALLATION
1. Locate two anti-tip brackets included in the kit.
2. Place the unit into the area where it will be
installed. Check the door, sides, and top for a
proper fit. Also test to make sure the door opens
and closes freely.
3. Remove grille and place a mark on the floor at the
front of the unit. Also place a mark on the floor in
the center of the unit.
Anti-Tip Bracket 1
4. Remove the unit. Using a square, extend center
line “B” (see chart below). This line serves as the
back edge for the anti-tip brackets. From the
center line, measure “A” to the left and right. This
line is the outer edge of each bracket.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
1024/1224 WC
1215 WC
A
11-1/16" (281
mm)
6-9/16" (167 mm)
B
20-1/4" (514 mm)
20-1/4" (514 mm)
5. Place the anti-tip brackets on the floor against the
line drawn for the outer edge. Mark spots for the
screw holes.
1024/1224 WC
1215 WC
A
11-1/16" (281
mm)
6-9/16" (167 mm)
B
20-1/4" (514 mm)
20-1/4" (514 mm)
6. Use a 1/8" drill to make two starter holes and
fasten the anti-tip brackets to the floor using the
screws provided.
7. Place the unit back into position, making sure the
feet engage the anti-tip brackets properly. Check
the alignment of the lines made on the floor in
step 3 with the position of the front feet to ensure
proper positioning.
Anti-Tip Bracket 2
General Installation
LEVELING INFORMATION
1. Use a level to
confirm the unit is
level. Level should
be placed along top
edge and side edge
as shown.
1
2. If the unit is not level, adjust the legs on the
corners of the unit as necessary.
C
L
Back wall
Back of unit
Front of unit
Surrounding
area (Top view)
C
L
Surrounding
area (Top view)
Drill holes and
mount anti-tip
brackets to floor
Back wall
Front
of
unit
Back
of
unit

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
3. Confirm the unit is level after each adjustment and
repeat the previous steps until the unit is level.
INSTALLATION TIP
If the room floor is higher than the floor in the cutout
opening, adjust the rear legs to achieve a total unit
rear height of 1/8" (3 mm) less than the opening’s
rear height. Shorten the unit height in the front by
adjusting the front legs. This allows the unit to be
gently tipped into the opening. Readjust the front legs
to level the unit after it is correctly positioned in the
opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not to
entangle the cord.
3. Re-check the leveling, from front to back and side
to side. Make any necessary adjustments. The
unit’s top surface should be approximately 1/8" (3
mm) below the countertop.
4. Remove the interior packing material and wipe out
the inside of the unit with a clean, water-
dampened cloth.
General Installation 1
Integrated Frame
NOTICE
Due to differences in surrounding cabinetry the
panel may not perfectly align with door. The
procedure below is designed to provide a
finished integrated panel that seamlessly
integrates with surrounding cabinetry.
The door panel must not weigh more than 20 lbs
(10 kg).
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardware is installed.
When applying an integrated panel to a unit,
ensure that both sides are finished in order to
prevent warping. In some frame installations,
the panel may be visible through the glass while
the door is open.
A full integrated door panel completely covers the door
frame and provides a built-in appearance.
Integrated Frame Preparation
1. Cut the panels to the dimensions listed in the
diagram below.
2. Optional: Stain or Finish panel to desired stain or
color. Be sure to closely follow the instructions
provided by the manufacturer.
3. Optional: Install handles and hardware.
Integrated Frame Dimensions
Turn to Adjust

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com

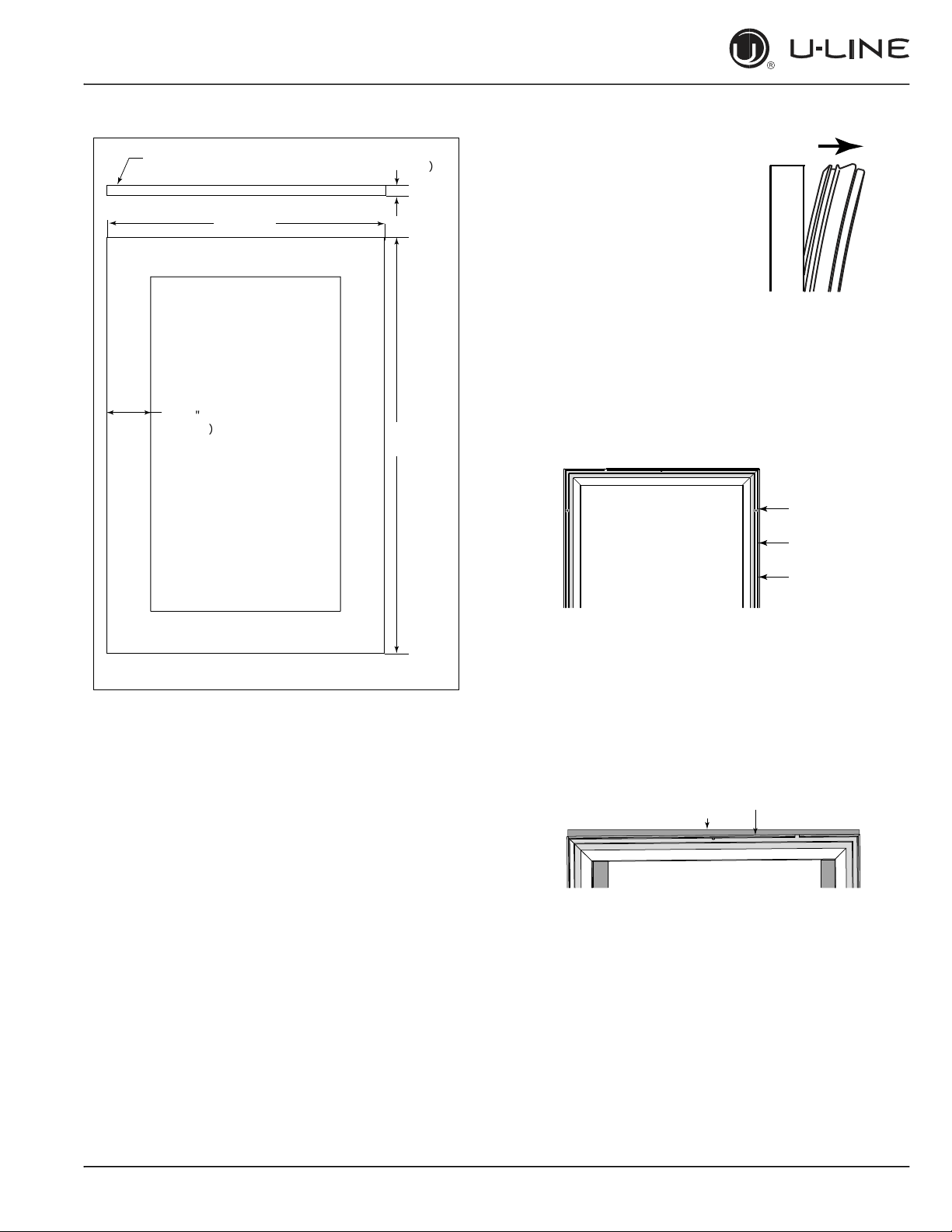

Integrated Panel Dimensions 1
Integrated Panel Installation
1. Fully open door/drawer.
2. Starting at corner, pull
gasket away from door/
drawer.
3. Continue to pull gasket free
from gasket channel.
4. Upon removal, lay gasket down on a flat surface.
5. The panel should be aligned with the outside edge
(opposite the hinge) and high enough to align with
the highest point in the door/drawer.
Align Top Of Panel With Highest Point Of Door/Drawer
NOTICE
Due to differences in floor construction or
surrounding cabinetry, the panel may not sit
flush with the top of the door/drawer.
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY FRAME FLAT AND WITHOUT
INTERFERENCE
"
2-3/4
)
(70
mm
Integrated Frame
/4"
3
)
mm
(20
23-3/4
"
(603
mm
)
30-1/4
"
(768
mm
)
Align Panel
Against
Door/Drawer
Edge First
Door
Panel

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
6. Secure integrated panel to
door/drawer using
clamps. A robust tape
may also be used. U-Line
recommends the use of
bar clamps to Door/Drawer
secure the panel to
the door/drawer. If Wood
using tape, be Panel
certain the tape will not
damage panel finish upon
removal.
7. Using a 7/64" (3 mm) drill
bit, drill 6 pilot holes into
the wood panel 1/2" (12
mm) deep using the holes
in the door/drawer frame as a guide.
NOTICE
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardwood is installed.
8. Locate 6 of the #6x 1-1/4" (32 mm) screws
provided with your unit.
9. Using a Phillips screwdriver, place one screw into
each of the 6 pilot holes and screw down. Do not
overtighten screws.
10.Be sure the screws force their way past the opening
on the gasket channel and sit flush against the
bottom of the channel.
Integrated Panel Integrated Panel
Integrated Panel Installation 1
11.Remove clamps from door/drawer.
NOTICE
If panel requires additional adjustment after
removing clamps, slightly loosen each screw and
adjust panel as necessary. Tighten screws upon
completion.
12.Starting at the corners, re-install the gasket into the
gasket channel in the frame. Make sure the gasket is
fully seated. This may take some force.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Integrated Panel Installation 2
Grille - Plinth Installation
REMOVING AND INSTALLING GRILLE
WARNING
Disconnect electric power to the unit before
removing the grille.
When using the unit, the grille (plinth strip/base
fascia) must be installed.
WARNING
DO NOT touch the condenser fins. The condenser
fins are SHARP and can be easily damaged.
Removing the grille
1. Disconnect power to the unit.
2. Loosen the two screws (1).
3. Remove grille (2) from unit.
Installing the grille
1. Align cabinet and grille holes and secure, but do not
over tighten grille screws (1).
2. Reconnect power to the unit.
Grille - Plinth Installation 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com

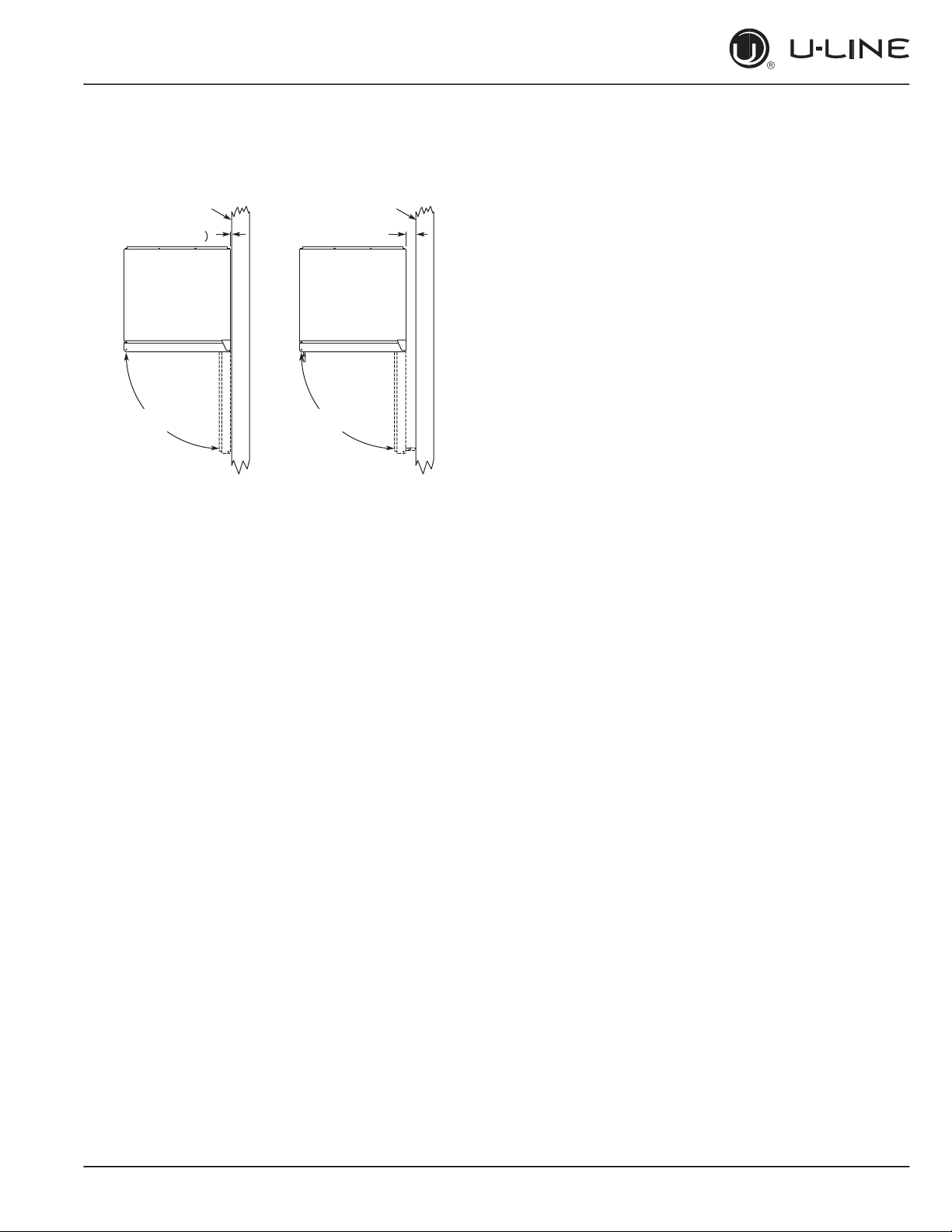

Door Swing
Wall Wall
Units have a zero clearance for the door to open 90°,
when installed adjacent to cabinets.
Stainless Steel and black and white models require 2-
1/8" (54 mm) door clearance to accommodate the
handle if installed next to a wall.
Integrated models require 1/4" (6 mm) clearance if
installed next to a wall. Allow for additional space for
any knobs or pulls installed on the integrated
panel/frame.
90
Door Swing
90
Door Swing
2-1/8
" Min.
(54
mm
)
1
/4" Min.
)
mm
(6

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Door Swing 1
Door Stop
Your U-Line unit was shipped to you with the optional
90° pin(s). (Models that are 15" wide include 1 pin.
Models that are 24" wide include 2 pins.) The unit’s
door will open freely without a fixed opening angle
limitation. If you would like the door stop at 90° follow
these instructions.
NOTICE
The pin is designed to stop the door at 90° under
normal operating conditions. It is not designed
for excessive force. Do not use the door to move
the unit in/out of the cutout during installation.
If your unit is already undercounter, it might
need to be moved out/forward to access the
hinge.
1. Locate the threaded pin.
2. With the door between 0° (closed) and 90° and
using a 3/32" hex driver, install the threaded pin
through the hinge.
3. On 24" models, a second pin is included for the
bottom hinge. Repeat steps above for second
hinge.
NOTE: Threaded pin will be inserted from the bottom.
4. Carefully slide your unit back in place.
NOTICE
The pin can be removed to return the door swing
back to its original state by unscrewing the
threaded pin.
Door Stop 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Adjustments 1
USER GUIDE
u-line.com
Door Adjustments
DOOR ALIGNMENT AND ADJUSTMENT
Align and adjust the door if it is not level or is not
sealing properly. If the door is not sealed, the unit may
not cool properly, or excessive frost may form in the
interior.
NOTICE
Properly aligned, the door’s gasket should be
firmly in contact with the cabinet all the way
around the door (no gaps). Carefully examine the
door’s gasket to ensure that it is firmly in contact
with the cabinet. Also make sure the door gasket
is not pinched on the hinge side of the door.
TO ALIGN AND ADJUST THE DOOR Remove
grille:
Remove the grille (see GRILLE-PLINTH INSTALLATION
section of this guide).
1. Loosen (do not remove) top and bottom hinge
screws.
2. Align door squarely with cabinet.
3. Make sure gasket is firmly in contact with cabinet all
the way around the door (no gaps).
4. Tighten bottom hinge screws.
5. Tighten top hinge screws.
REVERSING THE DOOR
Location of the unit may make it desirable to mount
the door on the opposite side of the cabinet.
The hinge hardware will be removed and installed on
the opposite side of the cabinet.
TO REVERSE THE DOOR
Remove grille:
Remove the grille (see GRILLE-PLINTH
INSTALLATION section of this guide).
Remove top hinge and door:
1. Hold door to keep it from falling.
2. Remove top hinge from cabinet by removing
three screws. Set aside and save for possible
future use.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Door Adjustments 2
USER GUIDE
u-line.com
3. Remove door by tilting forward and lifting door off
bottom hinge. Retain shoulder washers; they will be
reused.
4. Remove four screws from hinge holes on the
opposite side. Reinstall into holes where the hinge
was removed. Take care not to scratch cabinet.
Remove and reinstall bottom hinge:
1. Remove bottom hinge from cabinet by removing
three screws.
2. Remove corresponding screws on opposite side of
cabinet.
3. Flip hinge plate over and reinstall on opposite side.
Prepare door for reinstallation:
1. Remove gasket. This will reveal mounting holes for
the magnet assembly
2. Remove magnet assembly from door with T-10
TORX driver. Be sure to only remove the two screws
holding the assembly to the door. Reinstall on the
opposite end of the door
3. Rotate gasket 180°, aligning notch with magnet
assembly and pressing firmly into the gasket
channel starting at the corners.
4. Rotate door 180° to reverse.
Install top hinge and door:
1. Use alternate hinge supplied with unit and
reinstall the screws. Do not tighten..
2. Lift the door on to the bottom hinge.
3. Align flat edge of the hinge with the outer edge
of the unit.
4. Tighten three screws.
Align and adjust the door:
Align and adjust the door (see DOOR ALIGNMENT
AND ADJUSTMENT).
Install grille:
Install the grille.
SHIFTING WINE RACK SPACERS (OPTIONAL)
NOTICE
Only perform these steps if you require wine
rack clearance with a 90° door opening. Doors
which are allowed to open past 90° do not
require this step.
